Brand	Alpina
Model	SF5014
Product type	Oscillating pedestal fan
Dimensions (approx.)	Adjustable height, grille diameter approx. 40 cm
Weight (approx.)	3.5 kg
Power supply	220-240 V ~ 50 Hz
Power consumption	50 W
Number of speeds	3 (low, medium, high)
Timer	Yes, up to 120 minutes
Oscillation	Rotating grille with adjustable louvers
Main material	ABS plastic, metal grille
Usage	Household use only
Warranty	2 years against material and manufacturing defects
Cleaning	Unplug, wipe with a damp cloth, do not immerse
Safety	Protective grille, automatic shut-off in case of tipping (not specified)
Included accessories	User manual, power cable
Repairability	Spare parts available from the manufacturer or authorized service

Frequently Asked Questions - SF5014 ALPINA

How to assemble the Alpina SF5014 fan?

The fan comes pre-assembled. Simply unpack and plug in. If the base is separate, attach it to the central tube according to the instructions in the manual.

How to adjust the fan speed?

Turn the control knob to position 1 (low), 2 (medium), or 3 (high). To turn off, return to 0.

How to use the timer?

Turn the timer knob clockwise up to 120 minutes maximum. The fan will automatically turn off at the end of the set time. You can turn it off manually by turning the knob counterclockwise to the Off position.

How to make the fan oscillate?

The front grille rotates automatically when the fan is running. For a fixed direction, turn the control knob to Off, then manually orient the grille to the desired angle.

How to clean the fan?

Always unplug the appliance before cleaning. Remove the safety grille, unscrew the lock nut, and remove the blade. Clean with a slightly damp sponge. Never immerse the fan in water.

What to do if the fan does not turn on?

Check that the power outlet works and that the cord is not damaged. Make sure the speed knob is in a position other than 0. If the problem persists, contact customer service.

The fan makes an abnormal noise, what should I do?

Cut the power and check that the blades are not obstructed or that the grille is properly attached. If the noise continues, it may be a motor defect: contact customer service under warranty.

What is the warranty of the Alpina SF5014 fan?

The product comes with a 2-year warranty against material and manufacturing defects from the date of purchase. Keep the receipt as proof.

Can I use an extension cord with this fan?

It is not recommended to use an extension cord without consulting an electrician. If necessary, make sure it is suitable for the appliance's power (50 W).

Where can I find spare parts for this fan?

Contact ALPINA customer service or an authorized dealer. You can also check the manual for the manufacturer's contact details.

USER MANUAL SF5014 ALPINA

SF-5014

EN: For your own safety read these instructions carefully before using the appliances.

Thank you for choosing Alpina home appliance. You have chosen the best appliances that offer 2 years/24 months warranty and years of service. We stand for quality, dependability and friendship forever. We hope you will choose Alpina again and make ALPINA your first choice in home appliances.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. This appliance may only be connected to the same main voltage as shown on the rating plate.
3. To protect against risk of electrical shock, do not immerse or rinse housing, cord or plug in water or other liquid.
4. Close supervision is necessary when any appliance is used near children.
5. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
6. Do not contact any moving parts while the appliance is operating.
7. If the supply cord is damaged, it must be replaced by the manufacturer or its authorized service agent or a similarly qualified person in order to avoid hazard & damage to the unit.
8. The use of attachment or accessories which are not supplied with the appliance are not recommended. This could result in electrical shock or injury or permanent damage to the appliance.
9. Do not let cord hang over edge of table or counter or touch hot surface.
10. Do not use the appliance for other than intended household use.
11. Switch off the appliance before changing accessories or approaching parts, which move in use.
12. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

This appliance is for household use and may be plugged into any AC electrical outlet (ordinary household current). Do not use any other electrical outlet.

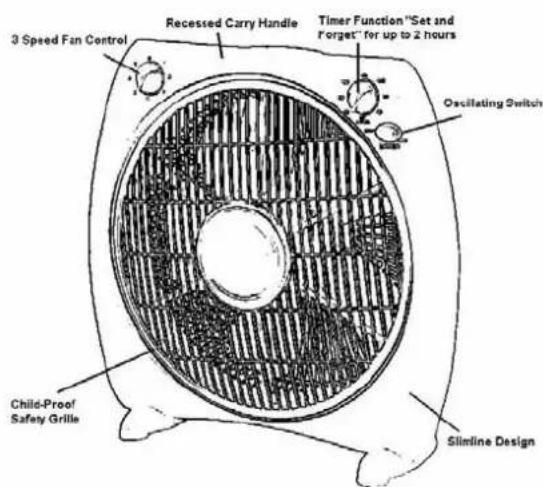

1. GETTING TO KNOW YOUR FLOOR FAN

Congratulations on the purchase of your new Floor Fan.

Before first using your new Floor Fan, it is most important that you read and follow the instructions in this booklet, even if you feel you are familiar with this type of appliance. Your attention is drawn particularly to the section dealing with IMPORTANT SAFEGUARDS. Find a safe and convenient place to keep this booklet handy for future reference.

This appliance has been designed to operate from a standard domestic power outlet. It is not intended for industrial or commercial use.

Your Floor Fan is safe and easy to use. It has been designed to function quietly and safely under normal circumstance. Your Floor Fan is fully portable with a sturdy stand and contemporary design. Its energy efficient blades circulate cool air while using less power than a standard light globe. The heavy – duty motor is rated for continuous use to combat long hot summers.

2. IMPORTANT SAFEGUARDS

• Read all instructions.
• Disconnect the power plug before dismantling, assembling or before cleaning.
• Avoid touching mobile parts of the fan.
• Make sure the fan is on a dry and even surface.
• Never insert fingers, pencils or any other objects though the guards whenever the -power plug is connected, especially while running.

- Do not use the appliance for any other purpose than its intended use.

- The fan must not be used if the guards are not fastened according to instructions.

- When the power cord is damaged, it must be replaced by the manufacturer or its -service agent or a similarly qualified person in order to avoid a hazard.

- Do not use your appliance with an extension cord unless it has been checked and tested by a qualified electrician or electrical supplier.

- The appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.

- Young children or infirm persons should be supervised to ensure that they do not play with the appliance.

3. ASSEMBLY OF YOUR BOX FAN

Your Box Fan has been boxed assembled for immediate use.

4. OPERATION

Remove the packaging materials and unravel the cord set before operation.

Rotating Louvre Grille

The rotating front grille on this product has louvres set at different angles to maximize air distribution. By switching the louvre control to On, the grille will continually rotate, swirling a breeze in all directions. For more personal cooling, switch the control back to Off and rotate the grille to the required angle. If obstructed, a unique safety ratchet, incorporated into the grille will prevent damage. The ratchet mechanism senses resistance and reverses grille rotation in an attempt to free up the obstruction.

Speed Fan

The 3 speed control switch allows you to choose a gentle breeze or full room air circulation. Turn the control to 1 for a low speed setting and 3 for a high speed. To switch Off, return the dial to 0. The left-hand speed settings rotate the louvred grille in the opposite direction to those on the right-hand side.

Set and Forget Timer

You can preset the Box Fan for up to 120 minutes by turning the timer control in a clockwise direction. The unit is switched Off at the end of the set time period. The unit can be switched Off manually at any time by turning the timer dial anticlockwise and returning it to the Off position.

ENGLISH

5. CARE AND CLEANING

Always disconnect electrical appliances before cleaning them.

To clean the blade and grille assembly, first remove the safety grille, unscrew the locknut and remove the blade from the Floor Fan. Wipe them clean with a slightly damp sponge.

Clean the motor housing and body assembly with a clean, damp cloth and wipe dry.

Never spray with liquids or submerge the Floor Fan in water or any other liquid.

GUARANTEE

This product is guaranteed for a period of 2 years from the date of purchase against defects in materials and workmanship. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is brought back to the purchase address. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as ceramic items, bulbs etc. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return and bring it to the address of purchase. If within the guarantee period, please also provide the guarantee card and proof of purchase.
