SF 5011 - Fan ALPINA - Free user manual and instructions

Product type	Column fan
Brand	Alpina
Model	SF 5011
Rated power	45 W
Number of speeds	3
Oscillation	Yes, automatic
Timer	Yes, up to 7 hours
Adjustable height	Yes
Blade diameter	35 cm
Dimensions (L × D × H)	35 × 35 × 100 cm
Weight	2.8 kg
Power supply	220-240 V, 50/60 Hz
Maximum noise level	55 dB
Main material	ABS plastic
Color	White
Maintenance and cleaning	Unplug before cleaning. Use a soft, dry cloth. Do not immerse in water.
Safety	Front protective grille, anti-slip base, automatic shut-off in case of tipping
Intended use	Indoor only
Warranty	2 years

Frequently Asked Questions - SF 5011 ALPINA

How to adjust the height of the Alpina SF 5011 fan?

The fan is equipped with a telescopic pole. Unscrew the adjustment ring, set the desired height, then tighten firmly.

Does the fan come with a remote control?

Yes, the SF 5011 model comes with an infrared remote control that allows you to control speeds, oscillation, and timer remotely.

How to clean the fan blades?

Unplug the appliance. Use a soft, slightly damp cloth to wipe the blades and grille. Never use abrasive cleaners or running water.

Can the timer be set to custom durations?

The timer offers preset intervals (usually 1, 2, 4, and 7 hours). Select the desired duration via the remote control or control panel.

What to do if the remote control does not work?

Check the batteries (AAA type, included). If the problem persists, move closer to the IR sensor or replace the batteries. Make sure no obstruction blocks the signal.

The fan is making noise. Is this normal?

A slight humming is normal, especially at high speed. If the noise is abnormal (squeaking, clicking), check that the blades are not loose or that the grille is properly attached.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Exposure to humidity or rain can damage electrical components.

How to activate oscillation?

Press the oscillation button (rotation symbol) on the panel or remote control. An automatic horizontal rotation will start.

What is the power consumption of the SF 5011?

The rated power is 45 W, which corresponds to a very low consumption of about 0.045 kWh per hour at maximum speed.

Where to find spare parts?

Spare parts (grille, blades, remote control) are available from Alpina customer service or authorized dealers. Check the warranty for replacement conditions.

USER MANUAL SF 5011 ALPINA

EN SF-5011 FLOOR FAN

Instruction for use

DE SF-5011 BODENVENTILATOR

Gebrauchsanweisung

FR SF-5011 VENTILATEUR SANS PIEDS

Mode d'emploi

IT SF-5011 VENTILATORE ORIZZONTALE

Manuale d'uso

NL SF-5011 STAANDE VENTILATOR

Gebruiksaanwijzing

ES SF-5011 VENTILADOR DE PISO

SF-5011

EN: For your own safety read these instructions carefully before using the appliances.

Thank you for choosing Alpina home appliance. You have chosen the best appliances that offer 2 years/24 months warranty and years of service. We stand for quality, dependability and friendship forever. We hope you will choose Alpina again and make ALPINA your first choice in home appliances.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. This appliance may only be connected to the same main voltage as shown on the rating plate.
3. To protect against risk of electrical shock, do not immerse or rinse housing, cord or plug in water or other liquid.
4. Close supervision is necessary when any appliance is used near children.
5. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
6. Do not contact any moving parts while the appliance is operating.
7. If the supply cord is damaged, it must be replaced by the manufacturer or its authorized service agent or a similarly qualified person in order to avoid hazard & damage to the unit.
8. The use of attachment or accessories which are not supplied with the appliance are not recommended. This could result in electrical shock or injury or permanent damage to the appliance.
9. Do not let cord hang over edge of table or counter or touch hot surface.
10. Do not use the appliance for other than intended household use.
11. Switch off the appliance before changing accessories or approaching parts, which move in use.
12. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

This appliance is for household use and may be plugged into any AC electrical outlet (ordinary household current). Do not use any other electrical outlet.

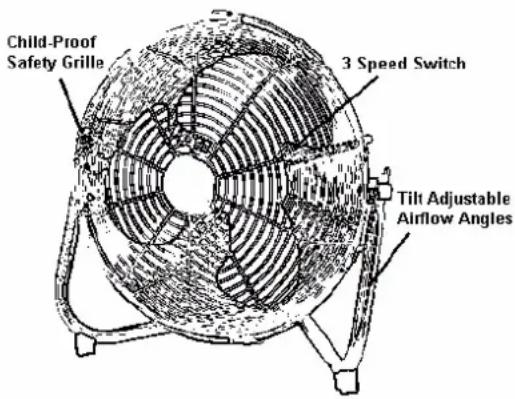

1. GETTING TO KNOW YOUR FLOOR FAN

Congratulations on the purchase of your new Floor Fan.

Before first using your new Floor Fan, it is most important that you read and follow the instructions in this booklet, even if you feel you are familiar with this type of appliance. Your attention is drawn particularly to the section dealing with IMPORTANT SAFEGUARDS. Find a safe and convenient place to keep this booklet handy for future reference.

This appliance has been designed to operate from a standard domestic power outlet. It is not intended for industrial or commercial use.

Your Floor Fan is safe and easy to use. It has been designed to function quietly and safely under normal circumstance. Your Floor Fan is fully portable with a sturdy stand and contemporary design. Its energy efficient blades circulate cool air while using less power than a standard light globe. The heavy – duty motor is rated for continuous use to combat long hot summers.

2. IMPORTANT SAFEGUARDS

• Read all instructions.
• Disconnect the power plug before dismantling, assembling or before cleaning.
• Avoid touching mobile parts of the fan.
• Make sure the fan is on a dry and even surface.

• Never insert fingers, pencils or any other objects though the guards whenever the -power plug is connected, especially while running.

• Do not use the appliance for any other purpose than its intended use.

• The fan must not be used if the guards are not fastened according to instructions.
• When the power cord is damaged, it must be replaced by the manufacturer or its -service agent or a similarly qualified person in order to avoid a hazard.
• Do not use your appliance with an extension cord unless it has been checked and tested by a qualified electrician or electrical supplier.
• The appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
• Young children or infirm persons should be supervised to ensure that they do not play with the appliance.

3. ASSEMBLY OF YOUR FLOOR FAN

Your Floor Fan has been boxed assembled, remove all packaging material for immediate use.

Loosen the adjustment knob to tilt the Floor Fan to the desired angle.

Tighten it once the desired angle is reached.

Piano Swith"1" for a low speed, "2" for a medium speed and "3" for a high speed, and "0" for off.

5. CARE AND CLEANING

Always disconnect electrical appliances before cleaning them.

To clean the blade and grille assembly, first remove the safety grille, unscrew the locknut and remove the blade from the Floor Fan. Wipe them clean with a slightly damp sponge.

Clean the motor housing and body assembly with a clean, damp cloth and wipe dry.

Never spray with liquids or submerge the Floor Fan in water or any other liquid.

ENGLISH

GUARANTEE

This product is guaranteed for a period of 2 years from the date of purchase against defects in materials and workmanship. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is brought back to the purchase address. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as ceramic items, bulbs etc. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return and bring it to the address of purchase. If within the guarantee period, please also provide the guarantee card and proof of purchase.
