USER MANUAL HQC484 PHILIPS

▶ Check if the voltage indicated on the mains plug corresponds to the mains voltage in your home before you connect the appliance.
▶ Make sure the appliance does not get wet.
▶ Charge and store the appliance at a temperature between 15^ en 35^ C.

Charging

Charge the appliance fully before you start using it for the first time.

Make sure the appliance is switched off while charging.

Illustration of a cable being inserted into a plug, with a blue arrow indicating the insertion direction (no text or symbols)

1 Insert the appliance plug into the appliance.
2 insert the mains plug into the wall socket.

- The pilot light will go on to indicate that the appliance is charging.

It will take approx. 12 hours to fully charge the battery.

Do not charge the appliance for more than 24 hours.

A fully charged appliance has a cordless clipping time of up to 40 minutes.

Corded clipping

▶ To clip with the hair clipper connected to the mains: Switch the hair clipper off, connect it to the mains and wait a few seconds before switching it on. If the battery is completely empty: wait a few minutes before switching the appliance on. Do not run the appliance from the mains when the battery is fully charged.

Preparing for clipping

▶ See also the booklet 'Modelling and styling'.

Clipping with comb attachment:

Illustration of a hand gripping a car's seat with a blue arrow indicating direction (no text or symbols)

Diagram of a robotic arm with a blue arrow indicating motion or force (no text or symbols)

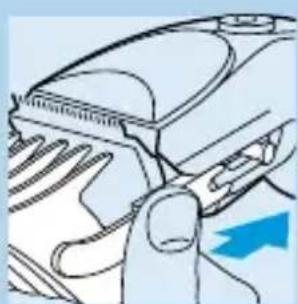

1 Select the small or large comb attachment, depending on the desired hair length (see table).

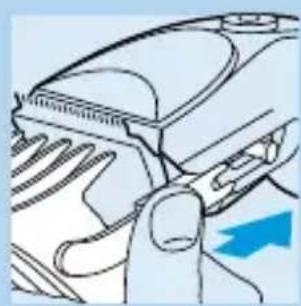

2 Slide the arms carefully into the guiding grooves of the appliance until you hear a click.
3 Keep the adjustment button pressed in and slide the comb attachment to the desired position (see table).
4 Release the adjustment button to lock the comb.
5 Switch the appliance on.

If a lot of hair has accumulated in the comb, remove the comb attachment and blow and/or shake the hair out of the comb.

Cutting length settings

Small comb Large comb setting hair length setting hair length

1 4 mm 8 24 mm
2 7 mm 9 27 mm
3 10 mm 10 30 mm
4 13 mm 11 33 mm
5 16 mm 12 35 mm
6 19 mm 13 38 mm
7 21 mm 14 40 mm

Clipping without comb attachment

1 Pull the comb attachment off the appliance to remove it.

Clean and recharge the appliance every time you have used it.

Cleaning

Do not use abrasives, scourers or liquids such as alcohol, petrol or acetone to clean the appliance.

1 Make sure the appliance is switched off and disconnected from the mains before you start cleaning it.

Diagram of a car interior showing airflow direction and a blue arrow indicating flow direction (no text or symbols)

Hand holding a pen or clip with a blue arrow pointing left (no text or symbols)

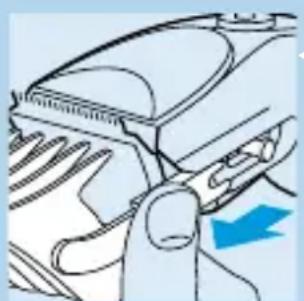

2 Remove the comb attachment.

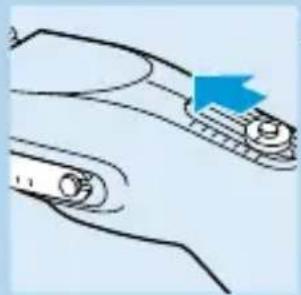

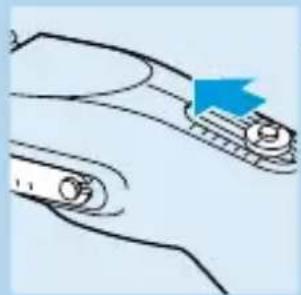

3 Remove the cutting unit.

4 Clean the cutting unit and the inside of the appliance with the brush supplied.

Diagram of a mechanical component with a blue circular arrow indicating rotation or cycle (no text or symbols)

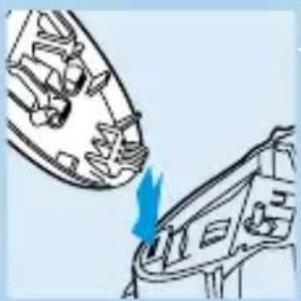

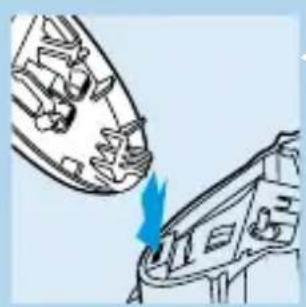

5 To reassemble the clipper, insert the hook of the cutting unit into the housing.

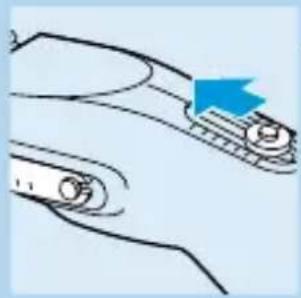

6 Push the cutting unit until you hear a click.

Diagram showing a mechanical component with a blue arrow indicating direction (no text or symbols present)

Replacement

A worn or damaged cutting unit should only be replaced with an original Philips cutting unit.

Environment

The built-in rechargeable battery contains substances which may pollute the environment.

Remove the rechargeable battery when you discard the appliance.

Hand holding a clip or clip device with a blue arrow pointing left (no text or symbols)

Diagram of a hand inserting a component into a device (no text or symbols visible)

Mechanical component diagram showing a piston and crankshaft mechanism with blue directional arrows indicating motion (no text or symbols)

Illustration of a truck with an upward arrow indicating speed or force (no text or symbols)

Do not throw the battery away with the normal household waste but dispose of it at an official collection point.

You can also take the appliance to a Philips service centre, where staff will be happy to help you remove the battery and dispose of it in an environmentally safe way.

1 Disconnect the appliance from the mains and let the appliance run until the motor stops.

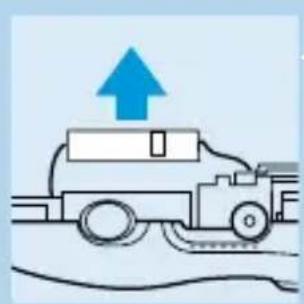

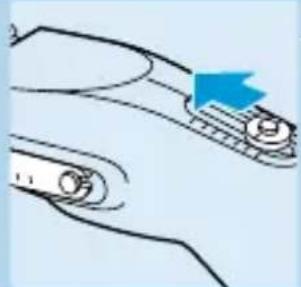

2 Remove the cutting unit.

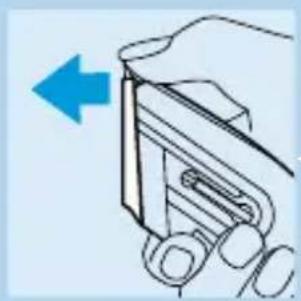

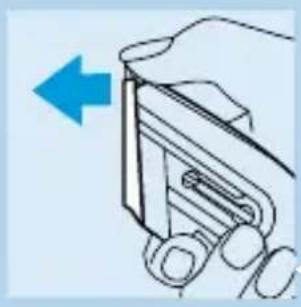

3 Remove the metal clip by means of a screwdriver.

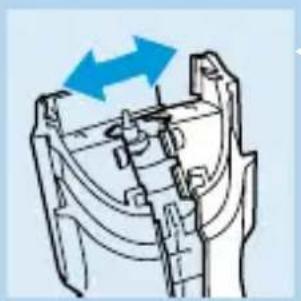

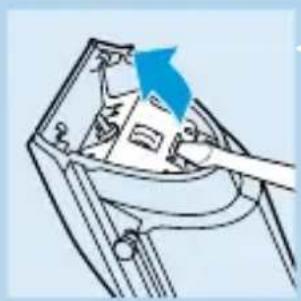

4 Open the housing.

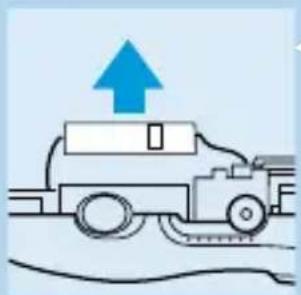

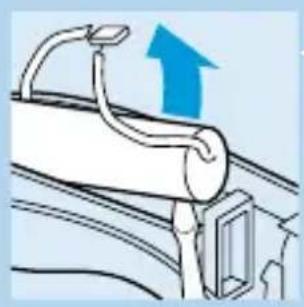

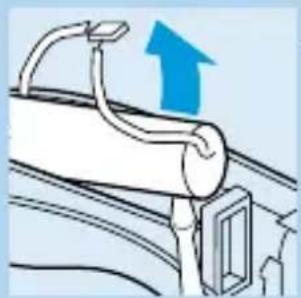

5 Pull the battery holder out of the appliance.

Diagram showing a blue arrow pointing upward over a mechanical component (no text or symbols)

Diagram of a car interior showing a blue upward arrow indicating motion or direction (no text or symbols present)

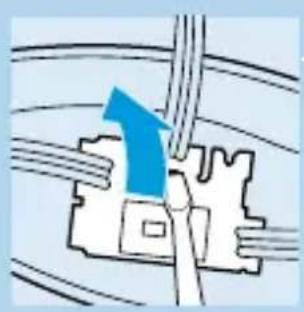

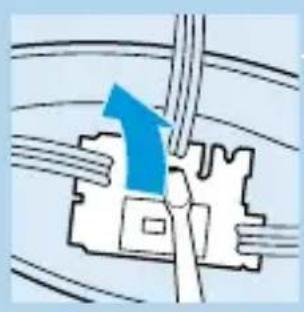

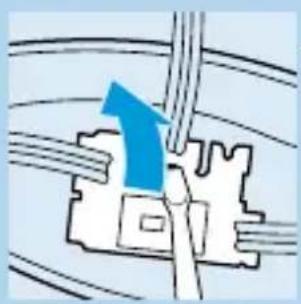

6 Insert a screwdriver into the small slot in the printed circuit board. Push the screwdriver down until part of the printed circuit board breaks off.

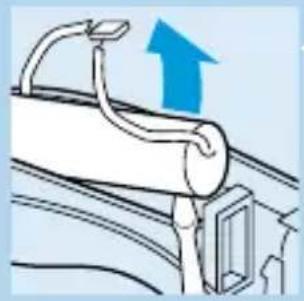

7 Separate the battery from the plastic part by means of a screwdriver.
8 Dispose of the battery and the other components in an environmentally safe way.

Do not connect the appliance to the mains again after it has been opened!

For telephone numbers of the Philips Helpdesk, see the Worldwide Guarantee leaflet.
