USER MANUAL RH 430 NTE DOMETIC

RH440STE, RH440NTERH430, RH440

3EN Explanation of symbols RH430, RH440

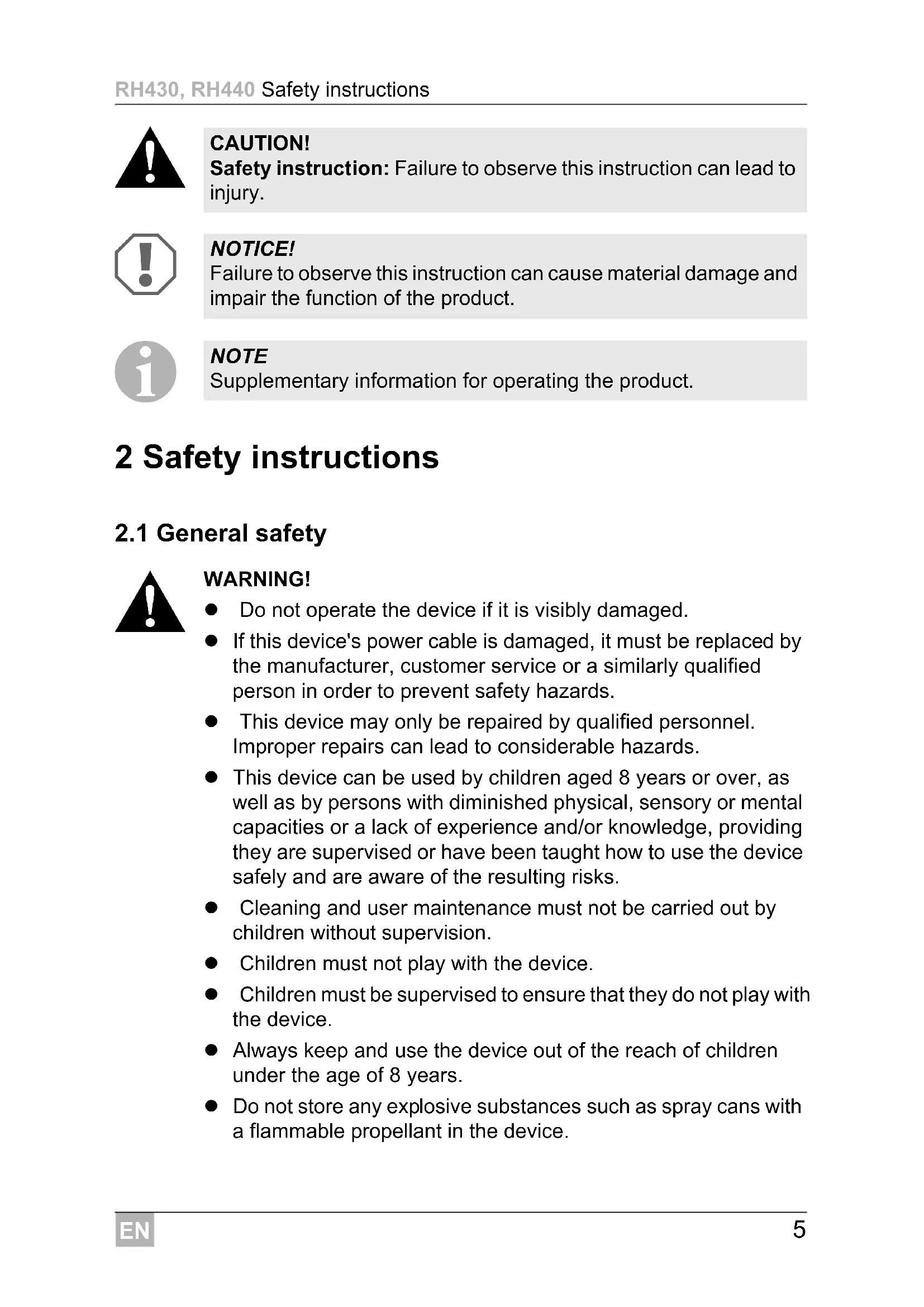

DANGER! Safety instruction: Failure to observe this instruction will cause fatal or serious injury. WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury.EN RH430, RH440 Safety instructions

WARNING! Do not operate the device if it is visibly damaged. If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards. This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks. Cleaning and user maintenance must not be carried out by children without supervision. Children must not play with the device. Children must be supervised to ensure that they do not play with the device. Always keep and use the device out of the reach of children under the age of 8 years. Do not store any explosive substances such as spray cans with a flammable propellant in the device. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. NOTE Supplementary information for operating the product.EN Safety instructions RH430, RH440

CAUTION! Disconnect the device from the power supply – before each cleaning and maintenance – after every use Food may only be stored in its original packaging or in suitable containers.

NOTICE! Check that the voltage specification on the type plate corresponds to that of the energy supply. Connect the device with the 230 V connection cable to the 230 V AC mains supply. Never pull the plug out of the socket by the cable. The cooling device is not suitable for transporting caustic materials or materials containing solvents. The cooling device contains inflammable cyclopentane in the insulation. The gases in the insulation material require special disposal procedures. Deliver the device at the end of its life- cycle to an appropriate recycling.

2.2 Operating the device safely

CAUTION! Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE! Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose. Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.). Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate. Ensure that the ventilation openings are not covered. Do not fill the inner container with ice or fluid. Never immerse the device in water.EN RH430, RH440 Intended use

Protect the device and the cable against heat and moisture. 3 Intended use The cooling device is suitable for cooling beverages and snacks. The device is designed for use with a 100–240 V AC mains supply.

4 Scope of delivery 5 Technical description The cooling device can cool products to a maximum of 21 °C (RH430STE, RH440STE only) or 19 °C (RH430NTE, RH440NTE only) under the ambient temperature and keep them cool. A grid divider can be used to separate food- stuffs, e.g. bottles and sweets. Its cooling system is a non-wearing Peltier cooling. Control element CAUTION! Health hazard! Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool. Quantity Description 1 Minibar 1 Installation and operating manual No. infig. 1, page 3Description1 Temperature controllerEN Installation RH430, RH440

6 Installation The cooling device is designed for free-standing installation, but can be built- in if the following conditions are complied with to ensure satisfactory opera- tion and maximum cooling efficiency. The cooling device must be levelled carefully to ensure proper function. The clearance between the cooling device‘s back and the wall should be 20 mm or more. Ventilation must be provided as shown in alternatives A, B, C or D (fig. 2, page 3). The ventilation duct must at least measure 105 mm* x the width of the cooling device. Only the entire cooling unit must project into the ventilation duct as shown (fig. 2, page 3). Air passing through the ventilation duct must not be preheated by any source of heat. Ventilation grills, if used, must have openings of at least 200 cm² each. For glass door version, when ambient humidity is above 65 % in 25 °C ambient temperature, moisture will condense on the door. The cooling device can be fixed to the bottom of the furniture through its fixing feets using screws of an appropiate length (fig. 3, page 3). The socket outlet for the mains connection must be freely accessible.EN RH430, RH440 Operation

Choose a well ventilated installation location which is protected against direct sunlight. Allow warm food to cool down first before placing it in the cooling device to keep cool. Do not open the cooling device more often than necessary. Do not leave the cooling device open for longer than necessary.

7.2 Using the cooling device

CAUTION! Health hazard! Food may only be stored in its original packaging or in suitable containers. NOTE Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 10). A few water drops may form inside the cooling device if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooling device falls. The cooling device is not defective. Wipe it out with a dry cloth if necessary. NOTICE! Risk of damage Ensure that the objects placed in the cooling device are suita- ble for cooling to the selected temperature. Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers. Ensure that your cooling device is well ventilated so that any heat created can dissipate. Otherwise proper functioning can- not be ensured. It is especially important not to cover the air vents.EN Cleaning and maintenance RH430, RH440

➤ Place the cooling device on a firm base. ➤ Connect the connection cable to the AC mains supply. ✓ The cooling device starts cooling the interior. ➤ Set the temperature controller (fig. 1 1, page 3) to the desired tempera- ture (3–12°C). ➤ If you wish to switch the cooling device off, pull out the connection cable or ... ➤ Rotate the temperature controller (fig. 1 1, page 3) anti-clockwise to the OFF position. 8 Cleaning and maintenance

➤ Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the cooling device. ➤ Wash out the cooling device using clean water and dry thoroughly. ➤ At annual intervals, remove dust from the cooling aggregate at the back of the cooling device using a brush or a soft cloth. NOTE If you are not going to use the cooling device for a long time, leave the door slightly ajar to prevent unpleasant odours building up WARNING! Always disconnect the device from the power supply before you clean and service it. NOTICE! Risk of damage Never clean the cooling device under running water or in dish water. Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooling device.EN RH430, RH440 Troubleshooting

9 Troubleshooting 10 Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. Problem Possible cause Suggested remedyYour device is not working (plug is inserted).No voltage present in the AC voltage socket.Try using another plug socket.The inner fan or the cooling element is defective.This can only be repaired by an authorised repair centre.The integrated mains adapter is defective.This can only be repaired by an author-ised customer services unit.The main control board is defective.This can only be repaired by an authorised repair centre.EN Technical data RH430, RH440

Gross capacity: 30 l Connection voltage: 100 – 240 Vw, 50/60 Hz Power consumption: 55 W

12.1 W (100 – 240 Vw, ECO mode)

Temprature range: 3 °C ... 12 °C max. 21 °C under ambient temperature 3 °C ... 12 °C max. 19 °C under ambient temperature Category: 2 (Cellar) Energy efficiency class: A+ Energy consumption: 104 kWh/annum Usable capacity: 26 l 25 l Climate class: N, T Ambient temperature: +16 °C to +43 °C Noise emission (sound power): 33.8 dB 0 dB Dimensions (W x D x H): 384 x 395 x 522 mm Weight: 10 kg Testing/certification:EN RH430, RH440 Technical data

Gross capacity: 40 l Connection voltage: 100 – 240 Vw, 50/60 Hz Power consumption: 55 W
