USER MANUAL DAH18.65PC Dunavox

MODEL: DAH-12.48PC, DAH-18.65PC

CAUTION!

Please read carefully and follow all safety rules and operating instructions!

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 5

INSTALLATION INSTRUCTIONS 6

Never place the cooler on the top of refrigerator!

Never build or recess the cooler into the furniture. For such installation choose our built-in or under counter models!

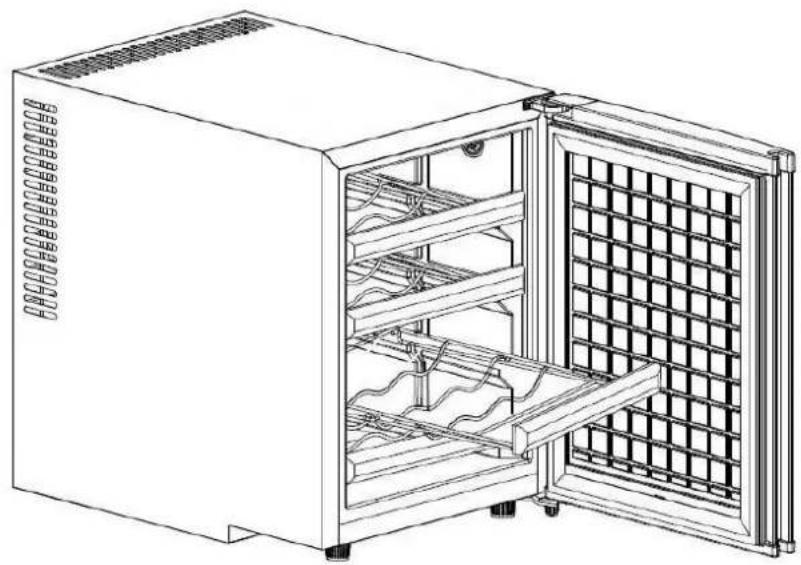

Model: DAH-12.48PC

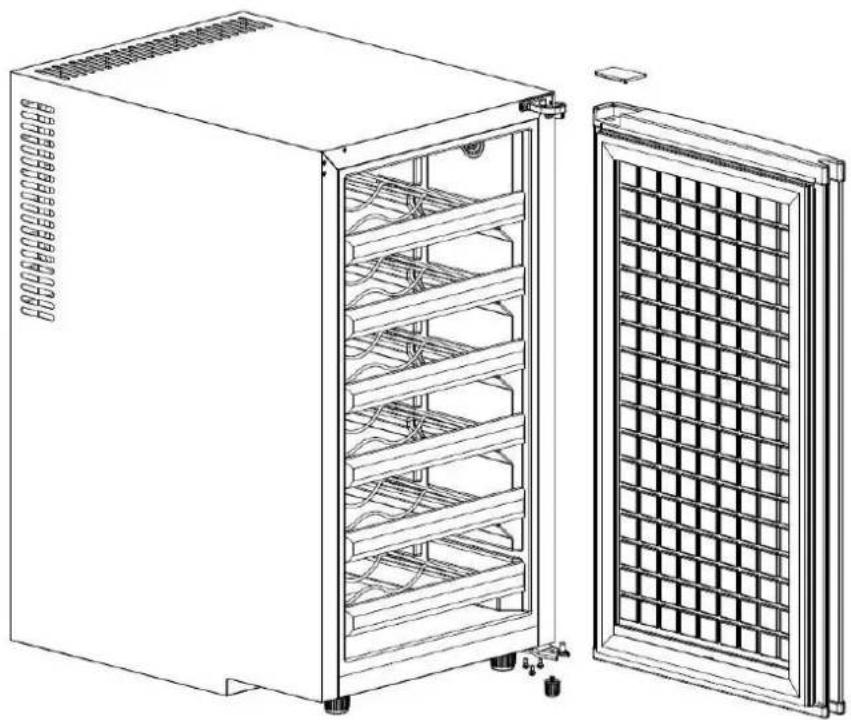

Model: DAH18.65PC

TECHNICAL DATA

Model no.	DAH-12.48PC	DAH-18.65PC
Capacity	48 I	65 I
Voltage	220 V	220 V
Current	0.6A (25℃/77℉)	0.6A (25℃/77℉)
Protection class	I	I
Climate class	SN;N	SN;N
Input power	63 W	63 W
Power Consumption (KW.h/24 h)	0.223(15℃/59℉)	0.316 (15℃/59℉)
Max Temperature Difference	<14℃ (57℉)	<14℃ (57℉)
Temperature Control Range	10-18℃ (50-64℉)	10-18℃ (50-64℉)
Net weight kg	15	18
Gross weight kg	16.5	20.7
Shape size (W×H×D) cm	38,5x57,5x51.5	38,5x57,5x69,5
Packing size (W×H×D) cm	43,5x62,5x56	43,5x62,5x75

Dunavox thermoelectric models designed for standard Bordeaux bottles.

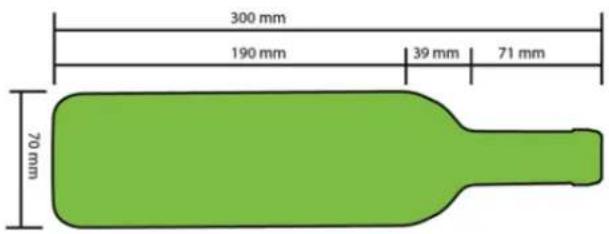

Standard 750mL Bordeaux bottle

Note: should your bottles exceed this size, remove shelves and store the bottles in upright position!

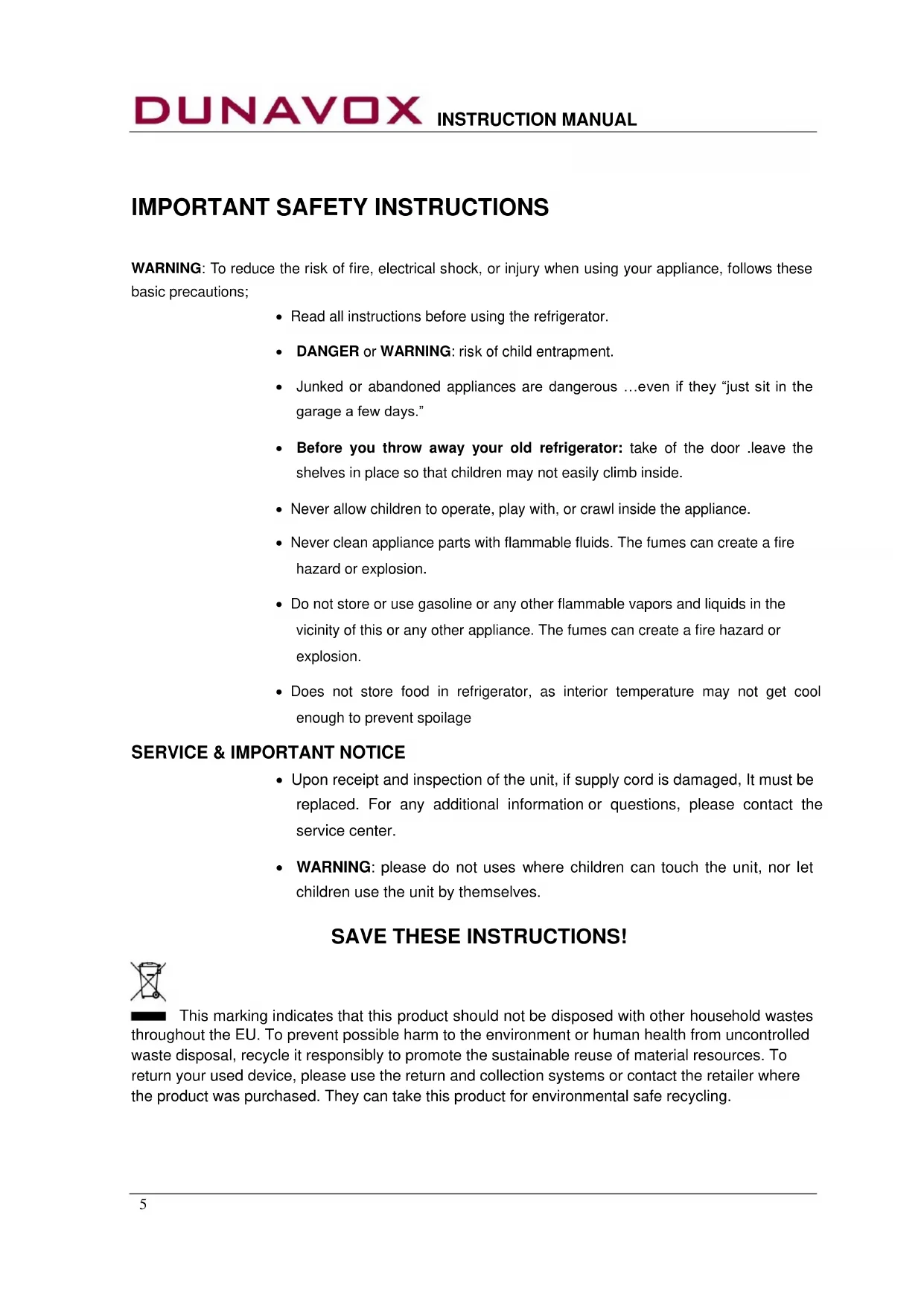

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions;

• Read all instructions before using the refrigerator.
  DANGER or WARNING: risk of child entrapment.
• Junked or abandoned appliances are dangerous ... even if they "just sit in the garage a few days."
• Before you throw away your old refrigerator: take of the door .leave the shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Does not store food in refrigerator, as interior temperature may not get cool enough to prevent spoilage

SERVICE & IMPORTANT NOTICE

• Upon receipt and inspection of the unit, if supply cord is damaged, It must be replaced. For any additional information or questions, please contact the service center.
• WARNING: please do not uses where children can touch the unit, nor let children use the unit by themselves.

SAVE THESE INSTRUCTIONS!

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

INSTALLATION INSTRUCTIONS

• Remove the exterior and interior packing
• Check to be sure the following parts are included:

o slide out shelves

o instruction manual

• Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the front legs at the bottom of the appliance.
• Do not place the unit to direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly. Never place the cooler on the top of refrigerator!. Never build or recess the cooler into the furniture. For such installation choose our built-in or under counter models!

ELECTRICAL CONNECTION

Warning!

IMPROPER USE OF THE GROUNDED PLUG CAN RESULT IN THE RISK OF ELECTRICAL SHOCK. IF THE POWER CORD IS DAMAGED, HAVE IT REPLACED BY AN AUTHORIZATION PRODUCTS SERVICE CENTER.

• This unit should be properly grounded for your safety. The power cord of this unit is equipped with a 2-pin plug which mates with 2-pin wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the ground from the power cord supplied.
• Use of extension cords is not recommended.
• This unit requires a standard 220V-50HZ electrical outlet with 2-pin plug.
• The cord should be secured behind the refrigerator and not let exposed or dangling to prevent accidental injury.

• It is recommended that you installed the refrigerator in a place where the ambient temperature is between 10 - 26^(50 - 80^) . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause interior temperature to fluctuate. The range of set temperature (see Technical data) may not be reached.
• The temperature may fluctuate depending on whether or not the interior light is on or off or whether the bottles are located on the upper, middle or lower section.

HOW TO USE THE CONTROL BUTTON:

• You can set the temperature to around 10, 15, 18 Celsius by choosing "H", "M", "L" position..

• You can turn off the unit by choosing the position "OFF"
• You can switch on/off (1=on, 0=off) the light using the light button.

CARE AND MAINTENANCE

CLEANING YOUR REFRIGERATOR

• Unplug the refrigerator and remove the bottles.
• Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Outside of refrigerator should be cleaned with mild detergent and water.
• Draw out the water box at the bottom, and wash.
• Clean the fans by hoover regularly! Dirty fans reduce the cooling performance and decrease fan lifetime.

MOVING YOUR REFRIGERATOR

• Remove all the bottles. and securely tape down all loose items inside your refrigerator.
• Turn the leveling legs up to the base to avoid damage.
• Be sure the refrigerates stays in the upright position during transportation.

PROBLEMS DISPOSAL

You can solve many common refrigerator problems easily, saving you the cost of a possible service call.

Try the suggestion below to see if you can solve the problem before calling service center.

PROBLEM	POSSIBLE CAUSE
Refrigerator do not operate.	Not plugged in using different voltage. The circuit breaker tripped or a blown fuse.
Refrigerator is not cold enough.	Check the temperature control setting. External environment may require a higher setting. The door is open too often. The door is not closed completely. The door seal does not seal properly. The refrigerator does not have the correct clearance.
The light does not work.	Light switch is in OFF position Check the service center.
The door will not close properly.	The refrigerator is not level. The doors were reversed and not properly installed. The seal is weak. The shaves out of position.

EK Declaration of Conformity

Importer: Dunavox Kft

Description of the electrical product:

Dunavox DAH-12.48PC, DAH-18.65PC, thermoelectric storage products

Directive:

EMC 2004/108/EC

LVD 2006/95/EC

ErP 2009/125/EC

Standars:

LVD

EN 60335-1:2002

EN 60335-2-24:2002, 2005, 2007, 2010

EN 62233:2008

EMC

EN 55014-2:1997

EN 55014-1:2006

EN 61000-3-2:2006

EN 61000-3-3:2008

As the importer of this product we declare that we have measurement protocols of the above directives for DAH-12.48PC, DAH-18.65PC

thermoelectric storage products

, which provide the product qualifies for the CE mark, and can be placed on the market within the EU.

1. 1. 2015.

general manager

Dunavox Kft.

DUNAVOX

MANUEL UTILISATEUR

MODELES: DAH-12.48PC, DAH-18.65PC

ATTENTION!

DAH-12.48PC, DAH-18.65PC

CHLADNICKY NA VINO

POZOR!

USCHOVEJTE TYTO POKNY!

Dunavox DAH-12.48PC, DAH-18.65PC

termoelektromos borhut modellek

Direktiva:

EMC 2004/108/EC

LVD 2006/95/EC

ErP 2009/125/EC

Szabványok:

LVD

EN 60335-1:2002

EN 60335-2-24:2022, 2005, 2007, 2010

EN 62233:2008

EMC

EN 55014-2:1997

EN 55014-1:2006

EN 61000-3-2:2006

EN 61000-3-3:2008

MODEL: DAH-12.48PC, DAH-18.65PC

Let op!

INSTALLATIE INSTRUCTIONS 40

VOORDAT U DE WIJNKOELER IN GEBRUIK NEEMT 40

ELECTRISCHE AANSLUITING 40

GEBRUK VAN DE WIJNKOELER 41

HOE WERKT DE TEMPEARTUUR EN AAN EN UIT KNOP: 41

OMGAAN MET EN ONDERHOUD VAN DE WIJNKOELER 41

SCHOONMAKEN VAN DE WIJNKOELER 41

VERPLAATSEN VAN DE WIJNKOELER 41

PROBLEM & MOGELIJKE OORZAAK 42

Belangrijk!!

INSTALLATIE INSTRUCTIES

VOORDAT U DE WIJNKOELER IN GEBRUIK NEEMT

DAH-12.48PC, DAH-18.65PC

CopepkHne

BAKHAR INΦOPMALU 45

CXEMATNUECKOE N3O6PAXEHNE BUNHBIX UKAΦOB 46

TEXHNUECKNE XAPAKTEPNCIKN 47

HCTPYKUINIOYCTAHOBKE 48

NcIIOJIb3OBAHNE BUNHOTo ⅢKAΦA 48

YXOD IN TEXHNUECKOE OBCJUYKINBAHNE 49

IPOBJIEMBI IPIN 3KCIJYATAUIN. 50

Baxhna nHΦopMaζη

BHHbI ukaΦ He npedHa3NaueH dJa BCtpaNBHa H B Me6eIb.

3To MoXeT Bbl3BaTb ero neperpeB N BblXoN 3 CtpoA.

IpepeTEm, KaK Haayatb NcnoB3OBAt b BHHbI uKaΦ, Heo6xOJMo ero npaBnHp oacnoLOXHTb uYCTaHOBHTb TaK, KaK yka3aHO B daHHOM pyKOBOdCTBe. IyMaHeHs H pNCKBaO3HKnHOBeHnnoKapa, nopaKeHnna 3neKtpueckm TOKOM nn noLyueHn TpaBMbl npu NcnoB3OBAHn BHHoro uKaΦa, co6JIouaTe OCHOBhie MepbI npedocTopoKHOCTn:

• PIOKJIIOHTe TpEXKOHTaKTbIy I npoBOd, c 3a3eMJIeHHeM, He CHIMaTe 3a3eMJIeHHe, He ICNoJIb3yIte aADANTep NII yDInHHTeIb.
• HnKorda He npombIaIte 3eMaTe IkaFa roipuHm JnkocTm. Napbl OT HxMoryr npnbectn K noXapy nN B3pbIBy. He xpaHnte n He nCnoB3yIte 6eH3nH nDp onacHbE JnkocTn ropioue napbl B HenocpeDCTBeHHoB 6n3OcTN ot 3TO r np6OpOB.
• Ppexde, cem npctyntb K uHTke n Texnueckomy o6cnykBaHHo, y6eNTecb, 70 np6op oTcoeHHe OT 3JIeKTPnueckOJ LHNH.
  -OTcoeunHHe BUNHHbI uKaΦ I OTKJIIOHTe erO OT NITaHnpeq YIcTkoN nnO6cLyKbAHneM.
  -He nItaTaeB OTepeMOHTnpoBaT bnn 3ameHnB IIO60 3IeMeH TaWero uKaphi,ecn3To He yka3aHO B HactoIeM pyKOBOdCTBe. IIO6oe cepBuChoe o6cnyKuBaHne DoJKeH npOn3BOuNTb KBaIIuNpUropOBaHHb CneuaJIInCT.
  -Дя obecneey Hndlekae BENTnlaa Bawero kka pnoHocbOOCBO6oNTe nepeHIO NaHeIb yctpoiCTBa. Bby6epnte Iy YCTAHOBKn XopoIo npOBETpnaEMoe MeTo C TempepaTypoB Bblwe 16° C n Hnke 32° C. YcTPOiCTBO DoJHKHO 6blb yCTAHOBNeHO B MceTe, 3aunuehHom OTdoXJa, BeTpA, KaJIb BOIbl.
  BHHbI shkaH He doJKeH paCnoJaTaBcra PAdOM c neybO, rpnIeM n npyHMn np6Opam C BblcokoTemnepatypoi.
  He 3aH6aIte H He 3axHMaTe Ka6eJIb 3neKtpnueckoro nTahna OT BHHORO Wka.
• ABToMaTnueckn BbIKIOuTeNb DoJIKeH 6bITb paccHTaH Ha ToK B 15 A nn 60JIbWe.
  BaKHO yCTaHOBnTB BHHbI uKaΦ POBHO IJIr TORO, YTO6bI OH HAnLekaunm O6pa3OM pa6oTal. Bo3MOxHOb, Bam NoHaDo6nTcraero TpeYInpOBaTb IJIr TORO, YTO6bI YCTaHOBnTB npaBnBHO.
  He nCnoB3yIte a6pa3nBbIe qHCTaIe paTbOpbl nn Ha oCHObe arpeccnbbx cpeCTB. TaKHe OuHCTTEIN MOYr IOBpeDHTb nn N3MeHHTb UBeT N3deJIIn.
• DaaHbI np6Op He npedHa3HaueH IaNcNoB3ObaHn IuaMn (BkIIOUa JeTei) C orpaHHeHHbIMn H3uueckmN, ceHCOPbIMN IIN yMCtBeHHbIMN cnoC6HOCTaMn, INn COTcyTCTBnEM Heo6xOdMoro OnbITA n 3HaHn, eCIn ToJIbKO OHn HE HaxOJaTC PoD KOHTpOJeM INn He IpOwJINHCTpyKtAn IO Bopocam NcNoB3ObaHn np6Op a CyactneM IIN, OTBeTCTBeHHbIX 3a IN 6e3OnaChocTb.
  He noIb3yItecb np6opom, ecn ciTeBa Bnka, cTeBoi shyp nnn cam np6op nobpeKdeHbl. Ecln ceTeBOI shyp nobpeKdeH, erO heo6xOIMMo 3aMeHNb y npOn3BOINTeJ, nN B aBtOp3OBaHHOM cepBnCHOM cHTpe nn ObaTbca K aHaONuHOMy KBaINΦNpOBAHHOMy nepcoHAn ITo TORO, 4TO6bl n36eKaTb onaCHOCTn.
• He doJIHHbIrpaTb c npHbOpom. DepeKHTe ceTeBOw hHyp B MeCTe, HeIOCTyTHOM dIa DeTeMecTe. He no3BOJIaTe ceTeBOMy uHpy CBnCaTb C KpaA CTOna nn pa6Oey NOBepxHOCTn, Ha KOToPOJ OH yctaHOBJeH.

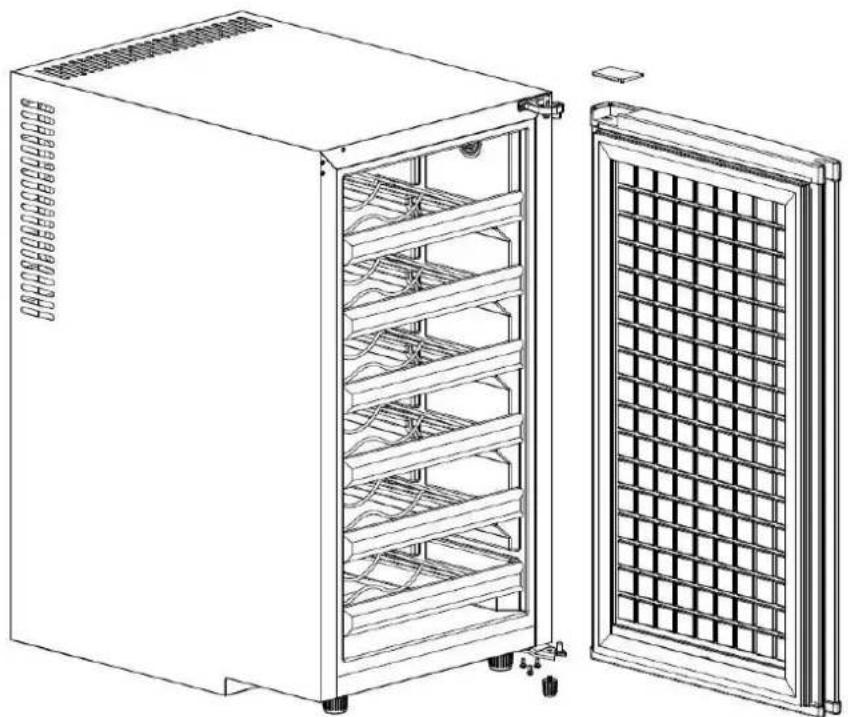

Cxematnueckoe n3o6paXeHne BHHbIX uKaΦOB

DAH-12.48PC

DAH-18.65PC

TexHnueckne xapaKTepeNCTnKN

MODEL: DAH-12.48PC, DAH-18.65PC

Vinska vitrina

POZOR!

SERVIS in POMEMBNE INFORMACije
