Product type	Wall-mounted range hood
Brand	Gaggenau
Model	AW261190
Available widths	70 cm and 90 cm
Weight (evacuation / recirculation mode)	70 cm: 20.5 kg / 21 kg; 90 cm: 22 kg / 22.5 kg
Power supply	220-240 V, 50/60 Hz
Motor power	Not specified, but with 3 speeds + intensive
Number of speeds	3 speeds + intensive (timed 5 min)
Special functions	Delayed shut-off (10 min), intermittent ventilation (5 min/hour), intensive duration setting (3/5/10 min)
Lighting	Halogen bulbs 12 V, 20 W max, socket G4
Grease filter	Metal, dishwasher safe, saturation indicator after 30 h
Activated charcoal filter	Optional for recirculation mode, annual replacement
Operating modes	External evacuation or recirculation (with kit)
Duct diameter	120 mm or 150 mm

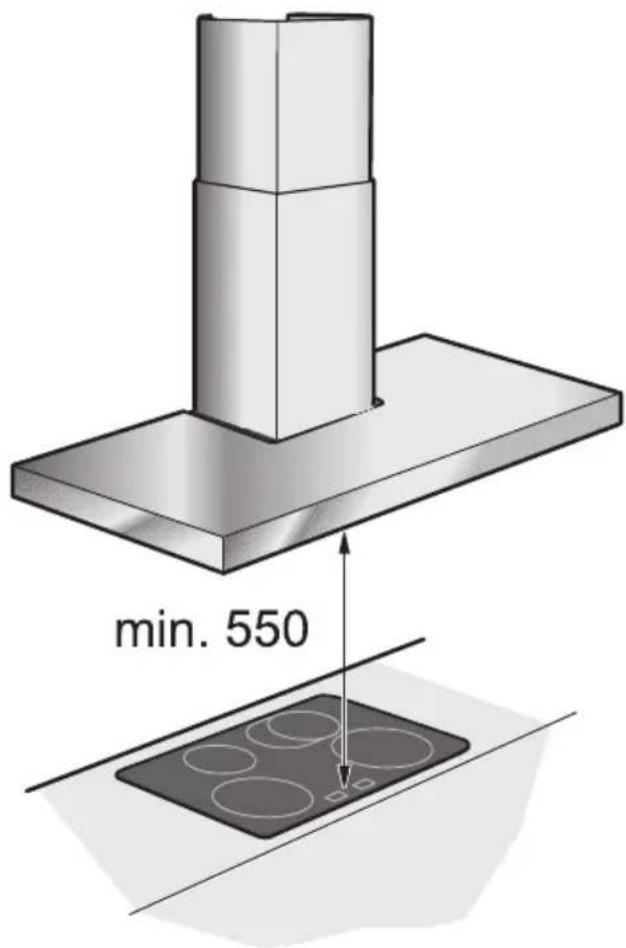

Minimum distance	550 mm for electric cooking, 650 mm for gas
Material	Stainless steel, aluminum, plastic
Cleaning	Hot water and mild detergent; no abrasive products
Safety	Do not flambé under the hood, do not use without filter, automatic shut-off if overheating
Protection rating	IPX (not specified, standard kitchen)
Repairability	Bulbs and filters replaceable by user; other repairs by a specialist

Frequently Asked Questions - AW261190 GAGGENAU

What is the minimum mounting height between the hood and the cooktop?

For electric cooking, the minimum distance is 550 mm. For gas cooking, it is 650 mm.

How to clean the metal grease filters?

The grease filters are dishwasher safe. Under normal use (1 to 2 h/day), clean them once a month. You can also wash them by hand with hot water and dish soap.

When should the activated charcoal filter be changed?

The activated charcoal filter should be replaced approximately once a year under normal use. Use only an original Gaggenau filter.

How to activate intensive mode?

Press the Int button during operation. The hood runs at full power for 5 minutes (adjustable to 3, 5 or 10 min by pressing Int + 1, 2 or 3 simultaneously) then returns to the previous speed.

How to use intermittent ventilation?

Press the 0 button and one of the speed buttons (1, 2 or 3) simultaneously. The hood will automatically extract for 5 minutes every hour. To stop, press 0.

How to replace a halogen bulb?

Cut off the power. Remove the bulb ring with a screwdriver. Replace with a halogen bulb 12 V, 20 W max, socket G4. Do not touch the bulb with your fingers, use a clean cloth.

Can I use the hood without a grease filter?

No, using without a grease filter is prohibited for safety and performance reasons. The filter retains grease particles and prevents fire hazards.

What is the difference between evacuation mode and recirculation mode?

In evacuation mode, air is expelled outside via a duct. In recirculation mode, air is filtered through an activated charcoal filter and then returned to the kitchen. Recirculation requires a specific kit.

What to do if the hood does not respond or if 'F' flashes?

If 'F' flashes, clean the grease filters. If the buttons are unresponsive, unplug the hood for one minute then plug it back in. If the problem persists, contact customer service.

What are the exact dimensions of the hood?

The hood is available in 70 cm and 90 cm widths. The exact dimensions are: depth 280 mm, height variable depending on model (with telescopic cover). Refer to the manual for precise measurements.

USER MANUAL AW261190 GAGGENAU

Illustration of a stainless steel kitchen range hood with ventilation grilles and a chimney (no text or symbols)

de Seite 3–16

en page 17 - 30

fr page 31 - 44

nl pagina 45 – 58

it pagina 59 - 72

es página 73 - 87

pt página 88 - 101

el Σελίδα 102 - 117

Abb. 1

GAS

GAZ

KAASU

GASS

ELEKTRO

ELECTR.

ELETT.

EL.

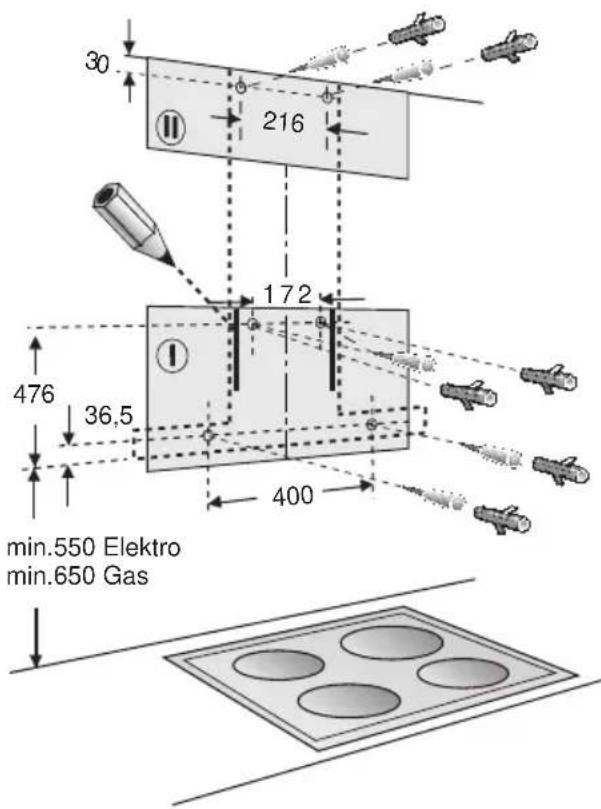

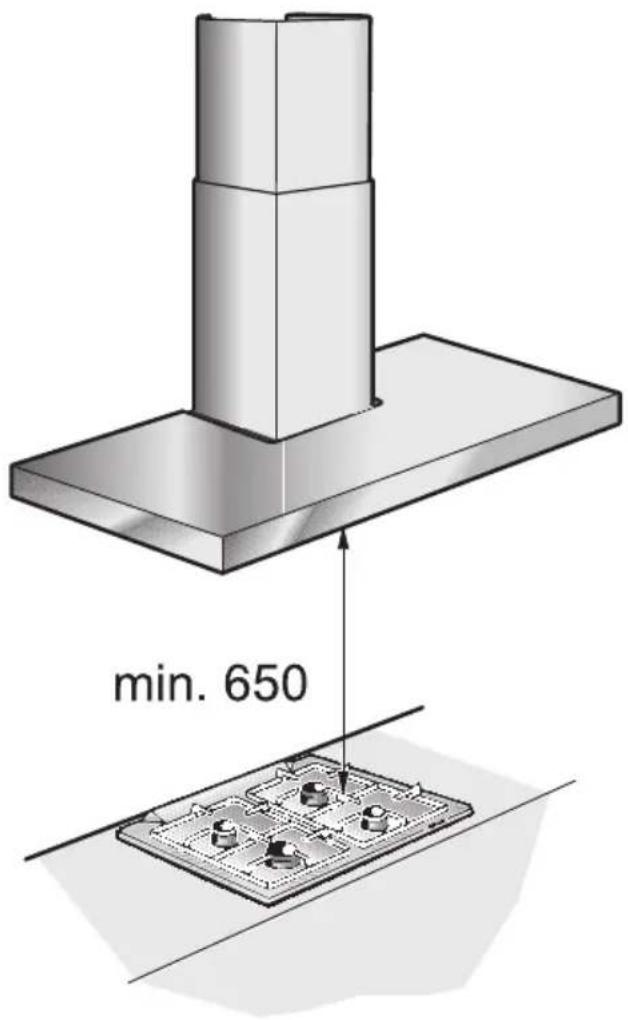

min. 650

min. 550

Gebrauchsanleitung

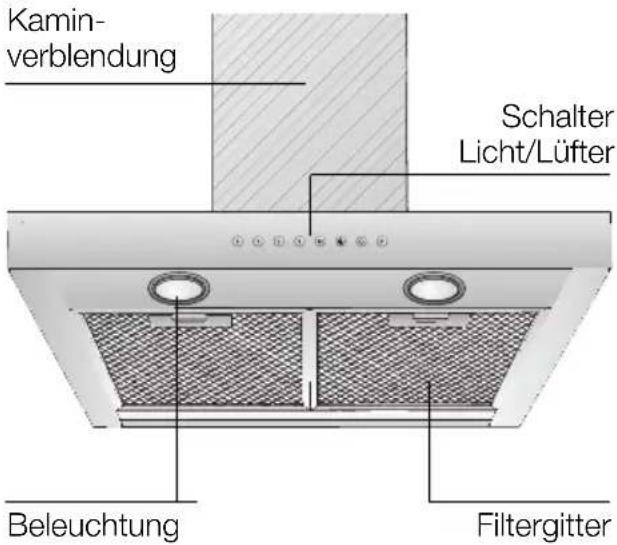

Gerätebeschreibung

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

Close-up of a fabric or mesh panel with three circular insets showing different material textures (no text or symbols visible)

Diagram of a layered structure with grid patterns and a hand interacting with it (no text or symbols)

Illustration of a hand holding a grid-patterned panel inside a rectangular frame (no text or symbols)

Illustration of a metallic tool with a circular handle and handle, no text or symbols present.

Illustration of a hand holding a device with a circular component and an arrow indicating rotation (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows and layered components (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Technical diagram illustrating the assembly of screw and nut components with labeled parts and motion indicators

Technical diagram showing mechanical assembly with circular components and directional arrows (no text or symbols)

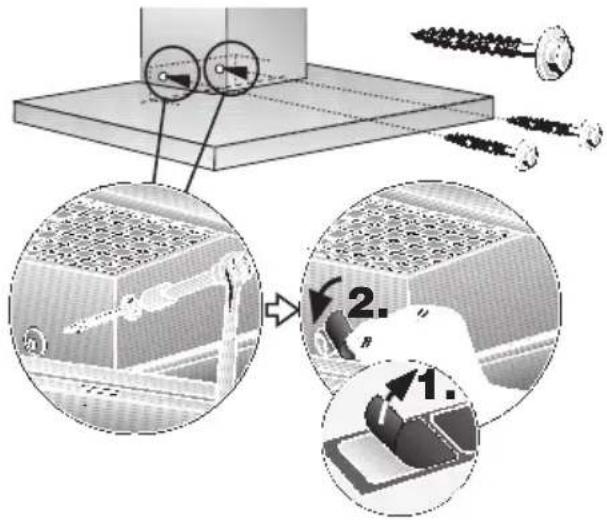

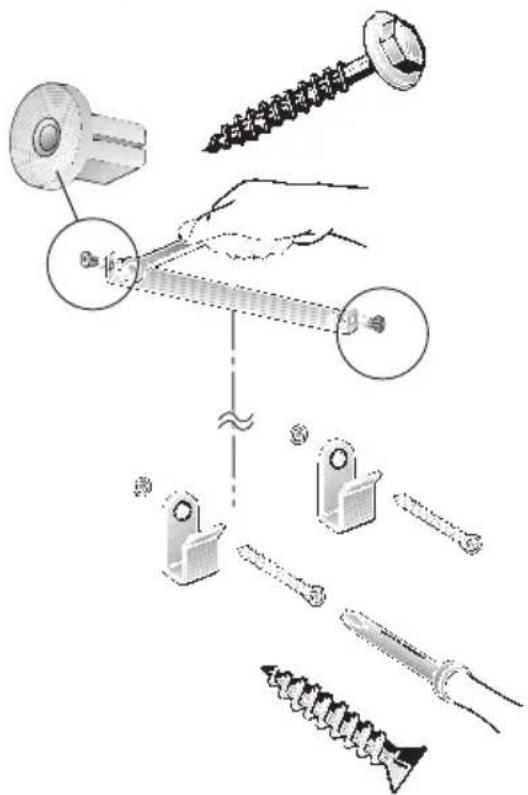

Einbauen

Technical diagram showing a mechanical assembly with screw fasteners and a magnified inset of a grid-patterned structure (no text or symbols)

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring.

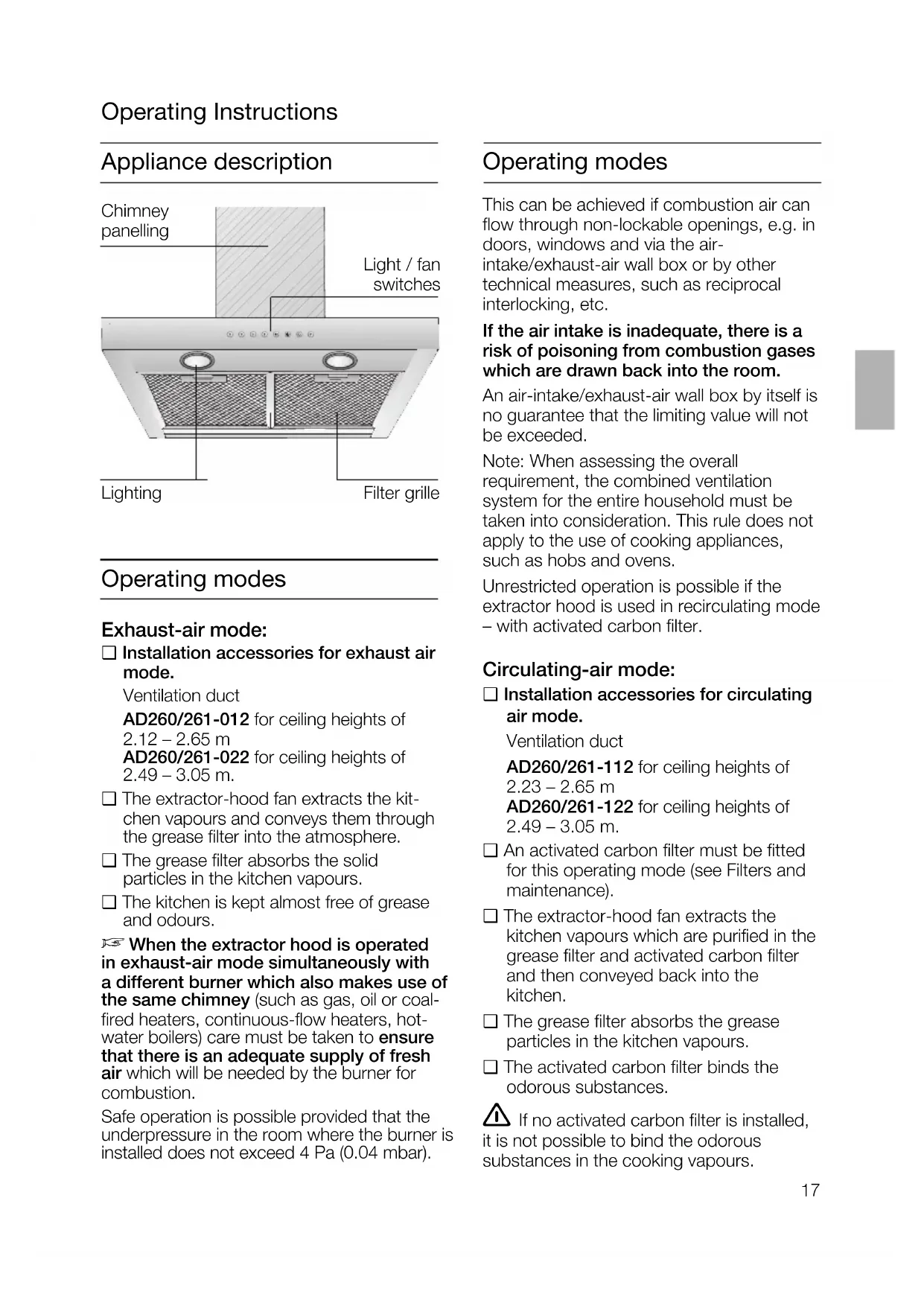

Operating Instructions

Appliance description

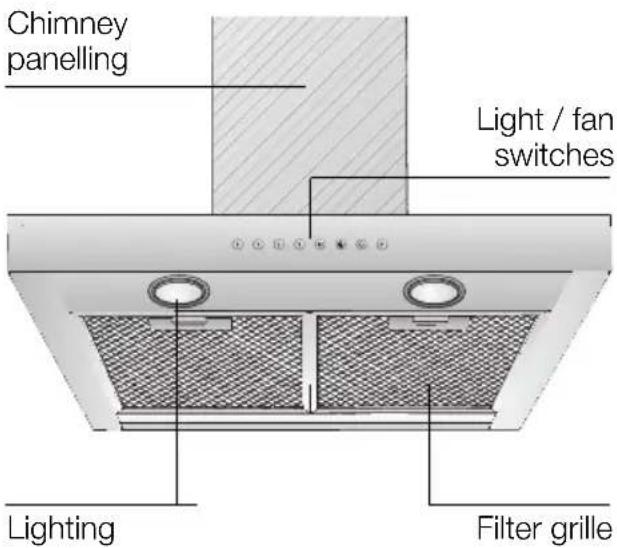

Chimney panelling Light / fan switches Lighting Filter grille

Operating modes

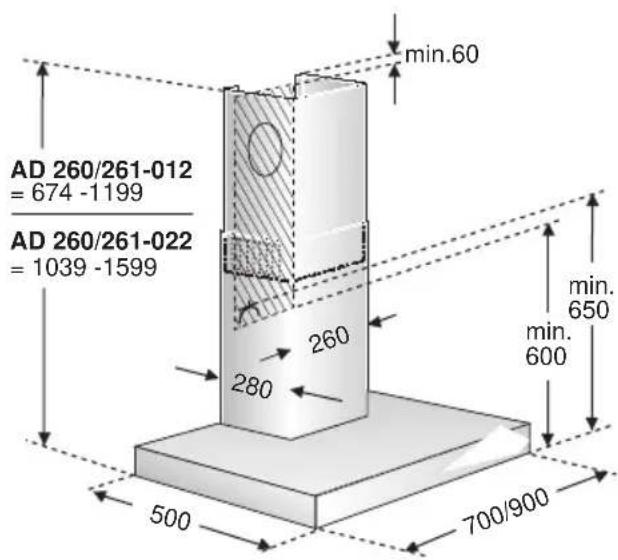

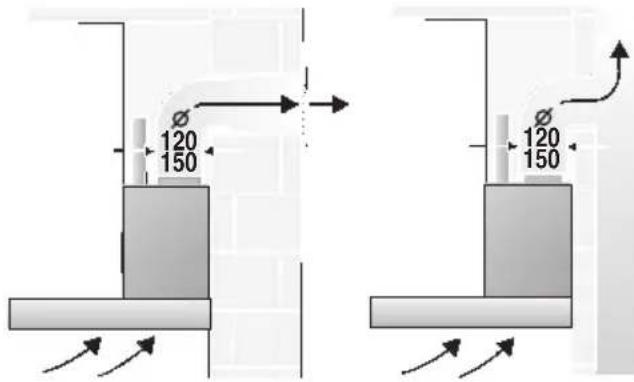

Exhaust-air mode:

□ Installation accessories for exhaust air mode.

Ventilation duct

AD260/261-012 for ceiling heights of 2.12 - 2.65 m

AD260/261-022 for ceiling heights of 2.49 - 3.05 m.

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.

☐ The grease filter absorbs the solid particles in the kitchen vapours.

☐ The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

Operating modes

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

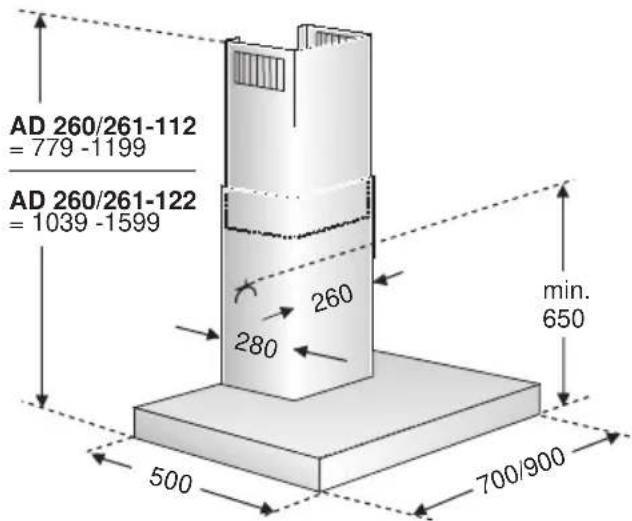

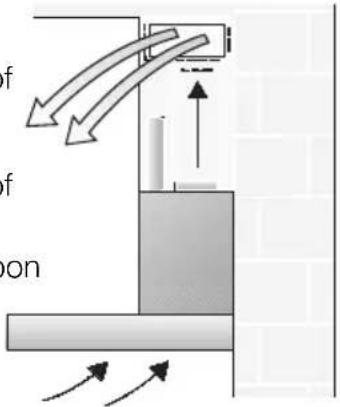

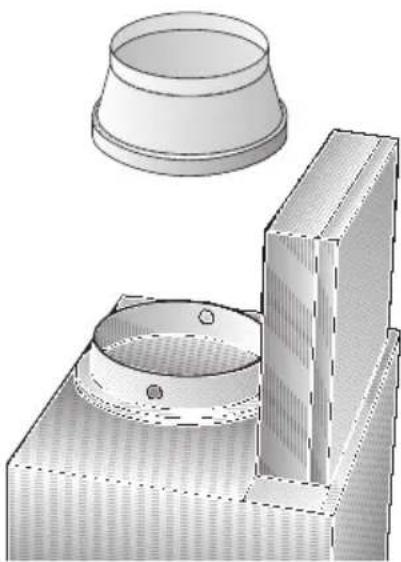

Circulating-air mode:

□ Installation accessories for circulating air mode.

Ventilation duct

AD260/261-112 for ceiling heights of 2.23 - 2.65 m

AD260/261-122 for ceiling heights of 2.49 - 3.05 m.

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).

☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.

☐ The grease filter absorbs the grease particles in the kitchen vapours.

☐ The activated carbon filter binds the odorous substances.

⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Before using for the first time

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

☐ Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.

☐ This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework and recycling of used application applicable throughout the

Simple line drawing of a trash bin with no text or symbols

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

Before using for the first time

Safety instructions

Do not flambé food directly under the extractor hood.
Risk of grease filter catching fire due to flames.

⚠ The hotplates must always be covered with a utensil.

⚠️ Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

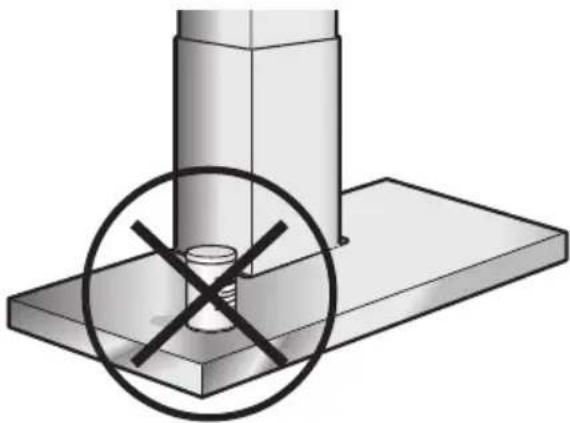

⚠️ Do not use the appliance if damaged.

⚠ The appliance is not intended for use by young children or infirmed persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

⚠ The appliance may be connected to the mains by a qualified technician only.

⚠ Dispose of packaging materials properly (see Installation instructions).

This extractor hood is designed for domestic use only.

Light bulbs must always be fitted when the extractor hood is in use.

⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

⚠️ Never operate the extractor hood without a grease filter.

Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

⚠️ Carefully clean the extractor hood before switching on for the first time. ⚠️ Do not place any objects on the extractor hood.

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

Operating procedure

⚠ The most effective method of removing vapours produced during cooking is to:

□ Switch the ventilator ON as soon as you begin cooking.

□ Switch the ventilator OFF a few minutes after you have finished cooking.

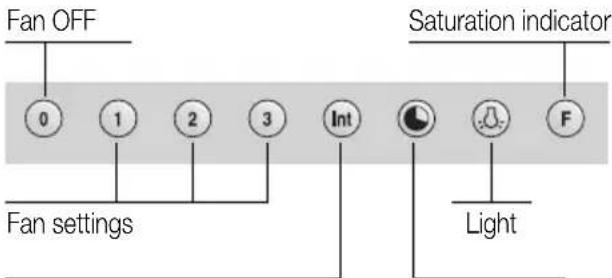

Fan OFF 0 1 2 3 Int Saturation indicator Fan settings Light

Intensive setting Fan follow-on

Maximum power is obtained at the intensive setting. It is only required for short intervals.

☐ The Int key for the intensive level should be pressed when browning and frying in an open pan.

If you have switched on the hood by selecting the intensive level, it will be switched off again automatically after 5 minutes.

☐ If you press the Int key while the hood is running at fan level 1, 2 or 3, the electronic control will switch back automatically to the previously selected fan level after 5 minutes.

☐ If you would like to end the intensive level before the five minutes have elapsed, press the 0 key ("Motor off") or select a different level. It is possible to switch off the extraction function at any time by pressing the 0 key (motor "off").

Special functions:

Intensive time:

☐ You can set the intensive level running time to 3, 5 or 10 minutes by simultaneously pressing the Int key and the 1, 2 or 3 key and you can store this setting. When delivered, the appliance is set to five minutes, i.e. the combination of the Int key and the key 2.

Fan follow-on:

☐ Delayed shut-off is possible at any level. First press the required key 1, 2, 3 or Int and then press the key.

The delayed shut-off time for all levels is ten minu-tes. After these ten minutes, the ventilation switches off, but the lighting stays on.

Interval ventilation:

☐ Interval ventilation is a special feature of this appliance which periodically activates the fan for five minutes every hour. You can activate this function by simultaneously pressing the 0 key and, depending on the required extraction capacity, the 1, 2 or 3 key.

This mode of operation is indicated by alternating illumination of the key together with the corresponding fan level indicator.

You can switch off interval ventilation by pressing the 0 key.

Lighting:

□ Briefly press the button to switch the light on and off.

☐ The light can be switched on at any time, even though the fan is switched off.

□ Adjusting the brightness:

Hold down the button until the desired brightness is obtained.

Filters and maintenance

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Saturation indicator: F

The grease filter saturation display F flashes after an operating time of 30 hours to you indicate to you that you should clean the grease filter. The grease filters can of course be cleaned at any time, even if the grease filter saturation display has not started to flash.

Cleaning the metal grease filters:

☐ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned 1 x a month.
☐ The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.
☐ The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

☐ When cleaning the filters by hand, soak them in hot soapy water first of all. Do not use aggressive, acidic or caustic cleaners.

Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

Filters and maintenance

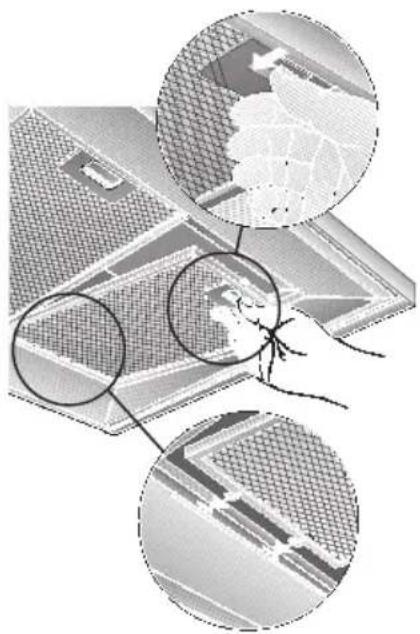

Removing and inserting the metal grease filters:

Warning: The halogen bulbs must be switched off and cool.

1. Press the catch on the grease filters inwards and fold the filters down.

Diagram showing magnified views of a solar panel with a globe and mesh structure, no text or symbols present

1. Clean the filters.
2. Insert the clean filters back into the hood.

Activated carbon filter:

For neutralizing odours in recirculating mode.

Caution:

As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired.

Important:

Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting.

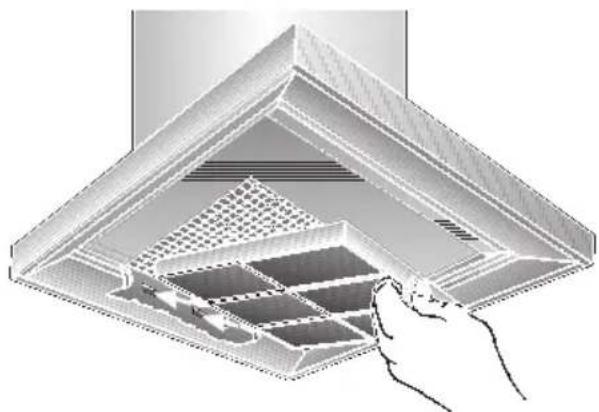

Inserting the filter:

Warning: The halogen bulbs must be switched off and cool.

1. Remove the metal filters (see "Removing and inserting the metal grease filters").

2. Insert the activated carbon filter.

Diagram of a 3D architectural structure with grid patterns and a hand holding a component (no text or symbols)

1. Engage the lug.

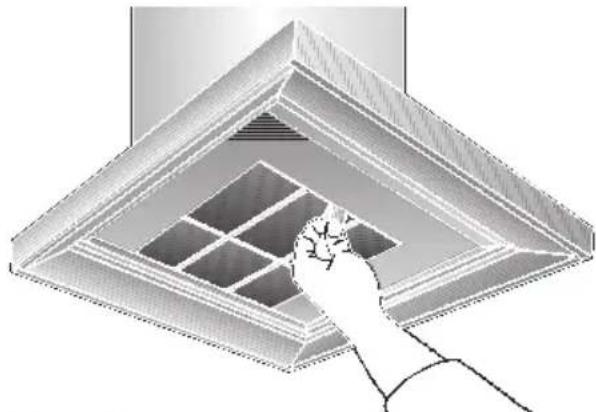

Removing the filter:

Warning: The halogen bulbs must be switched off and cool.

1. Remove the metal filters.
2. Press in the lug and remove the activated carbon filter.

Illustration of a hand reaching toward a grid-patterned panel inside a rectangular frame (no text or symbols)

1. Insert the metal grease filters.

Replacing the activated carbon filter:

☐ During normal operation (1 to 2 hours per day) the activated carbon filters should be replaced approximately 1 x year.
☐ A replacement filter can be obtained from any authorized dealer (see optional accessories).
□ Use original filters only. By doing so you will obtain maximum performance from your extractor hood.

Disposing of the old activated carbon filter:

☐ There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse.

Cleaning and care

Isolate the extractor hood by pulling out the mains plug or switching off the fuse.

⚠ Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine!

□ Clean the extractor hood with a hot soap solution or a mild window cleaner.
☐ Do not scrape off dried-on dirt but wipe off with a damp cloth.
☐ When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency.
☐ Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

□ Use a mild non-abrasive stainless steel cleaner.
□ Clean the surface in the same direction as it has been ground and polished.
☐ We recommend our stainless steel cleaner no. 461731. See enclosed service booklet for order address.

Aluminium and plastic surfaces:

☐ Do not use dry cloths.
☐ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.

Observe the warranty regulations in the enclosed service booklet.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
   When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.
2. Remove the bulb ring with a screwdriver or similar tool.

Illustration of a magnifying glass with handle and circular lens (no text or symbols)

1. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, G4 bulbholder). Caution: Plug-in bulbholder. Take hold of the bulb with a clean cloth.

Illustration of a hand holding a tool with a curved arrow pointing to a circular component (no text or symbols)

1. Re-insert the bulb ring.
2. Restore the power by inserting the mains plug or switching on the fuse.

Note: If the light does not function, check that the bulbs have been inserted correctly.

If you encounter a problem

If an F appears in the display:

☐ See "Filters and maintenance" Section.

If is not possible to operate the extractor hood:

☐ Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box. Wait for approx. 1 minute and then switch it on again.

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Important information

⚠️ Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.

⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

⚠ The extractor hood can be used in exhaust air or circulating air mode.

⚠️ Always mount the extractor hood over the centre of the hob.

⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 550 mm, Fig. 1.

⚠ The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.

⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

⚠ When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).

⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.

⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.

⚠️ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1.

Exhaust-air mode:

□ Installation accessories for exhaust air mode.

Ventilation duct

AD260/261-012 for ceiling heights of 2.12 - 2.65 m

AD260/261-022 for ceiling heights of 2.49 - 3.05 m.

120 150 120 150

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations).

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

min.60 AD 260/261-012 = 674 -1199 AD 260/261-022 = 1039 -1599 min. 650 min. 600 260 280 500 700/900

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

For optimum extractor hood efficiency:

☐ Short, smooth air exhaust pipe.
☐ As few bends in the pipe as possible.
☐ Diameter of pipe to be as large as possible and no tight bends in pipe.
If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

⚠ The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Round pipes:

We recommend

Internal diameter: 150 mm (at least 120 mm).

☐ Flat ducts must have an internal cross-section that equates to that of round pipes.

There should be no sharp bends.

∅ 120 mm approx. 113 cm

150 mm approx. 177 cm ^2

☐ If pipes have different diameters: Insert sealing strip.

☐ For exhaust-air mode, ensure that there is an adequate supply of fresh air.

Circulating-air mode

□ Installation accessories for circulating air mode.

Ventilation duct

AD260/261-112

for ceiling heights of 2.23 - 2.65 m

AD260/261-122

for ceiling heights of 2.49 - 3.05 m.

□ With activated carbon filter if exhaust-air mode is not possible.

of of on

Connecting a 150 mm exhaust-air pipe:

□ Mount the pipe directly onto the air outlet on the hood.

Connecting a 120 mm exhaust-air pipe:

☐ Attach the reducing connector directly to the air pipe.

3D technical illustration of a mechanical assembly with a conical component and a rectangular base (no text or symbols)

☐ Attach the exhaust-air pipe to the reducing connector.

AD 260/261-112 = 779 -1199 AD 260/261-122 = 1039 -1599 min. 650 260 280 500 700/900

Prior to installation

Preparing the wall

☐ The wall must be flat and perpendicular.
☐ Ensure that the wall is capable of providing a firm hold for mounting screws and plugs.

Weight in kg:

	Exhaust air	Recirculating air
	20,570 cm	21,0
90 cm	22,0 22,5

We reserve the right to construction changes within the context of technical development.

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow – Earth

Blue - Neutral

Brown – Live

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (≡), or coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.
3. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations.

If possible, site the earthed socket directly behind the chimney panelling.

Electrical connection

Electrical data:

Are to be found on the name plate inside the appliance after removal of the filter frame.

⚠️ Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m. If it is necessary to wire the extractor hood directly into the mains:

The extractor hood should only be connected to the electricity supply by a properly qualified electrician.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

This extractor hood corresponds to EC regulations concerning RF interference suppression.

Installation

This extractor hood is intended to be mounted onto the kitchen wall.

1. Remove the grease filter (refer to Operating Instructions).

2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted.

3. Use the template to mark the points on the wall where the screws will be mounted. In order to make it easier to hook the hood onto the screws, draw the outline of the area where the hood will be attached.

⚠ Ensure that the minimum distance between the hob and the extractor hood is maintained – 550 mm for an electric hob and 650 mm for a gas hob. The bottom edge of the template equates to the lower edge of the extractor hood.

1. Drill 4 x ∅ 8 mm holes for the extractor hood and 2 x ∅ 8 mm holes for the chimney panelling. Insert plugs into the holes so that they are flush with the wall.

30 216 172 476 36,5 400 min.550 Elektro min.650 Gas

Note: Take into account any special accessories that are going to be fitted.

1. Attach the 2 enclosed spacers to the fixing bracket for the flue duct panelling. Attach the fixing bracket for the chimney panelling using two hexagon head cap screws.

Diagram illustrating the assembly of screw and pin components with labeled parts and motion arrows

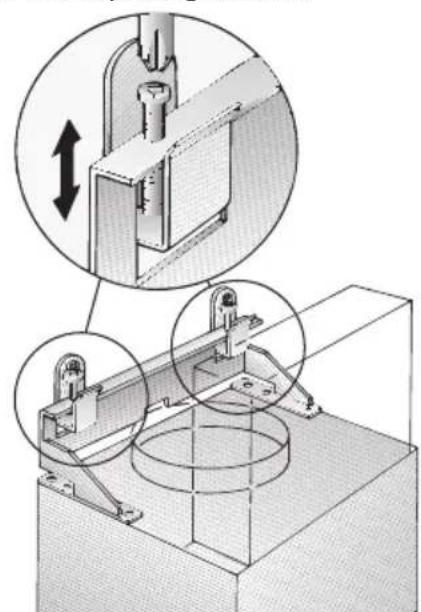

1. Attach the extractor hood. Adjust the height and align horizontally with the adjusting screws.

Technical diagram showing mechanical assembly with two views of a bracket and a circular component (no text or symbols)

Installation

1. Screw in lower screws (hex screws).
2. Stick protective film over the holes of the 2 lower mounting bolts in the protective grid.

Technical diagram illustrating assembly steps of a mechanical component with labeled parts and directional arrows

1. Connect up the air outlet pipe.

2. Connect the hood to the electricity supply.

3. Remove the protective film from the two flue ducts.
   ⚠️ Take care not to damage the surfaces which are susceptible to scratches etc.

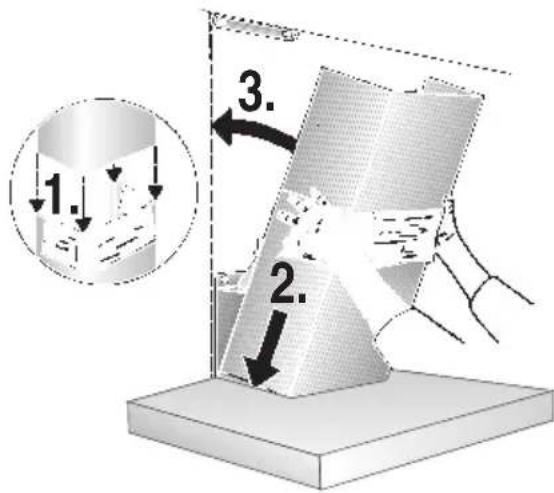

4. Push both sections of the flue panelling together (slots in the upper section must be pointing downwards) and insert into the opening in the extractor hood.
   ⚠️ Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.

1. 2. 3.

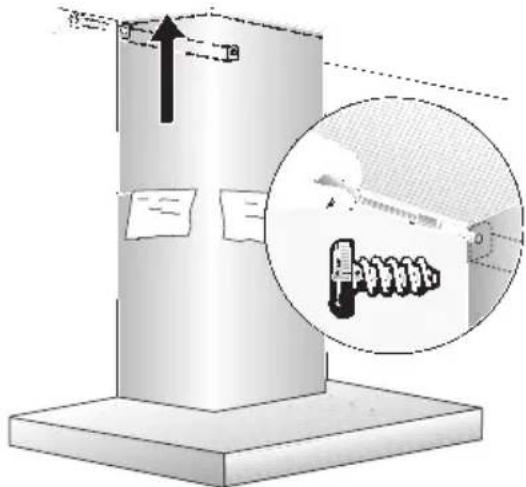

1. Slide out the upper section and attach it to the mounting brackets at the sides with two screws.

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring.

1. Insert the grease filter (refer to Operating Instructions).

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and base plate with a crosshair overlay (no text or symbols)

Ventilation intensive:

Ventilation intermittent:

Close-up of a grid-patterned surface with two circular insets showing magnified views (no text or symbols)

Diagram of a hand holding a grid-patterned object inside a 3D structural frame (no text or symbols)

Illustration of a hand inserting a small object into a grid-patterned panel inside a rectangular frame (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a device with a circular component and an arrow indicating rotation (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram illustrating the assembly of screw and nut components with labeled parts and motion arrows

Technical diagram showing mechanical assembly with circular components and directional arrows (no text or symbols)

Encastrement

Technical diagram illustrating assembly steps of a mechanical component with labeled parts and magnified views

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device.

Simple line drawing of a trash bin with no text or symbols

Gaskookplaten / gasfornuizen

Mechanical assembly diagram showing a bolt and base plate with a crosshair overlay (no text or symbols)

Three circular diagrams showing a hand holding a grid-patterned device, with inset images of a globe and mesh (no text or symbols)

Architectural diagram of a roof structure with grid pattern and ventilation slots (no text or symbols)

1. Bevestig de lip.

Verwijderen:

Illustration of a hand cleaning a grid-patterned ceiling structure (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Let op: plugfitting.

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present.

3D technical illustration of a mechanical assembly with a conical component and a rectangular base (no text or symbols)

Diagram illustrating the assembly of screw and nut components with labeled parts and motion arrows

Technical diagram showing mechanical assembly with circular components and directional arrows (no text or symbols)

Inbouwen

Technical diagram illustrating screw installation steps with magnified views of grid and bed components

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a handle.

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

Diagram showing two circular insets of a device with a globe and grid patterns, no readable text or symbols present.

Diagram of a structural grid inside a rectangular frame, with a hand adjusting the interior (no text or symbols)

Illustration of a hand inserting a grid into a rectangular panel (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a device with a circular component and an arrow indicating rotation (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram illustrating the assembly of a screw and nut assembly with labeled components and motion arrows

Technical illustration of a mechanical assembly with two views showing internal components (no text or symbols)

Montaggio

Technical diagram illustrating screw installation steps with magnified views of a grid structure and tool path

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring-like component.

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and nut on a base plate with a circular cross symbol (no text or labels)

Diagram showing two circular insets highlighting a grid structure and a hand interacting with a device (no text or symbols present)

Diagram of a 3D architectural structure with grid patterns and a hand interacting with it (no text or symbols)

Illustration of a hand holding a grid-patterned object inside a square ceiling structure (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present.

3D technical illustration of a mechanical assembly with a conical component and a stepped base (no text or symbols)

Diagram illustrating the assembly of screw and nut components with labeled parts and motion arrows

Technical diagram showing mechanical assembly with two views of a cylindrical component (no text or symbols)

Montaje

Technical diagram illustrating a mechanical assembly with labeled steps 1 and 2, showing components like screws, bolts, and grid structures.

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring-like component.

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

Close-up of a microchip with three circular insets showing close-ups of a grid, a globe, and a textured surface (no text or symbols visible)

Diagram of a window frame structure with grid pattern and a hand adjusting the panel (no text or symbols)

Illustration of a hand reaching toward a grid-patterned ceiling structure (no text or symbols)

1. Montar os filtros de gordura.

Illustration of a circular object with a handle and central lens (no text or symbols)

Illustration of a hand holding a tool with a curved arrow pointing to a circular component (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram illustrating the assembly of screw and pin components, showing parts like screws, bolts, and fasteners with magnified views.

Technical diagram showing mechanical assembly with circular components and directional arrows (no text or symbols)

Montagem

Technical diagram illustrating screw installation steps with magnified views of material layers and tool application

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring.

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

Close-up of a fabric or mesh panel with circular insets showing texture and structural details (no text or symbols visible)

Diagram of a ceiling structure with grid pattern and hand holding a component (no text or symbols)

Illustration of a hand reaching toward a grid-patterned panel inside a square frame (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a tool interacting with a circular device (no text or symbols visible)

3D technical illustration of a mechanical assembly with a conical component and a rectangular base (no text or symbols)

Diagram illustrating the assembly of screw and nut components with labeled parts and motion arrows

Technical diagram showing mechanical assembly with two views of a bracket and a circular base (no text or symbols)

Τοποθέτηση

Technical diagram showing a mechanical assembly with screw fasteners and a magnified inset of a grid-patterned component (no text or symbols)

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring.
