USER MANUAL VSV105 CLIMADIFF

5^ EQUIPEMENTS

Before use, please read and follow the safety rules and operating instructions in this manual.

Firstly, we would like to thank you for purchasing a CLIMADIFF product and hope that this appliance fully lives up to your expectations.

This appliance will enable you to store your bottles and bring them to service temperature, using its multi-temperature compartment(s).

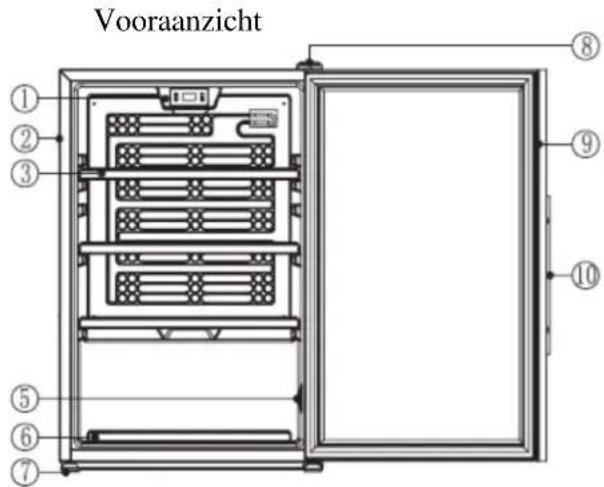

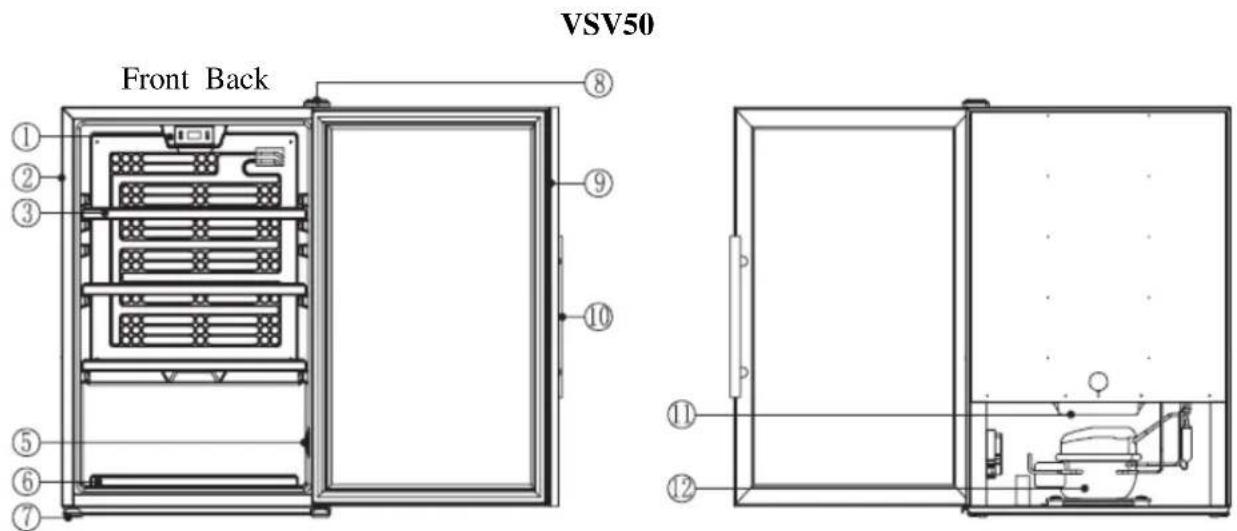

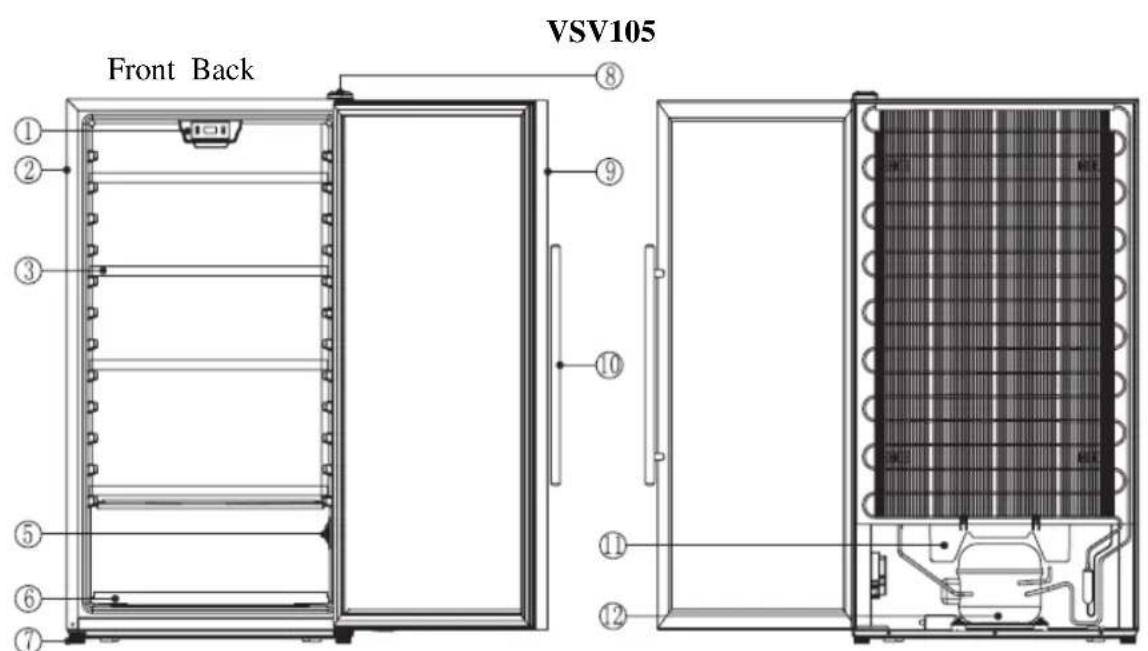

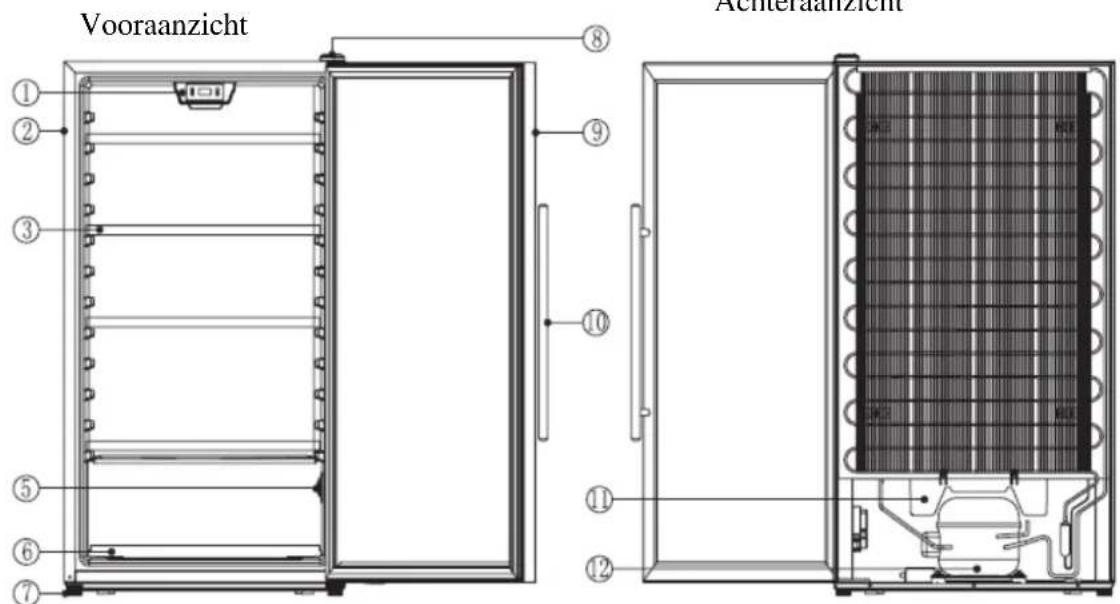

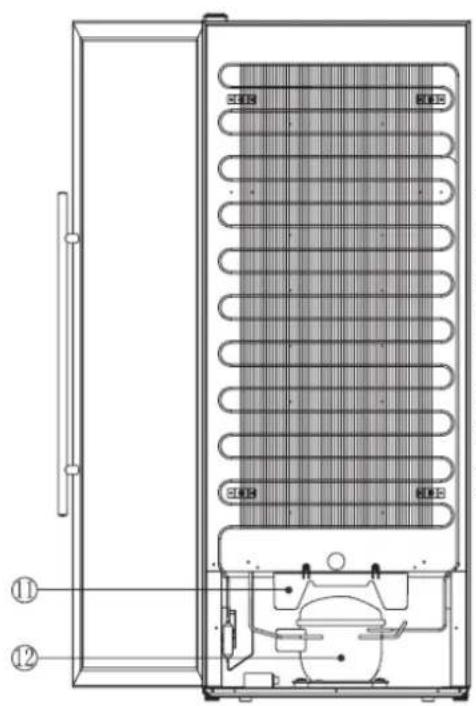

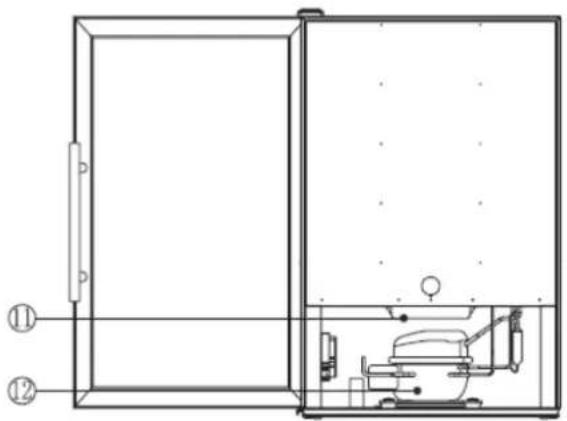

1^ DESCRIPTION OF THE APPLIANCE

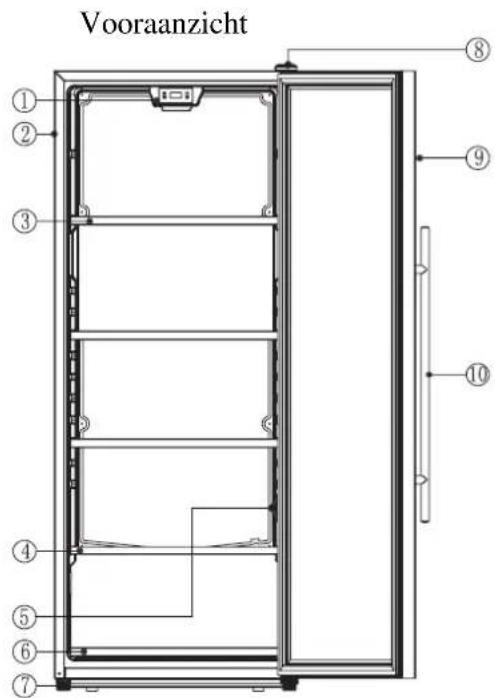

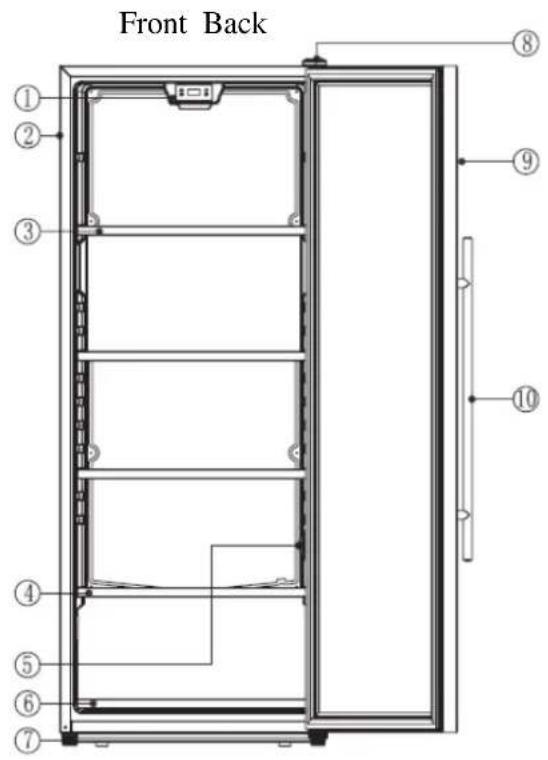

VSV120

1. CONTROL PANEL
   2.BODY
   3.ABOVESHELF
2. MIDDLE SHELF
3. HEAT DETECTOR
4. BOTTOM SHELF
5. CABINET ADJUSTING LEG
6. DOOR HNGE COVER
   9.GLASSDOOR
7. HANDLE

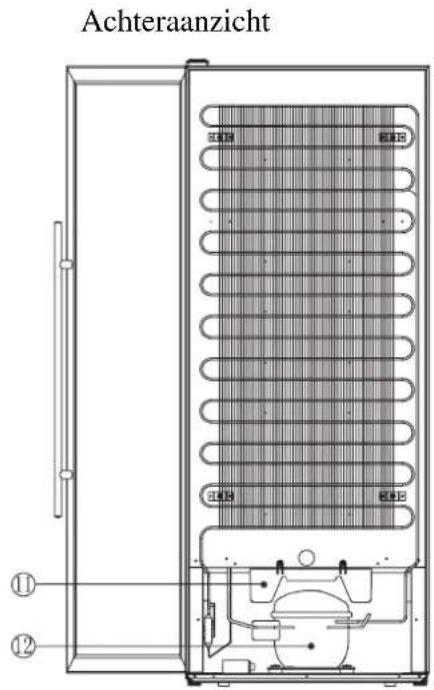

   11.WATER TRAY
   12.COMPRESSOR

2^ TECHNICAL CHARACTERISTICS

Below is an example of the nameplate:

Référence: VSV50

Service Ref: VSV50/1

S/N 140400001

Climadiff SA-143 boulevard Pierre

Lefauchex 72230 Arnage - France

Vin-Vin

The name plate attached to the inside or rear of the appliance (depending on the model) includes all the information specific to your wine cellar.

We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.)

Once it is installed and loaded, access to it is not so easy.

CAUTION: No assistance can be provided without this information.

3^ GENERAL SAFETY INSTRUCTIONS

For your own safety and for the proper utilisation of the appliance, read this manual carefully, including the warnings and recommendations, before installing the appliance and using it for the first time. In order to avoid damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its operation and safety functions. Keep these recommendations close to the appliance, for future reference, and ensure that the document is transferred with the appliance, if it is sold or in the case of moving. This will ensure optimum operation of the appliance.

To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the case of operating/handling errors concerning the appliance.

Safety of children and other vulnerable persons

• This appliance may be used by children aged 8 years and above, and by persons who are physically, sensorially or mentally handicapped, or who have not learned to use the appliance, providing they are supervised by a person familiar with the appliance and who is aware of the risks involved. Children should not be allowed to play with the appliance. User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.

• Keep all packaging out of the reach of children, as there is a risk of suffocation.

• If you decide to scrap the appliance, disconnect it from the wall socket, cut the connection cable (as close to the appliance as possible) and remove the door, in order to prevent children playing with it, with the resulting risk of electric shock or being trapped inside.

• If an appliance with a magnetic door seal is being replaced by another appliance with a latch on the door or on the seal, ensure that the latch is disabled before selling or scrapping the old appliance. This will prevent the appliance from being transformed into a trap for children.

• Keep the appliance and its power cable out of reach of children less than 8 years old.

General safety

• CAUTION — This appliance is designed for home use.

• CAUTION — Never store inflammable substances, such as aerosols, inside the appliance, as they could leak or release fluids.

• CAUTION — A damaged power cable should be immediately replaced by the manufacturer or by a qualified retailer, in order to avoid any risk of electric

shock.

• CAUTION — Keep the ventilation openings well open and ensure that air can circulate, especially if the appliance is recessed into a wall.
  . CAUTION — Do not damage the refrigerating circuit.
• CAUTION — Do not use electrical appliances inside the compartment, unless they are tolerated by the manufacturer.
• CAUTION — The refrigerating and insulating systems contain inflammable gases. When the appliance is scrapped, it should be deposited at an accredited collection centre. Do not expose the appliance to fire.

Refrigerating fluid

The refrigerating circuit in the appliance uses refrigerating isobutane (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged. The refrigerating fluid (R600a) is inflammable.

Caution: fire risk

If the refrigerating circuit is damaged:

• Avoid open flames or any source of combustion.
• Ensure that the room in which the appliance is installed is well ventilated.

It is dangerous to change the specification of the appliance in any way whatsoever.

Damage to the power cable may cause a short circuit and/or electric shock.

Electrical safety

• We decline any liability in respect of incidents caused by poor electrical installation.
• Do not extend the power cable. Do not use an extension cable, or adapter, or multi-way socket.

• Check that the wall socket is not damaged. A wall socket in poor condition may cause the appliance to overheat and explode.

• Check that the wall socket used for the appliance is properly accessible.

• Never pull on the main power cable.
• Ensure that the appliance is always electrically earthed.
• If the wall socket is loose, do not connect the cable, as there is a risk of electric shock or fire.
• Do not use the appliance if the interior lighting cover is not installed.
• Disconnect the appliance before replacing the lighting bulb.
• The appliance operates on a single phase 220 240V / 50Hz power supply. The appliance must be connected to an earthed wall socket, in accordance with applicable recommendations.
• Do not attempt to replace a damaged power cable, contact your after-sales service.
• The power socket must be easily accessible but out of reach of children. In case of doubt, contact your installation technician.

Daily utilisation

• Do not store inflammable substances or fluids inside the appliance. This would create a risk of explosion.
• Do not operate other electrical equipment inside the appliance (mixers, whirling rotor for ice cream, etc.).
• When disconnecting the appliance, grip the plug firmly and do not pull on the cable.
• Do not expose the appliance to direct sunlight.
• Keep the appliance away from candles, luminaires and open flames, in order to avoid fire risk.
• This appliance is only designed to store wines and drinks.
• The appliance is heavy. Be careful when moving it.
• If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.
• Do not lean or climb on the appliance or its elements.
  In order to avoid falling objects and to prevent damage to the appliance, do

not overload the compartments of the appliance.

Caution! Cleaning and servicing

• Before carrying out servicing, switch off the power supply and disconnect the appliance.
• When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.
• Do not use sharp or pointed objects to remove ice. Use a plastic scraper.

Important information concerning installation!

• To ensure proper electrical connection, follow the recommendations given in the present manual.
• Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.
• It is recommended that the appliance be allowed to settle for at least 4 hours before connecting the electrical power supply, so that the compressor fluid feed is correct.
• Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations provided.
• In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.
• The appliance should not be placed close to radiators or cooking hot plates or gas rings.
• Check that electrical sockets remain accessible when the appliance is installed.

Power saving

To limit the electricity consumption of your appliance:

• Install it in an appropriate place (see "Installing your appliance").

• Leave the doors open as little time as possible.

• To ensure that the appliance operates properly, clean the condenser regularly (see "Routine servicing of your appliance").

• Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.

Trouble shooting

• Any electrical work should be carried out by a qualified and skilled technician.
• The appliance should be repaired by an accredited repair centre, using only manufacturer's original spare parts.

The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other utilisation.

R600a

Safety instructions

Caution: Do not obstruct the ventilation grills on the appliance.

Caution: Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance.

Caution: Do not damage the refrigerating circuit in the appliance.

Caution: The refrigerating units use isobutane (R600a), and should not be placed close to ignition sources (for example, electrical contacts that are exposed or open contacts that could be closed by the refrigerating fluid in the event of a leak). The refrigerating fluid type is specified on the power cabinet identification plate.

Caution: Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance meets the requirements of all applicable European directives and their amendments, and notably complies with the following standards:

1907/2006 (REACH)

2011/65/EU (ROHS)

2014/35/EU relating to electrical safety

2014/30/EU relating to electro-magnetic compatibility

2008/48 relating to electro-magnetic fields

2010/30 and 1060/2010 relating to energy labels

C

4° INSTALLATION INSTRUCTIONS

Before using your wine cellar:

• Remove the inner and outer packaging.
• For electrical connection carefully, follow the instructions given in this manual.
• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.
  It is advisable to wait at least 24 hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
• Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire, follow the instructions relevant to installation.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Clean the inside using a soft cloth and lukewarm water.

Using your wine cellar:

Your wine cellar must be positioned in a room with an ambient temperature between 16 and 32^

If the ambient temperature is higher or lower, the performance of your appliance may be affected and it may not be possible to obtain temperatures you want.
- Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.
Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
- When unplugging always pull the plug from the mains socket.do not pull on the cable.
- Do not place hot items near the plastic components of this appliance.
- The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
- Do not place the appliance in direct sunlight.
- Keep burning candles jumps and other items with naked flames away from the appliance so that do not set the appliance on fire.
- The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet.
- The appliance is heavy. Care should be taken when moving it.
- Never use the base, drawers, doors etc. to stand on or as supports.
- To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the risper drawers.

Installing your wine cellar:

• This wine cellar is designed for free-standing installation.
• Position it in a place with sufficient strength to support its weight when loaded.
• To get the best from your appliance with the lowest energy consumption, do not place the appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a room which is too cold.
• Connect the cellar to a single socket, leaving a 10cm gap between the back of the cellar and the wall. Ensure that your wine cellar is perfectly horizontal, then slightly raise the two front feet. (Use of a spirit level is recommended). This will prevent any movement due to instability, causing noise and vibration, and will ensure that the door seals perfectly.

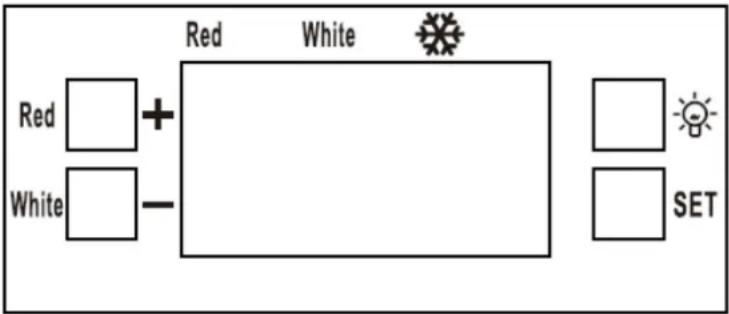

Control panel:

Selecting the temperature:

Functions of buttons:

1. Set the RED button, enter this procedure of control mode: refrigerated storage temperature for red wines.
2. Set the WHITE button, enter this procedure of control mode: refrigerated storage temperature for white wines.

The temperature varies of approximately +4^ (top) and -4^ (bottom) according to the chosen temperature at the middle, which will make a fresh, aging and chambering zones.

Temperatures example when we set 12^

	TOP MIDDLE BOTTOM
VSV120	18°C 14°C 10°C
VSV105	16°C 12°C 8°C
VSV50	15°C 12°C 8°C

Light button: control the turn-on/ turn-off of the Wine cooler's indicator light.

Press the SET button once, the preset temperature is shown for 10seconds, after that, it recovers to show the chamber temperature.

Set the SET button (effective after a lasting 2 seconds press); enter selection procedure of manual temperature adjustment. Flicker means it is setting the control temperature. Then press RED button (+) or the WHITE button (-). Each press changes the temperature by 1^ .

After all parameters are set, press the SET button. There is a beep to confirm and the flicker will stop. It returns to show the current temperature. If there is no any operation during 10s, the machine confirms and stores the setup automatically and returns to the current temperature.

Conversion of temperature units:

Press and hold the RED button for 2s, to change the temperature between Fahrenheit and Celsius.

Set the RED indicator light; under the red wines control condition, the RED indicator light is on.

Set the WHITE indicator light; under the white wines control condition, the WHITE indicator light is on.

Refrigeration indicator light: When the compressor is operating, the refrigeration indicator light is on. While the compressor stops, the refrigeration indicator light is off. In the selection procedure of manual temperature adjustment, the indicator lights of the RED and WHITE are off.

In general, when the compressor stops, the temperature in the chamber will rise gradually and the frost on the evaporator will melt. The water will flow out of the chamber through the drainpipes to the drip pan. There is no need to deforestation specially.

When the lamp in the chamber is needed to be replaced, please draw off the power plug in advance. Loosen the fixed bolts to remove the lamp cover. Loosen the bulb counterclockwise. Please contact the aftersales department of you shop to purchase spare parts. Tighten it clockwise and fix the lamp cover with bolts.

5^ EQUIPMENT

The anti-vibration system:

The refrigeration compressor is equipped with special dampers (silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the transmission of vibration to your wines.

The anti-UV system:

Light accelerates the aging of wine. In our solid door cellars, your wines are naturally protected, on condition, of course, that the door is not opened too often. Models with a glass door are UV treated, thus filtering out damaging ultraviolet rays: your wines are therefore protected.

Defrosting:

Your appliance is equipped with an automatic defrost cycle. When a cooling cycle finishes, the appliance's refrigerated surfaces are defrosted automatically. The defrost water is channelled into a condensates evaporation tray which is located in the back of the appliance near the compressor. The heat produced by the compressor then evaporates the condensates collected in the tray.

Shelves:

• To prevent damage to the door seal, ensure that the door is fully open before pulling out the shelves to add or remove bottles.
• For easier access to the contents of the shelves, slide the shelf out approximately one third of the way. The shelves are, however, fitted with a stop to prevent the bottles falling out.

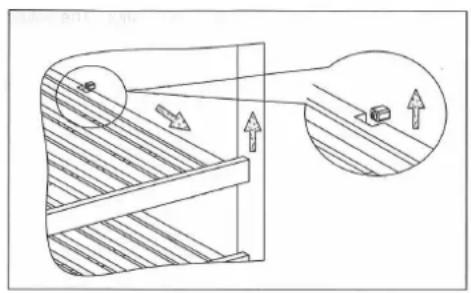

  To remove a shelf: pull it out until the cut-outs on the rack (right and left) are positioned under the side stops (square black plastic part). Lift up and pull outwards.

Enhanced safety:

Since this range of appliances is intended for storing items of value, we have been careful to select quality components and to design suitable manufacturing techniques to ensure optimum safety in operation.

6° LOADING

The maximum recommended filling quantities of bottles are guidelines and are not contractual; they provide a quick estimate of the size of the appliance (similar to the litre capacities of refrigerators).

They correspond to tests conducted with a standard bottle: the standard "75 cl light Bordeaux" bottle - standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and height.

In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without using shelves, but a "varied cellar" comprises a wide variety of bottles and the "practical" aspect of everyday cellar management limits its capacity. You will therefore probably use a little less capacity than the recommended maximum.

Types of bottle:

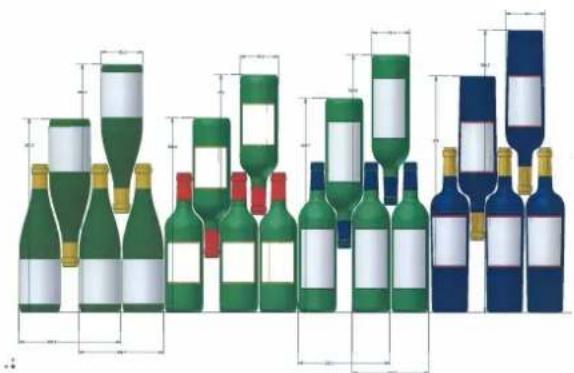

We see here 4 kinds of 75 cl wine bottles: Burgundy and Bordeaux wine bottles of different dimensions.

There are many others of all shapes and sizes.

For example, if a wine cellar is loaded only with Burgundy wine bottles, there will be approximately 30% fewer bottles than the initial quantity calculated for Bordeaux bottles.

Examples of serving temperatures:

To be observed when tasting, in order to avoid missing out on the rich aromas of your wines!

Opinions vary, and the ambient temperature too, but many people agree on the following:

Prestigious Bordeaux wines - Reds 16-17°C

Prestigious Burgundy wines - Reds 15-16°C

Prestigious dry white vintages 14-16°C

Light, young, fruity reds 11-12°C

Provence rosés, primeur wines 10-12°C

Dry whites and vin de pays reds 10-12°C

Vin de pays whites 8-10°C

Champagnes 7-8°C

Sweet wines 6^

7° MAINTENANCE

Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.

Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.

Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with clean water and allow to dry before reconnecting. Do not use solvents or abrasives.

Wash the plastic coating on the steel shelves with a mild detergent solution and then dry with a soft cloth. Wooden shelves require no particular maintenance. When the appliance is switched on for the first time, there may be a residual odour. In that case, run the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odours.

8° STORING YOUR WINE CELLAR

If you will not be using your appliance for short periods, leave the control panel with its usual settings.

During an extended shutdown:

• Remove all bottles from the appliance
• Unplug the appliance
• Thoroughly clean the inside and outside of the appliance
• Leave the door open to prevent condensation, unpleasant odours and mould.

9° WHAT TO DO IN THE EVENT OF A POWER CUT

Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature in your cabinet. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.

• If the appliance is disconnected or if there is a power cut, you must wait three to five minutes before restarting. If you try to re-start before this time, the compressor will only re-start after three to five minutes (if the temperature requires).
• When switching on for the first time or following a prolonged shutdown, it is possible that when re-starting, the temperatures selected and those displayed are not the same. This is normal. It will take a few hours before they stabilise.

10^ IF YOU NEED TO MOVE YOUR WINE CELLAR

First, disconnect your cellar.

Remove all the bottles from the cellar and secure moving parts.

To avoid damaging the levelling screws on the feet, screw them tightly into the base.

Move the appliance in an upright position (preferably) or take note of the direction in which the appliance may be laid down by looking at its packaging:

11° IN THE EVENT OF A BREAKDOWN

Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.

This product must be serviced by an authorized Service Center, and only genuine spare parts must be used. Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:

• the appliance is properly plugged in;
• there is not a power cut in progress;
• the breakdown is not one of those described in the table at the end of this manual.

IMPORTANT:

If the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury.

IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.

CAUTION!

Unplug the appliance before carrying out any maintenance or repair work.

12° PROBLEMS AND SOLUTIONS

You can solve many simple problems with your wine cellar yourself, thus avoiding having to contact your after-sales department. Try the following suggestions.

PROBLEM	POSSIBLE CAUSES
The cellar will not start	The cellar is not plugged in.The on/off button is in the off position.The fuse in your electrical installation has blown.
The cellar does not cool sufficiently	Check the temperature selected.The external temperature is beyond the cellar's operating temperature.The cellar is opened too often.The door is not properly closed.The door seal is not sealing correctly.
The compressor starts and stops frequently	The external temperature is high.A large quantity of bottles has been put into the cellar.The cellar is opened frequently.The door is not properly closed.The cellar has not been correctly set.The door seal is not sealing correctly.
The light does not operate	The cellar is not plugged in.The fuse in your electrical installation has blown.The LED is not working.The light switch is off.
Vibration	Check and ensure that the cellar is level.
The cellar makes a lot of noise	A noise resembling circulating water is produced by the coolant gas and this is normal.At the end of a cooling cycle, you can hear the noise of water circulating.Expansion and contraction of the internal walls may cause a cracking sound.The cellar is not level.
The door does not close correctly	The cellar is not level.The door seal is dirty or damaged.The shelves are not positioned correctly.A part of the contents is preventing the door from closing.
Error EE or EF	Contact your after sales department

13^ ENVIRONMENT

This product complies with EU WEEE Directive 2012/19/CE.

The crossed-out waste bin symbol on this appliance means that, at the end of its life, it should be recycled separately from other domestic waste.

It should therefore be disposed of at a selective collection centre for electrical and or electronic appliances or, if you are buying an equivalent product, by the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection centre at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about available collection systems, contact your local waste collection organisation or the retail outlet where you bought the appliance.

14° WARNING

As we continuously improve our products, we reserve the right to modify technical characteristics without notice.

Warranties for VIN SUR VIN brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.

CLIMADIFF cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

APPENDIX 1

Model: DV265MPN1 Brand: VIN SUR VIN	Reference: VSV50 Domestic refrigeration appliance category: 2
Supply 220-240 V, 50 Hz
Dimensions (L x D x H cm)	52.5 x 60.7 x 82.5
Weight (kg)	36
Energy efficiency class	B
Annual energy consumption (AEC)	Energy consumption 193 kWh per year calculated on the basis of results obtained over 24 hours in standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres) 133
Defrosting Automatic defrost
Climate class Climate class: N	This appliance is designed to be used at an ambient temperature of between 16°C (lowest) and 32°C (highest).
Acoustic emissions in air in dB(A) re 1pW 43
Installation type Free standing installation

This appliance is intended exclusively for the storage of wine.

APPENDIX 2

Model: DV265MPN1 Brand: VIN SUR VIN
	Reference: VSV105 Domestic refrigeration appliance category: 2
Supply 220-240 V, 50 Hz
Dimensions (L x D x H cm)	59.5 x 62 x 114
Weight (kg)	57
Energy efficiency class	C
Annual energy consumption (AEC)	Energy consumption 230 kWh per year calculated on the basis of results obtained over 24 hours in standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres) 190
Defrosting Automatic defrost
Climate class Climate class: N	This appliance is designed to be used at an ambient temperature of between 16°C (lowest) and 32°C (highest).
Acoustic emissions in air in dB(A) re 1pW 43
Installation type Free standing installation

This appliance is intended exclusively for the storage of wine.

APPENDIX 3

Model: DV265MPN1 Brand: VIN SUR VIN
	Reference: VSV120 Domestic refrigeration appliance category: 2
Supply 220-240 V, 50 Hz
Dimensions (L x D x H cm)	58 x 65 x 148.5
Weight (kg)	57
Energy efficiency class	D
Annual energy consumption (AEC)	Energy consumption 314 kWh per year calculated on the basis of results obtained over 24 hours in standardised test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
Usable volume of the compartments (litres) 270
Defrosting Automatic defrost
Climate class Climate class: N	This appliance is designed to be used at an ambient temperature of between 16°C (lowest) and 32°C (highest).
Acoustic emissions in air in dB(A) re 1pW 46
Installation type Free standing installation

This appliance is intended exclusively for the storage of wine.

1^ BESCHRIJVING VAN HET APPARAAT

VSV50

Achteraanzicht

VSV105

VSV120

1.1.BEDIENINGSPANEEL
2.BODY
3. BOVENBLAD
4. DE MIDDELSTE PLANK
5. HITTEDETECTOR
6. ONDERSTE PLANK
7. STELVOETEN
8. VERBORGEN DEURSCHARNIER
9. GLASDEUR
10. HANDGREEP
11.WATERTANK
12.COMPRESSOR
