USER MANUAL VSV12K CLIMADIFF

Black and white photo of a vintage double-wheeler refrigerator with wavy internal panels and indicator lights (no visible text or symbols)

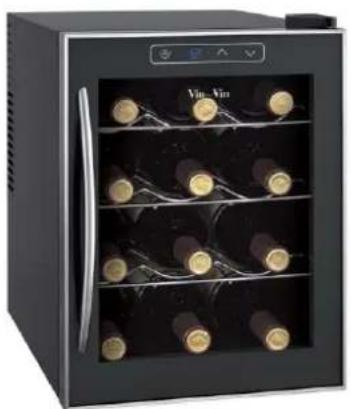

Black double-chip refrigerator with 19 bottles on the front panel (no visible text or symbols)

VSV6K - VSV12K

FR - MANUEL D'UTILISATION p 2

GB - USE INSTRUCTIONS p 12

Technical diagram of a mechanical or electrical component with numbered parts and labeled parts (1-9)

1. PORTE VITREE

2. CHARNIERE INFERIEURE

3. CLAYETTE

4. CHARNIERE SUPERIEURE

5. CACHE VENTILATEUR

Technical diagram of a refrigerator with numbered components for identification

Technical line drawing of a mechanical enclosure with internal components and ventilation ducts (no text or symbols)

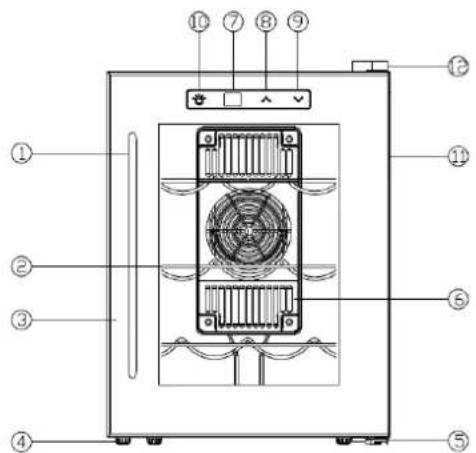

1. POIGNEE 6. CACHE VENTILATEUR

2. CLAYETTE 7. AFFICHEUR

3. PORTE VITREE 8.9 REGLAGE DE LA TEMPERATURE

4. PIED 10.ECLAIRAGE

5. CHARNIERE INFERIEURE 11 CADRE EN ACIER INOXYDABLE

12 CHARNIERE SUPERIEURE

2° CARACTERISTIQUES TECHNIQUES

Before use, please read and follow the safety rules and operating instructions in this manual.

Firstly, we would like to thank you for purchasing a CLIMADIFF product and hope that this appliance fully lives up to your expectations.

This appliance allows you to bring your foods to room temperature or to their serving temperature, according to their nature.

DESCRIPTION OF THE APPLIANCE

VSV6K:

Technical diagram of a heating element with numbered components and internal fan structure

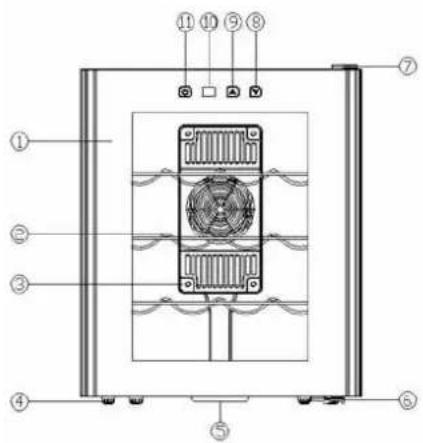

1. GLASS DOOR 6. LOWER HINGE
2. SHELF 7. UPPER HINGE
3. FAN MASK
4. FEET 10. DISPLAY
5. WATER TRAY 11 LIGHT BUTTON

8-9. TEMPERATURE SETTING

VSV12K :

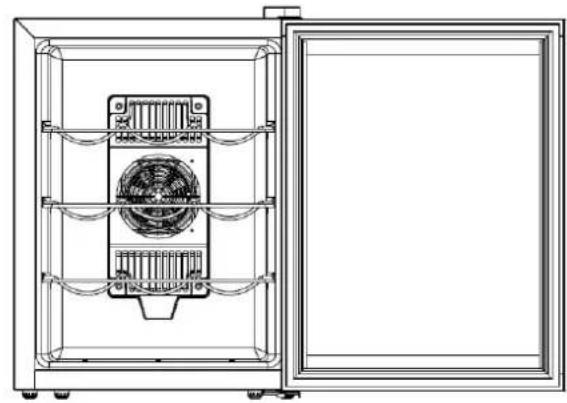

Technical diagram of a refrigerator interior with numbered components for identification

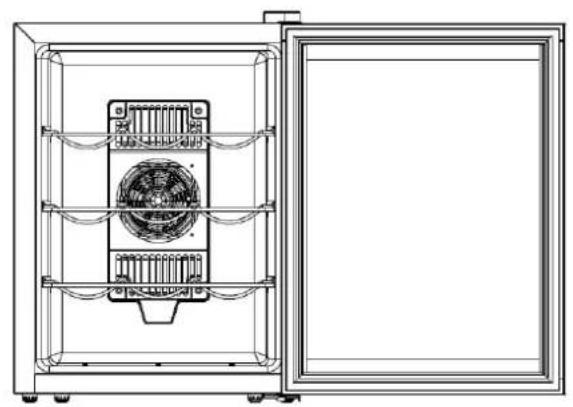

Technical line drawing of a mechanical enclosure with internal components and mounting holes (no text or symbols)

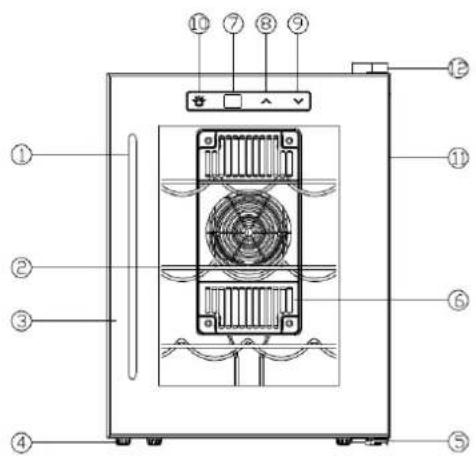

1. HANDLE
2. SHELF 7. DISPLAY
3. GLASS DOOR 8.9 TEMPERATURE SETTING
4. FEET 10. LIGHT BUTTON

5. LOWER HINGE 11 STAINLESS STEEL FRAME 12 UPPER HINGE

6. FAN MASK

2. TECHNICAL CHARACTERISTICS

Below is an example of the nameplate:

Vin...Vin VSV6K Cave de chambrage Model No.: VSV6K TENSION NOMINALE: 220-240V AC FRÉQUENCE NOMINALE: 50Hz PUISSANCE D'ENTRÉE: 70W COURANT NOMINAL: 1A CAPACITÉ TOTALE: 16L POIDS NET: 8.4KGS CLASSE DE PROTECTION CONTRE I LES CHOCS ELECTRIQUES CLASSE CLIMATIQUE: N CONSOMMATION ÉNERGÉTIQUE: 0.45Kw.h/24h AGENT ISOLANT CYCLOPENTANE Free Standing Installation PowerSource/ Temperature control board Power Input Electricircuit InclDiagram Diagramme électrique

The nameplate attached to the inside or rear of the appliance (depending on the model) includes all the information specific to your appliance.

We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.)

Once the appliance is installed and loaded, access to it is not so easy.

CAUTION: No assistance can be provided without this information.

3. SAFETY

Before you use your appliance for the first time, please read this user manual carefully. Store it carefully so that you can refer to it in future, if necessary.

Generally speaking, your appliance must be maintained by a qualified professional.

This appliance is designed exclusively for domestic use and is intended for the storage of special food and drink products at a storage temperature higher than that of a storage compartment for fresh products. Under no circumstances is it intended to keep food products fresh.

Make sure that your electrical installation's voltage corresponds to that on the appliance's nameplate; the appliance must be connected to an approved, earthed system. Incorrect repairs or connections can cause safety hazards. Have your electrical installation checked by a professional, if you are in any doubt.

This unit must be correctly connected to an earthed socket for your protection. Do not cut off or remove the earth wire on the mains cable supplied.

For safety reasons, do not use an electrical extension cable.

If your appliance is damaged (e.g. a major impact) or suffers harm (power surge due to lightning, flood, fire), it may be dangerous to use. Disconnect the mains plug and have the appliance checked by an approved professional repairer.

To prevent any danger, do not replace a damaged mains cable yourself. Contact your retailer, an approved service centre or professional repairer.

This appliance must be positioned such that the mains socket is accessible. Do not move the appliance once it is full: you might distort its body beyond repair. The electrical parts must not be directly accessible.

• Keep children away from the appliance.
• Do not use this appliance outdoors.

In the event that liquid is accidentally spilled (broken bottle, etc.) on electrical components (motor, etc.), disconnect the mains plug immediately.

To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands.

Keep the appliance away from any source of heat and out of direct sunlight.

Do not allow the mains cable to hang from a table or be in contact with sharp edges or hot surfaces.

Do not pull on the mains cable - take hold of the plug to disconnect the appliance.

Ensure that the area where your appliance is positioned can support its weight when loaded (a 75 cl bottle weighs approximately 1.3 kg).

Your temperature control cellar must be placed on a flat surface. If you have to position it on a rug or carpet, place a support underneath.

This appliance is not intended for use by people (particularly children) with diminished physical, sensory or mental capacities, or by people lacking experience or knowledge of such appliances, unless they are supervised by or have received instruction regarding use of the appliance from a person who is responsible for their safety.

Do not allow children to play with the appliance. Abandoned appliances are always dangerous.

Disconnect the device before performing any servicing or cleaning operation (disconnect the mains plug or trip the corresponding circuit breaker, depending on the model).

Never clean the appliance with inflammable products.

Do not store or spray any gas or inflammable liquid close to the appliance.

Prior to disposing of your appliance at a specific recycling site, remove the door but leave the shelves in place in such a way as to make it difficult for children to climb inside.

Climadiff disclaims any liability for damage resulting from failure to comply with connection or use instructions.

The appliance meets the requirements of the following European Directives:

2006/95/EC on electrical safety

2004/108/EC on electromagnetic compatibility

CE

4. INSTALLATION INSTRUCTIONS

Before using your temperature control cellar

Remove the inner and outer packaging.

Allow the appliance to rest for two hours before switching it on.

Clean the inside using a soft cloth and lukewarm water.

Using your temperature control cellar:

The appliance must be positioned in a room with an ideal ambient temperature of 25^ C.

If the ambient temperature is higher or lower, the appliance's performance may be affected.

Installing your temperature control cellar:

This appliance is designed for free-standing installation.

Position it in a place with sufficient strength to support its weight when loaded. To ensure that it is level, adjust the height of the feet underneath.

To get the best from your appliance with the lowest energy consumption, do not place the appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a room which is too cold.

Connect the appliance to a single socket, leaving a 10 mm gap between the back of it and the wall and 2 cm on each side. Be careful to support it, so that it is perfectly level. (Use of a spirit level is recommended). This will prevent any movement due to instability, causing noise and vibration, and will ensure that the door seals perfectly.

Selecting the temperature

You can choose the desired temperature in the compartment, using the / buttons. The temperature selected increases/decreases by 1°C with each button press.

This appliance belongs to category 10 according to the european regulation N°1060/2010. The temperature setting is from 14° to 18°C.

However the appliance's technical performances allow to reach a wider temperature range from 11^ to 18^ .

The interior light may be switched on or off using the button.

5. MAINTENANCE

Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.

Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with clean water and allow to dry before reconnecting. Do not use solvents or abrasives.

In the event of a pronounced plastic smell, clean the appliance with a mixture of two tablespoons of bicarbonate of soda, mixed in a 14 litre of lukewarm water.

When the appliance is switched on for the first time, there may be a residual odour. In that case, run the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odours.

6. STORING YOUR TEMPERATURE CONTROL CELLAR

If you will not be using your appliance for short periods, leave the control panel with its usual settings.

During an extended shutdown:

• Remove all bottles from the appliance
• Unplug the appliance
• Thoroughly clean the inside and outside of the appliance
• Leave the door open to prevent condensation, unpleasant odours and mould.

7. WHAT TO DO IN THE EVENT OF A POWER CUT

Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature inside your appliance. To protect your drinks during power cuts, remember to open the door as little as possible. For long duration power cuts, take necessary steps to protect your food/drinks.

8. IF YOU NEED TO MOVE YOUR TEMPERATURE CONTROL CELLAR

Remove all contents and secure movable components.

To avoid damaging the levelling screws on the feet, screw them tightly into the base.

Move the appliance in an upright position (preferably) or take note of the direction in which the appliance may be laid down by looking at its packaging.

9. IN THE EVENT OF A BREAKDOWN

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:

• the appliance is properly plugged in;
• there is not a power cut in progress;
• the breakdown is not one of those described in the table at the end of this manual.

IMPORTANT:

If the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury.

IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.

CAUTION!

Unplug the appliance before carrying out any maintenance or repair work.

10. PROBLEMS AND SOLUTIONS

You can solve many simple problems with your temperature control cellar, thus avoiding having to contact your after-sales department. Try the following suggestions.

PROBLEM	POSSIBLE CAUSE
Appliance not running	Check the voltage of the installationCheck your circuit breakerA fuse has blown
Not cold enough	Check the temperatures setThe ambient temperature means that the temperatures need to be adjustedThe door is being opened too frequentlyThe door is not properly closedThe door seal is not sealing correctlyInsufficient free space around the appliance
No interior light	Contact your after-sales department
The appliance seems unusually noisy	Check that the appliance is levelCheck that a piece of paper or part of the packaging has not remained trapped inside
The door does not close correctly	Check that the appliance is levelThe doors have been reversed and incorrectly fittedThe seal is in a poor conditionThe feet have “moved”
The LED does not light	The control panel is defectivePrinted circuit board problemMains plug problemIn such cases call a qualified professional
LED display error	Poor display qualityTemperature does not displayIn such cases call a qualified professional
The fans are not running	Control panel to be replaced by a qualified professional

11. ENVIRONMENT

This product complies with EU Directive 2002/96/EEC.

The crossed-out waste bin symbol on this appliance means that, at the end of its life, it should be recycled separately from other domestic waste.

It should therefore be disposed of at a selective collection centre for electrical and or electronic appliances or, if you are buying an equivalent product, by the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection centre at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about available collection systems, contact your local waste collection organisation or the retail outlet where you bought the appliance.

12. WARNING

As we continuously improve our products, we reserve the right to modify technical characteristics without notice.

Warranties for CLIMADIFF brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.

CLIMADIFF cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

APPENDIX 1

Model	Brand: VIN SUR VINReference: VSV6KDomestic refrigeration appliance category: 10
Supply	220V, 50Hz
Dimensions (L x D x H cm)	25.4X52X36.50
Weight (kg)	8.4
Energy efficiency class	B
Annual energy consumption (AEC)	Energy consumption 164 kWh per year calculated on the basis of results obtained over 24 hours under standardised test conditions. Actual energy consumption will depend on conditions of use and the location of the appliance.
Usable volume of the compartments (litres)	16
Defrosting	AUTOMATIC DEFROST SYSTEM
Climate class:	Climate class: NThis appliance is designed to be used at an ambient temperature between 16°C (lowest) and 32°C (highest).
Acoustic emissions in air in dB(A) re 1pW	28
Installation type	FREE STANDING

APPENDIX 2

Model	Brand: VIN SUR VINReference: VSV12KDomestic refrigeration appliance category: 10
Supply	220V, 50Hz
Dimensions (L x D x H cm)	34.5X48X48
Weight (kg)	11.70
Energy efficiency class	C
Annual energy consumption (AEC)	Energy consumption 221 kWh per year calculated on the basis of results obtained over 24 hours under standardised test conditions. Actual energy consumption will depend on conditions of use and the location of the appliance.
Usable volume of the compartments (litres)	33
Defrosting	AUTOMATIC DEFROST SYSTEM
Climate class:	Climate class: NThis appliance is designed to be used at an ambient temperature between 16°C (lowest) and 32°C (highest).
Acoustic emissions in air in dB(A) re 1pW	31
Installation type	FREE STANDING

Technical diagram of a mechanical or electrical component with numbered parts and internal structure

1. GLASTÛR 6/7. SCHARNIER
2. ROSTE 8/9. TEMPERATURREGLER
3. LÜFTERABDECKUNG 10. PLAKATKLEBER
4. FÜSSE 11. LEUCHTE
5. WASSERBEHÄLTER

VSV12K

Technical diagram of a refrigerator interior with numbered labels pointing to different components

Technical line drawing of a mechanical enclosure with internal components and ventilation ducts (no text or symbols)

1. TÜRGRIFF 6. LÜFTERABDECKUNG
2. ROSTE 7. PLAKATKLEBER
3. GLASTÜR 8/9. TEMPERATURREGLER
4. FÜSSE 10 LEUCHTE.

5/12. SCHARNIER

7° WAS TUN BEI STROMAUSFÄLLEN?

1° BESCHRIJVING VAN HET APPARAAT

VSV6K :

Technical diagram of a mechanical or electrical component with numbered parts and labeled parts

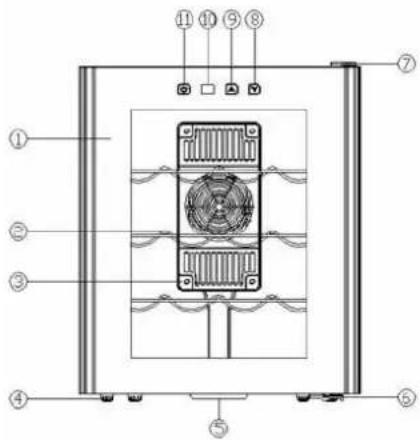

1. DEURPOST 6/7 SCHARNIER.
