USER MANUAL VSV16F CLIMADIFF

Black and white photo of a modern stainless steel refrigerator with closed doors and a digital display (no visible text or symbols)

FR - MANUEL D'UTILISATION p. 2

GB - USE INSTRUCTIONS p. 15

Technical diagram of a mechanical or electrical component with numbered parts and labeled components

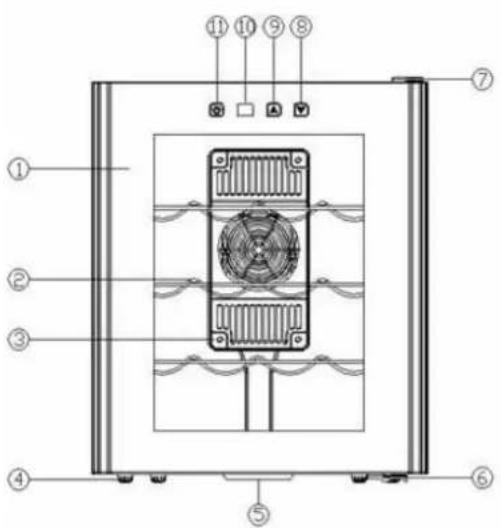

1. PORTE VITRÉE 6. CHARNIERE INFÉRIEURE
2. CLAYETTE 7. CHARNIERE SUPÉRIEURE
3. CACHE VENTILATEUR 8-9. RÉGLAGE DE LA TEMPÉRATURE
4. PIED 10. AFFICHEUR
5. BAC COLLECTEUR D'EAU 11. ÉCLAIRAGE

3. CARACTÉRISTIQUES TECHNIQUES

Before use, please read and follow the safety rules and operating instructions in this manual.

Firstly, we would like to thank you for purchasing a CLIMADIFF product and hope that this appliance fully lives up to your expectations.

This appliance allows you to bring your foods to room temperature or to their serving temperature, according to their nature.

1. GENERAL SAFETY INSTRUCTIONS

- For your own safety and for the proper utilisation of the appliance, read this manual carefully, including the warnings and recommendations, before installing the appliance and using it for the first time. In order to avoid damage to the appliance and/or personal injury, persons using the appliance should be fully familiar with its operation and safety functions. Keep these recommendations close to the appliance, for future reference, and ensure that the document is transferred with the appliance, if it is sold or in the case of moving. This will ensure optimum operation of the appliance.

- To avoid any risk of injury, keep this manual. The manufacturer declines any liability whatsoever in the case of operating/handling errors concerning the appliance.

Safety of children and other vulnerable persons

- This appliance may be used by children aged 8 years and above, and by persons who are physically, sensorially or mentally handicapped, or who have not learned to use the appliance, providing they are supervised by a person familiar with the appliance and who is aware of the risks involved. Children should not be allowed to play with the appliance. User cleaning and servicing operations should not be carried out by children, unless they are more than 8 years old and are supervised.

- Keep all packaging out of the reach of children, as there is a risk of suffocation.

- If you decide to scrap the appliance, disconnect it from the wall socket, cut the connection cable (as close to the appliance as possible) and remove the door, in order to prevent children playing

with it, with the resulting risk of electric shock or being trapped inside.

- If an appliance with a magnetic door seal is being replaced by another appliance with a latch on the door or on the seal, ensure that the latch is disabled before selling or scrapping the old appliance. This will prevent the appliance from being transformed into a trap for children.

- Keep the appliance and its power cable out of reach of children less than 8 years old.

General safety

- CAUTION — This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments,
• bed and breakfast type environments;
• catering and similar non-retail applications

- CAUTION — Never store inflammable substances, such as aerosols, inside the appliance, as they could leak or release fluids.

- CAUTION — A damaged power cable should be immediately replaced by the manufacturer or by a qualified retailer, in order to avoid any risk of electric shock.

- CAUTION — Keep the ventilation openings well open and ensure that air can circulate, especially if the appliance is recessed into a wall.

- CAUTION — Do not damage the refrigerating circuit.

- CAUTION — Do not use electrical appliances inside the compartment, unless they are tolerated by the manufacturer.

Caution: Fire risk

If the refrigerating circuit is damaged:

• Avoid open flames or any source of combustion.
• Ensure that the room in which the appliance is installed is well ventilated.

It is dangerous to change the specification of the appliance in any way whatsoever.

Damage to the power cable may cause a short circuit and/or electric shock.

Electrical safety

- We decline any liability in respect of incidents caused by poor electrical installation.

- Do not extend the power cable. Do not use an extension cable, or adapter, or multi-way socket.

- Check that the wall socket is not damaged. A wall socket in poor condition may cause the appliance to overheat and explode.

- Check that the wall socket used for the appliance is properly accessible.

- Never pull on the main power cable.

- Ensure that the appliance is always electrically earthed.

- If the wall socket is loose, do not connect the cable, as there is a risk of electric shock or fire.

- Do not use the appliance if the interior lighting cover is not installed.

- Disconnect the appliance before replacing the lighting bulb.

- The appliance operates on a single phase 220\~240 V / 50 Hz power supply. The appliance must be connected to an earthed wall socket, in accordance with applicable recommendations.

- Do not attempt to replace a damaged power cable, contact your

after-sales service.

- The power socket must be easily accessible but out of reach of children. In case of doubt, contact your installation technician.

Daily utilisation

- Do not store inflammable substances or fluids inside the appliance. This would create a risk of explosion.

- Do not operate other electrical equipment inside the appliance (mixers, whirling rotor for ice cream, etc.).

- When disconnecting the appliance, grip the plug firmly and do not pull on the cable.

- Do not expose the appliance to direct sunlight.

- Keep the appliance away from candles, luminaires and open flames, in order to avoid fire risk.

- The appliance is heavy. Be careful when moving it.

- If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.

- Do not lean or climb on the appliance or its elements.

- In order to avoid falling objects and to prevent damage to the appliance, do not overload the compartments of the appliance.

Caution! Cleaning and servicing

- Before carrying out servicing, switch off the power supply and disconnect the appliance.

- When cleaning the appliance, do not use metal objects, steam systems, volatile fluids, organic solvents or abrasive substances.

- Do not use sharp or pointed objects to remove ice. Use a plastic scraper.

Important information concerning installation

- To ensure proper electrical connection, follow the recommendations given in the present manual.

- Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.

- Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations provided.

- In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.

- The appliance should not be placed close to radiators or cooking hot plates or gas rings.

- Check that electrical sockets remain accessible when the appliance is installed.

- The appliance has to be installed in a room where ambient temperature is between 10 and 32°C. Over or under this recommended temperature range, performances may be affected.

- This appliance is not intended to be used in an unheated room (garage...), you have to place in an ambient room.

- This product is designed for maximum cooling to 15^ C below ambient temperature.

Power saving

- To limit the electricity consumption of your appliance:

- Install it in an appropriate place (see “Installing your appliance”).

Leave the doors open as little time as possible.

- To ensure that the appliance operates properly, clean the condenser regularly (see “Maintenance”).

- Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.

Trouble shooting

- Any electrical work should be carried out by a qualified and skilled technician.

- The appliance should be repaired by an accredited repair centre, using only manufacturer's original spare parts.

The appliance is designed for home use only. The manufacturer declines any liability whatsoever in the case of other utilisation.

Safety instructions

- Caution — Do not obstruct the ventilation grills on the appliance. Keep ventilation openings in the appliance enclosure or in the structure for building-in clear of obstruction.

- Caution — Do not store explosive substances, such as aerosol cans containing an inflammable propellant, in the appliance.

- Caution — Do not use electrical equipment in the compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance meets the requirements of all applicable European directives and their amendments, and notably complies with the following standards:

• 1907/2006 (REACH)
• 2011/65/EU (ROHS)
• 2014/35/EU relating to electrical safety
• 2014/30/EU relating to electro-magnetic compatibility
• 2008/48 relating to electro-magnetic fields
• 2010/30 and 1060/2010 relating to energy labels

CE

2. DESCRIPTION OF THE APPLIANCE

Technical diagram of a device with numbered components and labeled parts in Chinese

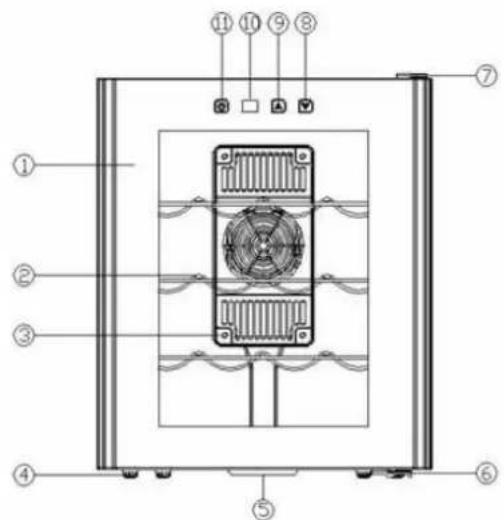

1. GLASS DOOR 6. LOWER HINGE
2. SHELF 7. UPPER HINGE
3. FAN MASK 8-9. TEMPERATURE SETTING
4. FEET 10. DISPLAY
5. WATER TRAY 11 LIGHT BUTTON

3. TECHNICAL CHARACTERISTICS

Below is an example of the nameplate:

The name plate attached to the inside or rear of the appliance (depending on the model) includes all the information specific to your appliance.

We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.)

Empty rectangular frame with no text, symbols, or content inside

Once it is installed and loaded, access to it is not so easy.

CAUTION: No assistance can be provided without this information.

4. INSTALLATION INSTRUCTIONS

Before using your appliance

• Remove the inner and outer packaging.
• Allow the appliance to rest for two hours before switching it on.
• Clean the inside using a soft cloth and lukewarm water.

Using your temperature control cellar

The appliance must be positioned in a room with an ideal ambient temperature of 25^ C.

If the ambient temperature is higher or lower, the appliance's performance may be affected.

Installing your appliance

• This appliance is designed for free-standing installation.
• Position it in a place with sufficient strength to support its weight when loaded. To ensure that it is level, adjust the height of the feet underneath.
• To get the best from your appliance with the lowest energy consumption, do not place the appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a room which is too cold.
• Connect the appliance to a single socket, leaving a 10 cm gap between the back of it and the wall and 2 cm on each side. Be careful to support it, so that it is perfectly level. (Use of a spirit level is recommended). This will prevent any movement due to instability, causing noise and vibration, and will ensure that the door seals perfectly.

Selecting the temperature

You can choose the desired temperature in the compartment, using the / buttons. The temperature selected increases/decreases by 1°C with each button press.

This appliance belongs to category 10 according to the european regulation N°1060/2010. The temperature setting is from 14° to 18°C.

However the appliance's technical performances allow to reach a wider temperature range from 12^ to 18^ .

The interior light may be switched on or off using the

button.

5. MAINTENANCE

Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.

Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with clean water and allow to dry before reconnecting. Do not use solvents or abrasives.

In the event of a pronounced plastic smell, clean the appliance with a mixture of two tablespoons of bicarbonate of soda, mixed in a 14 litre of lukewarm water.

When the appliance is switched on for the first time, there may be a residual odour. In that case, run the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odours.

6. STORING YOUR TEMPERATURE CONTROL CELLAR

If you will not be using your appliance for short periods, leave the control panel with its usual settings.

During an extended shutdown:

• Remove all bottles from the appliance
• Unplug the appliance
• Thoroughly clean the inside and outside of the appliance
• Leave the door open to prevent condensation, unpleasant odours and mould

7. WHAT TO DO IN THE EVENT OF A POWER CUT

Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature inside your appliance. To protect your drinks during power cuts, remember to open the door as little as possible. For long duration power cuts, take necessary steps to protect your food/drinks.

8. IF YOU NEED TO MOVE YOUR APPLIANCE

• Remove all contents and secure movable components.
• To avoid damaging the levelling screws on the feet, screw them tightly into the base.
• Move the appliance in an upright position (preferably) or take note of the direction in which the appliance may be laid down by looking at its packaging.

9. IN THE EVENT OF A BREAKDOWN

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:

• The appliance is properly plugged in
• There is not a power cut in progress
- The breakdown is not one of those described in the table at the end of this manual

IMPORTANT: if the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury.

IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.

CAUTION!

Unplug the appliance before carrying out any maintenance or repair work.

10. PROBLEMS AND SOLUTIONS

You can solve many simple problems with your temperature control cellar, thus avoiding having to contact your after-sales department. Try the following suggestions.

PROBLEM	POSSIBLE CAUSE
Appliance not running	Check the voltage of the installationCheck your circuit breakerA fuse has blown
Not cold enough	Check the temperatures setThe ambient temperature means that the temperatures need to be adjustedThe door is being opened too frequentlyThe door is not properly closedThe door seal is not sealing correctlyInsufficient free space around the appliance
No interior light	Contact your after-sales department
The appliance seems unusually noisy	Check that the appliance is levelCheck that a piece of paper or part of the packaging has not remained trapped inside
The door does not close correctly	Check that the appliance is levelThe doors have been reversed and incorrectly fittedThe seal is in a poor conditionThe feet have “moved”
The LED does not light	The control panel is defectivePrinted circuit board problemMains plug problemIn such cases call a qualified professional
LED display error	Poor display qualityTemperature does not displayIn such cases call a qualified professional
The fans are not running	Control panel to be replaced by a qualified professional

11. ENVIRONMENT

This appliance is marked according to the European directive 2012/19/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product.

The user is responsible for taking the appliance to the appropriate collection centre at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

12. WARNING

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice.

Warranties for VIN SUR VIN brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.

CLIMADIFF cannot be held liable for errors or technical or editorial omissions in this document.

Non-binding document.

EUROPEAN DATA SHEET

according to the regulations (UE) N°1060/2010

CHAMBRAGE CABINET

BRAND	VIN SUR VIN
COMMERCIAL REFERENCE	VSV12F
POWER SUPPLY	220-240 V / 50 Hz
PRODUCT DIMENSIONS (W x D x H)	357 x 503 x 487 mm
NET WEIGHT	11,90 kg
APPLIANCE CATEGORY	10
ENERGY EFFICIENCY CLASS	A+
ENERGY CONSUMPTION	Energy consumption 101 kWh per year calculated on the basis of results obtained over 24 hours in standardized test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
NET VOLUME	33 L
ADJUSTABLE TEMPERATURES	12 – 18°C
NO FROST	Automatic defrost
CLIMATE CLASS	Climate class: SN, NThis appliance is designed to be used at an ambient temperature of between 10°C (lowest) and 32°C (highest).
ACOUSTIC EMISSIONS IN AIR IN dB(A) RE 1 pW	38 dB(A)
INSTALLATION TYPE	Free standing installation

EUROPEAN DATA SHEET

according to the regulations (UE) N°1060/2010

CHAMBRAGE CABINET

BRAND	VIN SUR VIN
COMMERCIAL REFERENCE	VSV16F
POWER SUPPLY	220-240 V / 50 Hz
PRODUCT DIMENSIONS (W x D x H)	435 x 480 x 510 mm
NET WEIGHT	12,60 kg
APPLIANCE CATEGORY	10
ENERGY EFFICIENCY CLASS	B
ENERGY CONSUMPTION	Energy consumption 160 kWh per year calculated on the basis of results obtained over 24 hours in standardized test conditions. Actual energy consumption depends on conditions of use and the location of the appliance.
NET VOLUME	46 L
ADJUSTABLE TEMPERATURES	12 – 18°C
NO FROST	Automatic defrost
CLIMATE CLASS	Climate class: SN, NThis appliance is designed to be used at an ambient temperature of between 10°C (lowest) and 32°C (highest).
ACOUSTIC EMISSIONS IN AIR IN dB(A) RE 1 pW	38 dB(A)
INSTALLATION TYPE	Free standing installation

Technical diagram of a water heater or cooling unit with numbered components and labeled parts

1. GLASTÛR 6/7. SCHARNIER
2. ROSTE 8/9. TEMPERATURREGLER
3. LÜFTERABDECKUNG 10. PLAKATKLEBER
4. FÜSSE 11. LEUCHTE
5. WASSERBEHÄLTER

3. TECHNISCHE DATEN

2. BESCHRIJVING VAN HET APPARAAT

Technical diagram of a heating element with numbered components and internal structure

1. DEURPOST 6/7 SCHARNIER.
   2 OPLEGPLANK . 8/9. TEMPERATUURCONTROLLER
2. BESCHERMING VENTILATOR 10. BILLPOSTER
3. VOET 11. VERLICHTING
4. WATERTANK

Technical diagram of a device with numbered components and labeled parts, including fan, buttons, and water level indicators.
