| Product type | Wine storage cabinet (refrigerator) |
| Brand | Climadiff (Vin sur Vin) |
| Model | VSV6K |
| Total capacity | 16 L |
| Dimensions (W x D x H) | 25.4 x 52 x 36.5 cm |
| Net weight | 8.4 kg |
| Power supply | 220-240 V ~ 50 Hz |
| Input power | 70 W |
| Rated current | 1 A |
| Energy efficiency class | B |
| Energy consumption | 0.45 kWh/24h (164 kWh/year) |
| Climate class | N (ambient temperature 16-32 °C) |
| Noise emissions | 28 dB(A) |
| Defrost | Automatic |
| Installation type | Freestanding |
| Temperature range | 14-18 °C |
| Material | Glass door, steel body |
| Insulating agent | Cyclopentane |
| Electrical protection | Class I (grounded) |
| Main functions | Electronic temperature regulation, LED interior light, automatic defrost |
| Maintenance and cleaning | Clean with a soft cloth and warm water; do not use abrasive or flammable products |
| Safety | Unplug before maintenance; keep away from children; do not use an extension cord |
| General information | Complies with EC directives; recycling at end of life according to WEEE |
Frequently Asked Questions - VSV6K CLIMADIFF
User questions about VSV6K CLIMADIFF
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual VSV6K - CLIMADIFF and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VSV6K by CLIMADIFF.
USER MANUAL VSV6K CLIMADIFF
Free Standing Installation
Before use, please read and follow the safety rules and operating instructions in this manual.
Firstly, we would like to thank you for purchasing a CLIMADIFF product and hope that this appliance fully lives up to your expectations.
This appliance allows you to bring your foods to room temperature or to their serving temperature, according to their nature.

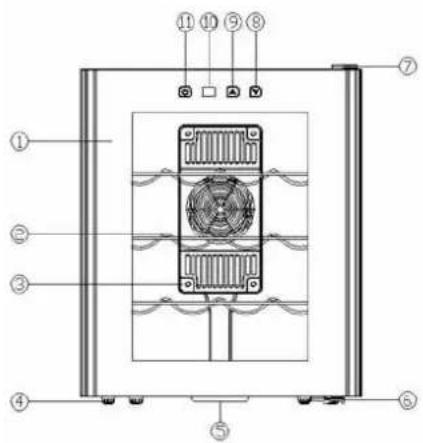

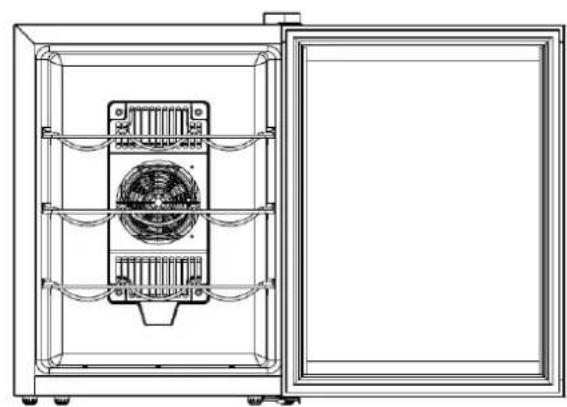

DESCRIPTION OF THE APPLIANCE

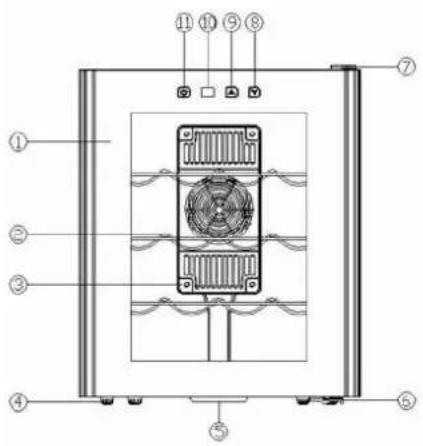

VSV6K:
1.GLASSDOOR 6.LOWERHINGE
2. SHELF 7.Upper HINGE
3. FAN MASK
4.FEET 10.DISPLAY
5.WATER TRAY 11 LIGHT BUTTON
8-9. TEMPERATURE SETTING

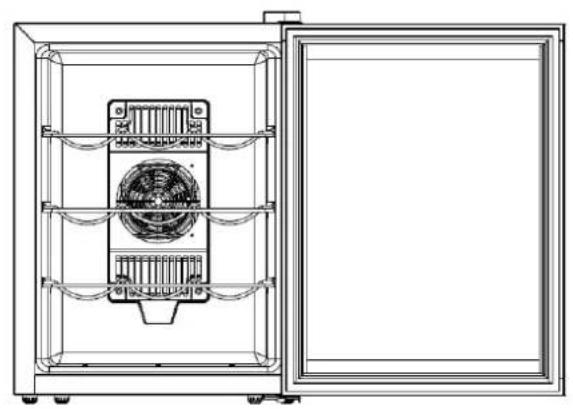

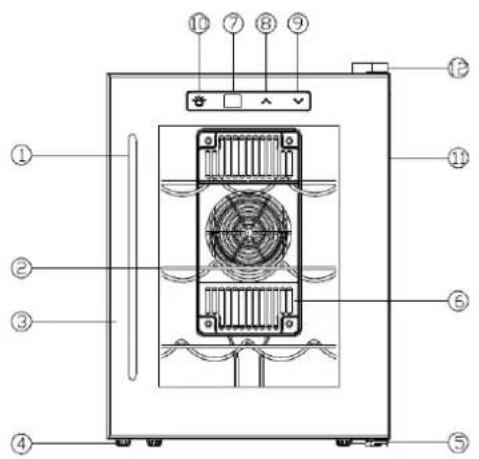

VSV12K：
-
HANDLE
-
FAN MASK
2.SHELF 7.DISPLAY
3.GLASSDOOR 8.9TEMPERATURESETTING
4.FEET 10.LIGHT BUTTON
5. LOWER HINGE 11 STAINLESS STEEL FRAME 12 UPPER HINGE
2. TECHNICAL CHARACTERISTICS
Below is an example of the nameplate:
The nameplate attached to the inside or rear of the appliance (depending on the model) includes all the information specific to your appliance.
We recommend that you make a note of its serial number in this booklet prior to installation, so that you can refer to it later (technical work, request for assistance, etc.)
Once the appliance is installed and loaded, access to it is not so easy.
CAUTION: No assistance can be provided without this information.
3. SAFETY
Before you use your appliance for the first time, please read this user manual carefully. Store it carefully so that you can refer to it in future, if necessary.
Generally speaking, your appliance must be maintained by a qualified professional.
This appliance is designed exclusively for domestic use and is intended for the storage of special food and drink products at a storage temperature higher than that of a storage compartment for fresh products. Under no circumstances is it intended to keep food products fresh.
Make sure that your electrical installation's voltage corresponds to that on the appliance's nameplate; the appliance must be connected to an approved, earthed system. Incorrect repairs or connections can cause safety hazards. Have your electrical installation checked by a professional, if you are in any doubt.
This unit must be correctly connected to an earthed socket for your protection. Do not cut off or remove the earth wire on the mains cable supplied.
For safety reasons, do not use an electrical extension cable.
If your appliance is damaged (e.g. a major impact) or suffers harm (power surge due to lightning, flood, fire), it may be dangerous to use. Disconnect the mains plug and have the appliance checked by an approved professional repairer.
To prevent any danger, do not replace a damaged mains cable yourself. Contact your retailer, an approved service centre or professional repairer.
This appliance must be positioned such that the mains socket is accessible. Do not move the appliance once it is full: you might distort its body beyond repair. The electrical parts must not be directly accessible.
- Keep children away from the appliance.
- Do not use this appliance outdoors.
In the event that liquid is accidentally spilled (broken bottle, etc.) on electrical components (motor, etc.), disconnect the mains plug immediately.
To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands.
Keep the appliance away from any source of heat and out of direct sunlight.
Do not allow the mains cable to hang from a table or be in contact with sharp edges or hot surfaces.
Do not pull on the mains cable - take hold of the plug to disconnect the appliance.
Ensure that the area where your appliance is positioned can support its weight when loaded (a 75 cl bottle weighs approximately 1.3kg ).
Your temperature control cellar must be placed on a flat surface. If you have to position it on a rug or carpet, place a support underneath.
This appliance is not intended for use by people (particularly children) with diminished physical, sensory or mental capacities, or by people lacking experience or knowledge of such appliances, unless they are supervised by or have received instruction regarding use of the appliance from a person who is responsible for their safety.
Do not allow children to play with the appliance. Abandoned appliances are always dangerous.
Disconnect the device before performing any servicing or cleaning operation (disconnect the mains plug or trip the corresponding circuit breaker, depending on the model).
Never clean the appliance with inflammable products.
Do not store or spray any gas or inflammable liquid close to the appliance.
Prior to disposing of your appliance at a specific recycling site, remove the door but leave the shelves in place in such a way as to make it difficult for children to climb inside.
Climadiff disclaims any liability for damage resulting from failure to comply with connection or use instructions.
The appliance meets the requirements of the following European Directives:
2006/95/EC on electrical safety
2004/108/EC on electromagnetic compatibility
C
4. INSTALLATION INSTRUCTIONS
Before using your temperature control cellar
Remove the inner and outer packaging.
Allow the appliance to rest for two hours before switching it on.
Clean the inside using a soft cloth and lukewarm water.
Using your temperature control cellar:
The appliance must be positioned in a room with an ideal ambient temperature of 25^ .
If the ambient temperature is higher or lower, the appliance's performance may be affected.
Installing your temperature control cellar:
This appliance is designed for free-standing installation.
Position it in a place with sufficient strength to support its weight when loaded. To ensure that it is level, adjust the height of the feet underneath.
To get the best from your appliance with the lowest energy consumption, do not place the appliance close to a heat source (heater, cooker, etc.), do not expose it to direct sunlight, and do not place it in a room which is too cold.
Connect the appliance to a single socket, leaving a 10mm gap between the back of it and the wall and 2 cm on each side. Be careful to support it, so that it is perfectly level. (Use of a spirit level is recommended). This will prevent any movement due to instability, causing noise and vibration, and will ensure that the door seals perfectly.
Selecting the temperature
You can choose the desired temperature in the compartment, using the / buttons. The temperature selected increases/decreases by 1^ with each button press.
This appliance belongs to category 10 according to the european regulation N°1060/2010. The temperature setting is from 14^ to 18^ .
However the appliance's technical performances allow to reach a wider temperature range from 11^ to 18^
The interior light may be switched on or off using the button.
5. MAINTENANCE
Before cleaning your appliance (something that should be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.
Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with clean water and allow to dry before reconnecting. Do not use solvents or abrasives.
In the event of a pronounced plastic smell, clean the appliance with a mixture of two tablespoons of bicarbonate of soda, mixed in a 1/4 litre of lukewarm water.
When the appliance is switched on for the first time, there may be a residual odour. In that case, run the appliance empty for a few hours at the coldest possible temperature. The cold will kill any odours.
6. STORING YOUR TEMPERATURE CONTROL CELLAR
If you will not be using your appliance for short periods, leave the control panel with its usual settings.
During an extended shutdown:
- Remove all bottles from the appliance
- Unplug the appliance
- Thoroughly clean the inside and outside of the appliance
- Leave the door open to prevent condensation, unpleasant odours and mould.
7. WHAT TO DO IN THE EVENT OF A POWER CUT
Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature inside your appliance. To protect your drinks during power cuts, remember to open the door as little as possible. For long duration power cuts, take necessary steps to protect your food/drinks.
8. IF YOU NEED TO MOVE YOUR TEMPERATURE CONTROL CELLAR
Remove all contents and secure movable components.
To avoid damaging the levelling screws on the feet, screw them tightly into the base.
Move the appliance in an upright position (preferably) or take note of the direction in which the appliance may be laid down by looking at its packaging.
9. IN THE EVENT OF A BREAKDOWN
Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:
- the appliance is properly plugged in;
- there is not a power cut in progress;
- the breakdown is not one of those described in the table at the end of this manual.
IMPORTANT:
If the power cable supplied is damaged, it must be replaced by the manufacturer, a service centre approved by the brand or the retailer. In all events, it must be replaced by qualified personnel in order to avoid any risk of injury.
IF THESE CHECKS REVEAL NOTHING, THEN CONTACT YOUR RETAILER'S AFTER-SALES DEPARTMENT.
CAUTION!
Unplug the appliance before carrying out any maintenance or repair work.
10. PROBLEMS AND SOLUTIONS
You can solve many simple problems with your temperature control cellar, thus avoiding having to contact your after-sales department. Try the following suggestions.
| PROBLEM | POSSIBLE CAUSE |
| Appliance not running | ·Check the voltage of the installation ·Check your circuit breaker ·A fuse has blown |
| Not cold enough | ·Check the temperatures set ·The ambient temperature means that the temperatures need to be adjusted ·The door is being opened too frequently ·The door is not properly closed ·The door seal is not sealing correctly ·Insufficient free space around the appliance |
| No interior light | ·Contact your after-sales department |
| The appliance seems unusually noisy | ·Check that the appliance is level ·Check that a piece of paper or part of the packaging has not remained trapped inside |
| The door does not close correctly | ·Check that the appliance is level ·The doors have been reversed and incorrectly fitted ·The seal is in a poor condition ·The feet have “moved” |
| The LED does not light | ·The control panel is defective ·Printed circuit board problem ·Mains plug problem In such cases call a qualified professional |
| LED display error | ·Poor display quality ·Temperature does not display In such cases call a qualified professional |
| The fans are not running | ·Control panel to be replaced by a qualified professional |
11. ENVIRONMENT
This product complies with EU Directive 2002/96/EEC.
The crossed-out waste bin symbol on this appliance means that, at the end of its life, it should be recycled separately from other domestic waste.
It should therefore be disposed of at a selective collection centre for electrical and or electronic appliances or, if you are buying an equivalent product, by the retailer of the new product.
The user is responsible for taking the appliance to the appropriate collection centre at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product.
For more detailed information about available collection systems, contact your local waste collection organisation or the retail outlet where you bought the appliance.
12. WARNING
As we continuously improve our products, we reserve the right to modify technical characteristics without notice.
Warranties for CLIMADIFF brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.
CLIMADIFF cannot be held liable for errors or technical or editorial omissions in this document.
Non-binding document.
APPENDIX 1
| Model | Brand: VIN SUR VIN Reference: VSV6K Domestic refrigeration appliance category: 10 |
| Supply | 220V, 50Hz |
| Dimensions (L x D x H cm) | 25.4X52X36.50 |
| Weight (kg) | 8.4 |
| Energy efficiency class | B |
| Annual energy consumption (AEC) | Energy consumption 164 kWh per year calculated on the basis of results obtained over 24 hours under standardised test conditions. Actual energy consumption will depend on conditions of use and the location of the appliance. |
| Usable volume of the compartments (litres) | 16 |
| Defrosting | AUTOMATIC DEFROST SYSTEM |
| Climate class: | Climate class: N This appliance is designed to be used at an ambient temperature between 16°C (lowest) and 32°C (highest). |
| Acoustic emissions in air in dB(A) re 1pW | 28 |
| Installation type | FREE STANDING |
APPENDIX 2
| Model | Brand: VIN SUR VIN Reference: VSV12K Domestic refrigeration appliance category: 10 |
| Supply | 220V, 50Hz |
| Dimensions (L x D x H cm) | 34.5X48X48 |
| Weight (kg) | 11.70 |
| Energy efficiency class | C |
| Annual energy consumption (AEC) | Energy consumption 221 kWh per year calculated on the basis of results obtained over 24 hours under standardised test conditions. Actual energy consumption will depend on conditions of use and the location of the appliance. |
| Usable volume of the compartments (litres) | 33 |
| Defrosting | AUTOMATIC DEFROST SYSTEM |
| Climate class: | Climate class: N This appliance is designed to be used at an ambient temperature between 16°C (lowest) and 32°C (highest). |
| Acoustic emissions in air in dB(A) re 1pW | 31 |
| Installation type | FREE STANDING |
1^ BESCHRIJVING VAN HET APPARAAT
VSV6K：
- DEURPOST 6/7 SCHARNIER.
2 OPLEGPLANK 8/9. TEMPERATUURCONTROLLER - BESCHERMING VENTILATOR 10. BILLPOSTER
4.VOET 11.VERLICHTING
5.WATERTANK
VSV12K:
- HANDGREEP 6. BESCHERMING VENTILATOR
- OPLEGPLANK 7.BILLPOSTER
- DEURPOST 8/9. TEMPERATUURCONTROLLER
4.VOET 10.VERLICHTING
5/12. SCHARNIER 11 ROESTVRIJ STALEN FRAME
