MX4133 - Mixer TRISTAR - Free user manual and instructions

Product type	Multifunctional mixer grinder chopper
Brand	TriStar
Model	MX4133
Power supply	230 V, 50 Hz
Power	400 W
Adjustable speeds	1 to 5
Main functions	Mix, chop, beat
Maximum meat capacity	250 g (15 seconds)
Maximum herb capacity	50 g (10 seconds)
Maximum nuts/almonds capacity	150 g (15 seconds)
Maximum cheese capacity	100 g (10 seconds)
Maximum bread capacity	80 g (10 seconds)
Maximum onion capacity	200 g (10 seconds)
Maximum biscuit capacity	150 g (10 seconds)
Maximum soft fruit capacity	200 g (10 seconds)
Maximum continuous use time	1 minute
Duration for hard foods	15 seconds maximum
Blade material	Stainless steel
Maintenance and cleaning	Motor cleaned with a damp cloth; other parts in dishwasher
Safety	Unplug before assembly/disassembly/cleaning; very sharp blades
Spare parts and repairability	Parts available via authorized service
Weight (estimated)	Approximately 1.5 kg

Frequently Asked Questions - MX4133 TRISTAR

How to use the mixer?

Clip the stainless steel blade onto the motor unit. Place the mixer in the bowl, select speed 1 to 5, then press the switch to position I or II. Remove the blade after use.

How to use the chopper?

Carefully remove the plastic cover from the blade. Position the blade on the chopper bowl spout, lock the bowl. Place food in the bowl, put the lid on and clip the motor unit. Select speed 1 to 5 and press I or II. Hold the motor unit with one hand and the bowl with the other.

How to use the beater?

Insert the beater head into its holder, then clip the assembly onto the motor unit. Place the beater in a bowl before turning it on. Select speed 1 to 5 and press I or II. Remove the beater holder after use.

Can I chop ice cubes or coffee beans?

No, the chopper is not designed for particularly hard foods like ice cubes, nutmeg or coffee beans. Use it for meat, cheese, onions, herbs, nuts, etc.

How to clean the appliance?

The motor unit and chopper bowl should only be cleaned with a damp cloth, do not immerse. All other parts (blade, bowl, lid, beater head) can be cleaned in the dishwasher. For very salty foods, remove the blade immediately after use. Use vegetable oil on discolored plastic parts before washing.

What to do if the appliance does not start?

Check that the appliance is correctly assembled (blade, bowl, lid well clipped) and plugged into a working outlet. Make sure you do not exceed the maximum use time. If the problem persists, contact an authorized service center.

Can I use the appliance with hot foods?

No, do not place the appliance in hot ingredients. Allow food to cool before mixing, chopping or beating.

What is the maximum usage time?

The appliance is designed for short use: do not use for more than 1 minute continuously. For hard foods (meat, nuts), do not exceed 15 seconds.

How to safely remove the blade?

Always hold the blade by the upper plastic part, never by the blades themselves. After use, remove the motor unit, then unclip the blade carefully.

Are the parts dishwasher safe?

Yes, except for the motor unit and chopper bowl. The blades, measuring bowl, lid, beater head and its holder are dishwasher safe. Avoid overdosing detergent or anti-scale.

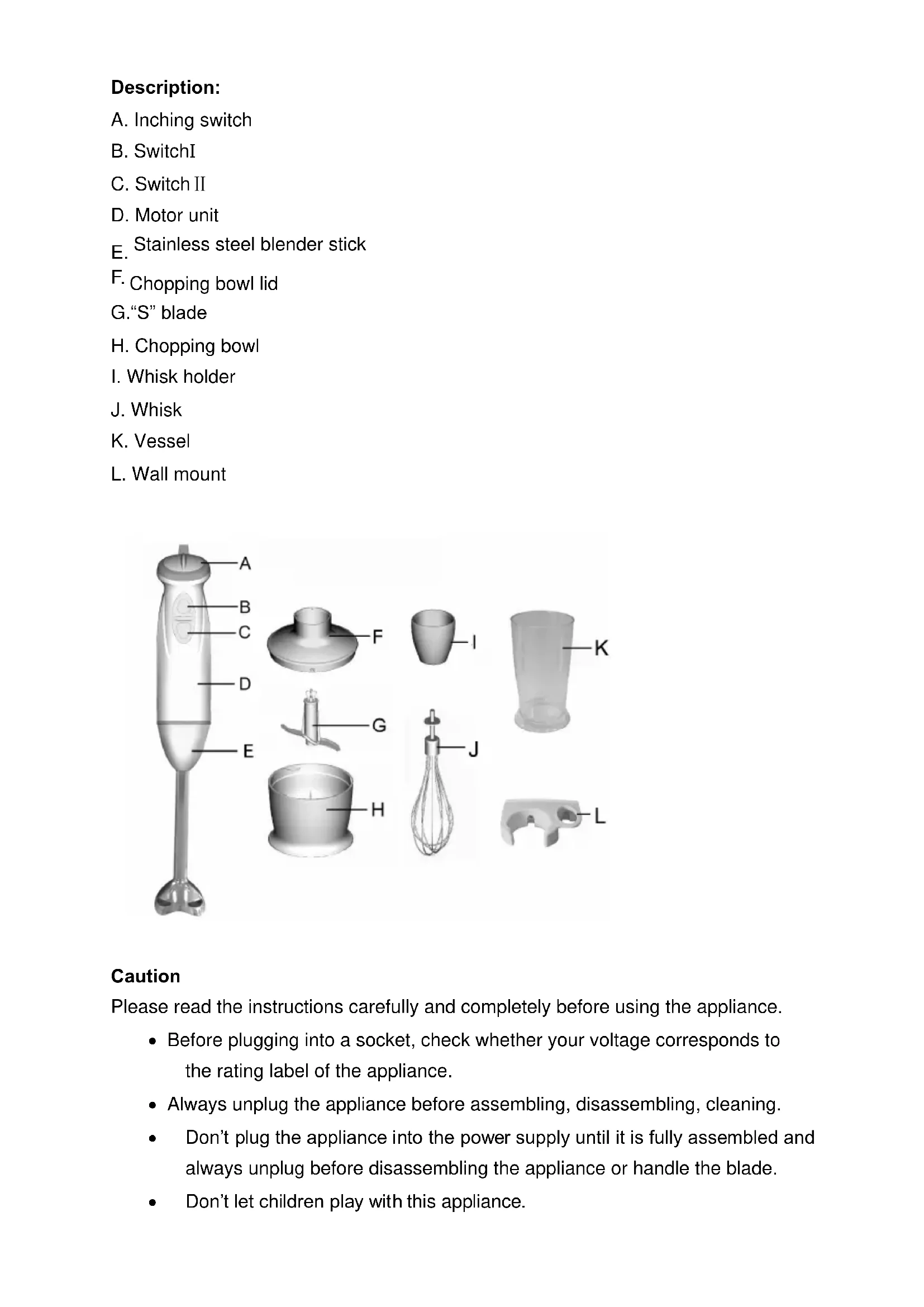

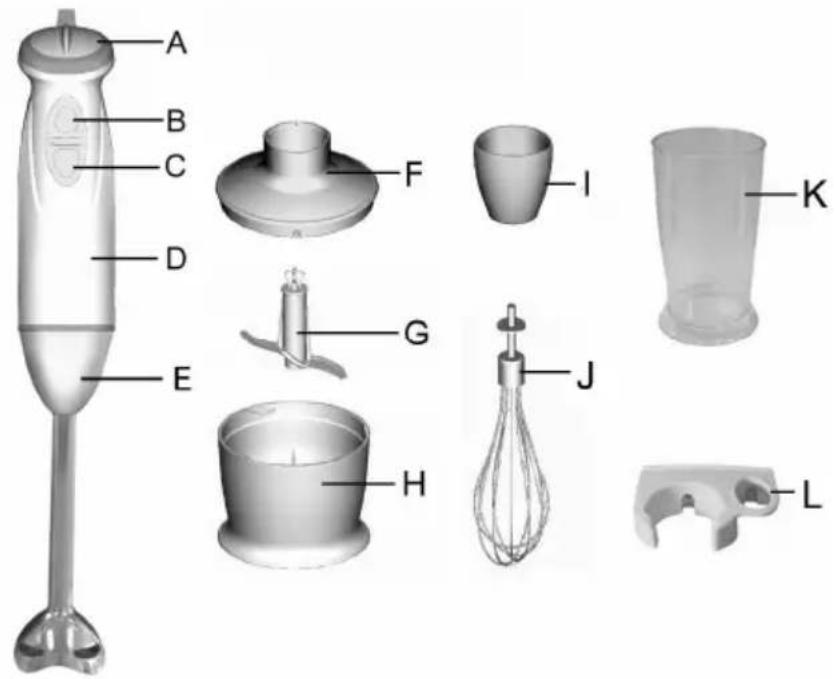

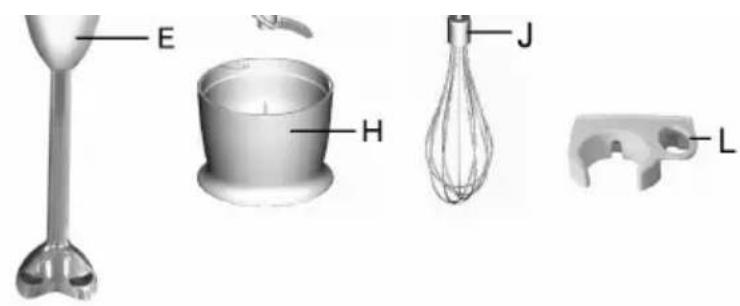

USER MANUAL MX4133 TRISTAR

E. Stainless steel blender stick

F. Chopping bowl lid
G."S"blade
H. Chopping bowl
I. Whisk holder
J. Whisk
K. Vessel
L. Wall mount

Caution

Please read the instructions carefully and completely before using the appliance.

• Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.
  Always unplug the appliance before assembling, disassembling, cleaning.
• Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.

• Don't let children play with this appliance.

• Don't let the motor unit, cord, or plug get wet.

• Never use a damaged appliance. If it has been damaged, please get it to approved service center, checked or repaired.
• If the supply cord is damaged, it must be replaced by approved service center.
• Don't let excess cord hang over the edge of the table or worktop or touch hot surface.
  The blades are very sharp!
• Don't place the appliance in the hot ingredients.
• The appliance is constructed to process normal household quantities.
• Neither the measuring beaker, nor the chopping bowl is microwave proof.
• Short-time operating. Use the appliance for no longer than 1 minute, and don't operate hard food for no longer than 15 seconds.

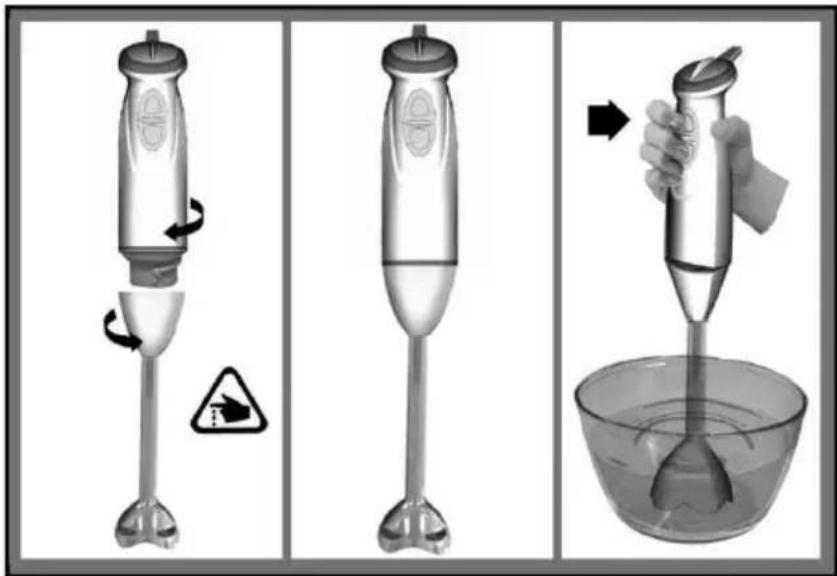

How to use the hand blender

The hand blender is perfectly suited for preparing dips, sauscs, soups, mayonnaise and baby food as well as for mixing and milkshakes.

Turn the stainless steel blender stick on the motor unit until it locks.
o Introduce the hand blender in the vessel. Then choose speed "1"-5" and press the switchIor switchII.
Turn the blender stick off the motor unit after use.
o You can use the hand blender in the measuring beaker and just as well in any other vessel.

Caution: the blade is very sharp!

How to use your chopper

• Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.
• Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

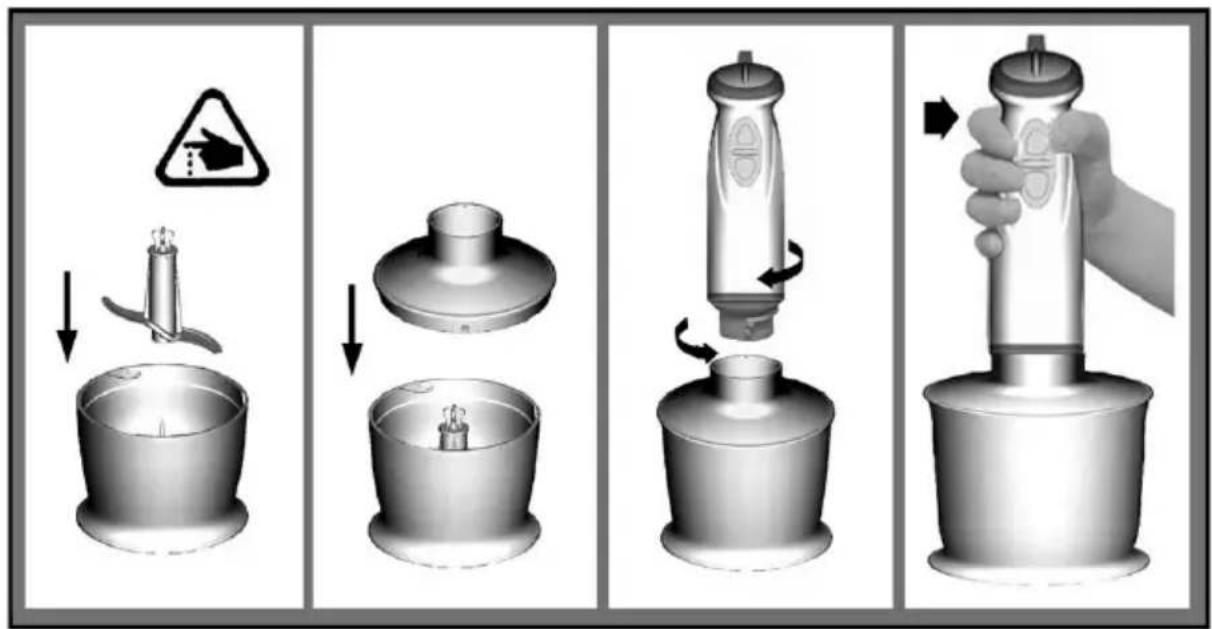

Before chopping...

Carefully remove the plastic cover from the blade. Caution: the blade is very

sharp! Always hold it by the upper plastic part.

Place the blade on the center pin of the chopper bowl. Press down the blade and lock bowl. Always place the chopper bowl on the anti-slip base.
Place the food in the chopper bowl.
Place the chopping bowl lid on the chopper bowl.
Turn the motor unit on the chopping bowl lid until it locks.
Choose speed "1"-5" and press switchIor switchII to operate the chopper. During processing, hold the motor unit with on hand and the chopper bowl the other.

After use, turn the motor unit off the chopping bowl lid.
Then remove the chopping bowl lid.
Carefully take out the blade.
Remove the processed food from the chopper bowl.

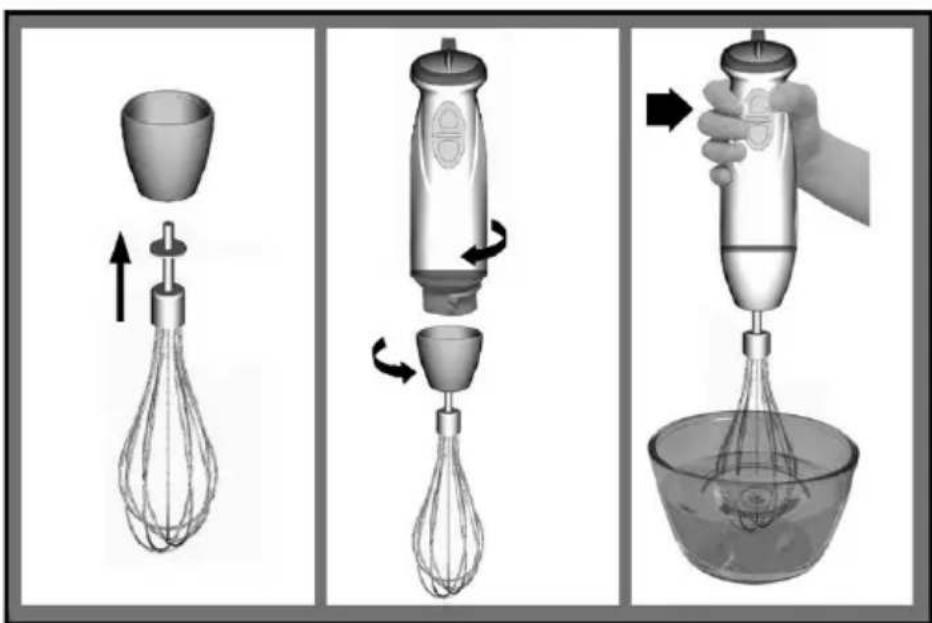

How to use your whisk

Use the whisk only for whipping cream, beating egg whites and mixing sponges and Ready-mix desserts.

Inset the whisk into the whisk holder, and then turn the gear box on the motor unit until it locks.
Place the whisk in a vessel and only then. Choose speed "1"-5" and press the switchIor switchII to operate it.
Turn the gear box off the motor unit after use. Then pull the whisk out of the gear box.

Cleaning

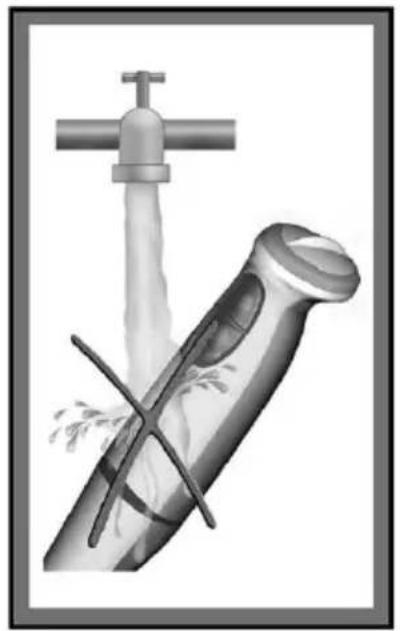

Cleaning the motor unit and chopping bowl lid only with a damp cloth only. Do not immerse the motor unit in water!

1. All other parts can be cleaned in the dish washer. However, after processing very salty food, you should rise the blades right away.

2. Also, be careful not to use an overdose of cleaner or decalcifier in your dishwasher.

3. When processing food with color, the plastic parts of the appliance may become discolored Wipe these parts with vegetable oil before placing them in the dishwasher.

4. The blades are very sharp, please attention.
5. Unplug the appliance before cleaning.

Processing Guide (for 500ml chopping bowl)

Food Maximum Operation	on time
meat 250g 15sec
herbs 50g 10sec
nut, almonds 150g 15sec
cheese 100g 10sec
bread 80g 10sec
onions 200g 10sec
biscuits	150g 10sec
soft fruit	200g 10sec

AC230V 50Hz,400W

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By

recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
