KR2154 - Vacuum Cleaner TRISTAR - Free user manual and instructions

Brand	TriStar
Model	KR2154
Appliance type	Stick vacuum cleaner
Power source	Integrated rechargeable battery
Input voltage	220-240 V ~
Motor power	100 W (estimated)
Dust capacity	0.5 L (estimated)
Filter type	Dust filter (washable)
Dimensions (L × W × H)	25 cm × 15 cm × 20 cm (estimated)
Weight	1.2 kg (estimated)
Battery life	Approximately 20 minutes (estimated)
Initial charging time	14 hours minimum before first use
Charge indicator	LED light on during charging
Main functions	Suction of wet materials, cordless design, charging base for storage and charging
Maintenance and cleaning	Empty the filter after each use; clean the body with a slightly damp cloth; do not immerse in water
Safety	Do not use without filter; do not obstruct air outlet slots; do not vacuum hot or sharp objects
Included spare parts	Dust filter, power adapter, charging base
Repairability	Repairs should be entrusted to a qualified technician; return to the point of sale
Warranty	2 years from date of purchase
Environmental information	Do not dispose of with household waste; recycle at an appropriate collection point

Frequently Asked Questions - KR2154 TRISTAR

How to charge the vacuum cleaner?

Place the vacuum cleaner on the charging base (9) and plug the adapter (10) into a power outlet. Make sure the charging pin (11) is properly inserted into the charging socket (5). The LED indicator (3) remains on as long as the contact is good.

What is the initial charging time?

Before first use, the minimum charging time is 14 hours.

Can you vacuum liquids with this vacuum cleaner?

Yes, the device is suitable for vacuuming wet materials. However, never immerse the vacuum cleaner in water and do not use water to clean it.

How to empty the dust compartment?

Press the lid lock (1) and remove the front part of the device. Take out the dust filter (7), clean it, and empty the lumps. Replace the filter, then reposition the front part by first clicking the lower lock.

How to clean the dust filter?

Remove the filter (7) as described above and clean it. It can be washed with water? The instructions do not specify; it is recommended to brush it gently. Do not use abrasive detergents.

What to do if the vacuum cleaner stops working?

Check the charge. If the problem persists, return the device to your point of sale for repair. Do not attempt to repair it yourself.

Can I use the vacuum cleaner without the filter?

No, never use the device without the dust filter (7). This could damage the device.

How to store the vacuum cleaner?

Place the vacuum cleaner on the charging base (9) for storage and charging. The base serves both for storage and charging.

What is the warranty period?

The warranty is 2 years from the date of purchase, covering material and manufacturing defects. Keep the receipt.

Where should I take the device at the end of its life?

Do not throw the device in household waste. Dispose of it at a collection point for household appliances and electronics, in accordance with local regulations.

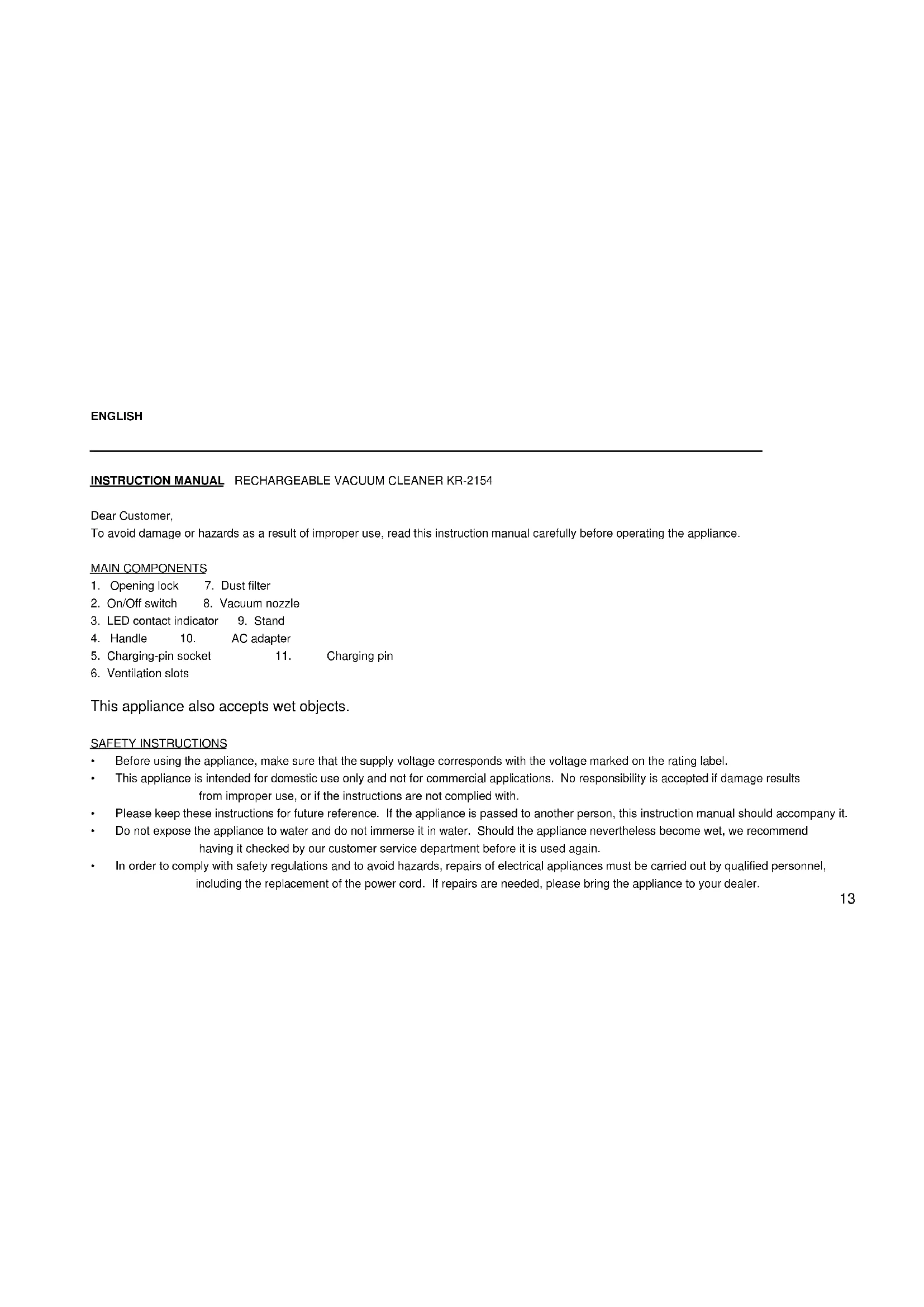

USER MANUAL KR2154 TRISTAR

Chere cliente, cher client.

To avoid damage or hazards as a result of improper use, read this instruction manual carefully before operating the appliance.

MAIN COMPONENTS

1. Opening lock 7. Dust filter
2. On/Off switch 8. Vacuum nozzle
3. LED contact indicator 9. Stand
4. Handle 10. AC adapter
5. Charging-pin socket 11. Charging pin
6. Ventilation slots

This appliance also accepts wet objects.

SAFETY INSTRUCTIONS

Before using the appliance, make sure that the supply voltage corresponds with the voltage marked on the rating label.
This appliance is intended for domestic use only and not for commercial applications. No responsibility is accepted if damage results from improper use, or if the instructions are not complied with.
Please keep these instructions for future reference. If the appliance is passed to another person, this instruction manual should accompany it.
Do not expose the appliance to water and do not immerse it in water. Should the appliance nevertheless become wet, we recommend having it checked by our customer service department before it is used again.
In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please bring the appliance to your dealer.

Do not operate the appliance if:

1. the vacuum cleaner, the charging unit, plug or cable show any signs of damage. Check the cable regularly.
2. the appliance has been dropped.
3. When removing the adapter from the wall socket, never pull on the power cord.
   Children do not recognise the dangers that may occur when operating electrical appliances. Therefore keep children away from such appliances.
   Do not attempt to remove any parts of the housing nor insert any metal objects into the interior of the appliance.
4. To prevent damage to the power cord, do not let it pass over sharp corners or edges.
5. Do not allow the power cord or the appliance to touch hot surfaces and do not position it near open flames.
6. Do not attempt to charge any other appliance with the supplied adapter.
7. Do not operate the appliance without the filter (7).
8. Do not obstruct the ventilation slots (6) during operation.
   WARNING: To prevent damage to the appliance, never use it to pick up hot or burning material, or sharp or pointed objects (egg needles, nails).
9. Always remove the vacuum cleaner from its stand (9) before use.

BASE STAND AND CHARGING UNIT

• The stand (9) is designed for storing and charging the appliance at the same time.
• Make sure the stand is placed near a power outlet.

CHARGING

The unit can be charged, by placing it into the stand (9). Do not attempt to charge any other appliance with the stand.
- Connect the adapter (10) to a suitable outlet.
Before using the vacuum cleaner for the first time, the battery must be charged for a minimum period of 14 hours.
- Switch the appliance off. Insert the cleaner into the stand. Make sure the charging pin (11) is properly inserted into its socket (5). During storing the indicator lamp will be on. The lamp will remain on, as long as the cleaner stays correctly in the stand.

OPERATION INSTRUCTIONS

• Charge the unit as described in the section 'Charging'.
• Remove the vacuum cleaner from its base stand by lifting it vertically. For operation, set the On/Off switch (2) to the position EIN/ON. Hold the vacuum cleaner with the nozzle facing downwards.
• Once the suction power begins to reduce, place the unit in the base stand for recharging.

TO EMPTY THE DUST CONTAINER

• The dust filter (7) must be cleaned after each use.
• Press the locking switch (1) and remove the front part of the vacuum cleaner. Remove the dust filter carefully and clean it. Empty the front part of the appliance.
• Replace the dust filter in the unit.
• Join the two parts of the cleaner together again. Once the lower part is inserted, the upper part will lock into place easily.

CLEANING AND CARE

Always remove the appliance from the base stand before cleaning, and make sure it has been allowed to cool down completely after use.
- The housing of the appliance may be wiped with a damp cloth.
- Do not use abrasives or harsh cleaning solutions.
- To avoid the risk of electric shock, do not clean the charging unit with water and never immerse the appliance in water.

Disposal batteries

The disposal of batteries in view of the separation of litter should be done as follows. Open the lid in the housing of the rechargeable vacuum cleaner. You can remove take the batteries from the appliance and disconnect the 2 cables. The batteries can now be delivered to the nearest collecting station for used batteries.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This ap t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t e i e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e

The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment.

Ask your local authorities for information regarding the point of recollection..

GUARANTEE CONDITIONS AND CUSTOMER SERVICE

All our products are subject to strict quality control before they reach the retail market. In the unlikely event of damage having occurred during production or transportation, please bring the appliance to your dealer (address of purchase).

In addition to all other legal rights and guarantees the following benefits are given to the purchaser by this warranty in respect of the product.

We guarantee this product for the duration of 2 years from the date of purchase. During this period, any failure resulting from manufacturing defects or defects in materials will be rectified free of charge, either through free replacement or repair of the appliance.

In the event of guarantee service being required, please bring the appliance - in protective packing - together with your original purchase receipt and guarantee card and a brief description of the problem to your dealer.

This guarantee does not cover failures caused by misuse, use contrary to the operating instructions, unauthorised modification to the product or repair by an unauthorised person or technician.

*****

Bruksanvisning for Dammsugare

Typ:SZ-2154

Studera bruskanvisingen noggrant fore använding.
SÄKERHETSFORESKRIFTER
