Product type	Canister vacuum cleaner
Brand	TriStar
Model	SZ-2190
Dimensions (L x W x H)	35 x 25 x 23 cm
Weight	4.2 kg
Power supply	220-240 V ~ 50/60 Hz
Rated power	800 W
Collection type	With dust bag
Tank capacity	2 liters
Filtration system	Washable filter + HEPA filter
Noise level	75 dB (A)
Operating radius	7 meters
Cable length	5 meters
Included accessories	Long crevice tool, furniture brush, crevice nozzle
Main functions	Floor and carpet cleaning, variable power adjustment
Maintenance and cleaning	Empty and replace the bag regularly; wash the filter every month
Safety	Automatic shut-off in case of overheating
Spare parts and repairability	Bags and filters available; estimated repairability score 7/10
General information	2-year warranty; domestic use

Frequently Asked Questions - SZ-2190 TRISTAR

How to empty the dust bag of the TriStar SZ-2190 vacuum cleaner?

Unplug the appliance, open the bag compartment, remove the full bag and discard it. Insert a new bag following the assembly marks.

How to clean the HEPA filter?

Remove the HEPA filter, gently tap it to remove dust, or wash it with warm soapy water. Let it dry completely before reinstalling.

What to do if the vacuum cleaner does not start?

Check the connection, the power cord, and the bag status (if full, the indicator may prevent startup). Also check the filter.

What type of bag to use for the SZ-2190?

Use compatible TriStar replacement bags, ref. SZ-2190 or equivalent microfiber. Avoid unsuitable bags.

The vacuum cleaner heats up and shuts off by itself, why?

This is thermal protection: the appliance shuts off in case of overheating. Let it cool for 30 minutes, check that the bag is not full and the filter is not clogged.

How to adjust the suction power?

Use the adjustment slider located on the vacuum body or on the handle, depending on the model. Min position for curtains, max for carpet.

Can I vacuum liquids with this vacuum?

No, the TriStar SZ-2190 is designed only for dry vacuuming. Vacuuming liquids would damage the motor.

How to change the crevice tool?

Unplug the vacuum. Press the tube unlock button or remove the attachment by gently pulling. Clip on the desired tool.

What is the cable length?

The power cord is 5 meters long, providing an action radius of about 7 meters thanks to the hoses.

Where can I find spare parts for the SZ-2190?

Check the TriStar manufacturer's website or authorized dealers. Bags and filters are widely available online.

USER MANUAL SZ-2190 TRISTAR

NL Gebruiksaanwijzing
GB Instruction manual
F Mode d'emploi
Bedienungsanleitung
ES Manual de usuario
Manual de Instruções
PL Instrukcja obsługi
Manuale utente
SE Instruktionsmanual

SZ-2190

TrISTAR

Geachte klant,

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed off an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

IMPORTANT SAFETY INSTRUCTIONS

General

• This device meets the safety requirements. Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer cannot be hold responsible for the damage.
• To protect children against the dangers of an electrical appliances, please make sure that you never leave the appliances unattended. There for you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth when it is connected to the vacuum cleaner and the vacuum cleaner is switched on.
  • This appliance is for household use only.
• Never use the device unsupervised.

Electricity and heat

• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: 220-240V\~50Hz. The socket must be at least 16 A or 10 A slow-protected.
• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• Do not use this appliance outdoors.
• Do not wind the cord around the appliance and do not bend it.
• Allow the appliance to cool down before you clean or store it.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Unplug the appliance from the socket by changing the spare parts or for maintenance.
• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician (*). Do not repair this appliances by yourself.
• Do not use this appliance near direct heat sources.
• Unplug the appliance from the socket when you are not using it.
• Note: To avoid danger by accidental resetting the thermal protection, this appliances may not be powered through an external switching device, such as a timer, or connected to a circuit that regularly will be switched on or off.
  • Using an extension cord or something similar is not allowed.

(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

TrISTAR

instruction manual vacuum cleaner

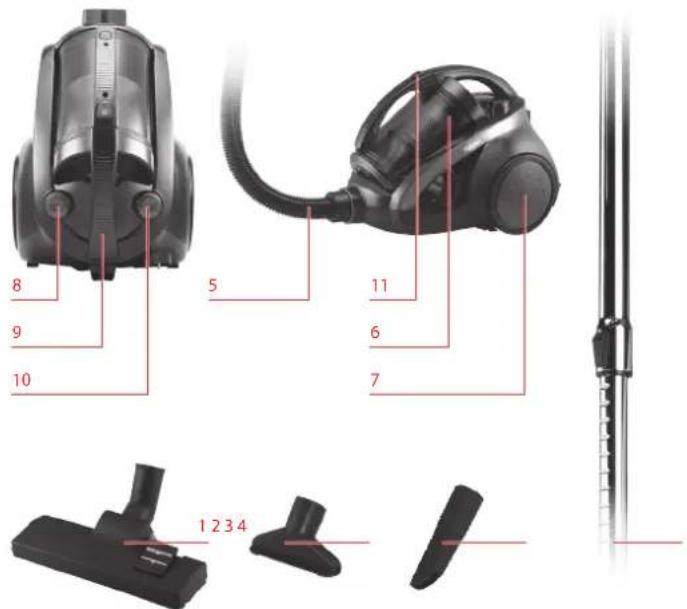

PARTS DESCRIPTION

1. Large floor brush
2. Small floor bush
3. Crevice nozzle
4. Telescopic tube
5. Hose

6. Dust compartment

7. Wheel

8. On/off switch + power regulation
9. Handle
10. Cord rewind button
11. Release button

BEFORE FIRST USE

• Place the hose with the side of the coupling in the upper side of the vacuum cleaner, if you hear a click, the tube is secured.
  • Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Place the other side of the hose into the telescopic tube.
  • To disconnect the hose, press the button on the hose coupling.
• Only use the device if all the filters included the dust compartment are placed properly, a damaged or improperly installed filter or dust compartment may damage the unit.

USE

• Use the on/off button to activate your device.
• Slide the telescopic tube to the desired length.
• Unwind a sufficient length of cable and insert the plug into the power socket. The yellow mark on the power cable shows the ideal cable length. Do not expend the cable beyond the red mark.
• Use the button on the floor brush and choose the desired position, with or without brush at the bottom of the floor brush.
• Control with the power regulation button the desired suction power.

CLEANING AND MAINTENANCE

Emptying the dust compartment

• Push the release button for the dust compartment and lift with your other hand the dust compartment out of the base.
• Push the release button for the lid to open the dust compartment, now you can empty the dust compartment.

Cleaning the HEPA filter and the in / out coming air filter.

• Push the release button for the dust compartment and lift with your other hand the dust compartment out of the base.

• Push the release button for the lid to open the dust compartment, now you can empty the dust compartment.

• Turn the HEPA filter holder counter clockwise to remove this out of the dust compartment.

• Turn the incoming air filter counter clockwise to remove this.
• Pull on the backside of the vacuum cleaner the grid out of its position and take the filter out of the grid.
• Rinse the three filters under a warm tap, if it's necessary you can use a brush. Make sure that the filters are completely dry before you refit them back in the vacuum cleaner.

StorE

• To turn the unit off, press the on/off button. Unplug the power cord and press the cord rewind button.
• You can place the tube in to the designated clip on the back of the vacuum cleaner.

tEchNicAL SPEciFicAtioNS

Product nr.: SZ-2190

Power supply: 220-240V\~50-60Hz

Power consumption: 2200 W

GuArANtEE

• This appliance is for household use only.

T ristar is not liable for damages occurred through:

1. In case the appliance has fallen.

2. In case the appliance has been technically changed by the owner or another third party.

3. In case of impr oper use of the appliance.

4. In case of normal wear of the appliance.

- By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.

• Always keep your receipt, without this receipt you cannot claim any form of warranty what so ever.
• Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.
• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instruction are not properly executed.
• Other then cleaning, as mentioned in this manual, is the only maintenance that is necessary for this appliances.
• When the application should be repaired, make sure that this will de preformed by an authorized company.
  • This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase".
• This appliances is covered with a 24 month guarantee starting on the date of purchase (receipt).
• Only material or manufacturing defects are included in this warranty.
• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliances. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
  • The guarantee lapses in case of unauthorized tampering.
  • After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

TRISTAR

instruction manual vacuum cleaner

ENVIRONMENT

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging

puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
