USER MANUAL SAMBAWOM MPMAN

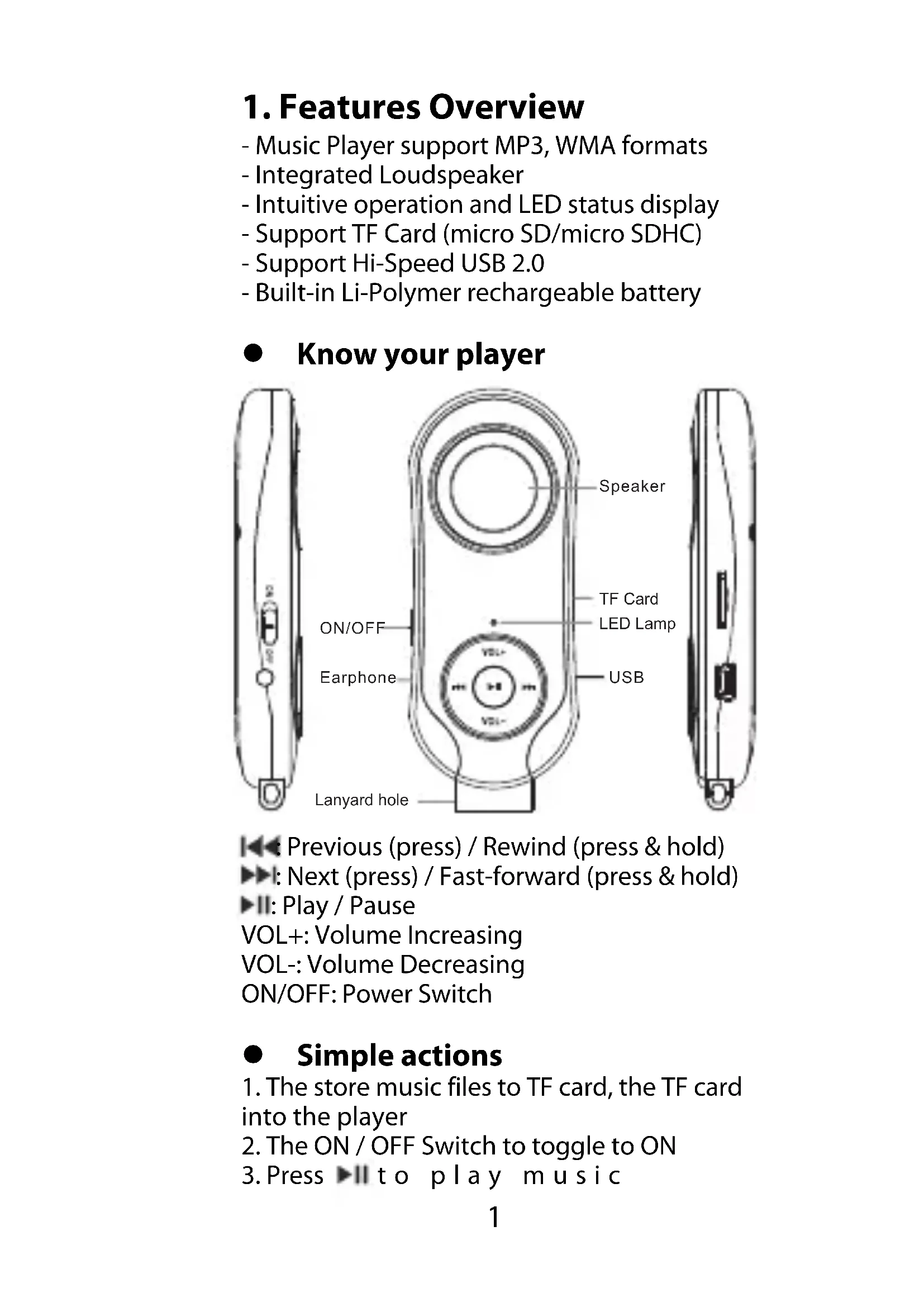

- Music Player support MP3, WMA formats - Integrated Loudspeaker - Intuitive operation and LED status display - Support TF Card (micro SD/micro SDHC) - Support Hi-Speed USB 2.0 - Built-in Li-Polymer rechargeable battery z Know your player : Previous (press) / Rewind (press & hold) : Next (press) / Fast-forward (press & hold) : Play / Pause VOL+: Volume Increasing VOL-: Volume Decreasing ON/OFF: Power Switch z Simple actions
1. The store music files to TF card, the TF card
2. The ON / OFF Switch to toggle to ON
to play music LED Lamp Speaker TF Card USB Earphone ON/OFF Lanyard hole2
4. Select a Track: Press /
ƻ The loudspeaker will be ON if earphones is not connected.
Please press the button ON/OFF into being ON: Press and hold to power on, Press and hold to power off. ƻ After finishing using the player, be sure that the button ON/OFF will be OFF.
1. The TF card into the player, Connect Player
2. New drive(s) will be detected and show “My
3. Transfer songs/music file to Micro SD/SDHC
card. - The process can be done by using Micro SD/SDHC card reader, and then insert the Micro SD/SDHC card into Player and Play.
4. Charging the Battery
Be sure that the button ON/OFF will be ON, only in this situation that the player will be charged. To ch ar ge the Ba tte ry, co nn ec t P lay er t o a U SB port on your computer. The LED light will twinkle. When finish recharging, then LED light will light all the time. Warning˖Please make sure the player is fully charged before not using for a long time. And you need to switch off this player. When not3 using the player more than 6 months, please remember to recharge again.
The LED light will flash when the battery charge is low. The Player will be power off automatically when battery charge is insufficient for operation. Use the supplied USB cable to connect the player to a PC or USB charger for recharging before powering on again. ƻ Current range for charging: 5V, 300-500
Max Play time Earphone 7 hours Please note: Design and characters may change without prior notice.4 This is to certify this MP3 Player is in accordance with: EN55022:2010 EN55024:2010 EN61000-3-2:2006+A1:2009+A2:20
For more information please check our website www.mpmaneurope.com1
