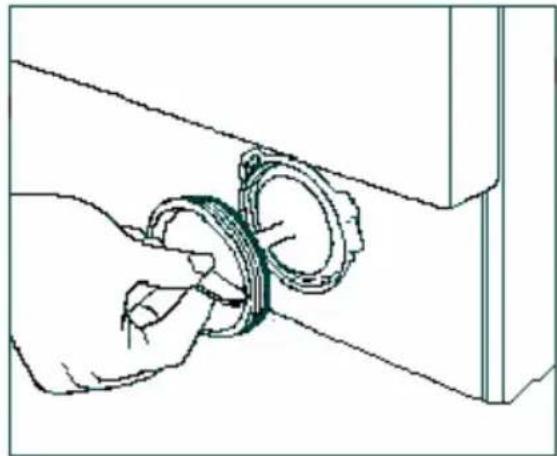

PUMPENFILTER

Line drawing of a hand holding a small object, possibly a tool or component, with no visible text or symbols.

Illustration of a hand fastening a mechanical ring component (no text or symbols present)

WASCHMITTELFACH

Line drawing of a hand inserting a component into a device (no text or symbols)

ABBILDUNG 1

Illustration of a hand pressing down on a mechanical component with a downward arrow indicating action (no text or symbols present)

ABBILDUNG 2

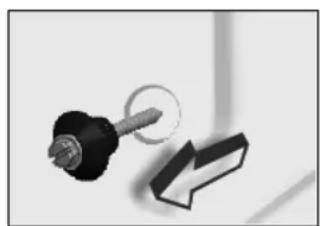

Siphon

Abstract graphic with curved arrow and shield-like symbol (no text or symbols)

Fig. 1

Close-up of a black mechanical component with a circular hole and a white arrow symbol (no text or labels)

Fig. 2

Abstract geometric shapes including a circle, arrow, and square (no text or symbols)

Fig. 3

REGLAGE DES PIEDS

Close-up of a mechanical component with a black cylindrical base and a metallic knob, no visible text or symbols.

Fig.4
Fig.5

3D rendered mechanical component with a black cylindrical base and flanged base (no visible text or symbols)

RACCORDEMENT ELECTRIQUE

Close-up of a kitchen sink with a hand holding a tool near the drain (no text or symbols visible)

Illustration of a hand holding a tool with three small figures above, set against a tiled wall (no text or symbols)

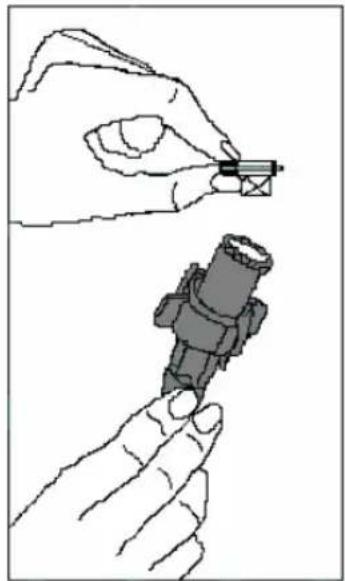

RACCORDEMENT DU TUYAU DE VIDANGE

Diagram showing a car interior with a valve and a close-up of a vehicle's seat area (no text or symbols)

Fig. 10

Illustration of a hand holding a small mechanical component, no text or symbols present

Fig.11

FILTRE DE POMPE DE VIDANGE

Line drawing of a hand holding a small object against a striped background (no text or symbols)

Fig. 12

Illustration of a hand fastening a mechanical ring component (no text or symbols present)

Fig. 13

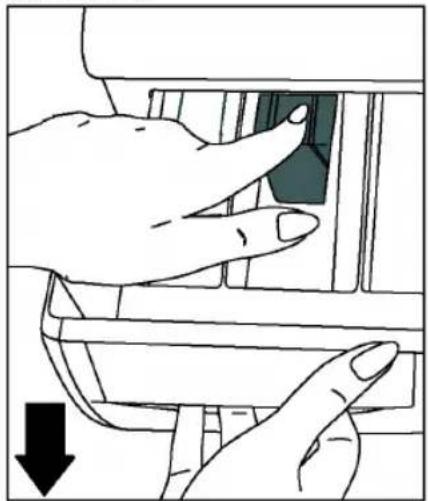

BAC A PRODUITS

Line drawing of a hand opening a door with a black object inside (no text or symbols)

Fig 14

Illustration of a hand inserting a component into a device (no text or symbols visible)

Fig 15

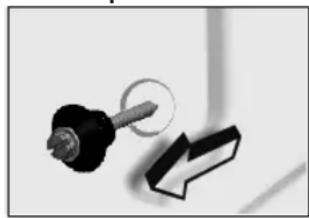

SIPHON D'ASSOUPLISSANT

Abstract graphic with curved arrow and circular symbol (no text or numbers)

DISEGNO 2
DISEGNO 1

Close-up of a black mechanical component with a circular arrow indicating rotation (no text or symbols visible)

Abstract geometric shapes including a black circle, white circle, and arrow (no text or symbols)

DISEGNO 3

Close-up of a mechanical knob with a black base and arrow indicator (no text or symbols)

Close-up of a mechanical component with a black cylindrical body and hexagonal base (no visible text or symbols)

Diagram of a door panel with a close-up view of the door handle and a separate close-up of the door (no text or symbols present)

Illustration of a hand holding a camera with two small objects above it, set against a textured wall background (no text or symbols)

COLLEGAMENTO ALLO SCARICO DELL'ACQUA

Line drawing of a washing machine with a side sink and water dispenser (no text or symbols)

SEZIONE 3: SPECIFICHE TECNICHE

Diagram showing a car interior with two circular components and a magnified view of a vehicle's front side (no text or symbols)

Illustration of a hand holding a mechanical component, no text or symbols present

FILTRO DELLA POMPA

Technical line drawing showing two steps of a hand holding a small object, with no visible text or symbols.

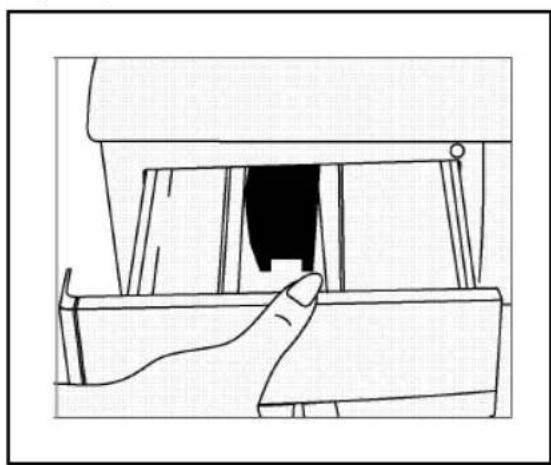

VASCHETTA DEL DETERSIVO

Line drawing of a hand inserting a black object into a device (no text or symbols)

DISEGNO-1

Illustration of a hand inserting a component into a device (no text or symbols visible)

DISEGNO-2

TAPPO DEL SIFONE

Line drawing of a hand using a tool to lift or adjust a mechanical component (no text or symbols)

INVOLUCRO ESTERNO

• Safety warnings
• Recommendations

SECTION 2:INSTALLATION

• Removal of transportation screws
• Adjustment of feet
  • Electrical connection
  • Water supply connection
  • Water drain connection

SECTION 3: TECHNICAL SPECIFICATIONS

SECTION 4:CONTROL PANEL

• Start/Pause button
  • Function indicator lights
  • Function buttons
  • Temperature knob
• Program knob

SECTION 5:WASHING YOUR LAUNDRY

• Before washing
• Running the machine

SECTION 6: MAINTENANCE AND CLEANING

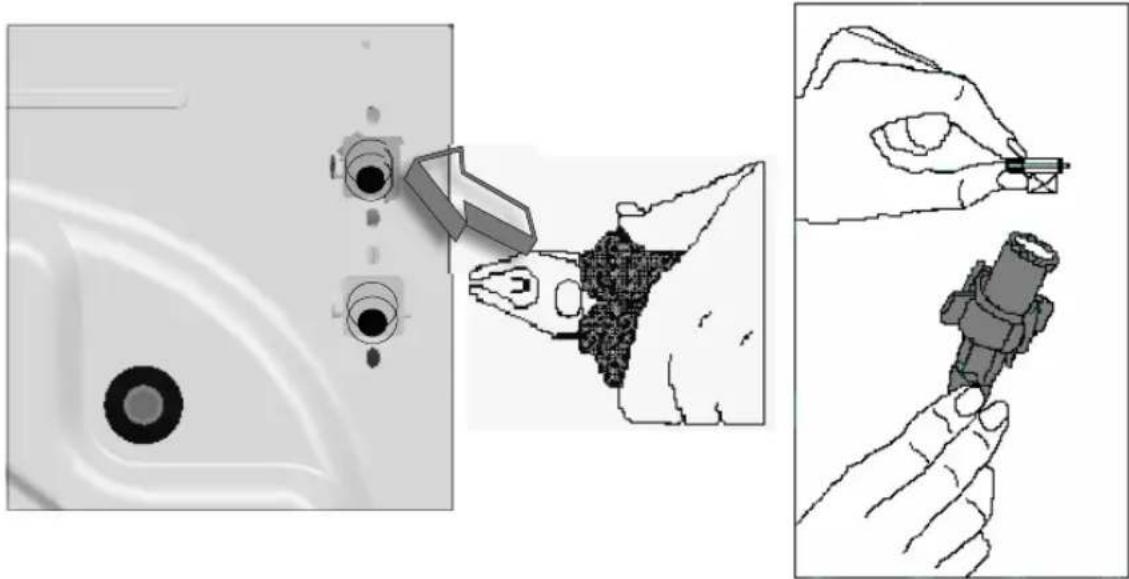

• Water inlet filters

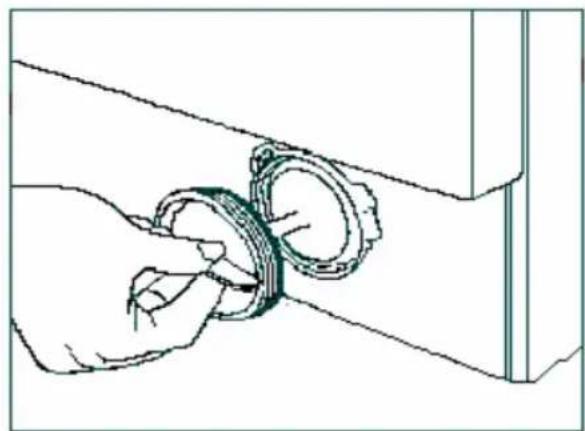

- Pump filter

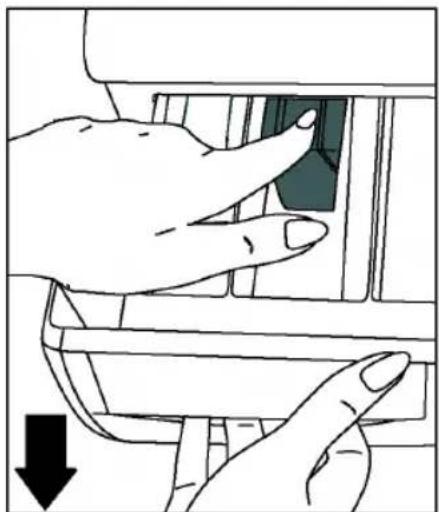

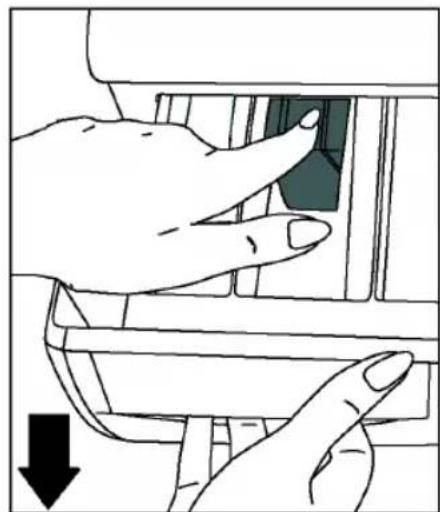

• Detergent drawer
- Siphon plug
- The cabinet
- The drum
- Remove of your machine from lime

SECTION 7: PRACTICAL INFORMATION

SECTION 8: AVOIDING MINOR FAULTS

SECTION 9: AUTOMATIC FAILURE DETECTION SYSTEM

SECTION 10: INTERNATIONAL WASHING SIGNS

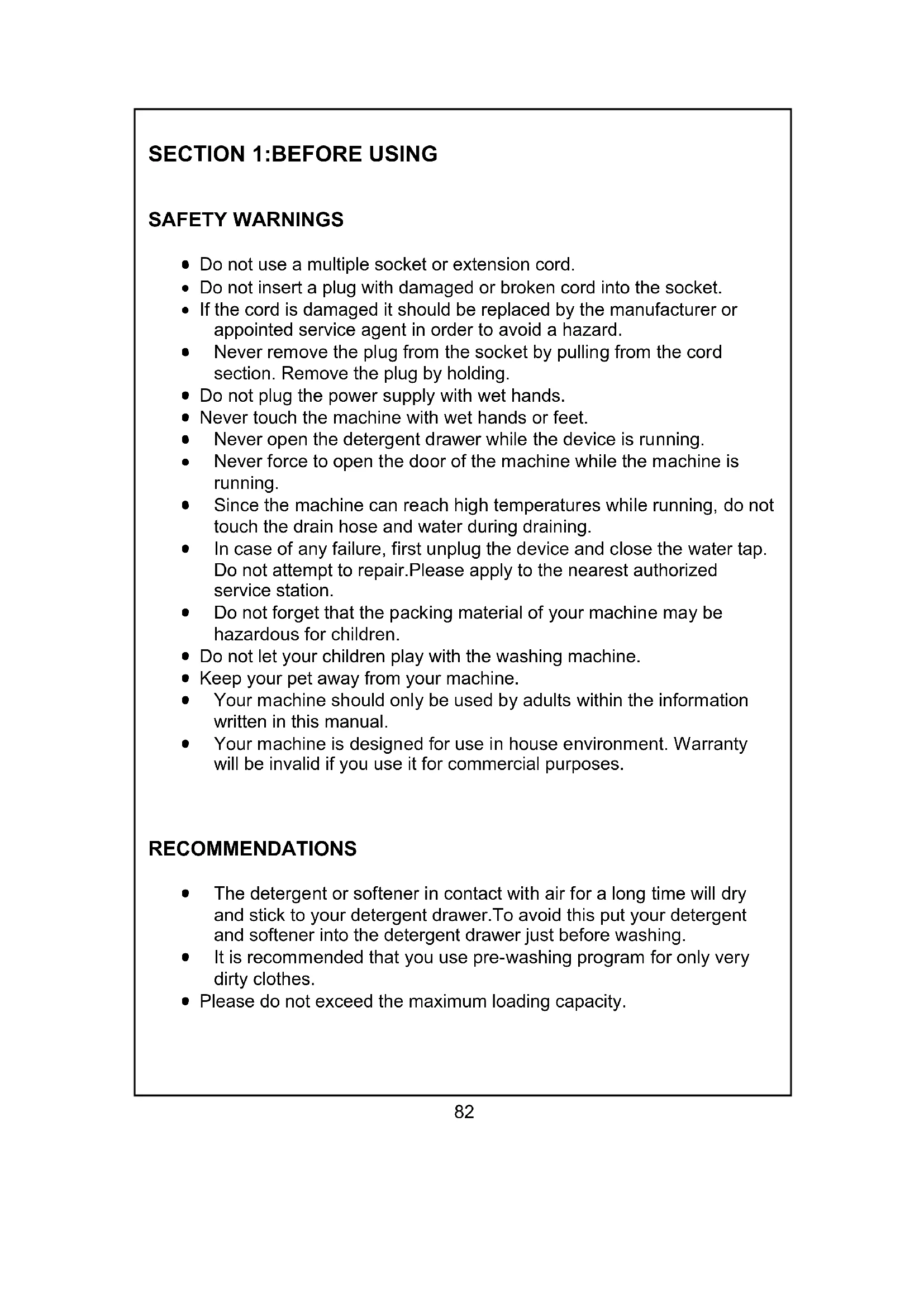

SECTION 1: BEFORE USING

SAFETY WARNINGS

• Do not use a multiple socket or extension cord.
• Do not insert a plug with damaged or broken cord into the socket.
• If the cord is damaged it should be replaced by the manufacturer or appointed service agent in order to avoid a hazard.
• Never remove the plug from the socket by pulling from the cord section. Remove the plug by holding.
• Do not plug the power supply with wet hands.
• Never touch the machine with wet hands or feet.
• Never open the detergent drawer while the device is running.
• Never force to open the door of the machine while the machine is running.
• Since the machine can reach high temperatures while running, do not touch the drain hose and water during draining.
• In case of any failure, first unplug the device and close the water tap. Do not attempt to repair. Please apply to the nearest authorized service station.
• Do not forget that the packing material of your machine may be hazardous for children.
• Do not let your children play with the washing machine.
• Keep your pet away from your machine.
• Your machine should only be used by adults within the information written in this manual.
• Your machine is designed for use in house environment. Warranty will be invalid if you use it for commercial purposes.

RECOMMENDATIONS

• The detergent or softener in contact with air for a long time will dry and stick to your detergent drawer. To avoid this put your detergent and softener into the detergent drawer just before washing.
• It is recommended that you use pre-washing program for only very dirty clothes.

• Please do not exceed the maximum loading capacity.

• If you will not use your machine for a long time, unplug your machine, close the water supply and leave the door open in order to keep the inside of the machine dry and for prevention from unpleasant odour.

• As a result of the quality control procedures, a certain amount of water may remain in your machine. This is not harmful for your machine.

SECTION 2: INSTALLATION

You must pay attention to the following issues before using your washing machine.

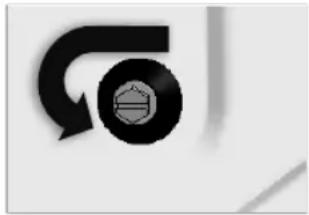

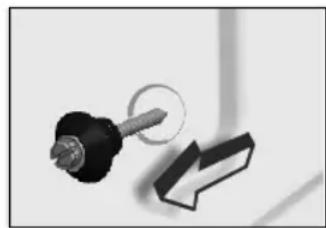

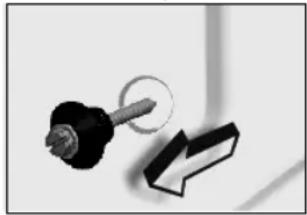

REMOVAL OF TRANSPORTATION SCREWS

• Transportation screws, which are located at the back side of the machine, must be removed before running the machine.
• Loosen the screws by rotating counterclockwise by a suitable wrench. (DIAGRAM-1)
• Remove the screws by pulling them.(DIAGRAM-2)
• The plastic parts located in the interior part of your machine will fall down under the device.
• Lift your machine up slightly, pick up the plastic parts.
• If all of the plastic parts of screw groups have not fallen down; open the door of your machine, move the drum until all plastic parts fall down. Collect the parts that have fallen to the floor.
• To the holes where the transport screws have been removed, insert the plastic transport screw taps found in the accessories bag. (DIAGRAM-3)
• The transportation screws, that have been removed from the machine should be kept in hand for any other transportation necessities.

Abstract black and white graphic with curved arrow and circular emblem (no text or symbols)

DIAGRAM-2
DIAGRAM-1

Close-up of a black mechanical component with a circular hole and a separate arrow-shaped object (no text or symbols visible)

Abstract graphic with a black circle and arrow, no text or symbols present

DIAGRAM-3

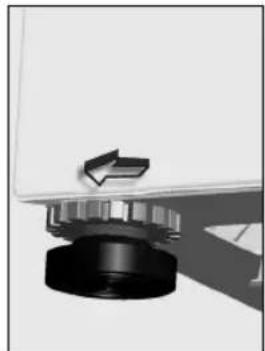

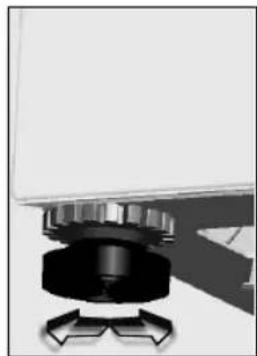

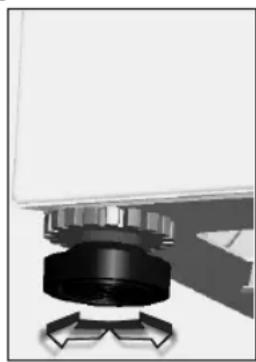

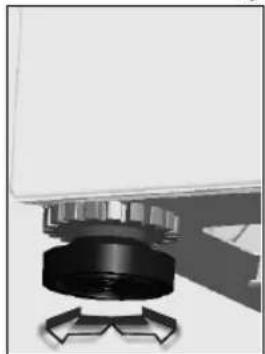

ADJUSTMENT OF FEET

• Do not install your machine on rugs or similar surfaces.
• For your machine to work silently and without any vibration, it should be settled on a flat, non-slippery and tough ground.

- You can adjust the balance of your machine from its feet.

- First, loosen the plastic adjustment nut.

- Adjust by rotating the feet upwards or downwards.

- After the balance has been reached, tighten the plastic adjustment nut again by rotating it upwards.

- Never put cartons, wooden blocks or similar materials under the machine to balance the irregularities on the level of the ground.

Close-up of a mechanical component with a black cylindrical base and a white top, showing a curved arrow indicating rotation (no text or symbols)

3D rendered mechanical component with a black cylindrical base and mounting bracket (no visible text or symbols)

ELECTRICAL CONNECTION

- Your washing machine works with 220-240V and 50Hz.

- A special grounded plug has been attached to the network cable of your washing machine. This plug must definitely be inserted to a grounded socket with 10 ampere. The fuse flow value of the electricity line attached to this should also be 10 ampere. If you have no such sockets and fuses in your house, let it be made by a qualified electrician.

- Our company will not be responsible for any damages that may occur as a result of usage without grounding.

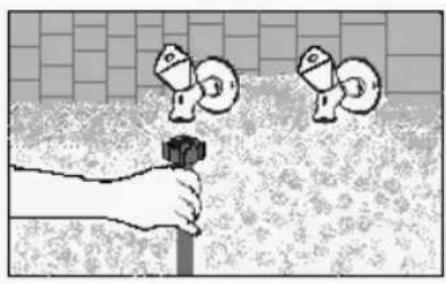

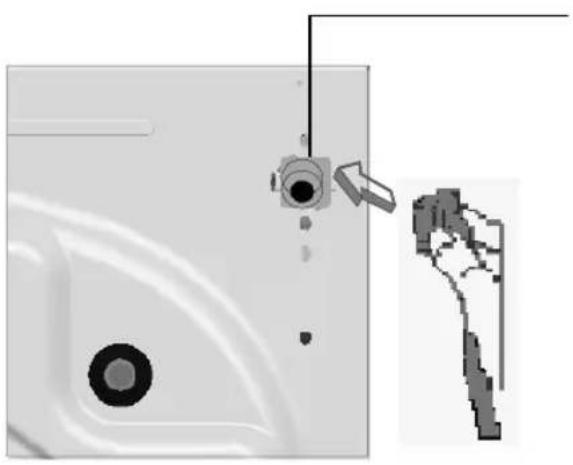

WATER SUPPLY CONNECTION

- Your machine has a single water (cold) inlet.

- To prevent from the leakages on the connection joints, 1 seal is included in the hose packing.(Fit this seal on the end of the water inlet hose at the tap side.)

- Connect the end with bracket of the water inlet hose to the water inlet valve at the rear of the machine and the other end to your tap. In situations where you are not assured, let a qualified plumber make the connection works.

- Water pressure of 1-10 bars from your tap will enable your machine to work more efficiently.(1 bar pressure means water flow of more than 8 liters in 1 minute from a fully opened tap).

- After connections are completed, check for the non-leakage of the connection joints by turning on your tap completely.

- Be sure that water inlet hoses are not folded, broken or crushed.

- Mount the water inlet hoses to a 3"/4, geared water tap.

Close-up of a mechanical component with a circular base and a close-up view of a mechanical part (no text or symbols visible)

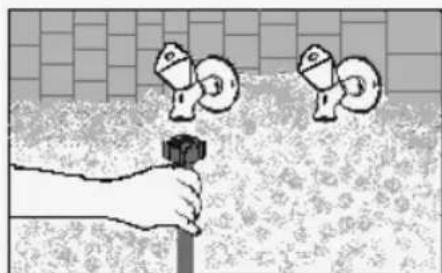

Cold water inlet

Illustration of a hand holding a camera with two circular objects above, set against a tiled wall (no text or symbols)

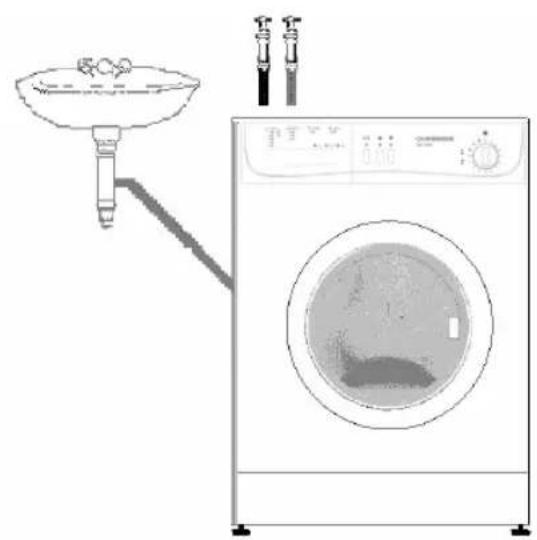

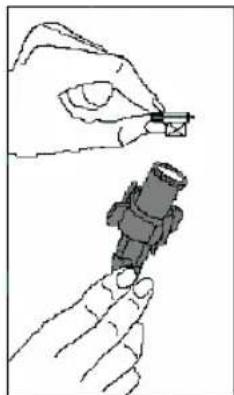

WATER DRAIN CONNECTION

• Be sure that water inlet hoses are not folded, twisted, crushed or elongated by stretching.
• Water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground.
• The end of the water drain hose may directly be fitted to the dirty water outlet hole or a special apparatus mounted on the outlet bracket of the wash-stand.
• Never attempt to extend the water drain hose by adding extra parts.

Line drawing of a washing machine with a side sink and water dispenser (no text or symbols)

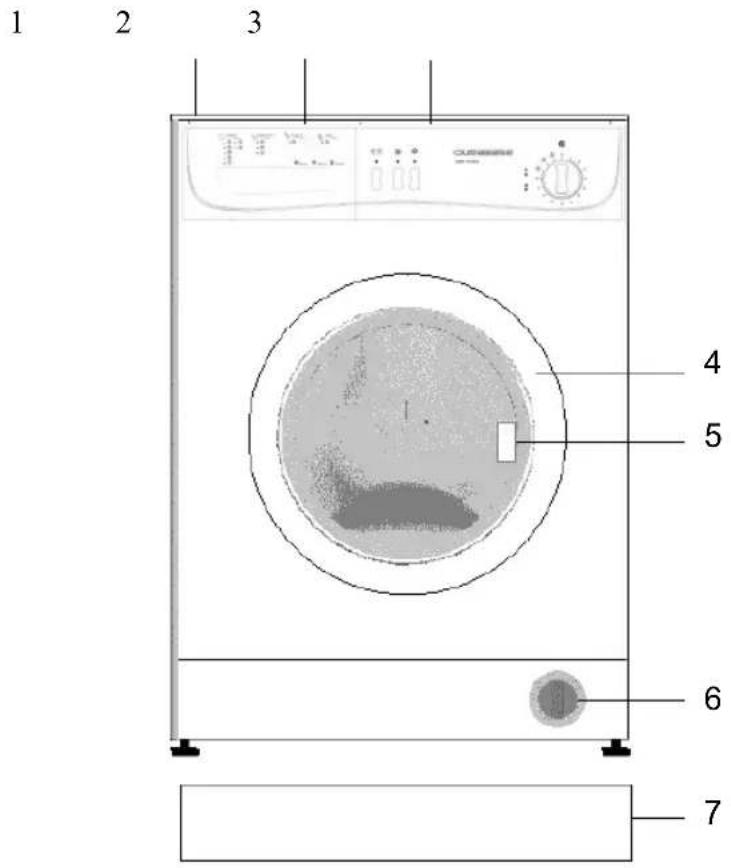

SECTION 3: TECHNICAL SPECIFICATIONS

	WM 1010 ABC5
Maximum dry laundry capacity (kg) 5
Recommended loading (kg) 4,5
Height (cm) 85
Width (cm) 59,6
Depth (cm) 51
Maximum spin cycle (rpm) 1000

(*) Maximum spin cycles depend on the model you've chosen

1 2 3 CUSTOMER 4 5 6 7

1-Upper tray

2-Detergent drawer

3-Control panel

5-Handle

6-Filter cover

7-Kickplate

4-Door

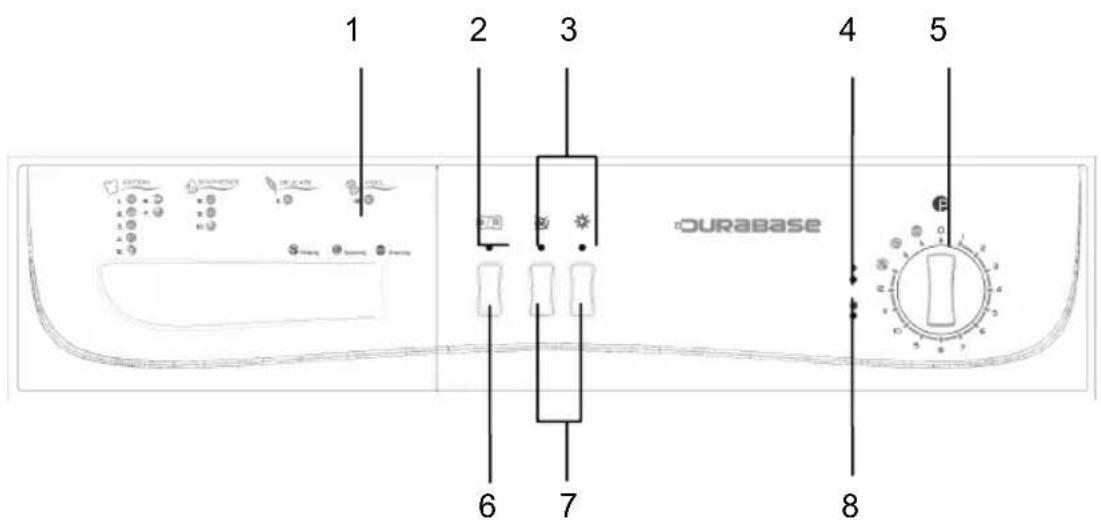

SECTION 4:CONTROL PANEL

B1(3 buttons)

1 2 3 4 5 ourabase 6 7 8

1-Detergent drawer
2-Start/pause light
3-Function indicator
4-Program ready light

lights

8-Program end light

5-Program knob
6-Start/pause
7-Function buttons

button

Our product has electronic card and soft-touch buttons. To activate the functions touch the buttons slightly.

START/PAUSE BUTTON

Used to start a selected program or pause during running.

WARNING!

It is required for the program knob to be brought to O(off) position before selecting the program or changing a continuing program.

FUNCTION INDICATOR LIGHTS

When the start/pause button or any function button is pressed, the corresponding light turns on. The light turns off when the function button or start/pause button is re-pressed, or when the process the selected function is completed.

The function indicator lights are also used in failure detection system mentioned in section 9.

FUNCTION BUTTONS

No spin

This program is recommended to be used for your sensitive clothes on which no spinning should be done. By pressing this function button, you can cancel the spinning process which is included in the program.

Cold wash

When this button is pressed, your clothes are washed with cold water. With this function, you can wash your slightly dirty clothes using less energy and water.

WARNING!

Functions vary depending on the model you have chosen. If you forgot to use additional function and your machine starts to wash push the additional function button if the indicator light is on. Additional function will be activated. If the indicator light is not on, additional function will not be activated.

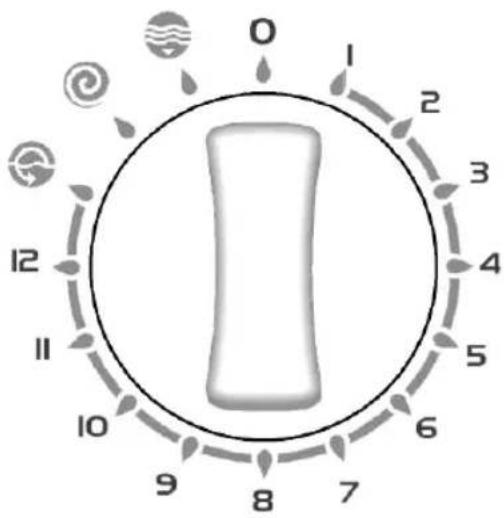

PROGRAM KNOB

With the program knob, you can select the program with which you desire to wash your clothes. You can adjust the program selection process by turning the program knob in both directions. You must be careful that the adjustment sign of the program knob is exactly on the program you want to select. When you bring the program knob to O(off) position, while your machine is running, your program will remain incomplete.

1-Cotton 90°C

2-Cotton 60°C with prewash

3-Cotton 60°C

4-Cotton 40°C

5-Eco wash

6-Quick wash

7-Cotton cold

8-Synthetic 60°C

9-Synthetic 40°C

10-Synthetic cold

11-Delicate 30°C

12-Wool 30°C

Rinsing

Spin

Draining

0- OFF

SECTION 5: WASHING YOUR LAUNDRY

• Plug the machine.
• Open the tap water.

First wash cycle

There may be water left inside your machine after factory tests and trials. It is recommended that the first wash cycle should be made without any laundry so that carry out this water; pour half a measuring cup of normal allpurpose detergent into compartment 2 and select cotton program at 90°C.

BEFORE WASHING

Discrimination of your laundry

• Discriminate your clothes according to their types (cotton, synthetic, sensitive, woolen, etc.), washing temperatures and level of dirtiness.
• Never wash your white and coloured clothes together.
• Since your new coloured clothes may shed dye on the first wash, wash them separately.
• Be careful that no metal pieces are found on or in the pockets of your clothes, remove if there is any.
• Zip and button your clothes.

• Remove the plastic or metal hooks of the curtains and laces or place them inside a washing bag and tie.

• Pull the textiles like trousers, knitted fabric, t-shirt and sweat shirt inside out.

• Wash your small clothes like socks and handkerchiefs in a washing bag.

Wash up tol 90 °C Wash up to 60 °C Wash up to 30 °C Not washable in

W

Placement of the clothes into the machine

• Open the door of your machine.
• Fill your clothes in your machine in a well-spread manner.
• Place each cloth separately.
• When you shut the door of your machine, be careful that no cloth is jammed between the cover and the gasket.
• Shut the door of your machine tightly otherwise your machine will not start the washing process.

Filling detergent in the machine

The quantity of the detergent that you will fill in your machine depends on the following criteria:

• Your detergent consumption will change according to the dirtiness level of your clothes. For your slightly dirty clothes, do not pre-wash and put a small amount of detergent in the compartment no.2 of the detergent drawer.
• For your excessively dirty clothes, select a program with pre-washing, fill 14 portion of the detergent you will put in compartment 1 in the detergent drawer and the remaining portion in compartment 2.
• In your machine, use the detergents developed especially for automatic washing machines. The quantities that will be used for your clothes are written on the packing of the detergents.
• As the hardness of your water increases, the amount of the detergent to be consumed will also increase.
• As the amount of your clothes increases, the amount of the detergent to be consumed will also increase.
• Fill your softener in the softener compartment in your detergent drawer. Do not exceed the MAX level. Otherwise, the softener will diffuse in the washing water via the siphon.
• The softeners with high density should be diluted with some water before filling in the drawer. That is because the softener with high density obstructs the siphon and prevents the flow of the softener.

- You can use fluid detergents in all programs without pre-washing. For this, mount the fluid detergent level plate in the second compartment of the detergent drawer and arrange the amount of fluid detergent according to the levels on this plate.

RUNNING THE MACHINE

Program selection and features

Select the program and additional functions appropriate for your clothes from Table-1.

Start/Pause

By pressing this button, you can start the program you have selected or pause a running program.

Starting the program

• Adjust the program knob to a program you desire.
• The program ready light will be on.
• If you want, you can select one or more additional functions.
• Run the program which you have selected by pressing the Start/Pause button.

Changing the program

If you have selected a program and you do not want if to continue:

• Press the start/pause button.
• Bring the program knob to O(off) status.
• Adjust the program knob to the program you desire.(You can select the program that you desire from Table-1).
• The program ready light will be on.
• By pressing the start/pause button, run the program which you have selected.

Cancellation of the Program

If you desire to end a running program early:

• Press the start/pause button.
• Turn the program knob to O(off) status.
• Turn the program knob to "Draining" or "Spinning" programs.
• The program ready light will be on.
• Run the program you have selected by pressing the start/pause button.

Program ending

• Your machine will automatically stop when the program you have selected ends.
• The program end light will be on.

• Turn the program knob to O(off) position.

• The door will be unlocked in approximately two minutes after the program ends. You can open the door by pulling the handle of the door towards yourself and take out your clothes.

• After you unload your clothes leave the door open to dry the interior of your machine.
• Unplug your machine.
• Close the water tap.

WARNING!

If the power is off end on again after a while on any stage of the washing program, your machine will continue the program from the point where it was interrupted. This is not harmful for your machine.

Child lock

The Child Lock prevents unauthorised changes on the control panel while the machine is in operation. The child lock will be activated after the start/pause button on the control panel is pressed for a period longer than 2 seconds. To inactivate it, you have to press the same button for a period of longer than 2 seconds. At the end of the program child lock will automatically be off.

SECTION 6: MAINTENANCE AND CLEANING

• Unplug your machine.
• Close the water tap.

WATER INLET FILTERS

On the tap part of your machine's water inlet hose and at the ends of water inlet valves, there are filters to prevent entrance of the dirt and foreign materials in the water to the machine. If the machine is unable to receive sufficient water although your water tap is opened, these filters should be cleaned.

PROGRAM	DETERGENT COMPART.	ADDITIONAL FUNCTION BUTTON	MAX DRY LOAD CAPACITY (kg)	TYPE OF LAUNDRY EXPLANATIONS
			WM 1010 ABC5
1-COTTON 90°	2		5	Dirty, boil, cotton and linen textile
2-COTTON 60° (PREWASH)	1+2 5			Very dirty, cotton, coloured and linen textile
3-COTTON 60°	2		5	Dirty, cotton, coloured and linen textile
4-COTTON 40°	2		5	Slightly dirty, paint to get out, cotton, coloured and linen textile
5-ECO WASH	2 5			Dirty, cotton, coloured and linen textile
6-QUICK WASH 2			2,5	Slightly dirty, cotton, coloured and linen textile
7-COTTON COLD	2 5			Slightly dirty cotton, coloured and linen textile.Washed without heating the tap water.
8-SYNTHETIC 60°	2		3	Dirty, synthetic or synthetic mixture textile
9-SYNTHETIC 40°	2		3	Slightly dirty, synthetic or synthetic mixture textile
10-SYNTHETIC COLD	2 3			Slightly dirty, synthetic or synthetic mixture sensitive laundry.Washed without heating the tap water.
11-DELICATE 30°	2		2	Slightly dirty, cotton, coloured, synthetic or synthetic mixture sensitive laundry
12-WOOL 30°	2		2	Dirty, hand and machine to wash wool laundry

TABLE-1

PROGRAM	DETERGENT COMPART.	ADDITIONAL FUNCTION BUTTON	MAX DRY LOAD CAPACITY (kg)	TYPE OF LAUNDRY EXPLANATIONS
			WM 1010 ABC5
RINSING	When you need an additional rinsing to be done to your clothes after the washing process, you can use this program for all kinds of clothes.
SPINNING	When you need an additional spinning to be done to your clothes after the washing process, you can use this program for all kinds of clothes.
DRAINING	This program is used to drain the dirty water inside after the washing process of your machine. If you want the water inside your machine to be drained before the program ends, you can use this program.

TABLE-1 CONTINUE
(*) You can use softeners in all programs (except spinning and draining programs) optionally. When you arrange the quantity of the softener, comply with the warning of the softener producer. Fill your softener in its (softener) compartment of the detergent drawer.

• Remove the water inlet hose.
• Remove the filters found on the water inlet valves by using a pincer and wash thoroughly with a brush.
• Clean the filters of the water inlet hoses located on the tap side by removing manually together with the seal.
• After you clean the filters, you can fit them the same way as you have removed.

Illustration showing a hand inserting a plug into a battery cover, with another hand holding a plug inserted (no text or symbols present)

PUMP FILTER

The pump filter system elongates the life of your pump, which is used to drain the dirty water. It prevents lint to enter the pump. Cleaning of your pump filter in every 2-3 months is recommended. To clean your pump filter:

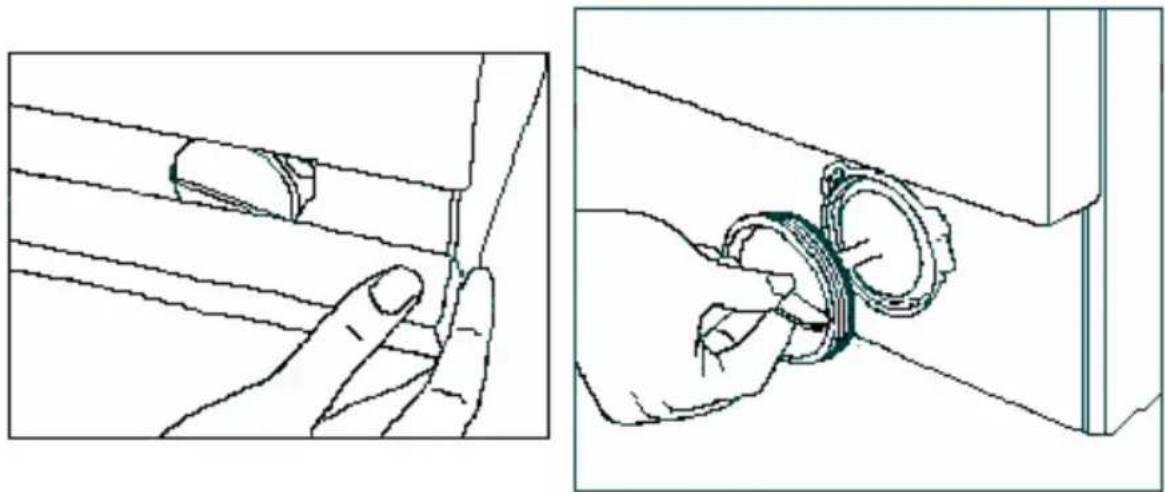

• Remove the kickplate by pushing with your hand upwards from the lower claws and pulling towards yourself.
• Before opening the filter cover, place a cup in front of the filter cover to prevent flow of the remaining water in the machine.
• Loosen the filter cover by rotating it counter clockwise and drain the water.
• Remove the foreign materials from the filter.
• Check for the rotation of the pump manually.
• After you have cleaned the pump, fit the filter cover by rotating clockwise.
• Fit in the kickplate by holding from the claws and push it.
• Do not forget that if you do not fit in the filter cover properly, it will leak water.

WARNING!

Danger of being scalded!

Since the water inside the pump maybe hot, wait for it to cool.

Technical line drawing showing two steps of a hand holding a small object, with no visible text or symbols.

DETERGENT DRAWER

Detergents may form a sediment in your detergent drawer or in housing of the detergent drawer in time. To clean the sediment, pull out the detergent drawer from time to time. To pull out the detergentdrawer:

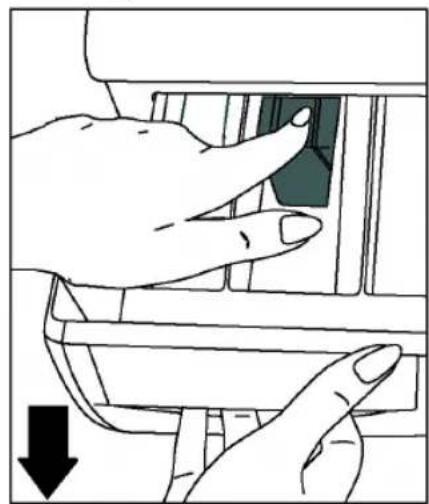

• Pull the detergent drawer to the end.(DIAGRAM-1)
• Lift the front of the drawer, continue to pull until the drawer is pull out.(DIAGRAM-2)
• Wash will an old toothbrush and excessiveamount of water.
  • Take off the leftover detergent avoid to drop into your machine.
• After drying the detergentdrawer put into the housing in the same manner you pull out.

Line drawing of a hand pressing down a mechanical component (no text or symbols)

DIAGRAM-1
DIAGRAM-2

Illustration of a hand inserting a component into a device (no text or symbols visible)

SIPHON PLUG

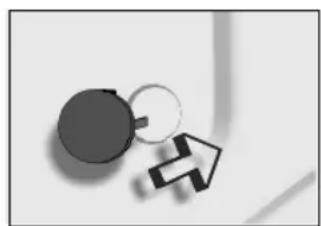

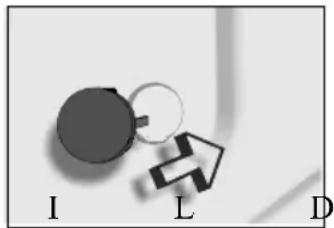

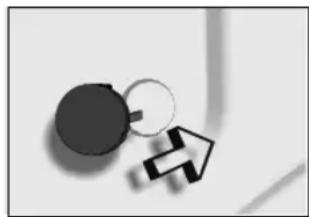

Pull out the detergent drawer. Remove the siphon plug and clean the residues of the softener thoroughly. Fit the cleaned siphon plug in its location. Check if it placed properly.

THE CABINET

Clean the exterior surface of the cabinet of your machine with lukewarm water and a cleaning substance that will not irritate the cabinet. After rinsing with clean water, wipe it with a soft and dry cloth.

WARNING!

If the machine is installed in a location where the ambient temperature can fall below 0 ^ , do the following when it will not be in use:

• Plug in the machine.
• Close the water tap and pull out the water inlet hose or hoses from the tap.
• Place the ends of the water drain and water inlet hoses in a cup on the ground.
• Adjust the program knob to "Draining" program.
• The program ready light will be on.
• Run the program by pressing the start/pause button.
• Unplug your machine when the program is over (program end light is on).

When you complete these proces, the remaining water inside the machine will be drained and thus formation of ice in the machine will be prevented. When you operate your machine again, be sure that the ambient temperature is above 0 °C .

THE DRUM

Do not leave metal parts like needles, staples or coins inside your machine. These pieces cause formation of rust stains in the drum. To eliminate these stains of rust, use a cleaning substance without chlorium and follow the warnings of the cleaning substance producer. For cleaning of the rust stains, never use dish-washing wires or similar rough objects.

REMOVE OF LIME FROM YOUR MACHINE

If you arrange the amount of the detergent you use in your machine properly, there will be no need for lime removal. However, if you desire to apply the removal procedure, use the lime protectors in the market and pay attention to their warnings.

WARNING!

The lime eliminating substances contain acids and this may cause colour modifications in your clothes along with an adverse effect on your machine.

SECTION 7: PRACTICAL INFORMATION

Alcoholic beverages: The stain point, should first be washed cold water, than should be wiped with glycerine and water be rinsed with water mixed with vinegar.

Polish: The stain should be slightly scratched without ruining the cloth, rubbed with detergent and rinsed. In case it is not eliminated, it should be rubbed with 1 unit of pure alcohol (96 es) mixed in 2 units of water and then washed with arm water.

Tea and coffee: Stretch the stained area of your cloth on the top of a container and pour water as hot as the type of your cloth can be on it. If the type of your cloth is suitable, wash it with lye.

colate and cocoa: By leaving your clothes in cold water and ing with soap or detergent, wash it in the highest temperature the type of your cloth can endure. If there is still a stain of oil wipe with oxygenated water (in proportion of 3%).

ato paste: After scraping the dried pieces without ruining the leaf, leave in cold water for about 30 minutes and wash by using with detergent.

Meat broth-egg: Eliminate the dried stain residues and wipe with age or soft cloth wetted in cold water. Rub with detergent ash with diluted lye.

Grease and oil stains: First wipe the residues. Rub the stain with ent and then wash with lukewarm soapy water.

rd: First apply glycerine to the stained area. Rub with detergent and then wash. If the stain still does not disappear, wipe with alcohol (On synthetic and coloured cloth, a mixture of 1 unit l, 2 units water should be used)

Blood stain: Lay your clothes in cold water for 30 minutes. If the till does not disappear, lay in mixture of water and ammonia e-spoons of ammonia in 4 liters of water)for 30 minutes.

Cream, ice-cream and milk: Lay your clothes in cold water and be stained area with detergent. If the stain has still not peared, apply lye on the fabric of your clothes in proper portion.(Do not use lye on coloured clothes.)

Mould: Mould stains should be cleaned as soon as possible. The stain should be washed with detergent, and if it does not disappear, it should be wiped with oxygenated water (in proportion of 3%).

Ink: Hold the stained area under cold water and wait until the inky water completely runs off. Then rub with water diluted with lemon juice and detergent, wash after waiting for 5 minutes.

Fruit: Stretch the stained area of your clothes on the top of a container and pour cold water on it. Do not pour hot water on the stain. Wipe with cold water and apply glycerine. Wait for 1-2 hours and rinse after wiping with a few drops of white vinegar.

Grass stain: Rub the stained part with detergent. If the type of fabric is suitable for use of lye, wash it with lye. Rub your woolen shades with alcohol.(For coloured ones, a mixture of 1 unit pure alcohol and 2 units of water).

Oil Paint: The stain should be eliminated before it dries by applying thinner on it. Then it should be rubbed with detergent and washed.

Burnt stain: If your cloth is suitable for use of lye, you can add lye into your washing water. For woolen fabric, a cloth damped in co-penated water should be covered on the stain and it should be ironed with a dry cloth on it. It should be washed after rinsing well.

SECTION 8: AVOIDING MINOR FAULTS

All repairing which must be done on the machine should be done by authorized service. When a repairing is required for your machine or you are unable to eliminate the failure with the help of the information given below:

• Unplug the machine.
• Close the water tap.
• Apply to the nearest authorized service station.

FAILURE	PROBABLE	CAUSE METHODS OF ELIMINATION
Your machine does not operate.	It is unplugged.	Insert the plug into the socket.
	Your fuse is defected.	Change your fuse.
	The electric power is off.	Check the electric power.
	Start/pause button has not been pressed.	Press the start/pause button.
	The program knob is in O(off) status.	Bring the program knob on the desired status.
	The door is not shut properly.	Shut the door properly. You should hear the click.
Your machine does not receive water.	Water tap is closed. Open water tap.
	The water inlet hose may be bent.	Check the water inlet hose.
	The water inlet hose is obstructed.	Clean the filters of water inlet hose. (*)
	The valve inlet filter is obstructed.	Clean the valve inlet filters. (*)
	The door is not shut properly.	Shut the door properly. You should hear the click.
Your machine is not draining water.	The drain hose is obstructed or bent.	Check the drain hose.
	The pump filter is obstructed.	Clean the pump filter. (*)
	The clothes are not placed inside the machine in a well-balanced manner.	Spread the clothes inside the machine in an orderly and well-balanced manner.
Your machine is vibrating.	The feet of your machine are not adjusted.	Adjust the feet. (**)
	Transportation screws are not removed.	Remove transportation screws. (**)

(*)See the section concerning the maintenance and cleaning of your machine.
(**)See the section concerning installations your machine.

FAILURE	PROBABLE	CAUSE METHODS OF ELIMINATION
Your machine is vibrating.	There is a small amount of clothes in the device.	It does not prevent operation of the machine.
	Excessive amount of clothes are filled in the machine or the clothes are not placed in a well-balanced manner.	Do not exceed the recommended quantity of clothes and spread your clothes in the machine in a well-balanced manner.
	Your machine touches a ripid object.	Prevent your machine's leaning on a tough place .
Excessive foam in the detergent drawer.	Too much detergent has been used.	Press the start/pause button.In order to stop the foam,dilute one table-spoon of softener in half liter of water and pour it in the detergent drawer.Press the start/pause button after 5-10 minutes.Arrange the amount of the detergent properly in the next washing process.
	Wrong detergent has been used.	Use only the detergents produced for full automatic machines.
The washing result is bad.	Your laundry too dirty for the program you have selected.	Select a suitable program. (see Table-1)
	The amount of detergent used is not sufficient.	Use more detergent according to the detergent.
The washing result is not good.	Clothes exceeding the maximum capacity has been filled in your machine.	Put the clothes in your machine in a manner not to exceed its maximum capacity.
	Your water may be hard.	Use the amount of detergent according to the declaration of the detergent producer.
	Distribution of the clothes in your machine is not well-balanced.	Spread the clothes inside the machine in an orderly and well-balanced manner .
The water is drained from the machine as soon as it is filled.	The end of the water drain hose is in a position too low according to the machine.	Place the water drain hose in an appropriate height.(**)
No water is seen in the drum during washing.	No failure. The water is at the lower part of the drum.	-
There are residues of detergent on the clothes.	The pieces of some detergents which do not dissolve in water may stick to your clothes as white stains.	By calibrating your machine for “Rinsing” program,make an additional rinsing or eliminate the stains After drying with the help of a brush.
There are gray stains on the clothes.	These stains may be caused by oil,cream or ointment .	In the next washing operation, use the maximum detergent amount declared by the detergent producer.

(**) See the section concerning installations your machine.

FAILURE	PROBABLE	CAUSE METHODS OF ELIMINATION
The spinning process is not done or starts with delay.	No failure. The unbalanced load control may works in that way.	The unbalanced load control system will try to distribute your clothes in a homogenous manner. After your clothes are distributed, passage to spinning process will be realized.In the next washing process,place your clothes into the machine in a well-balanced manner.

SECTION 9: AUTOMATIC FAILURE DETECTION SYSTEM

Your machine is equipped with systems which will both take the necessary precautions and warn you in case of any failure by controlling it self constantly during the washing processes.

(*) See the section regarding the maintenance and cleaning of your machine.

FAILURE CODE	FAILURE INDICATOR	PROBABLE FAILURE	THE PROCESS TO BE DONE
Err 01	The start/pause light blinks.	The door is not shut properly.	Shut the door properly so that you hear the click. If the problem persists, turn off the machine unplug and apply to the nearest authorized service immediately.
Err 02	The program ready light blinks.	The water level in your machine is below heater. The pressure of your water supply may be low or locking.	Turn on the tap to the end.Water may be cut, check it.If the problem is still continuing,your machine will automatically stop after a while.Unplug your machine, turn off the tap and apply to the nearest authorized service.
Err 03	The start/pause light and program ready light blinks.	The pump has failed or the pump filter is obstructed.	Clean the pump filter.If the problem persists,apply to the nearest authorized service.(*)
Err 04	The program end light blinks.	Communication error	Shut down your machine and unplug. Turn off your tap and apply to the nearest authorized service.

FAILURE CODE	FAILURE INDICATOR	PROBABLE FAILURE	THE PROCESS TO BE DONE
Err 05	The start/pause light and program end light blink.	The heater of your machine or the heat sensor has failed.	Shut down your machine and unplug. Turn off your tap and apply to the nearest authorized service.
Err 06	The program ready light and program end light blink.	The motor has failed.	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.
Err 07	The program start/pause light, ready light and program end light stays on permanently.	Configuration error.	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.
Err 08	The start/pause light,program ready light and program end light blink.	Fault error	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.
Err 09	The program ready light and program end light stays on permanently.	The network voltage is too high or too low.	If the network voltage is lower than 150V or higher than 260V, your machine will automatically stop. When the network voltage is recovered, your machine will continue its operation.

SECTION 10: INTERNATIONAL WASHING SIGNS

Washing temperature.	Do not wash (hand wash)	Lukewarm iron.	Medium hot iron.

Hot iron. Do not iron.		Do not tumble dry.	Hang to dry.

Drip dry. Dry flat. Do not bleach. Handy to bleach.

All of these are dry cleaning symbols. The letters are to instruct the cleaner what type of solvent to be used.Garments bearing these symbols should not be washed in your machine unless the label says otherwise.

This appliance is marked according to the European Directive 2002/96/EC

on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a Europeanwide validity of return and recycling on Waste Electrical and Electronic Equipment
