USER MANUAL TV Game Console 100 games in 1 JG7420 LEXIBOOK

Dancing	Pool
Tennis	Fishing
Baseball practice	Boxing
Golf	Basketball
Ping-pong	Darts
Bowling

Thank you for purchasing this Lexibook "TV Game Console".

Please read the following instructions to discover all its functions and understand the safety rules.

Contents of the packaging

When unpacking, ensure that the following elements are included:

1 x game console "TV Game Console"
2 x wireless controllers
3 x accessories to play (tennis racket, baseball bat and ping pong paddle)
1xAV cable
1 x AC/DC adapter
1 x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this toy and should be discarded for your child's safety.

Battery Information

The "TV Game Console" operates with:

• 4x1.5V AAR R6 type batteries (not included)

OR

• the AC/DC adapter provided (5V -300 mA, with positive centre).

The 2 wireless controllers work with 3 × 1.5 ~V AAA/LR03 type batteries each (not included).

Console:

Installing the batteries:

1. Use a screwdriver to open the battery compartment located under the console.
2. Install the 4 x LR6/AA type batteries observing carefully the polarity indicated at the bottom of the battery compartment and as per the diagram shown below.
3. Close the battery compartment and tighten the screw.

Adapter:

1. Make sure the game console is switched off.
2. Connect the adapter plug (supplied) to the socket located on the back side of the console.
3. Connect the adapter into a main socket.
4. Switch the game console on.

Warning: Disconnect the adapter if the game is not used for a long period of time to prevent overheating. When

the game is powered by an adapter, do not play outside. Check the state of the adapter and the connection cords regularly. If their condition is deteriorating, do not use the adapter until it has been repaired. The game may only be operated with the recommended adapter. The adapter is not a toy. The console should be disconnected from the power supply to be cleaned if liquids are used for cleaning.

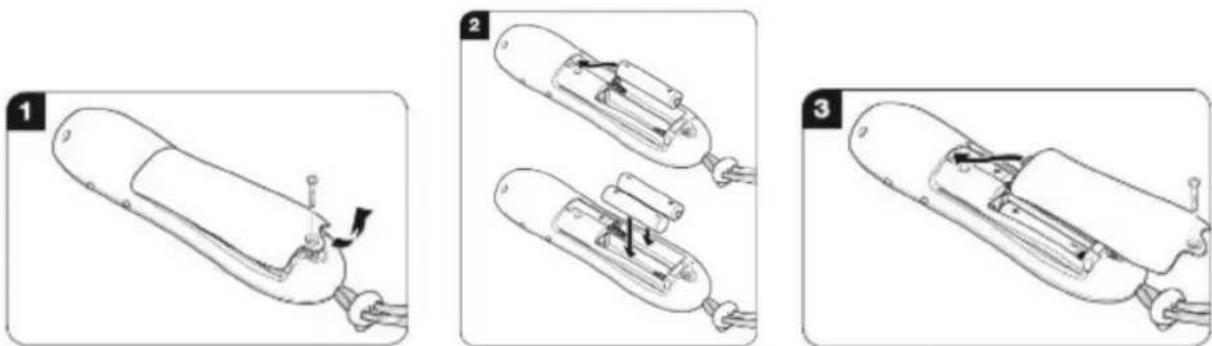

Wireless controllers:

1. Use a screwdriver to open the battery compartment located at the back of the controller.
2. Install the 3 x LR03/AAA type batteries observing carefully the polarity indicated at the bottom of the battery compartment and as per the diagram shown below.
3. Close the battery compartment and tighten the screw.
4. Repeat the 3 previous steps to install the batteries of the second controller.

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the toy before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the toy. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the game for a long period of time.

WARNING: Mal-function or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, reset the unit or remove the batteries and insert them again, or unplug the AC/DC adapter from the mains socket and plug it back in.

Connecting the console to a TV set

The "TV Game Console" must be plugged to a TV set.

Note: The TV set and the console MUST BE TURNED OFF.

1. Plug the AV cable (yellow end) into the matching video input jack on the TV set.
2. Plug the AV cable (white end) into the matching audio input jack on the TV set.
3. Switch on the TV set and turn on the console.

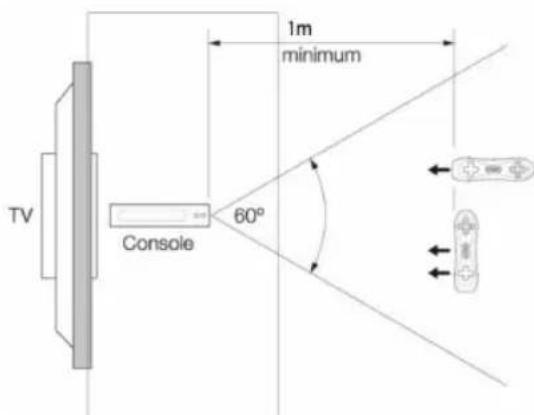

Positioning the console in the play area:

• Place the console observing carefully the diagram shown opposite.
• Ensure you have enough space and there are no obstacles in the play area (furniture, overhead light, carpet...)
• Place the console on a flat and steady table at about the same height as the television.
• Play directly in front of the television within a distance of 1 meter from the console.

Note: Do not use other controllers in the same room and during the game, it may occur abnormal function of the console.

Key guide

Console

Note: Refer to diagram A.

1. POWER key: to turn the game console on or off.
2. Reset key: to reset the unit
3. Infra-red receiver
4. Charging light
5. Battery compartment
6. AC/DC port
7. AV out

Controller

Note: Refer to diagram B.
8. Push Buttons: press these buttons to insert the game accessories into the controller (baseball bat and rackets)
9. Directional keys: to navigate within the menus and play games (Up/Down/Left/Right)
10. START key: to start playing
11. MENU key: to access the main menu or the previous screen
12. ON/OFF key: to activate/inactivate the vibration mode
13. SELECT key: to select a game or confirm a choice
14. A, B, X and Y keys: to play the games.

Note: The function of the key depends on the game.

1. Wrist strap
2. Battery compartment

Let's play

How to hold the controller

Note: Always wear the wrist strap when you play.

1. Slip your hand through the wrist strap and adjust it (See diagram 1).
2. Depending on the game, you can hold the controller in one hand (vertical position) or both hands (horizontal position) (See diagram 2).

Vibration mode:

For more realism and fun when you play the controllers feature a vibration function. To activate the vibration function, set the ON/OFF button of the controller (12) on the ON position. The controller vibrates when you move it.

To select a game

Important note: Always use the controller 1 to select a game. Hold the controller in one hand (vertical position) to navigate through the game menu and select a game.

Using the controller keys:

1. Hold the controller in on hand (vertical position).
2. Press the "START" key on the controller to access the game menu.
3. Use the directional keys (Left/Right) to move the cursor and scroll through the different games.
4. To select a game, press the "SELECT" key.
5. Select the game options.
6. To return to the previous screen or menu, press the "MENU" key.
7. To start playing, press the "START" key.
8. To pause the game, press the "MENU" key. To restart, select "Resume" using the directional keys and then press "SELECT".

Using the controller:

1. Select the game using the controller 1. Move the controller right or left with a sure and fast gesture to move the cursor in the game menu.
2. Shake the controller to validate a choice, select an option or start playing.

List of games

11 interactive sport games

Note: In these games there are one or two players. Hold the controller in one hand. For tennis, baseball and ping pong games, use the matching accessory.

Dancing	Pool
Tennis	Fishing
Baseball practice	Boxing
Golf	Basketball
Ping-pong	Darts
Bowling

89 mini games

Note: In these games there is one player. To play, hold the controller in both hands (horizontal position).

Auto Racing	Lady Bugs	Toy Kingdom	Go Bang
Ball Battle	Lighting Plan	Treasure Hunt	Rotating Puzzle
Big Burger	Magic Cubes	Yummy	Tutelary
Brave Heart	Find pairs	Jet Rush 2	Brain Explode
Ball Blaster	Mission	Busy Busy	Zippy Frog
Caddie	Motor Rally 2	Campaign	Blue
Coin Digger	Mr. Onion	Final Escape	Crazy Addition
Cooking Chaos	Mystic Totem	Tennis	Defence Mission
Crazy Coconuts	Plumber Man	Which Way	Wobble
Deep Storm	Pop Ball	Find Food	Shanghai
Dragon	Potion Commotion	Smile	Hide and Seek
Egg Collector	Rapid Stream	Picture Challenge	Box Puzzle
Find the Way	Slot Machine	Magic Jelly	Ballroom Bonanza
Finger Dancing	Sudoku	Make Way	Feed Sort
Fire Fighter	Speed Runner	Rock Challenge	Pumpkin Surprise
Happy Farm	Spiral Ball	Pinball Fish	Lucky Hunt
Go Karts	Squirrel Bobble	Pool Pro	Dinglehoppers
Hay Bales	Starry Night	Seek the Resources	Fruit Fall
Hero Legend	Surf Adventure	Super Move Quest	Garden Weeder
Hot Drop	Texas Hold'em	Jump Frog	Hero
Ice Climber	The Lost world	Bump Jump
Jewel Fever 2	Tiger Rescue	Quick Move
Jewel Master 2	Jet Skiing	On N Off

Epilepsy Warning

Read before you or your children use video games. Some people are prone to epileptic seizures or losses of consciousness as a result of seeing certain flickering lights or objects often present in daily life. These people are at risk from seizures when they watch certain television images or play certain video games. Such incidents can happen even if the person has no previous medical history of epilepsy. If you or a member of your family has ever displayed symptoms linked with epilepsy (seizures or loss of consciousness) while watching flickering lights or images, consult your doctor before use.

Parents are advised to supervise their children while playing video games. If you or your child shows any of the following symptoms: dizziness, vision problems, eye or muscle tenseness, loss of consciousness, involuntary movements or seizures, cease playing immediately and consult your doctor.

Precautions to take in any case while using a video game:

• When you use a video game which can be connected to a TV screen, stand or sit relatively far from the TV screen and as far as the connection cable allows it.
• Use preferably video games which have a small screen. Avoid playing video games if you are tired or lack some sleep.
• Make sure to play in room which is well lit.
• While playing video games, take 10 to 15 minute breaks every hour.

Maintenance and Warranty

Only use a soft, slightly damp cloth to clean the unit. Do not use detergent. Do not to expose the unit to direct sunlight or any other heat source. Do not immerse the unit in water. Do not dismantle or drop the unit. Do not try to twist or bend the unit.

NOTE: please keep this instruction manual, it contains important information.

This product is covered by our 2-year warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference. WARNING! Not suitable for children under 3 years. Choking Hazard-Small parts. In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

Reference: JG7410

Designed and developed in Europe - Made in China

© 2011 LEXIBOOK®

United Kingdom & Ireland

For any further information, please call 0808 100 3015

www.lexibook.com

CE

Environmental Protection:

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
