USER MANUAL HT 2000 EINHELL

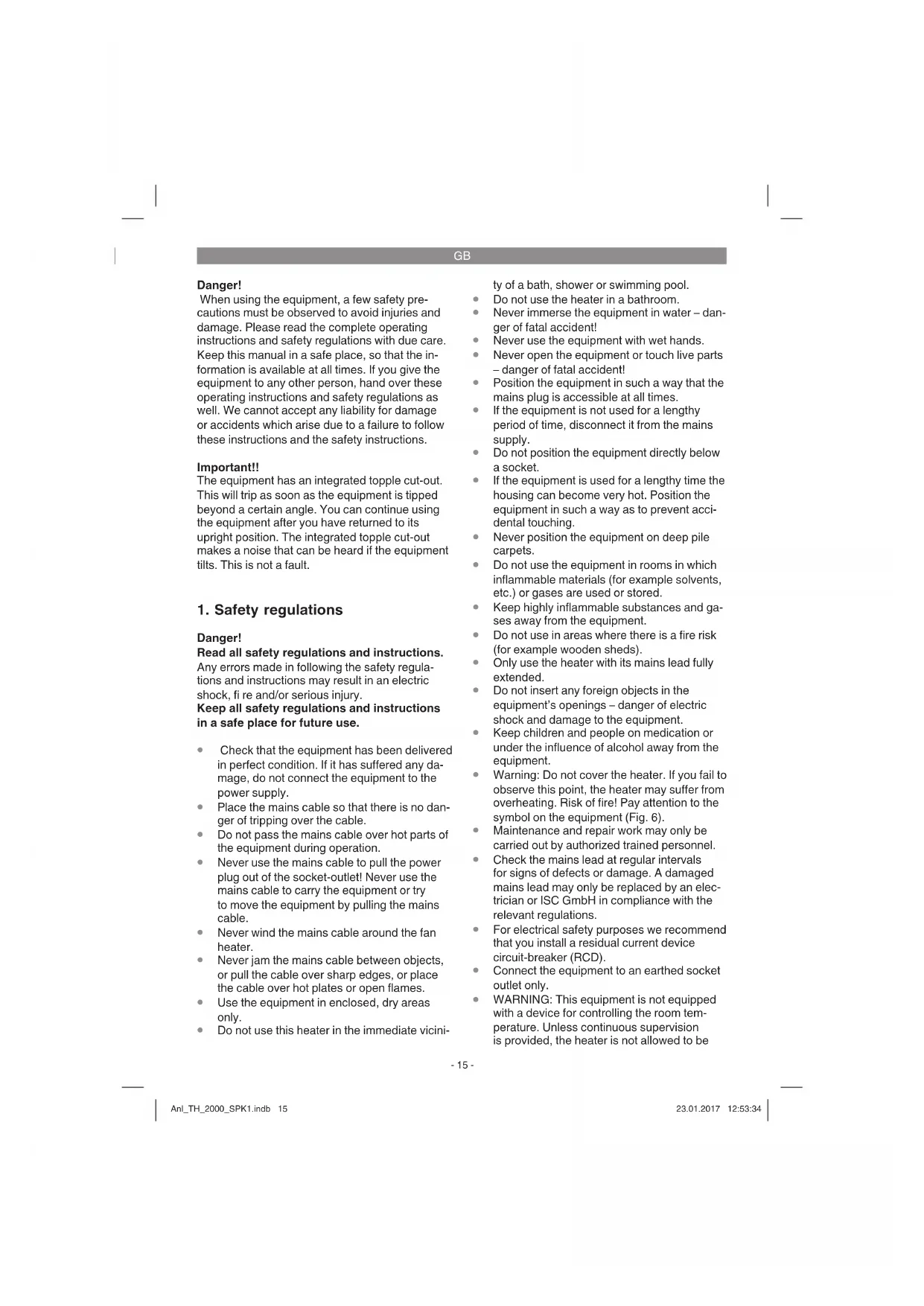

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions. Important!! The equipment has an integrated topple cut-out. This will trip as soon as the equipment is tipped beyond a certain angle. You can continue using the equipment after you have returned to its upright position. The integrated topple cut-out makes a noise that can be heard if the equipment tilts. This is not a fault.

1. Safety regulations

Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

Check that the equipment has been delivered in perfect condition. If it has suffered any da- mage, do not connect the equipment to the power supply.

Place the mains cable so that there is no dan- ger of tripping over the cable.

Do not pass the mains cable over hot parts of the equipment during operation.

Never use the mains cable to pull the power plug out of the socket-outlet! Never use the mains cable to carry the equipment or try to move the equipment by pulling the mains cable.

Never wind the mains cable around the fan heater.

Never jam the mains cable between objects, or pull the cable over sharp edges, or place the cable over hot plates or open flames.

Use the equipment in enclosed, dry areas only.

Do not use this heater in the immediate vicini- ty of a bath, shower or swimming pool.

Do not use the heater in a bathroom.

Never immerse the equipment in water – dan- ger of fatal accident!

Never use the equipment with wet hands.

Never open the equipment or touch live parts – danger of fatal accident!

Position the equipment in such a way that the mains plug is accessible at all times.

If the equipment is not used for a lengthy period of time, disconnect it from the mains supply.

Do not position the equipment directly below a socket.

If the equipment is used for a lengthy time the housing can become very hot. Position the equipment in such a way as to prevent acci- dental touching.

Never position the equipment on deep pile carpets.

Do not use the equipment in rooms in which inflammable materials (for example solvents, etc.) or gases are used or stored.

Keep highly inflammable substances and ga- ses away from the equipment.

Do not use in areas where there is a fire risk (for example wooden sheds).

Only use the heater with its mains lead fully extended.

Do not insert any foreign objects in the equipment’s openings – danger of electric shock and damage to the equipment.

Keep children and people on medication or under the influence of alcohol away from the equipment.

Warning: Do not cover the heater. If you fail to

observe this point, the heater may suffer from overheating. Risk of fire! Pay attention to the symbol on the equipment (Fig. 6).

Maintenance and repair work may only be carried out by authorized trained personnel.

Check the mains lead at regular intervals for signs of defects or damage. A damaged mains lead may only be replaced by an elec- trician or ISC GmbH in compliance with the relevant regulations.

For electrical safety purposes we recommend that you install a residual current device circuit-breaker (RCD).

Connect the equipment to an earthed socket outlet only.

WARNING: This equipment is not equipped

with a device for controlling the room tem- perature. Unless continuous supervision is provided, the heater is not allowed to be Anl_TH_2000_SPK1.indb 15Anl_TH_2000_SPK1.indb 15 23.01.2017 12:53:3423.01.2017 12:53:34GB

used in small rooms which are inhabited by persons who are unable to leave the room on their own.

Children younger than 3 years must be kept away unless they are continuously supervised

Children of 3 years and younger than 8 years are allowed to use the equipment only if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use, provided that the equipment is positioned or installed in its normal place of use. Children of 3 years and younger than 8 years are not allowed to insert the plug into the socket, regulate the equipment, clean the equipment and/or perform the maintenance which a user is expected to perform.

This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or tho- se with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and un- derstand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work.

Caution – Some parts of the product can become very hot and cause burns. Special care is required when children and persons in need of protection are present.

2. Layout and items supplied

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating! A Heater B Fastening nut C Cover plate D Base E Remote control (incl. battery CR 2025)

Original operating instructions

The equipment is designed exclusively for use as an additional heater in dry, closed rooms. It is designed to be operated only when placed on the fl oor. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data. Warning! Always pull the power plug before making adjustments to the equipment.

2. Place the cover plate (Fig. 2 / Item C) on the

base (Fig. 2 / Item D), insert the threaded section of the heater through the cover plate and base and tighten the fastening nut by hand (Fig. 3) – do not use any tools!

Note: All modes and functions can be set using the buttons on the appliance as well as with the remote control. The remote control requires a CR 2025 button cell (included in the remote control). Pull the contact protection (small plastic plates) out of the housing before use.

Never use a battery type other than the speci- fied one.

If the remote control is not used for a lengthy period of time, remove the battery to prevent it leaking.

Point the remote control towards the heater. The range is max. 5 meters.

Direct sunlight and objects can considerably reduce the range of the remote control.

Handle the remote control with care. Do not drop it and keep it away from heat and mois- ture. Inserting the battery (Fig. 4):

1. Open the battery compartment cover by

pressing the lock (F) towards the middle and pulling the battery compartment out at the same time.

2. Make sure you fi t the battery with the + and

– terminals correctly positioned as shown on the housing.

3. Press the battery compartment cover into the

remote control. As the end user you are legally required to return spent batteries. You can hand them in at public collection points provided by your council or sales outlets where batteries of this type are sold. Ob- serve the instructions in section 11 as well. The equipment can be used indoors in a free standing position. Keep a minimum distance of 1 m between the housing and walls, combustible materials (furniture, curtains, etc.). The equipment may only be used completely mounted and stan- ding vertically on a stable surface. It is prohibited to operate the equipment on an instable surface (e.g. on a bed). Read the safety regulations in section 1. Check the correct air throughput by holding a sheet of paper a distance of 10 cm in front of the air outlet grille in air circulation mode (without heating). The paper must be blown away from the air outlet grille. When the equipment is used for the fi rst time or after a long period of rest it may emit an odor for a short time. This is not a fault.

6.1 Switching the mains voltage on/off (Fig.

The main switch (10) disconnects the equipment completely from the mains power supply. The fi rst step when you want to use the equipment is to turn on (“I”) the main switch; the last step when you no longer need the equipment is to turn off (“0”) the main switch. When you turn on the main switch, an acoustic signal sounds by way of con- fi rmation and the status panel (3) lights up.

6.2 Switching the equipment on/off (Fig. 5)

and blows out air without heat output. To switch off , press the “ON/OFF” button again. The fan continues to run for a while after the equipment has been switched off .

6.3 Setting the heat outputs (Fig. 5)

With the heater switched on, press the “Mode” button (K). The equipment will heat with 1200 W. If you press the “Mode” button again, the equipment will heat with 2000 W. The display will show either “1200” or “2000” depending on the heat output setting. Press the “Mode” button again and the fan will continue running without any heat output.

6.4 Setting the operating times (Fig. 5)

With the equipment switched on, press the „Ti- mer“ button (L). Each time you press this button the set operating time increases by 0.5 h within a time frame of 0.5 - 7.5 h. The set time will appear in the display in combinations of 0:30, 1:00, 2:00 and 4:00 (e.g. for 4.5 h, the combination is 4:00 + 0:30).

6.5 Switching the oscillation function on/off

(Fig. 5) Press the “Swing” pushbutton (M). The equipment will swivel approx. 35° to the left and 35° to the right. To switch off the “Oscillation” function and have the equipment blow in one specifi c direction only, press the “Swing” pushbutton again.

This will trip as soon as the equipment is tipped beyond a certain angle. You can continue using the equipment as described above after you have returned to its upright position. The integrated topple cut-out makes a noise that can be heard if the equipment tilts. This is not a fault.

6.7 Overheating guard

In case of excessive heating, the heat output or the equipment will shut down automatically. In this case switch off the equipment completely and un- plug it from the mains power. Allow the appliance to cool for about 15 minutes. After eliminating the cause (e.g. a covered air grille), the equipment can be switched on again as described above. If the overheating guard triggers repeatedly or the equipment cannot be switched on, please contact your customer services workshop.

7. Replacing the power cable

Danger! If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and

ordering of spare parts Danger! Always pull out the mains power plug before star- ting any cleaning work. The equipment must have cooled down.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

Remove dust with a vacuum cleaner.

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could at- tack the plastic parts of the equipment. Ensu- re that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

There are no parts inside the equipment which require additional maintenance.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

11. Disposing of batteries

Batteries contain materials that are harmful to the environment. Never place batteries in your household refuse, in fi re or in water. Batteries should be collected, recycled or disposed of by environment-friendly means. Send your old bat- teries to iSC GmbH, Eschenstrasse 6 in D-94405 Landau. You can then be sure that the equipment will be correctly disposed of by the manufacturer. Anl_TH_2000_SPK1.indb 19Anl_TH_2000_SPK1.indb 19 23.01.2017 12:53:3423.01.2017 12:53:34GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Anl_TH_2000_SPK1.indb 20Anl_TH_2000_SPK1.indb 20 23.01.2017 12:53:3423.01.2017 12:53:34GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Batteries Consumables* Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info.

Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_TH_2000_SPK1.indb 22Anl_TH_2000_SPK1.indb 22 23.01.2017 12:53:3523.01.2017 12:53:35F

= dB (A); guaranteed L
