USER MANUAL Max Extract 77 Deep Cleaner HOOVER

Deep Cleaner2 Contents Thank you for choosing a HOOVER

product. Please enter the complete model and Manufacturing Code in the spaces provided. MODEL MFG. CODE Hint: Attach your sales receipt to this owner’s manual. Verification of date of purchase may be required for warranty service of your HOOVER

product. Be sure to register your product online at Hoover.com or call 1-800-944-9200 to register by phone. ManufaCturinG Code If you need assistance: Visit our website at hoover.com. Follow the authorized dealer locator link to find the Hoover

authorized dealer nearest you or call 1-800-944-9200 for an automated referral of Hoover

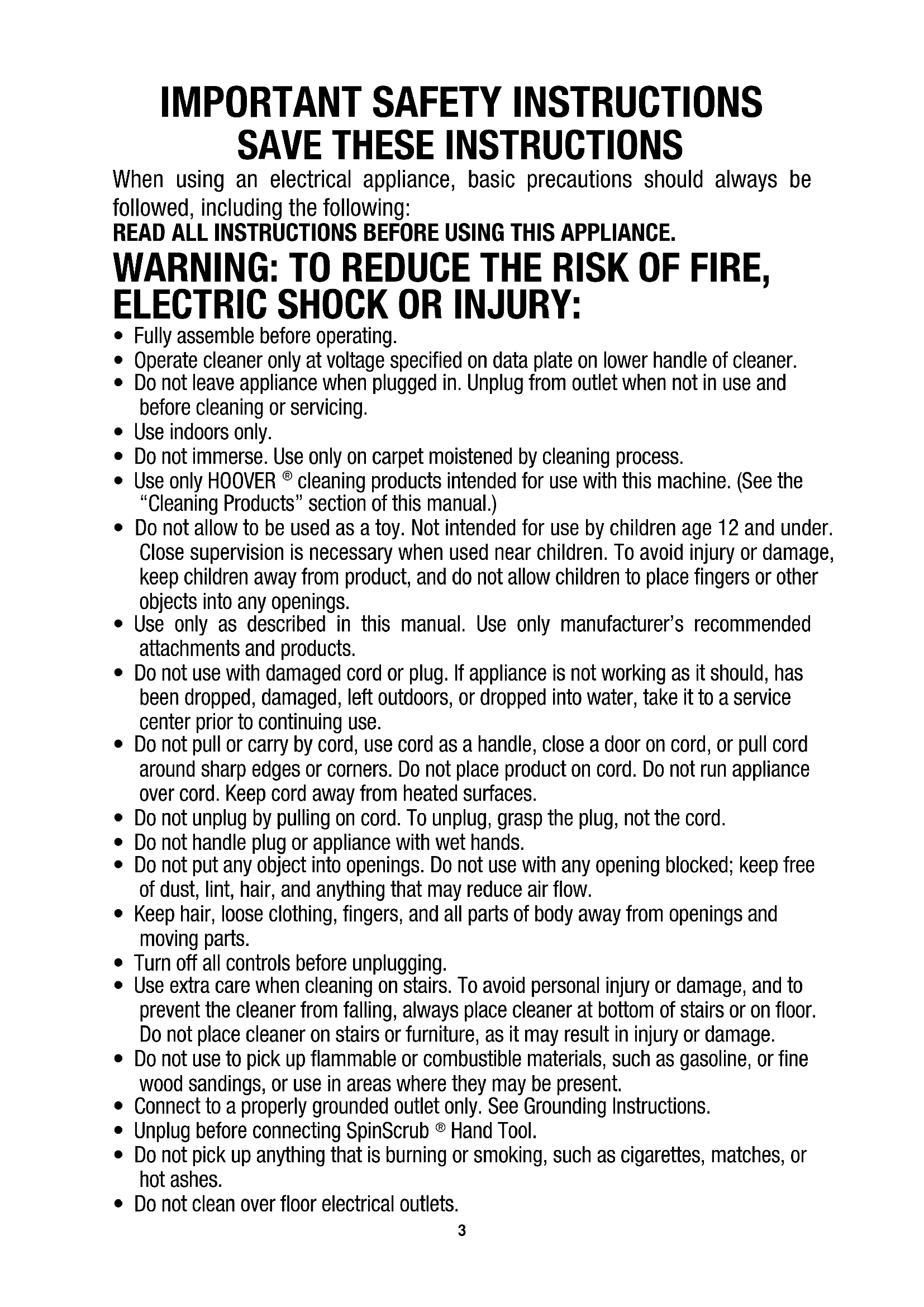

SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

• Fully assemble before operating.

• Operate cleaner only at voltage specified on data plate on lower handle of cleaner.

• Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.

• Do not immerse. Use only on carpet moistened by cleaning process.

cleaning products intended for use with this machine. (See the “Cleaning Products” section of this manual.)

• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.

• Use only as described in this manual. Use only manufacturer’s recommended attachments and products.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.

• Do not use to pick up flammable or combustible materials, such as gasoline, or fine wood sandings, or use in areas where they may be present.

• Connect to a properly grounded outlet only. See Grounding Instructions.

• Unplug before connecting SpinScrub

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without Tanks or Filters in place.

• WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or reproductive harm. GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor (C) and grounding plug (A). The plug must be inserted into an appropriate outlet (B) that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can

result in the risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug (A) illustrated in Fig. 1. A temporary adapter (D) may be used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not available (Fig. 2). The temporary adapter should be used only until a properly grounded outlet (B) can be installed by a qualified electrician (Fig. 1). The green colored rigid ear, lug, or the like (F) extending from the adapter must be connected to a permanent ground (G) such as a properly grounded outlet box cover (Fig. 2). Whenever the adapter is used, it must be held in place by a metal screw. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

• Avoid picking up hard, sharp objects with this product, as they may cause damage.

• Store in a dry place. Do not expose machine to freezing temperatures.

• Do not use sharp objects to clean out hose as they can cause damage.

• To assist in reducing drying time, be certain the area is well ventilated when using detergents and other cleaners with this machine.

• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.

• Do not store extractor with solution in tanks.

• Do not allow cleaner to sit in one location with brushes on for extended periods of time.

11. Cleaner asseMbly

A. Base, Hose and Removable Dirty Water Tank B. Upper Handle C. Handle Bolt (located in handle of unit) D. SpinScrub

77 Brush Assembly (Assembled on unit) E. Stair/Upholstery Nozzle (Assembled on unit) F. SpinScrub

Remove all parts from carton and identify each item shown. Make sure all parts are located before disposing of packing materials. Handle ships with bolt screwed in place. Remove bolt.

1.2 Insert handle section

into vacuum base. Push down firmly.

1.3 Insert bolt. Tighten

with screwdriver. attaCh handle Carton Contents

Carpet Upholstery CleanerPre-CleanerBarefloorcleaner

Actual model may vary from images shown.

1.4 Position bottom of tank onto cleaner.

1.5 Push upper part of tank to lock it into place.

1.6 Wrap hose around

back of cleaner. Store hose handle in holster.

1.7 Wrap cord around

cord hooks for convenient storage. Attach the plug end to cord.

*Available on select models only. Accessories not included with your model may be purchased separately by visiting hoover.com. NOTE: Phillips screwdriver needed for assembly.

store tools (Tools may vary)

back side of cleaner as shown. Actual model may vary from images shown.

rotates for quick cord release.

*Available on select models only. Accessories not included with your model may be purchased separately by visiting www.hoover. com, or your local HOOVER

on-off switCh handle release pedal To turn cleaner ON, push button down. To turn cleaner OFF, push button again. Step on pedal (A) to lower handle to operating position. Handle does not lock into a single position but “floats” to allow convenient operation.

cleaner from room to room, put handle in upright and locked position, tilt cleaner back on wheels and push forward.

also be lifted by the upper clean water tank handle as shown. Be sure tank is properly latched in place.

Actual model may vary from images shown. SPINSCRUB

MODE SELECTOR (Available on select models only)

cleaner has three agitator brush settings. Slide setting selector to the desired setting before cleaning. SPILL PICK-UP - brushes OFF for picking up spills or cleaning carpets and hard floors when brushing is not desired. POWER SCRUB - brushes at maximum speed for cleaning carpets GENTLE SCRUB - for delicate carpets and hard floors.

CLEAN WATER/ SOLUTION TANK

2.7 The clean water tank (C) holds the water that

will clean the carpet or floor, or used to rinse the carpet or floor. The detergent container (D) is permanently attached inside the water tank. It holds the detergent that mixes with the water.

Turn off and unplug cleaner from electrical outlet.

2.8 To remove tank, press down on tank handle

button and pull forward.

2.9 Fill tank (E) with hot tap water. The use of

hot water opposed to cold, significantly improves cleaning performance, on most dirt and stains. How to Fill CAUTION

Do not fill with water above 140°F (60°C).

Carpet & Upholstery Detergent or any other Hoover detergent. Replace container caps and tighten. Completely fill Detergent Tank when using standard solution. When using concentrate detergent (2x), fill to line with detergent and fill remainder of tank with water.

2.11 Position bottom of tank onto cleaner and push upper part of tank to lock

it into place. The tank pivots towards the back of the unit. Push the top of the tank and tank handle while supporting the back of the unit with your other hand. IMPORTANT Use only HOOVER

cleaning products intended for use with this machine. (See the “Cleaning Products” section in this manual for details) They are specially formulated for use with your cleaner. Non-Hoover cleaning solutions may harm the machine and void the warranty. WARNING

Actual model may vary from images shown. How to Fill (continued) Check tank to make sure it is securely latched.2.12 There may be a small amount of water (indicated by arrow) on the base when the tank is removed from the unit. This is a normal condition. CAUTION

Detergents contain Anionic and Nonionic Surfactants. Avoid contact with eyes and skin. In case of contact with eyes, flush with cold water for 15 minutes. In case of contact with skin, wash with water. If irritation persists, call a physician. WARNING

Certain oxygenated-type cleaners, such as OxiClean* and TuffOxi** will damage your (A) detergent container, (B) Clean Water Tank or (C) Dirty Water Tank.Use only HOOVER Oxy detergent for this purpose.*OxiClean is a registered trademark of Orange Glo International, Inc.**TuffOxi is a trademark of Tuff Products for Pets.

Do not carry cleaner with this tank’s handle - personal injury may occur.The Dirty Water Tank holds the dirty solution that is picked up from the surface being cleaned.When the Dirty Water Tank is full, the automatic shut-off will engage, suction will stop and the tank must be emptied (see Automatic Shut-Off section). How to Empty Turn cleaner off and unplug from electrical outlet.2.13 Pull Dirty Water Tank from unit.2.14 Remove Quick Pour Spout Cap and Empty Dirty Water Tank.2.15 To clean tank, unlatch clean out cover latch (A) and remove cover (B). Rinse inside and dry.2.16 Verify door in lid (C) and plunger moves freely (D). Clean after use.2.17 Remove lint and debris from lint screens (E).2.18 Replace Dirty Water Tank on unit (F). Be sure to press tank firmly into position so the front gasket seals against tank.

Actual model may vary from images shown. b. For upholstery, check cleaning code - Use your HOOVER

carpet cleaner only if the upholstery fabric is marked with a “W” (for “wet” clean) or “S/W” (for “solvent/dry” or “wet” clean). Do not clean fabric marked “S” (“solvent/dry” clean only). If your upholstery does not have a code, seek professional assistance.c. Test for colorfastness - Wet a white absorbent cloth with the detergent. In a small, hidden area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with white paper towel or cloth. If surface has more than one color, check all colors.d. When cleaning entire floor, move furniture out of area to be cleaned (may not be necessary if only high traffic areas are to be cleaned). For furniture too heavy to move, place aluminum foil or wax paper under legs. This will prevent wood finishes from staining carpet. Pin up furniture skirts and draperies.e. Pretreat spots and heavy traffic areas with HOOVER Spot & Stain Spray Cleaner*- Follow Directions on bottle.f. To prevent staining, use plastic or aluminum foil to protect wood or metal surfaces from possible water spray.g. To avoid wetting and possible damage to wood floors underneath area rugs/carpet, either move area rugs/ carpet to a non-wood hard floor surface or place waterproof material (e.g. plastic) underneath them before cleaning.*Available at additional cost if not included with your model.

autoMatiC shut off When the Dirty Water Tank (lower tank) is full the automatic shut off mechanism will shut off the cleaner suction (suction will be noticeably reduced).2.19 At that time, the yellow float disk will rise to the top of the Dirty Water Tank lid (B). The cleaner will no longer pick up dirty solution and the motor sound will become noticeably higher in pitch.When this happens, turn cleaner off and empty Dirty Water Tank before continuing use.Check clean water tank also; it may need to be refilled.Do not use without float and float retainer in place. If broken or dislodged, take to an Authorized Dealer for repair.

Do not use the carpet cleaner as a dry vacuum cleaner. IMPORTANT before you beGin CleaninG a. Vacuum thoroughly - For carpet, use a HOOVER

vacuum cleaner with an agitator for best results. Vacuum upholstery with a vacuum cleaner with cleaning tool attachments. Use a crevice tool to reach into tufts and folds.10 Actual model may vary from images shown.

3.1/3.1a CLEANING CARPET Read “Before You Begin Cleaning” instructions.Fill Clean Water Tank according to instructions for Fig. 2.9.Fill detergent container with Hoover detergent according to instructions for Fig. 2.10.Select proper SpinScrub mode (Fig. 2.6). Dry hands and plug cord into a properly grounded outlet. IMPORTANT To assure proper rinsing, it is important to keep the cleaner on the same path backward as forward. 8&5 8&5 %3: %3:

IMPORTANT To avoid saturating carpet, do not use more than 4 wet strokes over one area. Always end with dry strokes.Release trigger and slowly push cleaner forward over area just sprayed with solution (dry stroke). Then slowly pull cleaner back toward you without squeezing trigger (dry stroke). Continue using dry strokes until little water is visible passing through FOR MODELS WITH AUTO RINSE FEATURE (available on select models only)3.1a Set Wash/Rinse Setting switch to Wash/Auto Rinse. Turn cleaner ON.3.2a Squeeze trigger to apply cleaning solution and slowly push cleaner forward (equals one wet stroke). The cleaner washes on the forward stroke.Continue to squeeze trigger and slowly pull cleaner back toward you (second wet stroke). The cleaner rinses the carpet on the backward pass.

Turn cleaner ON.3.2 Squeeze trigger to apply cleaning solution and slowly push cleaner forward (equals one wet stroke).Continue to squeeze trigger and slowly pull cleaner back toward you (second wet stroke). Step 1 the Dirty Water Tank lid (Pass over the same area a minimum of 4 times = 2 while squeezing the trigger and 2 without).For best results, use straight, parallel strokes. Overlap strokes by 1 inch to help prevent streaking. Keep nozzle flat on floor for both forward and reverse strokes.3.3 If you would like to rinse the carpet with water only, set Wash/Rinse Setting switch to RINSE. Repeat cleaning motion. In this setting, rinsing will be done on both forward and reverse strokes.For heavily soiled areas, repeat cleaning motion. Avoid saturating carpet.It is best to alternate wet and dry strokes as described above.For best cleaning results and to aid in faster drying of carpet, end with more dry strokes. (Continue using dry strokes until little water is visible passing through the Dirty Water Tank lid.)Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic shut-off”, Fig. 2.19).When finished cleaning, follow “After Cleaning” instructions on page 12. Step 2 IMPORTANT Do not clean over floor electrical outlets.To avoid walking on damp carpet, start at the end of the room farthest from the door or path to sink where tanks will be emptied and filled.Step on handle release pedal and lower handle to operating position. Pull Trigger = WET Release Trigger = DRY11 Actual model may vary from images shown.

Your HOOVER carpet cleaner may also be used to pick up small liquid spills (one gallon or less, never to exceed 1/8” in depth). Do not submerge unit in liquid.Place the floor nozzle with the SpinScrub mode selector to SPILL PICK-UP in front of the spill, pull the nozzle very slowly over the spill.When finished picking up spills, follow “After Cleaning” instructions. CAUTION

To reduce the risk of injury from moving parts, unplug cleaner.To prevent possible leaking, remove clean water tank (Fig. 2.8) and Dirty Water Tank (Fig. 2.13). Set tanks aside (do not set tank on furniture).With handle in upright position, tilt cleaner back so that handle rests on the floor.

CLEANING HARD FLOORS

How to Attach Squeegee for Hard Floor Cleaning (Available on select models only) Read “Before you begin cleaning” instructions on page 9. Do not use the carpet cleaner on unsealed hardwood floors.To prevent damage to wood floors, follow the flooring manufacturer’s cleaning recommendations.If using cleaner on sealed wood floors, inspect floor surface for worn finish, bare wood or separated joints. It is not recommended to use the cleaner on wood floors if any of these conditions exist.

1. Fill clean water tank according to instructions for Fig. 2.9.2. Fill detergent container with HOOVER

Hard Floor Cleaner according to instructions for Fig. 2.10.3. Slide SpinScrub selector to GENTLE SCRUB.4. Dry hands and plug cleaner into a properly grounded outlet.5. Step on handle release pedal and lower handle to operating position.6. Set Wash/Rinse Setting switch to WASH (Wash/Auto-Rinse™ when available). Turn cleaner on.7. To release solution, press trigger. Slowly move cleaner forward and backward over area to be cleaned. Water and detergent will be released on the forward stroke. For models with Auto-Rinse feature, a water-only rinse will automatically be released on the reverse stroke.8. To pick up dirty solution, release trigger and slowly move cleaner over area where solution has just been dispensed. Use both forward and reverse strokes.

9. If rinsing the floor is desired, set Wash/Rinse

Setting switch to RINSE. Repeat steps 7 & 8. This setting provides a water-only rinse in both the forward and reverse strokes.Continue>> CAUTION

3.4 Position the squeegee, larger lip facing up, on bottom of nozzle until it snaps securely into place. Make sure the outside edges are pushed up tight against the nozzle.Remove squeegee to return to cleaning carpets. CLEAN SURGE

BUTTON (Available on select models only)The Clean Surge button can be used to dispense extra solution when cleaning particularly soiled areas of carpet or spots.To use, press Clean Surge button while squeezing solution trigger. For normal solution spray, release button and continue to squeeze solution trigger. CAUTION

Do not use the carpet cleaner to pick up flammable or combustible liquids or chemicals.12 Actual model may vary from images shown.

hand tool pull tool up and outward.To reposition the tool, reverse this procedure. Allow carpet or upholstery to dry. To help prevent matting and resoiling the carpet, keep children and pets away from surface until it is completely dry. If it is necessary to walk on damp carpet, place towels or white cloths on the traffic areas.If furniture must be replaced before the carpet is dry, place plastic or aluminum foil under legs of furniture so metal slides or wood finishes will not stain the carpet.Empty tanks, rinse with clean water and let air dry. Rinse the Dirty Water Tank lid and let air dry.

afTer cLeaning Rinsing is not necessary, but will help remove detergent residue from the floor.10. Empty recovery tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic shut-off”, Fig. 2.19).11. When finished cleaning, follow “After cleaning” instructions on page 12.Unplug cleaner from electrical outlet and remove squeegee from nozzle. Rinse it in clear water. (Reference Figs. 2.13 - 2.17)

A. SpinScrub Hand Tool (Available on select models only) has rotating brush for extra scrubbing action on small carpet areas, carpeted stairs and upholstery. For some models, the brushes can be removed for converting to the scrub module. (Available on select models only)B. Stair/Upholstery Nozzle has a built-in brush to help provide the scrubbing action some spots may need for removal.(Available on select models only) TO cLean hard fLOOrS (cOnTinued)

3.5 To keep performance of your machine at

peak level remove nozzle (Fig. 5.1) and check filter screens (A) located inside the base of the unit and remove lint or debris.Filter Screens13 Actual model may vary from images shown. Read “Before You Begin Cleaning” instructions on page 9. Place handle in upright position. Agitator brushes will not rotate while handle is in upright position. Fill clean water tank according to instructions for Fig. 2.9. Fill detergent container with HOOVER detergent according to instructions for Fig. 2.10.Attach tool to end of hose. Do not point tools toward people or pets. CleaninG Carpeted stairs

Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.Dry hands and plug cleaner into a properly grounded outlet. Set Wash/Rinse Setting switch to WASH. Turn cleaner ON.Prime the pump by lowering the hose down to the floor and hold the trigger for up to 1 min.4.4 Pre-spray the carpeted stair by holding the tool (A) or (B) about one inch above the carpet and push it forward while pressing the trigger (equals one wet stroke). Position tool against the riser and slightly press it into carpet pile. Press the trigger and pull the tool slowly over the carpet (second wet stroke). Release trigger at end of stroke. 4.5 Lift tool, and position it against riser. Pull tool slowly over carpet without pressing trigger (dry stroke). Overlap strokes by 1/2 inch to help prevent streaking.It is best to alternate wet and dry strokes as described above. End with more dry strokes to aid in faster drying of carpet.To avoid saturating carpet, do not use more than 4 wet strokes over any one area. Always end with dry strokes. If additional cleaning is necessary, wait until the carpet is completely dry before using the tool again. Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic Shut-Off”, Fig. 2.19).When finished cleaning, empty Clean Water Tank, wash and rinse dirty Water Tank and let air dry. See “After Cleaning” section (Page. 12) for additional information.

how to attaCh tools Place handle in upright position and remove hose from rack.Turn off and unplug cleaner from electrical outlet.All tools attach to the hose in the same manner:4.3 Connect tool to hose by sliding it onto connector until the tab (G) locks it securely.

To reduce the risk of injury from moving parts, unplug cleaner before connecting SpinScrub

Hand Tool.Not to be used for grooming a pet.Using your thumb, push forward and up on the latch (H) to remove tool.14 Actual model may vary from images shown. CleaninG upholstery Read “Before You Begin Cleaning” instructions on page 9. Be sure to check the cleaning code on your upholstery. Use your cleaner only on upholstery marked “W” or “W/S”. Place handle in upright position. Agitator brushes will not rotate while handle is in upright position. Fill Clean Water Tank according to instructions for Fig. 2.9. Fill detergent container with HOOVER

detergent according to instructions for Fig. 2.10. Do not use hard floor cleaning solution when cleaning upholstery. Attach tool to end of hose. Do not point tools toward people or pets. Dry hands and plug cleaner into a properly grounded outlet. Set Wash/Rinse Setting switch to WASH. Turn cleaner ON.

4.6 Gently press the tool onto the fabric. Press the

trigger and slowly pull the nozzle over the fabric. Overlap strokes by 1/2 inch to help prevent streaking. Make additional strokes without pressing the trigger to remove more moisture. To clean in corners or creases, lift the tool one half inch from the fabric and press the solution trigger. Vacuum up the solution with the tool without pressing the trigger.

4.7 For heavily soiled areas, it may be necessary

to repeat the cleaning process. Make crisscrossing strokes to the original pattern; overlap each pass. Make no more than 2 passes with the solution over any one area to prevent over-wetting and damage to fabric. If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again. Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic Shut-Off”, Fig. 2.19). When finished cleaning, empty Clean Water Tank, wash and rinse dirty Water Tank and let air dry. See “After Cleaning” section (Page. 12) for additional information.15 Actual model may vary from images shown.If lint or other debris becomes lodged in nozzle, it can be removed for cleaning. NOZZLE: How to Clean Turn off and unplug cleaner from electrical outlet.Remove both tanks as described in Figs. 2.8 and 2.13. With handle in upright position, tilt cleaner back so that handle rests on the floor.

5.1 Pull tab (A) at rear edge of nozzle and pull

forward to remove and clean nozzle.5.2 To replace nozzle, line up tabs (B) on nozzle with holes (C) in cleaner. Slide tabs into holes.Push nozzle completely onto cleaner. Press down on nozzle to engage rear tab.Replace Dirty Water Tank. The nozzle must be in the proper position in order for the Dirty Water Tank to go on properly.

BRUSHES: How to Change and Clean Your cleaner is equipped with removable brushes. Follow these directions for changing brush assemblies or for easy cleaning. How to Remove Turn off and unplug cleaner from electrical outlet.To prevent possible leaking, remove Clean Water Tank and Dirty Water Tank. Set tanks aside.With handle in upright position, tilt cleaner back until handle rests on the floor.5.3 Grab brush assembly and pull firmly.The brushes can be cleaned under running water. CAUTION

To reduce the risk of injury from moving parts, unplug cleaner before servicing.

Familiarize yourself with these home maintenance tasks as proper use and care of your cleaner will ensure continued cleaning effectiveness. Any other servicing should be done by an authorized service representative. How to Replace 5.4 Align posts (A) on both ends of brush assembly with slots (B) in cleaner housing.Make sure that the hexagonal post (C) also aligns with the hole (D). Turn brushes slightly until post fits easily into hole.Press brush assembly firmly to snap into place.

• Empty Clean Water Tank and let air dry. Replace on cleaner.

• Empty Dirty Water Tank, rinse tank and lid thoroughly with clean water and let air dry.

• Verify door lid and plunger on tank and move freely. Allow brushes and underside of carpet cleaner to air dry thoroughly before storing carpet cleaner on a carpeted or wood surface. DIRTY WATER TANK : How to Clean

5.5 Clean and rinse inside of tank. Remove dirt and

debris from inside door (A) and plunger (B). Make sure both move freely.

5.6 Remove lint and debris from lint screens (C).

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below. Any other servicing should be done by an authorized service representative. WARNING

To reduce risk of personal injury - unplug cleaner before servicing. probleM possible Cause possible solution Cleaner won’t run.

1. Not firmly plugged in.

1. Plug unit in firmly.

2. No voltage in wall plug.

2. Check fuse or breaker in home.

3. Replace fuse or reset breaker in home.

Low suction. 1. Dirty Water Tank full/ automatic shut off engaged. 1.Remove and empty Dirty Water Tank. Clean filter screen. Refer to Fig. 3.5 for instructions.

2. Remove tool and clear blockage.

3. Make sure lid is on securely.

4. Dirty water tank plunger

stuck in closed position.

4. Remove lid and clean plunger from the

5. Door in the lid is stuck

5. Clean the door and verify it moves freely.

6. Filter screens clogged. 6. Remove lint and debris from filter screens.

Refer to Fig. 3.5 for instructions. Clean water won’t dispense.

1. Clean Water Tank not

1. Make sure tank is securely locked in

2. Refill container according to instructions for

surface being cleaned.

3. Trigger not pulled. 3. Pull trigger.

Hose nozzle stops spraying liquid during use.

1. Clean Water Tank or

Detergent Container is empty.

1. Turn off cleaner and fill Clean Water Tank

and Detergent Container. Hose nozzle will not spray after filling the Clean Water Tank or Detergent Container.

1. Air is trapped in the pump

1. Turn on the cleaner. If hose does not spray,

prime the pump by lowering the hose down to the floor and hold the trigger for up to 1 minute. Hose nozzle will not spray after priming pump.

1. Pump is defective. 1. Call for service: 1-800-944-9200

brushes won’t rotate during floor cleaning.

1. Dirty filter screen (orange

frame) located beneath nozzle.

1. Remove nozzle to access screen

and clean (see fig. 3.5).

Mode Selector set on “Spill Pick-up”.*

Mode Selector to a scrub setting. *Available on select models only.18 To obtain approved Hoover service and genuine Hoover parts, locate the nearest Authorized Hoover Warranty Service Dealer (Depot) by: • Checking the Yellow Pages under “Vacuum Cleaners” or “Household”. • Visit our website at hoover.com (U.S. Customers) or hoover.ca (Canadian customers). Follow the service center link to find the service outlet nearest you. • For an automated referral of authorized service outlet locations call 1-800-944-9200.Do not send your vacuum to Hoover , Inc., Company in Glenwillow for service. This will only result in delay.If you need further assistance:To speak with a customer service representative call 1-800-944-9200; Mon-Fri 8am-7pm EST. In Canada, contact Hoover Canada, Toronto: 755 Progress Ave., Scarborough, ON M1H 2W7 OR Hoover Canada, Edmonton: 18129-111 Ave., Edmonton, AB T5W 2P2, Phone: 1-800-944-9200, Mon-Fri 8am-7pm EST.Always identify your vacuum by the complete model number when requesting information or ordering parts. (Label located on lower handle of cleaner)PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.

• Use HOOVER brand detergents; others may foam too much, or cause leaking, or damage cleaner.• Use extra dry strokes to aid in faster drying of the carpet.• 6.1 Fill tank (A) with hot (under 140˚F /60˚C) tap water ONLY. Do not put any detergent in water tank. Fill detergent container (B) with HOOVER

Unplug the cleaner before doing any of the following.

7. CLEANING PRODUCTS

8"3/*/( To reduce the risk of fire and electric shock due to internal component damage, use only Hoover

cleaning products and Hoover

hard surface attachments intended for use with the appliance as noted below. )PPWFS

When cleaning a hard surface, the Hoover

hard surface attachment below must be used (optional if not included): 5 Brush/Dual Brush Hoover

hard surface attachment below must be used: 6 Brush Hoover

brand detergents, wipes, and spot cleaners available at Hoover.com and retailers nationwide.

hard surface attachment below must be used: 6 Brush Hoover

liMited two year warranty (Domestic Use)

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner’s Manual, your HOOVER

product is warranted against original defects in material and workmanship for a full two years from date of purchase (the “Warranty Period”). During the Warranty Period, Hoover

will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to either a Hoover

Sales and Service Center or Hoover

Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: 1-800-944-9200 OR visit Hoover

online at www.hoover.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, phone the Hoover

This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Hoover

, owner’s acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls. However, if you mail your product to a Hoover

Sales and Service Center for warranty service, cost of shipping will be paid one way. This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Hoover

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty.

EXPRESSED OR IMPLIED, INCLUDING

OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT,

WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.
