USER MANUAL REACT BH53210 HOOVER

©2017 Techtronic Floor Care Technology Limited. All Rights Reserved. #961152062 • Rev3 This product is intended for household use only. If used commercially the warranty is void. Replacement Parts: Filter: 440011434 Battery: BH04000 Charger: BH04200 CORDLESS VACUUM USER MANUAL IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.IT’S GUARANTEED. Get cleaning condence for up to 3 years with the Hoover limited warranty. See warranty for complete details. Register your vacuum by: Visiting Hoover.com or Hoover.ca Calling 877 839-2046 Make it ofcial. Welcome to Hoover

Dashboard and FloorSense

When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANC THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIALLY WARRANTY IS VOID.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, DAMAGE OR INJURY:

• Fully assemble before operating.• Do not use appliance on wet surfaces. Do not expose appliances to rain. Store appliances indoors.• The charger is for indoor use only. Be sure to always keep the battery and charger indoors in a dry place.• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product, and do not allow children to place ngers or other objects into any openings.• Use only as described in this manual. Use only Hoover recommended attachments and products.• Do not use charger with damaged cord or plug. If appliance or charger is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.• Do not pull or carry charger by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.• Do not unplug charger by pulling on cord. To unplug charger, grasp the plug, not the cord.• Do not handle charger including charger plug and charger terminals, or appliance with wet hands.• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air ow.• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or ne wood shavings, or use in areas where they may be present.• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.• Do not use without Dirt Cup and/or Filters in place.• Turn power switch off and remove battery before removing or installing brush roll.• Always turn off this appliance before connecting or disconnecting Motorized Turbo Tool or tools.• Do not incinerate the charger, battery, or appliance even if it is severely damaged. The batteries can explode in a re.• This product includes rechargeable Lithium-Ion Batteries. Do not expose batteries to high temperatures, as they may catch re and/or explode.• Do not expose battery to crushing, incineration or similar actions.
• Do not dispose of battery in a re or trash compactor. See battery disposal section for directions.
• Do not attempt to disassemble battery.• Unplug the charger from the outlet before any routine cleaning or maintenance.
• Leaks from battery cells can occur under extreme conditions. If any liquid gets on the skin wash quickly with soap and water. If any liquid gets into the eyes, do not rub eyes, immediately ush them with clean water continuously for a minimum of 15 minutes. Seek medical attention immediately.• Use only the charger (Hoover Model #BH04200) supplied by Hoover to recharge.• Use only the battery (Hoover Model #BH04000) supplied by Hoover

Other batteries may burst causing serious personal injury or damage.• Do not touch or insert objects into battery pack or charger terminals.• Do not attempt to short circuit the battery or charger terminals.

• Prevent unintentional starting. Ensure the appliance is off before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your nger on the trigger or energizing appliances that are powered on invites accidents.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.
• Do not use a battery pack or appliance that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re. CHARGING AMBIENT TEMPERATURE RANGE: 5°C-50°C (41°F - 122°F)

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS5

• Have servicing performed by a qualied repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. CAUTION: The battery used in this device may present a risk of re or chemical burn if mistreated. Do not disassemble, heat above manufacturer’s maximum temperature limit (60°C/140°F), or incinerate. Replace battery with Hoover Battery Part #BH04000 only. Use of another battery may present a risk of re or explosion. Dispose of used battery promptly. Keep away from children. Do not disassemble and do not dispose of in re. Do not attempt to disassemble the battery or remove any component projecting from the battery terminals. The battery and charger have no user serviceable parts. Fire or injury may result. Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting. BATTERY DISPOSAL WARNING: RISK OF EXPLOSION OR EXPOSURE TO TOXIC MATERIAL. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiveris connected.• Consult the dealer or an experienced radio/TV technician for help.Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type andmaximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radiointerference to other users, the antenna type and its gain should be so chosen that the equivalent isotropicallyradiated power (e.i.r.p.) is not more than that necessary for successful communication.Contains transmitter module IC:12246A-BM70BLES1F2CAN ICES-3 (B)/NMB-3(B)This device complies with Industry Canada license-exempt RSS standards(s). Operation is subject to thefollowing two conditions: (1) this device may not cause interference, and (2) this device must accept anyinterference, including interference that may cause undesired operation of the device. LITHIUM-ION BATTERIES: The battery must be collected, recycled or disposed of in an environmentally sound manner. The EPA certied RBRC Battery Recycling Seal on the lithium-ion (Li-ion) battery indicated Techtronic Industries, a corporate afliate of Hoover, is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC program provides a convenient alternative to placing used Li-ion batteries into the trash or the municipal waste stream, which may be illegal in your area. Please visit www.rbrc.org/call2recycle/ for information on Li-ion battery recycling and disposal bans/restrictions in your area. Hoover involvement in this program is part of our commitment to preserving our environment and conserving our natural resources.

WARNING: This product contains chemicals known to the State of

California to cause cancer, birth defects or reproductive harm. WASH HANDS AFTER HANDLING.Getting to know your Hoover

7. Powered Nozzle with WindTunnel Surge

8. High Intensity LED Headlights

Lithium Battery Release Button

All models come with a Handheld, Powered Nozzle, Reach Wand, ONEPWR

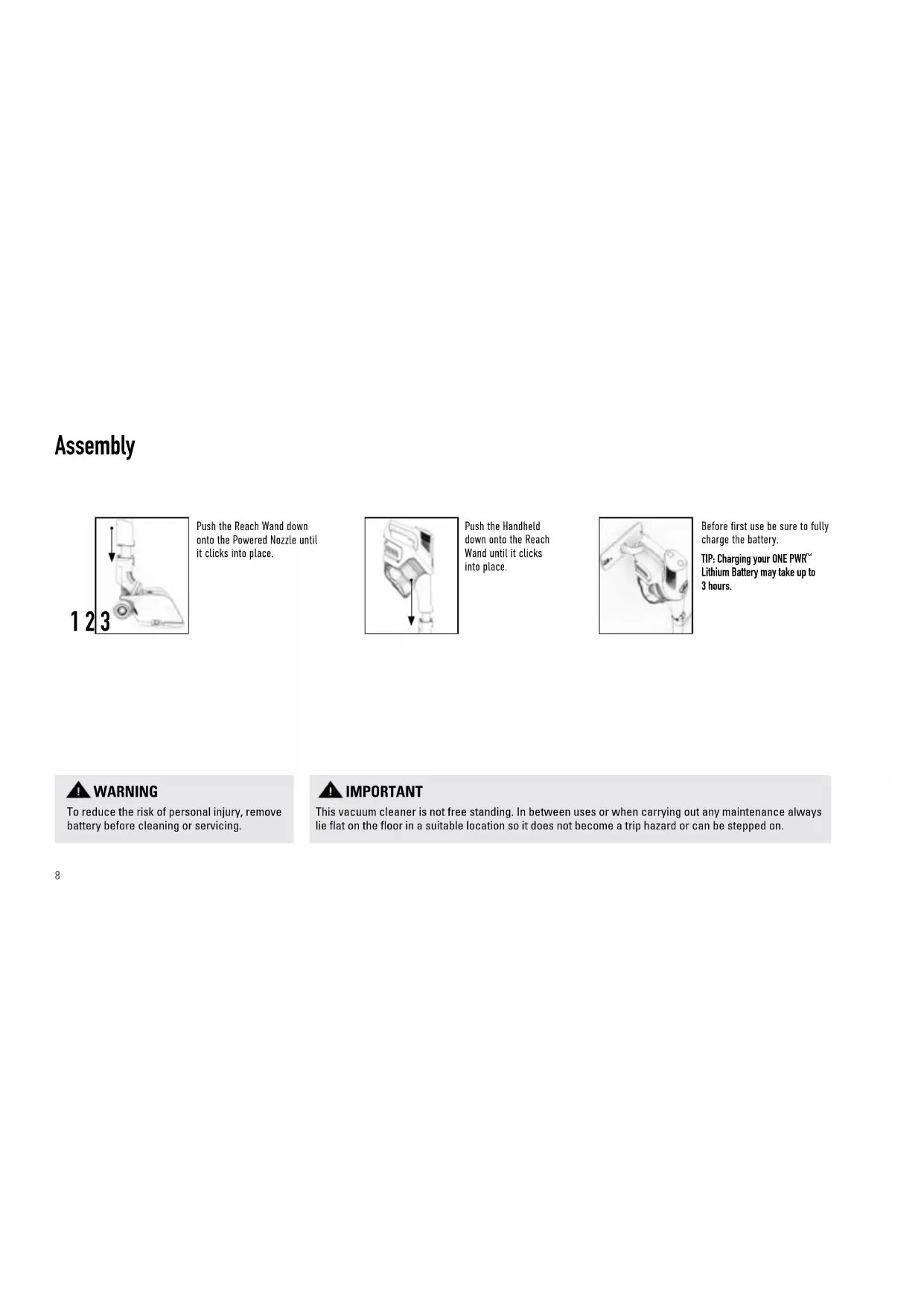

Lithium Battery, Charger and Wall Mount. What’s in the Box?8 Assembly Push the Handheld down onto the Reach Wand until it clicks into place. Push the Reach Wand down onto the Powered Nozzle until it clicks into place. Before rst use be sure to fully charge the battery. TIP: Charging your ONE PWR

Lithium Battery may take up to 3 hours.

WARNING To reduce the risk of personal injury, remove battery before cleaning or servicing. IMPORTANT This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance always lie flat on the floor in a suitable location so it does not become a trip hazard or can be stepped on.9 Mounting the Wall Bracket First, fully assemble the vacuum but do not attach the battery. Set the vacuum aside. Mark the Wall Anchor locations. Install the anchors and screw the Wall Bracket to the wall. IMPORTANT: Use BOTH screws to mount the Wall Bracket to wall. Install the Wall Bracket arm to the Wall Bracket. Hold the vacuum against the wall. Position the Wall Bracket behind the Handheld so that the hook holds the vacuum. TIP: The Floor Nozzle must be at on the ground for proper wall mounting. Slide Tool Storage Part into the slot on the Wall Mount Bracket until it locks into place.

Continuous white light, battery is charged Pulsing white light, battery is charging Pulsing yellow light, battery waiting to charge will resume shortly Solid red light, please refer to Maintenance sections for Troubleshooting Charging your ONE PWR

Lithium Battery When charging, the charger will illuminate to indicate charging progress. See below for charger indicator explanation. Charge the battery fully before rst use, this will take up to 3 hours. NOTE: Due to federal regulations the battery does not come fully charged. Once charge is complete, remove the ONEPWR

Lithium Battery from the charger and place it into the handheld for cleaning.

Technology automatically optimizes cleaning performance on carpets and hard oors. On carpet, FloorSense

automatically slows the brush roll to prevent scattering of dirt across the oor. The Hoover

Dashboard in the Handheld displays useful functions of your vacuum. When FloorSense

is active, the dashboard will illuminate indicating “FloorSense”.Hoover

Dashboard and FloorSense

Technology TIP: To allow FloorSense™ to determine oor type and optimize brush roll speed automatically, ensure FloorSense™ is illuminated on the Hoover

mode, brush roll speed automatically adjusts for the best results on any oor type. When the mode button has been pressed and no words illuminate on the Hoover

Dashboard, the brush roll is ON and perfect for lifting and removing deep-down dirt on carpet. The Hoover

Dashboard will indicate “Brush Off”. In “Brush Off” mode, brush roll turns OFF to prevent scattering of dirt and debris across hard oors and area rugs. The Hoover

Dashboard will light up, if there is a system error. Refer to the Maintenance section for further information.

Access Tips and Tricks

IMPORTANT Read all instructions before using this appliance. Using the Hoover

Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.Google Play and Google Play logo are trademarks of Google Inc. TIP: Pull power trigger to illuminate the Hoover

Dashboard and connect to the Hoover

vacuums are compatible with the Hoover

App. Download the Hoover

1. Register your new vacuum

4. Access tips and tricks14

Quick Start Handheld CleaningMulti-Floor Cleaning Up High Cleaning

Using your Vacuum Squeeze the trigger to turn the vacuum ON. Release the trigger to shut the vacuum OFF. NOTE: When power is ON, the Hoover

Dashboard will light up. Push the “Mode” button on the Hoover

Dashboard if you’d like to change from FloorSense

The vacuum will default to “FloorSense” mode. For continuous power, double-click the trigger. Power should remain ON. Pull trigger again to power OFF. When in use, the Hoover

Dashboard will display the battery level and selected mode. When the battery level is getting low, recharge the battery.

WARNING This vacuum cleaner has a constantly rotating brush roll when FloorSense

is ON. Never leave the vacuum in one spot for an extended period of time as this may damage the floor surface. WARNING Risk of personal injury – the brush roll may suddenly restart. Turn power switch OFF and remove the battery before cleaning or servicing the brush roll.16 Using your Vacuum as a Handheld Press the Handheld release button. Pull to separate the Handheld from the Reach Wand.

Choose an accessory. (All accessories not available on all models).

Push the chosen accessory into the Handheld until it clicks into place. TIP: All available accessories can be attached directly onto the Handheld.

IMPORTANT Not to be used for grooming a pet. IMPORTANT This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance always lie flat on the floor in a suitable location so it does not become a trip hazard or can be stepped on.17 Using your Vacuum to Clean Up High Choose an accessory (all accessories not available on all models). Press the Powered Nozzle release button and pull to remove the Powered Nozzle from the Reach Wand.

Push the chosen accessory into the Reach Wand until it clicks into place. TIP: The Reach Wand can be used for hard-to- reach places.

IMPORTANT This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance always lie flat on the floor in a suitable location so it does not become a trip hazard or can be stepped on.18 WARNING To reduce the risk of personal injury, remove battery before maintaining or servicing your vacuum. Maintenance: Removing the ONE PWR

Lithium Battery Lie the Handheld on its side on a at stable surface. Pull the “Battery Release Button” back to release the ONEPWR

Lithium Battery. Slide the ONEPWR

Lithium Battery out from the bottom of the Handheld.

Lithium Battery on charger.

Maintenance: Emptying the Dirt Cup Press the Handheld release button. Pull to separate the Handheld from the Reach Wand. Ensure the ONEPWR

Lithium Battery has been removed and hold the Handheld over a trash bin. TIP: Wrap bag around dirt cup to capture dirt and dust.

WARNING To reduce the risk of personal injury, remove battery before maintaining or servicing your vacuum. IMPORTANT This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance always lie flat on the floor in a suitable location so it does not become a trip hazard or can be stepped on.20 Maintenance: Cleaning the Filter, Dirt Cup and Separator Remove the Reach Wand. Press the dirt cup release button and pull the dirt cup away. To clean the separator, lift to remove. Clean dirt & debris, then place back into dirt cup. Pull the lter away and tap over a trash bin to remove dirt. Rinse lter under warm water until water is clear. Allow lter to dry for 24 hours or until completely dry before reinstalling. To reassemble, align the hook to the front. Push the dirt cup backwards, until it locks in place.

WARNING To reduce the risk of personal injury, remove battery before maintaining or servicing your vacuum. IMPORTANT DO NOT USE SOAP OR OTHER CHEMICALS TO CLEAN. DRY FILTER COMPLETELY, FOR UP TO 24 HOURS, BEFORE REINSTALLING INTO THE PRODUCT.21 Maintenance: Removing and Replacing the Brush Roll Remove Powered Nozzle from Reach Wand. Turn the Powered Nozzle upside down. Slide the Brush Roll Release Button. Clear any threads or hair from both ends of the brush roll and any dirt or debris inside the housing of the Powered Nozzle. Lift the end of brush roll to remove from the Powered Nozzle. Re-t the brush roll into the housing.

WARNING Risk of personal injury – the brush roll may suddenly restart. Turn power OFF and remove the battery before cleaning or servicing the brush roll.22 How to Order Accessories Upholstery Tool Part #440011814 Dusting Brush Part #440011813 Crevice Tool Part #440011446 Above Floor Extension Part #440011450 Reach Wand Tool Storage Clip Part #440011451 Powered Stair Tool Part #440011449 Pet Upholstery Tool Part #440011448 Deluxe Crevice Tool Part #440011447 WHAT TO BUY: Buy Genuine Hoover

Parts & Accessories: If you are in need of a new part, attachment or accessory, visit Hoover.com or Hoover.ca for more information. Having trouble locating an item or model on our site, contact Customer Care at 877 839-2046.23 QUESTIONS OR CONCERNS? Hoover.com/support or Hoover.ca/support Connect with us: Twitter: @HooverUSA • Facebook: facebook.com/hoover Do not return to store. See back of product for model number. Need Help? My Hoover

Cordless Vacuum won’t turn on. Your battery may not be charged. Check the Charge Level Indicator and charge the battery if it’s low. Charge time may take between 1 and 3 hours. Due to federal regulations the battery does not come fully charged. My Hoover

Cordless Vacuum isn’t picking up well. You may have a clogged lter. Your lter should be rinsed every 4-6 times you ll the dirt cup or at least once a month. Remove the lter. Rinse with clear warm water for two minutes. Let it dry for 24 hours or until completely dry before reinstalling it. If your suction power seems low. You may also have a clog in the system. Check the Reach Wand for any clogged debris. If found, remove the clog. Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use. WARNING To reduce the risk of personal injury, remove battery before cleaning or servicing.24

ANY SERVICING SHOULD BE DONE BY AN AUTHORIZED SERVICE REPRESENTATIVE Call 877 839-2046 USA & Canada In the event that further assistance is required, visit an authorized service center. Find one nearest you by visiting our website at www.hoover.com. Costs of any transportation to and from any place of repair are to be paid by the owner. Always identify your product by the model number and manufacturing code when requesting information or ordering replacement parts. (The model number and manufacturing code for the vacuum appears on the bottom and/or back of the product, and on the back of the battery and charger.) LIMITED THREE YEAR WARRANTY (DOMESTIC USE) WHAT THIS WARRANTY COVERS: When used and maintained in normal household use and in accordance with the Owner’s Guide, your Hoover

product and battery are warranted against original defects in material and workmanship for a full three years from (a.) date of purchase (the “Warranty Period”). During the Warranty Period, Hoover

will provide labor and parts, at no cost to you, to correct any such defect in your products and (b.) will provide a replacement battery at no cost to you, to correct defects in the ONEPWR

Lithium Battery that came with your product purchased in the United States, U.S. Military Exchanges and Canada. HOW TO MAKE A WARRANTY CLAIM: If this product is not as warranted, take or send the product to a Hoover

Authorized Warranty Service Dealer along with proof of purchase. If the batteries are not as warranted, either take or send the batteries along with proof of purchase to a Hoover

authorized dealer or contact Hoover

Services at 877 839-2046. For an automated referral to authorized service outlets in the U.S.A., phone 877 839-2046 or visit Hoover

online at www.hoover.com. WHAT THIS WARRANTY DOES NOT COVER: This warranty does not cover belts, lters and brush rolls, use of the product in a commercial operation (such as maid, janitorial and equipment rental services), improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Hoover

, owner’s acts or omissions, use outside the country in which the product was initially purchase and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls. However, if you mail your product to a Hoover

Sales and Service Center for warranty service, cost of shipping will be paid one way. Please call the Hoover

Services, 877 839-2046, on how to ship this product. This warranty does not apply to products purchased outside the United States, including its territories and possessions, a U.S. Military Exchange and Canada. OTHER IMPORTANT TERMS: This warranty is not transferable and may not be assigned. This warranty shall be governed and construed under the laws of the state of North Carolina. The Warranty Period will not be extended by any replacement of batteries or parts or repair performed under this warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED IN NO EVENT WILL HOOVER BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specic rights; you may also have others that vary from state to state.2526 NOTES:NOTES: 27© Techtronic Floor Care Technology Limited, 2017. Tous droits réservés. No 961152062 • Rév3 Ce produit est destiné à un usage domestique seulement. La garantie est nulle si l’appareil est utilisé à des ns commerciales. Pièces de rechange : Filtre : 440011434 Pile : BH04000 Chargeur : BH04200
