KM 27 - Coffee machine TEAM - Free user manual and instructions
Find the device manual for free KM 27 TEAM in PDF.
| Brand | Team |
| Model | KM 27 |
| Product type | Filter coffee machine |
| Capacity | About 12 cups (1.2 L) |
| Power supply | 230 V ~ 50 Hz |
| Power | 1000 W |
| Weight | Approximately 1.5 kg |
| Dimensions (W x D x H) | Approximately 25 x 25 x 35 cm |
| Color | Black / white (depending on version) |
| Coffee type | Ground coffee |
| Filter | Paper filter No. 4 (provided not included) |
| Water tank | Removable with level indicator |
| Carafe | Glass with handle and pouring spout |
| Hotplate | Keeps coffee warm |
| Anti-drip system | Automatic valve |
| Programmable | No (manual shut-off) |
| Main material | Plastic, glass (carafe) |
| Safety | Automatic shut-off in case of overheating? Not specified |
| Care and cleaning | Do not immerse, clean with a damp cloth |
| Descaling | Recommended: white vinegar or specific descaling agent |
| Spare parts | Carafe, filter, tank (contact customer service) |
| Repairability | Repair by qualified service only |
| Warranty | 2 years (according to legislation) |
Frequently Asked Questions - KM 27 TEAM
User questions about KM 27 TEAM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee machine in PDF format for free! Find your manual KM 27 - TEAM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KM 27 by TEAM.
USER MANUAL KM 27 TEAM
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
CE
I/B Version
010808

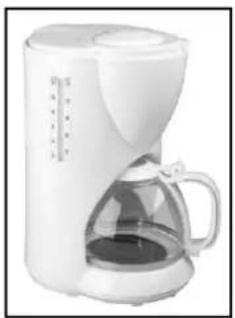

TEAM KM 27
230V 800W

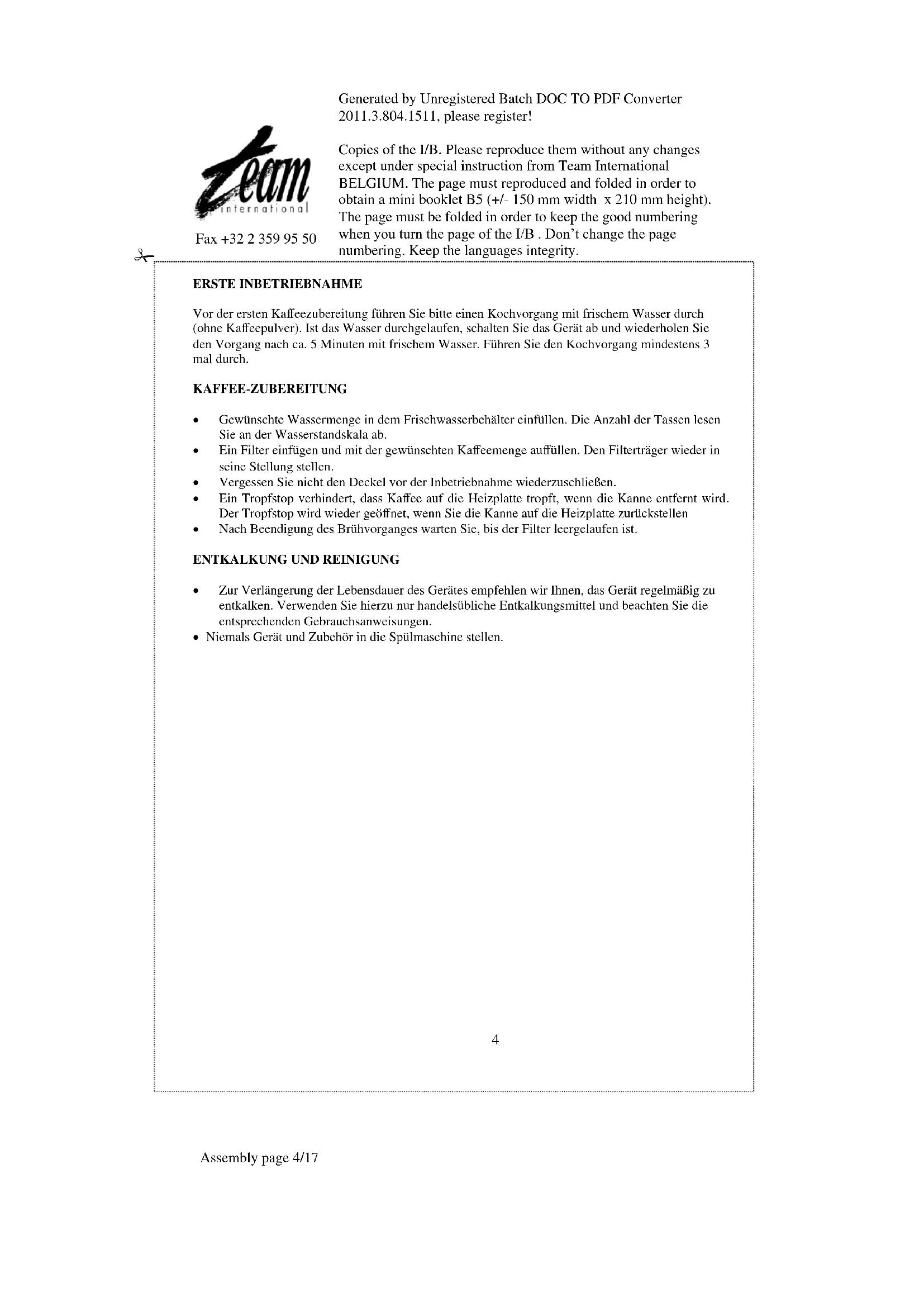

GEBRAUCHSANLEITUNG
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician (^*)
Before cleaning, always unplug the appliance from the power supply.
All repairs should be made by a competent qualified electrician
Never use the appliance outside and always place it in a dry environment.
Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Stand the appliance on a table or flat surface.
Only use fresh (potable) and cold (moderate) water. Do not use water contained in bathtubs, washbasins or other recipients.
Never use the appliance if the jug shows any signs of cracks. Only use the jug with this appliance. Handle with care as the glass is very fragile.
Make sure the appliance has cooled down before cleaning, storing or filling it. The appliance has to be switched off before filling it with water.
Make sure never to overfill.
Make sure the cord never comes into contact with the hot parts of the appliance.
- Never touch the hot parts of the appliance (be careful, also the warming plate is a hot part!), only touch the plastic parts and take the jug by the handle.
Be careful not to get burned by the steam evaporating from the coffee filter.
When removing lime scale, only use vinegar or a special product for the removal of lime scale. Never use ammonia or any other substance that might damage your health.
Only put ground coffee in the filter.
Never use your coffee machine without water in it. If you have a programmable coffee machine, make sure to fill it with water before programming it.
(*) Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.
UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)
This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.
The blue wire must be connected to the terminal marked N or coloured in black.
The brown wire must be connected to the terminal marked L or coloured in red.
The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).
INITIAL OPERATION
When you use your appliance for the first time, pour fresh water into the water tank (without coffee) and switch on the appliance.
Once all the water has passed through, switch the appliance off and let it cool down. When it is cold enough repeat the process with fresh water. Repeat this process twice.
PREPARATION OF COFFEE
Pour the desired volume of water into the receptacle. The number of cups can be read off the water level indicator.
- Insert filter in the filter holder and add the desired quantity of ground coffee. Replace the filter cone, making sure it is placed correctly.
- Do never forget to close the lid before using your coffee machine.
- When you remove the carafe from the appliance, a non-drip valve will automatically operate to stop any drops of coffee dripping onto the hotplate. Replacement of the carafe automatically opens the non-drip valve and allows remaining coffee to filter trough into the carafe.
Wait until the brewing process is finished and the filter has run empty.
DECALCIFICATION AND CLEANING
- Decalcifying the coffee maker prolongs its life span. For decalcification only use products especially made for decalcification of coffee makers.
- Never use a dishwasher to clean the jug.
