Product type	Filter coffee machine
Brand	Team
Model	KM 28 T
Power supply	230 V ~ 50/60 Hz (check voltage on device)
Main functions	Preparation of coffee and tea
Reservoir capacity	Approximately 1.2 L (check level on indicator window)
Filter type	Paper filter (1x2)
Anti-drip system	Yes, automatic valve when carafe is removed
Hotplate	Yes, keeps warm
Outdoor use	No, indoor use only
Housing material	Plastic (estimate)
Carafe included	Yes, for coffee and tea (two possible carafes)
Safety	Do not immerse, do not touch hotplate, manual shutdown via switch
Maintenance and cleaning	Regular descaling, do not put carafes in dishwasher, clean after cooling
Descaling	Use a specific descaling product for coffee makers
Rinse before first use	Mandatory, perform at least 3 cycles with clear water
Repairability	Contact a qualified service center
Dimensions (estimate)	Approximately 25 x 20 x 35 cm (height x width x depth)
Weight (estimate)	Approximately 1.5 kg

Frequently Asked Questions - KM 28 T TEAM

How to rinse the coffee maker before first use?

Fill the reservoir with cold water without coffee, turn on the appliance and let the water run completely. Turn off, let it cool for 5 minutes, then repeat at least 3 times.

How much water to use for coffee?

Pour the desired amount of water into the reservoir. The level indicator window shows the number of cups obtained. Do not exceed the maximum level.

How to prepare tea with this machine?

Use the optional teapot carafe. Place the tea into the diffuser, put the diffuser in the carafe, close the lid, and position the carafe on the hotplate. Turn on the appliance and wait for the water to pass through.

What is the anti-drip valve for?

When you remove the carafe, the valve closes automatically to prevent coffee from dripping onto the hotplate. When replacing the carafe, the valve opens to let the remaining coffee flow.

Can I put the carafe in the dishwasher?

No, never put the carafe or teapot carafe in the dishwasher. Wash them by hand after cooling.

How to descale the coffee maker?

Use exclusively a descaling product for coffee makers. Follow the product instructions, then rinse by running clear water through several times.

What to do if the power cord is damaged?

The cord must be replaced by a qualified service center (manufacturer, importer, or qualified person). Do not use the appliance.

Can I leave the machine unattended?

It is not recommended to leave the appliance unattended, especially in the presence of children. After use, set the switch to OFF and unplug.

Why is my coffee maker not heating?

Check that the appliance is turned on and that the hotplate is in contact. If the problem persists, contact a qualified service.

What type of paper filter to use?

Use a type 1x2 paper filter. Fill it with the desired amount of ground coffee without exceeding the maximum level indicated inside the filter holder.

USER MANUAL KM 28 T TEAM

Coffee And Tea Percolator

Cafetière / Théière

Koffie - En Theetoestel

Cafeteria / Tetera

Máquina De Café E Chá

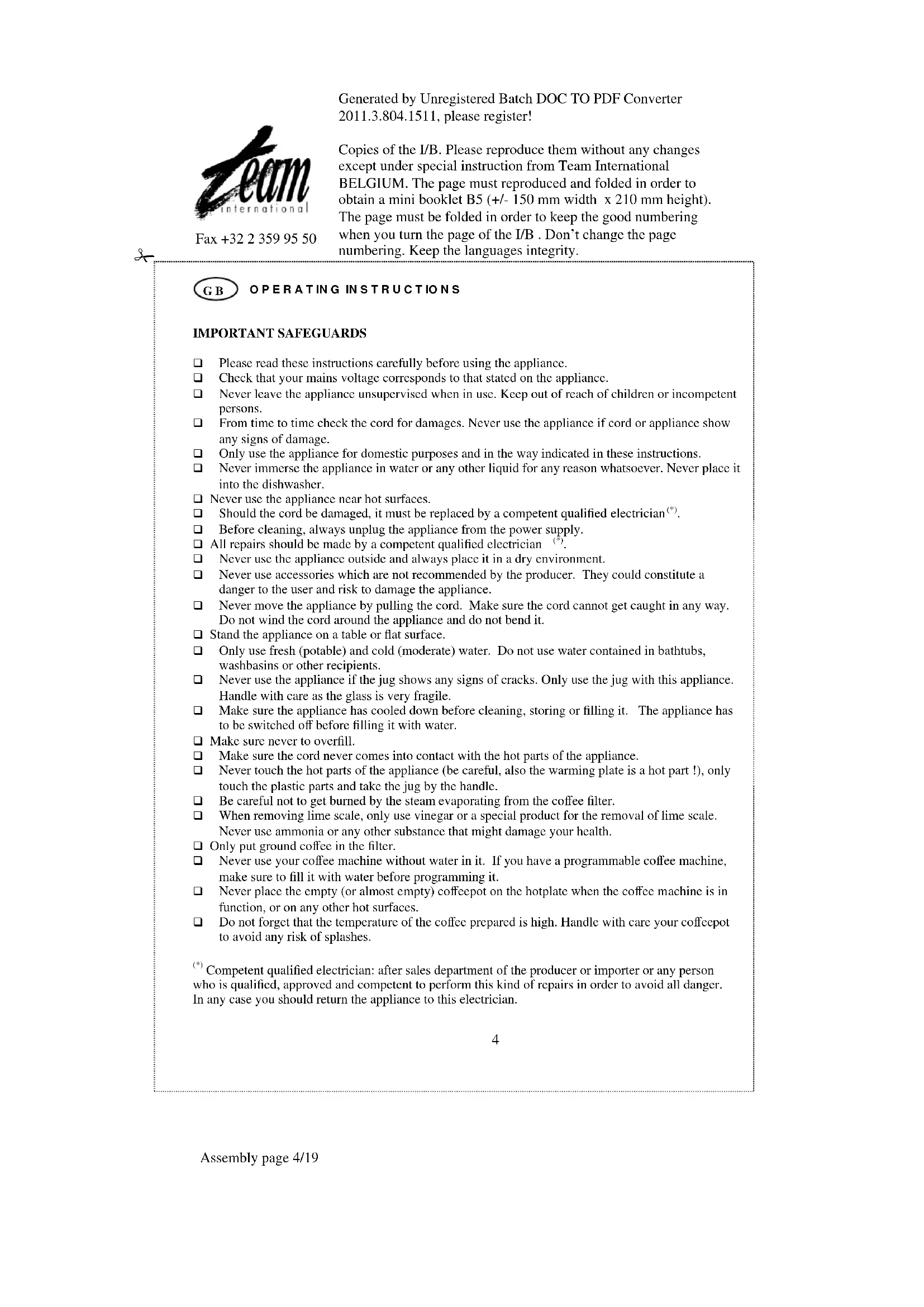

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician ^(*) .
Before cleaning, always unplug the appliance from the power supply.
All repairs should be made by a competent qualified electrician
Never use the appliance outside and always place it in a dry environment.
- Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Stand the appliance on a table or flat surface.
Only use fresh (potable) and cold (moderate) water. Do not use water contained in bathtubs, washbasins or other recipients.
Never use the appliance if the jug shows any signs of cracks. Only use the jug with this appliance. Handle with care as the glass is very fragile.
Make sure the appliance has cooled down before cleaning, storing or filling it. The appliance has to be switched off before filling it with water.
Make sure never to overfill.
Make sure the cord never comes into contact with the hot parts of the appliance.
Never touch the hot parts of the appliance (be careful, also the warming plate is a hot part!), only touch the plastic parts and take the jug by the handle.
Be careful not to get burned by the steam evaporating from the coffee filter.
- When removing lime scale, only use vinegar or a special product for the removal of lime scale. Never use ammonia or any other substance that might damage your health.
Only put ground coffee in the filter.
- Never use your coffee machine without water in it. If you have a programmable coffee machine, make sure to fill it with water before programming it.
- Never place the empty (or almost empty) coffeepot on the hotplate when the coffee machine is in function, or on any other hot surfaces.
Do not forget that the temperature of the coffee prepared is high. Handle with care your coffeepot to avoid any risk of splashes.
(^+) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

BEFORE THE FIRST OPERATION

• For the perfect taste, operate the coffee maker with fresh water (without coffee) in order to clean any residue left from the manufacturing process.
• Once all the water has passed through, switch the appliance off and let it cool down for 5 minutes. Then repeat the process at least 3 times with fresh water.

ADVICES TO USE YOUR COFFEE MAKER

Pour the desired volume of water into the water tank. The number of cups can be read off the water level indicator.
- Insert filter paper (1X2) and fill with the desired quantity of ground coffee up to a maximum level that is indicated on the inside of the filter cone. Close the filter cone.

• Ensure that the carafe is placed onto the hotplate.
• Switch on the appliance.
• Wait until all water has passed through the filter and the brewing process is finished.
• When you remove the carafe from the appliance, a non-drip valve will automatically operate to stop any drops of coffee dripping onto the hotplate. Replacement of the carafe automatically opens the non-drip valve and allows remaining coffee to filter trough into the carafe.

OPTION: ACCESSORY

ADVICES TO USE THE GLASS TEAPOT AND THE DIFFUSER

Pour the desired volume of water into the water tank. Check the water gauge for the max water that can be used with the teapot - It is less than the coffee maker.
- Put the required amount of tea into the diffuser (to start with, try 1 teaspoon/cup).
- Place the diffuser moulding into the glass teapot and close the teapot lid. Place the teapot onto the hotplate.
- Switch on the appliance.
- Wait until all water has passed through the into the glass teapot the brewing process is finished.
- When you remove the teapot from the appliance, a non-drip valve will automatically operate to stop any drops of hot water dripping onto the hotplate. Replacement of the teapot automatically opens the non-drip valve and allows remaining hot water to filter trough into the carafe.

CARING FOR YOUR COFFEE MAKER, THE CARAFE AND THE GLASS TEAPOT

• Decalcifying the coffee maker prolong its life span. For decalcification only use products especially made for coffee makers.
• Allow the coffee maker and carafe, or glass teapot to cool down before cleaning.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

• Allow the coffee maker and carafe, or glass teapot to cool down before filling with fresh water.
• Never use s-dishwasher to clean the carafe or glass teapot.
