Warning: The manufacturers accept no responsibility for eventual faults caused by

any of the following:

• Misuse or use contrary to the manufacturer’s recommendations;

• Repairs attempted by persons not belonging to an authorised service centre;

• Mishandling of the mains cable;

• Mishandling of any part of the machine;

• Use of unauthorised spare parts or accessories. In any of the above cases the guarantee will prove null and void.

1.1 Guide to the instructions

The warning triangle indicates all the personal safety instructions. Follow these instructions carefully to avoid injury. This symbol indicates the most important information for ensuring an optimal use of the machine. References to diagrams, parts of the appliance or control switches etc. are indicated by a number or letter. Keep the illustrations to hand. GENERAL Contents 1 GENERAL ............................................... 18

1.1 Guide to the instructions ...................... 18

1.2 How to use these instructions ................ 19

4.3 Connecting the appliance to the power

14 TROUBLESHOOTING ............................. 2919 The diagrams referred to in the leaflet are placed in the inside cover flap. Keep these pages open while reading the instructions.

1.2 How to use these instructions

Keep the instructions in a safe place or attach them to the machine for easy consultation by others. If you desire any further information or have a problem not sufficiently covered by this leaflet please contact our qualified experts. 2 TECHNICAL SPECIFICATIONS Rated voltage See rating plate on appliance Rated output See rating plate on appliance Body material Thermo-formed plastic Dimensions (l x h x w) 245 x 310 x 250 Weight 4 kg Cable length 1.2 m Control panel Frontal Filter holder “Crema” (depending on model) Brass “Pannarello” Cappuccino optional extra Tank Removable Power supply See rating plate Water tank 2 l Pump pressure 13-15 bar Boiler Stainless steel Safety requirements Pressure safety valve in boiler Safety thermostat The manufacturer reserves the right to change the make up of the machine in the light of any technological breakthrough. The machine complies to the European Standard 89/336/EEC (legislative decree 476

04.12.92), referring to the elimination of broadcasting disturbance.

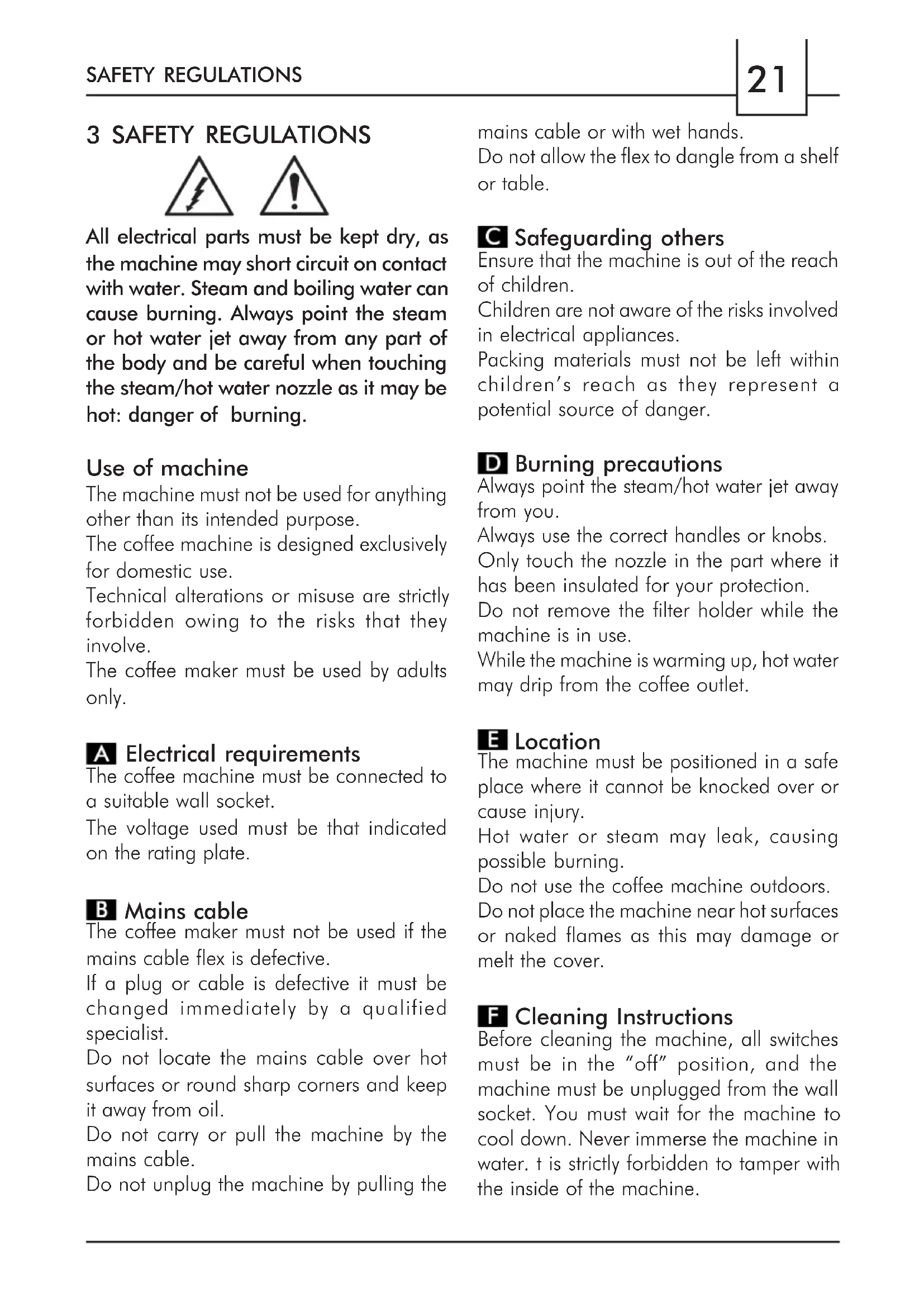

SAFETY REGULATIONS21 SAFETY REGULATIONS 3 SAFETY REGULATIONS All electrical parts must be kept dry, as the machine may short circuit on contact with water. Steam and boiling water can cause burning. Always point the steam or hot water jet away from any part of the body and be careful when touching the steam/hot water nozzle as it may be hot: danger of burning. Use of machine The machine must not be used for anything other than its intended purpose. The coffee machine is designed exclusively for domestic use. Technical alterations or misuse are strictly forbidden owing to the risks that they involve. The coffee maker must be used by adults only. Electrical requirements The coffee machine must be connected to a suitable wall socket. The voltage used must be that indicated on the rating plate. Mains cable The coffee maker must not be used if the mains cable flex is defective. If a plug or cable is defective it must be changed immediately by a qualified specialist. Do not locate the mains cable over hot surfaces or round sharp corners and keep it away from oil. Do not carry or pull the machine by the mains cable. Do not unplug the machine by pulling the mains cable or with wet hands. Do not allow the flex to dangle from a shelf or table. Safeguarding others Ensure that the machine is out of the reach of children. Children are not aware of the risks involved in electrical appliances. Packing materials must not be left within children’s reach as they represent a potential source of danger. Burning precautions Always point the steam/hot water jet away from you. Always use the correct handles or knobs. Only touch the nozzle in the part where it has been insulated for your protection. Do not remove the filter holder while the machine is in use. While the machine is warming up, hot water may drip from the coffee outlet. Location The machine must be positioned in a safe place where it cannot be knocked over or cause injury. Hot water or steam may leak, causing possible burning. Do not use the coffee machine outdoors. Do not place the machine near hot surfaces or naked flames as this may damage or melt the cover. Cleaning Instructions Before cleaning the machine, all switches must be in the “off” position, and the machine must be unplugged from the wall socket. You must wait for the machine to cool down. Never immerse the machine in water. t is strictly forbidden to tamper with the inside of the machine.22 SAFETY REGULATIONS Recommended space for use and maintenance To get the best results from the coffee machine, the following is recommended:

• Place the machine on a flat, even surface;

• Choose a position that is well-lit, hygienic and where a wall socket is easily accessible;

• Check that the minimum distances around the machine are as indicated in the diagram. Storage of the machine If the machine is to be left unused for a long period, turn it off and unplug it from the wall socket. Keep in a dry place, out of the reach of children. Protect from dirt and dust. Repairs/Maintenance If the machine stops working, is in any way defective or has been knocked over unplug it immediately from the wall socket. Never use a faulty machine. Repairs or alterations must only be carried out by qualified experts. Repairs or alterations must only be carried out by an authorised service centre. The company will accept no responsibility for damage caused by repairs attempted by unauthorised persons. Fire risks Should the machine catch fire, use a carbon dioxide extinguisher. Do not use water or a powder extinguisher. Legend of machine components Water tank Water tank lid Main switch Coffee switch Steam switch Steam/hot water knob Coffee outlet Steam tube Machine on light Mains cable Drip tray + grill Accessories (the accessories vary depending on the model) Full tray warning light “Crema” filter holder Filter for “Crema” filter holder (A single unit for making 1 or 2 cups of coffee) Brass filter holder Single cup filter for brass filter holder Twin cup filter for brass filter holder Coffee measure Press23 START-UP 4 INSTALLATION For personal safety follow the “Safety regulations” found on Par.3.

The original packaging has been designed to protect the appliance during transpor- tation. You are recommended to keep it for later use.

4.2 Installment requirements

Before installing the machine read the following safety instructions carefully:

• Locate the machine in a safe place;

• Make sure that it is out of the reach of children;

• Do not place the machine on a hot surface or near a naked flame. The coffee maker is now ready to be connected.

4.3 Connecting the appliance to

the power supply Electricity can be dangerous, so always follow the safety regulations carefully. Never use a faulty cable. Faulty plugs and cables must be changed immediately by authorised personnel. The coffee maker must be connected to a suitable wall socket. The voltage of the appliance has been factory-set. The voltage on the rating plate (positioned on the bottom of the appliance) must correspond to that of your house electricity supply.

• Uncoil a length of cable from the cable wind found underneath the appliance, sufficient for the plug to reach the wall socket.

• Check that the main switch is in the “0” position before inserting the plug in the wall socket.

• Plug the appliance into a wall socket carrying the correct voltage.

4.4 Filling the water tank

• Open the tank lid (2).

• Lift the water tank (1) by using the lid. The valve on the bottom of the tank will not allow water to flow out.

• Rinse and fill the tank with fresh water without overfilling.

• Put the tank back in its correct position.

• When the tank is in place, press lightly down on it to insert the valve correctly. The valve will open automatically.

• Close the lid on the tank. Always fill the tank with fresh, not carbonised water: hot water or other liquids may damage the tank. Do not use the coffee maker without water, always check that there is enough water in the tank.

Before using the machine for the first time, after the appliance has been left unused for a long period or when the water and steam have run out, it is necessary to prime the machine.

• Turn on the main switch (3), the light on the inside will be on.

• Point the steam tube (“Pannarello”) over the drip tray.

• Open the “hot water/steam” knob (6), turning it in an anti-clockwise direction24 COFFEE FLOW and press the coffee switch (4).

• Wait until a steady stream of water flows from the tube (“Pannarello”).

• Press the coffee switch (4) again and close the “hot water/steam” knob (6), turning it in a clockwise direction. The machine is now ready to make a perfect cup of coffee. 5 COFFEE FLOW Warning! Do not remove the filter holder by turning it manually in a clockwise direction while the machine is producing coffee. Danger of burning.

• While the machine is working the “machine on” light (9) will go on and off. This is perfectly normal.

• Before using the machine, make sure that the “hot water/steam” knob (6) is closed and that there is sufficient water in the tank.

• Turn on the machine. If the coffee maker is not working the light on the inside of the main switch (3) will light up.

• Wait for the “machine on” light (9) to be on. Now the coffee maker is ready. Note: we recommend emptying the water tray when the level float (12) rises.

5.1 Using the “Crema” filter holder

• Place the filter (14) inside the “Crema” filter holder (13).

• Fit the “Crema” filter holder into the coffee outlet socket (7), pushing it upwards and turning it to the right until it locks into place.

• Let go of the filter holder handle. Automatically the handle will move slightly to the left. This movement guarantees the perfect functioning of the filter holder.

• Place a cup under the filter holder. To warm up the filter holder and the cup, press the coffee switch (4); water will begin to drip from the filter holder (this operation is only necessary for the first cup of coffee).

• When the cup is sufficiently full, press the coffee switch (4) again.

• Remove the filter holder from the machine by turning it to the left and pour out any water that is left inside.

• With the special “Crema” filter holder (13) supplied with the machine, it is not necessary to change the filter to obtain one or two cups of coffee.

• To make one or two cups of coffee, add 1 or 2 even measures of ground coffee to the filter.

• Clean the edges of the filter holder from any excess of coffee grounds.

• Fit the “Crema” filter holder (13) into the coffee outlet socket (7), as explained before, pushing it upwards and turning it to the right until it locks into place.

• Position two warmed cups under the filter holder, making sure that they are directly under the coffee spouts.

• Press the coffee switch. Wait until the cups are sufficiently filled.

• Press the coffee switch again to stop the coffee flow.

• When the coffee flow has ceased, remove the filter holder and empty out the excess coffee grounds. Cleaning note: always keep the “Crema” filter holder clean by removing it and washing it with drinking water.

5.2 Using the brass filter holder

• Place the filter (16 or 17, single or twin cup, depending on the number of25 COFFEE FLOW - CHOICE OF COFFEE - HOT WATER JET coffees you wish to make) in the brass filter holder (15).

• Fit the filter holder into the coffee outlet socket (7), pushing it upwards and turning it to the right until it locks into place.

• Place a cup under the filter holder. To warm up the filter holder and the cup, press the coffee switch (4); water will begin to drip from the filter holder (this operation is only necessary for the first cup of coffee).

• When the cup is sufficiently full, press the coffee switch (4) again.

• Remove the filter holder from the machine by turning it to the left.

• To make one or two cups of coffee, add 1 or 2 even measures of ground coffee to the filter, depending on whether you are using the single or twin cup filter.

• Tamp the coffee down lightly using the press and brush off any excess coffee from the edge of the filter holder.

• Fit the brass filter holder (15) into the coffee outlet socket (7), as explained above, pushing it upwards and turning it to the right until it locks into place.

• Position two warmed cups under the filter holder, making sure that they are directly under the coffee spouts.

• Press the coffee switch. Wait until the cups are sufficiently filled.

• Press the coffee switch again to stop the coffee flow.

• When the coffee flow has ceased, remove the filter holder and empty out the excess coffee grounds. Cleaning hint: when cleaning the filter take it right out of the filter holder and rinse thoroughly.

6 ADVICE ON CHOICE OF

COFFEE Practically any type of ground coffee on the market can be used with this machine. Coffee is a natural product and its taste varies, depending on its origin and blend. It is therefore advisable to try a number of different types to discover your own perso- nal preference. For best results use blends specifically ground for espresso machines. The coffee flow should be constant and should not drip. The speed of the coffee flow can be regulated by changing the dosage, the fineness of the grinding and/or by how heavily you tamp down the coffee in the filter.

• If the machine is not already on, turn it on at the main switch (3) which will light up.

• Place a cup or a glass tea cup under the steam tube (“Pannarello”).

• Open the “Hot water/steam knob (6), turning it in anti-clockwise direction and press the coffee switch (4) to start the water flow.

• To stop the water flow, press the coffee switch (4) again, and close the steam knob (6) by turning it in a clockwise direction. Danger of burning! When water begins to flow out, it may be very hot. The steam tube does get very hot, so avoid touching it in any way.26 STEAMING FUNCTION - CLEANING INSTRUCTIONS - DESCALING

8 HOW TO PREPARE A CAP-

• If the machine is not already on, turn it on at the main switch (3) which will light up.

• Press the steam switch (5) which will light up. The “machine on” light (9) will turn off.

• When the “machine on” light (9) comes back on, the machine steam tube is ready to use.

• Point the steam tube (“Pannarello”) over the drip tray and open the “hot water/steam” knob (6) for a few seconds to clear the tube of any excess water. Wait for a few more seconds for steam to flow out.

• Immerse the tube in the liquid to be heated and open the knob (6). Move the container gently up and down to ensure that the liquid is heated right through.

• When the liquid has reached the required temperature close the knob (6) and turn off the “steam” switch (5). To make a cappuccino heat milk using the method explained above.

• Proceed following the priming instructions found in par. 4.5 to operate the machine.

• When you have finished using the steam tube (pannarello) clean with a damp cloth. 9 CLEANING INSTRUCTIONS Before cleaning the machine, let it cool down and unplug it.

• Do not immerse the coffee maker in water and do not put any of the components in a dishwasher.

• Do not use sharp objects or abrasive chemical products (solvents) to clean the machine.

• Clean the water tank and fill it with fresh water daily.

• After heating milk, release a small quantity of hot water to clean out the steam tube and wipe the outside of it with a damp cloth.

• Use a damp cloth to wipe down the appliance.

• Clean the filter holder as follows:

• Remove the filter, place it in hot water and wash it carefully.

• Clean the inside of the filter holder.

• Do not dry the machine and/or any of its parts using a microwave and/or conventional oven.

• Clean the “Pannarello” located over the steam tube, if it is fitted on your machine. To do this, unscrew the ring nut, remove the “Pannarello” from the steam tube and take off the external casing. Rinse the “Pannarello” under running water and then put it back together again. The ring nut must be closed properly as otherwise the “Pannarello” may come loose during use. 10 DESCALING The formation of lime on the inside of the appliance is inevitable. If you notice a reduction in the water capacity of the appliance it is necessary to descale the machine. If you wish to descale the ap- pliance yourself, use a descaler27

DESCALING - LEGAL INFORMATION

especially made for coffee machines. Use a product normally available on the market, that is neither toxic nor harmful. Warning! Never use vinegar as a descaler.

• Remove the water container and empty out any remaining water.

• Mix the descaling agent with water as directed on the package and pour the solution into the water container; place the water container inside the machine.

• Turn on the machine by pressing the main switch.

• Position the steam tube over the drip tray.

• Empty the entire contents from the water container at intervals (one cup at a time) by turning the steam knob (6) counterclockwise and pressing the coffee switch (4); to cut off flow press the coffee switch (4) again and turn the steam knob (6) clockwise.

• Every time a cup of descaler is released the machine should be turned off at the main switch (3) and left for 10-15 minutes to give the descaling solution time to act.

• When all the descaling agent has been used up, take out the water container, rinse it out and fill it with fresh drinking water.

• Place the container back inside the machine; empty out 2/3 of the water in the container by turning the steam knob (6) counterclockwise and pressing the coffee switch (4); to cut off flow press the coffee switch (4) again and turn the steam knob (6) clockwise.

• Let the machine heat up and empty out the water remaining in the water container by turning the steam knob (6) counterclockwise and pressing the coffee switch (4); to cut off flow press the coffee switch (4) again and turn the steam knob (6) clockwise. If a descaling product that has not been recommended is used, we do advise the client to follow the manufacturer’s instructions found on the packet. 11 SERVICING Regular servicing carried out by an authorised service centre will prolong the life and efficiency of the machine. Keep the original packaging as it may pro- ve useful in protecting the machine at a later date. 12 LEGAL INFORMATION

• These instructions include information on how to use the machine correctly, its functions and its maintenance.

• If these instructions are followed closely no risks should be run in using the appliance and all necessary safety requirements regarding function and maintenance should be upheld.

• If more information is required or if a particular problem not dealt with or insufficiently explained in these instructions should arise, the customer should contact his/her local dealer or the manufacturer directly.

• We would also like to bring to the customer’s attention that these instructions are not part of any previous or existing convention, agreement or legal contract and hence have no legal bearing.

• The obligations of the manufacturer are based on the relative contract of sale28

DISPOSAL OF THE APPLIANCE

which includes the complete and exclusive regulation regarding guarantee requirements. The terms of the guarantee are in no way affected by these instructions. The instructions contain information protected by copyright laws. The instructions may not be photocopied or translated into a foreign language without the manufacturer’s written permission.

• An appliance that is no longer in use must be rendered unworkable.

• Remove the plug and cut the mains cable at the base.

• Take unused appliances to a qualified disposal centre.29 Problem The machine does not work The pump is too noisy The coffee is too cold The milk does not froth

The coffee flow is too fast, and it does not make a creamy coffee The coffee does not flow or only drips Coffee is leaking from the filter edges Possible causes The machine is not properly connected to the power supply There is not enough water in the tank (par. 4.4) Ready light was not on when espres- so was made. The filter holder was not in place while heating up the machine (par. 5.1-5.2) You are using the wrong type of milk There is not enough coffee in the filter holder or the coffee is not ground finely enough The coffee is old or unsuitable There is not enough water in the machine The coffee is too finely ground Coffee is stuck in the filter holder There is too much coffee in the filter holder The “Hot water/steam” knob (6) is open The machine needs descaling The upper filter is blocked The filter in the filter holder is blocked The filter holder has not been fitted correctly into the coffee outlet socket The top edge of the filter holder is dirty The boiler washer is dirty or worn out There is too much coffee in the filter holder Solutions Connect the machine correctly to the power supply Fill up the tank Wait until the ready light comes on Warm up the filter holder Check the fat content of the milk Add coffee (par. 5.1-5.2) Try a different blend (chap.6) Add water (par.4.4) Change type of coffee Loosen it Scoop some of it out using the coffee measure Close it Descale it (chap.10) Clean the filter element Clean the filter (chap.9) Insert the filter holder correctly (par.5.1-5.2) Clean the edges of the filter holder Clean or change the washer Scoop some of it out using the coffee measure TROUBLESHOOTING 14 TROUBLESHOOTING If you should have a problem that is not dealt with in the above table or is not resolved by any of these solutions please contact an authorised service centre.30 1 GENERALITE Cette machine à café est en mesure de préparer 1 ou 2 tasses de café expresso et est équipée d’un tube orientable pour la distribution de la vapeur et de l’eau chaude. Des pictogrammes permettent d’identifier facilement les fonctions des commandes, situées sur le frontal de l’appareil. Avec un habillage machine au design élégant, cet appareil a été conçu exclusivement pour un usage domestique et n’est donc pas indiqué pour un fonctionnement continu de type professionnel. Attention. Le Fabricant décline toute responsabilité en cas de dommages occasionnés par:
