USER MANUAL IVVI Nuna

carry cot instruction manual

Thanks for choosing Nuna!

Nuna designs distinctive, smart and exciting products.

Illustrations

nVNa

nuna.eu

Contents

EN

Illustrations 1-5

English (EN) 6

Safety and recommendations 7

Warnings 8-10

Parts list 11

Contents of the box 11

Carry Cot 12

Cleaning and maintenance 14

Warranty and service 15

Where to find Nuna products 16

Nederlands (NL) 19

Français (FR) 31

Deutsch (DE) 43

Italiano (IT) 55

Espanol (ES) 67

Swedish (SV) 79

Korean (KO) 91

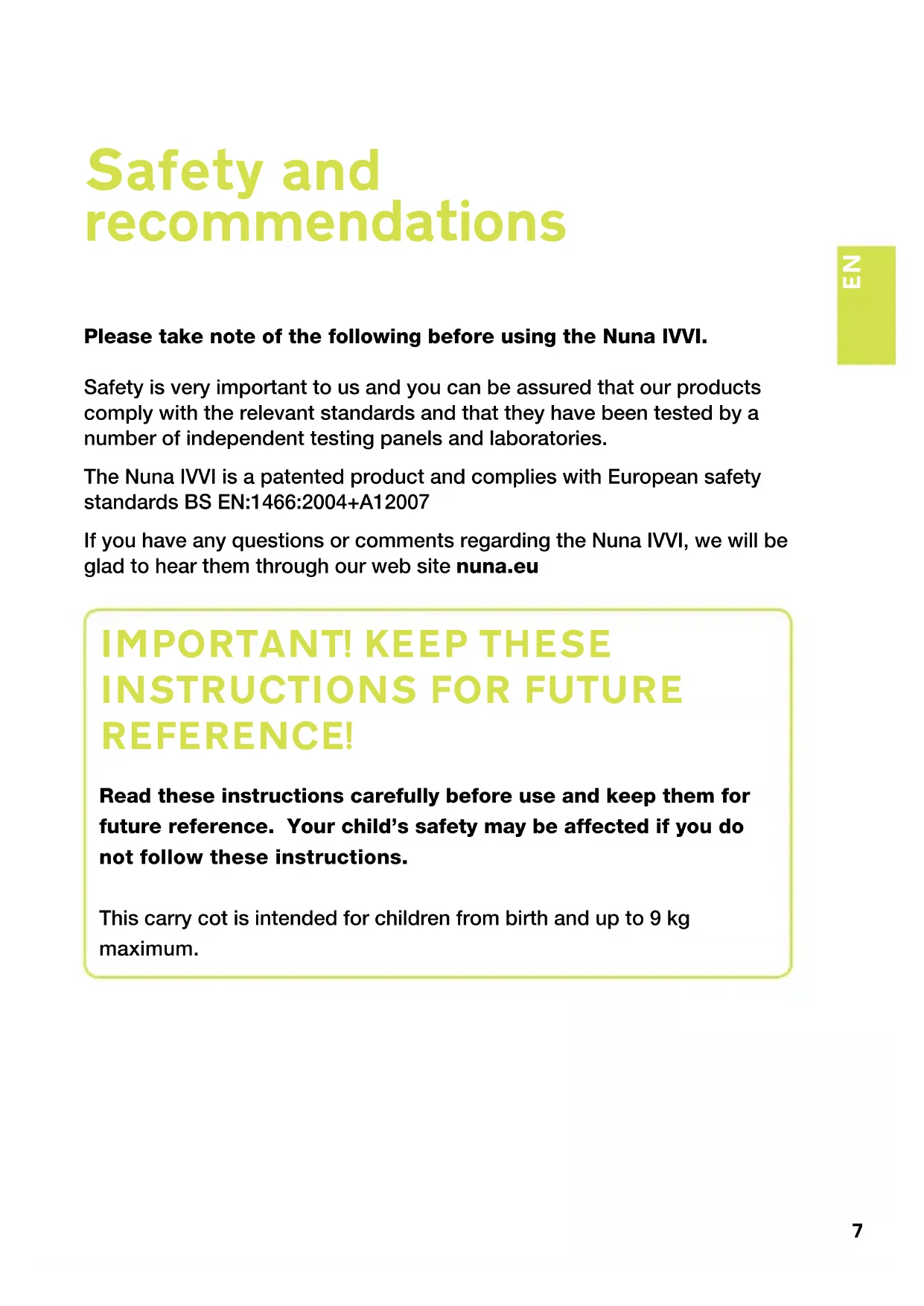

Safety and recommendations

Please take note of the following before using the Nuna IVVI.

Safety is very important to us and you can be assured that our products comply with the relevant standards and that they have been tested by a number of independent testing panels and laboratories.

The Nuna IVVI is a patented product and complies with European safety standards BS EN:1466:2004+A12007

If you have any questions or comments regarding the Nuna IVI, we will be glad to hear them through our web site nuna.eu

IMPORTANT! KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE!

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

This carry cot is intended for children from birth and up to 9 kg maximum.

Warnings

Failure to follow these warnings and instructions could result in serious injury or death.

WARNING A child's safety is your responsibility.
WARNING Do not leave your child unattended.
WARNING Ensure that all the locking devices are engaged before use.
WARNING Never carry more than one child at a time in this carry cot .
WARNING Any load attached to the handle affects the stability of the stroller/pram/pushchair.
WARNING This product is not suitable for running or skating.
WARNING To avoid any danger of suffocation, remove all plastic covers before using this item and destroy or keep away from babies and children!
WARNING Do not let your child play with this product.
Always set the parking brake on the IVVI when you stop.
Never leave a child in the IVVI when ascending or descending stairs or escalators, or when traveling on other forms of transport.
Do not carry additional children, goods, accessories in or on this IVI except as permitted in this leaflet. They may cause the IVI to become unstable.
Do not place any item on the canopy.

Overloading, incorrect folding, and the use of accessories e.g. child seats, bag hooks, rain covers, buggy boards, etc... other than those approved by Nuna may damage or make this IVVI unsafe.
Any damage caused by the use of accessories not supplied by Nuna will not be covered in terms of warranty.
WARNING Do not use the carry cot if any parts are damaged or missing.
WARNING Use original Nuna parts and accessories only.
Negotiate curbs and rough ground carefully. Repeated impact will cause damage to the IVVI.
The tires may leave black marks on some surfaces, particularly smooth floors like parquet, laminate and linoleum.
Do not leave the IVVI exposed in the vicinity of a strong source of heat i.e. a radiator or open fire.
Do not store your IVVI in a damp place. Always allow the fabric to dry naturally away from direct heat.
Keep small parts away from children as they pose a choking hazard.
The maximum weight to be placed in the basket is 4.5kg
WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.
WARNING Carry cot is only suitable for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximun weight of the child: 9kg.
WARNING Carry cot is NOT to be used for long term sleeping.

DO not use or add any mattress other than the one supplied with the carry cot.
The parking device should be engaged when placing and removing child.
Use only on a firm, horizontal level and dry surface.
WARNING Do not let other children play unattended near the carry cot.
WARNING Do not use if any part is broken, torn or missing.
Use only replacement parts supplied or approved by the manufacturer.
Be aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of carry cot.
The handles and the bottom should be inspected regularly for signs of damage and wear.
WARNING Never use the carry cot on a stand.
WARNING Check that the pram body attachment devices are correctly engaged before use.

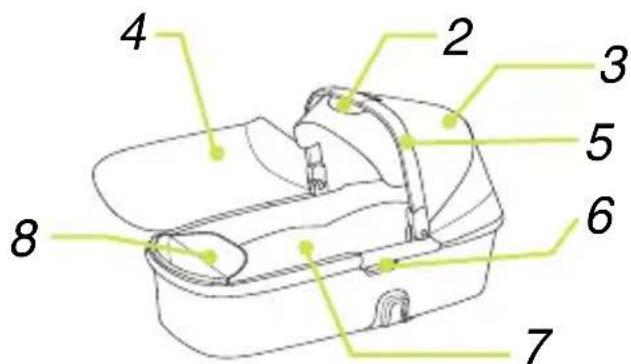

Parts list

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

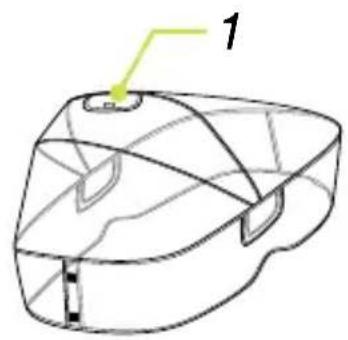

1 Rain Cover (Carry
Cot Mode)
2 Carry Cot
3 Hood

4 Carry cot cover
5 Handle
6 Carry cot release button

7 Matress pad
8 Accessory bag

(maximum load = 1.3 kg)

Contents of the Box

Carry cot

Rain cover

Tools Needed: None

Carry cot

Carry Cot assemble

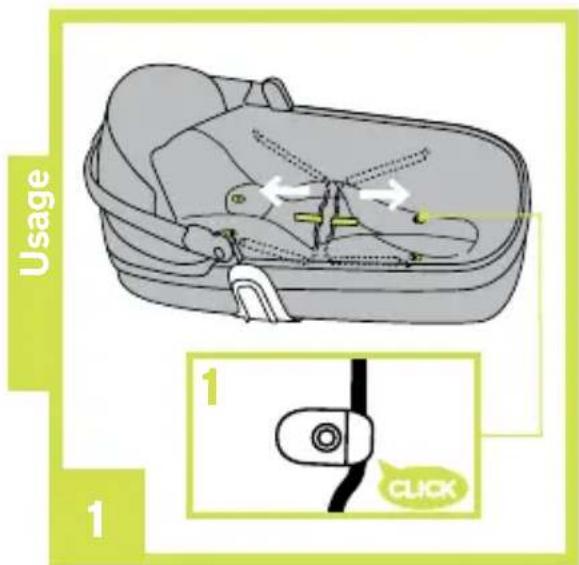

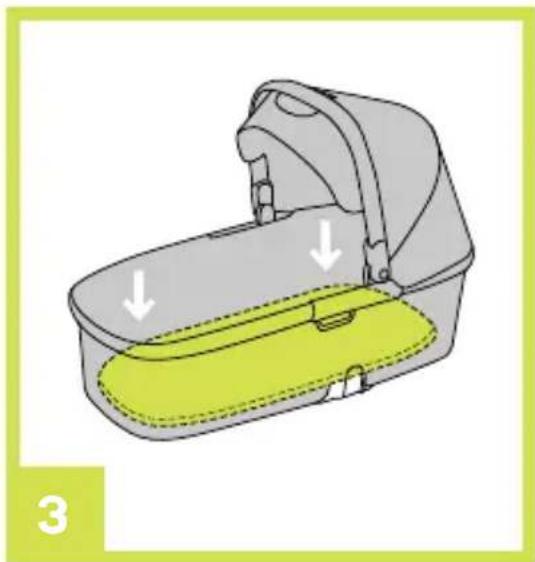

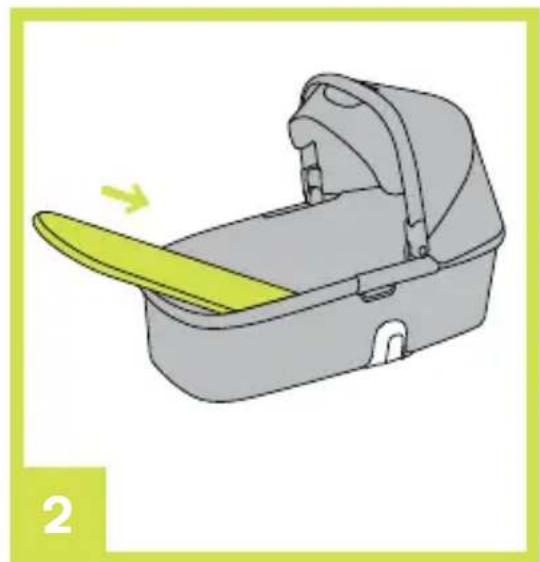

1 Open the wire support on both side of the carry cot. (1) Then click the wire into the four plastic parts. A "Click" sound means the wire support is secure.(1)-1 Place the mattress into the carry cot, (2) and smooth it down.(3)
! Always use the mattress when using the carry cot.
! Mattress cover can easily be removed to wash.

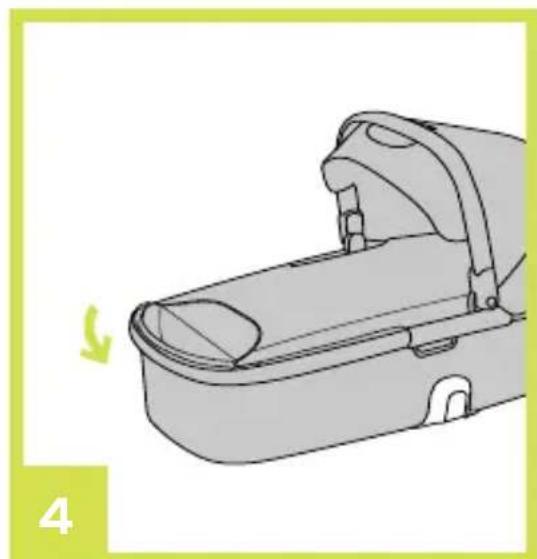

2 Attach the pocket to the carry cot with zipper. (4)

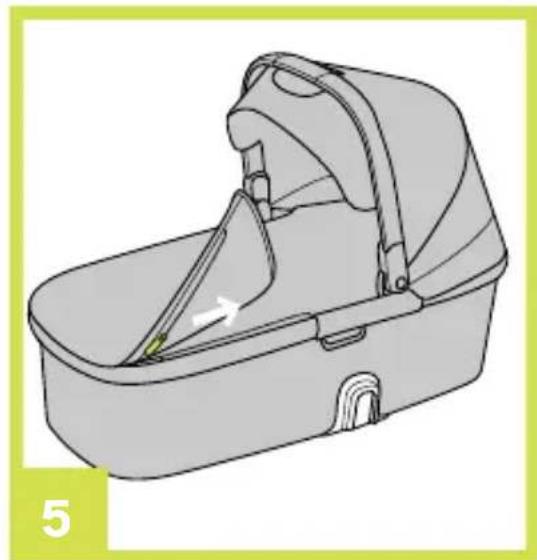

3 Attach the boot to the carry cot with the zippers on either side. (5)

Adjust Carry Cot hood

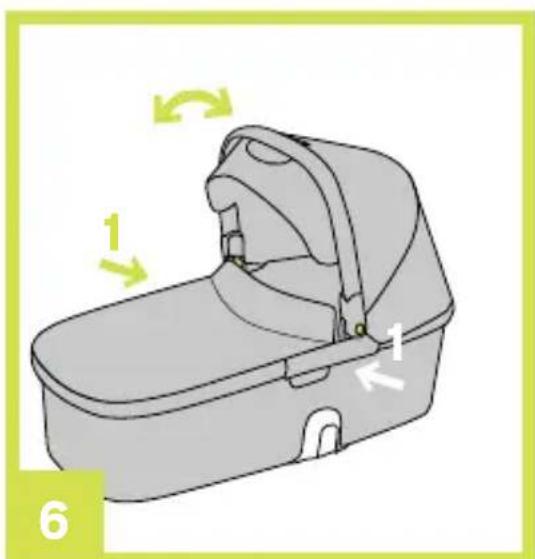

1 Pull hood towards front end to secure. (6)
2 Close the hood by pressing the folding buttons on either side. (6)-1

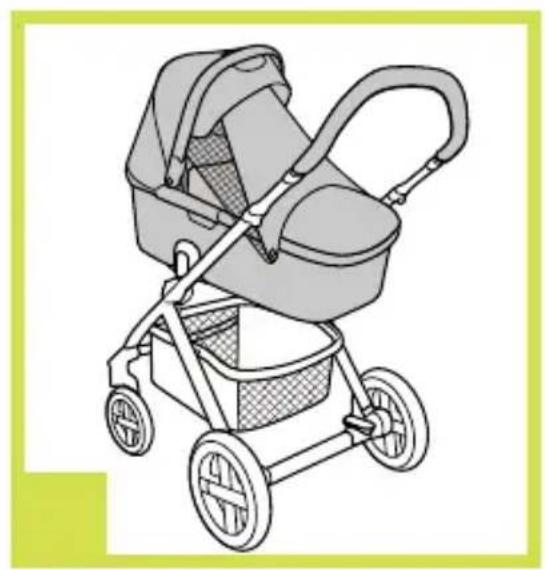

Attach Carry Cot onto Chassis

1 Align the sides of the carry cot with the adapters on the frame.

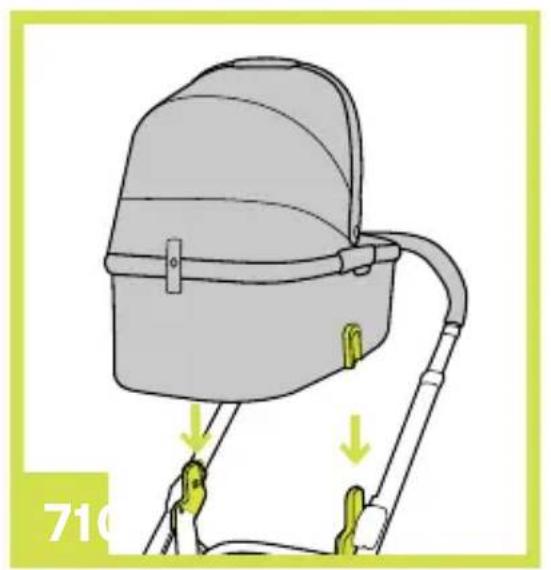

2 Place the carry cot directly down until it clicks into place. (7)
3 A click sound means carry cot assembled completely.

! Always remove the car seat adapters before using the carry cot.
! Please don't fold stroller when carry cot is attached.

Canopy Features

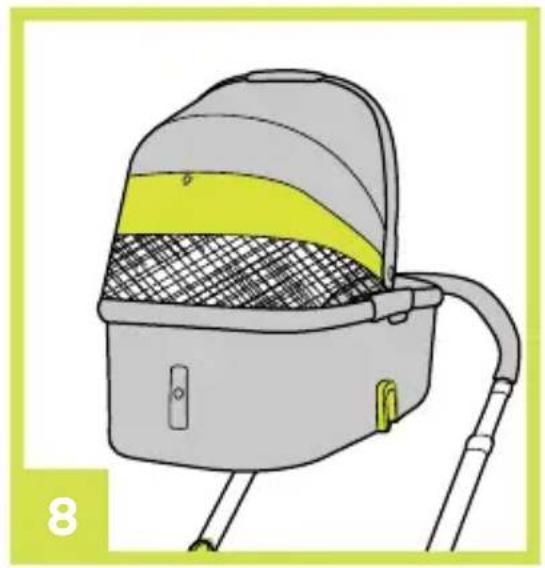

1 Fold the rear panel of the carry cot canopy upwards for more ventilation. (8)

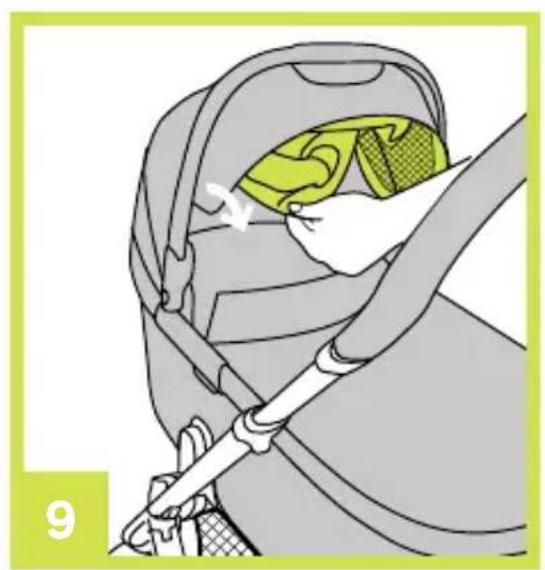

2 Pull the canopy flap out from under the carry cot canopy, then secure it to the two sides of carry cot with magnets. (9, 10)

Remove Carry Cot

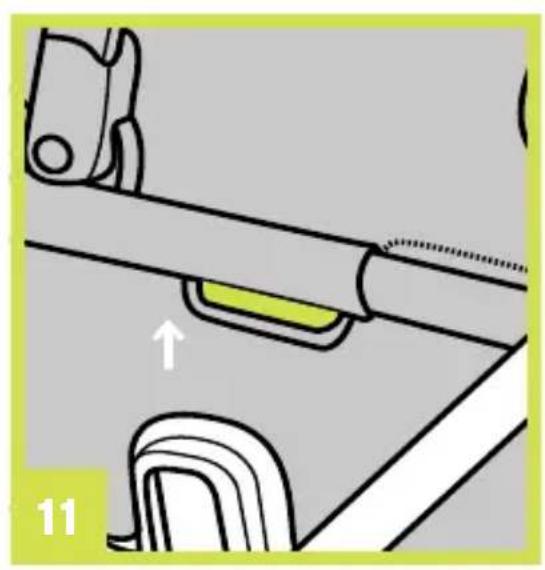

1 Press release buttons on both sides of carry cot and then lift it upwards.(11)

Use Rain Cover

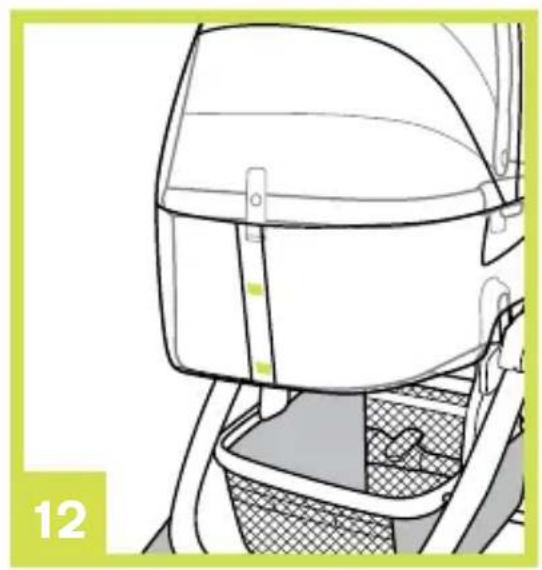

1 To assemble the carry cot rain cover, place it over the carry cot, and then attach the elastic straps on the bottom. Also attach the 2 pairs of hook and loop fasteners on the front of rain cover. (12)

! Please always check ventilation, especially in hot weather when the rain cover is on the product.
! Please check that the rain cover has been cleaned and dried before folding.

Cleaning and maintenance

Your IVI is a valuable piece of equipment and deserves careful handling.

You can clean the frame, the plastic parts, and the fabric with a damp cloth, but don't use abrasives or bleach. Do not machine wash.

Continued and extended exposure to sunlight can change the colour of many materials.

CARRY COT: Mattress pad is removable and machine washable. Drip dry only.

GENERAL USE: Refer to the care label attached to the soft goods for washing

and drying instructions.

For reasons of safety, only use original Nuna parts.

Clean the wheels regularly with water and remove the dirt.

To ensure the long-lasting use of your IVVI, wipe it off with a soft,

absorbent cloth after using it in rainy weather.

It is normal for fabric to discolour from sunlight and to show wear and tear

after a long period of use, even when used normally.

Check regularly if any parts are torn, broken, or missing and that everything

functions properly. If this is the case, stop using the IVVI.

Warranty and service

The Nuna IVI is covered by a one-year warranty. If this product shows a defect during the warranty period, please contact your retailer. If the retailer is unable to help you, they will make contact with the local Nuna distributor.

Please be aware that the model number and serial number located under the seat of the stroller, and on the bottom of the carry cot will be required in the event of a warranty claim.

To register your product, please go to our website at nuna.eu

Terms of warranty

The warranty takes effect at the date of purchase of the product and is valid for one year. The warranty provides you with a right of repair but not a product exchange or return. The warranty will not be extended even if some repairs have been made. Nuna has the right to improve the design of the product without any obligation to update the products manufactured previously.

The warranty will not apply in the following circumstances:

• If you can not provide the sales receipt or proof of purchase of the product.
• If the defect results from normal wear.
• If the defect results from an accident.
• If the defect results from a failure to follow the instructions of assembly, use, care, and maintenance provided in the instruction manual.
• If the defect results from overloading (maximum weight = 9kg ).
• If repairs have been carried out by a third party.
• If the defect results from the use of accessories others than Nuna.

Where to find Nuna products?

If you are looking for Nuna retailers in your area, please consult our website: nuna.eu

Contact

We always look forward to improving our products and developing new ideas, so please feel free to contact us to submit any comments or questions regarding the Nuna products.

nuna.eu

Nuna International BV De Beeke 8, 5469 DW, ERP The Netherlands
