USER MANUAL DEHMR5c V-ZUG
The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
INSTALLATION
- The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
- The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
- For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
- If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
USE
- The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
- Never use the hood for purposes other than for which it has been designed.
- Never leave high naked flames under the hood when it is in operation.
- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
- Do not flambe under the range hood; risk of fire
- This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance. - "CAUTION: Accessible parts may become hot when used with cooking appliances."
MAINTENANCE
- Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
- Clean and/or replace the Filters after the specified time period (Fire hazard).
- Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

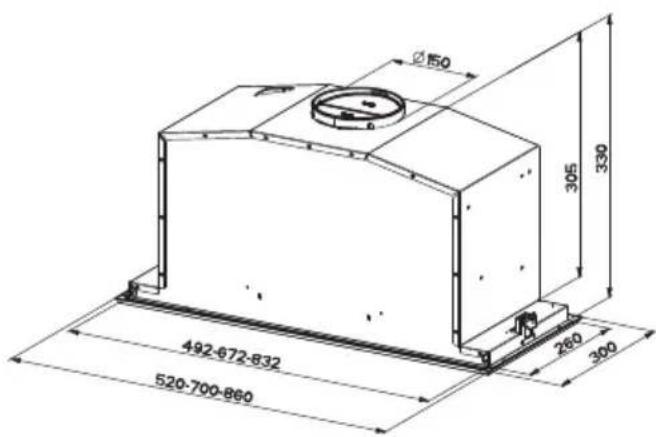

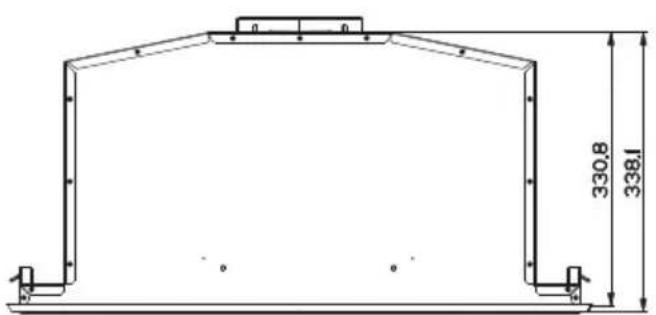

Dimensions



Components
| Ref. | Q.ty | Product | Components |
| 1 | 1 | Hood Body, complete with :Controls, Light, Blower, Filters | |
| 8 | 1 | Directioned | grid |
| 9 | 1 | Reducer Flangeø 150-120 mm | |
| 10 | 1 | Damperø 150 mm | |
Ref. Q.ty Installation Components
| Q.ty | Documentation | |
| 1 | Instruction | Manual |




Fitting the Hood canopy
BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS:

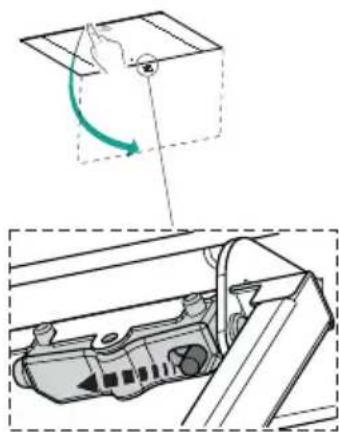

- Open the suction panel by turning the specific knob.
-
Disconnect the panel from the hood canopy by sliding the fixing pin lever.
-
Remove grease filters.


- Disconnect the wires to the Commands at the connectors.

- Disconnect the wires to the Light at the connectors.

- Remove the frame by unfastening the 6 screws.


- The Hood can be installed directly on the underside of the wall unit (Minimum 650 mm from the Cooker Hob).
- Create an opening in the bottom of the wall unit, as shown.
- Insert the hood until the side supports snap into place.

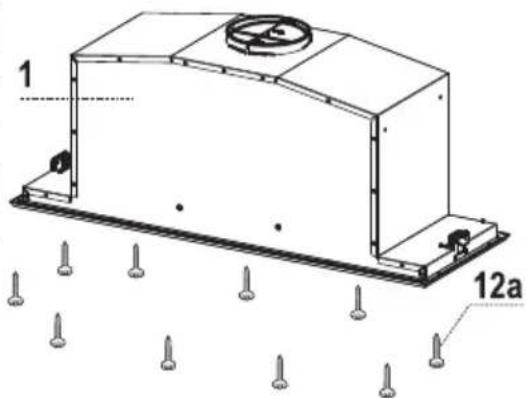

- Fasten using the 10 screws 12a provided.

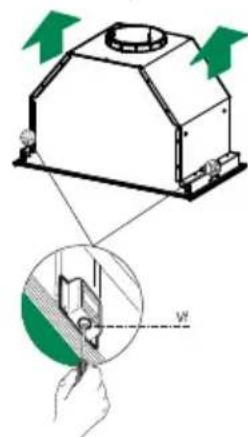

- Lock in position by tightening the screws Vf from underneath the hood.



- Screw the Frame back into place using the 6 screws removed as described above, re-connect the wires to the Commands and Light, replace the metal grease filter and the Panel.
Connections

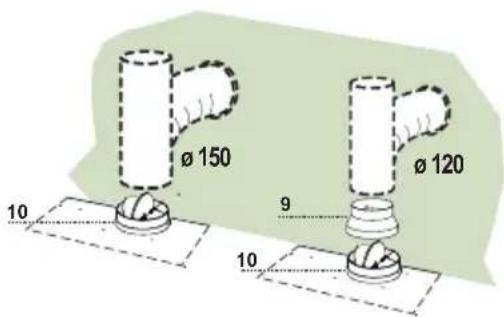

DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm the choice of which is left to the installer.
Install the dumper 10
Fix the pipe in position using adequate pipe clamps (not supplied).
- To install a 120mm air exhaust connection, insert the reducer flange 9 on the dumper 10.
- Remove any activated charcoal filters.

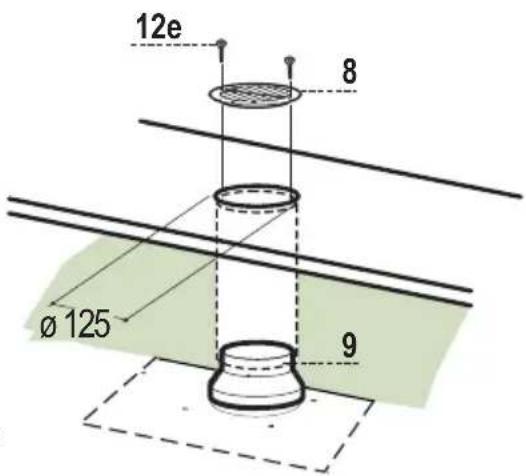

RECIRCULATION VERSION AIR OUTLET
- Cut a hole 125mm in any shelf that may be positioned over the hood.
- Insert the reducer flange 9 on the hood body outlet.
- Connect the flange to the outlet on the shelf over the hood by using a flexible or rigid pipe 120mm
Fix the pipe in position using sufficient pipe clamps (not supplied).
Fix the air outlet grid 8 on the recirculation air outlet by using the 2 screws 12e (2,9 x 9,5) provided. - Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION
- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm..

ABCDEFGH







Control panel
| Button | Function | Display |
| A | Turns the suction motor on at speed one and off at any speed. | Displays the set speed |
| B | Decreases the working speed. Displays the set speed | |
| C | Increases the working speed. Displays the set speed | |
| D | Activate intensive speed from any other speed, including motor off. This speed is set to operate for 10 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes. | Displays HI and the time remaining once very second. |
| Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm On and Off. | FC+Punto (2 flashes)-Alarm On. FC+Punto (1 flash)-Alarm Off. | |
| E | 24H function Turns the suction motor on at speed one and effects one 10 minute extraction every hour. | Displays 24 and the spot at the bottom right flashes once every second, while the motor is running. It is disabled by pressing the button. |
| When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off. | FF flashes three times. When the procedure terminates, the indication shown previously turns off: FG indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. FC indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours. | |
| F | Delay function Activate automatic switch-off with a 30' delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off. | Displays the operating speed and the spot at the bottom right flashes once a second. |
| Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Remote Control On and Off. | IR+Punto (2 flashes)-Alarm On. IR+Punto (1 flash)-Alarm Off. | |
| G | Turns the lighting system on and off at maximum intensity. | |
| H | Turns the Courtesy Lighting on and off. | |
REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).
- Do not place the remote control near to heat sources.
- Used batteries must be disposed of in the proper manner.
Opening Panel
- Open the Panel by pulling it.
- Clean the outside with a damp cloth and neutral detergent.
- Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.


Metal grease filters
They can be washed in the dishwasher, and need to be cleaned whenever the FG sign appears on the display or at least once every 2 months use, or more frequently if use is particularly intensive.
Resetting the alarm signal
- Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.
- Press button E (see the paragraph on Use).
Cleaning the Filters
- Open the Comfort panels by pulling on the recess.
- Remove the Filters one at a time, pushing them towards the back of the unit and at the same time pulling downward.
- Wash the Filters without bending them, and leave them to dry completely before replacing. (If the surface of the filter changes colour as time goes by, this will have absolutely no effect on the efficiency of the filter itself.)
- Replace, taking care to ensure that the handle faces forwards.
- Close the Comfort panels.

Can be washed in the dishwasher. It must be washed when Led S1 flashes or at least once every 4 months, or more frequently if use is particularly intense. Guaranteed to operate after washing for up to a maximum of 5 times before requiring replacement. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.
Activating the alarm signal
- In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
- Turn the Lights and the Suction Motor off.
-
Press D and hold for approximately 5 Seconds:
-
The message FC+Puntino flashes twice, A.C. Filter saturation alarm ACTIVATED
- The message FC+Puntino flashes once, A.C. Filter saturation alarm DEACTIVATED
REMOVING THE ACTIVATED CHARCOAL FILTER
Resetting the alarm signal
- Turn the Lights and the Suction motor off, then disable the 24h function, if enabled.
- Press button E (see the paragraph on Use).
Filter cleaning
- Open the Comfort panels by pulling on the recess.
- Remove the Metal grease filters.
- Remove the saturated Activated Charcoal Filters, as indicated (A).
- Fit the clean Filters, as indicated (B).
- Replace the Metal grease filters.
- Close the Comfort panels.


Lighting unit
Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7 W . Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
- For replacement contact technical support. ("To purchase contact technical support")
V-ZUG AG
Industriestrasse 66, CH-6301 Zug
Tel. +41 (0)58 767 67 67, Fax +41 (0)58 767 61 61
