USER MANUAL QuickSteam DBS3350 AEG

Black and white photo of a steam iron with visible branding and no text or symbols

QUICKSTEAM STEAM STATION DBS3350

GB Instruction book......23–29

Before using the appliance for the first time, please read the safety advice on page 18 carefully.

!D	Sehr geehrte Kundin, sehr geehrter Kunde,Möglicherweise erzeugt Ihre Dampfstation nach dem ersten Auff üllen mit Wasser oder nach dem erneuten Befüllen des Tanks nicht sofort Dampf. Der Grund ist, dass etwas Luft im Inneren diese Funktion für einige Sekunden verzögern kann. Haben Sie bitte etwas Geduld und drücken Sie die Dampftaste erneut.Der Dampf tritt aus, sobald Sie die Taste einige Sekunden loslassen. Es ist nicht notwendig die Taste gedrückt zu halten. Finden Sie das richtige Maß, für beste Dampfergebnisse, selbst heraus. Vielen Dank für Ihre Aufmerksamkeit. Wir wünschen Ihnen viel Freude mit Ihrer neuen Dampfstation.
!GR	Αγαπητέ πελάτη,Ενδέχεται ο ατμοσταθμός να μην παράγει αμέσως ατμό μετά την πλήρωση του με νερό για πρώτη φορά ή μετά την επαναπλήρωση του δοχείου. Η αιτία είναι μια μικρή ποσότητα αέρα στο εσωτερικό σύστημα που μπορεί να καθυστερήσει αυτή τη λειτουργία για λίγα δευτερόλεπτα. Πρέπει να είστε υπομονετικοί και να δοκιμάσετε ξανά πατώντας το κουμπί ατμού. Για τη διευκόλυνοή σας, ο ατμος θα εξέλθει ακόμα και αφού αφήσετε το κουμπί για μερικά δευτερόλεπτα και δεν χρειάζεται να πατάτε το κουμπί συνέχεια. Βρείτε το ρυθμό σας για τα καλύτερα αποτελέσματα σίδερώματος με ατμό.Ευχαριστούμε για την προσοχή σας και ελπίζουμε να απολαύσετε τον νέο ατμοσταθμό σας!
!NL	Beste klant,Het is mogelijk dat uw stoomstation niet direct stoom produceert na het eerste keer vullen met water of bijvullen van het reservoir. Dit komt doordat lucht in het systeem deze functie een paar seconden kan vertragen. Probeer het een paar keer door de stoomknop in te drukken. De stoom wordt nog vrijgegeven nadat u de knop een paar seconden heeft losgelaten dus het is niet nodig om de knop de hele tijd in te drukken. Probeer uit hoe vaak u de knop moet indrukken voor het beste stoomresultaaat. Bedankt voor uw aandacht en veel plezier met uw nieuwe stoomstation!
!F	Cher/Chère client(e),Il est possible que votre centrale vapeur ne produise pas de vapeur immédiatement après l'avoir remplie d'eau pour la première fois, ou après avoir rempli le réservoir. La cause est que de l'air à l'intérieur du système peut retarder cette fonction de quelques secondes. Patientez un instant puis réessayez en appuyant à nouveau sur le bouton de vapeur. Pour plus de facilité, la vapeur sortira encore pendant quelques secondes après que vous ayez relâché le bouton, il n'est donc pas nécessaire d'appuyer sur le bouton en continu. Trouvez votre rythme pour de meilleurs résultats. Merci pour votre attention et profi tez bien de votre nouvelle centrale vapeur !
!GB	Dear Customer,It may be possible that your steam station does not produce steam immediately after fi lling it with water for the fi rst time or refi lling the tank. The reason for this is that air trapped in the inner system can delay this function a few seconds. Please be patient and try it again by pressing the steam button. For your convenience the steam will appear after you release the steam button for a few seconds and it is not necessary to press the button all the time. Find out your rhythm for the best steaming result. Thank you for your kind attention and please enjoy your new steam station!

N O P Q RST M A B C D E F L K J I H G

D

Teile

Black and white photo of a steam iron on a flat surface (no text or symbols visible)

Diagram showing a mechanical component with labeled parts A and B, and directional arrows indicating movement or force (no readable text or symbols)

Close-up of a steam cooker with labeled parts A and B, showing internal components and a directional arrow (no text or symbols beyond labels)

Close-up of a metallic object with a circular highlight and starburst pattern (no text or symbols)

Illustration of two iron iron holders with a rising arrow indicating motion (no text or symbols)

Close-up of a keyboard key with icons and a power button symbol (no readable text or labels)

D

Close-up of a car's air conditioner with an upward arrow indicator (no text or symbols)

Close-up of a steam iron presser's side panel with buttons and a cable, showing no visible text or symbols.

D

Close-up of mechanical components with a magnified inset showing internal detail (no visible text or symbols)

1. Lassen Sie das Bügeleisen auf der Ablage immer vollständig abkühlen, bevor Sie es verstauen. Sobald das Bügeleisen abgekühlt ist, leeren Sie den Wassertank.

2. Αφήνετε πάντα το σίδερο να κρυώσει τελείως πάνω στη θέση ανάπαυσης πριν το φυλάξετε. Όταν το σίδερο κρυώσει, αδειάστε το δοχείο νερού. Αποθηκεύστε το σίδερο-ατμοποιητή.

3. Laat het strijkijzer altijd volledig afkoelen op de strijkijzersteunplaat alvorens het op te bergen. Leeg het waterreservoir, wanneer het strijkijzer is afgekoeld. Berg het stroomstrijkijzer op.

4. Laissez refroidir le fer sur son socle avant de le ranger. Lorsque le fer est froid, videz le réservoir d'eau. Rangez la centrale vapeur.

Black and white photo of a steam iron with attached power cord (no visible text or symbols)

Close-up of a white, folded garment or cushion with a dark strap, against a plain background (no text or symbols visible)

D

Illustration of a device with a lock icon and directional arrows, no readable text or symbols present.

Black and white photo of a steam iron with handle and side panel (no visible text or symbols)

N O P Q RST M A B C D E F L K J I H G

GB

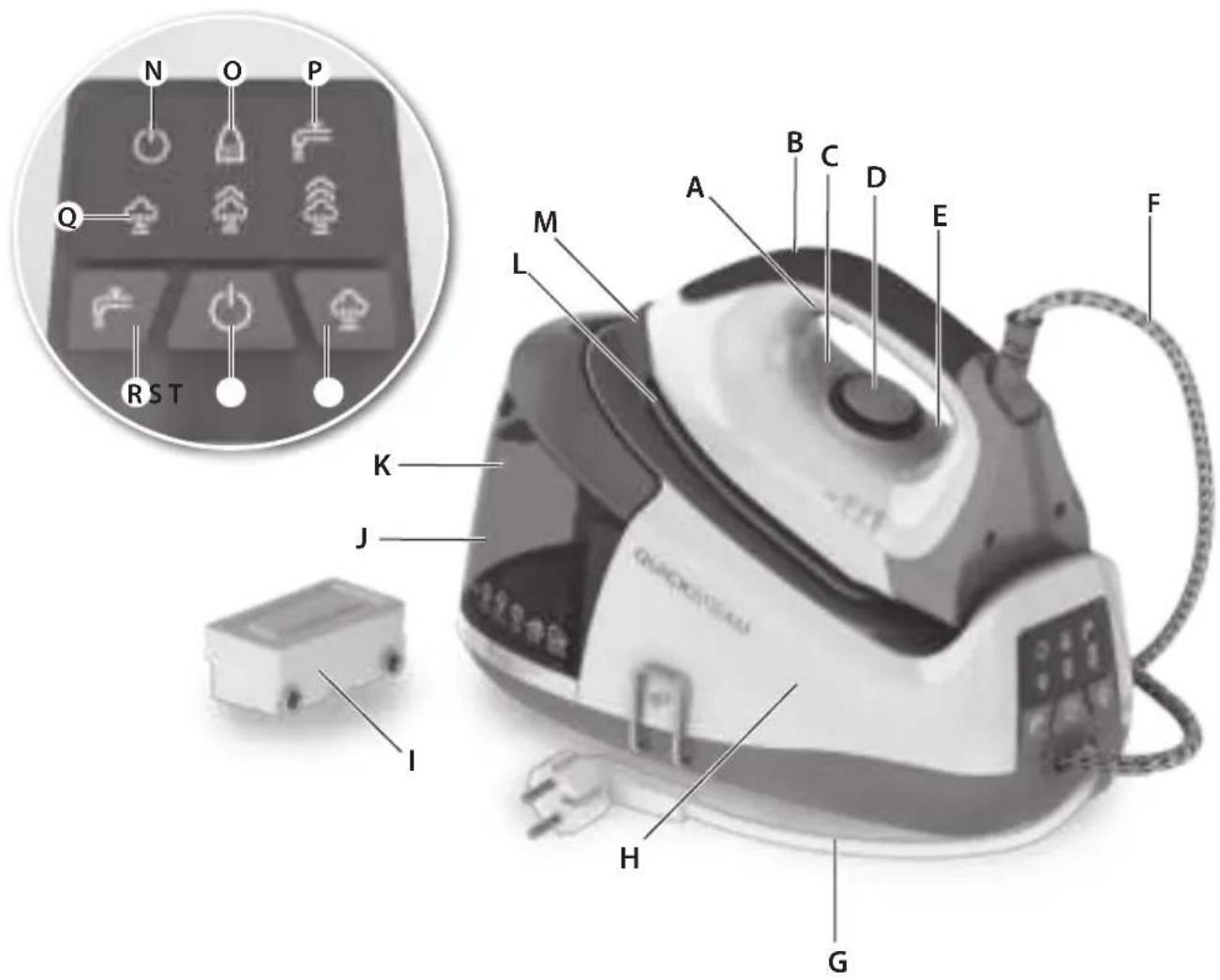

Components

A. Steam button
B. Soft handle
C. Temperature alignment mark
D. Temperature selector
E. Temperature indicator light
F. Hot water pipe
G. Mains cable
H. Base unit
I. Anti-calc cartridge
J. Water tank
K. Maximum water level indicator
L. Stainless steel soleplate
M. Iron rest
N. Power indicator light
O. Descaling indicator light
P Low level water indicator light
Q. Steam level indicator light (Low, Medium, High)
R. Refill reset button
S. Power button
T. Steam level control button

Read the following instruction carefully before using machine for the first time.

GB

and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

supervision.

age when it is energized or cooling down.

△

to use destilled water or a mix of 50% destilled, 50% tap water.

voltage and frequency comply with the specifications on the rating plate!

signs of damage on the iron or its cord or if it is leaking.

by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

the iron on its stand, ensure that the surface on which the stand is placed is stable.

mains.

each time after use, before cleaning and maintenance.

reservoir is filled with water.

appliance.

appliances.

cannot accept any liability for possible damage caused by improper or incorrect use.

Fabric Temperature setting	Ironing recommendation
Acrylic	●	Dry iron on wrong side.
Acetate	●	Dry iron on wrong side while still damp or use spray to dampen.
Nylon & Polyester	●	Iron on wrong side while still damp or use spray to dampen.
Rayon	●	Iron on wrong side of fabric.
Viscose	●	Mainly dry iron. Steam can be used under manufacturer's instructions.
Silk	●●	Iron on wrong side. Use an ironing cloth to prevent shine marks.
Cotton blends	●●	Check label and follow manufacturer's instructions. Use setting fo the fibre requiring lowest setting.
Wool & wool blends	●●	Steam iron on wrong side or use ironing cloth.
Cotton	●●	Dry iron while still damp or use spray to dampen. Use steam medium to high.
Corduroy	●●●	Steam iron on wrong side or use ironing cloth.
Linen	●●●to "max"	Iron on wrong side or use ironing cloth to prevent shine marks, especially with dark colours. Dry iron while still damp or use spray to dampen. Use steam medium to high.
Denim	●●●to "max"	Use maximum steam.
Varied ironing speed and fabric dampness might cause optimal setting to differ from that recommended in the table!

Anti-scale cartridge

Hardness To significantly reduce the built-up of lime scale in your steam station, we recommend to change the filter:
Medium water Every 20 tanks
Soft water Every 40 tanks
For the best performance we recommend cartridge from our range, reference number AEL06

Getting started

Black and white photo of a steam iron with visible iron, iron handle, and cord (no text or symbols)

1. Before first use. Remove all adhesive remains and gently rub with a dampened cloth. Position the steam generator iron horizontally on the ironing-board or on a heat resistant, secure surface at the same height as an ironing-board. Unwind and straighten the power cord and the steam cord. When turned on for the first time, temporary vapours/odours may occur.

A B

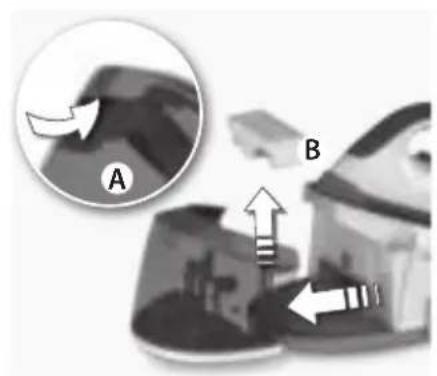

1. Remove the water tank by gripping the slot on the underside and pulling it gently away from the base unit (A). Detach the anti-calc cartridge and then immerse it in water for more than one minute (B). Insert the anti-calc cartridge back. Fill the water tank using cold water. It is recommended to use destilled water or a mix of 50% destilled, 50% tap water. Empty the water tank to rinse out any foreign particles which may remain from the manufacturing process.

Close-up of a kitchen appliance with labeled parts (A and B) and an arrow indicating a process or operation (no readable text or symbols)

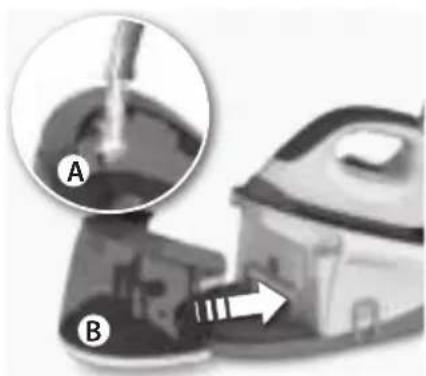

1. Always refill the water tank to MAX level using cold water. (A). Insert the water tank into the base unit (B). It is recommended to use destilled water or a mix of 50% destilled, 50% tap water. Ensure that the water tank latches securely into place.

Close-up of a computer keyboard interface with labeled buttons A and B, showing directional arrows and a circular inset highlighting a finger mechanism.

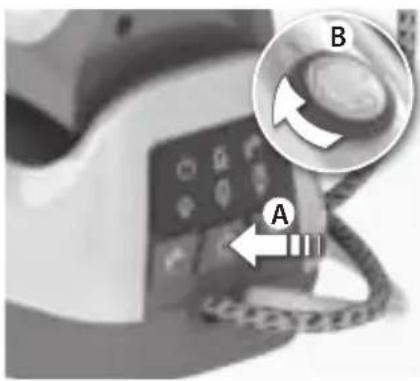

1. Connect the steam generator iron to the mains supply. Press the power button (A). Turn the temperature selector clockwise to maximum setting (B). The temperature indicator light on the iron will illuminate. Then, select a steam level on the control panel, from low - medium - high steam.

Close-up of a mechanical component with a circular feature and starburst pattern (no text or symbols)

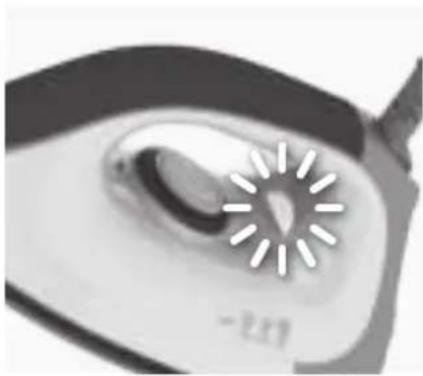

1. When the temperature indicator light turns on, the steam station is pre-heating. When the light turns off, it is ready to be used. Press and hold the steam button for about one minute to get steam. Then hold one more minute in order to clean the steam generating system.

Illustration of two iron iron holders with a magnified view of their hair (no text or symbols)

1. Iron an old towel, to ensure that any residues inside the iron are not transferred to the laundry. If necessary, wipe the sole plate with a slightly damp cloth.

Operating instructions

Close-up of a keyboard key with icons and a power symbol (no readable text or labels)

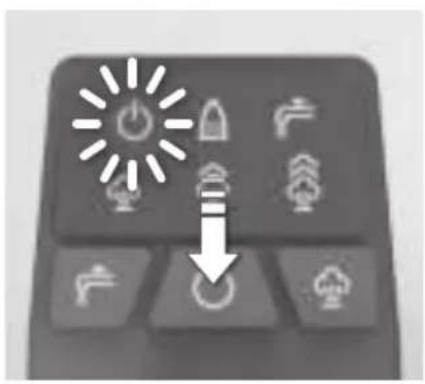

1. Connect the steam generator iron to the mains supply. Press the power button. When the power switch is pressed, the power indicator will illuminate. Wait for one to two minutes, until the steam lamp illuminates. Select the steam level between Low - Medium and High. See Ironing chart for ironing recommendation.

A B

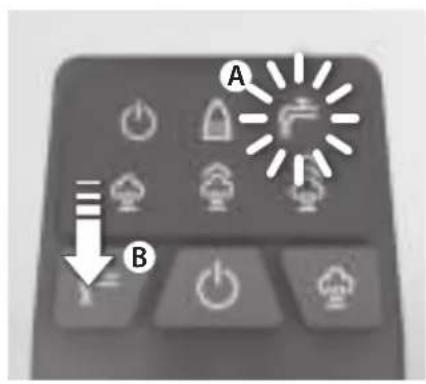

1. if the lower water level indicator is illuminated (A) (followed with two beep sounds), refill the water tank. After refilling the water tank, press and hold the refill reset button (B) for about 6 seconds. The refill reset button will be extinguished. Steam can now be used again.

Close-up of a steam iron with an upward arrow indicating motion (no text or symbols)

1. To activate the steam, press the steam button. When releasing the button, use up the steam before putting it back on the iron rest of the steam station.

Close-up of a vintage iron iron telephone with keypad and cord (no visible text or symbols)

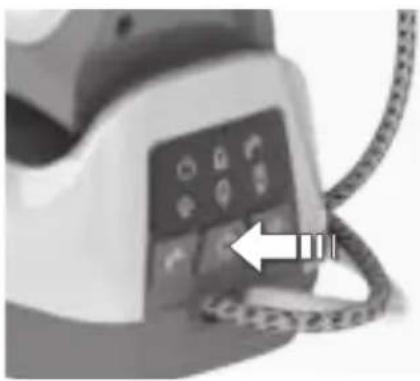

1. To turn off the iron by pressing the power button for a while, until a beep will sound. If the iron is left unattended on the iron rest, it turns

Close-up of a mechanical component with an arrow pointing to a detail, and a magnified inset showing a close-up of a device (no visible text or symbols)

1. Always cool the iron fully on the iron rest before stowing away. Once the iron is cool, empty the water tank. Store the steam generator iron

Black and white photo of a steam iron with attached power cord (no visible text or symbols)

1. Always store the cord winded safely by the side of the iron. NEVER wind the power cord around the iron

Close-up of a white fabric or cushion with a curved seam, no visible text or symbols

1. Always store iron on its heel rest. To clean exterior surfaces, use a damp soft cloth and wipe dry. Caution: Do not use any chemical solvents, as these will damage the surface.

Illustration of a smart home with a keypad and device icons, showing upward and downward arrows (no text or symbols)

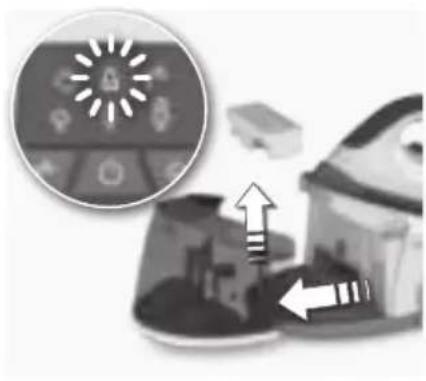

1. Replacing the de-calc box: If the descaling indicator is illuminated detach the water tank. Remove the de-calc box by pulling it upwards. Immerse a new de-calc box in water for more than one minute, then place it inside the water tank. Ensure the new de-calc box is correctly positioned, if not, the descaling
   For the best performance we recommend cartridge from our range, reference number AEL06.

Side view of a steam iron with visible steam rising and cooling (no text or symbols)

1. When finished using the appliance, turn the temperature dial to the OFF ("0") position. Store the iron on the iron rest. Note: Do not store the iron with water in the tank.

Problem Possible cause Solution
Soleplate is not heating even though iron is turned on.	Connection problem Check main power supply cable, plug and outlet.
	Temperature control is in MIN position. Select adequate temperature.
Iron does not produce steam. Not enough water in tank. Fill water tank (see “Getting started”, no 2).
			Steam control is selected in non-steam position.	Set steam control between positions of minimum steam and maximum steam (see “Ironing chart”).
			Selected temperature is lower than that specified to use with steam.	Increase temperature to at least ●●
Steam jet and vertical steam jet function does not work.	Steam jet function was used very frequently within a short period.	Put iron on horizontal position and wait before using steam jet function.
	Iron is not hot enough. Adjust the proper temperature to steam ironing (up to ●●). Put iron in vertical position and wait until temperature indicator light turns off.
Water leaks from the soleplate during ironing.	The iron is not hot enough. Set the temperature dial to a temperature (●●to maximum) suitable for steam ironing. Put the iron on its heel and wait until the light has gone out before you start ironing.
Flakes and impurities come out of the soleplate during ironing.	You have used hard water, which has water tank.	Press and hold the steam button for about one minute to get steam. Then hold one more minute in order to clean the steam generating system. Iron an old towel, to ensure that any residues inside the iron are not transferred to the laundry.
Water leaks from the soleplate while the iron is cooling down or after it has been stored.	The iron has been put in horizontal position while there is still water in the water tank.	Empty the water tank and set the steam control to position off before storing the iron.
Brown streaks come out of the soleplate while ironing and stain the linen.	You have used chemical descaling agents.	Do not use any descaling agents.
	Fabric fibres have accumulated in the holes of the soleplate and are burning.	Clean the soleplate with a damp soft cloth.
	Fabrics might not be properly rinsed or the garments are new and have not been washed before ironing.	Please rinse the laundry properly again.

Disposal

Recycle the materials with the symbol

Put the packaging in applicable

containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with

with the household

the symbol

waste. Return the product to your local recycling facility or contact your municipal office.
