Ventus 200 - Heating Sonnenkönig - Free user manual and instructions

Product type	Fan heater
Brand	Sonnenkönig
Model	Ventus 200
Dimensions (L x W x H)	19.8 x 31.5 x 22.5 cm
Weight	3.5 kg
Power supply	220-240 V / 50 Hz
Rated power	2000 W
Rated current	8.3 - 9.1 A
Protection (IP)	IP24
Power settings	25 W (ventilation only), 1000 W, 2000 W
Temperature range	5 °C to 30 °C
Main functions	Adjustable thermostat, ventilation only, overheating protection, automatic reset
Maintenance and cleaning	Unplug and let cool; clean the casing with a soft sponge and mild detergent; do not immerse or use solvents
Safety	Do not cover, keep away from combustible materials, do not use in a bathroom or outdoors in wet weather
Spare parts and repairability	Repairs reserved for qualified technician; use of original parts recommended
Warranty	24 months from the date of purchase upon presentation of proof of purchase
General information	Indoor use only; first use may emit slight smoke (normal); do not use with an external timer

Frequently Asked Questions - Ventus 200 Sonnenkönig

How to use the Ventus 200 heater for the first time?

Plug in the device, set the thermostat to MAX and the power button to the desired level (e.g. 2000 W). The device may emit a slight smoke during first use due to protective oil on the heating element; this is normal and disappears after a few minutes.

What are the different power settings?

The left button allows selecting three positions: ventilation only (25 W), 1000 W and 2000 W. The thermostat (right button) allows setting the desired temperature between 5 and 30 °C.

Why does the fan continue to run even when the heating element turns off?

This is normal: the thermostat turns off the heating element when the set temperature is reached, but the fan continues to circulate air. The element restarts when the temperature drops.

What to do in case of overheating or if the device shuts down automatically?

The device has an overheating protection with automatic reset. Unplug the device, wait at least 10 minutes for it to cool down, then plug it back in. If the problem persists, check that the air intakes are not obstructed.

Where to place the Ventus 200 heater?

Place it on a flat and stable surface, indoors only, at least 1 meter away from any combustible object (curtains, furniture, etc.). Do not place it under a power socket and avoid humid environments like bathrooms.

How to clean the device?

Unplug it and let it cool. Clean the casing with a soft sponge dipped in warm water (< 50 °C) with a mild detergent, then dry with a clean cloth. Never use solvents or water inside the device.

Can I use an extension cord with the heater?

Yes, but it should be as short as possible and fully unrolled. Use an extension cord suitable for the power (minimum 10 A). Do not plug any other device into the same outlet.

The device emits an unusual noise, what to do?

Check that the device is placed flat on a stable surface. An abnormal noise may come from an inclined position. If the noise persists, contact a qualified technician.

How long does the warranty last?

The warranty is 24 months from the date of purchase. Keep your proof of purchase (receipt, invoice) for any claim.

How to dispose of the device at the end of its life?

Do not dispose of the device with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE). Batteries (if present) must be removed and disposed of in a specific container.

USER MANUAL Ventus 200 Sonnenkönig

VENTUS 200/210/500/900/1500

HEIZGEBLÄSE

VENTUS 210: 20600612 VENTUS 200: 20600512 VENTUS 500: 20600714

VENTUS 900:20600414 VENTUS 1500:20600314

FIRMA

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel.Nat.0848870850

Sonnenkönig of Switzerland

VENTUS 200/210/500/900/1500

CHAUFFAGE PAR SOUFFLERIE

VENTUS 210: 20600612 VENTUS 200: 20600512 VENTUS 500: 20600714

VENTUS 900:20600414 VENTUS 1500:20600314

MAISON

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel.Nat.0848870850

Sonnenkönig of Switzerland

Modifications techniques

VENTUS 200/210/500/900/1500

SOFFIATORE DI ARIA CALDA

VENTUS 210: 20600612 VENTUS 200: 20600512 VENTUS 500: 20600714

VENTUS 900:20600414 VENTUS 1500:20600314

DITTA

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel.Nat.0848870850

Sonnenkönig of Switzerland

VENTUS 200/210/500/900/1500

HEATER BLOWER

VENTUS 210: 20600612 VENTUS 200: 20600512 VENTUS 500: 20600714

VENTUS 900:20600414 VENTUS 1500:20600314

COMPANY

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel.Nat.0848870850

Sonnenkönig of Switzerland

Please read and understand these instructions completely before attempting to assemble, operate or install the product.

This manual contains important information about the installation, operation and maintenance of this patio heater. General safety information is presented on these first pages and is also found throughout this manual. Retain this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product. Safety precautions are essential when dealing with mechanical or propane powered equipment. These precautions are required when using, storing and maintaining this item. Using this equipment with due respect and caution will reduce the possibility of personal injury or property damage.

Inspect the unit for damage after removing the packaging. If damage is suspected, do not operate the device and contact a specialist. The recyclable packaging material must not be kept or disposed of in a way that is accessible to small children, but must be disposed of properly.

This device may only be used for the purpose for which it was expressly designed. Any other use is to be considered improper and consequently dangerous. The supplier is not liable for any personal injury and/or damage to property resulting from improper or incorrect use.

Repairs to electrical equipment may only be carried out by qualified personnel. Improperly performed repairs and modifications to the equipment may result in dangerous consequences for the user, whereupon warranty claims will be rejected.

The following basic precautions should always be followed when handling electrical equipment:

• To avoid overheating, do not cover the heater.
• Some parts of this product may become very hot and cause burns. Special care must be taken when children and vulnerable persons are near the heater.
• The fan heater is not suitable for outdoor use in damp weather, bathrooms or other wet or humid environments.
• Please note that the fan heater can become very hot. It should therefore be placed at a safe distance from combustible objects such as furniture, curtains and the like.
• Do not cover the heater.
• Do not place the heater directly under a power outlet.
• Do not connect the radiator to an on/off timer or other devices that automatically turn the heating on or off.
• The radiator must not be stored in rooms where flammable liquids or gases are used.
• If an extension cord is used, it must be as short as possible and always fully extended.
• No other appliances may be plugged into the same outlet as the heater.
• If the power cord is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person to avoid danger.
• Place the heater far enough away from curtains and places where the air intake can be blocked.
• The power coupler is waterproof when not in use. Never use the unit with wet hands when it is not working properly and when water is on the power cord to avoid possible electric shock or power leakage.
• Do not dispose of electrical equipment as unsorted waste, use separate collection facilities. Contact the local municipality for information on collection systems. When electrical equipment is disposed of in landfills, hazardous substances can enter the groundwater and thus the food chain. Protect your health and well-being.

Children must be supervised so that they do not play with the appliance.
- Depending on the type of power cord, the fan heater can be used only in households, warehouses and workshops, construction sites or greenhouses. The heater contains a thermostat and a self-reset of the heating elements. The thermostat senses the air temperature and controls the ambient temperature. The fan motor is not controlled by the thermostat and it stops working when the thermostat turns off the heating element. The self-reset feature turns the unit off to prevent overheating.
- When the heater is used for the first time, there may be a slight emission of smoke. This is quite normal and will pass after a short time. The heating element is made of stainless steel and has been coated with protective oil during manufacture. The smoke is caused by the residual oil when it is heated.
- The housing is made of sheet steel and has been coated with heat-resistant powder.
- It is supplied complete with cable and plug.

03 - TECHNICAL DETAILS

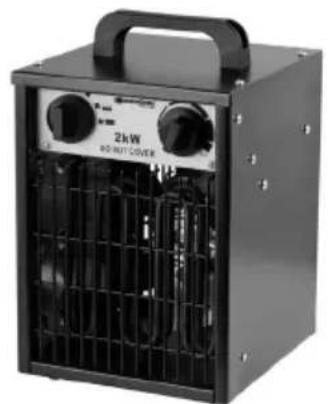

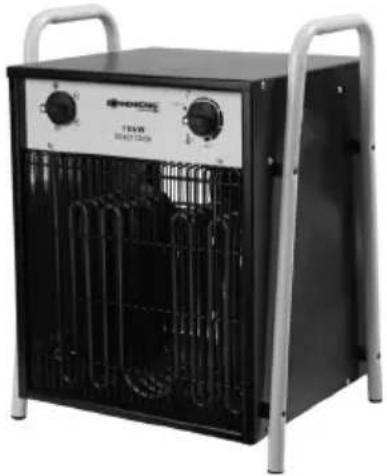

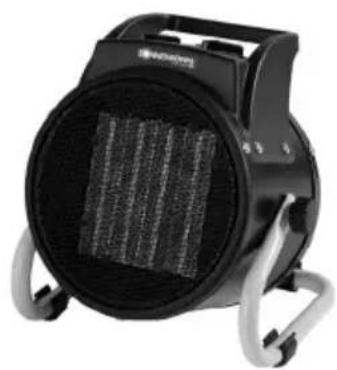

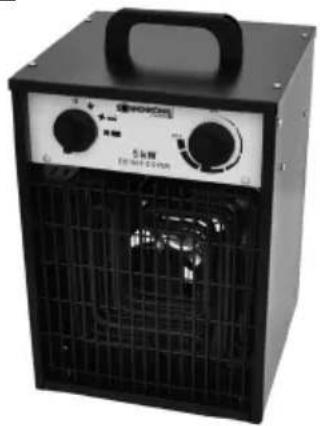

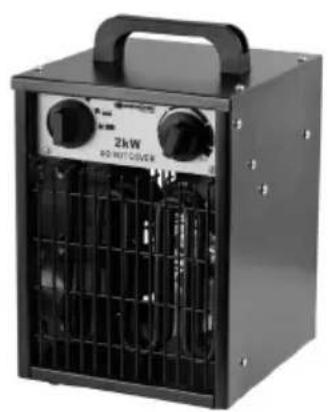

Model	VENTUS 200	VENTUS 210	VENTUS 500	VENTUS 900	VENTUS 1500
Protection class	IP24 IP20 IP24 IP24 IP24
Voltage	220-240/50 Hz 220-240/50 Hz 400/50 Hz 400/50 Hz 400/50 Hz
Required power	2000 W 2000 W 5000 W	9000 W 15000 W
Current	8.3 A~9.1 A 8.3 A~.19	A 7.2 A	13 A	21.7 A
Required safety	10 A	10 A	10 A	15 A	25 A
Setting	25/1000/ 2000 W	25/1000/ 2000 W	30/2500/ 5000 W	52/4500/ 9000 W	95/5000/10000/ 15000 W
Temperature range	5-30°C	5-30°C	5-30°C	5-30°C	5-30°C
Mass	19.8 x 31.5 x 22.5 cm	21 x 21.7 x 16 cm	27 x 40 x 25.5 cm	35.5 x 49 x 30 cm	41 x 55 x 36 cm
Weight	3.5 kg	1.5 kg	5.6 kg	9.6 kg	14.5 kg

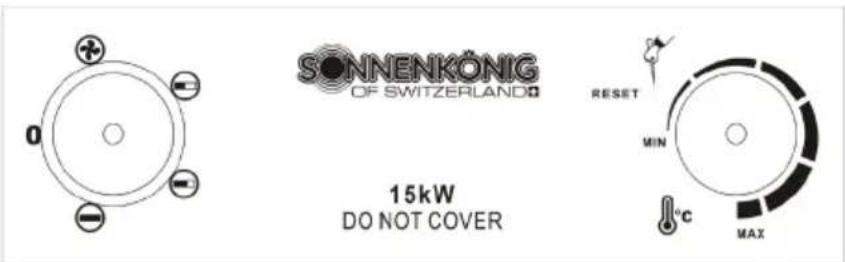

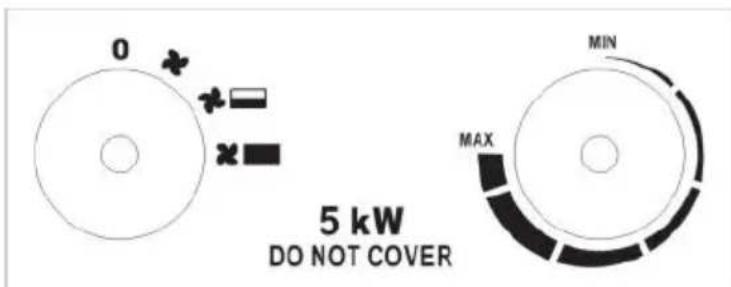

04 - CONTROLS

Left button: Heating level selector

Right button: Thermostat

Reset: Reset the device

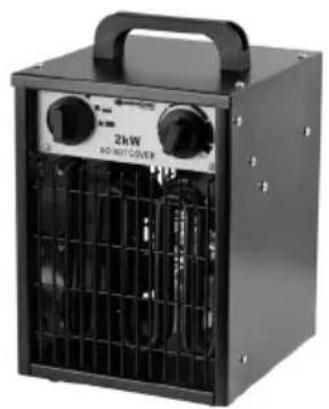

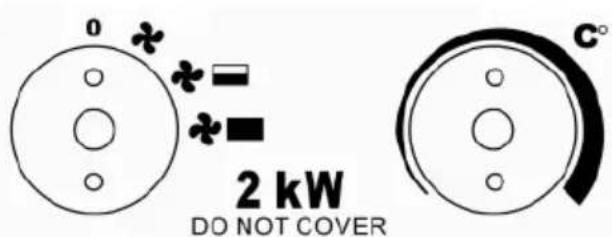

VENTUS 200

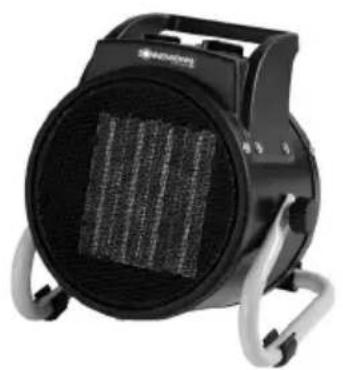

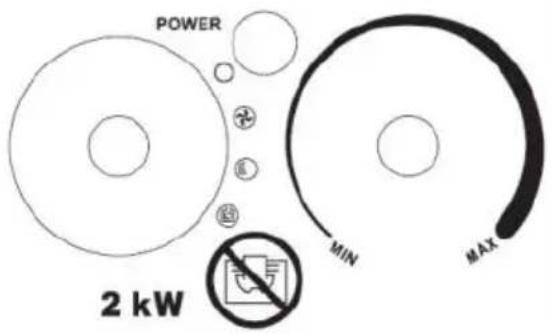

VENTUS 210

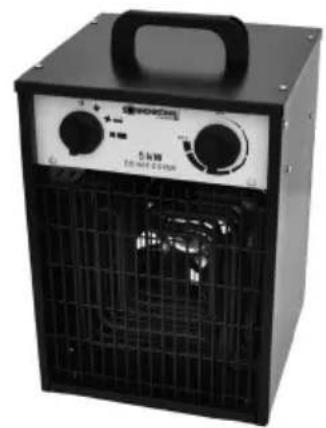

VENTUS 500

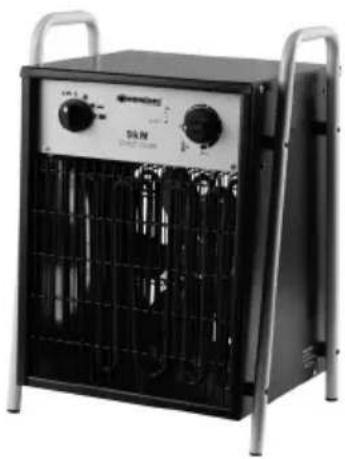

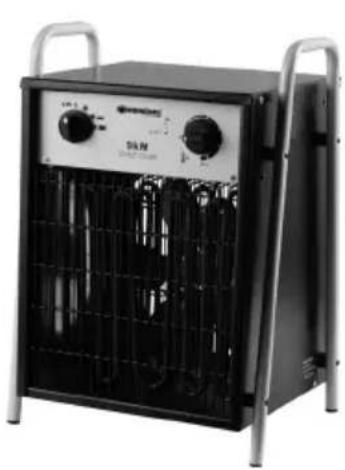

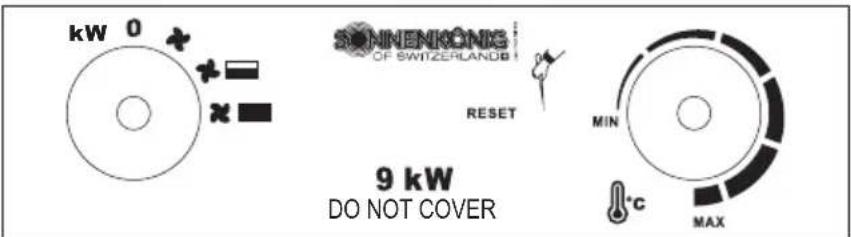

VENTUS 900

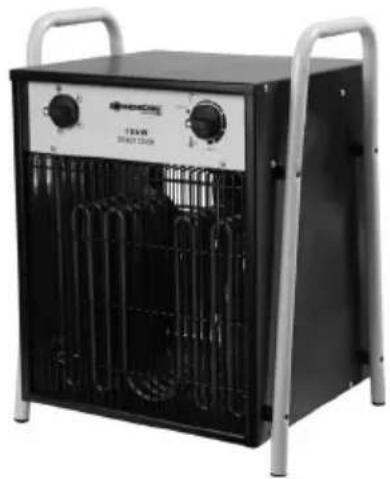

VENTUS 1500

05 - HOW TO USE

Important: VENTUS 900 and 1500 are supplied with a detachable cable which must be used exclusively for our VENTUS units. Any other use may result in damage and no liability will be accepted.

1. Position the fan heater so that it is upright on a solid surface and at a safe distance from wet environments and flammable objects.
2. Connect the fan heater to the mains supply.
3. Set the thermostat knob to MAX and run the heater at full power.
4. The fan heater will turn on when any of the power settings are set.
5. Once the room reaches the desired temperature, the heating element will stop working, but the fan will continue to work. As soon as the temperature is decreased, the heating element will start working again. The fan heater will now start and stop automatically, maintaining a constant room temperature.
6. Before turning off the heater, set the thermostat to the MIN position and turn it to the fan position. Let the unit cool down for two minutes, then you can turn off the unit and unplug it.

06 - CLEANING, CARE AND MAINTENANCE

• Unplug the device from the power outlet and let it cool down before you start cleaning. If the housing is slightly dirty, clean it with a soft sponge. Dirty parts should be cleaned with a sponge which has been dipped in < 50^ C hot water and a mild detergent and then dried with a clean cloth. Make sure that there is no water in the unit. Do not splash water on the heater. Never use solvents such as gasoline, etc. to protect the housing.
• Clean and dry the cables and plugs, then you can store them in a plastic bag.
• If you want to stow the heater, let it cool down first. Let the heater dry and store it in a plastic bag. Place the heater in its original packaging and store it in a dry and well-ventilated place.

Many problems can be solved by yourself, saving you repair costs. Try the following suggestions to see if the problem can be solved before contacting customer service.

Problem Possible cause Remedy
The heater does not work even though it is plugged in and the thermostat is on.	The connector is loose, the connection is bad.	Pull out the plug and check the connection of the plug and the socket. Reconnect the device.
	No power on the socket. Insert the plug into another socket.
The heating element is glowing.	The input voltage is too high or too low.	Use the power supply that is indicated on the label.
	The air inlet is blocked. Place the heater far enough away from curtains, plastic bags, paper and other things that can cover the inlet.
The unit does not heat, only the fan is running.	The switch has not been set to heat.	Turn the switch to a heat setting.
	Operate the thermostat. Turn the thermostat and listen when it clicks to open/close. If no click is heard and the thermostat is not damaged, the heater will automatically turn on when the unit has cooled.
	The reset is still working. Turn off the heater and unplug it. Wait at least ten minutes before turning the heater back on to allow the protection system to reset.
Unusual noise. The unit is not upright. Place the device on a level surface.

Warranty

All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees. Please save the packaging materials of the unit.

Disposal

Please remove the heater properly. You can bring the product to any specialist dealer for he removal.

Technical changes

Technical changes in technique and design are possible.

CE declaration of Conformity

This device complies with the following standards

VENTUS 200/210

EMC EN IEC 55014-1:2021

EN IEC 55014-2:2021

ENIEC61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

LVD EN 60335-2-30:2009/A12:2020

EN 60335-1:2012/A15:2021

EN 62233:2008

VENTUS 500/900

EMC EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN 61000-3-3:2013+A1+A2

ENIEC61000-3-2:2019+Al

LVD EN 60335-1:2012+A11+A13+A1+A

14+A2+A15

EN60335-2-30:2009+A11+A1+A12

EN 62233:2008

VENTUS 500/900

EMC EN IEC 55014-1:2021

EN IEC 55014-2:2021

ENIEC61000-3-11:2019

EN 61000-3-12:2011

LVD EN 60335-1:2012+A11+A13+A1+A

14+A2+A15

EN60335-2-30:2009+A11+A1+A12

EN 62233:2008

LVD 2014/35/EU

EMC 2014/30/EU

RoHS 2015/863/EU

Any modifications or repairs to the device must be carried out by a qualified person.

Since the development of the produced devices is constantly progressing, your product may differ minimally from the one described.

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury , Cd = Cadmium , Pb = Lead .

NL

NEDERLANDS

VENTUS 200/210/500/900/1500

HETELUCHTBLAZER

VENTUS 210: 20600612 VENTUS 200: 20600512

VENTUS 500:20600714

VENTUS 900:20600414

VENTUS 1500:20600314

BEDRIJF

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel.Nat.0848870850

Sonnenkönig of Switzerland

Table for information requirements for VENTUS 200/210/250/500/900/1500
Item	Symbol	Value	Unit	Item	SUNNEVOLVD
Heat output Type of heat input, for electric storage local space heaters only (select one)
VENTUS 200				Manual heat charge control with integrated thermostat [no]
Nominal heat output P	nem	2 kW		Manual heat charge control with room and/or outdoor temperature feedback	[no]
Minimum heat output (indicative)	Pmin	1 kW		Electronic heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	Pmax	2 kW		Fan assisted heat output [no]
VENTUS 210				Type of heat output/room temperature control (select one)
Nominal heat output P	nem	2 kW		Single stage heat output and no room temperature control	[no]
Minimum heat output (indicative)	Pmin	1 kW		Two or more manual stages, no room temperature control	[no]
Maximum continuous heat output	Pmax	2 kW		With mechanical thermostat room temperature control	[yes]
VENTUS 500				With electronic room temperature control	[no]
Nominal heat output P	nem	5 kW		Electronic room temperature control plus day timer	[no]
Minimum heat output (indicative)	Pmin	2.5	kW	Electronic room temperature control plus week timer	[no]
Maximum continuous heat output	Pmax	5 kW		Other control options (multiple selections possible)
VENTUS 900				Room temperature control, with presence detection	[no]
Nominal heat output P	nem	9 kW		Room temperature control, with open window detection [no]
Minimum heat output (indicative)	Pmin	4.5	kW	With distance control option	[no]
Maximum continuous heat output	Pmax	9 kW		With adaptive start control	[no]
VENTUS 1500				With working time limitation	[no]
Nominal heat output P	nem	15 kW		With black bulb sensor	[no]
Minimum heat output (indicative)	Pmin	5 kW
Maximum continuous heat output	Pmax	15 kW
Auxiliary electricity consumption
At nominal heat output	eLmax	N/A	kW
At minimum heat output	eLmin	N/A	kW
In standby mode	eLSB N/A W
