Product Type	Wristwatch
Brand	Lotus
Model	15802
Movement	Quartz
Display	Analog
Main Functions	Hours, minutes, seconds, date, chronograph (59 min 59 s)
Glass	Mineral
Case	Stainless steel
Strap	Leather
Power supply	Button cell battery (1 piece)
Battery life	Approximately 2 to 3 years
Water resistance	30 meters (3 ATM)
Case dimensions	Approximately 40 mm diameter, 10 mm thickness
Strap width	20 mm
Weight	Approximately 80 g
Care and cleaning	Clean with a soft, dry cloth. Avoid chemicals.
Safety	Avoid strong shocks, exposure to strong magnetic fields, and extreme temperatures.
Spare parts and repairability	Battery and strap replaceable by a watchmaker. Repair possible by a professional.
General information	Lifecycle: comply with WEEE regulations for end-of-life recycling.

Frequently Asked Questions - 15802 Lotus

How to set the time on the Lotus 15802 watch?

Pull the crown to the setting position (second click). Turn the crown to set the hour and minute hands. Then push the crown back in to restart the second hand.

How to set the date on the Lotus 15802 watch?

Pull the crown to the first click. Turn it counterclockwise to set the date. Avoid setting the date between 9 PM and 1 AM. Push the crown back in to finish.

How to use the chronograph?

Press button A to start timing. Press A again to stop. Use button B to reset the chronograph to zero. The chronograph second hand and minute hand return to zero.

What to do if the chronograph second hand does not return to zero?

Perform a reset: pull the crown to the second click, press button A to bring the second hand to zero (continuous press to speed up). Push the crown back in once the zero position is reached.

How to change the battery of the Lotus 15802 watch?

It is recommended to have the battery replaced by a professional watchmaker. After replacement, a chronograph reset may be necessary.

Is the Lotus 15802 watch waterproof?

Yes, it is water-resistant up to 30 meters (3 ATM). It withstands splashes but is not suitable for diving.

How to clean my Lotus 15802 watch?

Use a soft, dry cloth to wipe the case and strap. Avoid solvents or abrasive products that could damage the glass or strap.

What to do if the watch stops?

First check if the battery is discharged. If the battery is new, a shock or magnetic field may have disturbed the movement. Consult a watchmaker if the problem persists.

How to recycle my watch at end of life?

In accordance with WEEE regulations, dispose of your watch at an approved collection point or with a partner retailer for proper treatment and recycling.

Where to find spare parts for the Lotus 15802?

Spare parts (battery, strap) are available from authorized watchmakers or Lotus after-sales service centers.

USER MANUAL 15802 Lotus

USANDO EL CRONÓGRAFO

Displays and Buttons 10

Setting the time 11

Setting the Date 11

Using the Chronograph 12

Chronograph reset (incl. after replacing battery) 13

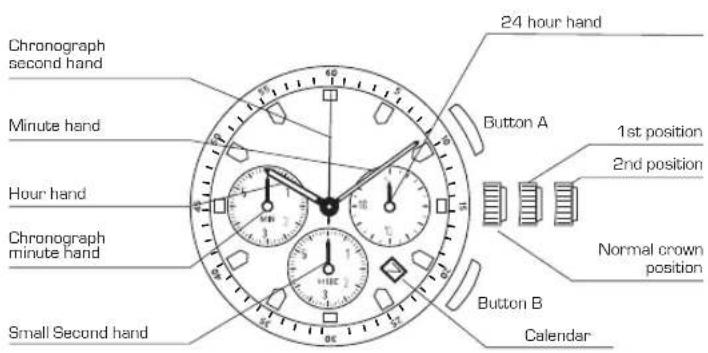

DISPLAYS AND BUTTONS

ILMOS20ILMOS20

SETTING THE TIME

1. Pull the crown out to the 2nd position.
2. Turn the crown to set hour and minute hands.
3. When the crown is pushed back to the normal position, small second hand begins to run.

SETTING THE DATE

1. Pull the crown out to the 1st position

2. Turn the crown counter-clockwise to set the date.

3. If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.

4. After the date has been set, push the crown back to the normal position.

USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 59 minutes 59 seconds.
The chronograph second hand keeps continuously for 59 minutes 59 seconds after starting.

[Measuring time with the chronograph]

1. The chronograph can be started and stopped each time button "A" is pressed.
2. Pressing button "B" resets the chronograph and the chronograph second hand and chronograph minute hand return to zero position.

ILMOS20JLMOS20

CHRONOGRAPH RESET [Incl. after replacing battery]

This procedure should be performed when the chronograph second hand does not return to zero position after the chronograph has been reset, and including after the battery has been replaced.

1.Pull the crown out to the 2nd position.
2. Press button "A" to set the chronograph second hand to the zero position. The chronograph hand can be advanced rapidly by continuously pressing button "A".
3. Once the hand have been zeroed, return the crown to the normal position.

• Do not push crown to normal position while the chronograph second hand returns to zero position. It stops on the way when crown are returned to normal position and its position is recognized as zero position.

MANUEL D'INSTRUCTION

CHRONOMÉTURE

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products

must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

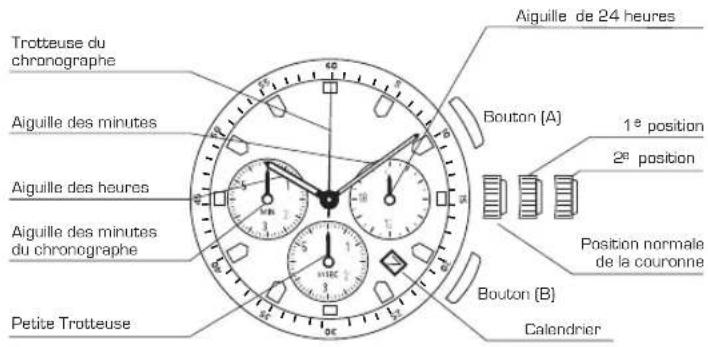

INDICATIONS ET BOUTONS

RÉGLAGE DE L'HEURE
