SPD3050 - External hard drive PHILIPS - Free user manual and instructions

Product Type	External Hard Drive
Brand	Philips
Model	SPD3050
Capacity	Varies by model
Interface	USB 2.0 (High Speed)
Transfer Speed	480 Mb/s
Rotation Speed	7200 RPM
Cache Memory	8 MB or 32 MB depending on version
System Requirements	USB 1.1 or 2.0 port, Windows 2000/XP/Vista, Mac OS
Power Supply	External power adapter (included)
Dimensions (approx.)	200 x 120 x 40 mm
Weight (approx.)	1 kg
Package Contents	Hard drive, power adapter, power cord, USB cable, user manual
Default File Format	NTFS (Windows), reformattable to FAT32 for Mac
Connection	Connect the power supply then the USB cable to the computer
Safe Removal	Use the "Safely Remove Hardware" icon in the system tray
Installation for Mac	Reformat the drive to FAT32 via Disk Utility
Maintenance	Avoid water and shocks, install in a well-ventilated area
Safety	Do not use for illegal copying; keep plastic bags away from children
Warranty	Information available in the "Philips Warranty" folder on the drive

Frequently Asked Questions - SPD3050 PHILIPS

How to connect the Philips SPD3050 external hard drive to my computer?

First plug the power adapter into the drive and the power outlet, then connect the USB cable between the drive and a free USB port on the computer. A blue light turns on and a drive icon appears in Windows Explorer.

How to safely disconnect the hard drive?

Double-click the Safely Remove Hardware icon in the system tray, select the device, click Stop, then confirm. Wait for the message 'Safe to Remove Hardware' before unplugging.

Can I use this hard drive with a Mac?

Yes, but it is preformatted as NTFS for Windows. For Mac, you must reformat it to FAT32 via Disk Utility. Note that this operation erases all data on the drive.

What is the storage capacity of the Philips SPD3050?

The capacity varies depending on the model purchased. Check the packaging or your device specifications for the exact capacity.

Why doesn't my computer detect the hard drive?

Check that the power is connected and the USB cable is properly attached. Try another USB port. If the problem persists, restart the computer or consult the user manual.

What is the transfer speed of the hard drive?

The drive supports USB 2.0 with a maximum transfer speed of 480 Mb/s and a rotation speed of 7200 RPM.

Is the hard drive compatible with Windows 10?

The manual indicates compatibility with Windows 2000, XP, and Vista. For Windows 10, it should work via generic USB drivers, but Philips does not officially guarantee it.

How to format the hard drive to FAT32 for Mac?

Back up your data. Open Disk Utility on Mac, select the Philips drive, click 'Erase', choose FAT32 (or MS-DOS FAT) format, and confirm.

Where to find warranty information?

Warranty information is located in the 'Philips Warranty' folder on the hard drive. You will need Adobe Reader to open the PDF file.

What to do if the blue light does not turn on?

Check that the power adapter is properly connected and the power cord is not damaged. Try another electrical outlet. If the light remains off, contact Philips support.

USER MANUAL SPD3050 PHILIPS

Exterior view of a Philips electronic device (no additional text or symbols visible)

Contents

EN

4 What's in the box?
4 How to connect?
5 How to disconnect?
5 Installation for Mac
6 Important information
7 Need help?
8 FCC Compliance

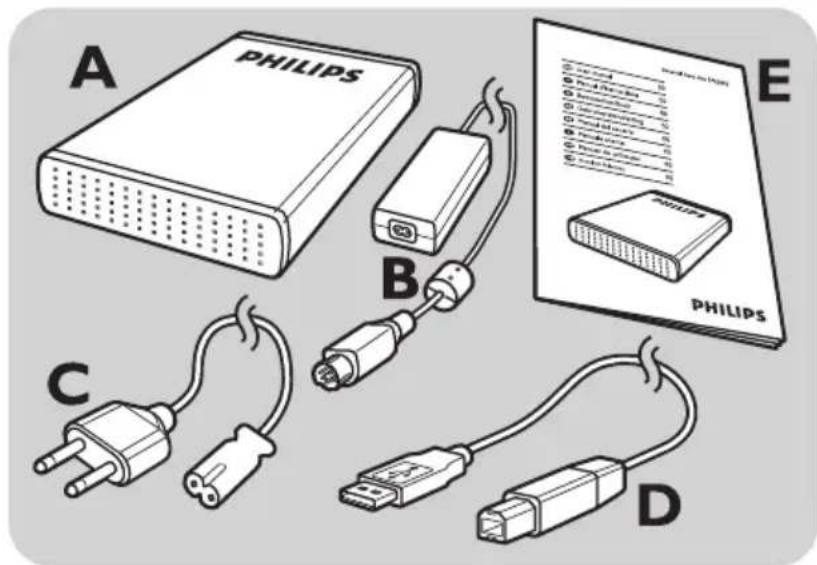

What's in the box?

A : External hard disk

B : Power adapter

C: Power cord

D: USB cable

E : User manual

How to connect?

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text labels)

Put the Power Adapter (B) and the Power Cord (C) together and connect them to the external hard disk and a power outlet.

Diagram showing connection between a Philips device and a server, with no visible text or symbols.

Plug the USB cable (D) in the USB port of your external hard disk. Connect the other side of the USB cable to an empty USB port of your computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer and the Blue light should light up. (To use the new hardware, the computer sometimes needs to be restarted)

Your hard disk is now ready to use and you can now save and copy data, just as you do when using your internal hard disk.

How to disconnect?

EN

I Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen.
2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.
3 When the Stop a hardware device screen appears, make sure the correct information is displayed, and then click the OK button.
4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

Installation

Installation for Mac

The hard disk is preconfigured for Windows 2000,

Windows XP and Windows Vista, with a NTFS format.

For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Look on your external hard disk and browse to the folder ‘Philips Warranty’.

You need Adobe Reader software to open these files. If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

"The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes."

WEEE mark: "Information to the Consumer"

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise

you to handle electronics with good care: Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Capacity Depending on model

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 7200 rpm

Cache memory 8 MB/32 MB*

System requirements USB 1.1 (USB 2.0 for

max. transfer speed)

Windows 2000,

Windows XP,

Windows Vista

* for versions >= 750 GB

Need help?

For interactive help and support:

www.philips.com/support

For software updates and frequently asked questions:

www.philips.com/storageupdates

Caution:

Changes or modifications made to this equipment not expressly approved by Philips may void the FCC authorization to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The shielded interface cable and connectors must be used in order to comply with the limits for digital device pursuant to subpart B of Part 15 of FCC Rules.

Table des matières

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text or symbols)

Diagram showing connection between a Philips device and a server, with no visible text or symbols

Be responsible Respect copyrights

* for versions >= 750 GB

Aide

www.philips.com/support

Diagram of a Philips power supply connected to an electrical outlet, showing cable routing and wiring (no text or symbols)

Diagram showing connection between a Philips device and a server, with no visible text or symbols

Be responsible Respect copyrights

* for versions >= 750 GB

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text labels)

Diagram showing connection between a device labeled 'PHILIPS' and a server, with no visible text or symbols beyond the label.

Be responsible Respect copyrights

* for versions >= 750 GB

Hulp nodig?

www.philips.com/support

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text or symbols)

Diagram showing connection between a device labeled 'PHILIPS' and a server with cables (no text or symbols beyond label)

* for versions >= 750 GB

¡Necesita ayuda?

www.philips.com/support

Diagram of a Philips power supply connected to an electrical outlet, showing cable routing and wiring (no text or symbols)

Diagram showing connection between a Philips device and a server, with no visible text or symbols

* for versions >= 750 GB

Assistenza

Diagram of a Philips power supply connected to an electrical outlet via cable and plug (no text or symbols)

Diagram showing connection between a Philips device and a server unit (no text or symbols visible)

* for versions >= 750 GB

www.philips.com/support

Diagram showing connection between a Philips device and a server unit (no text or symbols visible)

Be responsible Respect copyrights

* for versions >= 750 GB

Yardım?

Specifications subject to change without notice.

All dimensions shown are approximate.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting,

Public performance, transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
