SPE2015 - External hard drive PHILIPS - Free user manual and instructions

Product type	External hard drive
Brand	Philips
Model	SPE2015
Interface	USB 2.0 (high speed)
Maximum transfer rate	480 Mb/s
Disk rotation speed	5400 rpm
Cache memory	8 MB
Power supply	Via USB bus (USB power cable optional)
Compatible operating systems	Windows 2000, Windows XP, Windows Vista
File system formats	NTFS (Windows), FAT32 (Mac)
Included software	Carry it Easy (password protection)
Package contents	External hard drive, mini-USB cable, quick start guide, USB power cable
Main functions	Portable storage, data backup, password protection
Maintenance and cleaning	Avoid contact with water, install in a well-ventilated place
Safety	Password protection via software; handle with care, avoid shocks
Disposal	Follow local regulations for recycling electronic devices
Warranty	Refer to the warranty file on the disk or www.philips.com/welcome
Additional information	For updates: www.philips.com/storageupdates

Frequently Asked Questions - SPE2015 PHILIPS

How do I connect the Philips SPE2015 external hard drive to my computer?

Connect the mini-USB cable to the hard drive and to a free USB port on the computer. A Philips drive icon appears in Windows Explorer. If the drive is not recognized, use the provided additional USB power cable.

Why doesn't my computer recognize the hard drive?

Some computers do not provide enough power on a single USB port. Plug the additional USB power cable into another free USB port to provide the necessary power.

How do I safely disconnect the hard drive?

Double-click the 'Safely Remove Hardware' icon in the taskbar. Select the device, click 'Stop', then 'OK'. Disconnect the drive after seeing the message 'Safe to Remove Hardware'.

How do I password-protect my files?

Use the provided Carry it Easy software. Double-click 'CarryitEasy.exe' on the hard drive and follow the on-screen instructions to set a password.

Is the hard drive compatible with Mac?

Yes, but it must be reformatted to FAT32. The drive is preconfigured as NTFS for Windows. Back up your data before reformatting.

Which operating systems are compatible?

Windows 2000, Windows XP, and Windows Vista. For optimal speed, use a USB 2.0 port.

How do I find the warranty for my Philips hard drive?

Browse the 'Warranty' folder on the hard drive or visit www.philips.com/welcome. The warranty may not apply in case of accidental damage or misuse.

What should I do if the hard drive is damaged?

Use the USB power cable if the computer does not provide enough power. Avoid shocks and moisture. For technical issues, contact Philips support.

How do I dispose of the hard drive at the end of its life?

Do not throw it away with household waste. Drop it off at a collection point for electronic waste in accordance with local regulations.

Can I use this hard drive with another USB cable?

Yes, but for optimal performance, use the provided mini-USB cable. The additional USB power cable is recommended if bus power is insufficient.

USER MANUAL SPE2015 PHILIPS

4 What's in the box?
5 How to connect this external hard disk to your computer?
5 How to safely disconnect?
6 How to install for Mac
7 Warranty, Environment and Safety
8 Specifications

Important note

When the computer does not recognize the hard disk (some computers provide insufficient bus power), we advise you to use the USB power cable supplied together with this product. For instructions and more information, see page 5.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

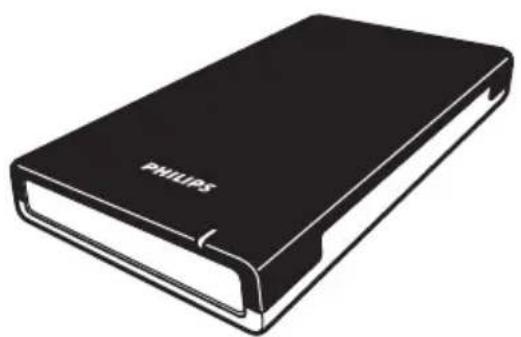

A: External hard disk B: Mini USB cable

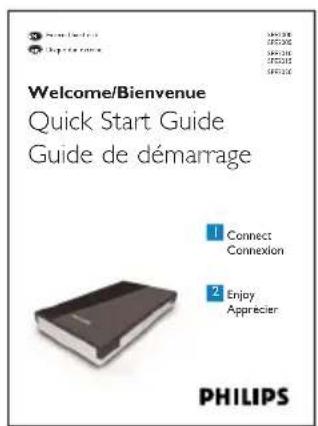

C:Quick Start Guide D:USB power cable

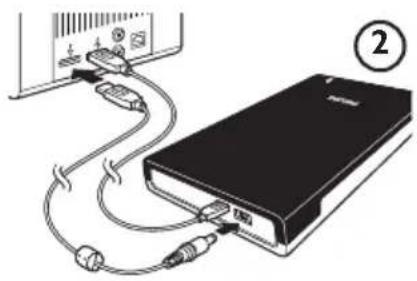

How to connect this external hard disk on your system?

EN

Connect the USB cable to the hard disk, and to an empty USB port of the computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer and the blue light should light up. (The computer sometimes needs to be restarted, before you can use the new hardware).

When Windows does not recognize the hard disk (some PCs or laptops provide insufficient bus power on one USB port), plug the additional USB power cable (D) into an empty USB port of your computer.

How to safely disconnect?

Double-click the Safely Remove Hardware icon in the system tray in the lower right part of the screen.

2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.

3 When the Stop a hardware device screen appears, check that the correct information is displayed, and then click the OK button.

4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

The CoSoSys Carry it Easy software allows you to password protect your files. To launch the software, double-click on the CarryitEasy.exe file on the hard disk icon in your Windows explorer. Follow the instructions on your screen to get started.

See the Carry it Easy manual in the folder 'Manuals' on your hard disk for more instructions and more information.

How to install for Mac

The hard disk is preconfigured for Windows 2000,Windows XP and Windows Vista, with a NTFS file system. For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

You need Adobe Reader software to open these files.

If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

Be responsible Respect copyrights

'The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.'

WEEE mark: 'Information to the Consumer'.

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise you to handle electronics with good care: Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Technical Specifications:

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 5400 rpm

Cache memory 8 MB

System requirements USB1.1 (USB 2.0 for max. transfer speed)

Windows 2000,Windows XP,Windows Vista

For interactive help and support:

www.philips.com/welcome

For software updates and frequently asked questions:

www.philips.com/storageupdates

Be responsible Respect copyrights

Installation fur Mac?

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

Specifications subject to change without notice.

All dimensions shown are approximate.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting, public performance,

transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
