Brand	Philips
Model	SPE2020
Product type	External hard drive
Interface	High-speed USB 2.0
Maximum transfer speed	480 Mb/s
Rotation speed	5400 RPM
Cache memory	8 MB
Compatible operating systems	Windows 2000, Windows XP, Windows Vista
Power supply	Via USB bus or additional USB power cable (included)
Package contents	Hard drive, quick start guide, USB power cable
Included software	Carry it Easy by CoSoSys (password protection)
Default storage format	NTFS (Windows)
Mac compatibility	Requires reformatting to FAT32
Indicator light	Blue operating light
Operating temperature	Not specified, avoid excessive heat
Operating humidity	Not specified, avoid contact with water
Maintenance and cleaning	Avoid water and extreme forces. Install in a ventilated area.
Safety	Keep plastic bags out of reach of children. Safe disconnection required.
Warranty	Information on the hard drive or www.philips.com/welcome
Support	www.philips.com/welcome, www.philips.com/storageupdates
Disposal	Comply with local WEEE regulations. Crossed-out wheeled bin symbol.

Frequently Asked Questions - SPE2020 PHILIPS

How do I connect the Philips SPE2020 hard drive to my computer?

Connect the USB cable to the hard drive and to a free USB port on the computer. A drive icon appears in Windows Explorer and the blue light turns on. If necessary, restart the computer.

What should I do if my computer does not recognize the hard drive?

Some computers do not provide enough power on a single USB port. Then use the additional USB power cable provided by plugging it into another free USB port on the computer.

How do I safely disconnect the hard drive?

Double-click the Safely Remove Hardware icon in the taskbar, select the drive, click Stop, then OK. Wait for the message Safe to Remove Hardware before unplugging.

How do I protect my files with a password?

The Carry it Easy software by CoSoSys is included. Run CarryitEasy.exe from the drive in Windows Explorer and follow on-screen instructions. The detailed manual is in the 'Manuals' folder on the drive.

Can I use this hard drive with a Mac?

Yes, but the drive is preformatted as NTFS for Windows. For Mac, you need to reformat it to FAT32. Note that this erases all data. See the manual for details.

Where can I find warranty information?

Warranty information is in the Philips warranty folder on the drive or at www.philips.com/welcome. The warranty may not apply in case of accident, shock, or improper use.

What are the usage precautions?

Avoid any contact with water and extreme forces. Install the drive in a well-ventilated area for optimal performance and long life. Keep plastic bags out of reach of children.

How do I dispose of this used hard drive?

Do not dispose of the device with household waste. Inquire about the collection and sorting system for waste electrical and electronic equipment (WEEE) in your region and comply with local regulations.

What are the compatible operating systems?

The hard drive is compatible with Windows 2000, Windows XP, and Windows Vista. For maximum transfer speed, use a USB 2.0 port.

Where can I find software updates or interactive help?

Visit www.philips.com/welcome for interactive help and www.philips.com/storageupdates for software updates and FAQs.

USER MANUAL SPE2020 PHILIPS

Black Philips hard drive with white and black casing (no visible text or symbols beyond branding)

4 What's in the box?
5 How to connect this external hard disk to your computer?
5 How to safely disconnect?
6 How to install for Mac
7 Warranty, Environment and Safety
8 Specifications

Important note

When the computer does not recognize the hard disk (some computers provide insufficient bus power), we advise you to use the USB power cable supplied together with this product. For instructions and more information, see page 5.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

Illustration of a black Philips hardcover case (no text or symbols on the cover itself)

Line drawing of a USB cable with two connectors (no text or symbols)

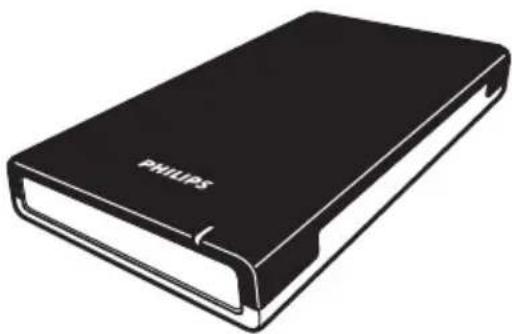

A: External hard disk B: Mini USB cable

Line drawing of a USB cable with two connectors (no text or symbols)

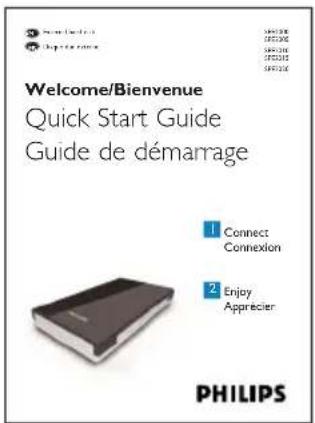

C: Quick Start Guide D: USB power cable

How to connect this external hard disk on your system?

EN

Diagram showing a device connected to a power bank via cable, with no visible text or symbols.

Connect the USB cable to the hard disk, and to an empty USB port of the computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer and the blue light should light up. (The computer sometimes needs to be restarted, before you can use the new hardware).

Diagram of a power bank connected to an external device via cable (no text or symbols visible)

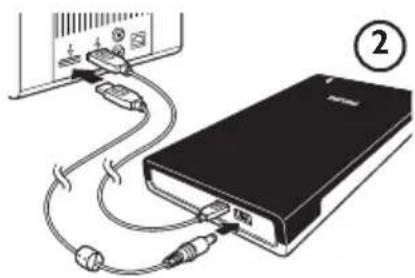

When Windows does not recognize the hard disk (some PCs or laptops provide insufficient bus power on one USB port), plug the additional USB power cable (D) into an empty USB port of your computer.

How to safely disconnect?

I Double-click the Safely Remove Hardware icon in the system tray in the lower right part of the screen.

2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.

3 When the Stop a hardware device screen appears, check that the correct information is displayed, and then click the OK button.

4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

EN

How to use the software

The CoSoSys Carry it Easy software allows you to password protect your files. To launch the software, double-click on the CarryitEasy.exe file on the hard disk icon in your Windows explorer. Follow the instructions on your screen to get started.

See the Carry it Easy manual in the folder ‘Manuals’ on your hard disk for more instructions and more information.

How to install for Mac

The hard disk is preconfigured for Windows 2000, Windows XP and Windows Vista, with a NTFS file system. For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

You need Adobe Reader software to open these files.

If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

Be responsible Respect copyrights

'The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.'

WEEE mark: 'Information to the Consumer'.

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise you to handle electronics with good care:

Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Technical Specifications:

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 5400 rpm

Cache memory 8 MB

System requirements USB1.1 (USB 2.0 for max. transfer speed)

Windows 2000, Windows XP, Windows Vista

For interactive help and support:

www.philips.com/welcome

For software updates and frequently asked questions:

www.philips.com/storageupdates
