UPX898MD - Printer SONY - Free user manual and instructions

Product Type	Black and white medical thermal printer
Dimensions (W × H × D)	154 × 88 × 240 mm
Weight	2.5 kg (printer only)
Power supply	100 V – 240 V ~, 50/60 Hz, 1.3 A – 0.6 A
Print resolution	1,280 dots, 256 gray levels, 12.8 dots/mm
Print speed	Approx. 1.9 s/image (High-speed mode) / 3.3 s/image (Normal mode)
Compatible paper	UPP-110S, UPP-110HD, UPP-110HG (rolls)
Connectors	BNC video input, BNC video output, USB type A (USB flash drive), USB type B (computer), REMOTE (mini-jack)
Main functions	Print from video source (NTSC/PAL) or computer; image storage on USB flash drive; 3 user-configurable settings; last print copy; built-in cutter
Image memory	10 images (video); up to 4,096 × 1,280 dots (digital)
Operating conditions	5 °C to 40 °C, 20% to 80% humidity (non-condensing), 700 hPa to 1,060 hPa
Cleaning	Thermal head: supplied cleaning sheet; roller: soft cloth moistened with ethanol (76.9-81.4%); chassis: isopropyl alcohol (50-70%)
Safety	Class I, protection against electric shock; do not use in presence of flammable anesthetic mixture; professional medical use
Supplied accessories	Cleaning sheet, CD-ROM (driver and manual), USB extension cable, roll of UPP-110HG paper (consumable)
Internal battery life	Approx. 5 years (room temperature)
Reparability	Spare parts available through Sony service; electrolytic capacitor ~ 5 years (normal use)

Frequently Asked Questions - UPX898MD SONY

How to load paper in the UPX898MD printer?

Press the OPEN button to open the door panel. Remove the label from the leading edge of the roll, pull out about 15-20 cm of paper, then place the roll in the tray respecting the indicated direction. Close the door. Use only Sony UPP-110S/110HD/110HG paper.

How to clean the thermal head?

Turn on the printer, open the door and remove the paper. Insert the supplied cleaning sheet (black side down) into the tray groove. Close the door. Access the menu, select CLEAN.TH then CLEAN:OK. Cleaning is performed automatically. Then remove the cleaning sheet.

What to do if the 'COOLING' message appears?

The COOLING message appears when the thermal head overheats, for example after printing many dark images. The printer pauses printing to cool down. Wait for the message to disappear; printing will resume automatically.

How to print from a computer?

Connect the printer to the computer using the supplied USB cable (type B). Install the printer driver from the supplied CD-ROM. Turn on the printer. In the computer software, select the UPX898MD printer and start printing.

How to save an image to a USB flash drive?

Connect a Sony USB flash drive (capacity ≤ 64 GB, FAT16 or FAT32 format) to the USB type A connector on the rear. Print the desired image by pressing the PRINT button. The BMP file is automatically saved in the folder \SONY\UP-X898\SN.[serial number]. The STORING message appears during saving.

How to adjust contrast and brightness?

Use the CONTRAST and BRIGHT buttons on the front panel. Turn clockwise to increase (up to +64) and counterclockwise to decrease (down to -64). To lock the buttons, press and hold the menu control for 3 seconds; LOCK appears.

How to cancel a current print job?

Press the OPEN or FEED button during printing. Printing stops immediately.

How to make a copy of the last print?

Press the COPY button. A single copy is printed. You can press multiple times to get multiple copies (up to 20 total, including the first print). The memory retains the last image until power off.

What does the 'EMPTY' message mean?

The EMPTY message indicates that paper is not loaded or is exhausted. Open the panel, load a new roll of compatible paper (UPP-110S/HD/HG) and close the door.

How to connect the printer to video equipment?

Use a BNC cable to connect the video output of your equipment (e.g., ultrasound) to the VIDEO IN connector of the printer. You can also connect a monitor to the VIDEO OUT to view images. The printer automatically detects NTSC or PAL signals.

USER MANUAL UPX898MD SONY

Hybrid Graphic Printer

Diagram illustrating a mechanical device with warning symbols and labeled parts, including rollers, warning signs, and safety indicators.

Attention

Line drawing of a kitchen appliance with a hand pointing to the front panel (no text or symbols)

Technical line drawing of a mechanical device with a downward arrow indicating a process or component (no text or symbols present)

Diagram of a rolled document with a cross mark, placed on a flat surface (no text or symbols)

Diagram of a printer printing a sheet of paper with arrows indicating motion (no text or symbols present)

Line drawing of a printer with paper sheet and control panel (no text or symbols)

Diagram showing three types of kitchen appliances: a hand pressing down a sheet, two crossed-out washers, and a circular device with no visible text or symbols.

Remarques

Simple geometric diagram with concentric circles and four surrounding circles, no text or symbols present.

Geometric diagram with concentric circles and four smaller circles, no text or symbols present

Symmetrical geometric diagram with concentric circles and four small circles, no text or symbols present.

Pure geometric diagram of a rectangular frame with concentric circles and four smaller circles at corners (no text or symbols)

Pure geometric diagram with concentric circles and four smaller circles inside a rectangle (no text or symbols)

Ecran LCD

Ecran LCD

Ecran LCD

2

Illustration of a hand pressing down on a battery with a curved arrow indicating rotation (no text or symbols)

Line drawing of a kitchen oven with a paper sheet being folded, showing a downward arrow (no text or symbols)

Remarques

Line drawing of a rectangular electronic device with ports and buttons (no text or symbols)

Line drawing of a kitchen oven with a hand pointing to the lid (no text or symbols)

Technical line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Diagram showing a rolled document with a cross mark and a cylindrical object, both without any text or symbols.

Line drawing of a hand pressing down on a device with a paper clip (no text or symbols)

Technical illustration of a rolled document and a cylindrical object with crosshair overlay (no text or symbols)

3

Technical line drawing of a printer or scanner with a hand pressing the page (no text or symbols present)

1,0 Vc-c, 75 ohms (NTSC/PAL

VIDEO OUT (type BNC)

Symptôme Causes/Solutions

Symptôme Causes/Solutions

Symptôme Causes/Solutions

(C) 1995-2017 Jean-loup Gailly and Mark Adler

This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.

Jean-loup Gailly

Mark Adler

[e-mail]

[e-mail]

If you use the zlib library in a product, we would appreciate *not* receiving lengthy legal documents to sign. The sources are provided for free but without warranty of any kind. The library has been entirely written by Jean-loup Gailly and Mark Adler; it does not include third-party code.

If you redistribute modified sources, we would appreciate that you include in the file ChangeLog history information documenting your changes. Please read the FAQ for more information on the distribution of modified source versions.

FreeType

The FreeType Project LICENSE

2006-Jan-27

Copyright 1996-2002, 2006 by

David Turner, Robert Wilhelm, and Werner Lemberg

Introduction

The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project.

This license applies to all files found in such packages, and which do not fall under their own explicit license. The license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least.

This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of free software in commercial and freeware products alike. As a consequence, its main points are that:

o We don't promise that this software works. However, we will be interested in any kind of bug reports. ('as is' distribution)
o You can use this software for whatever you want, in parts or full form, without having to pay us. ('royalty-free' usage)
o You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you must acknowledge somewhere in your documentation that you have used the FreeType code. ('credits')

We specifically permit and encourage the inclusion of this software, with or without modifications, in commercial products. We disclaim all warranties covering The FreeType Project and assume no liability related to The FreeType Project.

Finally, many people asked us for a preferred form for a credit/disclaimer to use in compliance with this license. We thus encourage you to use the following text:

""

Portions of this software are copyright © The FreeType Project (www.freetype.org). All rights reserved.

Please replace with the value from the FreeType version you actually use.

Legal Terms

1. Definitions

Throughout this license, the terms 'package', 'FreeType Project', and 'FreeType archive' refer to the set of files originally distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the 'FreeType Project', be they named as alpha, beta or final release.

`You' refers to the licensee, or person using the project, where `using' is a generic term including compiling the project's source code as well as linking it to form a `program' or `executable'. This program is referred to as `a program using the FreeType engine'.

This license applies to all files distributed in the original FreeType Project, including all source code, binaries and documentation, unless otherwise stated in the file in its original, unmodified form as distributed in the original archive. If you are unsure whether or not a particular file is covered by this license, you must contact us to verify this.

The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights reserved except as specified below.

1. No Warranty

THE FREETYPE PROJECT IS PROVIDED 'AS IS' WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT.

1. Redistribution

This license grants a worldwide, royalty-free, perpetual and irrevocable right and license to use, execute, perform, compile, display, copy, create derivative works of, distribute and sublicense the FreeType Project (in both source and object code forms) and derivative works thereof for any purpose; and to authorize others to exercise some or all of the rights granted herein, subject to the following conditions:

o Redistribution of source code must retain this license file ('F'L.TXT') unaltered; any additions, deletions or changes to the original files must be clearly indicated in accompanying documentation. The copyright notices of the unaltered, original files must be preserved in all copies of source files.

o Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in your documentation, though this isn't mandatory.

These conditions apply to any software derived from or based on the FreeType Project, not just the unmodified files. If you use our work, you must acknowledge us. However, no fee need be paid to us.

1. Advertising

Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission.

We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: 'FreeType Project', 'FreeType Engine', 'FreeType library', or 'FreeType Distribution'.

As you have not signed this license, you are not required to accept it. However, as the FreeType Project is copyrighted material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify it. Therefore, by using, distributing, or modifying the FreeType Project, you indicate that you understand and accept all the terms of this license.

1. Contacts

There are two mailing lists related to FreeType:

o [e-mail]

Discusses general use and applications of FreeType, as well as

future and wanted additions to the library and distribution. If you are looking for support, start in this list if you haven't found anything to help you in the documentation.

o [e-mail]

Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc.

Our home page can be found at

https://www.frectype.org

--- end of FTL.TXT ---

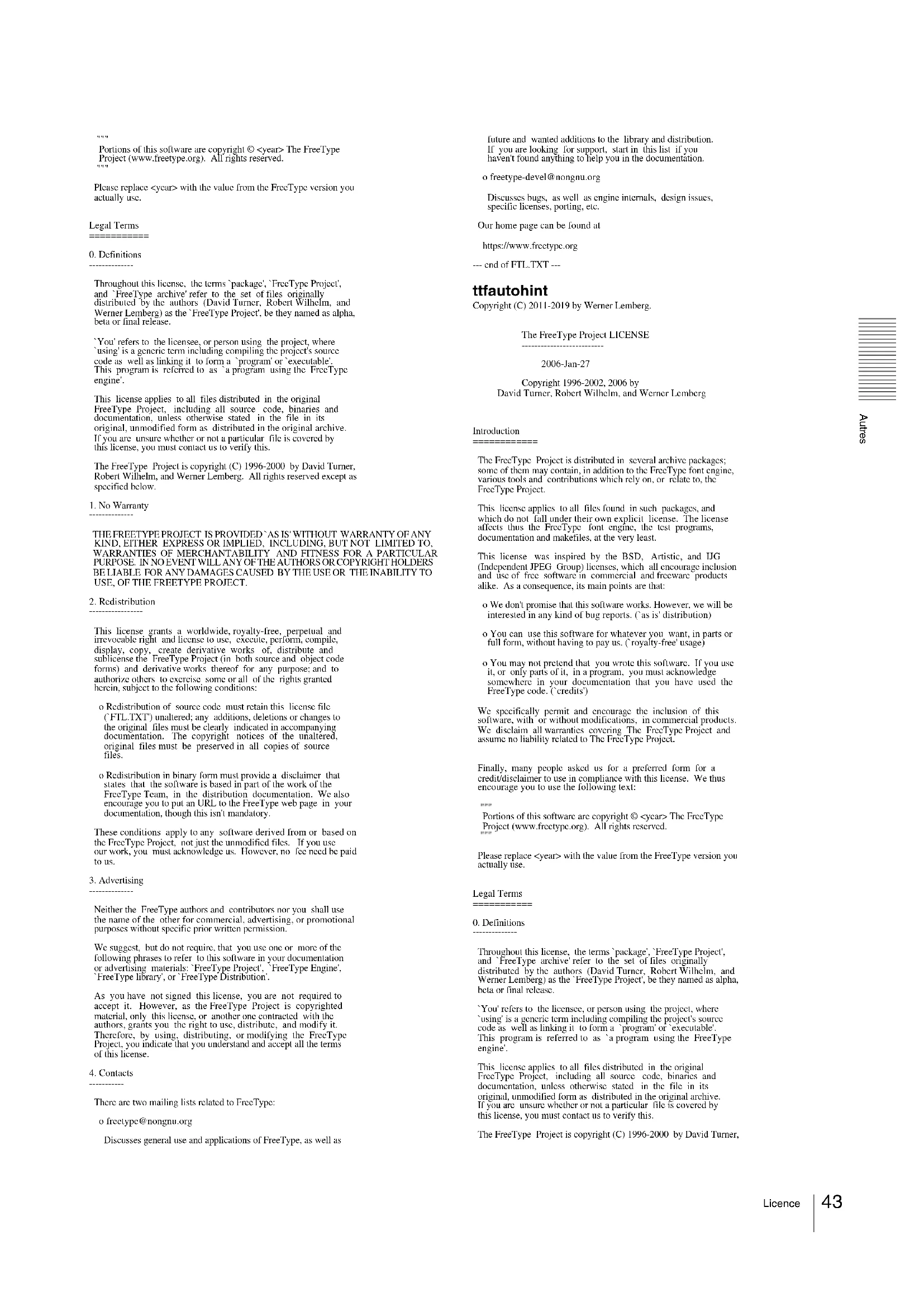

ttfautohint

Copyright (C) 2011-2019 by Werner Lemberg.

The FreeType Project LICENSE

2006-Jan-27

Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg

Introduction

[EMPTY]

The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project.

This license applies to all files found in such packages, and which do not fall under their own explicit license. The license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least.

This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of free software in commercial and freeware products alike. As a consequence, its main points are that:

o We don't promise that this software works. However, we will be interested in any kind of bug reports. ('as is' distribution)

o You can use this software for whatever you want, in parts or full form, without having to pay us. ('royalty-free' usage)

o You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you must acknowledge somewhere in your documentation that you have used the FreeType code. ('credits')

We specifically permit and encourage the inclusion of this software, with or without modifications, in commercial products. We disclaim all warranties covering The FreeType Project and assume no liability related to The FreeType Project.

Finally, many people asked us for a preferred form for a credit/disclaimer to use in compliance with this license. We thus encourage you to use the following text:

“”

Portions of this software are copyright © The FreeType Project (www.freetype.org). All rights reserved.

Please replace with the value from the FreeType version you actually use.

Legal Terms

1. Definitions

Throughout this license, the terms 'package', 'FreeType Project', and 'FreeType archive' refer to the set of files originally distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the 'FreeType Project', be they named as alpha, beta or final release.

`You' refers to the licensee, or person using the project, where `using' is a generic term including compiling the project's source code as well as linking it to form a `program' or `executable'. This program is referred to as `a program using the FreeType engine'.

This license applies to all files distributed in the original FreeType Project, including all source code, binaries and documentation, unless otherwise stated in the file in its original, unmodified form as distributed in the original archive. If you are unsure whether or not a particular file is covered by this license, you must contact us to verify this.

The FreeType Project is copyright (C) 1996-2000 by David Turner,

Robert Wilhelm, and Werner Lemberg. All rights reserved except as specified below.

1. No Warranty

THE FREETYPE PROJECT IS PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT.

1. Redistribution

This license grants a worldwide, royalty-free, perpetual and irrevocable right and license to use, execute, perform, compile, display, copy, create derivative works of, distribute and sublicense the FreeType Project (in both source and object code forms) and derivative works thereof for any purpose; and to authorize others to exercise some or all of the rights granted herein, subject to the following conditions:

o Redistribution of source code must retain this license file (FTL.TXT) unaltered; any additions, deletions or changes to the original files must be clearly indicated in accompanying documentation. The copyright notices of the unaltered, original files must be preserved in all copies of source files.

o Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in your documentation, though this isn't mandatory.

These conditions apply to any software derived from or based on the FreeType Project, not just the unmodified files. If you use our work, you must acknowledge us. However, no fee need be paid to us.

1. Advertising

Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission.

We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: 'FreeType Project', 'FreeType Engine', 'FreeType library', or 'FreeType Distribution'.

As you have not signed this license, you are not required to accept it. However, as the FreeType Project is copyrighted material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify it. Therefore, by using, distributing, or modifying the FreeType Project, you indicate that you understand and accept all the terms of this license.

1. Contacts

There are two mailing lists related to FreeType:

o [e-mail]

Discusses general use and applications of FreeType, as well as future and wanted additions to the library and distribution. If you are looking for support, start in this list if you haven't found anything to help you in the documentation.

o [e-mail]

Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc.

Our home page can be found at

https://www.freetype.org

--- end of FTL.TXT ---

Index

C

Clé USB
