USER MANUAL Optix G24C MSI

All specifications and informations are subject to change without notice.

Please always place this device on a stable surface; otherwise, it may fall and be damaged. The altitude and the tropical environment the adapter fits depend on which adapter is used for the device. The rating plate on the back of the device with the above warning sign indicates that t h i s p r o d u c t i s app lica ble for the safe use of the region w i t h a l t i t u d e o f 2,000m and below. Do not hold the plug w i t h w e t h a n d ; otherwise, electric shock may occur. Make sure the plug has a good touch because poor touch may cause fire. Do not use a broken power plug nor keep a power cord near heat source; otherwise, e l e ct r i c s h oc k or fire may occur. When cleaning the device, be sure to remove the power plug, use a piece of soft cloth rather t h a n i n d u s t r i a l che mica l to cle an the device, be sure not to let water enter the device. Do not disassemble this device without permission. In case of failure, be sure to contact a professional servicing person to fix it. The unauthorized disassembly of this device may result in electric shock or fire. In case of rare smell or noise out of this device, be sure to immediately cut off the power supply and ask a professional servicing person to fix the problem. When this device is idle for long time, be sure to power it off; otherwise, electric shock or fire may occur. I.Safety Prevention Measures Note: The device with AC switch may use such AC switch as cut-off component. The device without AC switch may use power plug or coupler as cut-off component. In case of the normal use of the equipment, make sure the cut-off component can be accessed easily. English Française Español

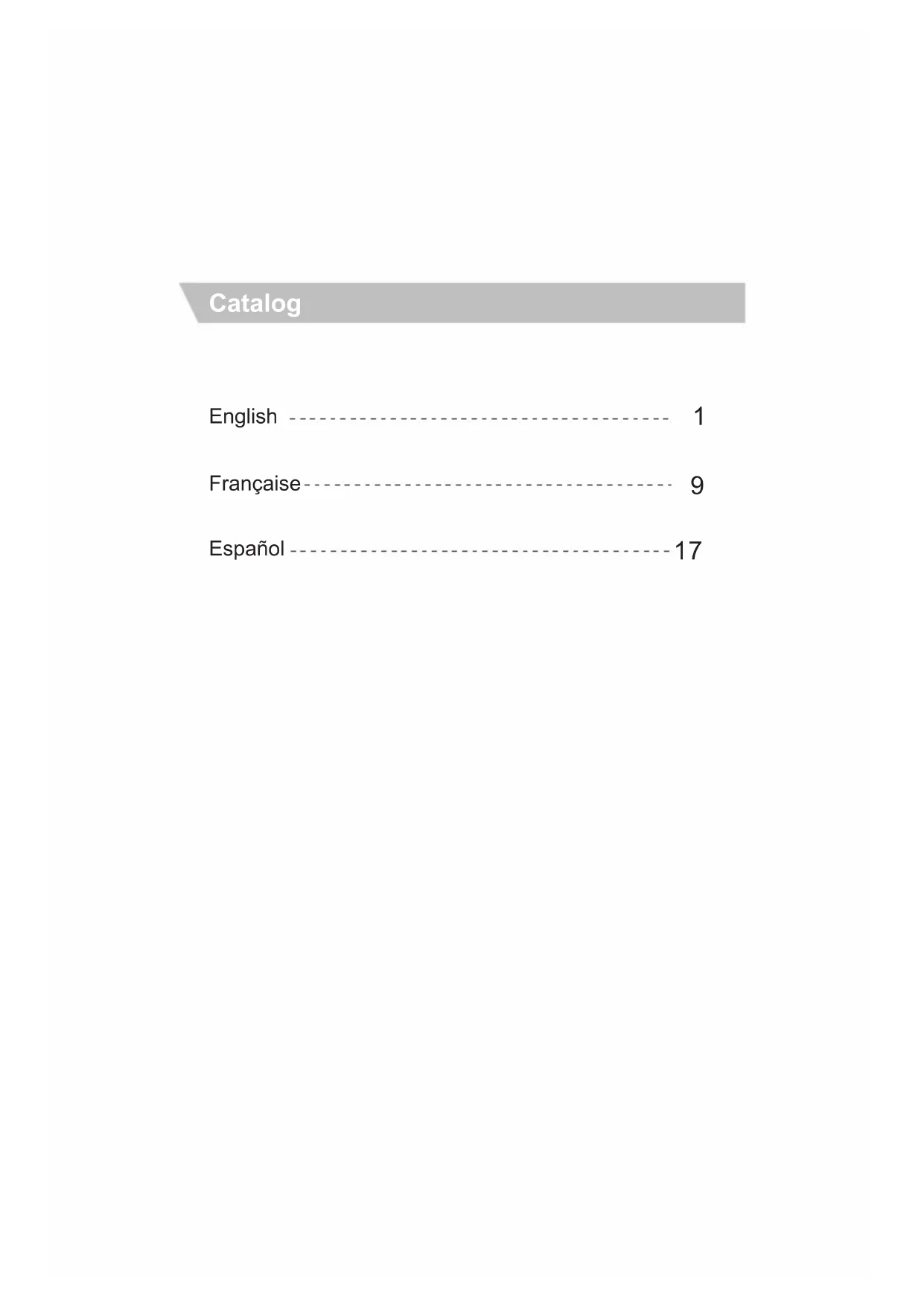

CatalogAll specifications and informations are subject to change without notice.

Please always place this device on a stable surface; otherwise, it may fall and be damaged. The altitude and the tropical environment the adapter fits depend on which adapter is used for the device. The rating plate on the back of the device with the above warning sign indicates that t h i s p r o d u c t i s app lica ble for the safe use of the region w i t h a l t i t u d e o f 2,000m and below. Do not hold the plug w i t h w e t h a n d ; otherwise, electric shock may occur. Make sure the plug has a good touch because poor touch may cause fire. Do not use a broken power plug nor keep a power cord near heat source; otherwise, e l e ct r i c s h oc k or fire may occur. When cleaning the device, be sure to remove the power plug, use a piece of soft cloth rather t h a n i n d u s t r i a l che mica l to cle an the device, be sure not to let water enter the device. Do not disassemble this device without permission. In case of failure, be sure to contact a professional servicing person to fix it. The unauthorized disassembly of this device may result in electric shock or fire. In case of rare smell or noise out of this device, be sure to immediately cut off the power supply and ask a professional servicing person to fix the problem. When this device is idle for long time, be sure to power it off; otherwise, electric shock or fire may occur. I.Safety Prevention Measures Note: The device with AC switch may use such AC switch as cut-off component. The device without AC switch may use power plug or coupler as cut-off component. In case of the normal use of the equipment, make sure the cut-off component can be accessed easily. English Française Español

CatalogAll specifications and informations are subject to change without notice.

III. Connect the Monitor to PC

(The above pictures are for illustration only and the physical accessories shall govern.)

Before connecting the LCD monitor to the PC, please power down the PC and the monitor. Model with inbuilt power supply

• Warning: Always use the power cord of standard configuration.

Power Plug Connect the power cord of the monitor into the POWER port in the back of the monitor. DVI Port Connect the DVI cable into the DVI IN port in the back of the monitor (this needs the support of the monitor). HDMI Port Connect the HD MI cab le into the HDMI IN port into the back of the monitor (this needs the support of the monitor). DP Port Connect the DP cable into the DP IN port of the monitor (this needs the support of the monitor).

All specifications and informations are subject to change without notice.

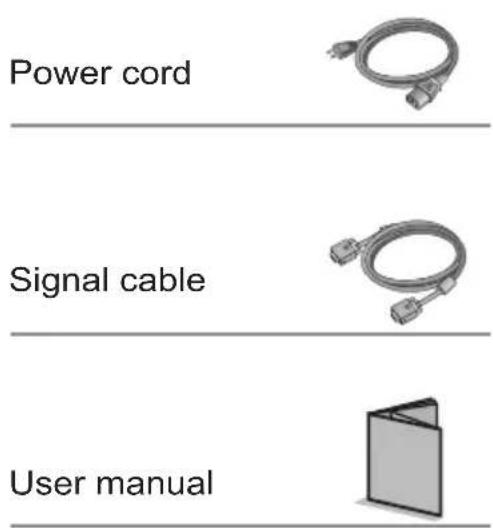

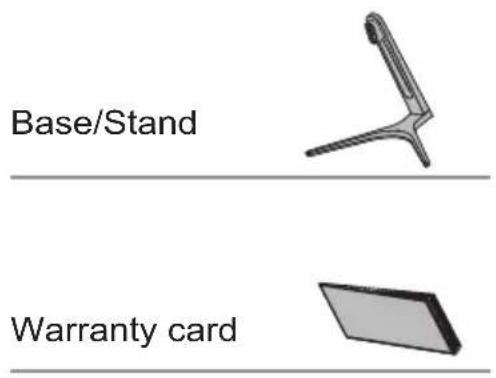

II.Installation Instructions 1.Accessories Power cord Signal cable User manual Base/Stand Warranty card (The above pictures are for illustration only and the physical accessories shall govern.)

2.1 The screen can be adjusted by

inc linin g forw ard an d backward; however, the specific adjustment depends on the specific model of the de vic e. Generally, it ma y be inclined 5±2°f orw ard and 15±2 ° backward.

2.2 When adjusting the angle of the

monitor, be sure not to touch or press the area of the screen. (The above pictures are for illustration only and the physical accessories shall govern.)All specifications and informations are subject to change without notice.

III. Connect the Monitor to PC

(The above pictures are for illustration only and the physical accessories shall govern.)

Before connecting the LCD monitor to the PC, please power down the PC and the monitor. Model with inbuilt power supply

• Warning: Always use the power cord of standard configuration.

Power Plug Connect the power cord of the monitor into the POWER port in the back of the monitor. DVI Port Connect the DVI cable into the DVI IN port in the back of the monitor (this needs the support of the monitor). HDMI Port Connect the HD MI cable into the HDMI IN port into the back of the monitor (this needs the support of the monitor). DP Port Connect the DP cable into the DP IN port of the monitor (this needs the support of the monitor).

All specifications and informations are subject to change without notice.

II.Installation Instructions 1.Accessories Power cord Signal cable User manual Base/Stand Warranty card (The above pictures are for illustration only and the physical accessories shall govern.)

2.1 The screen can be adjusted by

inc linin g forw ard an d backward; however, the specific adjustment depends on the specific model of the de vic e. Generally, it ma y be inclined 5±2°f orw ard and 15±2 ° backward.

2.2 When adjusting the angle of the

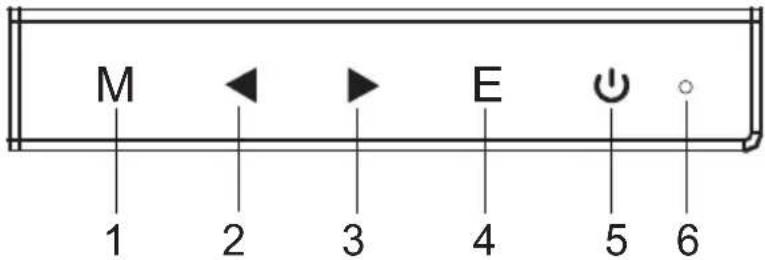

2. Description of Keys' Functions

Note: The physical keys of the specific model shall govern. LED indicator light

Pops up the menu/Backs to the previous menu (in case of main menu, exits from the whole menu). When the menu is activated, used as the left function selection key, and decreases progressively the value of the progress bar; when the menu is inactivated, used as the specified shortcut mode hot key (for sighting device). When the menu is activated, used as the right function selection key, and increases progressively the value of the progress bar; when the menu is inactivated, used as the specified shortcut mode hot key (FPS/RTS mode).If the menu is activated, chooses the corresponding function. Power switch: Powers on/off the monitor.Blue: in normal switch-on state; flickering in blue: in power-saving state.

First level menu icon Third level menu iconSecond level menu icon First level menu item Second level menu item Third level menu item DescriptionV. Operation Menu (OSD) Function Descriptions All specifications and informations are subject to change without notice. Gamma1Gamma2Return Exit GammaAdjustAdjust color tone brightness grey 1Adjust color tone brightness grey 2Return to the previous menuExit from the whole menu

Activate dynamic contrast Off Inactive dynamic contrastReturnReturn to the previous menu Exit Exit from the whole menuNormal work modeAdjust display brightness NONE NONE NONE NONE NONE NONE ContrastBrightnessNONENONENONENONE NONE NONE NONE NONE StandardMovie FPS NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE RTS EyeSaverReturn Exit Cool Warm Mode Color Temp. User Return Exit Auto 16:94:3Return Exit DVI HDMI DisplayPortReturn Exit AspectInput Red Green Blue NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE NONE Movie modeFPS game modeRTS game modeEye protection ray filter application modeFine tuning of red color temperature Return to the previous menuExit from the whole menu Set as cold color temperatureSet as warm color temperatureFine tuning of green color temperatureFine tuning of blue color temperatureReturn to the previous menuExit from the whole menuAutomatically adjust picture aspect ratioPicture in 16:9 modePicture in 4:3 modeReturn to the previous menuExit from the whole menuDVI (digital) signal input HDMI (digital) signal inputDisplay port (digital) signal inputReturn to the previous menuExit from the whole menuAll specifications and informations are subject to change without notice.

2. Description of Keys' Functions

Note: The physical keys of the specific model shall govern. LED indicator light

Pops up the menu/Backs to the previous menu (in case of main menu, exits from the whole menu). When the menu is activated, used as the left function selection key, and decreases progressively the value of the progress bar; when the menu is inactivated, used as the specified shortcut mode hot key (for sighting device). When the menu is activated, used as the right function selection key, and increases progressively the value of the progress bar; when the menu is inactivated, used as the specified shortcut mode hot key (FPS/RTS mode).If the menu is activated, chooses the corresponding function. Power switch: Powers on/off the monitor.Blue: in normal switch-on state; flickering in blue: in power-saving state.

First level menu iconThird level menu iconSecond level menu iconFirst level menu itemSecond level menu itemThird level menu itemDescriptionAll specifications and informations are subject to change without notice.

Faults occurring The power indicator light is not on Possible solutions Dimming picture Flickering picture or picture with ripples Color shortage (red, green and blue) Picture with color difference (white looks not white)

Check if the power is on.

Check if the power cord is connected.

Adjust brightness and contrast.

with electronic disturbance. There may be electrical appliances or equipment The power indicator light is on (flickering), but the monitor has no pictures.

Check if the PC display card is inserted properly.

Check if the signal cable of the monitor is correctly connected with the PC.

Check the signal cable plug of the monitor and make sure every pin has no bending.

Observe the indicator light by pressing the Caps Lock key on the PC keyboard and check if the PC is working. Check if the PC power is on.

sure every pin has no bending. Check the signal cable of the monitor and make

is compatible with PC.

Check if the display card is compatible with the plug-and-play function. Check if the function of plug-and-play of the device Impossible plug-and-play Please confirm the default values of the output dynamic range and the pixel format in the graphics Settings is "all". when the brightness of the screen is higher than usual. All specifications and informations are subject to change without notice.

Note: The functions may be adjusted due to specific model or the upgrade of software version. The physical model shall govern.

Language Power Off Reset Return to the previous menu Exit from the whole menu Automatically turn off after saving power for 1min Inactivate the function of timed switch-off Return to the previous menu Exit from the whole menu Reset to factory setup Exit from this function Normal mode Return to the previous menu Exit from the whole menu

English Française Deutsch Español Extreme Return Exit NONE NONE NONE NONE NONE NONE Return Exit Exit NONENONE Over driver OD general mode, reduce motion blur OD extra-high mode, reduce motion blur Return to the previous menu Exit from the whole menu Return to the previous menu Exit from the whole menu Exit from the whole menu

Off Return Exit FreeSync Activate FreeSync function,Only support AMD display (this needs the support of the monitor) Inactivate FreeSync function (this needs the support of the monitor) Return to the previous menu Exit from the whole menu Normal Off Italiano Italiano Italiano First level menu icon Third level menu icon Second level menu icon First level menu item Second level menu item Third level menu item DescriptionAll specifications and informations are subject to change without notice.

Faults occurring The power indicator light is not on Possible solutions Dimming picture Flickering picture or picture with ripples Color shortage (red, green and blue) Picture with color difference (white looks not white)

Check if the power is on.

Check if the power cord is connected.

Adjust brightness and contrast.

with electronic disturbance. There may be electrical appliances or equipment The power indicator light is on (flickering), but the monitor has no pictures.

Check if the PC display card is inserted properly.

Check if the signal cable of the monitor is correctly connected with the PC.

Check the signal cable plug of the monitor and make sure every pin has no bending.

Observe the indicator light by pressing the Caps Lock key on the PC keyboard and check if the PC is working. Check if the PC power is on.

sure every pin has no bending. Check the signal cable of the monitor and make

is compatible with PC.

Check if the display card is compatible with the plug-and-play function. Check if the function of plug-and-play of the device Impossible plug-and-play Please confirm the default values of the output dynamic range and the pixel format in the graphics Settings is "all". when the brightness of the screen is higher than usual. All specifications and informations are subject to change without notice.

Note: The functions may be adjusted due to specific model or the upgrade of software version. The physical model shall govern.

Language Power Off Reset Return to the previous menu Exit from the whole menu Automatically turn off after saving power for 1min Inactivate the function of timed switch-off Return to the previous menu Exit from the whole menu Reset to factory setup Exit from this function Normal mode Return to the previous menu Exit from the whole menu

English Française Deutsch Español Extreme Return Exit NONE NONE NONE NONE NONE NONE Return Exit Exit NONENONE Over driver OD general mode, reduce motion blur OD extra-high mode, reduce motion blur Return to the previous menu Exit from the whole menu Return to the previous menu Exit from the whole menu Exit from the whole menu

Display dimensions Aspect ratio Preset resolution/Refresh rate Note: “O” indicates the corresponding resolution/refresh rate is supported. “X” indicates the corresponding resolution/refresh rate is not supported. Note: The actual application of the above parameters shall be subject to the specific model. In DVI/DP connection mode Remark: W h e n t h e r e s o l u t i o n a r e 2560*1440@60Hz/3440*1440@60Hz/ 1920*1080@144Hz/2560*1440@144Hz/3840*2160@30Hz connection via DVI port, pls choose 24+1 pin double - channel DVI cables.

Display dimensions Aspect ratio Preset resolution/Refresh rate Note: “O” indicates the corresponding resolution/refresh rate is supported. “X” indicates the corresponding resolution/refresh rate is not supported. Note: The actual application of the above parameters shall be subject to the specific model. In DVI/DP connection mode Remark: W h e n t h e r e s o l u t i o n a r e 2560*1440@60Hz/3440*1440@60Hz/ 1920*1080@144Hz/2560*1440@144Hz/3840*2160@30Hz connection via DVI port, pls choose 24+1 pin double - channel DVI cables.
