USER MANUAL BigBass XL Sound2Go

This product is in accordance with all relevant regulations oft he European parlament. The full CE-declaration with all applied test standards can be found as download on our homepage www.s2g.info

S2G S O U N D 2 G O

BIGBASS XL

DE Bedienungsanleitung
EN User Manual
DK Brugsanvisning
FR Mode d'emploi
ES Manual de instrucciones
IT Istruzioni per l'uso
NL Gebruikershandleiding

Diagram of a cylindrical device with labeled ports and numbered parts, likely for labeling or assembly reference.

6 2 89 71

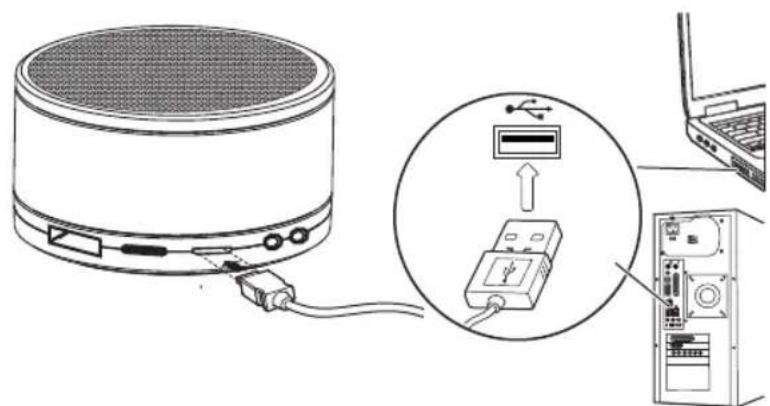

Diagram showing a speaker connected to an electronic device via cable, with an inset close-up of the device's internal components (no text or symbols present)

DIE KOSTENLOSE SOUND2GO APP

SOUND-GO Laden im App Store JETZT BEI Google play

BIGBASS XL

Allgemeine Hinweise

Urheberrecht

This document is protected by copyright. Any reproduction or reprint, even in parts, and any reproduction of the illustrations, even in a changed state, is strictly prohibited without the written consent of the manufacturer.

Information on environmental protection

The packaging material used is recyclable. Dispose of packaging material which is no longer needed in rdance with the locally applicable regulations.

This product must not be disposed of in the normal household waste within the European Union. Dispose of the device via the communal collecting

points.

BIGBASS XL

Guarantee / Warranty

This product has been thoroughly checked for quality and functionality before dispatch. 12 month warranty form the date of purchase for the speaker, 6 months for the integrated battery. We will replace or repair defective products free of charge during the guarantee period. The guarantee is not extended in the course of a repair or an exchange, exchanged parts become our property. Please contact us before sending a guarantee consignment. The guarantee is excluded in the following cases:

■ in the case of faulty installation,
■ in the case of changes to the system without our approval,
■ in the case of damages due to moisture, damages caused by dropping or damaged cables,
■ if there is no proof of purchase.

BIGBASS XL

Declaration of conformity

The CE declaration of conformity for this product can be downloaded from our website: www.s2g.info

Symbols used

WARNING

Is used for a possible dangerous situation which could lead to serious injuries or death.

▶ Follow the instructions given here in order to avoid danger.

NOTE

▶ A note marks additional information which facilitates the handling of the product.

BIGBASS XL

Intended use

This device is only intended for the reproduction of audio signals of optional Bluetooth audio devices. Additionally, you can connect the device to a Bluetooth telephone and use the device as hands-free equipment.

Any other use or use beyond what is specified is regarded as not intended.

WARNING

The device can be dangerous in the case of unintended use and / or different use.

▶ Only use the device as intended.
▶ Comply with the procedures described in these operating instructions.

BIGBASS XL

Claims of any kind due to damages as a result of unintended use are excluded.

This risk is borne exclusively by the operator.

Limitation of liability

All technical information, data and notes for connection and operation contained in these operating instructions correspond to the latest status during printing and are carried out to the best of our knowledge, taking into consideration our experience and knowledge up to now.

No claims can be derived from the data, illustrations and descriptions in these operation instructions.

The manufacturer does not assume any liability for damages due to non-compliance with the operating instructions, non-intended use, improper repairs, unauthorised changes or use of unauthorised spare parts.

Safety

Handling (storage) batteries

WARNING

The device must not be opened, thrown into fire, dipped in fluids or be short-circuited.
▶ Charge the device only with the delivered recharger cable. Using a wrong charger can lead to fire, explosion and acid burns.
In the case of damage and improper use of the storage battery, vapours can escape. Supply fresh air and consult a doctor in case of complaints. The vapours can irritate the airways.

BIGBASS XL

WARNING

In the case of a damaged storage battery, battery fluid can leak. If one of the storage batteries has leaked, please avoid contact of the skin, the eyes and the mucous membranes with the battery fluid. In the case of contact with the battery fluid, immediately rinse the corresponding spots with plenty of clear water and consult a doctor promptly.

Basic safety information

• Check the device for any visible external damage before use. Do not put into operation a damaged or fallen device.
  ■ Persons, who are not in a position to safely operate the product due to their physical, mental or motor skills, may only use the device under supervision or instruction by a responsible person.

BIGBASS XL

■ Children are only allowed to use the device under supervision.

■ The device may only be repaired by authorised specialised companies or the customer service. Improper repairs can lead to significant dangers for the user, and to the expiry of the warranty claim.

■ Protect the device from moisture and the penetration of fluids.

■ Avoid direct sun radiation.

Requirements concerning the installation site

For a safe and faultless operation of the device, the installation site has to meet the following requirements:

■ The device has to be placed on a firm, flat and horizontal base.

- Do not place the device in a hot, wet or very wet environment or near flammable material.

BIGBASS XL

Before first use

Unpacking

Take the device and the operating instructions out of the cardboard box.
◆ Remove all packaging materials and protective films from the device before first use, especially the protective film at the bottom side of the device.

NOTE

Keep the original packaging during the warranty and / or guarantee period of the device so that you can dispatch the device in case of warranty and / or guarantee properly packed. Transport damages will cause the warranty and / or guarantee claim to expire.

BIGBASS XL

Checking the scope of delivery

◆ Check the content for completeness and visible damages.
- Immediately inform your supplier about any incomplete or damaged delivery.

Device description

(Illustrations see front cover page)

1 On-/off button
5 Status Led
2 Skip backward Volume down
6 MICRO-SD Slot
3 Play / Pause
7 Aux-In / Aux-out
4 Skip forward Volume up
8 MICRO-USB
9 USB Port
10 Operating instruction (without illustration)

BIGBASS XL

Operation

Charging the battery

(see illustration back cover page)

◆ Turn off the device.
- Connect the included recharger cable to the charger connection (8) of the device.
Connect the recharger cable to a free USB port of a computer or to a suited USB charger (max. input voltage 5V).

During the loading process, the indicator lamp (5) flashes red. After termination of the loading process the indicator lamp goes out.

NOTE

The charging time takes approx. 2 – 3 hours.

BIGBASS XL

Description of control buttons

The BIGBASS XL Speaker support audio transmission and audio control.

Name Status	Operating
Play / Pause	Play Short press: Play / Pause
	Pause / stop Short press: Play / Pause
Next / Vol Up	Short press: play next songLong press: Volume up
Prev / Vol Down	Short press: play previous songLong press: Volume down
On-/ off button	Puch the power switch to „ON“, to activate the speaker. Push the power switch to „OFF“ to turn the speaker off

BIGBASS XL

LED light indicator

Device status LED Status
Turn on blue light slow flash
Charging	When charging, the light will turn red, when fully charged, light will turn off
Pairing blue light quick flash
Connecting blue light slow flash

Play music with Micro-SD card

Insert the card with the golden contactpoints pointing downwards and start the music with the play/pause key. You can control the music with the keys at the BIGBASS XL.

BIGBASS XL

Pairing

Before using Bluetooth speakers, please pair the speaker with your smartphone, MP3, computer or any built in bluetooth device. Step:

Turn the speaker power ON. Upon power ON the speaker will automatically be in pairing mode. Blue indicator lights appear in slow flashing indicates „in pairing mode“. Ensure that the BT speaker is not paired or connected to any other device.

Pairing process to note

When device detected S2GBIGBASSXL, initiate and paired them. Should device request for password, enter default password „0000“, press OK button to complete the pairing. NOTE: If pairing fails, please refer to „Troubleshooting.“

Pairing via NFC:

Activate NFC on your player and hold your player against the bottom of the BIGBASS XL at the height of the NFC mark. Confirm the pairing.

BIGBASS XL

Change function mode

Long press the Play/Pause button to disconnect the current connection from bluetooth to 3,5 mm jack input device.

In this mode, the connected equipment can not be operated via the buttons on the speakers.

Music play

When the connection is established, you can play music from mobile phone, computer, MP3, notebook etc. Music play, pause, previous song/volume down, next sound/volume up can be control from both you speaker's control buttons or your playing devices.

BIGBASS XL

Troubleshooting - Fail to pair BT speaker

Make sure teh speaker is in pairing mode. If blue light indicators is not in flashing mode, it indicates speakers not in pairing mode. Please reset (ON/OFF) the power switch again.

Fail to locate BT speakers

◆ Check that the speaker is in pairing mode.
◆ Ensure your device is within Bluetooth use range (up to 10 m)
◆ Reset / restart your device to activate Bluetooth
◆ Ensure that your device is not connected / paired to any other Bluetooth devices as BT can only paired one device at one time

BIGBASS XL

Technical Data

Dimensions (L x B x H) 80 mm
Weight approx. 215 g
Battery	Lithium-polymer-battery1000 mAh
Distortion ≤0,5%
Transmission mode Bluetooth class 3
Range max. 10 m
RMS-performance 3 W
Signal-to-noise ratio ≥95 dB
Frequency response 80 Hz - 18 kHz

BIGBASS XL
