USER MANUAL Lifebook S760 FUJITSU

User’s Guide Learn how to use your Fujitsu LifeBook S760 notebook

Mode d’emploi Découvrez comment utiliser votre ordinateur portable Fujitsu LifeBook S760 User’s Guide Learn how to use your Fujitsu LifeBook S760 notebookCopyright and Trademark Information Fujitsu America, Incorporated has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. Intel, Intel Core, Centrino, and Intel Centrino Pro are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. PCMCIA is a trademark of the Personal Computer Memory Card International Association. Bluetooth is a trademark of Bluetooth SIG, Inc., USA. OmniPass is a trademark of Softex, Inc. Google and Picasa are trademarks or registered trademarks of Google Incorporated. Roxio is a trademark of Roxio, a division of Sonic Solutions. PowerDirector, MakeDisc, PowerDVD, and YouCam are trademarks of CyberLink Corp. ArcSoft is a trademark of ArcSoft Incorporated. Adobe, Acrobat, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corp. in the United States and other countries. The DVD player found in some models of the LifeBook notebook incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights users. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. All other trademarks mentioned herein are the property of their respective owners.© Copyright 2009 Fujitsu America, Incorporated. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B6FJ-3461-01ENZ0-00 WARNING HANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE

ASH HANDS AFTER HANDLING.

DECLARATION OF CONFORMITY

according to FCC Part 15 Responsible Party Name: Fujitsu America, Incorporated Address: 1250 E. Arques Avenue, Sunnyvale, CA 94085 Telephone: (408) 746-6000 Declares that product: Base Model Configuration: LifeBook S760 notebook Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.IMPORTANT SAFETY INSTRUCTIONS This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Class II Adapters with an output rating of 19 VDC, with a current of 4.22A (80 W). When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

• Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning.

• Do not use the modem to report a gas leak in the vicinity of the leak.

• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

• To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.

• For TV tuner use: To protect from overvoltages and transients on the Cable Distribution System, be sure that the outer shield of the coaxial cable is connected to earth (grounded) at the building premise as close to the point of cable entrance as practicable, as required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have questions about your CATV installation, contact your service provider.

SAVE THESE INSTRUCTIONS

AC adapter output polarity:Recycling your battery Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natural occurrence for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of the old battery properly because batteries contain materials that could cause environmental damage if disposed of improperly. Fujitsu is very concerned with environmental protection, and has enlisted the services of the Rechargeable Battery Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment by recycling old batteries at no cost to you. RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the location nearest you, go to www.RBRC.org or call 1-800-822-8837. If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website (http://EIAE.org/) and search for a convenient disposal location. Remember – protecting the environment is a cooperative effort, and you should make every effort to protect it for current and future generations.

• To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at www.shopfujitsu.com in the US or www.fujitsu.ca/products/notebooks in Canada. ** RBRC is an independent third party to which Fujitsu provides funding for battery recycling; RBRC is in no way affiliated with Fujitsu.Contents Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Conventions Used in the Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 1 Getting to Know Your LifeBook

• Overview p. 11
• Locating the Controls and Connectors p. 12
• Top Components p. 13
• Left-Side Panel Components p. 15
• Right-Side Panel Components p. 17
• Back Panel Components p. 19

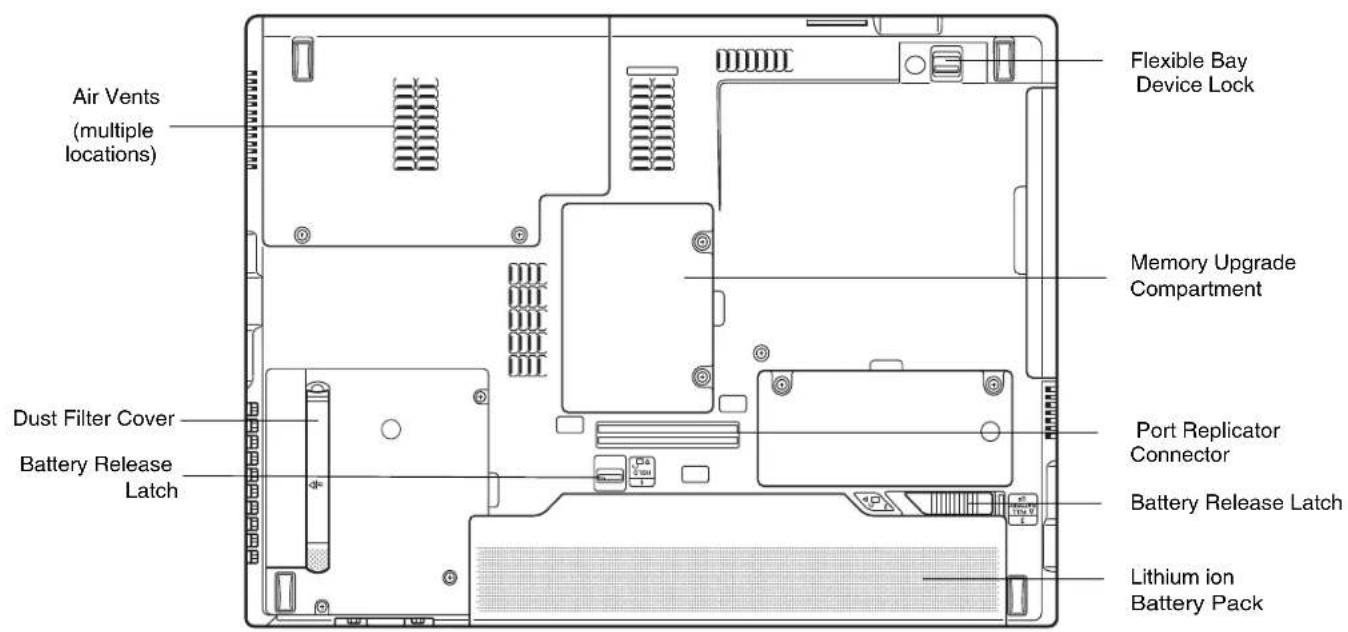

• Bottom Components p. 20
• Status Indicator Panel p. 22
• Security Indicator p. 24
• Hard Drive/Optical Drive Access Indicator p. 24
• NumLk Indicator p. 24
• Keyboard p. 26
• Using the Keyboard p. 26

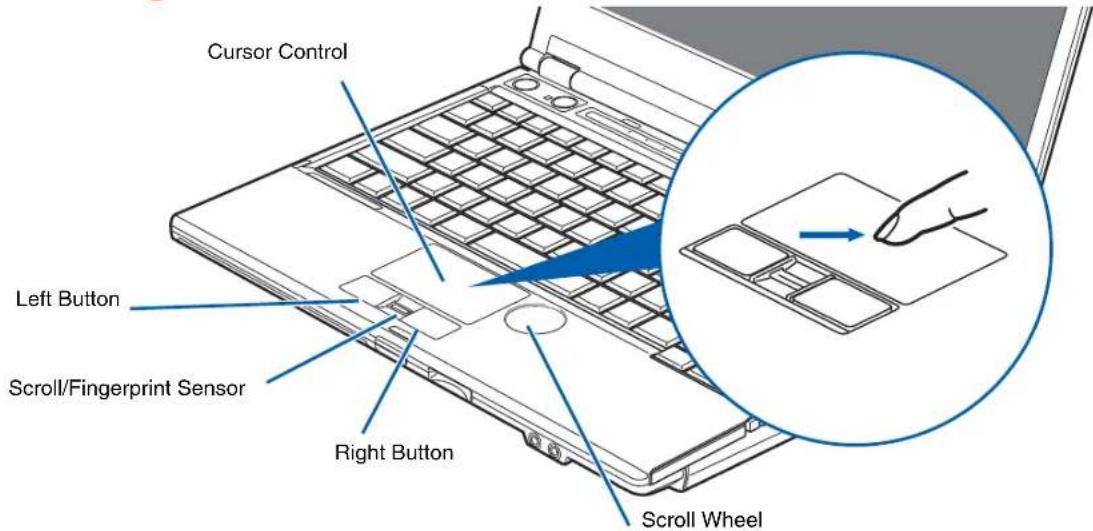

• Touchpad Pointing Device/Scroll Wheel p. 29

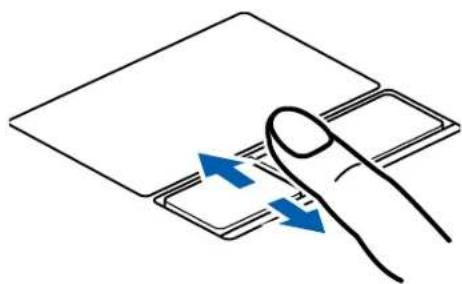

• Using the Scroll Wheel p. 33

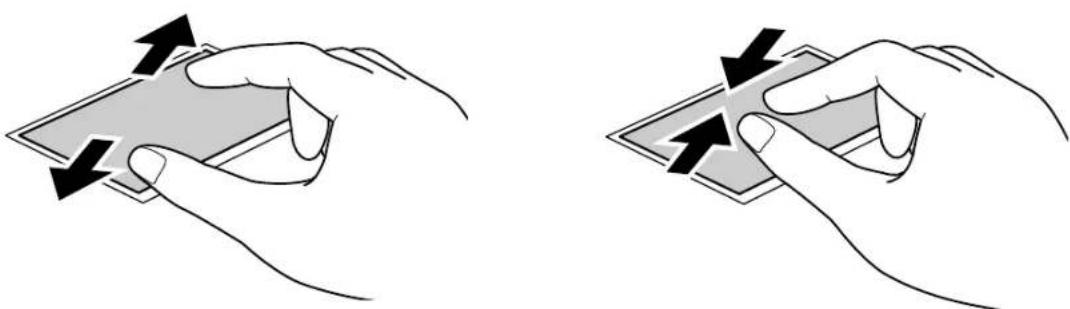

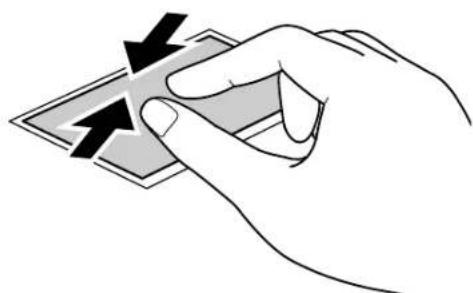

• Navigating Using Gestures (Windows 7 systems) p. 34
• Touchpad Control Adjustment p. 35
• Volume Control p. 37
• Controlling the Volume p. 37
• Flexible Bay Devices p. 38
• Removing and Installing Modular Devices p. 38
• LifeBook Security/Application Panel p. 40
• Setting up Your LifeBook Security Panel p. 40
• Passwords p. 41
• Operating Your LifeBook Security/Application Panel p. 43
• Precautions p. 44
• Uninstalling the Security Panel Application p. 44
• Launching Applications with the Security/Application Panel p. 46

Chapter 2 Getting Started with Your LifeBook

• Power Sources p. 49
• Connecting the Power Adapters p. 50
• Display Panel p. 51

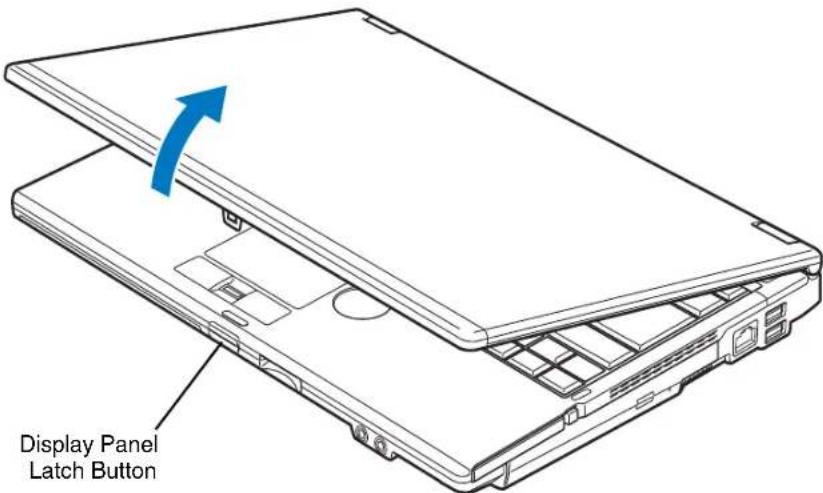

• Opening the Display Panel p. 51
• Adjusting Display Panel Brightness p. 52
• Using the Keyboard p. 52
• Using the Power Options (Windows Vista/7) p. 52
• Using the Windows Mobility Center (Windows Vista/7) p. 52
• Using Power Management to Control Brightness (Windows 7) p. 523
• Starting Your LifeBook Notebook p. 53
• Power On p. 53
• Boot Sequence p. 54
• Hard Disk Drive Passwords p. 54
• BIOS Setup Utility p. 55
• Booting the System p. 56
• Starting Windows the first time p. 56
• Registering Your LifeBook Tablet PC with Fujitsu p. 58
• Installing ClickMe! p. 58
• Fujitsu Driver Update Utility p. 58
• Power Management p. 59
• Power/Suspend/Resume Button p. 59
• Standby (Sleep) Mode p. 59
• Hibernation (Save-to-Disk) Feature p. 60
• Windows Power Management p. 61
• Restarting the System p. 61
• Powering Off p. 62
• Anytime USB Charge Utility p. 63

Chapter 3 User-Installable Features

Chapter 5 Care and Maintenance

• Caring for your LifeBook Notebook p. 115
• Cleaning your LifeBook notebook p. 117

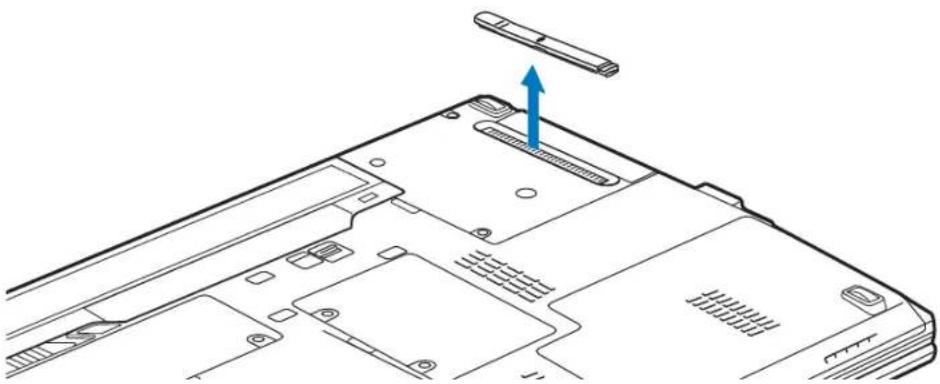

• Cleaning the dust filter p. 118
• Storing your LifeBook notebook p. 119
• Traveling with your LifeBook notebook p. 120
• Batteries p. 121
• Media Care p. 122

Chapter 6 System Specifications

• Website: http://www.computers.us.fujitsu.com/support Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Conditions under which the problem occurred

• Any error messages that have occurred

• Type of device connected, if any Fujitsu Shopping Online You can go directly to the online by going to the website at: www.shopfujitsu.com. Limited Warranty Your LifeBook notebook is backed by a Fujitsu International Limited Warranty. Check the service kit that came with your notebook for the Limited Warranty period and terms and conditions. YOU MUST HAVE AN ACTIVE INTERNET CONNECTION TO USE THE ONLINE URL LINKS.11

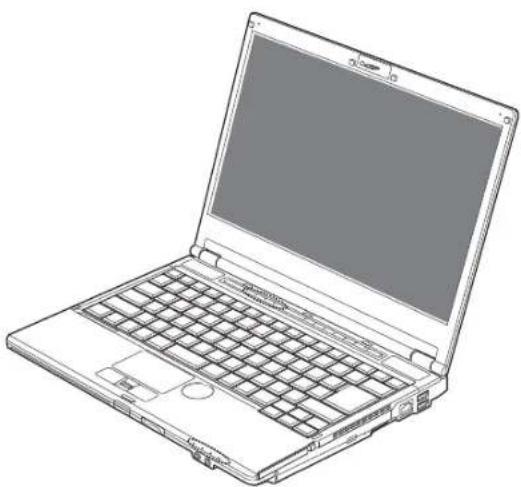

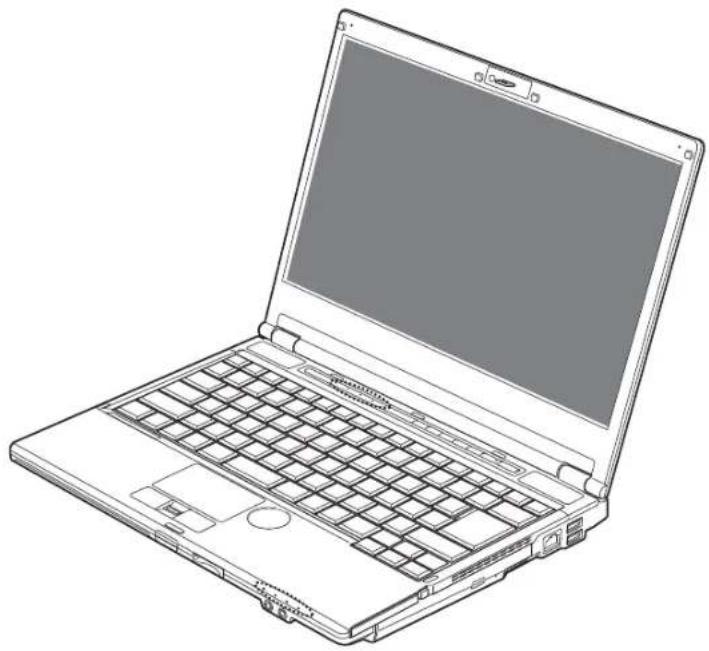

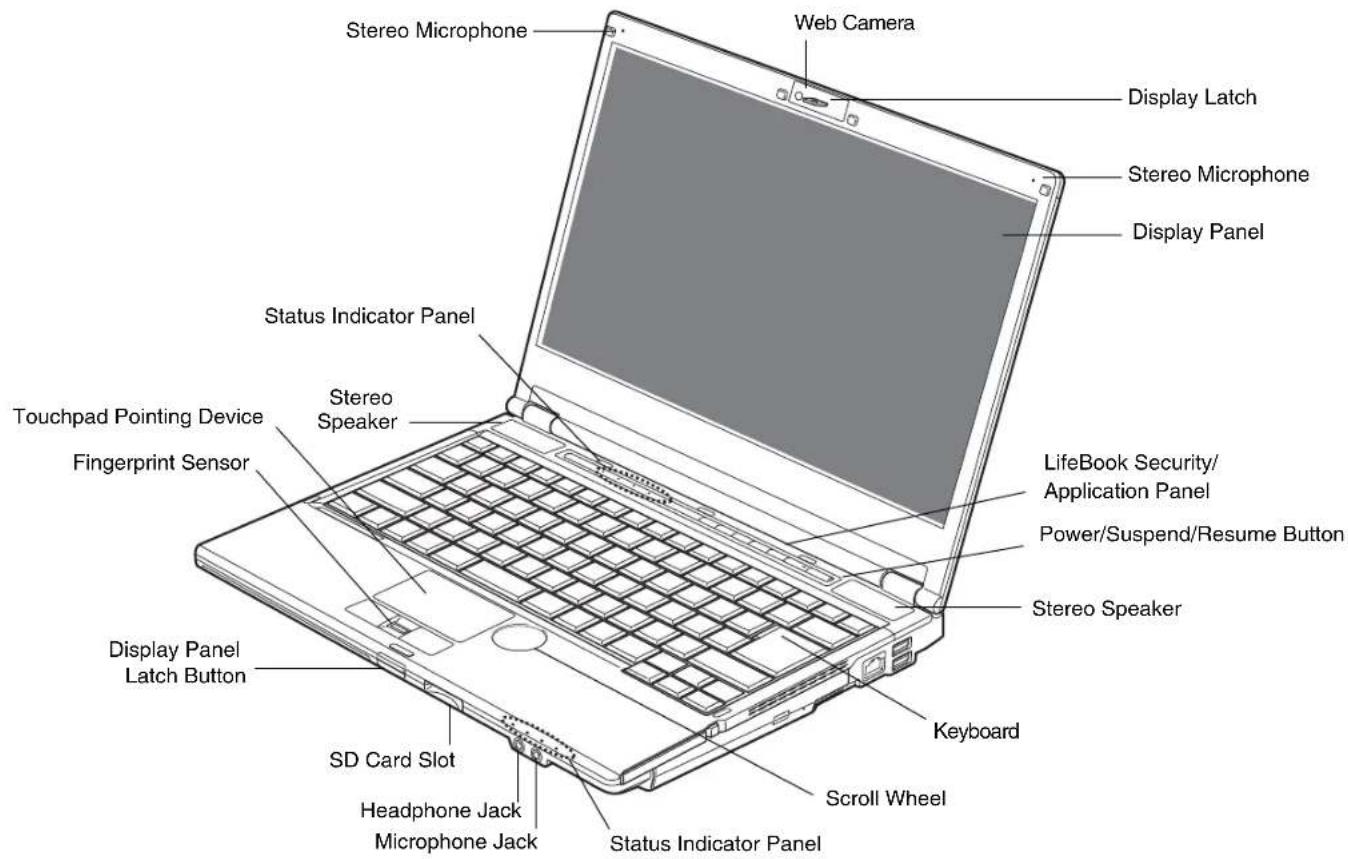

Getting to Know Your LifeBook Overview This section describes the components of your Fujitsu LifeBook S760 notebook. We strongly recommend that you read it before using your notebook – even if you are already familiar with notebook computers. Figure 1. Fujitsu LifeBook S760 notebook12 - Locating the Controls and Connectors Locating the Controls and Connectors Figure 2. LifeBook notebook with display open Display Panel Status Indicator Panel Keyboard Touchpad Pointing Device Power/Suspend/Resume Button Display Panel Stereo Fingerprint Sensor Latch Button LifeBook Security/ Application Panel Headphone Jack Microphone Jack Status Indicator Panel Web Camera Display Latch Scroll Wheel Stereo Microphone Stereo Microphone SD Card Slot Speaker Stereo Speaker13 - Locating the Controls and Connectors Top Components The following is a brief description of your LifeBook notebook’s top components. Web Camera The built-in camera has a resolution of 2.0 megapixels. For instructions on using the camera, see the help files that are included with the webcam software application. Stereo Microphones The built-in stereo microphones allow you to record voice and annotations. Display Panel The display panel is a color LCD panel with back lighting for the display of text and graphics. LifeBook Security/Application Panel The LifeBook Security/Application Panel provides hardware security and one-touch application launch capability. See “LifeBook Security/Application Panel” on page 40. Power/Suspend/Resume Button The Power/Suspend/Resume button allows you to suspend notebook activity without powering off, resume your LifeBook notebook from suspend mode, and power on your notebook when it has been shut down from Windows. See “Power/Suspend/Resume Button” on page 59. Stereo Speakers The built-in dual speakers allow for stereo sound. Keyboard A full-size keyboard with dedicated Windows keys. See “Keyboard” on page 26. Scroll Wheel The scroll wheel is a round “dimple” to the right of the touchpad. The scrolling wheel allows you to navigate around pages by moving your finger in the direction you want to scroll.14 - Locating the Controls and Connectors Status Indicator Panel The Status Indicator Panel displays symbols that correspond with a specific component of your LifeBook notebook. See “Status Indicator Panel” on page 22. Microphone/Line-In Jack The microphone/line-in jack allows you to connect an external mono microphone. See “Microphone/Line- In Jack” on page 90. Headphone/Line Out Jack The headphone/line out jack allows you to connect headphones. See “Headphone/Line-Out Jack” on page 89. Secure Digital (SD) Card Slot The Secure Digital (SD) card slot allows you to insert a flash memory card for data storage. Flash memory cards allow you to transfer data to and from a variety of different digital devices. See “Secure Digital (SD) Cards” on page 77. Display Panel Latch Button The display panel latch button is used to latch and unlatch the display. See “Opening the Display Panel” on page 51. Fingerprint Sensor The fingerprint sensor device allows you to log onto your system and password-protected websites and applications by swiping your finger over the sensor. See “Appendix B: Fingerprint Sensor Device” on page 172. Touchpad Pointing Device The Touchpad pointing device is a mouse-like cursor control with three buttons: a right button, a left button, and a scroll button. The touchpad is gesture-enabled. This allows you to zoom in or out and scroll continually using simple gestures. See “Touchpad Pointing Device/Scroll Wheel” on page 29. Depending upon the configuration of your system, the scroll button may be configured as a fingerprint sensor device.15 - Locating the Controls and Connectors Figure 3. LifeBook notebook left-side panel Left-Side Panel Components The following is a brief description of your LifeBook notebook’s left-side components. DC Power Jack The DC power jack allows you to plug in the AC adapter to power your LifeBook notebook and charge the internal Lithium ion battery. Gigabit LAN (RJ-45) Jack The internal LAN (RJ-45) jack is used for an internal Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN connection. See “Internal LAN (RJ-45) Jack” on page 88. Wireless LAN/Bluetooth On/Off Switch The wireless LAN/Bluetooth on/off switch is used to turn the optional WLAN and Bluetooth devices on and off. Switching the device off when not in use will help to extend battery life. See “Activating the WLAN Device” on page 163. LAN (RJ-45) Jack DC Power Jack Air Vents HDMI Port USB Port Wireless LAN/Bluetooth On/Off Switch16 - Locating the Controls and Connectors USB 2.0 Port The USB 2.0 port allows you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480 Mbps and is backward-compatible with USB 1.1 devices, which transfer data at up to 12 Mbps. See “Universal Serial Bus Ports” on page 88. HDMI Port The HDMI port is used to connect compatible digital devices with your computer (such as a high- definition television or AV receiver). See “HDMI Port” on page 87. Air Vents The air vents allow air to circulate through the system to cool down the components. TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL AIR VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.17 - Locating the Controls and Connectors Figure 4. LifeBook notebook right-side panel Right-Side Panel Components The following is a brief description of your LifeBook notebook’s right-side components. Express/PC Card Eject Button The Express/PC Card eject button is used for removing an ExpressCard or PC Card from the slot (depending upon which type of card slot was configured with your system). Optical Drive Release Button The optical drive release button opens the optical drive. Air Vents The air vents allow air to circulate through the system to cool down the components. USB Ports Air Vents Optical Drive Flexible Bay Release Button Express Card Express/PC Card Slot (shown with Optical Drive installed) Eject Button Modem (RJ-11) Jack TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL AIR VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.18 - Locating the Controls and Connectors Modem (RJ-11) Telephone Jack The Modem (RJ-11) jack is for attaching a telephone line to the internal multinational 56K modem. (There is no modem on systems with WWAN device.) See “Modem (RJ-11) Telephone Jack” on page 86. Express Card Slot TheE xpress Card Slot allows you to install an Express Card. See “Using Express/PC Cards” on page 79. Flexible Bay The flexible bay can accommodate any of the following modular devices. (See “Flexible Bay Devices” on page 38.)

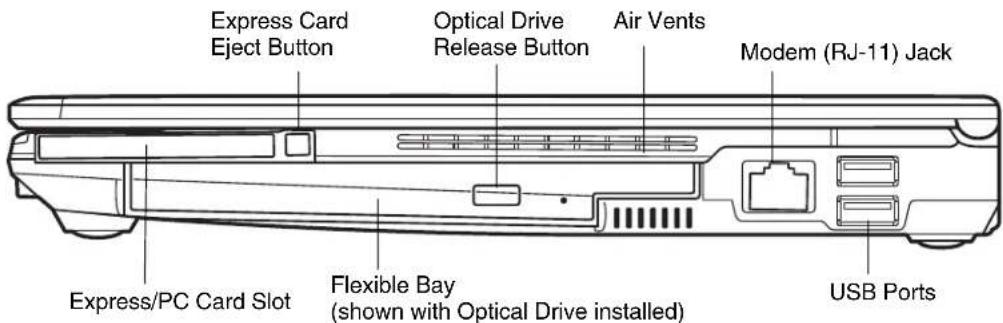

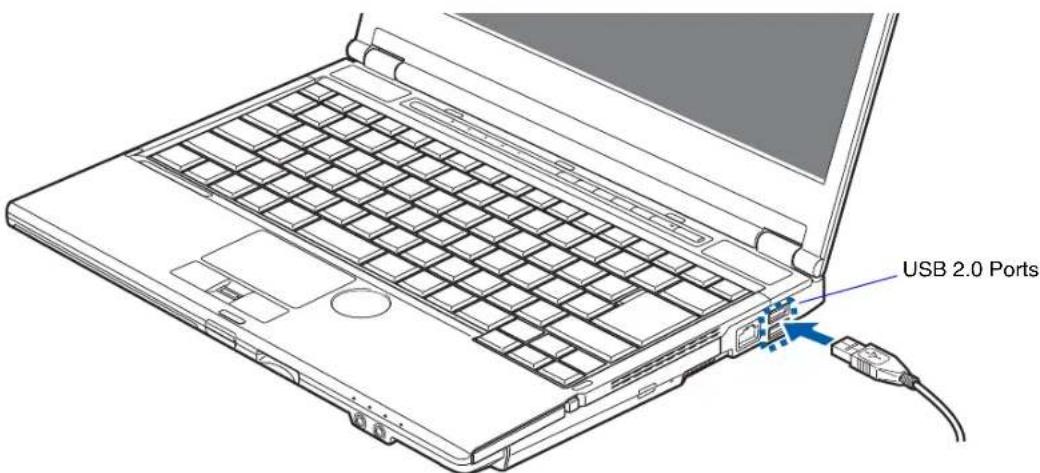

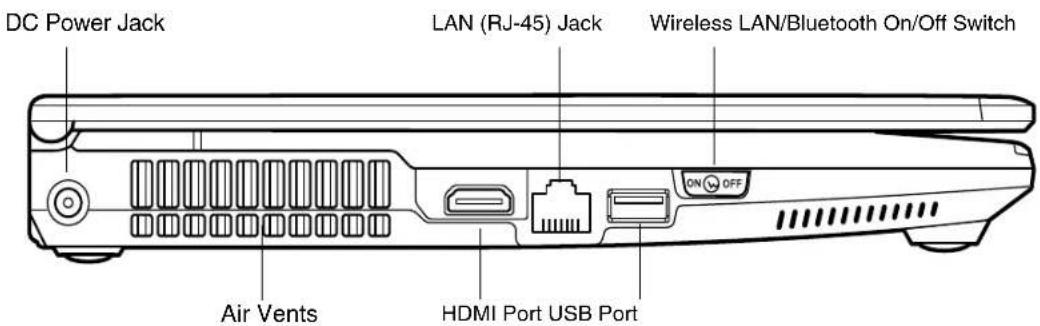

• Weight Saver USB 2.0 Ports The USB 2.0 ports allow you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480 Mbps and is backward-compatible with USB 1.1 devices, which transfer data at up to 12 Mbps. See “Universal Serial Bus Ports” on page 88. THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT THE INTERNAL MODEM TO A DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL MODEM OR YOUR ENTIRE TABLET PC. CONSULT YOUR PBX MANUFACTURER’S DOCUMENTATION FOR DETAILS.

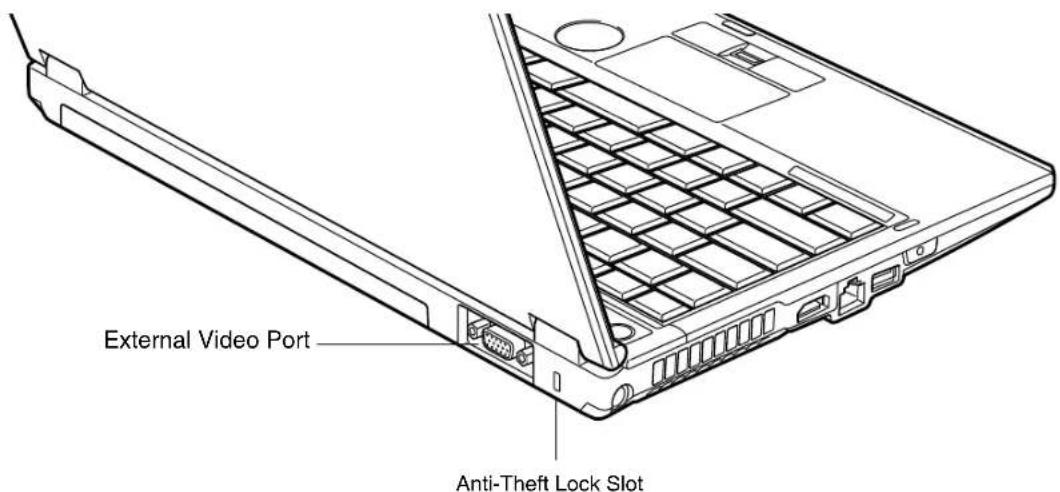

- Locating the Controls and Connectors Figure 5. LifeBook notebook back panel Back Panel Components Following is a brief description of your LifeBook notebook’s back panel components. Anti-theft Lock Slot The anti-theft lock slot allows you to attach an optional physical lock down device. External Video Port The external monitor port allows you to connect an external monitor or LCD projector. See “External Video Port” on page 90. Anti-Theft Lock Slot External Video Port20 - Locating the Controls and Connectors Figure 6. LifeBook notebook bottom panel Bottom Components The following is a brief description of your LifeBook notebook’s bottom panel components. Memory Upgrade Compartment Your notebook comes with high speed Double Data Rate 3 Synchronous Dynamic RAM (DDR3 SDRAM). The memory upgrade compartment allows you to expand the system memory capacity of your notebook, thus improving overall performance. See “Memory Upgrade Module” on page 82. Under normal circumstances, it should not be necessary to open this compartment. Memory Upgrade Lithium ion Air Vents (multiple Dust Filter Cover Battery Release Latch Flexible Bay Port Replicator Compartment locations) Battery Release Device Lock Connector Battery Pack Latch21 - Locating the Controls and Connectors Flexible Bay Device Lock The flexible bay device lock is used to lock and release a modular flexible bay device in the flexible bay. See “Flexible Bay Devices” on page 38. Port Replicator Connector This connector allows you to connect the optional Port Replicator to your Tablet PC. Battery Release Latches The battery release latches are used to lock and release the battery in the battery bay. See “Lithium ion Battery” on page 65. Lithium ion Battery Pack The battery bay contains the internal Lithium ion battery pack. It can be unlatched for the removal of the battery when stored over a long period of time or for swapping a discharged battery with a charged Lithium ion battery. See “Lithium ion Battery” on page 65. Dust Filter Cover The dust filter cover is used to help prevent dust and dirt from entering your system. (See “Cleaning the dust filter” on page 118). Air Vents The air vents allow air to circulate through the system to cool down the components. TO PROTECT YOUR NOTEBOOK FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE, BE SURE TO KEEP ALL AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE NOTEBOOK IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.22 - Status Indicator Panel Figure 7. Status Indicator Panel Status Indicator Panel The Status Indicators display symbols that correspond to specific components of your Fujitsu LifeBook notebook. The LEDs below each symbol tell you how each of those components is operating. Power Indicator The Power indicator symbol shows whether your system is operational. It has several different states, each of which tells you the mode your notebook is in.

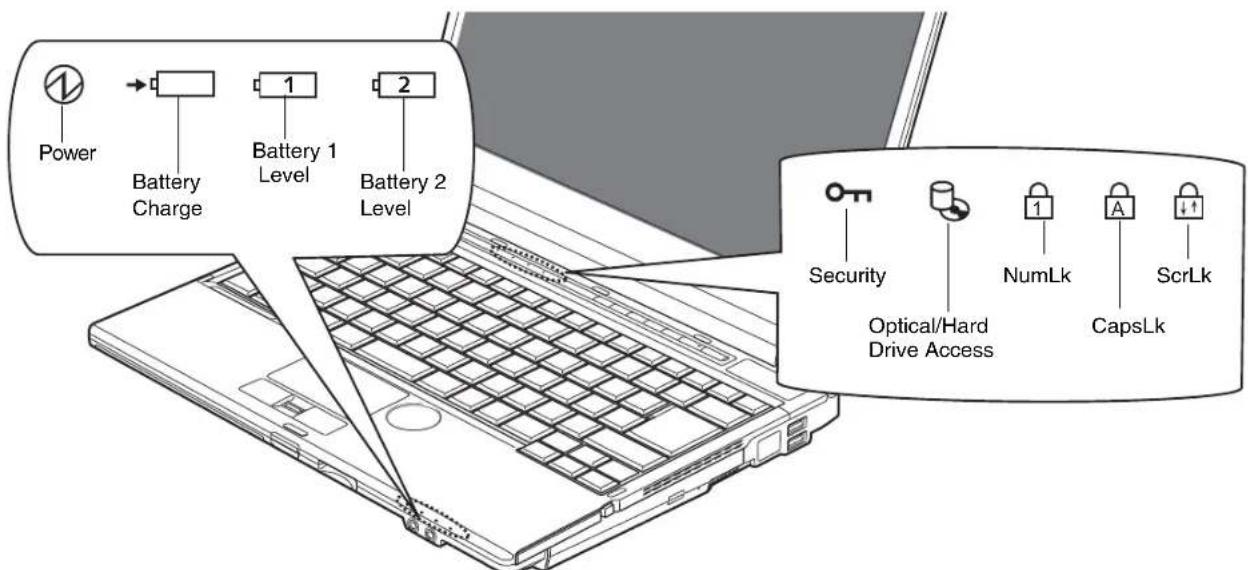

• Steady On: This means that there is power to your notebook and that it is ready for use.

• Flashing: This means that your notebook is in Standby mode.

• Steady Off: This means that your system is either in Save-to-Disk mode, or that your notebook has been turned off. If you are charging your battery, the Power indicator will remain on even if your notebook is shut off. The Power indicator will also remain on if you have either adapter connected and are shut down from Windows. Battery Charge Indicator The battery charge indicator shows the charging status of the battery(ies).

• Orange, solid: System battery is charging.

• Green, solid: System battery is fully charged.

• Orange, blinking: System is waiting to charge battery (battery is out of thermal range).

• Off: AC adapter is not plugged in. Battery Level Indicators Note that there are indicators for the primary battery (Battery 1) and an optional second battery (Battery 2.) The Battery Level indicators display the charge level of the indicated battery pack, as follows:

• Green, solid: Battery is between 51% and 100% charged.

• Orange, solid: Battery is between 13% and 50% charged.

• Red, solid: Battery is 12% or less charged.

• Orange, blinking: Blinks during battery status measurement (Four seconds after the battery is installed).

• Red, blinking: There is a problem with the battery.

• Off: There is no battery installed.

Security Indicator The Security Indicator flashes (if a password was set) when the system resumes from Off or Sleep modes. You must enter the password that was set in the Security Panel before your system will resume operation. Hard Drive/Optical Drive Access Indicator The Hard Drive/Optical Drive Access indicator glows green when your internal hard drive is being accessed. Note that flickering is normal.

NumLk Indicator The NumLk indicator shows that the integral keyboard is set in ten-key numeric keypad mode.

• If the battery pack is installed while the power is turned off, the battery level indicator will display the charge level for five seconds after it blinks orange.

• If the AC adapter is not connected or the battery pack is not fully charged when the computer is switched to standby mode, the indicator will blink. The LED blinks at the rate of one second on/six seconds off.

• Batteries subjected to shocks, vibration or extreme temperatures can be permanently damaged.

• A shorted battery is damaged and must be replaced.25 - Status Indicator Panel CapsLock Indicator The CapsLock indicator shows that your keyboard is set to type in all capital letters. ScrLk Indicator The ScrLk indicator shows that your scroll lock is active.26 - Keyboard Keyboard Figure 8. Keyboard Using the Keyboard Your Fujitsu LifeBook notebook has an integral 84-key keyboard. The keys perform all the standard functions of a 101-key keyboard, including the Windows keys and other special function keys. This section describes the following keys.

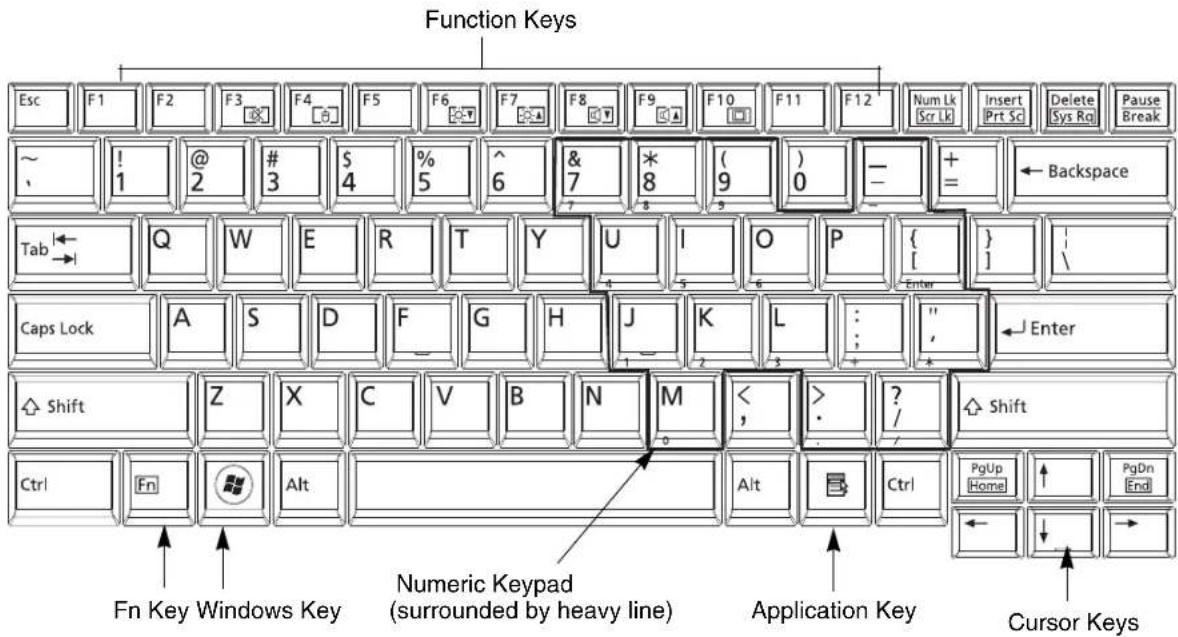

• Numeric keypad: Your notebook allows certain keys to serve dual purposes, both as standard characters and as numeric and mathematical keys. The ability to toggle between the standard character and numerical keys is controlled through the [NumLk] key. Fn Key Windows Key Function Keys Numeric Keypad Application Key Cursor Keys (surrounded by heavy line)27 - Keyboard

• Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to the right, left, up, or down within windows, applications and documents.

• Function keys: The keys labeled [F1] through [F12], are used in conjunction with the [Fn] key to produce special actions that vary depending on what program is running.

• Windows keys: These keys work with your Windows operating system and function the same as the onscreen Start menu button, or the right button on your pointing device. Numeric Keypad Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad keys. NumLk can be activated by pressing the [NumLk] keys. Turning off the NumLk feature is done the same way. Once this feature is activated you can enter numerals 0 through 9, perform addition ( + ), subtraction ( - ), multiplication ( * ), or division ( / ), and enter decimal points ( . ) using the keys designated as ten-key function keys. The keys in the numeric keypad are marked on the front edge of the key to indicate their secondary functions. Windows Keys Your LifeBook notebook has two Windows keys, consisting of a Start key and an Application key. The Start key displays the Start menu. This button functions the same as your onscreen Start menu button. The Application key functions the same as your right mouse button and displays shortcut menus for the selected item. (Please refer to your Windows documentation for additional information regarding the Windows keys.) Cursor Keys The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up, down, left and right in applications. In programs such as Windows Explorer, it moves the “focus” (selects the next item up, down, left, or right).28 - Keyboard Function Keys Your LifeBook notebook has 12 function keys, F1 through F12. The functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used.

• The [Fn] key provides extended functions for the notebook and is always used in conjunction with another key.

• [Fn+F3]: Pressing [F4] while holding [Fn] will disable/enable your touchpad.

• [Fn+F4]: Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off

• [Fn+F6]: Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display.

• [Fn+F7]: Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.

• [Fn+F8]: Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your LifeBook notebook.

• [Fn+F9]: Pressing [F9] repeatedly while holding [Fn] will increase the volume of your LifeBook notebook.

• [Fn+F10]: Pressing the [Fn] + [F10] keys allows you to change your selection of where to send your display video. Each time you press the key combination, you will step to the next choice. If you only have an external CRT connected, the order is internal -> external CRT -> simultaneous display -> internal display.

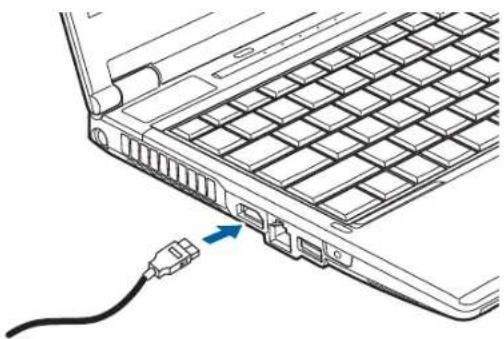

If you have external CRT and HDMI devices connected, the order is: internal display -> external CRT -> simultaneous internal and external CRT -> HDMI display - simultaneous internal and HDMI display -> internal display.29 - Touchpad Pointing Device/Scroll Wheel Touchpad Pointing Device/Scroll Wheel Figure 9. Touchpad pointing device The Touchpad pointing device comes built into your Fujitsu LifeBook notebook. It is used to control the movement of the pointer to select items on your display panel. The Touchpad is composed of a cursor control, a left button, a right button, and a scroll/fingerprint sensor. The cursor control works the same as a mouse, and moves the cursor around the display. It only requires light pressure with the tip of your finger. The left and right buttons function the same as mouse buttons. Additionally, the touchpad allows you to zoom in or out and scroll through large documents using simple gestures. The actual functionality of the buttons may vary depending on the application that is being used. Note that the fingerprint recognition sensor also functions as a scroll sensor. After logging in, moving your finger up and down the sensor will act the same as a scroll button. To learn how to use the fingerprint sensor, see “Appendix B: Fingerprint Sensor Device” on page 172. Cursor Control Left Button Right Button Scroll/Fingerprint Sensor Scroll Wheel30 - Touchpad Pointing Device/Scroll Wheel To the right of the touchpad is a circular dimple, approximately an inch in diameter. This is known as the “scroll wheel” and is used for scrolling up and down pages and zooming in and out on photos. Note that the scroll wheel does not actually move; moving your finger on the “wheel” causes the scrolling action. AN EXTERNAL MOUSE CAN BE CONNECTED TO THE USB PORTS ON YOUR LIFEBOOK NOTEBOOK AND USED SIMULTANEOUSLY WITH THE TOUCHPAD. HOWEVER, IF YOU BOOT THE SYSTEM WITH AN EXTERNAL MOUSE CONNECTED THE TOUCHPAD WILL BE DISABLED OR ENABLED DEPENDING ON THE SPECIFICATIONS IN YOUR BIOS SETTINGS. See “BIOS Setup Utility” on page 55. Clicking Clicking means pushing and releasing a button. To left-click, move the cursor to the item you wish to select, press the left button once, and then immediately release it. To right-click, move the mouse cursor to the item you wish to select, press the right button once, and then immediately release it. You also have the option to perform the clicking operation by tapping lightly on the Touchpad once. Figure 10. Clicking with button Figure 11. Clicking with Touchpad31 - Touchpad Pointing Device/Scroll Wheel Double-Clicking Double-clicking means pushing and releasing the left button twice in rapid succession. This procedure does not function with the right button. To double-click, move the cursor to the item you wish to select, press the left button twice, and immediately release it. You can also perform the double-click operation by tapping lightly on the Touchpad twice. Figure 12. Double-clicking with button Figure 13. Double-clicking with Touchpad32 - Touchpad Pointing Device/Scroll Wheel Dragging Dragging means pressing and holding the left button, while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the left button while moving the item to its new location and then release it. Dragging can also be done using the Touchpad. First, tap the Touchpad twice over the item you wish to move making sure to leave your finger on the pad after the final tap. Next, move the object to its new location by moving your finger across the Touchpad, and then release your finger. Figure 14. Dragging with button Figure 15. Dragging with Touchpad33 - Touchpad Pointing Device/Scroll Wheel Using the Scroll Wheel The scroll wheel is located to the right of the touchpad (Figure 9). The wheel doesn’t actually turn, but you can easily move your finger around it in a circular motion to scroll though pages and lists, the same way you would with a scroll bar. The scroll wheel can also be used to zoom in and out on pictures. To do so, position the cursor on a picture and move your finger horizontally across the scroll wheel to enlarge and reduce the size of the picture. Scrolling Using the fingerprint sensor as a scrolling button allows you to navigate through a document quickly without using the window’s scroll bars. This is particularly useful when you are navigating through on-line pages. To use the sensor, slide your finger forwards or backwards, depending upon the direction you want to scroll. When you have reached the desired section of the page, lift your finger. To use the sensor for fingerprint recognition, see “Appendix B: Fingerprint Sensor Device” on page 172. Figure 16. Scrolling with fingerprint sensor34 - Touchpad Pointing Device/Scroll Wheel Navigating Using Gestures (Windows 7 systems) The touchpad allows you to use gestures to zoom in or out on a page or scroll quickly through large documents. Zooming In: To zoom in on a page using the touchpad, simply place two fingers together on the touchpad and move them away from each other. (See Figure 17) Zooming Out: To zoom out on a page using the touchpad, place two fingers on the touchpad and move towards each other. (See Figure 18) Continuous Scroll: To scroll through a large document using gestures (“ChiralMotion”), hold your finger on the right side touchpad for a couple of seconds until a circular icon appears, then move your finger in a clockwise circular motion to scroll down, or counter-clockwise to scroll up. To scroll side to side, hold your finger on the botttom edge of the touchpad for a couple of seconds until a circular icon appears, then move your finger clockwise to scroll right, and counter-clockwise to scroll left. (See Figure 19) Momentum: To increase the cursor movement speed, slide your finger quickly across the touchpad. (See Figure 20) Flick Navigation: On the touchpad, flicking two fingers to the right or left has the same effect as pressing the [Forward] or [Back] buttons on applications such as Internet Explorer. Pivot Rotation: After placing one finger on the touchpad, you can rotate files (such as PDFs) or images by circling a second finger on the touchpad.35 - Touchpad Pointing Device/Scroll Wheel Enabling/Disabling Gesture Functions: 1 To enable or disable the gesturing functions, go to Start > Control Panel > Hardware and Sound. 2 Double-click Mouse, and the Mouse Properties window will appear. 3 Select the Device Settings tab and click the [Settings...] button. 4 To enable/disable continuous scrolling: Select Virtual Scrolling from the left pane, check Enable Vertical Scrolling and/or Enable Horizontal Scrolling, and then check Chiral Motion. 5 To enable/disable the zoom function, select Pointer Motion in the left pane, then check Pinch. 6 To enable or disable the momentum feature, select Pointer Motion in the left pane, then select Momentum and check Enable Momentum. Touchpad Control Adjustment The Windows Control Panel allows you to customize your Touchpad with selections made from within the Mouse Properties dialog box. Figure 17. Zooming in with Touchpad Figure 18. Zooming out with Touchpad36 - Touchpad Pointing Device/Scroll Wheel Figure 19. Continuous scrolling Figure 20. Speeding up cursor movement37 - Volume Control Volume Control Your Fujitsu LifeBook notebook has multiple volume controls which interact with each other. Controlling the Volume The volume can be controlled in several different ways:

• Volume can be changed or muted from within the Volume Control in the system tray.

• Volume can be controlled with the F8 and F9 functions keys. Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your notebook. Pressing [F9] repeatedly while holding [Fn] will increase the volume of your notebook.

• Volume can be muted by pressing the [F3] key while holding down the [Fn] key. To restore audio, repeat the [Fn+F3] procedure.

• Volume can be controlled by many volume controls that are set within individual applications.

• Certain external audio devices you might connect to your system may have hardware volume controls. Each source discussed above puts an upper limit on the volume level that must then be followed by the other sources. We recommend that you experiment with the various volume controls to discover the optimal sound level. ANY SOFTWARE THAT CONTAINS AUDIO FILES WILL ALSO CONTAIN A VOLUME CONTROL OF ITS OWN. IF YOU INSTALL AN EXTERNAL AUDIO DEVICE THAT HAS AN INDEPENDENT VOLUME CONTROL, THE HARDWARE VOLUME CONTROL AND THE SOFTWARE VOLUME CONTROL WILL INTERACT WITH EACH OTHER. IT SHOULD BE NOTED THAT IF YOU SET YOUR SOFTWARE VOLUME TO OFF, YOU WILL OVERRIDE

THE EXTERNAL VOLUME CONTROL SETTING.38

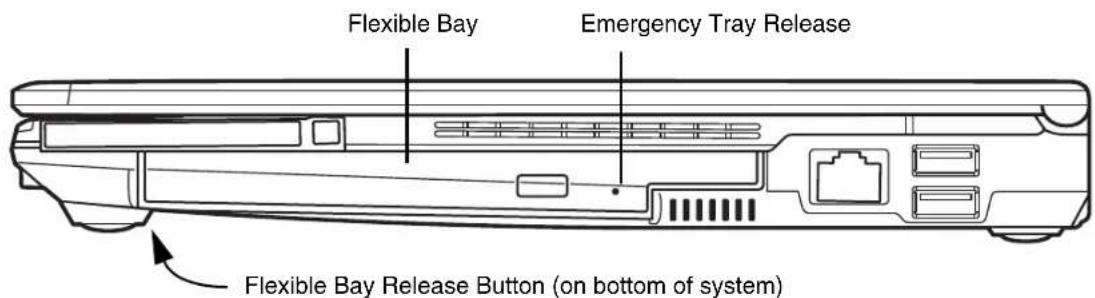

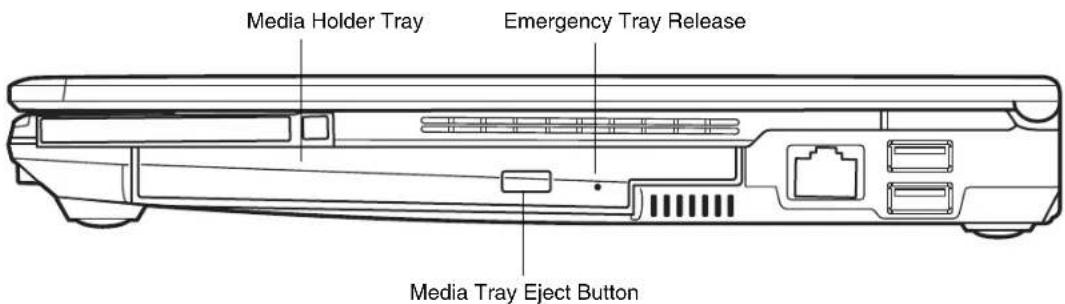

- Flexible Bay Devices Figure 21. Flexible Bay Flexible Bay Devices Your Fujitsu LifeBook notebook contains a Flexible Bay. The Flexible Bay can house an optical drive, a Lithium ion battery, or a weight saver. Your Flexible Bay will have one of the following devices installed.

• Modular Dual-Layer Multi-Format DVD Writer: This allows you to access movies, software, and audio DVD/CDs and record to DVD, CD, and DVD-RAM discs.

• Modular Lithium ion battery: This is a rechargeable battery that can be used to power your LifeBook notebook when an adapter is not connected.

• Weight Saver: This is used to fill the bay when no device is needed. Removing and Installing Modular Devices There are two ways to remove and install modular devices in the Flexible Bay:

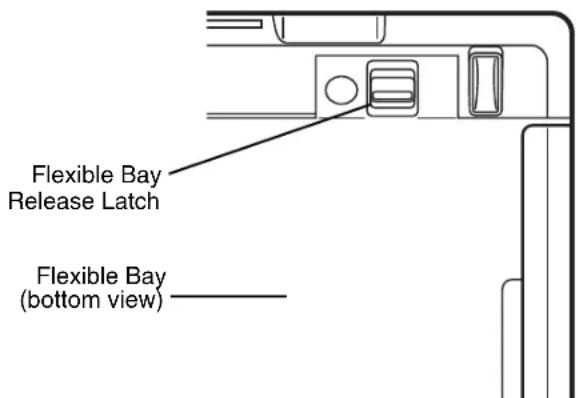

• Cold-swapping: swapping devices while your LifeBook notebook is powered off.

• Hot-swapping: swapping devices while your system is active, using the Safely Remove Hardware icon from your system tray. Flexible Bay Flexible Bay Release Button (on bottom of system) Emergency Tray Release39 - Flexible Bay Devices Cold-swapping To cold-swap modular devices in your Flexible Bay follow these easy steps: Your LifeBook will automatically detect the new device and activate it within your system. The drive letters associated with the device will be created and listed under My Computer and Windows Explorer. Hot-swapping Hot-swapping is provided through the Safely Remove Hardware utility. The icon for the utility appears in the system tray. Click on the icon and follow the on-screen instructions. YOU SHOULD NEVER LEAVE YOUR FLEXIBLE BAY EMPTY WHEN THE NOTEBOOK IS IN OPERATION. IF LEFT EMPTY, DUST OR FOREIGN MATTER MAY ACCUMULATE INSIDE THE NOTEBOOK. 1 Close any open files. 2 Shut down your LifeBook notebook. 3 Turn your system upside down. 4 As you press the Flexible Bay release latch as shown in Figure 22, pull out the Flexible Bay module until it is clear of the bay. This will require light force. 5 Slide the device you are installing into your notebook until it clicks into place. 6 It is now safe to turn your notebook back on. 7 You can now access and use the device. Figure 22. Removing/installing a Flexible Bay device Flexible Bay Release Latch Flexible Bay (bottom view)40 - LifeBook Security/Application Panel Figure 23. LifeBook Security/Application Panel LifeBook Security/Application Panel A unique feature of your LifeBook notebook is the Security/Application Panel that allows you to secure your notebook from unauthorized use. The Security/Application Panel also allows you to launch applications with the touch of a button when your system is on. If the security system is activated, upon starting your notebook or resuming from suspend mode, the security system requires you to enter a password code using the buttons on the Security/Application Panel. After entering a correct password, your notebook resumes system operation. Setting up Your LifeBook Security Panel When you receive your LifeBook notebook, the security panel application is pre-installed without any passwords. The following sections provide detailed information on your security panel, and how to set, change or remove passwords. Numbered Buttons Use these buttons to enter your password. Enter Button After entering the button strokes, push this button to enter the password into the LifeBook notebook.

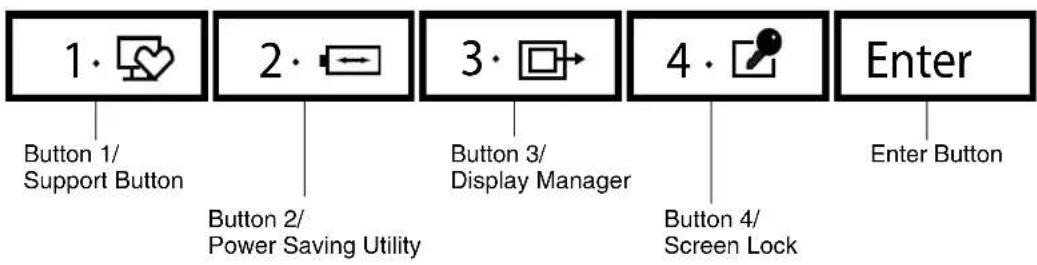

Enter Button 1/ Button 2/ Button 3/ Button 4/ Enter Button Support Button Power Saving Utility Display Manager Screen Lock41 - LifeBook Security/Application Panel Passwords The user and supervisor password may be set on this notebook. A supervisor password is typically the same for all LifeBook notebooks in a working group, office, or company to allow for system management. Individual LifeBook notebooks in a group environment should not use a common password. A password consists of one to five button strokes plus the [Enter] button. A valid stroke consists of pushing one or up to four buttons simultaneously. The following are valid button strokes:

• Pushing [4] by itself

• Pushing [2] and [3] at the same time

• Pushing [1], [2], and [4] at the same time

• Pushing [1], [2], [3], and [4] at the same time The following are valid passwords. The numbers within braces ({ }) are button strokes using more than one button.

• {[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [enter] Setting Passwords When shipped from the factory, no passwords are set. You have a choice of having no password or setting supervisor and user passwords. You must set the supervisor password before the user password. THE PURPOSE OF SUPERVISOR PASSWORD IS TO BE ABLE TO BYPASS THE USER PASSWORD IN CASE THE USER PASSWORD IS FORGOTTEN. THE SUPERVISOR PASSWORD ALONE WILL NOT LOCK THE SYSTEM. YOU MUST SET BOTH THE SUPERVISOR AND USER PASSWORDS FOR THE SECURITY PANEL TO WORK.42 - LifeBook Security/Application Panel Setting Supervisor Password You must have set a supervisor password before setting any user passwords. The supervisor password can bypass the user password. Depending upon your operating system, use the appropriate procedure below. Windows XP: 1 Go to the Start menu. 2 Click on Run. 3 Type in: C:\Program Files\Fujitsu\Security Panel Application\Supervisor\FJSECS.EXE, then press [Enter] 4 Follow the on-screen instructions to set the Supervisor password. Windows Vista and Windows 7: 1 Go to the Start menu. 2 Select All Programs. 3 Select Accessories, then select Run. 4 Type in: C:\Program Files\Fujitsu\Security Panel Application\Supervisor\FJSECS.EXE, then press [Enter] 5 Follow the on-screen instructions to set the Supervisor password. Setting User Password 1 Go to the Start menu. 2 Click on Programs (or All Programs). 3 Click on Security Panel Application and Set User Password. 4 Follow the on-screen instructions to set the user password. YOU MAY CHANGE OR REMOVE THE SUPERVISOR OR USER PASSWORD BY REPEATING THE STEPS DEFINED ABOVE.43 - LifeBook Security/Application Panel Operating Your LifeBook Security/Application Panel The security lock feature is in effect both when the system resumes from Off or suspend state. You will need to enter the user password right after pressing the Suspend/Resume button. Your system will not boot or resume from Standby without entering your supervisor/user password. From Off State 1 Turn on your system. 2 When the Security Indicator flashes, enter the password and press [Enter] button. For example, if the password is 22222, press button number [2] five times and press [Enter] button. 3 The notebook will boot to normal operation. From Suspend State 1 Press your Power/Suspend/Resume button. 2 When the Security Indicator flashes, enter the password and press [Enter] button. 3 The notebook should resume normal operation. Incorrect Password Entry If an invalid supervisor or user password is entered three times in succession, the system will “beep” for about one minute. If a valid password is entered within a minute (while system beeps), the beeping will stop and the notebook will resume normal operation. If no password (or an invalid one) is entered while the system beeps, the system will return to its previous locked state (suspend or off) and the Security Indicator will go off. To reactivate the notebook after a password failure, you must press the Power/Suspend/Resume button, then enter a correct password. REMEMBER THE USER PASSWORD YOU SPECIFIED ON THE SECURITY PANEL APPLICATION. IF YOU FORGET THE PASSWORD YOU WILL NOT BE ABLE TO USE YOUR COMPUTER. THE SUPERVISOR

PASSWORD CAN OVERRIDE THE USER PASSWORD.44

- LifeBook Security/Application Panel Precautions Opening and Closing the Cover Closing the cover automatically places the notebook into suspend mode. Opening it does not place the notebook into normal operation automatically. Instead, you must enter the proper security password after pushing the power/suspend/resume button. The setting can be changed in Power Options Control Panel. Low Battery Operations If your LifeBook notebook has low battery, pushing the Power/Suspend/Resume button only turns on the Security Indicator. Your notebook does not unlock, the Security Indicator turns off after one minute. To resume normal operation, first attach a power supply to the notebook. Then you may unlock the notebook. Uninstalling the Security Panel Application You have two options when uninstalling the security panel application:

• Uninstall the security panel application software. This will disable all security features.

• Uninstall the security panel application with password still active. This will not allow any changes to the password. Uninstalling the Security Panel Application Remove passwords when the User wants no password protection and doesn’t want to give anybody the ability to set a password on their computer. In this case, if any passwords are set, they must first be cleared BEFORE removing the application. To clear passwords, follow procedure in “Setting Passwords” except this time, select [Remove], enter current password then click [Next]. When asked to confirm, select [Yes]. Removing Security Panel Application with Passwords Still Active Using this feature will not allow any changes to the password. Depending upon your operating system, the procedures differ slightly, as noted below. REMOVING THE APPLICATIONS DOES NOT REMOVE THE PASSWORD. IT SIMPLY REMOVES THE UTILITY TO CHANGE/ADD/REMOVE PASSWORDS. TO CHANGE YOUR PASSWORD YOU MUST REINSTALL THE APPLICATION.45 - LifeBook Security/Application Panel User: 1 Go to Start Menu, Click on Control Panel. 2 Open Programs (In Windows Vista and Windows 7: Programs and Features) in the Control Panel. 3 Select the Security Panel Application (In Windows Vista and Windows 7: Security Panel) in the list, and click Add/Remove. 4 When the Confirm File Deletion box appears, click Yes. Supervisor: 1 Go to Start Menu, Click on Control Panel. 2 Open Add/Remove Programs Properties in the Control Panel. 3 Select the Security Panel Application for Supervisor (In Windows Vista and Windows 7: Security Panel for Supervisor) in the list, and click Add/Remove. 4 When the Confirm File Deletion box appears, click Yes. Reinstalling the Security/Application Panel To reinstall supervisor or user security application, you will need your Drivers and Applications CD. The Utilities/Security Application Panel folder contains two separate folders: Supervisor and User. The setup files for supervisor and user security applications are contained in those folders. 1 Go to the Utilities/Security Application Panel/Supervisor folder on the CD and double-click the setupS.exe file. (In Vista, the path is: Utilities/SAP/Vista/Supervisor/SetupS.exe). The Installing Security Panel Application window will appear. Follow the instructions on the screen. 2 Go to the Utilities/Security Application Panel/User folder on the CD and double-click the setup.exe file.(In Vista, the path is: Utilities/SAP/Vista/Setup.exe) The Installing Security Panel Application window will appear. Follow the instructions on the screen. Supervisor and user passwords can be set via Windows software using the FJSECS.exe and FJSECU.exe files, respectively. FJSECU.exe for the user password cannot run without first setting a supervisor password. You need to run FJSECS.exe first to set the supervisor password. Follow instructions under Setting Passwords on page 41.46 - LifeBook Security/Application Panel If you forget both passwords, contact Fujitsu America Service and Support at 1-800-8FUJITSU (1-800- 838-5487). Fujitsu America charges a service fee for unlocking a password restricted LifeBook notebook. When calling please have a valid credit card and provide proof of ownership. You will then be given instructions on where to ship your notebook. Launching Applications with the Security/Application Panel The security panel also enables you to launch applications with the touch of a button when your system is on. Pressing any of the buttons will launch a user-defined application. Your notebook is pre-installed with software utilities that let you operate and configure your LifeBook Security /Application Panel. These utilities are found in the Control Panel under Application Panel. They include two Application Panel Setup tabs, E-mail Setup, and Internet Setup. Configuring your LifeBook Application Panel When you start Windows, the LifeBook Application Panel is automatically activated. As an application launcher, the LifeBook Application Panel is very flexible, giving you a variety of options. To set up the Panel to best suit your needs, we have provided the Application Panel Setup utility that quickly and easily helps you make the most of this valuable feature. To configure your LifeBook Application Panel with Application Panel Setup: 1 Click on [Start]. 2 Click on Programs (or Settings in Windows XP). 3 Click on LifeBook Application Panel (or Control Panel in Windows XP). 4 Click on Application Panel Setup. The Application Panel Setup utility will appear. There are tabs that correspond to the application buttons on the LifeBook Application Panel. When you receive your notebook, these buttons are pre-configured to launch specific programs, as referenced in Chapter 7 of this document. THE TABS IN APPLICATION PANEL SETUP MAY NOT BE IN THE SAME ORDER AS THE BUTTONS ON YOUR

IFEBOOK NOTEBOOK, PLEASE SELECT THE TAB YOU WISH TO CHANGE CAREFULLY.47 - LifeBook Security/Application Panel To change an application associated with the Application buttons, click on the tab for the button you would like to reconfigure – for example, Application A. Click on Browse from Start Menu, scroll down the list of applications, click on the application you wish to launch with this button, and then click OK. The button will now launch the new application. The Internet tab is different. It comes set to launch your Windows default Internet browser (Internet Explorer), unless you have changed this in Windows. In order to reconfigure it to launch another program follow these easy steps: 1 Click on Other from the Internet browser box. 2 Click on Browse from Start Menu. 3 Scroll down the list of applications, and then click on the application you wish to launch with this button. 4 Click OK. The button will now launch the new application. If you want to return to launching your Windows default Internet browser with this button, you need only click on “Default Internet Browser” from the Internet browser box. Be aware that you will erase the settings for the “other application”. If you wish to go back to launching the “other application” from this button, you will need to reconfigure it as described above. When you have finished with Application Panel Setup click OK, and the new settings will take effect. You can reconfigure your LifeBook Application Panel as often as you like. Deactivating and Activating the LifeBook Application Panel To deactivate the LifeBook Application Panel in Windows XP, follow these easy steps: 1 Click on Start-> Programs. 2 Click on LifeBook Application Panel. 3 Click on Stop Application Panel. IF YOUR SYSTEM HAS DEDICATED ONE OF THE APPLICATION LAUNCHER BUTTONS TO BE AN INTERNET LAUNCHER, THE BUTTON CAN STILL BE CONFIGURED TO LAUNCH ANY APPLICATION YOU WISH, NOT JUST

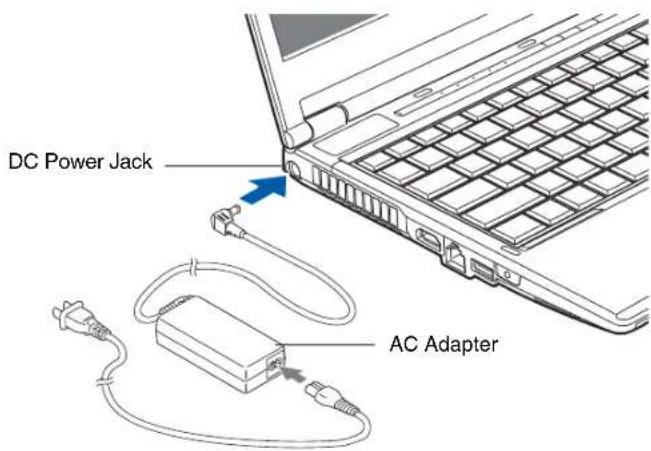

Getting Started with Your LifeBook Figure 24. Connecting the AC Adapter Power Sources Your Fujitsu LifeBook notebook has three possible power sources: a primary Lithium ion battery, an AC adapter or an optional Auto/Airline adapter. DC Power JackAC Adapter50 - Power Sources Connecting the Power Adapters The AC adapter or optional Auto/Airline adapter provides power for operating your notebook and charging the batteries. Connecting the AC Adapter 1 Plug the DC output cable into the DC power jack of your LifeBook notebook. 1 Plug the AC cable to the AC Adapter. 2 Plug the AC adapter into an AC electrical outlet. Connecting the Optional Auto/Airline Adapter 1 Plug the DC output cable into the DC power jack on your notebook. 2 Plug the Auto/Airline adapter into the cigarette lighter of an automobile with the ignition key in the On or Accessory position.

3 Plug the Auto/Airline adapter into the DC power jack on an airplane seat. Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power 1 Be sure that you have at least one charged battery installed. 2 Remove the AC adapter or the Auto/Airline adapter. THE LITHIUM ION BATTERY IS NOT CHARGED UPON PURCHASE. INITIALLY, YOU WILL NEED TO CONNECT EITHER THE AC ADAPTER OR THE AUTO/AIRLINE ADAPTER TO USE YOUR NOTEBOOK.51 - Display Panel Figure 25. Opening the Display Panel Display Panel Your Fujitsu LifeBook notebook contains a display panel that is backlit for easier viewing in bright environments and maintains top resolution through the use of active-matrix technology. Opening the Display Panel 1 Press the Display Panel latch button in. This releases the locking mechanism, allowing you to raise the display. 2 Lift the display backwards, being careful not to touch the screen, until it is at a comfortable viewing angle. Display Panel Latch Button USE CARE WHEN OPENING AND CLOSING THE DISPLAY. PUTTING UNDUE PRESSURE ON THE FRONT COVER AND THE DISPLAY COULD CAUSE DAMAGE.52 - Display Panel Adjusting Display Panel Brightness Once you have turned on your LifeBook notebook, you may want to adjust the brightness level of the screen to a more comfortable viewing level. In Windows XP systems, the brightness can be adjusted using the keyboard. In Windows Vista and Windows 7 systems, there are three ways to adjust the brightness, by using the keyboard, the Power Options, or the Windows Mobility Center. Using the Keyboard Adjusting the brightness using the keyboard changes the setting only temporarily.

• [Fn+F6]: Pressing repeatedly will lower the brightness of your display.

• [Fn+F7]: Pressing repeatedly will increase the brightness of the display. Using the Power Options (Windows Vista/7) To change the brightness using the Power Options utility, open the Control Panel and click on the Power Options icon. Select Adjust the display brightness in the left panel, then drag the brightness bars to the desired level. Note The settings you make via this utility are permanent until you change them again. Using the Windows Mobility Center (Windows Vista/7) In the Control Panel, click the Windows Mobility Center icon. Drag the Display Brightness bar to the desired level. Using Power Management to Control Brightness (Windows 7) To adjust brightness with the power management utility in Windows 7: Click Start -> Control Panel. In View by:, select one of the icon views. Select Display, then click Adjust brightness in left pane. Drag the Screen brightness: slider left or right, to suit your preference. NOTE THAT WHEN YOU CHANGE THE DISPLAY SETTINGS IN WINDOWS XP SYSTEMS, THE CHANGES WILL BE RETAINED AFTER STANDBY AND RESTART. IN WINDOWS VISTA SYSTEMS, THE CHANGED SETTINGS ARE TEMPORARY BY DEFAULT, BUT THEY CAN BE MADE PERMANENT BY USING THE POWER

- Starting Your LifeBook Notebook Starting Your LifeBook Notebook Power On Power/Suspend/Resume Button The Power/Suspend/Resume button is used to turn on your notebook from its off state. Once you have connected your AC adapter or charged the internal Lithium ion battery, you can power on your notebook. To turn on your LifeBook notebook from its off state, press the Power/Suspend/Resume button, located above the keyboard to the right. When you are done working you can either leave your notebook in Suspend mode, See “Standby (Sleep) Mode” on page 59, or you can turn it off. See “Powering Off” on page 62. When you power on your LifeBook, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your LifeBook notebook will emit an audio warning and/or an error message will be displayed. See “Power On Self Test Messages” on page 104 Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings. After satisfactory completion of the POST, your notebook will load your operating system. WHEN YOU TURN ON YOUR LIFEBOOK NOTEBOOK, BE SURE YOU HAVE A POWER SOURCE. THIS MEANS THAT A BATTERY IS INSTALLED AND CHARGED, OR THAT THE AC OR AUTO/AIRLINE ADAPTER IS CONNECTED AND HAS POWER.

O NOT CARRY YOUR LIFEBOOK NOTEBOOK AROUND WITH THE POWER ON OR SUBJECT IT TO SHOCKS OR VIBRATION, AS YOU RISK DAMAGING YOUR NOTEBOOK.54 - Starting Your LifeBook Notebook Boot Sequence The procedure for starting-up your notebook is termed the Bootup sequence and involves your notebook’s BIOS. When your LifeBook notebook is first turned on, the main system memory is empty, and it needs to find instructions to start up your notebook. This information is in the BIOS program. Each time you power up or restart your notebook, it goes through a boot sequence which displays a Fujitsu logo until your operating system is loaded. During booting, your notebook is performing a standard boot sequence including a Power On Self Test (POST). When the boot sequence is completed without a failure and without a request for the BIOS Setup Utility, the system displays the operating system’s opening screen. The boot sequence is executed when:

• You turn on the power to your LifeBook notebook.

• You restart your notebook from the Windows Shut Down dialog box.

• The software initiates a system restart. Example: When you install a new application. Hard Disk Drive Passwords To provide additional security for your data, you can assign passwords to your hard disk drive(s). This feature is managed in the system BIOS Setup Utility. See BIOS Setup Utility below for information about accessing the utility. NEVER TURN OFF YOUR LIFEBOOK NOTEBOOK DURING THE POWER ON SELF TEST (POST) OR IT WILL CAUSE AN ERROR MESSAGE TO BE DISPLAYED WHEN YOU TURN YOUR LIFEBOOK NOTEBOOK ON THE NEXT TIME. See “Power On Self Test Messages” on page 104

EMEMBER YOUR PASSWORDS. IF YOU SET AND FORGET YOUR USER AND MASTER HARD DISK PASSWORDS, FUJITSU AMERICA WILL NOT BE ABLE TO RESET IT. YOU MAY LOSE DATA AND HAVE TO REPLACE YOUR SYSTEM BOARD OR HARD DISK DRIVE.55 - Starting Your LifeBook Notebook BIOS Setup Utility The BIOS Setup Utility is a program that sets up the operating environment for your LifeBook notebook. Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change the BIOS’ environment to operate your notebook. The BIOS Setup Utility configures:

• Device control feature parameters, such as changing I/O addresses and boot devices.

• System Data Security feature parameters, such as passwords. Entering the BIOS Setup Utility To enter the BIOS Setup Utility do the following (or use the TrustedCore Menu, as detailed below): 1 Turn on or restart your LifeBook notebook. 2 To enter the BIOS Setup Utility, press the [F2] key once the Fujitsu logo appears on the screen. This will open the main menu of the BIOS Setup Utility with the current settings displayed. 3 Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or alter the current settings. Using the TrustedCore Menu When the Fujitsu logo appears on the screen. press the [Enter] key or click on the left mouse or touchpad button; the TrustedCore Menu will appear. The TrustedCore Menu provides shortcuts to the following menus and information screens:

• Continue Booting56 - Starting Your LifeBook Notebook Clicking on any of the fields will invoke the screen, information, or action described. The Boot Menu can also be invoked by pressing the [F12] key when the Fujitsu logo appears on the screen. BIOS Guide A guide to your notebook’s BIOS is available online. Please visit our service and support website at http://www.computers.us.fujitsu.com/support, then select User’s Guides under Online Support. Select your Product, Series, and Model, then click [Go]. Under the Manuals tab, select the BIOS Guide. Booting the System We strongly recommend that you not attach any external devices and do not put a DVD/CD in your drive until you have gone through the initial power on sequence. When you turn on your notebook for the first time, it will display a Fujitsu logo on the screen. If you do nothing the system will load the operating system, and then the Windows Welcome will begin. Depending upon your operating system (Windows Vista or XP edition), there is a different procedure for stating your system for the first time, as outlined below. Starting Windows the first time In order to ensure that you receive the most benefits from the Windows operating system, it should be registered the first time you use it. THE FIRST TIME YOU INITIALIZE YOUR WINDOWS SYSTEM, THE SCREEN WILL BE BLANK FOR APPROXIMATELY TWO MINUTES. THIS IS NORMAL. AFTER INITIALIZATION, A “SET UP WINDOWS” DIALOG BOX WILL APPEAR.

MPORTANT: DURING THE SETUP PROCEDURE, DO NOT DISCONNECT THE POWER SUPPLY, PRESS ANY BUTTONS, OR USE ANY PERIPHERAL DEVICES SUCH AS A MOUSE, KEYBOARD, OR REMOTE CONTROL.57 - Starting Your LifeBook Notebook 1 First of all, you will need to read and accept the End User License Agreements (EULAs). 2 You will be prompted to enter your User Name and Password and you will be given a chance to select an icon for your account. 3 The next screen asks for a Computer Name and allows you to choose a desktop background. 4 You will next see a "Help protect Windows automatically" screen in which the default choice is "Use recommended settings”. The other two choices are "Install important updates only" and "Ask me later". Select from the three choices. 5 On the next screen set your time and date settings. 6 You will next see the "Select your computer's current location" screen. Make your selection from Home, Work (Default), and Public location. 7 The "Thank you" screen follows and an offer for free Norton Internet Security is extended. Following are several screens while Windows checks the system performance. 8 Windows will then boot up for the first time. As noted above, the first time you initialize your system, the screen will be blank for approximately two minutes. This is normal. During this period, do not disconnect the power supply, press any buttons, or use any peripheral devices such as mouse, keyboard, or remote control. Registering Windows with Microsoft 1 After Windows has booted up for the first time, the Control Panel Welcome Center will appear. If the Register Windows Online icon is not seen in the window, click on “Show all xx items” (where “xx” is the number of topics in the Welcome Center). 2 Click on Register Windows Online and follow the instructions that appear to register your copy of Windows.

ROCESS, EVEN IF YOU SHUT YOUR TABLET PC DOWN AND START IT UP AGAIN.58 - Starting Your LifeBook Notebook Registering Your LifeBook Tablet PC with Fujitsu You can register your LifeBook by going to our website at: http://solutions.us.fujitsu.com/. You will need to be set up with an Internet Service Provider (ISP) to register online.

Installing ClickMe! The first time you boot up your system, you will see a “Primary Settings for the PC” window. This window explains the installations which will be performed by the Click Me! utility. If you click [Execute], ClickMe! will begin installing. If after clicking the button you receive a “User Account Control” window, you will be asked for your permission to continue. Click [Continue] to continue. If you cancel the operation, the ClickMe! icon will appear on your desktop for later installation.

Fujitsu Driver Update Utility

Your system has a convenient tool called the Fujitsu Driver Update (FDU) utility. With FDU, you can choose to automatically or manually go to the Fujitsu site to check for new updates for your system. For more information about the FDU utility, refer to “Automatically Downloading Driver Updates” on page 126. BEFORE INSTALLING THE CLICKME! UTILITY, BE SURE THE WIRELESS LAN SWITCH IS TURNED ON.

HERE MAY BE SOME THIRD-PARTY APPLICATIONS THAT DO NOT GET INSTALLED USING THE CLICKME! UTILITY. FOR MORE INFORMATION, REFER TO YOUR GETTING STARTED GUIDE. ClickMe!59 - Power Management Power Management Your Fujitsu LifeBook notebook has many options and features for conserving battery power. Some of these features are automatic and need no user intervention, such as those for the internal modem. However, others depend on the parameters you set to best suit your operating conditions, such as those for the display brightness. Internal power management for your notebook may be controlled from settings made in your operating system, pre-bundled power management application, or from settings made in BIOS setup utility. Besides the options available for conserving battery power, there are also some things that you can do to prevent your battery from running down as quickly. For example, you can create an appropriate power saving profile, put your notebook into Standby (Sleep) mode when it is not performing an operation, and you can limit the use of high power devices. As with all mobile, battery powered computers, there is a trade-off between performance and power savings. Power/Suspend/Resume Button When your notebook is active, the Power/Suspend/Resume button can be used to manually put the notebook into Standby (Sleep) mode. Push the Power/Suspend/Resume button when the notebook is active, but not actively accessing anything, and immediately release the button. If your notebook is suspended, pushing the Power/Suspend/Resume button returns your notebook to active operation. You can tell whether the system is Suspended by looking at the Power indicator. If the indicator is visible and not flashing, your notebook is fully operational. If the indicator is visible and flashing, your notebook is in Standby mode. If the indicator is not visible, the power is off or your notebook is in Hibernation mode. (See Hibernation Feature) Standby (Sleep) Mode Sleep mode in Windows saves the contents of your system memory during periods of inactivity by maintaining power to critical parts. This mode turns off the CPU, display, hard drive, and all other internal components except those necessary to maintain system memory and for restarting. Your notebook can be put in sleep mode by:60 - Power Management

• Pressing the Power/Suspend/Resume button when your system is turned on.

• Selecting “Sleep” after clicking [Start] then clicking the small arrow at the bottom right of the window.

• Timing out from lack of activity.

• Allowing the battery to reach the Dead Battery Warning condition. Your notebook’s system memory typically stores the file on which you are working, open application information, and any other data required to support operations in progress. When you resume operation from Sleep mode, your system will return to the point where it left off. You must use the Power/Suspend/Resume button to resume operation, and there must be an adequate power source available, or your notebook will not resume. Hibernation (Save-to-Disk) Feature The Hibernation feature saves the contents of your notebook’s system memory to the hard drive as a part of the Suspend/Resume mode. You can enable or disable this feature.

HE MAIN ADVANTAGE OF USING HIBERNATION (SAVE-TO-DISK) IS THAT POWER IS NOT REQUIRED TO MAINTAIN YOUR DATA. THIS IS PARTICULARLY IMPORTANT IF YOU WILL BE LEAVING YOUR NOTEBOOK IN A SUSPENDED STATE FOR A PROLONGED PERIOD OF TIME. THE DRAWBACK OF USING HIBERNATION MODE IS THAT IT LENGTHENS THE POWER DOWN AND POWER UP SEQUENCES AND RESETS PERIPHERAL DEVICES.61 - Power Management Enable or Disable the Hibernation Feature Windows Vista/Windows 7: The Hibernate is enabled by default. To disable or enable the Hibernation feature follow these steps: 1 From the Start menu, select Control Panel, then select the Power Options icon. 2 Select “Choose what the power button does” or “Choose what closing the lid does”, then make your selections (Do Nothing, Sleep, Hibernate, or Shut Down). Windows XP: The default settings are not enabled. To enable or disable the Hibernation feature follow these steps: 1 From the Start menu, select Settings, and then select Control Panel. 2 From the Control Panel select Power Options. 3 Select the Hibernate tab. Select the box to enable or disable this feature. Windows Power Management The Power Options icon located in the Windows Control Panel allows you to configure some of the power management settings. For example, you can use the Power Options to set the timeout values for turning off the display and hard disks whether you are running the notebook on battery power or one of the adapters. Restarting the System Windows Vista/Windows 7: 1 Click the Start button, and then move the mouse over the right arrow. 2 Select the desired action from the list. Windows XP: 1 Click the Start button, and then click Shut Down.62 - Power Management 2 Select the Restart option from within the Windows Shut Down dialog box. 3 Click OK to restart your notebook. Your notebook will shut down and then reboot. Powering Off Before turning off the power, check that the hard drive/optical drive access indicator is off. If you turn off the power while accessing a disk there is a risk of data loss. To ensure that your notebook shuts down without error, use the Windows shut down procedure. Using the correct procedure to shut down from Windows allows your notebook to complete its operations and turn off power in the proper sequence to avoid errors. The proper sequence is: 1 Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the right-hand pane. 2 Select Shut Down from the list. If you are going to store your notebook for a month or more, see Care and Maintenance Section.. TURNING OFF YOUR LIFEBOOK NOTEBOOK WITHOUT EXITING WINDOWS OR TURNING ON YOUR NOTEBOOK WITHIN 10 SECONDS OF THE NOTEBOOK BEING SHUT OFF MAY CAUSE AN ERROR WHEN YOU START THE NEXT TIME.

E SURE TO CLOSE ALL FILES AND EXIT ALL APPLICATIONS PRIOR TO TURNING OFF THE POWER. IF FILES ARE OPEN WHEN YOU TURN THE POWER OFF, YOU WILL LOSE ANY CHANGES THAT HAVE NOT BEEN SAVED, AND MAY CAUSE DISK ERRORS.63 - Power Management Anytime USB Charge Utility Your system contains a handy utility that allows you to charge USB peripherals even when the system is powered off. This is called the Anytime USB Charge Utility. Installation If the utility has not yet been installed on your system, perform the following steps to do so: 1 Power on your PC and logon as an Administrative user or a member of the Administrator's group. 2 Click the [Start] button and open the [Start] menu. 3 Follow the instructions in accordance with your operating system: Windows 7:

• Click [Computer] in the [Start] menu and you will see [Computer].

• From [Computer], navigate to the Folder or Drive where the Software is saved. Windows Vista:

• Click [Computer] in the [Start] menu and you will see the [Computer] folder.

• From the [Computer] folder, navigate to the Folder or Drive where the Software is saved. Windows XP:

• Click [My Computer] in the [Start] menu and you will see the [My Computer] folder.

• From the [My Computer] folder, navigate to the Folder or Drive where the Software is saved.

• Click "Setup" or "Setup.exe" 4 Follow the instructions on the windows that appear. When completed, the installation is done. Confirming the Installation. 1 Click the [Start] button to open the [Start] menu. 2 Select [All Programs] in the [Start] menu. 3 Select [Anytime USB Charge] -> [Settings]. 4 Confirm that the "Anytime USB Charge Utility" window appears.64 - Power Management Uninstalling the utility 1 Click the [Start] button to open the [Start] menu. 2 Click [Control Panel] in the [Start] menu. 3 Perform the following steps in accordance with your operating system. Windows 7:

• Click [Uninstall Program].

• Select [Big Icon] or [Small Icon] to view the [Control Panel], then click [Programs and Features].

• Select "Anytime USB Charge Utility" in the [Uninstall a Program] window and click [Uninstall and change]. Follow the instructions on windows that appear. Windows Vista:

• Click [Uninstall Program].

• In [Classic View] (with all the icons), select [Program and Features].

• Select "Anytime USB Charge Utility" in [Uninstall or change a program] window. Click [Uninstall].

• Follow the instructions on the windows that appear. Windows XP:

• Click the [Add or Remove Programs] icon.

• Select "Anytime USB Charge Utility" in the list and click [Remove].

• Follow the instructions on the windows that appear. Uninstallation is complete. Using the utility Please refer to the Help attached to the"Anytime USB Charge Utility" for instructions on using the utility. To access the Help, perform the following steps: 1 Click the [Start] button to open the [Start] menu. 2 Click [All Programs] in the [Start] menu. 3 Select [Anytime USB Charge] -> [Help].65

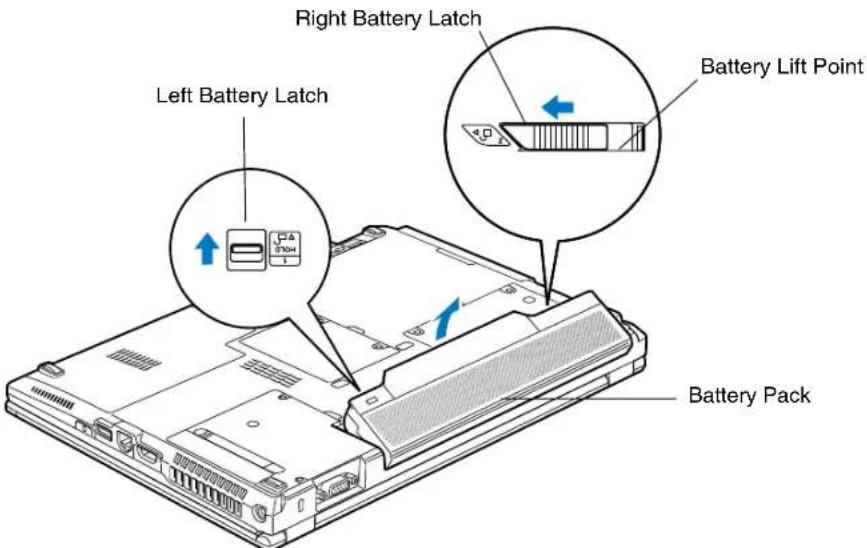

User-Installable Features Lithium ion Battery Your LifeBook notebook has a Lithium ion battery that provides power for operating your notebook when no external power source is available. The battery is durable and long lasting, but should not be exposed to extreme temperatures, high voltages, chemicals or other hazards. The Lithium ion battery operating time may become shorter if it is used under the following conditions:

• When used at temperatures that exceed a low of 5°C or a high of 35°C (41° to 95° F). Extreme temperatures not only reduce charging efficiency, but can also cause battery deterioration. The Charging icon on the Status Indicator panel will flash when you try to charge a battery that is outside its operating temperature range. See “Status Indicator Panel” on page 22.

• When using a high current device such as a modem, Multi-Format DVD Writer, CD-ROM drive, DVD/CD-RW combo drive, or the hard drive, using the AC adapter will conserve your battery life. DO NOT LEAVE A FAULTY BATTERY IN YOUR NOTEBOOK. IT MAY DAMAGE YOUR AC ADAPTER, OPTIONAL

UTO/AIRLINE ADAPTER, ANOTHER BATTERY OR YOUR NOTEBOOK ITSELF. IT MAY ALSO PREVENT OPERATION OF YOUR NOTEBOOK BY DRAINING ALL AVAILABLE CURRENT INTO THE BAD BATTERY.66 - Lithium ion Battery Recharging the Batteries If you want to know the condition of the primary Lithium ion battery, check the Battery Level indicator located on the Status Indicator panel. The indicator changes as the battery level changes. The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge the battery make sure the battery that needs to be charged is installed in your LifeBook notebook and connect the AC or Auto/Airline adapter. There is no memory effect on the Lithium ion battery, therefore you do not need to discharge the battery completely before recharging. The charge times will be significantly longer if your notebook is in use while the battery is charging. If you want to charge the battery more quickly, put your notebook into Standby mode, or turn it off while the adapter is charging the battery. (See Power Management on page 59 for more information on Standby mode and shutdown procedure)

AKE SURE THAT THE BATTERY CHARGING INDICATOR AND THE PERCENTAGE CHARGE IS DISPLAYED BY THE BATTERY LEVEL INDICATOR ON THE STATUS INDICATOR PANEL.67 - Lithium ion Battery Low Battery State When the battery is running low, a low battery notification message will appear. If you do not respond to the low battery message, the batteries will continue to discharge until they are too low to operate. When this happens, your notebook will go into Standby mode. There is no guarantee that your data will be saved once the notebook reaches this point. Once your notebook goes into Dead Battery Suspend mode you will be unable to resume operation until you provide a source of power either from an adapter, or a charged battery. Once you have provided power, you will need to press the Power/Suspend/Resume button to resume operation. In the Dead Battery Suspend mode, your data can be maintained for some time, but if a power source is not provided promptly, the Power indicator will stop flashing red and go out, meaning that you have lost the data that was not stored. Once you provide power, you can continue to use your notebook while an adapter is charging the battery. Shorted Batteries The Status Indicator panel uses an LED next to the battery outline of the Battery Level indicator to display the operating level available in that battery. If this display shows a Shorted Battery, it means the battery is damaged and must be replaced so it does not damage other parts of your LifeBook notebook. USING HEAVY CURRENT DEVICES SUCH AS THE MODEM OR FREQUENT DVD/CD-RW/CD-ROM ACCESSES MAY PREVENT CHARGING COMPLETELY.

WHEN YOU ARE IN STANDBY MODE THERE MUST ALWAYS BE AT LEAST ONE POWER SOURCE ACTIVE. IF YOU REMOVE ALL POWER SOURCES WHILE YOUR LIFEBOOK NOTEBOOK IS IN STANDBY MODE, ANY DATA THAT HAS NOT BEEN SAVED TO THE HARD DRIVE WILL BE LOST.68 - Lithium ion Battery Replacing the Battery With the purchase of an additional battery, you can have a fully charged spare to swap with one that is not charged. There are two ways to swap batteries, cold-swapping and hot-swapping: Cold-swapping Batteries To cold-swap batteries in your battery bay follow these easy steps: 1 Have a charged battery ready to install. 2 Shut down your notebook and disconnect the AC adapter. 3 Orient your system as shown in Figure 26. 4 Push the spring-loaded left battery latch away from the battery and hold it in place. 5 Push the right battery latch to the left, exposing the bright orange sticker; this will unlock the battery. 6 Lift the battery out of the battery bay at the battery lift point adjacent to the bright orange sticker. 7 Align a new battery into the bay, and press it down so that the latch clicks into place. 8 Push the right battery latch to the right. 9 Plug in the AC adapter and turn the power on. Hot-swapping Batteries To hot-swap batteries in your battery bay follow these easy steps: 1 Plug an AC Adapter into the system and connect it to a power outlet.

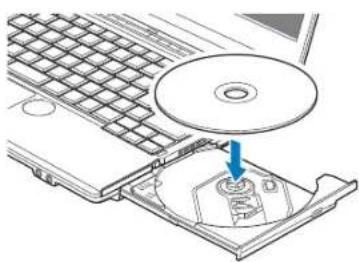

- Optical Drive Figure 27. Optical Drive Optical Drive There is a variety of media available to use with your systemif you have the optional Multi-Format DVD Writer installed. The drive is also known as an “optical drive”. DVD-R and DVD-RW discs hold up to 4.7 GB of data (DVD-R discs used with Multi-Format Dual-Layer DVD writer hold up to 8.5 GB). A DVD-R disc can only be written to once; DVD-RW discs can be written to over and over. DVD-R and DVD-RW discs can be played on most standard players. CD-R and CD-RW discs hold up to 640 MB of data. A CD-R disc can only be written to once; CD-RW discs can be written to over and over. Depending upon your notebook configuration, you may have the following optical drive installed:

• Dual-Layer Multi-Format DVD Writer: This drive allows you to access movies, software, and audio DVD/CDs as well as to read and write to CD-R, CD-RW, DVD-R, DVD+R, DVD-RW, DVD+RW, and DVD RAM discs. The dual-layer architecture allows you to record up to 8.5 GB of data on DVD+R discs. Media Holder Tray Media Tray Eject Button Emergency Tray Release71 - Optical Drive Media Player Software With the Dual-Layer Multi-Format DVD Writer and media player software you can play DVD movies and music CDs on your notebook. The media player includes controls which allow you to take full advantage of the features of a DVD movie, as well as standard features such as fast forward, fast reverse, pause, etc. With this drive you can also burn onto recordable DVD-R/RW, DVD+R/RW, or CD-R/RW discs. Loading Media on Your Drive To load a disc into your optical drive: 1 Push and release the eject button on the front of the optical drive to open the holder tray. The tray will come out of the LifeBook notebook a short distance. 2 Gently pull the tray out until a media disc can easily be placed in the tray.

• YOU CAN CHANGE THE REGION CODE ON THE DVD PLAYER USING THE PROPERTIES MENU OF THE DVD SOFTWARE. NOTE, HOWEVER, THAT YOU CAN ONLY CHANGE THE REGION CODE UP TO FOUR TIMES. AFTER THE 4TH CHANGE, THE LAST CODE ENTERED BECOMES PERMANENT, AND CANNOT BE CHANGED.72 - Optical Drive 3 Place the media into the tray, label side up, with the hole in the center of the disc. Snap the disc onto the raised circle in the center of the tray. 4 Gently push the holder tray back in until you hear a click Figure 28. Loading/Ejecting Media

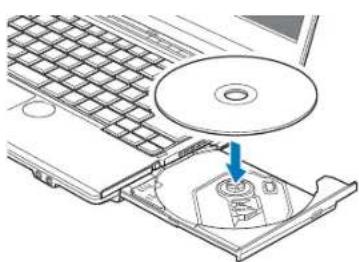

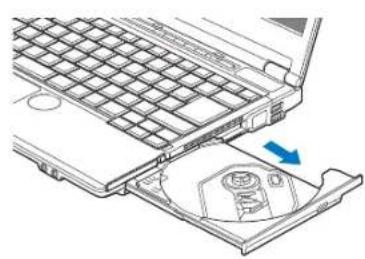

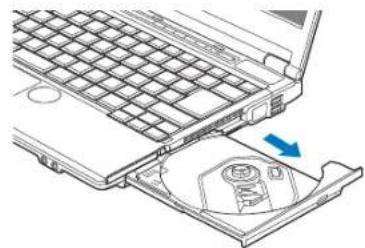

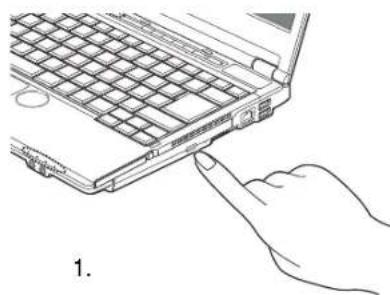

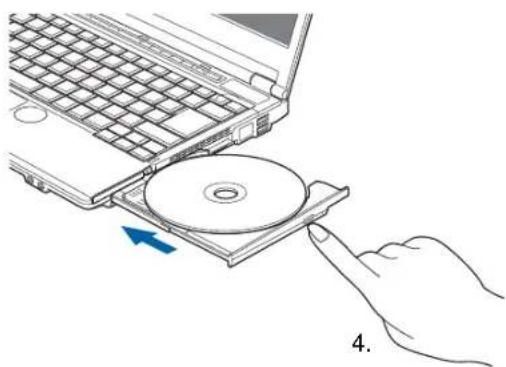

- Optical Drive Removing Media 1 Push and release the eject button on the front of the optical drive. This will stop the drive and the holder tray will come out of the LifeBook notebook a short distance. 2 Gently pull the tray out until the disc can easily be removed from the tray. 3 Carefully remove the media disc from the holder tray. 4 Gently push the holder tray back in until you hear a click. Emergency Optical Drive Tray Release If for some reason the eject button fails, you can open the media tray with a paper clip or similar tool inserted into the eject hole in the right side of the front of the tray as shown in Figure 29. Straighten one side of a paper clip and push it gently into the hole. The tray will pop out. This procedure will work whether the system is running or not. Figure 29. Emergency Tray Release74 - Optical Drive Using the Media Player Software Starting a DVD Movie 1 Insert the DVD into the optical drive of the notebook. If the CD AutoRun feature activates, skip Step 2. 2 The first time you insert a movie into the DVD/CD-RW tray, you will be prompted to select what you want the system to do when discs are inserted (e.g., start automatically or wait for a prompt). Until you make a selection, you will receive the same prompt whenever you insert a disc. 3 Click OK to close the About DVD Player Performance dialog box and the movie will begin. Opening the Media Player Control Panel With most DVD-ROMs, you have the option of altering how the movie should play and what you wish to view. You can do this by using the media player control panel and the mouse. 1 Right-click on the movie screen to open a dropdown menu for options. 2 Select View, then Player for all the controls available. This will open a control panel in the bottom of the screen. Using the Media Player Control Panel The media player software allows you to watch the movie much like a VCR player. You can pause, rewind, fast-forward and stop the movie at any point. 1 To pause the movie, click the on-screen button. 2 To rewind the movie, click the button to rewind to a specific portion of the movie, or the button to return to the opening screen. 3 To fast-forward the movie, click the button to forward to a specific portion of the movie, or the button to jump to the ending credits. 4 To stop the movie, click the button. DEPENDING UPON ITS CONFIGURATION, YOUR SYSTEM MAY NOT HAVE THE MEDIA PLAYER SOFTWARE PRE-INSTALLED. IF IT IS NOT INSTALLED, REFERENCE THE DOCUMENTATION THAT ACCOMPANIES THE MEDIA APPLICATION.75 - Optical Drive Exiting the Media Player 1 Click the located in the upper right corner of the title bar. This will open a media player dialog box. 2 Click Yes to stop and exit the movie, or No to close the media player dialog box and return to the movie. Using Media Player on Battery Power Since optical drives consume a lot of power, your overall battery life will be significantly shorter when operating the optical drive continuously (such as watching a DVD movie) than during standard operation. Many movie run-times are longer than your notebook can support on a single charged battery. If you are watching a DVD movie on battery power you may need to swap in an additional, charged battery or attach AC power during the movie to view it in its entirety. To Watch a Movie on Battery Power: 1 Have an additional full-charged battery or your AC adapter ready for use. 2 Start watching your DVD movie. 3 When the low battery warning occurs, immediately stop the movie and exit the media player.

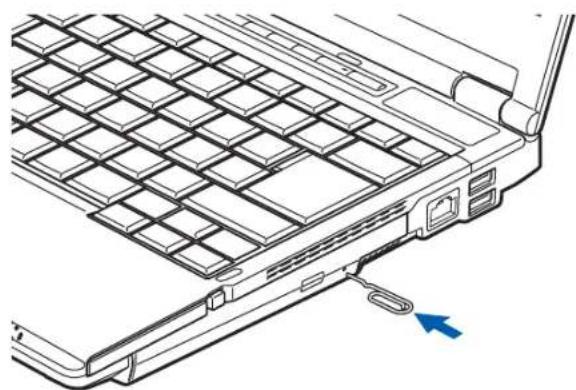

F THIS OCCURS, YOU MAY NEED TO PERFORM A HARD RESET AND FOLLOW THE INSTRUCTIONS, IF ANY, PRESENTED TO YOU BEFORE THE SYSTEM WILL REBOOT.76 - Optical Drive 4 Power down your notebook and replace the discharged battery with an additional fully-charged battery. If you do not have an additional battery, you may attach AC power as soon as you see the low battery warning. 5 Resume operation by pressing the Suspend button again. This is not required if you attached AC power without entering standby mode. 6 Restart your media player, locate and skip to the chapter of the movie you were last watching, then continue watching your DVD movie. SOME SHORTER DVD MOVIES MAY NOT REQUIRE YOU TO SWAP BATTERIES OR ATTACH AC POWER TO COMPLETE THEM. HOWEVER, IT IS BEST TO BE PREPARED SINCE ACTUAL BATTERY LIFE WHILE OPERATING THE OPTICAL DRIVE CANNOT BE GUARANTEED.77 - Secure Digital (SD) Cards Figure 30. Installing a Secure Digital Card Secure Digital (SD) Cards Your LifeBook notebook Secure Digital (SD) cards on which you can store and transfer data to and from a variety of digital devices. These cards use flash memory architecture, which means they don’t need a power source to retain data. Secure Digital (SD) Cards allow you to record, transfer and share digital content, such as digital pictures, movies, music, voice, and computer data and applications. SD cards are very flexible, and are used in a variety of devices, such as cell phones, GPS systems, digital cameras, and PDAs. SD Cards transfer data quickly, with low battery consumption. Secure Digital Card Secure Digital Card Slot78 - Secure Digital (SD) Cards Installing SD Cards SD Cards are installed in the SD Card slot (Figure 30). To install a card, follow these simple steps: 1 Make sure there is no card currently in the slot. If there is, see Removing an SD Card. 2 Insert your card into the slot with the product label facing up. 3 Push the card firmly into the slot until it is seated in the connector. Removing an SD Card To remove an SD Card, push the card in until it unlatches. It will then eject from the slot for removal. INSTALLING OR REMOVING AN SD CARD DURING YOUR LIFEBOOK NOTEBOOK’S SHUTDOWN OR BOOTUP PROCESS MAY DAMAGE THE CARD AND/OR YOUR LIFEBOOK NOTEBOOK.

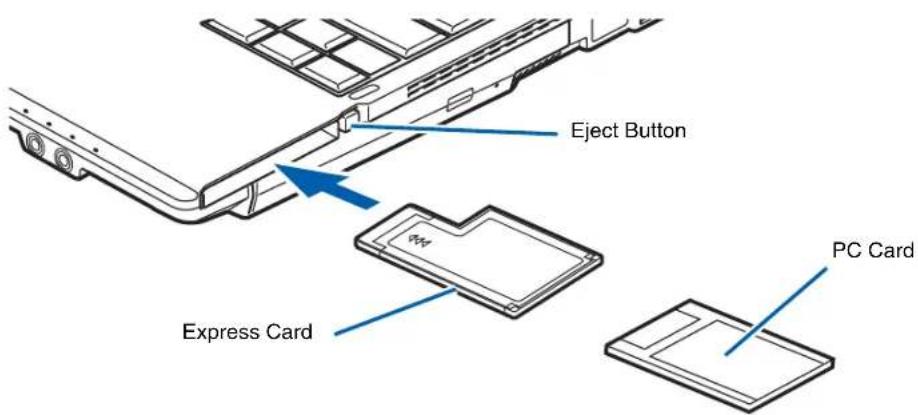

O NOT INSERT A CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD AS YOU MAY PERMANENTLY DAMAGE THE CARD, YOUR LIFEBOOK NOTEBOOK, OR BOTH.79 - Using Express/PC Cards Figure 31. Installing/Removing Express Cards or PC Cards Using Express/PC Cards Depending upon your system configuration, your LifeBook Tablet PC supports either ExpressCards or PC Cards, both of which can perform a variety of functions depending on which type of card you install. There are two different width ExpressCards: 34 mm and 54 mm. The connector inside the Express Card slot is located on the left-hand side of the slot. If you insert a 34 mm card, be sure to align it with the left side of the slot when inserting it. PC Cards are one size only. The connector in the PC Card slot is locted in the center of the slot. For further information, refer to the instructions supplied with your card(s). Eject Button PC Card Express Card80 - Using Express/PC Cards Installing Express/PC Cards See your Express Card or PC Card manual for instructions on the installation of your card. Some cards may require that your notebook is off while installing them. To install an Express Card or PC Card (depending upon which card slot is present on your system), follow these steps: 1 When not in use, you should keep the Express Card or PC Card plug inserted in the slot to prevent system contamination. Make sure there is no card or plug currently in the slot. If there is, see Removing Express/PC Cards. 2 If the eject button is extended, press it in until it clicks. 3 Insert your card into the slot with the product label facing up. 4 Push the card firmly into the slot until it is seated in the connector.

OU MAY BE REQUIRED TO LOG ON AS ADMINISTRATOR OR A MEMBER OF THE ADMINISTRATOR’S

ROUP TO COMPLETE THIS PROCEDURE. IF YOUR COMPUTER IS CONNECTED TO A NETWORK, NETWORK POLICY SETTINGS MAY ALSO PREVENT YOU FROM COMPLETING THIS PROCEDURE.81 - Using Express/PC Cards Removing Express/PC Cards See your Express Card or PC Card manual for specific instructions on removing your card. Some cards may require your notebook to be in Standby Mode or Off during removal. To remove a Express Card or PC Card, follow these steps: 1 Unlock the card or card plug from the slot by pressing the eject button. When pressed, the button will pop out. 2 Firmly press the button again until it is flush with the notebook. This will eject the card slightly out of the slot allowing you to remove the card.

• WINDOWS HAS A SHUTDOWN PROCEDURE FOR EXPRESS CARDS AND PC CARDS THAT MUST BE FOLLOWED BEFORE REMOVING A CARD. (REVIEW YOUR OPERATING SYSTEM MANUAL FOR THE CORRECT PROCEDURE.) IT IS GOOD PRACTICE TO REMOVE DEVICES USING THE SAFELY REMOVE HARDWARE ICON IN THE SYSTEM TRAY.

• IF THE DIALOG BOX STATES THAT THE DEVICE CANNOT BE REMOVED, YOU MUST SAVE ALL OF YOUR OPEN FILES, CLOSE ANY OPEN APPLICATIONS AND SHUT DOWN YOUR NOTEBOOK.82 - Memory Upgrade Module Memory Upgrade Module Your Fujitsu LifeBook notebook comes with a minimum of 1GB of high speed Double Data Rate 3 Synchronous Dynamic RAM (DDR3-1066 SDRAM) factory installed. To increase your notebook’s memory capacity, you may install an additional memory upgrade module. The memory upgrade must be a dual-in- line (DIMM) SDRAM module. To ensure 100% compatibility, purchase the SDRAM module only from the Fujitsu web store at www.shopfujitsu.com. Installing Memory Upgrade Modules 1 Turn off power to your notebook, remove any power adapter (AC or auto/airline). Remove the battery. 2 Turn the notebook bottom side up, and remove the screw from the memory upgrade module compartment. 3 Remove the cover. 4 Remove the memory upgrade module from the static guarded sleeve. 5 Align the memory upgrade module with the component side up. Align the connector edge of the module with the connector slot in the compartment. Be sure the alignment keys line up with those in the slot.

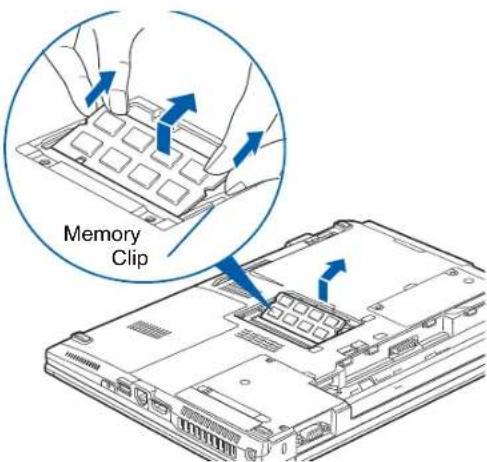

NCE IT IS INSTALLED, YOU SHOULD LEAVE IT IN PLACE UNLESS YOU WANT TO CHANGE SYSTEM MEMORY CAPACITY.84 - Memory Upgrade Module Checking the Memory Capacity Once you have changed the system memory capacity by replacing the installed module with a larger one, be sure to check that your notebook has recognized the change. Windows 7: Check the memory capacity by clicking [Start] -> Settings -> Control Panel, then (while in Category view) clicking the System and Security icon. Select the Security icon and check the amount of memory next to “Installed memory (RAM):”. Windows XP: Check the memory capacity by clicking [Start] -> Settings -> Control Panel, then double- clicking the System icon. Select the General tab and check the amount of memory under “Computer:” Removing a Memory Upgrade Module 1 Perform steps 1 through 4 of Installing a Memory Upgrade Module. 2 Pull the clips sideways away from each side of the memory upgrade module at the same time. 3 While holding the clips out, remove the module from the slot by lifting it up and pulling it away from your notebook. 4 Store the memory upgrade module in a static guarded sleeve. 5 Replace the cover and reinstall the screws. Figure 34. Removing memory module Memory Clip85 - Memory Upgrade Module Windows Vista: Check the memory capacity by clicking [Start] -> Control Panel -> System and Maintenance -> System. The amount of memory is displayed next to “Memory - RAM:” There may be a variation between the actual memory size and what is displayed. This is possible if your system is configured with a graphics controller which dynamically allocates system memory to accelerate graphics performance. IF THE TOTAL MEMORY DISPLAYED IS INCORRECT, CHECK THAT YOUR MEMORY UPGRADE MODULE IS PROPERLY INSTALLED. (IF THE MODULE IS PROPERLY INSTALLED AND THE CAPACITY IS STILL NOT

CORRECTLY RECOGNIZED, SEE TROUBLESHOOTING ON PAGE 91.86

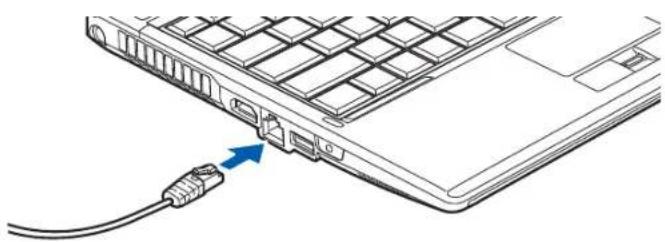

- Device Ports Device Ports Your Fujitsu LifeBook notebook and the optional Port Replicator come equipped with multiple ports to which you can connect external devices including: disk drives, keyboards, modems, printers, etc. Modem (RJ-11) Telephone Jack The modem (RJ-11) jack is used for an internal modem. To connect the telephone cable follow these steps: Windows Vista and Windows 7: 1 Select [Start] > Control Panel. 2 For Windows Vista, select Classic View in the left pane; for Windows 7, select either Large or Small icons in the View by: field. 3 Double-click Phone and Modems. You may initially need to enter your area code in order to open the Phone and Modem Options window. 1 Align the connector with the port opening. 2 Push the connector into the port until seated. 3 Plug the other end of the cable into a telephone outlet. The modem sound may be deactivated initially. To activate modem sound, follow these steps. Windows XP: 1 Select [Start] > Settings > Control Panel. 2 Double-click Phone and Modem Options. You may initially need to enter your area code in order to open the Phone and Modem Options window. 3 Select the Modems tab and highlight the modem. 4 Click [Properties]. 5 Select the Modem tab again, then adjust the volume with the volume slider. Figure 35. Connecting Modem87 - Device Ports 4 Select the Modems tab, and click the [Properties] button. 5 Select the Modem tab and adjust the volume as necessary. HDMI Port THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT THE INTERNAL MODEM TO A DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL MODEM OR YOUR ENTIRE LIFEBOOK NOTEBOOK. CONSULT YOUR PBX MANUFACTURER’S DOCUMENTATION FOR DETAILS. SOME HOTELS HAVE DIGITAL PBX SYSTEMS. BE SURE TO FIND OUT BEFORE YOU CONNECT YOUR MODEM.

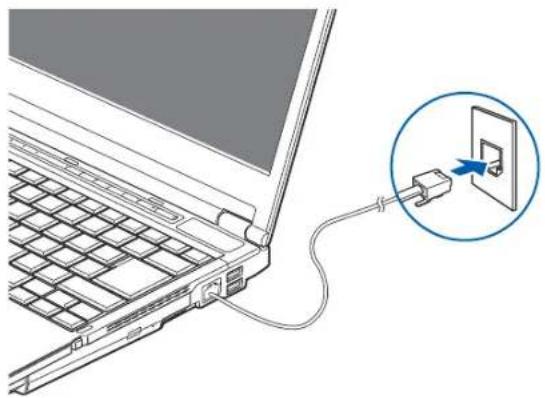

TATES AND CANADA. THE MODEM MAY BE CERTIFIED IN OTHER COUNTRIES. The High-Definition Multimedia Interface (HDMI) port is a digital audio/video interface over which uncompressed streams can be transmitted. HDMI is used to connect compatible digital devices with your computer (such as a big- screen TV). To connect an HDMI device: 1 Align the connector with the port opening. 2 Push the connector into the port until it is seated. Figure 36. HDMI Interface88 - Device Ports Internal LAN (RJ-45) Jack The internal LAN (RJ-45) jack is used for a Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN connection. You may need to configure your notebook to work with your particular network. (Please refer to your network administrator for information on your network configuration.) To connect the LAN cable follow these easy steps: Universal Serial Bus Ports The Universal Serial Bus 2.0 ports (USB) allow you to connect USB devices such as external game pads, pointing devices, keyboards and/or speakers. There are two USB 2.0 ports on the right side of your notebook and one on the left. In order to connect a USB device follow these steps: 1 Align the connector with the port opening, then push the connector into the port until it is seated. 1 Align the connector with the port opening. 2 Push the connector into the port until it is seated. 3 Plug the other end of the cable into a LAN outlet. Figure 37. Connecting LAN Device MICROSOFT WINDOWS VISTA USERS ONLY: WHEN ATTACHING A USB DEVICE, DO ONE OF THE FOLLOWING: BE SURE TO ATTACH THE DEVICE BEFORE TURNING ON YOUR SYSTEM, OR, WAIT FOR APPROXIMATELY THREE MINUTES AFTER THE SYSTEM BOOTS UP BEFORE ATTACHING THE USB DEVICE. IF YOU PREFER NOT TO WAIT TO CONNECT YOUR USB DEVICE, YOU MUST DISABLE THE SELECTIVE SUSPEND FEATURE. TO DO SO, GO TO START > CONTROL PANEL. IN THE LEFT PANEL, SELECT CLASSIC VIEW. CLICK ON POWER OPTIONS >

HANGE PLAN SETTINGS > CHANGE ADVANCED POWER SETTINGS. SELECT USB SETTINGS, THEN SELECT DISABLED FROM THE PULL-DOWN MENU FOR USB SELECTIVE SUSPEND SETTING. CLICK [OK] TO COMPLETE THE PROCESS.89 - Device Ports Figure 38. Connecting a USB Device Headphone/Line-Out Jack The headphone/line-out jack allows you to connect headphones or powered external speakers to your notebook. Your headphones or speakers must be equipped with a 1/8” (3.5 mm) stereo mini-plug. In order to connect headphones or speakers follow these easy steps: 1 Align the connector with the port opening. 2 Push the connector into the port until it is seated. USB 2.0 Ports IF YOU PLUG HEADPHONES INTO THE HEADPHONE JACK, BUILT-IN STEREO SPEAKERS WILL BE DISABLED.90 - Device Ports Microphone/Line-In Jack The microphone/line-in jack allows you to connect an external mono microphone. Your microphone must be equipped with a 1/8”(3.5 mm) mono mini-plug in order to fit into the microphone jack of your notebook. In order to connect a microphone follow these easy steps: 1 Align the connector with the port opening. 2 Push the connector into the port until it is seated. External Video Port The external video port allows you to connect an external monitor or LCD projector. In order to connect an external video device, follow these easy steps: 1 Align the connector with the port opening. 2 Push the connector into the port until it is seated. 3 Tighten the two hold-down screws, located on each end of the connector. Figure 39. Connecting an External Video Device PRESSING THE [FN] + [F10] KEYS ALLOWS YOU TO CHANGE YOUR SELECTION OF WHERE TO SEND YOUR DISPLAY VIDEO. EACH TIME YOU PRESS THE KEY COMBINATION, YOU WILL STEP TO THE NEXT CHOICE, STARTING WITH THE BUILT-IN DISPLAY PANEL ONLY, MOVING TO THE EXTERNAL MONITOR ONLY, FINALLY MOVING TO BOTH THE BUILT-IN DISPLAY PANEL AND AN EXTERNAL MONITOR.91

Troubleshooting Your LifeBook Troubleshooting There may be occasions when you encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices that can be solved by replacing the device. The information in this section helps you isolate and resolve some of these straightforward issues and identify failures that require service. Identifying the Problem If you encounter a problem, go through the following procedure before pursuing complex troubleshooting: 1 Turn off your LifeBook notebook. 2 Make sure the AC adapter is plugged into your notebook and to an active AC power source. 3 Make sure that any card installed in the PC Card slot is seated properly. You can also remove the card from the slot, thus eliminating it as a possible cause of failure. 4 Make sure that any devices connected to the external connectors are plugged in properly. You can also disconnect such devices, thus eliminating them as possible causes of failure. 5 Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it back on. 6 Go through the boot sequence.92 - Troubleshooting 7 If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed troubleshooting information. 8 If you have tried the solutions suggested in the Troubleshooting Table without success, contact your support representative: Toll free: 1-800-8Fujitsu (1-800-838-5487) Web site: http://www.fujitsu.com/us/support/. Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Conditions under which the problem occurred

• Any error messages that have occurred

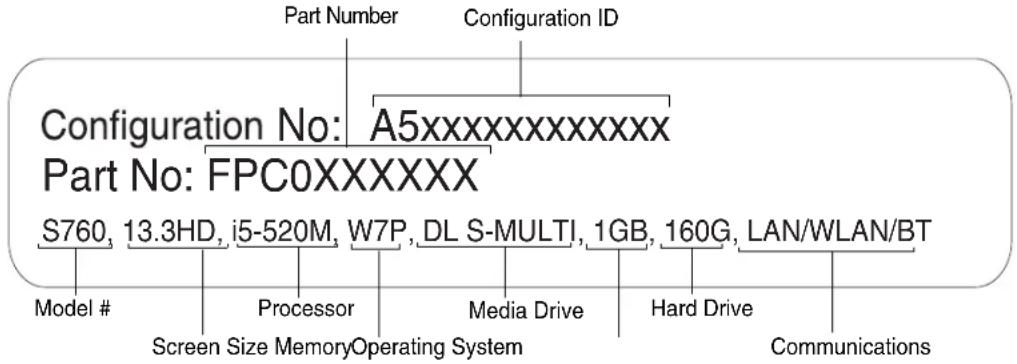

• Type of device connected, if any See the Configuration Label on the bottom of your notebook for configuration and serial numbers. IF YOU KEEP NOTES ABOUT WHAT YOU HAVE TRIED, YOUR SUPPORT REPRESENTATIVE MAY BE ABLE TO HELP YOU MORE QUICKLY BY GIVING ADDITIONAL SUGGESTIONS OVER THE PHONE.93 - Troubleshooting Specific Problems Using the Troubleshooting Table When you have problems with your LifeBook notebook, try to find the symptoms under the Problem column of the troubleshooting table for the feature giving you difficulty. You will find a description of common causes for that symptom under the column Possible Cause and what, if anything, you can do to correct the condition under Possible Solutions. All possible causes or solutions may not apply to your notebook. Troubleshooting Table Problem Page Audio Problems . . . . . . . . . . . . . . . . . . page 94 DVD/CD-ROM Drive Problems . . . . . . page 94 Hard Drive Problems . . . . . . . . . . . . . . page 95 Keyboard or Mouse Problems . . . . . . . page 95 Memory Problems . . . . . . . . . . . . . . . . page 96 Modem Problems . . . . . . . . . . . . . . . . page 96 Problem Page USB Device Problems . . . . . . . . . page 96 PC Card Problems . . . . . . . . . . . . page 97 Power Failures . . . . . . . . . . . . . . . page 98 Shutdown and Startup Problems page 100 Video Problems . . . . . . . . . . . . . page 101 Miscellaneous Problems. . . . . . . page 10394 - Troubleshooting Problem Possible Cause Possible Solutions Audio Problems There is no sound coming from the built-in speakers. The volume is turned too low. Use the [Fn+F9] key combination on your keyboard to control the volume. Pressing [F9] repeatedly while holding [Fn] will increase the volume of your notebook. [Fn+F8] will lower the volume. The software volume control is set too low. Manually adjusting the volume (i.e. keyboard "hot keys") should dynamically adjust the volume of the operating (see above). If that doesn’t work, adjust the sound volume control settings in your software or application. Headphones are plugged into your notebook. Plugging in headphones disables the built-in speakers, remove the headphones. Software driver is not configured correctly. The audio driver may be installed or reinstalled by using the Driv- ers and Applications disc that came with your LifeBook. Refer to your application and operating system documentation for help. The speakers have been muted using the Volume icon in the sys- tem tray. Click on the Volume icon in the tool tray on the bottom right of the screen. (It looks like a speaker). If the Mute box is checked, click on it to uncheck it. You can also use the [Fn+F3] key combination to toggle the volume on and off. Pressing [F3] while holding [Fn] will toggle the audio mute. DVD/CD-RW/CD-ROM Drive Problems LifeBook notebook fails to recognize DVD/CD- RW/CD-ROM’s. The disc is not pushed down onto raised center circle of the drive. Open optical drive tray and re-install the disc properly. Optical drive tray is not latched shut. Push on the front of the optical drive tray until it latches. If that doesn’t work, pull out the modular drive latch to remove the device from the bay, then re-insert the drive until it latched; this ensures that the drive is properly seated.

is dirty or defective. Wipe the disc with a non-abrasive CD cleaning cloth and reinsert. It if still will not work try another disc in the drive.95 - Troubleshooting LifeBook notebook fails to recognize DVD/CD- RW/CD-ROM’s. (continued) Incorrect DVD Player or no DVD Player soft- ware is installed. Install DVD Player software. (See “Media Player Software” on page 71 for more information.) Wrong drive designator was used for the disc in the application. Verify the drive designator used by the application is the same as the one used by the operating system. When the operating system is booted from a DVD/CD, drive designations are automatically adjusted. Note that the drive designation can be changed with the Disk Management tool located at Administrative Tools -> Com- puter Management. The drive access indicator on the Status Indicator Panel blinks at regular inter- vals with no disc in the tray or the drive is not installed. The Windows auto insertion function is active and is checking to see if a disc is ready to run. This is normal. However, you may disable this feature. Hard Drive Problems You cannot access your hard drive. The wrong drive desig- nator was used by an application when a bootable disc was used to start the notebook. Verify drive designator used by application is in use by the operat- ing system. When the operating system is booted from a CD, drive designations are automatically adjusted. Security is set so your OS cannot be started without a password. Verify your password and security settings. Keyboard or Mouse Problems The built-in keyboard does not seem to work. The notebook has gone into Standby mode. Push the Power/Suspend/Resume button. Keyboard locked out by your application. Try to use your integrated pointing device to restart your system. Problem Possible Cause Possible Solutions96 - Troubleshooting You have installed an exter- nal keyboard or mouse, and it does not seem to work. Your external device is not properly installed. Re-install your device. See “Device Ports” on page 86. Your operating system software is not set up with correct software driver for that device. Check your device and operating system documentation and acti- vate the proper driver. You have connected an external keyboard or a mouse and it seems to be locking up the system. Your operating system software is not setup with correct software driver for that device. Check your device and operating system documentation and acti- vate the proper driver. Your system crashed. Try to restart your notebook. Memory Problems Your System Properties screen does not show the correct amount of installed memory. Your memory module is not properly installed. Remove and re-install your memory upgrade module. See “Memory Upgrade Module” on page 82. You have a memory failure. Check for Power On Self Test (POST) messages.

See “Power On Self Test Messages” on page 104. Modem Problems Messages about modem operation. Modem operation mes- sages are generated by whichever modem application is in use. See your application software documentation for additional infor- mation. USB Device Problems You have installed a USB device. Your notebook does not recognize the device, or the device does not seem to work properly. The device is not prop- erly installed. Remove and re-install the device. See “Device Ports” on page 86. Problem Possible Cause Possible Solutions97 - Troubleshooting You have installed a USB device. Your notebook does not recognize the device, or the device does not sem to work properly. (continued) The device may have been installed while an application was running, so your notebook is not aware of its installation. Close the application and restart your notebook. Your device may not have the correct soft- ware driver active. See your software documentation and activate the correct driver. In Windows Vista, you must either have the device connected before booting or wait a few minutes after boot- ing before connecting it.You must wait a few minutes (Microsoft Windows Vista users only): When attaching a USB device, do one of the following: Be sure to attach the device BEFORE turning on your system, OR, wait for approximately three minutes after the system boots up before attaching the USB device. If you prefer not to wait the prescribed time to connect your USB device, you must disable the Selective Suspend feature. To do so, go to Start > Control Panel. In the left panel, select Classic view. Click on Power Options > Change plan settings > Change advanced power settings. Select USB settings, then select Dis- abled from the pull-down menu for USB selective suspend setting. Click [OK] to complete the process. PC Card Problems A card inserted in the PC Card slot does not work or is locking up the system. The card is not properly installed. Remove and re-install the card. See “Using Express/PC Cards” on page 79. Your software may not have the correct soft- ware driver active. See your software documentation and activate the correct driver. Your software may not have the correct soft- ware driver active. See your software documentation and activate the correct driver. Problem Possible Cause Possible Solutions98 - Troubleshooting A card inserted in the PC Card slot does not work or is locking up the system. (continued) The card may have been installed while an application was running, so your notebook is not aware of its installation. Close the application and restart your notebook. Power Failures You turn on your LifeBook notebook and nothing seems to happen. The primary battery is installed but is faulty. Use the Status Indicator panel to verify the presence and condi- tion of the batteries. See “Status Indicator Panel” on page 22. If a battery is indicating a short, remove that battery and operate from another power source or replace that battery. The installed primary battery is completely discharged, there is no optional second battery installed or there is no Power adapter installed. Check the Status Indicator Panel to determine the presence and condition of the batteries. See “Status Indicator Panel” on page 22. Install a charged battery or a Power adapter. The battery or batteries are low. Check the Status Indicator Panel to determine the presence and condition of the batteries. See “Status Indicator Panel” on page 22. Use a Power adapter to operate until a battery is charged or install a charged battery. The power adapter (AC or auto/airline) is not plugged in properly. Verify that your adapter is connected correctly. See “Power Sources” on page 49. The Power adapter (AC or auto/airline) is faulty. Try a different Power adapter or install a charged optional second battery. The power adapter (AC or auto/airline) has no power from the AC out- let, airplane seat jack, or cigarette lighter. Move the AC cord to a different outlet, check for a line switch or tripped circuit breaker for the AC outlet. If you are using an auto/airline adapter in a car make sure the ignition switch is in the On or Accessories position. Problem Possible Cause Possible Solutions99 - Troubleshooting Your LifeBook notebook turns off all by itself. The power manage- ment parameters are set for auto timeouts which are too short for your operating needs. Press any button on the keyboard, or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. Check your power management settings, or close your applica- tions and go to the Power Options Properties located in the Con- trol Panel to adjust the timeout values to better suit your needs. Your power adapter has failed or lost its power source. Make sure the adapter is plugged in and the outlet has power. You are operating on battery power and ignored a low battery alarm until the batteries are at the dead battery state and the system has gone into Dead Bat- tery Suspend mode. Install a power adapter and then push the Power/Sus- pend/Resume button. See “Power Sources” on page 49. You have a battery fail- ure. Verify the condition of the batteries using the Status Indicator panel, and replace or remove any batteries that are shorted. See “Status Indicator Panel” on page 22. Your LifeBook notebook will not work on battery alone. The installed battery is dead. Replace the battery with a charged one or install a power adapter. No batteries are installed. Install a charged battery. The batteries are improperly installed. Verify that the batteries are properly connected by re-installing them. Your installed batteries are faulty. Verify the condition of the batteries using the Status Indicator panel and replace or remove any batteries that are shorted. See “Status Indicator Panel” on page 22. Problem Possible Cause Possible Solutions100 - Troubleshooting The batteries seem to discharge too quickly. You are running an application that uses a lot of power due to fre- quent hard drive or opti- cal drive access, or use of a Wireless LAN or Bluetooth device. Use both the primary battery and an optional second battery and/or use a power adapter for this application when at all possible. The power savings fea- tures may be disabled. Check the Power Options menu settings and adjust according to your operating needs. The brightness is turned all the way up. Turn down the brightness adjustment. The higher the brightness the more power your display uses. The batteries are old. Replace the batteries. Battery was exposed to high temperatures. Replace the batteries. The batteries are too hot or too cold. Restore the notebook to normal operating temperature. Charging icon on the Status Indicator panel will flash when battery is out- side of operating range. Shutdown and Startup Problems The Suspend/Resume but- ton does not work. There may be applica- tion software. conflict Close all applications and try the button again. Suspend/Resume button is disabled. In Windows XP, enable the button by going to the Control Panel -> Power Options Properties and clicking on the Advanced tab. In the Power buttons area, select the option that best suits your needs. In Windows Vista/7, select the “Choose what the power button does” option. System powers up and dis- plays power on info, but doesn’t load the OS. Internal hard drive was not detected. Use the BIOS setup utility or Primary Master submenu, located within the Main menu, to try to auto detect the internal hard drive. Problem Possible Cause Possible Solutions101 - Troubleshooting System powers up and dis- plays power on info, but doesn’t load the OS. (continued) The boot sequence set- tings of the setup utility are not compatible with your configuration. Set the operating source by pressing the [ESC] key while the Fujitsu logo is on screen or use the [F2] key and enter the setup utility and adjust the source settings from the Boot menu. See “BIOS Setup Utility” on page 55. You have a secured system requiring a password to load your operating system. Make sure you have the right password. Enter the setup utility and verify the Security settings and modify them as accordingly. See “BIOS Setup Utility” on page 55. An error message is dis- played on the screen during the notebook (boot) sequence. Power On Self Test (POST) has detected a problem. See the Power On Self Test (POST) messages to determine the meaning and severity of the problem. Not all messages are errors; some are simply status indicators. See “Power On Self Test Mes- sages” on page 104. Your notebook appears to change setup parameters when you start it. BIOS setup changes were not saved when made and you exited the setup utility. Make sure you select Save Changes And Exit when exiting the BIOS setup utility. The BIOS CMOS hold- up battery has failed. Contact your support representative for repairs. This is not a user serviceable part but has a normal life of 3 to 5 years. Your system display won’t turn on when the system is turned on or has resumed. You have installed the LifeBook/Security Appli- cation panel. Check the Status Indicator Panel for presence of the Security icon. If it is visible, enter your password See “Status Indicator Panel” on page 22. Video Problems The built-in display is blank when you turn on your Life- Book notebook. The power manage- ment timeouts may be set for very short inter- vals and you failed to notice the display come on and go off again. Press a keyboard button or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. (The display may be shut off by Standby mode, Auto Suspend or Video Time- out) Problem Possible Cause Possible Solutions102 - Troubleshooting The built-in display is blank when you turn on your Life- Book notebook. (continued) The notebook is set for an external monitor only. Pressing [F10] while holding down the [Fn] key allows you to change your selection of where to send your display video. Each time you press the keys you will step to the next choice. The choices, in order are: built-in display only, external monitor only, both built-in display and external monitor. The display angle and brightness settings are not adequate for your lighting conditions. Move the display and the brightness control until you have ade- quate visibility. Pressing either the [F6] or [F7] keys while holding down the [Fn] key also allows you to change the brightness level of the display. The notebook turned on with a series of beeps and the built-in display is blank. POST has detected a failure that doesn’t allow the display to operate. Contact your support representative. The display goes blank by itself after you have been using it. The notebook has gone into Video timeout, Standby, or Save-to- Disk mode because you have not used it for a period of time. Press any button on the keyboard, or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. Check your power management settings, in the Power Options control panel. The power manage- ment timeouts may be set for very short inter- vals and you failed to notice the display come on and go off again. Press any button on the keyboard, or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. (The display may be shut off by Standby Mode, Auto Suspend or Video Timeout) The application display uses only a portion of your screen and is surrounded by a dark frame. The application doesn’t support native pixel res- olution and display com- pression is enabled. Display compression gives a clearer but smaller display for appli- cations that do not support native pixel resolution. You can fill the screen but have less resolution by changing compression settings. Your display won’t turn on when the system is turned on or when it has resumed. The system may be password-protected. Check the status indicator panel to verify that the Security icon is blinking. If it is blinking, enter your password. Problem Possible Cause Possible Solutions103 - Troubleshooting The display has bright or dark spots. If the spots are very tiny and few, this is normal for a large LCD display. This is normal; do nothing. If the spots are numer- ous or large enough to interfere with your oper- ation needs. Display is faulty; contact your support representative. The display does not close. A foreign object is stuck between the display and keyboard. Remove all foreign objects from the keyboard. The Display is dark when on battery power. Power Management utility default is set on low brightness to con- serve power. Press [Fn] + [F7] to increase brightness. You have connected an external monitor and it does not display any information. Your external monitor is not properly installed. Reinstall your device. See “External Video Port” on page 90. Operating system is not set up with the correct driver for that device. Check your device and operating system documentation and acti- vate the proper driver. You have connected an external monitor and it does not come on. Your external monitor is not compatible with your LifeBook notebook. See your monitor documentation and the External Monitor Sup- port portions of the Specifications section. See “Specifications” on page 124. Miscellaneous Problems Error message is displayed on the screen during the operation of an application. Application software often has its own set of error message displays. See your application manual and help displays screens for more information. Not all messages are errors; some may simply be sta- tus. Problem Possible Cause Possible Solutions104 - Troubleshooting Power On Self Test Messages The following is an alphabetic list of error-and-status messages that Phoenix BIOS and/or your operating system can generate and an explanation of each message. Error messages are marked with an *. If an error message is displayed that is not in this list, write it down and check your operating system documentation both on screen and in the manual. If you can find no reference to the message and its meaning is not clear, contact your support representative for assistance. nnnn Memory Cache Passed Where nnnn is the amount of system cache in kilobytes successfully tested by the Power On Self Test. (This can only appear if you have an SRAM PC Card installed.) Floppy Disk drive A error or Floppy Disk drive B error Drive A: or B: is present but fails the BIOS Power On Self Test diskette tests. Check to see that the drive is defined with the proper diskette type in the Setup Utility, See “BIOS Setup Utility” on page 55. and that the diskette drive is installed correctly. If the disk drive is properly defined and installed, avoid using it and contact your support representative. *Extended Memory Failed at address line: xx Extended memory not working or not configured properly. If you have an installed memory upgrade module, verify that the module is properly installed. If it is properly installed, you may want to check your Windows Setup to be sure it is not using unavailable memory until you can contact your support representative. nnnn Extended RAM Passed Where nnnn is the amount of memory in kilobytes successfully tested. *Failure Fixed Disk n (where x=1-4) The fixed disk is not working or not configured properly. This may mean that the hard drive type identified in your setup utility does not agree with the type detected by the Power On Self Test. Run the setup utility to check for the hard drive type settings and correct them if necessary. If the settings are OK and the message appears when you restart the system, there may be a serious fault which might cause you to lose data if you continue. Contact your support representative.105 - Troubleshooting *Incorrect Drive A type – run SETUP Type of floppy drive A: not correctly identified in Setup. This means that the floppy disk drive type identified in your setup utility does not agree with the type detected by the Power On Self Test. Run the BIOS setup utility to correct the inconsistency. *Incorrect Drive B type – run SETUP Type of floppy drive B: not correctly identified in Setup. This means that the floppy disk drive type identified in your setup utility does not agree with the type detected by the Power On Self Test. Run the setup utility to correct the inconsistency. *Invalid NVRAM Data Problem with NVRAM access. In the unlikely case that you see this message you may have some display problems. You can continue operating but should contact your support representative for more information. *Keyboard controller error The keyboard controller test failed. You may have to replace your keyboard or keyboard controller but may be able to use an external keyboard until then. Contact your support representative. *Keyboard error Keyboard not working. You may have to replace your keyboard or keyboard controller but may be able to use an external keyboard until then. Contact your support representative. *Stuck Key BIOS discovered a stuck key and displays the scan code for the stuck key. You may have to replace your keyboard but may be able to use an external keyboard until then. Contact your support representative. *Monitor type does not match CMOS – Run SETUP Monitor type not correctly identified in Setup. This error probably means your BIOS is corrupted, run the setup utility and set all settings to the default conditions. If you still get this error, contact your support representative.106 - Troubleshooting *Operating system not found Operating system cannot be located on either drive A: or drive C: Enter the setup utility and see if both the fixed disk, and drive A: are properly identified and that the boot sequence is set correctly. Unless you have changed your installation greatly, the operating system should be on drive C:. If the setup utility is correctly set, your hard drive may be corrupted. *Parity Check 1 nnnn Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. This is a potentially data destroying failure. Contact your support representative. *Parity Check 2 nnnn Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. This is a potentially data-destroying failure. Contact your support representative. *Press <F1> to resume, <F2> to SETUP Displayed after any recoverable error message. Press the [F1] key to continue the boot process or the [F2] key to enter Setup and change any settings. *Previous boot incomplete – Default configuration used Previous Power On Self Test did not complete successfully. The Power On Self Test will load default values and offer to run Setup. If the previous failure was caused by incorrect values and they are not corrected, the next boot will likely fail also. If using the default settings does not allow you to complete a successful boot sequence, you should turn off the power and contact your support representative. *Real time clock error Real-time clock fails BIOS test. May require board repair. Contact your support representative. *Shadow RAM Failed at offset: nnnn Shadow RAM failed at offset nnnn of the 64k block at which the error was detected. You are risking data corruption if you continue. Contact your support representative.107 - Troubleshooting nnnn Shadow RAM Passed Where nnnn is the amount of shadow RAM in kilobytes successfully tested. *System battery is dead – Replace and run SETUP The BIOS CMOS RAM memory hold up battery is dead. This is part of your BIOS and is a board mounted battery which requires a support representative to change. You can continue operating but you will have to use setup utility default values or reconfigure your setup utility every time you turn off your notebook. System BIOS shadowed System BIOS copied to shadow RAM. *System CMOS checksum bad – Default Configuration Used BIOS CMOS RAM has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in BIOS memory. Run Setup and reconfigure the system. *System RAM Failed at offset: nnnn System memory failed at offset nnnn of in the 64k block at which the error was detected. This means that there is a fault in your built-in memory. If you continue to operate, you risk corrupting your data. Contact your support representative for repairs. nnnn System Memory Passed Where nnnn is the amount of system memory in kilobytes successfully tested. *System timer error The timer test failed. The main clock that operates the computer is faulty. Requires repair of system board. Contact your support representative for repairs. Video BIOS shadowed Video BIOS successfully copied to shadow RAM.

- Troubleshooting Emergency Media Player Drive Tray Release If for some reason the eject button fails, you can open the DVD/CD-ROM tray with a paper clip or similar tool inserted into the eject hole in the far right side of the front of the tray. Straighten one side of a paper clip and push it gently into the hole. The tray will pop out a short distance. Modem Result Codes The operating system and application software that is factory installed detects the modem characteristics and provides the necessary command strings to operate the modem. The internal modem operation is controlled by generic AT commands from the operating system and application software. The standard long form result codes may, in some cases, be displayed on your screen to keep you informed of the actions of your modem. The operating system and application software may suppress display of the result codes. Examples of result codes are:

• RING (This means an incoming call.)

• NO ANSWER When using the internal modem with applications that are not factory installed refer to the application documentation.109 - Restoring Your Pre-installed Software Restoring Your Pre-installed Software The location of your applications, drivers, and utilities is determined by the operating system you are running. Microsoft Windows 7 Professional: Please use the information contained in the “Saving and Recovering Your Factory and System Images” booklet that was packed with your system. Microsoft Windows Vista or Windows XP Editions: Please use the following instructions. The Drivers and Applications Restore (DAR) CD contains sets of device drivers and Fujitsu utilities (in specific directories) that are unique to your computer configuration for use as documented below. Re-installing Individual Drivers and Applications The Drivers and Applications CD can be used to selectively re-install drivers and/or applications that may have been un-installed or corrupted. To re-install drivers and/or applications: 1 Boot up the system and insert the DAR CD after Windows has started. A Fujitsu Installer screen is displayed after the CD is inserted. 2 After reading the License Agreement, click [I agree]. 3 A window will appear containing a list of applications, drivers, and utilities that you can install from the Drivers and Applications CD

- Restoring Your Pre-installed Software 4 In the list, check off all the components you want to install. If you want to install all components, click [Select All]. Clicking [Select All] will select all of the blue-coded components; you must select grey and green components separately. 5 Once you have selected the components you wish to install, click [Install Selected Subsystems]; the components will be installed. 6 After the components are installed, click [OK], then click [Yes] when asked if you want to reboot the system. Restoring the Operating System for Windows The Recovery and Utility disc contains four utilities:

• The Recovery utility allows you to restore the system operating system (OS). The restored OS is the same one that was originally installed on the hard disk drive. After the OS is restored, you will need to reinstall the drivers and applications from the Drivers and Applications Restore disc and from any application discs that were bundled with the system when you purchased it.

• The Hard Disk Data Delete utility on this disc is used to delete all data on your hard disk and prevent it from being reused. Do not use the Hard Disk Data Delete utility unless you are absolutely certain that you want to erase your entire hard disk, including all partitions.

• The Partition Creation utility allows you to create a new D: partition or resize existing partitions on your hard disk. NOTE: Creating or resizing partitions with this utility will cause all data on the hard disk to be completely erased.

- Restoring Your Pre-installed Software Methods for accessing the utilities Certain LifeBook models have the Recovery and Utility applets pre-installed. Other systems require that the Recovery and Utility disc be used (or in the event the hard disk has been reformatted). In order to determine the method for accessing the Recovery and Utility applet, perform the following procedures in order. Determining whether Recovery and Utility is pre-loaded 1 Turn on or reboot your system. When the Fujitsu logo appears, press [F12] key. 2 From the Boot Menu that appears, check whether the <Recovery and Utility> option is present. If it is not present, it means that the utility must be used from the disc. Proceed to “Running Recovery and Utility from the disc” if <Recovery and Utility> is unavailable. 3 You can also use the TrustedCore menu to determine whether the utility is pre-loaded by powering on your system then pressing the {Enter] key when the Fujitsu logo appears on the screen. The TrustedCore Menu will appear and the Recovery and Utility option will appear in the menu. Running Recovery and Utility from hard disk 1 Cursor down to <Recovery and Utility> and press the [Enter] key. 2 While the files are being loaded from the disc, a progress bar will appear at the bottom of the screen. 3 When the System Recovery Options dialog opens, select a new keyboard layout, if necessary, then click [Next]. 4 When the Operating System dialog appears, click [Next]. 5 If necessary, enter your password, then click [OK]. 6 When System Recovery Options window appears, click on Recovery and Utility. 7 The Recovery and Utility screen appears on the screen with three tabs: Diagnostics, Recovery and Utility. Please note that Diagnostics tab is not supported on certain LifeBook/Stylistic models when running Recovery and Utility from the hard disk. In order to restore the operating system, please insert the “Recovery and Utility” disc in the CD/DVD drive and use the Start Recovery function under the Recovery tab. For more information about the tabs, go to “Recovery and Utility tabs” on page 112.112 - Restoring Your Pre-installed Software Running Recovery and Utility from the disc Procedure To verify/change the boot-up priority (rather than booting-up from the hard drive or an external floppy disk drive), perform the following steps: 1 Power on your system. When the Fujitsu logo appears on the screen. press the [Enter] key or click on the left mouse or touchpad button; the TrustedCore Menu will appear. 2 Select the Boot Menu from the TrustedCore Menu. 3 Highlight the CD/DVD option. 4 Insert the Recovery and Utility Disc into the drive tray. 5 Click [OK]. While the files are being loaded from the disc, a progress bar will appear at the bottom of the screen. 6 When the Recovery and Utility screen appears, three tabs will be present: Diagnostics, Recovery, and Utility. Recovery and Utility tabs Diagnostics tab: The Diagnostics tool is designed for use by IT professionals. It is not likely you will need to use this tool. When you select devices from the Diagnosis window then click [Execute], several tests are performed on the selected components. Recovery tab: The Recovery tab contains the Start Recovery tool. Note that the recovery process erases all data from the C: drive. If you decide to use the recovery tool, be sure to back up all data that you don’t want to lose. Also note that you must run the system using your AC adapter while running the recovery tool. To use the Recovery tool, select the Start Recovery function, click on the [Execute] button, then follow the instructions on the screen.

• THE USE OF THIS DISC REQUIRES THAT YOU HAVE A DEVICE CAPABLE OF READING CDS ATTACHED TO YOUR SYSTEM. YOU WILL NEED TO ATTACH AN EXTERNAL PLAYER. FOR MORE INFORMATION ON AVAILABLE EXTERNAL DEVICES, VISIT OUR WEB SITE AT: HTTP://SOLUTIONS.US.FUJITSU.COM/.

• THIS DISC CAN ONLY BE USED WITH THE SYSTEM WITH WHICH IT WAS PURCHASED.113 - Restoring Your Pre-installed Software Utility tab: The Utility tab contains three tools: System Restore, Hard Disk Data Delete and Partition Creation.

• System Restore can help fix problems that might be making your computer run slowly or stop responding. System Restore enables you in rolling back the system to an earlier restore point, and does not affect any of your documents, pictures, or other personal data.

• The Hard Disk Data Delete utility is used to delete all data on the hard disk and prevent the data from being reused. NOTE: Do not use the Hard Disk Data Delete utility unless you are absolutely certain that you want to erase your entire hard disk, including all partitions.

• The Partition Creation utility allows you to create a D: partition or resize existing partitions on your hard disk. NOTE: Creating or resizing partitions with this utility will cause all data on the hard disk to be completely erased. Automatically Downloading Driver Updates Your system has a convenient tool called the Fujitsu Driver Update (FDU) utility. With FDU, you can choose to automatically or manually go to the Fujitsu site to check for new updates for your system. The FDU icon should appear in the system tray at the bottom right of your screen (roll the cursor over the icons to find the correct one). If the icon does not appear in the system tray, go to [Start] -> All Programs, and click on Fujitsu Driver Update; this will create the icon automatically. To invoke the FDU menu, you can either right-click on the FDU icon or hold the pen on the icon for a couple of seconds until the menu appears. The menu contains the following items: Check for updates now Allows for manual driver update search. The first time it is used, you are prompted to agree to a user agreement. After clicking on the icon, the FDU automatically connects with the Fujitsu site to check for updates and downloads them. While downloading, the icon has a red bar through it, indicating that it cannot be used while the download is in process. When the update is complete, a message appears informing you of the fact.114 - Restoring Your Pre-installed Software Enable Automatic Update Notifications Automatically searches for new updates on a regular basis (approximately every 3 days). Show update history Brings up a screen that displays a history of updates that have been made via the FDU. About Fujitsu Driver Update Displays the FDU version number and copyright information Fujitsu Driver Update Readme Displays the FDU readme.115

Care and Maintenance Caring for your LifeBook Notebook If you use your Fujitsu LifeBook notebook carefully, you will increase its life and reliability. This section provides some tips for looking after the notebook and its devices.

• Your LifeBook notebook is a durable but sensitive electronic device. Treat it with respect and care.

• Make a habit of transporting it in a suitable carrying case.

• Do not attempt to service the computer yourself. Always follow installation instructions closely.

• Keep it away from food and beverages.

• To protect your notebook from damage and to optimize system performance, be sure to keep all air all vents unobstructed, clean, and clear of debris. This may require periodic cleaning, depending upon the environment in which the system is used.

• Do not operate the notebook in areas where the air vents can be obstructed, such as in tight enclosures or on soft surfaces like a bed or cushion.

• If you accidentally spill liquid on your LifeBook notebook: 1 Turn it off. 2 Position it so that the liquid can run out. 3 Let it dry out for 24 hours, or longer if needed. 4 If your notebook will not boot after it has dried out, call your support representative.

• Do not use your Fujitsu LifeBook notebook in a wet environment (near a bathtub, swimming pool).

• Always use the AC adapter and batteries that are approved for your notebook.

• Avoid exposure to sand, dust and other environmental hazards.

• Do not expose your notebook to direct sunlight for long periods of time as temperatures above 140° F (60° C) may damage your notebook.

• Keep the covers closed on the connectors and slots when they are not in use.

• Do not put heavy or sharp objects on the computer.

• If you are carrying your LifeBook notebook in a briefcase, or any other carrying case, make sure that there are no objects in the case pressing on the lid.

• Never position your notebook such that the optical drive is supporting the weight of the notebook.117 - Caring for your LifeBook Notebook Cleaning your LifeBook notebook

• Always disconnect the power plug. (Pull the plug, not the cord.)

• Clean your LifeBook notebook with a damp, lint-free cloth. Do not use abrasives or solvents.

• Use a soft cloth to remove dust from the screen. Never use glass cleaners.

• Always shut down the computer, unplug the power adapter, and remove the battery when cleaning or disinfecting the computer exterior, keyboard or LCD display. NOTE: Avoid wetting the thermal suede in all cases. Cleaning guidelines using recommended off-the-shelf cleaners Computer exterior, computer keyboard To clean the exterior and keyboard, use one of the following off-the-shelf products:

• Office Depot® #154-616 Notebook Cleaning Kit

• Meridrew Enterprises Klear_Screen® Wipes

• 3M CL563 Cleaner Wipes Note: After cleaning with one of these products, gently polish with a dry, soft, lint-free cloth until the solution is no longer visible. LCD display To clean the LCD display or fingerprint sensor, use one of the following off-the-shelf products:

• Office Depot® #154-616 Notebook Cleaning Kit

• Meridrew Enterprises Klear_Screen® Wipes Note: Wipe the LCD surface gently, allowing it to dry before turning on the computer. /118 - Caring for your LifeBook Notebook Disinfecting LifeBook computers

• Wipe the surface with a soft cloth wipe and a 50% ethanol solution or use another ethanol-based germicide which has been registered as a hospital disinfectant by the EPA. Cleaning the dust filter Your LifeBook is equipped with fans to make air flow inside by pulling in outside air to cool the inside of the system. Depending on the environment in which the system is used, dust and dirt may be pulled in along with the air. Accumulated dust and dirt could impair the function of the system. 1 Turn off your computer and disconnect the AC adapter. 2 Close the display panel and turn the system upside down. 3 Remove the dust filter cover by pressing the latch towards the cover and lifting it out (Figure 40). 4 Carefully clean the dust filter and the air-cooling duct.

• ESD: BEFORE CLEANING THE FILTER, TOUCH A METAL OBJECT TO DISCHARGE STATIC ELECTRICITY.119 - Caring for your LifeBook Notebook Figure 40. Removing/installing the dust filter cover 5 Replace the dust filter cove rby inserting the end without latch first and pushing in the cover until it latches. Storing your LifeBook notebook

• If storing your notebook for a month or longer, turn your LifeBook notebook off, fully charge the battery, then remove and store all Lithium ion batteries.

• Store your notebook and batteries separately. If you store your LifeBook with a battery installed, the battery will discharge, and battery life will be reduced. In addition, a faulty battery might damage your LifeBook. ALWAYS BE SURE THE DUST FILTER COVER IS INSTALLED WHEN RUNNING YOUR SYSTEM. NOT USING THE COVER COULD CAUSE CONTAMINATION AND POSSIBLE DAMAGE TO THE SYSTEM.120 - Caring for your LifeBook Notebook

• Store your LifeBook in a cool, dry location. Temperatures should remain between 5° to 140° F (–15° to 60° C). Traveling with your LifeBook notebook

• Do not transport your notebook while it is turned on.

• It is recommended that you carry your notebook with you while traveling, rather than checking it in as baggage.

• Always bring your System Recovery CD that came with your notebook when you travel. If you experience system software problems while traveling, you may need it to correct any problems.

• Never put your notebook through a metal detector. Have it hand-inspected by security personnel. You can put your notebook through a properly tuned X-ray machine. To avoid problems, place your notebook close to the machine entrance and remove it as soon as possible or have it hand-inspected. Security officials may require you to turn your notebook on, so have a charged battery on hand.

• Take the necessary plug adapters if you're traveling overseas. Check the following diagram to determine which plug adapter you'll need or ask your travel agent. Outlet Type Location Outlet Type Location United States, Canada, parts of Latin Amer- ica, Mexico, Japan, Korea, the Philippines, Taiwan United Kingdom, Ireland, Malaysia, Singapore, parts of Africa Russia and the Commonwealth of Independent States (CIS), most of Europe, parts of Latin America, the Middle East, parts of Africa, Hong Kong, India, most of South Asia China, Australia, New Zealand121 - Caring for your LifeBook Notebook Batteries Caring for your Batteries

• Always handle batteries carefully.

• Do not short-circuit the battery terminals (that is, do not touch both terminals with a metal object). Do not carry loose batteries in a pocket or purse where they may mix with coins, keys, or other metal objects. Doing so may cause an explosion or fire.

• Do not drop, puncture, disassemble, mutilate or incinerate the battery.

• Recharge batteries only as described in this manual and only in ventilated areas.

• Do not leave batteries in hot locations for more than a day or two. Intense heat can shorten the life of your battery.

• Do not leave a battery in storage for longer than 6 months without recharging it. Increasing Battery Life

• Power your LifeBook notebook through the AC or optional auto/airline adapter whenever possible.

• If your notebook is running on battery power all day, connect it to the AC adapter overnight to recharge the battery.

• Keep brightness to the lowest level comfortable.

• Set the power management for maximum battery life.

• Put your notebook in Standby mode when it is turned on and you are not actually using it.

• Limit your media drive access.

• Disable the Media Player auto insert notification function.

• Always use fully charged batteries.

• Eject PC Cards when not in use.122 - Caring for your LifeBook Notebook Media Care Caring for your Media (DVD/CD/CD-R) Media discs are precision devices and will function reliably if given reasonable care.

• Always store your media disc in its case when it is not in use.

• Always handle discs by the edges and avoid touching the surface.

• Avoid storing any media discs in extreme temperatures.

• Do not bend media discs or set heavy objects on them.

• Do not spill liquids on media discs.

• Do not scratch media discs.

• Do not get dust on media discs.

• Never write on the label surface with a ballpoint pen or pencil. Always use a felt pen.

• If a media disc is subjected to a sudden change in temperature, cold to warm condensation may form on the surface. Wipe the moisture off with a clean, soft, lint free cloth and let it dry at room temperature. DO NOT use a hair dryer or heater to dry media discs.

• If a disc is dirty, use only a DVD/CD cleaner or wipe it with a clean, soft, lint free cloth starting from the inner edge and wiping to the outer edge. Caring for your Optical Drive Your optical drive is durable but you must treat it with care. Please pay attention to the following points:

• The drive rotates the compact disc at a very high speed. Do not carry it around or subject it to shock or vibration with the power on.

• Avoid using or storing the drive where it will be exposed to extreme temperatures.

• Avoid using or storing the drive where it is damp or dusty.123 - Caring for your LifeBook Notebook

• Avoid using or storing the drive near magnets or devices that generate strong magnetic fields.

• Avoid using or storing the drive where it will be subjected to shock or vibration.

• Do not disassemble or dismantle the optical drive.

• Use of a commercially available lens cleaner is recommended for regular maintenance of your drive. PC/Express Cards Caring for your Cards Media cards are durable, but you must treat them with care. The documentation supplied with your card will provide specific information, but you should pay attention to the following points:

• To keep out dust and dirt, store cards in their protective sleeves when they are not installed in your LifeBook notebook.

• Avoid prolonged exposure to direct sunlight or excessive heat.

• Do not flex or bend the cards, and do not place heavy objects on top of them.

• Do not force cards into the slot.

• Avoid dropping cards, or subjecting them to excessive vibration.124

System Specifications Specifications This section provides the hardware and environmental specifications for your Fujitsu LifeBook notebook. Specifications of particular configurations will vary.Configuration Label The configuration label located on the bottom of your notebook contains specific information regarding the options you’ve chosen for your notebook. Following is an example configuration label. A5xxxxxxxxxxxx S760, 13.3HD, i5-520M, W7P, DL S-MULTI, 1GB, 160G, LAN/WLAN/BT No: Part No: FPC0XXXXXX Hard Drive Configuration IDPart NumberProcessorModel #Screen Size MemoryCommunicationsMedia DriveOperating System125 - Specifications Microprocessor Intel® Core™ i3, i5, or i7 processor (Refer to the system label to determine the speed of your processor). Chipset

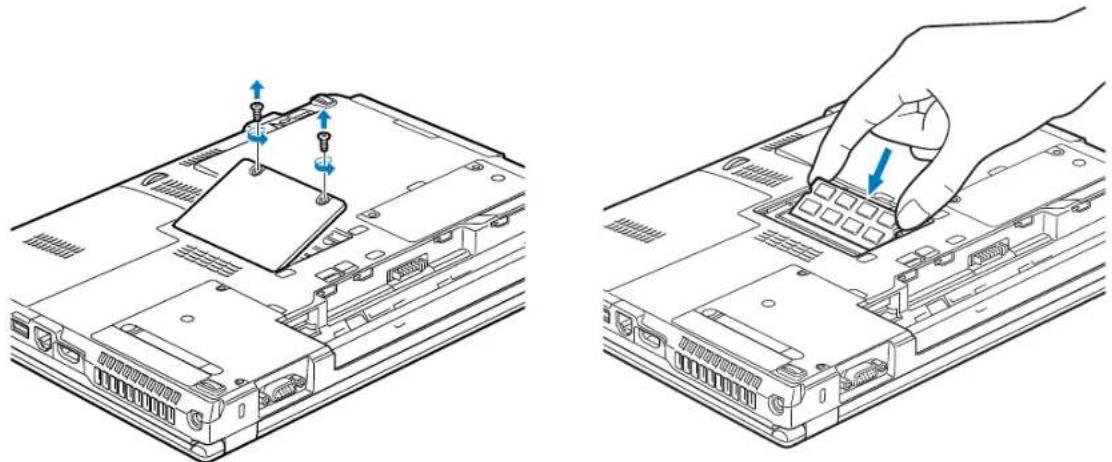

• Two DIMM slots; upgradeable to 8 GB of total memory (4 GB x 2). Note that when 4 GB of memory is installed in a Windows Vista system, approximately 3.3 GB is addressable memory; the upper memory is reserved by Vista for hardware usage. Cache Memory L2 cache: 256 KB x 2 on-die L3 cache: 3 MB on die (i5/i3 processors), 4 MB (i7 processors) Video Built-in color flat-panel TFT active matrix LCD display with simultaneous display capability. Video Color and Resolution 13.3" Crystal View Wide XGA model:

• Internal: 1366 x 768 pixel resolution, 16M colors

• External: 1600 x 1200 pixel resolution, 16M colors

• Simultaneous: 1366 x 768, 16M colors126 - Specifications Video RAM

• Intel® HD Graphics with dynamic frequency. Automatically distributes performance to CPU and graphics applications that need an extra boost up to approximately 20%. or,

• NVIDIA® GeForce® with a total of 512 MB dedicated graphics DDR3 memory Audio

• Realtek codec ALC269 with 2-channel High Definition (HD) audio.

• Headphones: Stereo headphone/line-out jack, 3.5 mm, 1 V rms or less, minimum impedance 32 Ohms

• Microphone: Stereo microphone/line-in jack, 3.5 mm, 100 mV p-p or less, minimum impedance 10K Ohms

• Two built-in stereo speakers, 20 mm diameter Mass Storage Device Options Drive Options

• Hard Disk Drive - Serial ATA, 150 Mbps data buffer, 2.5”, 9.5 mm 5400 rpm: 160 GB, 320 GB, 320 (with full disk encryption), 500 GB 7200 rpm: 320 GB

• Solid State Drive - 128 GB or 256 GB (MLC) Media Player Depending upon the configuration of your system, the following optical drive may be installed.

• Scroll Wheel Communications

• Bluetooth device for wireless personal area network communication Optional WebCam

2.0 megapixel digital camera.

Trusted Platform Module The LifeBook S760 has a Trusted Platform Module (TPM) installed for added system security. LifeBook Security/Application Panel For button functions, refer to Figure 23 in the LifeBook Security/Application Panel chapter. Theft Prevention Lock Two lock slots for use with security restraint systems.128 - Specifications Device Ports On the LifeBook notebook:

• One PC Card or Express Card slot

• Secure Digital (SD) Card slot

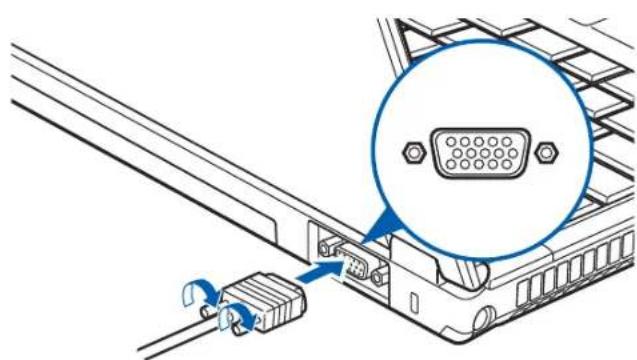

• One 15-pin D-SUB connector for VGA external monitor

• Docking port (100-pin, to dock with optional port replicator)

• One stereo headphone/line-out jack

• One stereo microphone/line-in jack

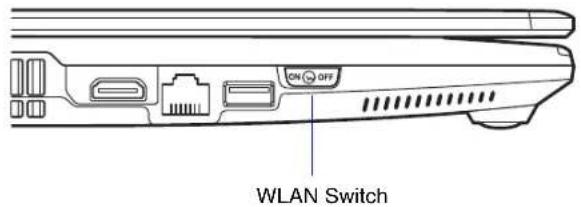

• Wireless LAN antenna on/off switch On the Optional Port Replicator:

• One 25-pin D-SUB connector for parallel input/output devices; Bi-directional, output only or ECP

• One 15-pin D-SUB connector for VGA external monitor (see Display specifications)

• One power/suspend/resume button with LED Keyboard Built-in keyboard with all functions of 101 key PS/2 compatible keyboards.

• Total number of keys: 84

• Function keys: F1 through F12

• Feature extension key: Fn

• Two Windows keys: one Start key, one application key

• Built-in Touchpad pointing device with left and right buttons, scroll wheel button and fingerprint recognition sensor; gesture-enabled

• Built-in Palm Rest External Keyboard and/or Mouse Support USB or PS/2-compatible (PS/2 compatible with Port Replicator only) Power Batteries

• Standard Lithium ion battery, rechargeable, 6-cell 10.8V, 5800 mAh, or,

• Optional Flexible Bay battery: Lithium ion polymer battery, rechargeable, 3-cell 10.8V, 2500 mAh AC Adapter Autosensing 100-240V AC, supplying 19V DC, 4.22A, 80W to the LifeBook notebook; includes an AC cable130 - Specifications Power Management Conforms to ACPI (Advanced Configuration and Power Interface). Dimensions and Weight Overall Dimensions Approximately 12.44"(w) x 8.94"(d) x .95”/1.27”(h) (316 mm x 227 mm x 24.2/32.3 mm) Weight Approximately 3.44 lbs. (1.56 kg) with weight saver, 3.73 lbs. (1.69 kg) with Dual-Layer Multi-Format DVD Writer, and 3.99 lbs. (1.81 kg) with modular bay battery Environmental Requirements Temperature Operating: 41° to 95° F (5° to 35° C) Non-operating: 5° to 140° F (–15° to 60° C) Humidity Operating: 20% to 85%, relative, non-condensing; Non-operating; 8% to 85%, relative, non-condensing Altitude Operating: 10,000 feet (3,048 m) maximum Popular Accessories For ordering or additional information on Fujitsu accessories please visit our Web site at www.shopfujitsu.com or call 1-800-FUJITSU.131 - Specifications Pre-Installed Software Depending on your pre-installed operating system, your notebook comes with pre-installed software for playing audio and video files of various formats. In addition there is file transfer software and virus protection software. The following list indicates the pre-installed software on your system.

• Norton Internet Security™ 60-day free trial

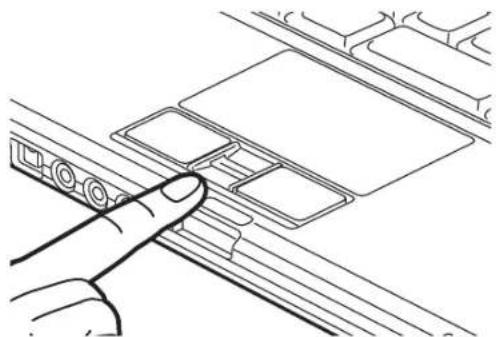

• OmniPass Fingerprint application

• Fujitsu Driver Update utility

• Microsoft Office Ready with Office Activation Assistant132 - Specifications Learning About Your Software Tutorials All operating systems and most application software have tutorials built into them upon installation. We highly recommend that you step through the tutorial before you use an application. Manuals Included with your notebook you will find manuals for your installed operating system and other pre- installed software. Any manuals that are not included, are available online through the help system of the software. We recommend that you review these manuals for general information on the use of these applications. Adobe Acrobat Reader The Adobe Acrobat Reader allows you to view, navigate, and print PDF files from across all of the major computing platforms. Norton Internet Security Your system is preinstalled with a free 60-day trial version of Symantec’s Norton Internet Security™. Norton Internet Security is a suite of tools designed to protect your LifeBook notebook from computer viruses, hackers, spyware, and spam. It assists in the protection of data currently on your hard disk from destruction or contamination. The trial version is activated upon your acceptance of software license agreement. After 60 days, you will need to purchase a subscription from Symantec to download latest virus, spyware, and spam definitions. Roxio Easy Media Creator Easy Media Creator allows you to easily burn CDs and organize, edit and share digital photos, music, data, and videos. CyberLink PowerDVD CyberLink PowerDVD allows you to play DVDs on your LifeBook notebook.133 - Specifications CyberLink MakeDisc CyberLink MakeDisc allows you to burn data, videos and photographs to CDs or DVDs. CyberLink YouCam CyberLink YouCam allows you to capture photos or movies on the embedded webcam, add special effects to them, and share them in a variety of formats or via social networks. CyberLink PowerDirector CyberLink PowerDirector allows you to edit and enhance your videos, and add special effects to them. OmniPass Fingerprint application The fingerprint sensor uses Softex OmniPass which provides password management capabilities to Microsoft Windows operating systems. OmniPass lets you use a "master password" for all Windows, applications, and on-line passwords, and presents a convenient user interface through which you can securely manage passwords, users, and multiple identities for each user. Fujitsu Driver Update Utility The Fujitsu Driver Update (FDU) utility is pre-installed on your system. With FDU, you can choose to automatically or manually go to the Fujitsu site to check for new updates for your system. See “Automatically Downloading Driver Updates” on page 113. Operating System Options Depending upon your system, one of the following operating system configurations will be installed: Microsoft Windows XP Professional Edition With Microsoft Office Ready with Office Activation Assistant Microsoft Windows Vista Business Edition With Microsoft Office Ready with Office Activation Assistant134 - Specifications Microsoft Windows 7 Professional Edition With Microsoft Office Ready with Office Activation Assistant Microsoft Office Ready Microsoft Office Ready is pre-loaded on your system. Office Ready gives you the ability to “unlock” a full copy of Microsoft Office by purchasing an electronic key (media-less license kit) from Microsoft or your reseller.135 Glossary AC Adapter A device which converts the AC voltage from a wall outlet to the DC voltage needed to power your LifeBook notebook. Access point Wireless network device used to bridge wireless and wired network traffic. ACPI Advanced Configuration and Power Interface Active-Matrix Display A type of technology for making flat-panel displays which has a transistor or similar device for every pixel on the screen. Ad Hoc Mode Ad Hoc Mode refers to a wireless network architecture where wireless network connectivity between multiple computers is established without a central wireless network device, typically known as Access Points. Connectivity is accomplished using only client devices in a peer-to-peer fashion. For details, refer to on “Ad Hoc Mode” on page 159136

ADSL Asymmetric Digital Subscriber Line. Technology for transporting high bit-rate services over ordinary phone lines. AGP Accelerated Graphics Port. Graphics port specifically designed for graphics-intensive devices, such as video cards and 3D accelerators. Auto/Airline Adapter A device which converts the DC voltage from an automobile cigarette lighter or aircraft DC power outlet to the DC voltage needed to power your LifeBook notebook. BIOS Basic Input-Output System. A program and set of default parameters stored in ROM which tests and operates your LifeBook notebook when you turn it on until it loads your installed operating system from disk. Information from the BIOS is transferred to the installed operating system to provide it with information on the configuration and status of the hardware. Bit An abbreviation for binary digit. A single piece of information which is either a one (1) or a zero (0). bps An abbreviation for bits per second. Used to describe data transfer rates. Boot To start-up a computer and load its operating system from disk, ROM or other storage media into RAM.137

Bus An electrical circuit which passes data between the CPU and the sub-assemblies inside your LifeBook notebook. Byte 8 bits of parallel binary information. Cache Memory A block of memory built into the micro-processor which is much faster to access than your system RAM and used in specially structured ways to make your overall data handling time faster. CardBus A faster, 32-bit version of the PC Card interface which offers performance similar to the 32-bit PCI architecture. CD-ROM Compact disk read only memory. This is a form of digital data storage which is read optically with a laser rather than a magnetic head. A typical CD-ROM can contain about 600MB of data and is not subject to heads crashing into the surface and destroying the data when there is a failure nor to wear from reading. Channel Range of narrow-band frequencies used by the WLAN device to transmit data. IEEE802.11b/g - 11 channels, 22 MHz wide channels. CMOS RAM Complementary metal oxide semiconductor random access memory. This is a technology for manufacturing random access memory which requires very low levels of power to operate.138

COM Port Abbreviation for communication port. This is your serial interface connection. Command An instruction which you give your operating system. Example: run a particular application or format a floppy disk. Configuration The combination of hardware and software that makes up your system and how it is allocated for use. CRT Cathode Ray Tube. A display device which uses a beam of electronic particles striking a luminescent screen. It produces a visual image by varying the position and intensity of the beam. Data The information a system stores and processes.

Direct current. A voltage or current that does not fluctuate periodically with time. Default Value A pre-programmed value to be used if you fail to set your own. DHCP Dynamic Host Configuration Protocol. A protocol used to automatically acquire parameters required for the communication, such as IP address. The sender of IP address is called a DHCP server, and the receiver is called a DHCP client.139

DIMM Dual-in-line memory module. Disk A spinning platter of magnetic data storage media. If the platter is very stiff it is a hard drive, if it is highly flexible it is a floppy disk, if it is a floppy disk in a hard housing with a shutter it is commonly called a diskette. Disk Drive The hardware which spins the disk and has the heads and control circuitry for reading and writing the data on the disk. Diskette A floppy disk in a hard housing with a shutter. DMA Direct Memory Access. Special circuitry for memory to memory transfers of data which do not require CPU action. DMI Desktop Management Interface. A standard that provides PC management applications with a common method of locally or remotely querying and configuring PC computer systems, hardware and software components, and peripherals. DNS Domain Name System. A function to control the association between the IP address and the name assigned to the computer. If you do not know the IP address but if you know the computer name, you can still communicate to that computer.140

DOS Disk Operating System (MS-DOS is a Microsoft Disk Operating System). Driver A computer program which converts application and operating system commands to external devices into the exact form required by a specific brand and model of device in order to produce the desired results from that particular equipment. DVMT Dynamic Video Memory Technology. A video memory architecture that increases the efficiency of the motherboard by using innovative memory utilization and direct AGP. ECP Extended Capability Port. A set of standards for high speed data communication and interconnection between electronic devices. Encryption Key (Network Key) Data encryption key used to encrypt message text and for computing message integrity checks. Data encryption protects data from unauthorized viewing. This device uses the same encryption key to encode and decode the data, and the identical encryption key is required between the sender and receiver. ESD Electro-Static Discharge. The sudden discharge of electricity from a static charge which has built-up slowly. Example: the shock you get from a doorknob on a dry day or the sparks you get from brushing hair on a dry day. FCC Federal Communication Commission.141

Floppy Disk A spinning platter of magnetic data storage media which is highly flexible.

Gigabyte. One billion bytes. Hard drive A spinning platter of magnetic data storage media where the platter is very stiff. I/O Input/Output. Data entering and leaving your notebook in electronic form. I/O Port The connector and associated control circuits for data entering and leaving your notebook in electronic form. IDE Intelligent Drive Electronics. A type of control interface for a hard drive which is inside the hard drive unit. IEEE802.11a Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11a devices operate in the 5 GHz lower and middle UNII bands. IEEE802.11b Wireless LAN standard that supports a maximum data rate of 11 Mbps. 802.11b devices operate in the 2.4 GHz ISM band.142

IEEE802.11g Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11g devices operate in the 2.4 GHz ISM band. IEEE802.11n Wireless LAN standard that supports a maximum data rate of 540 Mbps (theoretical). 802.11n devices operate in the 2.4 GHz or 5 GHz bands. Infrared Light just beyond the red portion of the visible light spectrum which is invisible to humans. Infrastructure A name of a wireless LAN configuration. This type of communication uses an access point. Another type of communication is called Ad Hoc. IP Address An identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route messages based on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers separated by periods. Each number can be zero to 255. For example,

1.160.10.240 could be an IP address.

Within an isolated network, you can assign IP addresses at random as long as each one is unique. However, connecting a private network to the Internet requires using registered IP addresses (called Internet addresses) to avoid duplicates. The four numbers in an IP address are used in different ways to identify a particular network and a host on that network. Three regional Internet registries -- ARIN, RIPE NCC and APNIC -- assign Internet addresses from the following three classes. Class A - supports 16 million hosts on each of 126 networks Class B - supports 65,000 hosts on each of 16,000 networks143

Class C - supports 254 hosts on each of 2 million networks The number of unassigned Internet addresses is running out, so a new classless scheme called CIDR is gradually replacing the system based on classes A, B, and C and is tied to adoption of IPv6.

An abbreviation for infrared. IrDA Infrared Data Association. An organization which produces standards for communication using infrared as the carrier. IRQ Interrupt Request. An acronym for the hardware signal to the CPU that an external event has occurred which needs to be processed.

Kilobyte. One thousand bytes. LAN Local Area Network. An interconnection of computers and peripherals within a single limited geographic location which can pass programs and data amongst themselves. LCD Liquid Crystal Display. A type of display which makes images by controlling the orientation of crystals in a crystalline liquid. Lithium ion Battery A type of rechargeable battery which has a high power-time life for its size and is not subject to the memory effect as Nickel Cadmium batteries.144

LPT Port Line Printer Port. A way of referring to parallel interface ports because historically line printers were the first and latter the most common device connected to parallel ports. MAC Address Media Access Control Address. A unique physical address of a network card. For Ethernet, the first three bytes are used as the vendor code, controlled and assigned by IEEE. The remaining three bytes are controlled by each vendor (preventing overlap), therefore, every Ethernet card is given a unique physical address in the world, being assigned with a different address from other cards. For Ethernet, frames are sent and received based on this address.

Megabyte. One million bytes. Megahertz 1,000,000 cycles per second. Memory A repository for data and applications which is readily accessible to your LifeBook notebook’s CPU. MHz Megahertz. MIDI Musical Instrument Digital Interface. A standard communication protocol for exchange of information between computers and sound producers such as synthesizers. Modem A contraction for MOdulator-DEModulator. The equipment which connects a computer or other data terminal to a communication line.145

Monaural A system using one channel to process sound from all sources. MTU Maximum Transmission Unit The maximum data size that can be transferred at a time through the Internet or other networks. You can set a smaller MTU size to obtain successful communication, if you have difficulty transferring data due to the fact that the maximum size is too large. Network key Data that is used for encrypting data in data communication. The personal computer uses the same network key both for data encryption and decryption, therefore, it is necessary to set the same network key as the other side of communication. Network name (SSID: Service Set Identifier ) When a wireless LAN network is configured, grouping is performed to avoid interference or data theft. This grouping is performed with “Network name (SSID)”. In order to improve security, the network key is set allowing no communication unless “Network name (SSID)” coincides with the network key. NTSC National TV Standards Commission. The standard for TV broadcast and reception for the USA. Open system authentication Null authentication method specified in the 802.11 standard that performs no authentication checks on a wireless client before allowing it to associate. Operating System A group of control programs that convert application commands, including driver programs, into the exact form required by a specific brand and model of microprocessor in order to produce the desired results from that particular equipment.146

Partition A block of space on a hard drive which is set aside and made to appear to the operating system as if it were a separate disk, and addressed by the operating system accordingly. PCMCIA PCMCIA is a trademark of the Personal Computer Memory Card International Association. The Personal Computer Memory Card International Association is an organization that sets standards for add-in cards for personal computers. Peripheral Device A piece of equipment which performs a specific function associated with but not integral to a computer. Examples: a printer, a modem, a CD-ROM. Pitch (keyboard) The distance between the centers of the letter keys of a keyboard. Pixel The smallest element of a display, a dot of color on your display screen. The more pixels per area the clearer your image will appear. POST Power On Self Test. A program which is part of the BIOS which checks the configuration and operating condition of your hardware whenever power is applied to your notebook. Status and error messages may be displayed before the operating system is loaded. If the self test detects failures that are so serious that operation can not continue, the operating system will not be loaded. PPPoE Point to Point Protocol over Ethernet. A protocol for Ethernet, using a Point-to-Point Protocol (PPP), which is used for connection on the phone line.147

Program An integrated set of coded commands to your computers telling your hardware what to do and how and when to do it. Protocol Procedures and rules use to send and receive data between computers. - Method of sending and receiving data - Process used to handle communication errors Conditions required for communication are organized in procedures for correct transfer of information. RAM Random Access Memory. A hardware component of your LifeBook notebook that holds binary information (both program and data) as long as it has the proper power applied to it. RAM Module A printed circuit card with memory and associated circuitry which allows the user to add additional memory to the computer without special tools. Reset The act of reloading the operating system. A reset erases all information stored in RAM. Restart See Reset. Resume To proceed after interruption. In your notebook this refers to returning to active operation after having been in one of the suspension states.148

ROM Read Only Memory. A form of memory in which information is stored by physically altering the material. Data stored in this way can not be changed by your notebook and does not require power to maintain it. SDRAM Synchronous Dynamic Random Access Memory. Serial Port A connection to another device through which data is transferred one bit at a time on a single wire with any other wires only for control of the device not for transfer of data. Shared key authentication

802.11 network authentication method in which the AP sends the client device a challenge text packet that

the client must then encrypt with the correct WEP key and return to the AP. If the client has the wrong key or no key, authentication will fail and the client will not be allowed to associate with the AP. Shared key authentication is not considered secure, because a hacker who detects both the clear-text challenge and the same challenge encrypted with a WEP key can decipher the key. SSID Service Set Identifier, a 32-character unique identifier attached to the header of packets sent over a WLAN that acts as a password when a mobile device tries to connect to the BSS. The SSID differentiates one WLAN from another, so all access points and all devices attempting to connect to a specific WLAN must use the same SSID. A device will not be permitted to join the BSS unless it can provide the unique SSID. Because the SSID is broadcast in plain text, it does not supply any security to the network. Standby To make inoperative for a period of time. Your LifeBook notebook uses various suspension states to reduce power consumption and prolong the charge of your battery.149

Status Indicator A display which reports the condition of some portion of your hardware. On your LifeBook notebook this is an LCD screen just above the keyboard. Stereo (audio) A system using two channels to process sound from two different sources. Subnet mask TCP-IP network is controlled by being divided into multiple smaller networks (subnets). IP address consists of the subnet address and the address of each computer. Subnet mask defines how many bits of IP address comprise the subnet address. The same value shall be set among computers communicating with each other. SVGA Super VGA. S-Video Super Video. A component video system for driving a TV or computer monitor. System Clock An oscillator of fixed precise frequency which synchronizes the operation of the system and is counted to provide time of day and date. TCP/IP Transmission Control Protocol/Internet Protocol. A standard Internet protocol that is most widely used.150

TFT Thin Film Transistor – A technology for flat display panels which uses a thin film matrix of transistors to control each pixel of the display screen individually.

Underwriters Laboratories – An independent organization that tests and certifies the electrical safety of devices. USB Universal Serial Bus. Standard that allows you to simultaneously connect up to 127 USB devices such as game pads, pointing devices, printers, and keyboards to your computer. VRAM Video Random Access Memory. A memory dedicated to video display data and control. WFM Wired for Management is Intel’s broad-based initiative to reduce the total cost of ownership (TCO) of business computing without sacrificing power and flexibility. Wi-Fi Compatible Wi-Fi (Wireless Fidelity) Identifies that the product has passed the interoperability test, supplied by the WECA (Wireless Ethernet Compatibility Alliance), which guarantees the interoperability of wireless IEEE 802.11 LAN products. For more information on the Wi-Fi standard, go to the WECA Web site at: www.wirelessethernet.com. WLAN Wireless Local Area Network. A wireless interconnection of computers and peripherals within a single limited geographic location which can pass programs and data amongst themselves.151 - Regulatory Information Regulatory Information Notice Changes or modifications not expressly approved by Fujitsu could void this user’s authority to operate the equipment. FCC NOTICES Notice to Users of Radios and Television This equipment has been tested and found to comply with the limit for class B digital devices, pursuant to parts 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet that is on a different circuit than the receiver.

• Consult the dealer or an experienced radio/TV technician for help. Shielded interconnect cables must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device.152 - Regulatory Information Notice to Users of the US Telephone Network This equipment complies with Part 68 of the FCC rules, and the requirements adopted by ACTA. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment; or a product identifier in the format US:AAAEQ##TXXXX. If requested, this information or number must be provided to the telephone company. This equipment is designed to be connected to the telephone network or premises wiring using a standard jack type USOC RJ11C. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. The ringer equivalent number (REN) of this equipment is 0.1B as shown on the label. The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. If trouble is experienced with this equipment, for repair or warranty information, please refer to the manual or contact Fujitsu America, Incorporated, Customer Service. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.153 - Regulatory Information The equipment cannot be used on public coin service provided by the telephone company. Connection to party line service is subject to state tariffs. (Contact the state public utility commission, public service commission or corporation commission for information). If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this computer does not disable your alarm equipment. If you have any questions about what will disable alarm equipment, consult your telephone company or a qualified installer. The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual.

• On board an airplane, or

• In an explosive environment, or

• In situations where the interference risk to other devices or services is perceived or identified as harmful. In cases in which the policy regarding use of Wireless LAN devices in specific environments is not clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorization to use these devices prior to operating the equipment. Regulatory Information/Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting157

cables and equipment other than those specified by the manufacturer. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. The manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to comply with these guidelines. This device must not be co-located or operated in conjunction with any other antenna or transmitter. For IEEE 802.11a Wireless LAN: For operation within 5.15~5.25 GHz frequency range, it is restricted to indoor environments, and the antenna of this device must be integral. Federal Communications Commission statement This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause interference, and, (2) This device must accept any interference, including interference that may cause undesired operation of this device. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: 1 Reorient or relocate the receiving antenna. 2 Increase the distance between the equipment and the receiver. 3 Connect the equipment to an outlet on a circuit different from the one the receiver is connected to. 4 Consult the dealer or an experienced radio/TV technician for help. FCC Radio Frequency Exposure statement The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposure have not found any biological effects. Some studies have suggested that some Figure A-1. Ad Hoc Mode Network158

biological effects might occur, but such findings have not been confirmed by additional research. The wireless LAN radio device has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Export restrictions This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license. This device complies with Part 15 of FCC Rules., as well as ICES 003 B / NMB 003 B. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Modifications not expressly authorized by Fujitsu America, Incorporated may invalidate the user's right to operate this equipment. Canadian Notice The device for the 5150 - 5250 MHz band is only for indoor usage to reduce the potential for harmful interference to co-channel mobile satellite systems. The maximum antenna gain of 6 dBi permitted (for devices in the 5250 - 5350 MHz, 5470 - 5725 MHz and 5725 - 5825 MHz bands) to comply with the e.i.r.p. limit as stated in A9.2 of RSS210. In addition, users are cautioned to take note that high power radars are allocated as primary users (meaning they have priority) of 5250 - 5350 MHz and 5650 - 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.159 - Before Using the Optional Wireless LAN Before Using the Optional Wireless LAN This manual describes the procedures required to properly set up and configure the optional integrated Wireless LAN Mini-PCI device (referred to as "WLAN device" in the rest of the manual). Before using the WLAN device, read this manual carefully to ensure it's correct operation. Keep this manual in a safe place for future reference. Wireless LAN Devices Covered by this Document This document is applicable to systems containing one of the following wireless LAN devices:

• The WLAN device is a Mini-PCI card attached to the main board of the mobile computer.

• The WLAN device operates in license-free RF bands, eliminating the need to procure an FCC operating license. The WLAN operates in the 2.4GHz Industrial, Scientific, and Medical (ISM) RF band and the lower, middle, and upper bands of the 5GHz Unlicensed National Information Infrastructure (UNII) bands.

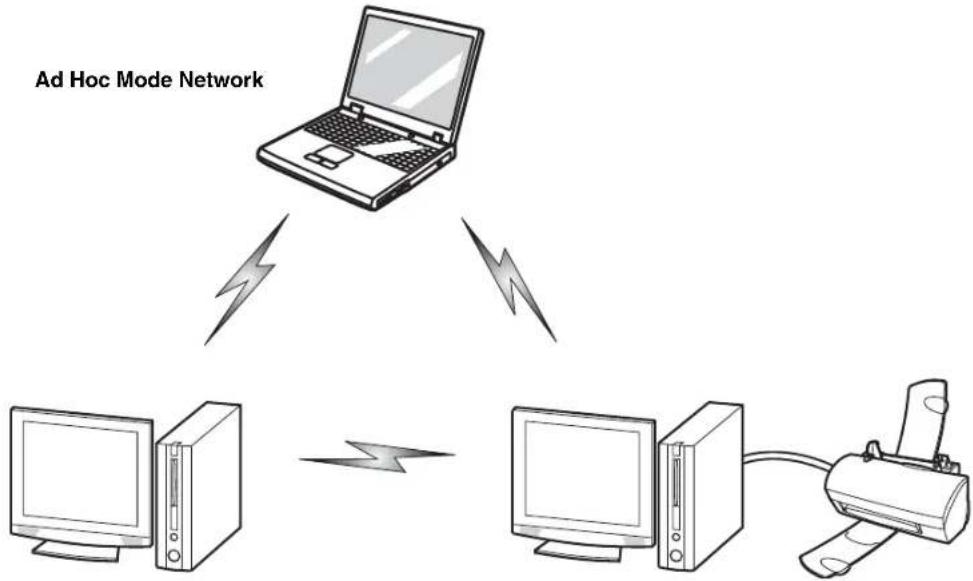

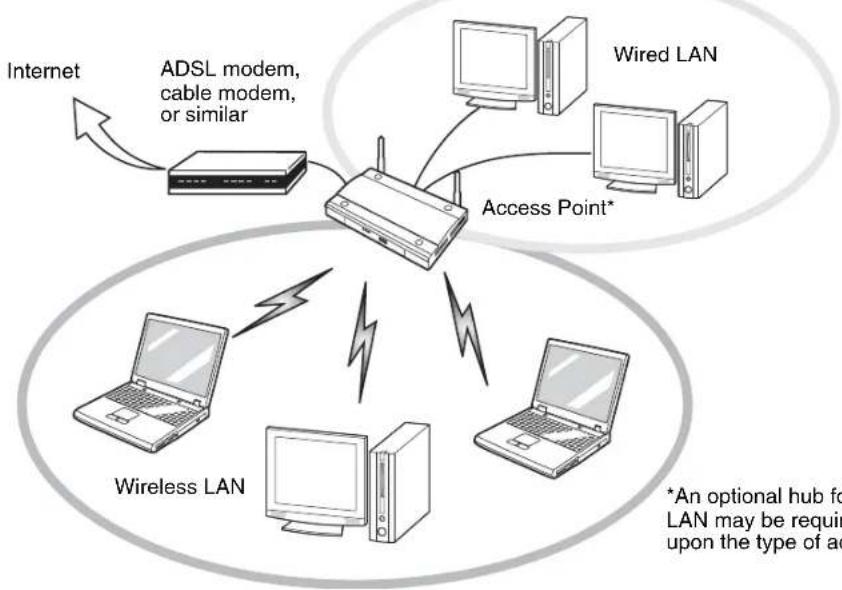

• The Intel WiFi Link 5300 WLAN device is capable of four operating modes, IEEE802.11a, IEEE802.11b, IEEE802.11g, and IEEE802.11n

• The WLAN device is Wi-Fi certified and operates at a the maximum data rate of 540 Mbps (theoretical) in IEEE802.11n mode; 54 Mbps in IEEE802.11a or IEEE802.11g mode; and 11 Mbps in IEEE802.11b mode.

• The WLAN device supports the following encryption methods - WEP, TKIP, CKIP, and AES encryption.

• The Wireless LAN device is compliant with the following standards: WPA, WPA2, CCX1.0, CCX2.0, CCX3.0, and CCX4.0. Wireless LAN Modes Using this Device Ad Hoc Mode "Ad Hoc Mode" refers to a wireless network architecture where wireless network connectivity between multiple computers is established without a central wireless network device, typically known as Access Point(s). Connectivity is accomplished using only client devices in a peer-to-peer fashion. That is why Ad160 - Before Using the Optional Wireless LAN Hoc networks are also known as peer-to-peer networks. Ad Hoc networks are an easy and inexpensive method for establishing network connectivity between multiple computers. Ad Hoc mode requires that the SSID, network authentication, and encryption key settings are identically configured on all computers in the Ad Hoc network. Access Point (Infrastructure) Mode Infrastructure mode refers to a wireless network architecture in which devices communicate with wireless or wired network devices by communicating through an Access Point. In infrastructure mode, wireless devices can communicate with each other or with a wired network. Corporate wireless networks operate in infrastructure mode because they require access to the WLAN in order to access services, devices, and computers (e.g., file servers, printers, databases). Ad Hoc Mode Network161 - Before Using the Optional Wireless LAN How to Handle This Device The WLAN device is an optional device that may come pre-installed in your mobile computer. Under normal circumstances, it should not be necessary for you to remove or re-install it. The Operating System that your mobile computer comes with has been pre-configured to support the WLAN device.

• Intel WiFi Link 5300 device supports IEEE802.11a, IEEE802.11b, IEEE802.11g, and IEEE802.11n.

• The WLAN device operates in the 2.4 GHz ISM band and the 5 GHz lower, middle, and upper UNII bands. Access Point (Infrastructure) Mode Network ADSL modem, cable modem, or similar Internet Wired LAN Access Point* Wireless LAN *An optional hub for a wired LAN may be required depending upon the type of access point used.162 - Before Using the Optional Wireless LAN

• Microwave ovens may interfere with the operation of WLAN devices since they operate in the same 2.4 GHz frequency range as IEEE802.11b/g/n devices. Interference by microwaves does not occur with IEEE802.11a radio which operates in the 5 GHz RF band.

• Wireless devices that transmit in the 2.4 GHz range may interfere with operation of WLAN devices in IEEE802.11b/g/n modes. Symptoms of interference include reduced throughput, intermittent disconnects, and many frame errors. It is HIGHLY recommended that these interfering devices be powered off to ensure proper operation of the WLAN device. Deactivating/Disconnecting the WLAN Device Disconnecting the WLAN device may be desired in certain circumstances (to extend battery life) or where certain environments require it (i.e. hospitals, clinics, airplanes, etc.). The WLAN device can be deactivated by using the Wireless On/Off Switch, and it can be disconnected in Windows using the WLAN icon in the system tray (Note that disconnecting via the icon in the system tray does not turn off the radio; it continues to transmit and receive even though it’s not connected.). BEFORE USING THE WIRELESS LAN DEVICE, YOU MUST FIRST INSTALL CLICKME! TO ENSURE THAT THE CORRECT SOFTWARE FOR YOUR DEVICE IS INSTALLED. BEFORE INSTALLING CLICKME!, BE SURE THE WLAN SWITCH IS IN THE ON POSITION. SEE “INSTALLING CLICKME!” ON PAGE 58. Deactivation Using the Wireless On/Off Switch The WLAN device can be deactivated quickly and efficiently by toggling the Wireless On/Off Switch to the Off position. The Wireless On/Off switch has no effect on non-Wireless LAN models. Figure 41. Wireless LAN On/Off Switch Location WLAN Switch163 - Before Using the Optional Wireless LAN Disconnection Using the Icon in the Taskbar Note that disconnecting via the icon in the system tray does not turn off the radio; it continues to transmit and receive even though it’s not connected. 1 Right-click the WLAN icon in the taskbar at the bottom right of your screen. 2 Choose Disconnect from a network. Activating the WLAN Device Activation of the WLAN device can be accomplished using the same methods as the deactivation process

• Using the Wireless On/Off Switch

• In Windows Vista, by right-clicking the WLAN icon then clicking Connect to a network.

• In Windows XP, by clicking on View Available Wireless Networks, and proceeding from there.164 - Configuring the Wireless LAN Configuring the Wireless LAN The optional WLAN device can be configured to establish wireless network connectivity using the software that is built into Windows Vista. Support for most industry standard security solutions is contained in this software. Pre-defined parameters will be required for this procedure. Please consult with your network administrator for these parameters: Configuring the WLAN Using Windows Vista and Windows 7 1 Click the Start button, then select Control Panel. 2 Windows Vista: If the Control Panel is not in Classic View, select Classic View from the left panel. Click the Network and Sharing Center icon.

Windows 7: If the Control Panel is not in icon view, select either Large or Small icons from the View by: dropdown list. Click the Network and Sharing Center icon. 3 Select Connect to a network in the left panel. 4 Select one of the listed networks, then click [Connect]. 5 Follow the directions that appear. 6 In the event you require assistance, go to the Network and Sharing Center window (Start -> Control Panel -> Network and Sharing Center), and type in relevant keywords in the Search box. Connecting to a Network After you have configured your computer, you can connect to an active network by performing the following steps: 1 Click on the WLAN icon in the system tray. 2 Select “Connect to a network”. 3 Select a network from the list that appears, and click the [Connect] button.165 - Configuring the Wireless LAN Configuring the WLAN Using Windows XP Procedure 1 Click the Start button, then select Control Panel. 2 If the Control Panel is not in Classic View, select Classic View from the left panel. Double-click the Network Connections icon. 3 Select “New Connection” wizard. 4 Click the [Next] button. 5 Select “Connect to the Internet”, then click [Next]. 6 Depending upon what type of connection you would like to make, make a selection. For an infrastructure network, select “Manually create a network profile. For ad hoc network, select “Choose from a list of Internet service providers”. 7 Enter any required information. It may be necessary to consult with your network administrator for some of the information. 8 In the event you require assistance, go to [Start] -> Help and Support -> Networking and the Web. Select the main topic in which you are interested, then type in relevant keywords in the Search box. Connection to the network After you have configured your computer, you can connect to an active network by clicking on the Wireless Network icon in the system tray:166 - Troubleshooting the WLAN Troubleshooting the WLAN Troubleshooting Causes and countermeasures for troubles you may encounter while using your wireless LAN are described in the following table. Problem Possible Cause Possible Solution Unavailable network

connection Incorrect network name (SSID) or network key Ad hoc connection: verify that the network names (SSID’s) and network keys (WEP) of all computers to be connected have been configured correctly. SSID’s and WEP key values must be identical on each machine. Access Point (Infrastructure) connection: set the network name (SSID) and network key to the same values as those of the access point. Set the Network Authentication value identically to that of the Access Point. Please consult your network administrator for this value, if necessary. Weak received signal strength and/or link quality Ad hoc connection: Retry connection after shortening the distance to the destination computer or removing any obstacles for better reception. Access Point (Infrastructure) connection: Retry connection after shortening the distance to the access point or removing any obstacles for better transmission. The WLAN device has been deactivated or disabled Check if the wireless switch is turned On. In Windows XP, go to Start -> Settings -> Network Connections and right-click on Wireless Network Connection. If Enable appear at the top of the menu, click it to enable the device. In Windows Vista, go to Start -> Control Panel, and double-click on Network and Sharing Center. Click on Diagnose and repair, then click on Enable the network adapter.167 - Troubleshooting the WLAN Unavailable network

connection (continued) The computer to be connected is turned off Check if the computer to be connected is turned ON. RF interference from Access Points or other wireless networks The use of identical or overlapping RF channels can cause interference with the operation of the WLAN device. Change the channel of your Access Point to a channel that does not overlap with the interfering device. Wireless network authentication has failed Re-check your Network Authentication, Encryption, and Security settings. Incorrectly configured security settings such as an incorrectly typed WEP key, a mis-configured LEAP username, or an incorrectly chosen authentication method will cause the LAN device to associate but not authenticate to the wireless network. Incorrectly configured network settings Recheck the configuration of your network settings. Incorrect IP address configuration This only applies to networks using static IP addresses. Please contact your network administrator for the correct settings. Problem Possible Cause Possible Solution168 - WLAN Specifications WLAN Specifications Specifications Item Specification Type of network The Centrino Advanced-N 6200 (802.11abgn 2x2) and Atheros XSPAN 801.11abgn WLAN devices conform to IEEE 802.11a, 802.11b/g, and 802.11n, Wi-Fi based*. Transfer rate (Automatic switching) 54 Mbps maximum data rate (IEEE802.11n to be determined) Active frequency • 802.11n: 2.4 GHz or 5 GHz

• 802.11n: Estimated double the operating distance of 802.11g and 802.11a in their respective frequencies. Number of channels • 802.11a: 8 independent channels

• 802.11b/g: 11 channels, 3 non-overlapping channels

2.4 GHz - 3 non-overlapping channels when Channel Bonding is not used; 2 non-

overlapping channels when Channel Bonding is used.

5 GHz - 12 non-overlapping UNII channels with or without Channel Bonding Security Encryption Types - WEP, TKIP, AES***, WPA 1.0, WPA 2.0, CCX compliant Encryption Key lengths Supported: 64 bits and 128 bits 802.1x/EAP Maximum recommended number of computers to be connected over wireless LAN (during ad hoc connection) 10 units or less ****169 - WLAN Specifications

• “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of wireless LAN (Wi-Fi Alliance) has been passed. ** The communication ranges shown above will increase or decrease depending on factors such as number of walls, reflective material, or interference from external RF sources. *** Encryption with network key (WEP) is performed using the above number of bits, however, users can set 40 bits/ 104 bits after subtracting the fixed length of 24 bits. **** Depending on practical environments, the allowable number of computers to be connected may be decreased.170 - Using the Bluetooth Device Using the Bluetooth Device The Integrated Bluetooth module is an optional device available for Fujitsu mobile computers. What is Bluetooth Bluetooth technology is designed as a short-range wireless link between mobile devices, such as laptop computers, phones, printers, and cameras. Bluetooth technology is used to create Personal Area Networks (PANs) between devices in short-range of each other. Where to Find Information About Bluetooth The Bluetooth module contains a robust Help user’s guide to assist you in learning about operation of the Bluetooth device. Windows XP: To access the Help file, click [Start] -> All Programs, and click on Toshiba. Select Bluetooth, then select User’s Guide. Windows Vista: To access the Help file, click [Start] -> All Programs, and click on Bluetooth, then select User’s Guide. For additional information about Bluetooth Technology, visit the Bluetooth Web site at: www.bluetooth.com. THE WIRELESS LAN/BLUETOOTH ON/OFF SWITCH WILL POWER OFF BOTH THE OPTIONAL WIRELESS LAN AND BLUETOOTH DEVICES AT THE SAME TIME. TO ENABLE OR DISABLE EITHER ONE OF THE DEVICES INDIVIDUALLY, PERFORM THE FOLLOWING STEPS: 1 Slide the Wireless LAN/Bluetooth on/off switch to On position. 2 Go to Start > All Programs > Bluetooth Settings. 3 Click on Options under the Bluetooth menu and click on the Bluetooth Radio Power button. 4 Click [OK].171 - Using the Bluetooth Device FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The Bluetooth antenna is located on the right hinge of the LCD screen and is exempt from minimum distance criteria due to its low power. The transmitters in this device must not be co-located or operated in conjunction with any other antenna or transmitter. Canadian Notice To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Warranty Users are not authorized to modify this product. Any modifications invalidate the warranty. This equipment may not be modified, altered, or changed in any way without signed written permission from Fujitsu. Unauthorized modification will void the equipment authorization from the FCC and Industry Canada and the warranty.172 Appendix B: Fingerprint Sensor Device Introducing the Optional Fingerprint Sensor Device Your system may have an optional fingerprint sensor device below the Touchpad, between the left and right buttons. This also serves as a scroll button. Figure 42. Fingerprint sensor ALTHOUGH THE SYSTEM MAY HAVE A FINGERPRINT SENSOR IN PLACE OF A SCROLL BUTTON, THE FINGERPRINT SENSOR CAN BE USED FOR SCROLLING. SIMPLY MOVE YOUR FINGERPRINT OVER THE SENSOR THE SAME AS YOU WOULD USE A SCROLL BUTTON.173 - Introducing the Optional Fingerprint Sensor Device With a fingerprint sensor, you can avoid having to enter a username and password every time you want to:

• Resume from standby mode

• Cancel a password-protected screen saver

• Log into web sites that require a username and password After you have “enrolled” - or registered - your fingerprint, you can simply swipe your fingertip over the sensor for the system recognize you. The fingerprint sensor uses Softex OmniPass which provides password management capabilities to Microsoft Windows operating systems. OmniPass enables you to use a "master password" for all Windows, applications, and on-line passwords. OmniPass requires users to authenticate themselves using the fingerprint sensor before granting access to the Windows desktop. This device results in a secure authentication system for restricting access to your computer, applications, web sites, and other password-protected resources. OmniPass presents a convenient graphical user interface, through which you can securely manage passwords, users, and multiple identities for each user. Getting Started This section guides you through the preparation of your system for the OmniPass fingerprint recognition application. You will be led through the OmniPass installation process. You will also be led through the procedure of enrolling your first user into OmniPass. Installing OmniPass If OmniPass has already been installed on your system, skip this section and go directly to “User Enrollment” on page 176. You can determine whether OmniPass has already been installed by checking to see if the following are present:174 - Introducing the Optional Fingerprint Sensor Device

• The gold key-shaped OmniPass icon in the system tray at the bottom right of the screen.

• The Softex program group in the Programs group of the Start menu System Requirements The OmniPass application requires space on your hard drive; it also requires specific Operating Systems (OS’s). The minimum requirements are as follows:

• Windows XP Professional operating system

• At least 35 MB available hard disk space Installing the OmniPass Application If OmniPass is already installed on your system, go to “User Enrollment” on page 176. Otherwise continue with this section on software installation. To install OmniPass on your system you must: 1 Insert the installation media for the OmniPass application into the appropriate drive. If you are installing from CD-ROM or DVD-ROM, you must find and launch the OmniPass installation program (setup.exe) from the media. 2 Follow the directions provided in the OmniPass installation program. Specify a location to which you would like OmniPass installed . It is recommended that you NOT install OmniPass in the root directory (e.g. C:\). 3 Once OmniPass has completed installation you will be prompted to restart you system. Once your system has rebooted you will be able to use OmniPass. If you choose not to restart immediately after installation, OmniPass will not be available for use until the next reboot. 4 The installation program automatically places an icon (Softex OmniPass) in the Windows Control Panel as well as a golden key shaped icon in the taskbar. FOR INSTALLATION, OMNIPASS REQUIRES THAT THE USER INSTALLING OMNIPASS HAVE ADMINISTRATIVE PRIVILEGES TO THE SYSTEM. IF YOUR CURRENT USER DOES NOT HAVE ADMINISTRATIVE PRIVILEGES, LOG OUT AND THEN LOG IN WITH AN ADMINISTRATOR USER BEFORE

PROCEEDING WITH OMNIPASS INSTALLATION.175

- Introducing the Optional Fingerprint Sensor Device Verifying Information about OmniPass After you have completed installing OmniPass and restarted your system, you may wish to check the version of OmniPass on your system. To check the version information of OmniPass: 1 From the Windows Desktop, double-click the key-shaped OmniPass icon in the taskbar (usually located in the lower right corner of the screen), or, Click the Start button, select Settings, and click Control Panel (if you are using Windows Vista you will see the Control Panel directly in the Start menu; click it, then click Switch to Classic View). Double-click Softex OmniPass in the Control Panel, and the OmniPass Control Center will appear. If it does not appear, then the program is not properly installed, or, Click the Start button, select Programs, and from the submenu select the Softex program group, from that submenu click OmniPass Control Center. 2 Windows XP: Select the About tab at the top of the OmniPass Control Panel. The About tab window appears with version information about OmniPass.

Windows Vista: Version detail appears in the left pane. Uninstalling OmniPass To remove the OmniPass application from your system: Windows XP: 1 Click Start on the Windows taskbar. Select Settings, and then Control Panel. FOR UNINSTALLATION, OMNIPASS REQUIRES THAT THE USER UNINSTALLING OMNIPASS HAVE ADMINISTRATIVE PRIVILEGES TO THE SYSTEM. IF YOUR CURRENT USER DOES NOT HAVE ADMINISTRATIVE PRIVILEGES, LOG OUT AND THEN LOG IN WITH AN ADMINISTRATOR USER BEFORE

PROCEEDING WITH OMNIPASS UNINSTALLATION.176

- Introducing the Optional Fingerprint Sensor Device 2 Double-click Add/Remove Programs. 3 Select OmniPass, and then click Change/Remove. 4 Follow the directions to uninstall the OmniPass application. 5 Once OmniPass has finished uninstalling, reboot your system when prompted. Windows Vista: 1 Click Start on the Windows taskbar. Select Control Panel. 2 Double-click Programs and Features. 3 Select OmniPass, and then click Uninstall. 4 Follow the directions to uninstall the OmniPass application. 5 Once OmniPass has finished uninstalling, reboot your system when prompted. User Enrollment Before you can use any OmniPass features you must first enroll a user into OmniPass. Master Password Concept Computer resources are often protected with passwords. Whether you are logging into your computer, accessing your email, e-banking, paying bills online, or accessing network resources, you often have to supply credentials to gain access. This can result in dozens of sets of credentials that you have to remember. During user enrollment a "master password” is created for the enrolled user. This master password “replaces” all other passwords for sites you register with OmniPass. Example: A user, John, installs OmniPass on his system (his home computer) and enrolls an OmniPass user with username “John_01” and password “freq14”. He then goes to his webmail site to log onto his account. He inputs his webmail credentials as usual (username “John_02” and password “lifebook”), but instead of clicking [Submit], he directs OmniPass to Remember Password. Now whenever he returns to that site, OmniPass will prompt him to supply access credentials.177 - Introducing the Optional Fingerprint Sensor Device John enters his OmniPass user credentials (“John_01” and “freq14”) in the OmniPass authentication prompt, and he is allowed into his webmail account. He can do this with as many web sites or password protected resources he likes, and he will gain access to all those sites with his OmniPass user credentials (“John_01” and “freq14”). This is assuming he is accessing those sites with the system onto which he enrolled his OmniPass user. OmniPass does not actually change the credentials of the password protected resource. If John were to go to another computer without he OmniPass account to access his webmail, he would need to enter his original webmail credentials (“John_02” and “lifebook”) to gain access. If he attempts his OmniPass user credentials on a system other than a system he’s enrolled on, he will not gain access. Basic Enrollment The Enrollment Wizard will guide you through the process of enrolling a user. Unless you specified otherwise, after OmniPass installation the Enrollment Wizard will launch on Windows login. If you do not see the Enrollment Wizard, you can bring it up by clicking Start on the Windows taskbar; select Programs; select Softex; click OmniPass Enrollment Wizard (or, in Windows Vista, select OmniPass Control Center). Windows XP: 1 Click Enroll to proceed to username and password verification. By default, the OmniPass Enrollment Wizard enters the credentials of the currently logged in Windows user. 2 Enter the password you use to log in to Windows. This will become the “master password” for this OmniPass user. In most cases, the Domain: value will be your Windows computer name. In a corporate environment, or when accessing corporate resources, the Domain: may not be your Windows computer name. Click [Next] to continue. THE ENROLLMENT PROCEDURE ASSUMES YOU HAVE NO HARDWARE AUTHENTICATION DEVICES OR ALTERNATE STORAGE LOCATIONS THAT YOU WISH TO INTEGRATE WITH OMNIPASS. IF YOU DESIRE SUCH FUNCTIONALITY, CONSULT THE APPROPRIATE SECTIONS OF THIS DOCUMENT.178 - Introducing the Optional Fingerprint Sensor Device 3 In this step OmniPass captures your fingerprint. Refer to “Enrolling a Fingerprint” on page 178 for additional information. 4 Next, choose how OmniPass notifies you of various events. We recommend you keep Taskbar Tips on Beginner mode taskbar tips and Audio Tips on at least Prompt with system beeps only until you get accustomed to how OmniPass operates. Click [Next] to proceed with user enrollment. You will then see a Congratulations screen indicating your completion of user enrollment. 5 Click [Done] to exit the OmniPass Enrollment Wizard. You will be asked if you’d like to log in to OmniPass with your newly enrolled user; click [Yes]. Windows Vista: 1 Click Run Enrollment Wizard. 2 Click [Create and Enroll a new Windows user]. 3 Follow the instructions as directed by the Wizard. Enrolling a Fingerprint Enrolling a fingerprint will increase the security of your system and streamline the authentication procedure. You enroll fingerprints in the OmniPass Control Center. With an OmniPass user logged in, double-click the system tray OmniPass icon. Select the User Settings tab and click Enrollment under the User Settings area. Click Enroll Authentication Device and authenticate at the authentication prompt to start device enrollment. 1 During initial user enrollment, you will be prompted to select the finger you wish to enroll. Fingers that have already been enrolled will be marked by a green check. The finger you select to enroll at this time will be marked by a red arrow. OmniPass will allow you re-enroll a finger. If you choose a finger that has already been enrolled and continue enrollment, OmniPass will enroll the fingerprint, overwriting the old fingerprint. Select a finger to enroll and click [Next]. 2 It is now time for OmniPass to capture your selected fingerprint. It may take a several capture attempts before OmniPass acquires your fingerprint. Should OmniPass fail to acquire your fingerprint, or if the capture screen times out, click [Back] to restart the fingerprint enrollment process.

- Introducing the Optional Fingerprint Sensor Device Your system has a “swipe” fingerprint sensor. A swipe sensor is small and resembles a skinny elongated rectangle. To capture a fingerprint, gently swipe or pull your fingertip over the sensor (starting at the second knuckle) towards yourself. Swiping too fast or too slow will result in a failed capture. The Choose Finger screen has a [Practice] button; click it to practice capturing your fingerprint. When you are comfortable with how your fingerprint is captured, proceed to enroll a finger. 3 Once OmniPass has successfully acquired the fingerprint, the Verify Fingerprint screen will automatically appear. To verify your enrolled fingerprint, place your fingertip on the sensor and hold it there as if you were having a fingerprint captured. Successful fingerprint verification will show a green fingerprint in the capture window and the text Verification Successful under the capture window. Using OmniPass You are now ready to begin using OmniPass. Used regularly, OmniPass will streamline authentications. Password Replacement You will often use the password replacement function. When you go to a restricted access website (e.g., your bank, your web-based email, online auction or payment sites), you are always prompted to enter your login credentials. OmniPass can detect these prompts and you can teach OmniPass your login credentials. The next time you go to that website, you can authenticate with your fingerprint to gain access. OmniPass Authentication Toolbar After installing OmniPass and restarting, a dialog you have not seen before at Windows Logon will appear. This is the OmniPass Authentication Toolbar. It is displayed whenever the authentication system is invoked. The OmniPass authentication system may be invoked frequently: during Windows Logon, during OmniPass Logon, when unlocking your workstation, when resuming from standby or hibernate, when unlocking a password-enabled screensaver, during password replacement for remembered site or application logins, and more. When you see this toolbar, OmniPass is prompting you to authenticate. The Logon Authentication window indicates what OmniPass-restricted function you are attempting. The icons in the lower left (fingerprint and key) show what authentication methods are available. Selected authentication methods are highlighted while unselected methods are not. When you click the icon for an unselected authentication method, the authentication prompt associated with that method is displayed.180 - Introducing the Optional Fingerprint Sensor Device When prompted to authenticate, you must supply the appropriate credentials: an enrolled finger for the fingerprint capture window or your master password for the master password prompt (the key icon). Remembering a Password OmniPass can remember any application, GUI, or password protected resource that has a password prompt. Using the following procedure, you can store a set of credentials into OmniPass. These credentials will then be linked to your “master password” or fingerprint. Go to a site that requires a login (username and password), but do not log in yet. At the site login prompt, enter your username and password in the prompted fields, but do not enter the site (do not hit [Enter], [Submit], [OK], or Login). Right-click the OmniPass system tray icon and select Remember Password from the submenu. The Windows arrow cursor will change to a golden key OmniPass cursor. Click the OmniPass cursor in the login prompt area, but don’t click [Login] or [Submit]. Associating a Friendly Name After clicking the OmniPass key cursor near the login prompt, OmniPass will prompt you to enter a “friendly name” for this site. You should enter something that reminds you of the website, the company, or the service you are logging into. In its secure database, OmniPass associates this friendly name with this website. Additional Settings for Remembering a Site When OmniPass prompts you to enter a “friendly name” you also have the opportunity to set how OmniPass authenticates you to this site. There are three effective settings for how OmniPass handles a remembered site. The default setting is Automatically click the “OK” or “Submit” button for this password protected site once the user is authenticated. With this setting, each time you navigate to this site OmniPass will prompt you for your master password or fingerprint authentication device. Once you have authenticated with OmniPass, you will automatically be logged into the site.181 - Introducing the Optional Fingerprint Sensor Device Less secure is the option to Automatically enter this password protected site when it is activated. Do not prompt for authentication. Check the upper box to get this setting, and each time you navigate to this site OmniPass will log you into the site without prompting you to authenticate. If you uncheck both boxes in Settings for this Password Site, OmniPass will prompt you for your master password or fingerprint authentication device. Once you have authenticated with OmniPass your credentials will be filled in to the site login prompt, but you will have to click the website [OK], [Submit], or [Login] button to gain access to the site. Click Finish to complete the remember password procedure. The site location, the credentials to access the site, and the OmniPass authentication settings for the site are now stored in the OmniPass secure database. The OmniPass authentication settings (Settings for this Password Site) can always be changed in Vault Management. Logging in to a Remembered Site Whether or not OmniPass prompts you to authenticate when you return to a remembered site is determined by Settings for this Password Site and can be changed in Vault Management. The following cases are applicable to using OmniPass to login to: Windows, remembered web sites, and all other password protected resources. With Master Password Once you return to a site you have remembered with OmniPass, you may be presented with a master password prompt. Enter your master password and you will be allowed into the site. THIS SETTING IS MORE CONVENIENT IN THAT WHENEVER YOU GO TO A SITE REMEMBERED WITH THIS SETTING, YOU WILL BYPASS ANY AUTHENTICATION PROCEDURE AND GAIN INSTANT ACCESS TO THE SITE. BUT SHOULD YOU LEAVE YOUR SYSTEM UNATTENDED WITH YOUR OMNIPASS USER LOGGED IN, ANYONE USING YOUR SYSTEM CAN BROWSE TO YOUR PASSWORD PROTECTED SITES AND GAIN AUTOMATIC ACCESS.182 - Introducing the Optional Fingerprint Sensor Device Logging into Windows with a Fingerprint Device When logging into Windows with a fingerprint device, the fingerprint capture window will now appear next to the Windows Login screen. Place your enrolled fingertip on the sensor to authenticate. You will be simultaneously logged into Windows and OmniPass. The capture window will also appear if you have used Ctrl-Alt-Del to lock a system, and the fingerprint device can be used to log back in as stated above. In Windows XP, your login options must be set either for classic login, or for fast user switching and logon screen to be enabled to use your fingerprint to log on to Windows. To change this go to Control Panel, select User Accounts and then click Change the way users log on or off. If your Windows screensaver is password protected, the fingerprint capture window will now appear next to screensaver password dialog during resume. You can authenticate to your screensaver password prompt with your enrolled finger. Password Management OmniPass provides an interface that lets you manage your passwords. To access this GUI, double-click the OmniPass key in the system tray. Click Vault Management; you will be prompted to authenticate. Once you gain access to Vault Management, click Manage Passwords under Vault Settings. You will see the Manage Passwords interface, with a list of friendly names. You can view the credentials stored for any remembered website by highlighting the desired resource under Password Protected Dialog and clicking Unmask Values. Should a password be reset, or an account expire, you can remove stored credentials from OmniPass. Highlight the desired resource under Password Protected Dialog and click Delete Page. You will be prompted to confirm the password deletion. IF A MACHINE IS LOCKED AND OMNIPASS DETECTS A DIFFERENT USER LOGGING BACK IN WITH A FINGERPRINT, THE FIRST USER WILL BE LOGGED OUT AND THE SECOND USER LOGGED IN.183 - Introducing the Optional Fingerprint Sensor Device The two check boxes in Manage Passwords govern whether OmniPass prompts you to authenticate or directly logs you into the remembered site. OmniPass will overwrite an old set of credentials for a website if you attempt to use Remember Password on an already remembered site. The exception to the above rule is when resetting the Windows password. If your password is reset in Windows, the next time you login to Windows, OmniPass will detect the password change and prompt you to “Update” or “Reconfirm” the password with OmniPass. Enter your new Windows password in the prompt and click OK. Your OmniPass "master password" will still be your Windows password. OmniPass User Identities Identities allow OmniPass users to have multiple accounts to the same site (e.g., bob@biblomail.com and boballen@biblomail.com). If OmniPass did not provide you identities, you would be limited to remembering one account per site. To create and manage identities, double-click the OmniPass key in the system tray. Click Vault Management; OmniPass will prompt you to authenticate. Once you gain access to Vault Management, click Manage Identities under Vault Settings. You can only manage the identities of the currently logged in OmniPass user To add a new identity, click New Identity or double-click Click here to add a new identity. Name the new identity and click [OK], then click [Apply]. You can now switch to the new identity and start remembering passwords. To delete an identity, highlight the identity you want to delete, click [Delete Identity], then click [Apply]. WHEN YOU DELETE AN IDENTITY, ALL OF ITS ASSOCIATED REMEMBERED SITES AND PASSWORD

PROTECTED DIALOGS ARE LOST.184

- Introducing the Optional Fingerprint Sensor Device To set the default identity, highlight the identity you want as default and click [Set as Default]; click [Apply] to ensure the settings are saved. If you log in to OmniPass with a fingerprint device, you will automatically be logged in to the default identity for that OmniPass user. You can choose the identity with which you are logging in if you login using "master password". Choosing User Identity during Login To choose your identity during login, type your username in the User Name: field. Press [Tab] and see that the Domain: field self-populates. Click the Password: field to bring the cursor to it, and you will see the pull-down menu in the Identity: field. Select the identity to login as, then click OK. Switch User Identity To switch identities at any time, right-click the OmniPass system tray icon and click Switch User Identity from the submenu. The Switch Identity dialog will appear. Select the desired identity and then click OK. Identities and Password Management On the Manage Passwords interface of the Vault Management tab of the OmniPass Control Center, there is a pull-down selection box labeled, Identity. This field lets you choose which identity you are managing passwords for. When you select an identity here, only those password protected dialogs that are associated with that identity are shown. You can perform all the functions explained in “Password Management” on page 182. Configuring OmniPass This section gives an overview of both the Export/Import function and the OmniPass Control Center. Exporting and Importing Users YOU CANNOT IMPORT A USER INTO OMNIPASS IF THERE ALREADY IS A USER WITH THE SAME NAME

ENROLLED IN OMNIPASS.185

- Introducing the Optional Fingerprint Sensor Device Using OmniPass Control Center, you can export and import users in and out of OmniPass. The export process backs up all remembered sites, credentials, and enrolled fingerprints for an OmniPass user. All OmniPass data for a user is backed up to a single encrypted database file. During the import process, the Windows login of the exported user is required. If the proper credentials cannot be supplied, the user profile will not be imported. Exporting an OmniPass User Profile To export a user, open the OmniPass Control Center, and click Import/Export User under Manage Users. Click Exports an OmniPass user profile. OmniPass will prompt you to authenticate. Upon successfully authentication, you must name the OmniPass user profile and decide where to save it. An .opi file is generated, and you should store a copy of it in a safe place. This .opi file contains all your user specific OmniPass data, and it is both encrypted and password protected. This user profile does NOT contain any of your encrypted data files. Importing an OmniPass User Profile To import an OmniPass user open the OmniPass Control Center, and click Import/Export User under Manage Users. Click Imports a new user into OmniPass and then select OmniPass Import/Export File (*.opi) and click Next. OmniPass will then prompt you to browse for the file you had previously exported (.opi file). When you select the .opi file for importation, OmniPass will prompt you for authentication. The credentials that will allow a user profile to be imported are the Windows login credentials of the

INDOWS LOGIN CREDENTIALS OF THE EXPORTED USER. THEY ARE THE CREDENTIALS THAT HAD TO BE SUBMITTED WHEN THE USER PROFILE WAS EXPORTED. YOU WILL NEED USER NAME, PASSWORD, AND DOMAIN.186 - Introducing the Optional Fingerprint Sensor Device exported user. They are the credentials that had to be submitted when the user profile was exported. You will need User Name, Password, and Domain. If you don’t remember the value for Domain, in a PC or SOHO environment Domain should be your computer name. OmniPass will notify you if the user was successfully imported. Things to Know Regarding Import/Export

• Assume you export a local Windows User profile from OmniPass. You want to import that profile to another machine that has OmniPass. Before you can import the profile, a Windows user with the same login credentials must be created on the machine importing the profile.

Example: I have a Windows user with the username “Tom” and the password “Sunshine” on my system. I have enrolled Tom into OmniPass and remembered passwords. I want to take all my passwords to new system. I export Tom’s OmniPass user profile. I go to my new system and using the Control Panel I create a user with the username "Tom" and the password "Sunshine". I can now successfully import the OmniPass user data to the new system.

• If you export an OmniPass-only user, you can import that user to any computer running OmniPass, provided that a user with that name is not already enrolled in OmniPass.

• If you attempt to import a user profile who has the same name as a user already enrolled in OmniPass, the OmniPass import function will fail. OmniPass Control Center This section will serve to explain functions within the OmniPass Control Center that weren’t explained earlier. You can access the OmniPass Control Center any of three ways:

• Double-click the golden OmniPass key shaped icon in the Windows taskbar (typically in the lower- right corner of the desktop)

• Click the Start button; select the Programs group; select the Softex program group; and click the OmniPass Control Center selection.187 - Introducing the Optional Fingerprint Sensor Device

• Open the Windows Control Panel (accessible via Start button --> Settings --> Control Panel) and double-click the Softex OmniPass icon. User Management The User Management tab has two major interfaces: Add/Remove User and Import/Export User. Import/Export User functionality is documented in “Exporting and Importing Users” on page 184. Add/Remove User functionality is straightforward. If you click Adds a new user to OmniPass you will start the OmniPass Enrollment Wizard. The Enrollment Wizard is documented in “User Enrollment” on page 176. If you click Removes a user from OmniPass, OmniPass will prompt you to authenticate. Authenticate with the credentials (or enrolled fingerprint) of the user you wish to remove. OmniPass will prompt you to confirm user removal. Click OK to complete user removal. User Settings The User Settings tab has four interfaces: Audio Settings, Taskbar Tips, and Enrollment. User settings allow users to customize OmniPass to suit their individual preferences. Under User Settings (Audio Settings and Taskbar Tips) you can set how OmniPass notifies the user of OmniPass events (e.g., successful login, access denied, etc.). The details of each setting under the Audio Settings and Taskbar Tips interfaces are self-explanatory. The Enrollment interface allows you to enroll fingerprints. For the procedure to enroll and authentication device refer to Chapter 2.3. To enroll additional fingerprints, click Enroll Authentication Device, and authenticate with OmniPass. Select the fingerprint recognition device in the Select Authentication Device screen (it should already be marked by a green check if you have a finger enrolled) and click Next. REMOVING A USER WILL AUTOMATICALLY DESTROY ALL OMNIPASS DATA ASSOCIATED WITH THAT USER.

LL IDENTITIES AND CREDENTIALS ASSOCIATED WITH THE USER WILL BE LOST.

F YOU’RE SURE YOU WANT TO REMOVE THE USER, WE RECOMMEND YOU EXPORT THE USER PROFILE.188 - Introducing the Optional Fingerprint Sensor Device System Settings The OmniPass Startup Options interface can be found in the System Settings tab. With these options you can specify how your OmniPass Logon is tied to your Windows Logon. The first option, Automatically log on to OmniPass as the current user, will do just as it says; during Windows login, you will be logged on to OmniPass using your Windows login credentials. If the user logging into Windows was never enrolled into OmniPass, upon login no one will be logged on to OmniPass. This setting is appropriate for an office setting or any setting where users must enter a username and password to log into a computer. This is the default setting. With the second option, Manually log on to OmniPass at startup, OmniPass will prompt you to login once you have logged on to Windows. With the third option, Do not log on to OmniPass at startup, OmniPass will not prompt for a user to be logged on. You can manually log on to OmniPass by right-clicking the OmniPass taskbar icon and clicking Log in User from the right-click menu. Troubleshooting You cannot use OmniPass to create Windows users. You must first create the Windows user, and you will need administrative privileges to do that. Once the Windows user is created, you can add that user to OmniPass using the same username and password Cannot add Windows users to OmniPass If you experience difficulties adding a Windows user to OmniPass, you may need to adjust your local security settings. You can do this by going to Start, Control Panel, Administrative Tools, and Local Security Settings. Expand Local Policies, expand Security Options, and double-click Network Access: Sharing and Security Model for Local Accounts. The correct setting should be Classic - Local Users Authenticate as Themselves.189 - Introducing the Optional Fingerprint Sensor Device Cannot add a User with a Blank Password to OmniPass If you experience difficulties adding a user with a blank password to OmniPass, you may need to adjust your local security settings. First attempt the procedure explained in the Cannot add Windows user to OmniPass section. If the difficulties persist, then try the following procedure. Click Start, Control Panel, Administrative Tools, and Local Security Settings. Expand Local Policies, expand Security Options, and double-click Accounts: Limit local account use of blank passwords to console login only. This setting should be set to Disabled. Dialog appears after OmniPass authentication during Windows Logon After installing OmniPass on your system, you can choose to logon to Windows using OmniPass. You authenticate with OmniPass (via master password, or an enrolled security device) and OmniPass logs you into Windows. You may, during this OmniPass authentication, see a Login Error dialog box. This dialog box occurs when OmniPass was unable to log you into Windows with the credentials supplied (username and password). This could happen for any of the following reasons:

• Your Windows password has changed

• Your Windows account has been disabled If you are having difficulties due to the first reason, you will need to update OmniPass with your changed Windows account password. Click Update Password and you will be prompted with a dialog to reconfirm your password. Enter the new password to your Windows user account and click OK. If the error persists, then it is unlikely the problem is due to your Windows user account password changing.190 Index

DC Power Jack 50 Device Ports 86, 128 DIMM 82 Display Panel 15, 51 adjusting 52 brightness 52 latch 14 opening 51 problems 101, 102 Double-Clicking 31 Dragging 32 Drivers and Application Restore CD 109 DVD drive problems 94, 95 tray release 73, 108191

Emergency tray release 20 Error Messages 104 External Monitor Port 17, 90

FDU 58, 113, 133 Fingerprint Sensor Device 172 enrolling a fingerprint 178 getting started 173 installing OmniPass 173 logging into a remembered site 181 OmniPass authentication toolbar 179 password replacement 179 remembering a password 180 uninstalling OmniPass 175 user enrollment 176 using OmniPass 179 Flexible Bay 18, 38 cold-swapping 39 devices 38 eject lever 18 installing 38 Modular Multi-Format DVD Writer 70 removing 38 Fujitsu Contact Information 9 Fujitsu Driver Update utility 58, 113, 133 Function Key F10 28 F3 28 F6 28 F7 28 F8 28, 37 F9 28, 37 FN 28

LAN (RJ-45) Jack 20 LifeBook Security Application Panel 13 buttons 46 configuring 46 deactivating 47 deactivating and activating 47 launching applications 46 operating 43 passwords 41 uninstalling 44192

Media Player care 122 Control Panel 74 loading 71 removing 73 Software 71, 74 using 75 Memory capacity 84 compartment 20, 82 installing 82 problems 96 removing 84 upgrade module 82 Microphone Jack 15, 90 Modem 18 problems 96 Modem Jack 86 Modem Result Codes 108 Modular Devices 38 installing 38 removing 38 Mouse problems 95
