Brand	Foppapedretti
Model	Hurrà
Product type	Stroller for children
Maximum child weight	15 kg
Maximum basket weight	3 kg
Maximum hood pocket weight	0.5 kg
Recommended age	From birth to about 3 years
Restraint system	5-point harness with buckle, waist belt and crotch strap
Brake	Lever parking brake
Hood	Removable, adjustable, with inspection window
Backrest	Adjustable recline, horizontal position for newborns
Footrest	Adjustable
Front wheels	Swivel with directional lock
Rear wheels	Fixed, assembly/disassembly with locking pins
Lower basket	Removable, capacity 3 kg
Armrest	Removable, can open on one side
Main material	Metal frame, fabric cover, plastic
Maintenance	Clean with sponge and neutral soap, dry completely, silicone lubrication of moving parts
Safety	Never leave unattended, always use brake and belts, max weight 15 kg
Included accessory	Rain cover (hand washable at 30°C)
Folding	Compact with lock in closed position
Conformity	Current safety standards

Frequently Asked Questions - Hurrà Foppapedretti

How to unfold the Foppapedretti Hurrà stroller?

Unlock the locking device, push the front part forward and press the rear lever with your foot until fully open. Make sure the stroller is properly locked before use.

How to fold the Hurrà stroller?

Before folding, empty the basket, fold the hood and set the backrest upright. Lift the locking lever with your foot, press the closing lever with your foot and push the handles forward. Lock the stroller in the closed position to prevent accidental reopening.

What is the maximum weight supported by the stroller?

The maximum child weight is 15 kg. The lower basket can hold up to 3 kg and the hood pocket up to 0.5 kg.

How to fasten the safety harness?

Adjust the length of the straps using the adjustment devices. Place the child, then insert part 'a' into 'b', then into buckle 'c' until it clicks. For newborns under 6 months, use the lower loops for the shoulder straps. Never use the crotch strap alone.

How to adjust the stroller backrest?

To recline the backrest, lift the adjustment lever at the back and tilt it to the desired position, then release. To raise the backrest, push it upward without pressing the lever. For children under 6 months, the backrest must always be in the horizontal (most reclined) position.

How to use the parking brake?

To lock, press the brake lever. To unlock, lift the lever. Always apply the brake when stopping, even for short periods, and when putting in or taking out the child. After braking, push the stroller slightly to check that it is properly engaged.

How to assemble and disassemble the wheels?

Rear wheels: Insert the wheel unit until it clicks; the metal pins must lock into the holes. To disassemble, press the locking device. Front wheels: Insert until it clicks: to disassemble, press the inner metal button.

How to clean the Foppapedretti Hurrà stroller?

Clean fabric parts with a sponge soaked in neutral soap. Plastic parts can be cleaned with a damp cloth. Dry metal parts to prevent rust. Lubricate moving parts with silicone lubricant if necessary. Never store the stroller wet.

Can the stroller be used for jogging or rollerblading?

No, this product is not suitable for jogging or rollerblading. It is designed only for walking.

What are the important safety precautions?

Never leave the child unattended. Ensure all locking devices are engaged. Always use the restraint system. Do not hang loads on the handlebar. Apply the brake when stopping. Respect the maximum weight of 15 kg. Regularly check the condition of the straps and attachments.

USER MANUAL Hurrà Foppapedretti

Black stroller with floral pattern and canopy, no visible text or symbols

C€

Valido solo per i peluches Valid only for toys

EN 1888-1:2018

IT	PASSEGGINO - Istruzioni di montaggio
EN	PUSHCHAIR - Assembly instructions
FR	POUSSETTE - Notice d’utilisation
DE	BUGGY - Montageanweisungen
ES	COCHECITO - Manual de instrucciones
EL	КАРОТЗАКІ - Однієєхрішого
PT	CARRINHO - Manual de instruções
RU	ПРОГУЛОЧНАЯ КОЛЯСКА - Инструкция по установке
HU	BABAKOCSI - Összeszerelési útmutató
HR	KOLICA - Upute za sastavljanje

IT. IMPORTANTE - LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFERIMENTO

EN. IMPORTANT! READ THE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE

FR. IMPORTANT! LIRE ATTENTIVEMENT ET CONSERVER SOIGNEUSEMENT A PORTEE DE MAIN POUR UNE UTILISATION ULTERIEURE

Mechanical assembly showing a coiled spring with two wheels and a handle, no text or symbols visible

2 a Chuck click a Chuck click

3 B A

Diagram of a mechanical lifting or lifting mechanism with a curved arrow indicating motion (no text or symbols present)

Illustration of a child in a stroller with wheels and a curved arrow indicating motion (no text or symbols)

6 A

Illustration of a wheelchair with a lock and gear, no text or symbols present

Illustration of a car wheel with a lock and directional arrows, no text or symbols present

Line drawing of a mechanical linkage mechanism with a circular base and arrow indicating motion (no text or symbols)

Line drawing of a mechanical linkage with a circular base and arrow indicating rotation (no text or symbols)

Simple line drawing of a hand holding a ring with motion arrows indicating movement, no text or symbols present.

12 A

13 1 b b a a c

Illustration of two hands holding ropes with a magnified view of the bow (no text or symbols)

15 A

Line drawing of a hand inserting a small black object into a vehicle's seat panel (no text or symbols)

Technical line drawing of a mechanical assembly with wheels and brackets (no text or symbols)

Diagram of a mechanical component with a red arrow indicating direction, no text or symbols present

Line drawing of a mechanical joint or bracket assembly with an arrow indicating rotation (no text or symbols present)

Line drawing of a mechanical component or tool, possibly a tool or bracket, with no visible text or symbols.

Line drawing of hands using a tool to adjust or install a mechanical component, with a red arrow indicating a specific point (no text or symbols present)

22 A

23 A B

Illustration of a stroller with a person sitting in the seat, showing motion direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow and labeled point D (no text or symbols beyond labels)

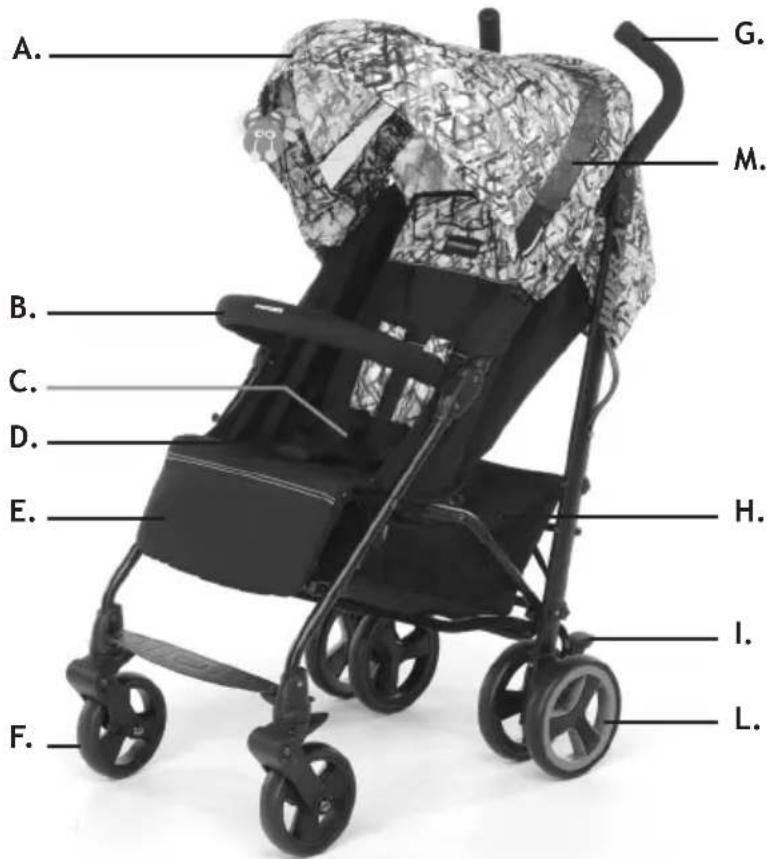

COMPONENTI

A. Capottina
B. Bracciolo
C. Fibbia
D. Cinture
E. Estensione seduta
F. Ruote anteriori
G. Manubrio
H. Cestino
1. Freno
L. Ruote posteriori

M. Apertura osservabimbo

A. G. M. B. C. D. E. H. I. F. L.

M.

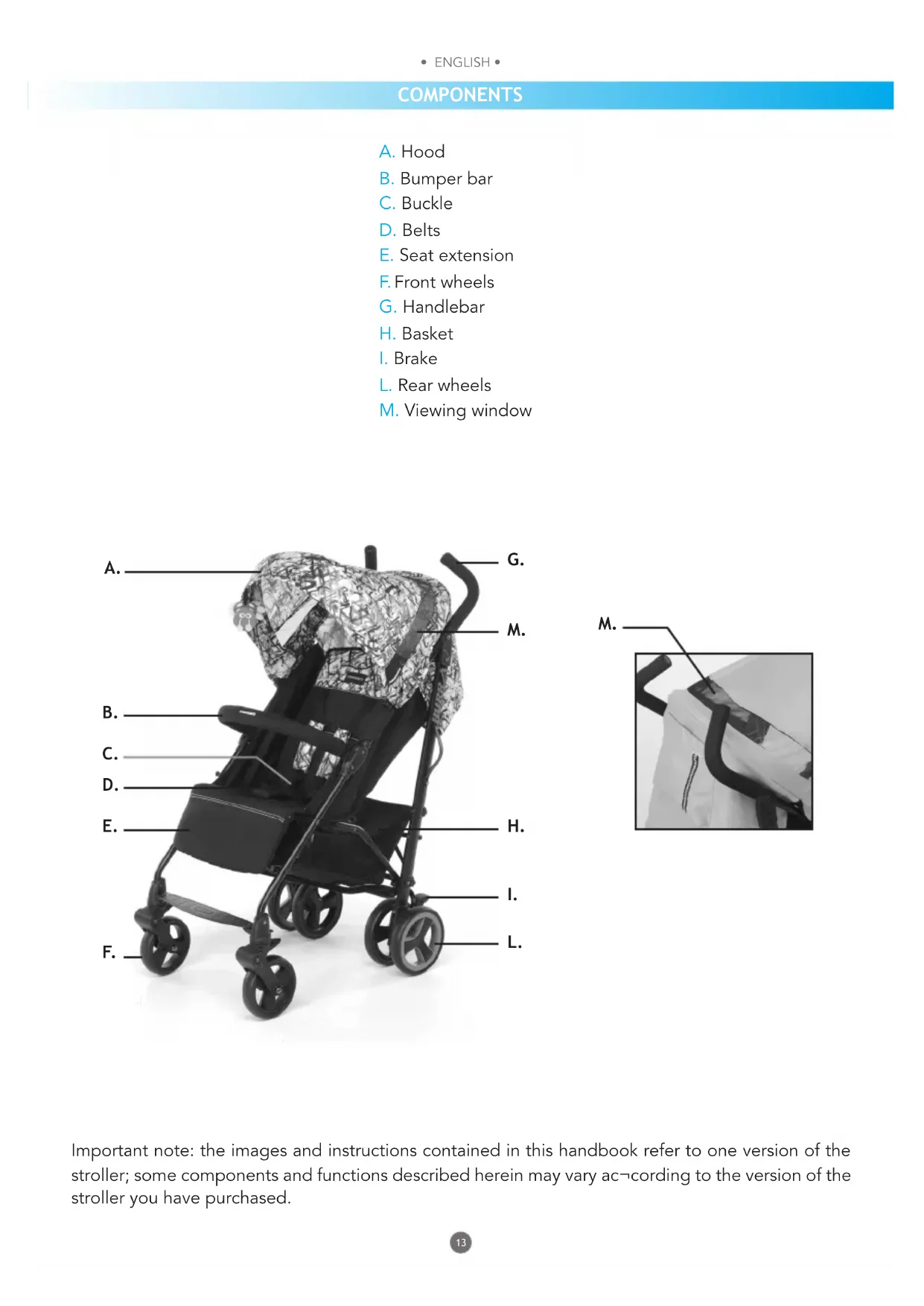

A. Hood
B. Bumper bar
C. Buckle
D. Belts
E. Seat extension
F. Front wheels
G. Handlebar
H. Basket
1. Brake
L. Rear wheels

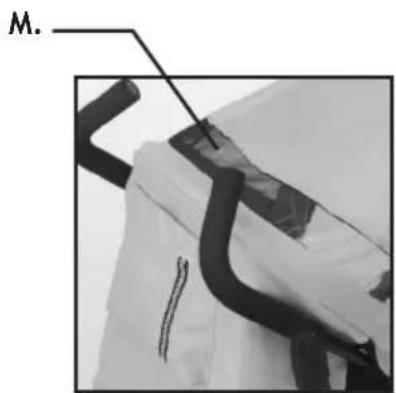

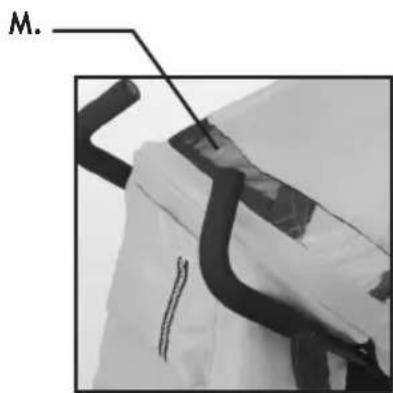

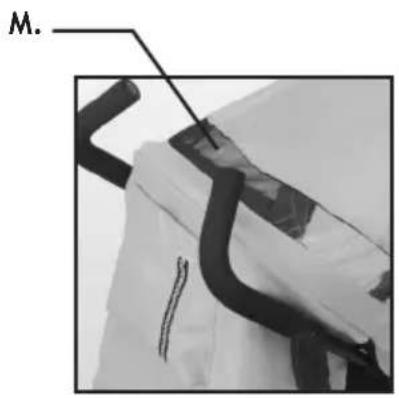

M. Viewing window

A. G. M. B. C. D. E. H. I. F. L.

M.

Important note: the images and instructions contained in this handbook refer to one version of the stroller; some components and functions described herein may vary according to the version of the stroller you have purchased.

WARNING

• IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
  • WARNING: NEVER LEAVE THE CHILD UNATTENDED.
• WARNING: ENSURE THAT ALL THE LOCKING DEVICES ARE ENGAGED BEFORE USE.
• WARNING: TO AVOID INJURY, ENSURE THAT THE CHILD IS KEPT AWAY WHEN UNFOLDING AND FOLDING THIS PRODUCT.
• WARNING: DO NOT LET THE CHILD PLAY WITH THIS PRODUCT.
• WARNING: ALWAYS USE THE RESTRAINT SYSTEM.
• WARNING: CHECK THAT THE PRAM BODY OR SEAT UNIT OR CAR SEAT ATTACHMENT DEVICES ARE CORRECTLY ENGAGED BEFORE USE.
• WARNING: THIS PRODUCT IS NOT SUITABLE FOR RUNNING OR SKATING.

• WARNING: A CHILDS SAFETY IS YOUR RESPONSIBILITY.

• WARNING: Ensure that all the locking devices are engaged before use.

• WARNING: Always keep child in view when in stroller.
  • WARNING: This stroller is suitable for children with a maximum weight 15kg.
• WARNING: Use seat belt, avoid serious injury from falling or sliding out Always.
• WARNING: Ensure your child wears a correctly fitted and adjusted harness at all times.
• WARNING: Only one child for one stroller.
• WARNING: This product is not suitable for running or skating.
• WARNING: Check that the seat unit attachment devices are correctly engaged before use.
• WARNING: Do not place or hang parcels, bags or accessories on any part of the stroller including the handle. Failure to comply with this warning may cause hazardous, unstable conditions to exist.
• WARNING: Always make sure that the brake is engaged when positioning the child into the stroller seat or taking him/her out.
• WARNING: Always use the parking brake, even when standing still for only a few moments.
• WARNING: When parking check if the brake is properly engaged by moving forward/rearward the stroller.

• WARNING: Never fold the stroller, not even partly, when your child is in it.

• Verify regularly that the safety belts are correctly fastened, not damaged or frayed.

• For babies under 6 months of age, only use the pushchair with the backrest fully reclined.
• For new born baby, do not recline seat back to sitting position (should be in full reclining position) as the baby doesn't have ability to control its head.
• A basket is provided for the carriage of 3 kg of goods, evenly distributed.
• Hood: The maximum loading weight for the pocket shall not exceed 0.5 kg.
• The product must be assembled by an adult.

WARNING

• Only the minder can operate the recline adjuster.
• Never use the stroller if any part of it is damaged or any component is missing.
• Do not allow children to play with or hang onto the stroller.
• This vehicle requires regular maintenance by the user.
• Do not use replacement parts or accessories other than those approved by the supplier as they may render the pushchair unsafe.
• Any load applied to the handle and/or the backrest and/or laterally to the product can compromise the stability of the product.
• Do not overload this pushchair with additional children, goods or accessories. Bags and other items must not be hung from the handle.
• Ensure all users are familiar with the products operation. It should always open and fold easy. If it does not, do not force the mechanism - stop and read the instructions.
• Do not use your pushchair in a manner for which it is not designed.
• Do not allow your child to climb unassisted into, play with or hang onto your pushchair.
• Hold on to your pushchair when close to moving road vehicles or trains. Even with the brake on the draught from the vehicle may move the pushchair.
  • Exercise caution when mounting or dismounting a kerb.
• Remove your children and fold the pushchair when ascending or descending stairs or escalators.
• Ensure the folded pushchair is stored away from children so that it does not fall and cause injury.
• Do not use replacement parts or accessories, e.g. child seats, bags, hooks, trays, rain covers etc. other than those approved by the supplier, they may render the pushchair unsafe.
• Never carry a second child on your pushchair.
• Do not use any platforms or attachments that allow transportation of the child.
• CARE: Your pushchair has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
• The chassis is strong but will weaken should the back wheels be bumped down stairs or kerbs. continual impact will cause damage.
• If your child wears hard shoes these might damage the soft fabric.
• Storing a damp pushchair will encourage mildew to form.
• After exposure to damp conditions, dry off with a soft cloth, open fully and allow to dry thoroughly before storing.
• Store your pushchair in a dry, safe place.
• Do not leave the pushchair in sunlight for prolonged periods - some fabrics may fade.

RAINCOVER

WARNING!

• Use under an adult surveillance.
• When in use make sure the rain cover does not come in contact with the face of the child as it may cause suffocation
• Don't use the raincover on the product without a hood that can hold it.
• Never leave rain covers on indoors, in a hot atmosphere or near a heat source as the baby could overheat.
• Do not use on products other than those recommended by the Manufacturer.
• Hand wash at 30^ .

TO INSTALL / USE

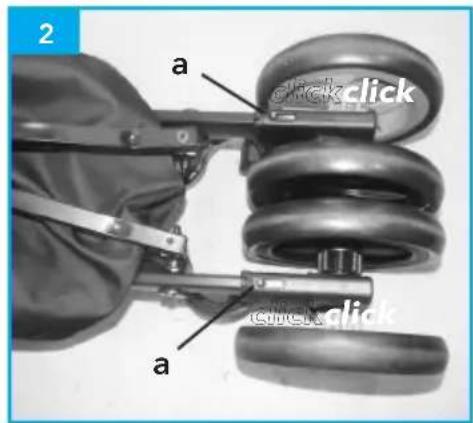

THE REAR WHEELS (fig.1, 2)

Fitting the rear wheels: Insert the rear wheel group into the end of the tubes of the rear legs. The wheel supports are correctly assembled when the metal pins "a" are locked in the corresponding holes on the tubes of the chassis

Removing the rear wheels: Press the locking device "a", in the lower part of the leg and keeping it pressed, remove the rear wheel group.

FRONT WHEELS (fig. 3)

Fitting the front wheels: Lift the chassis with one hand and insert the front wheels. A click will indicate that it has been fitted correctly. Check that both the wheels have been fastened correctly, if they are pulled downwards they should not be released.

Removing the front wheels: Press metal button "A" on the inside, to take the wheels off.

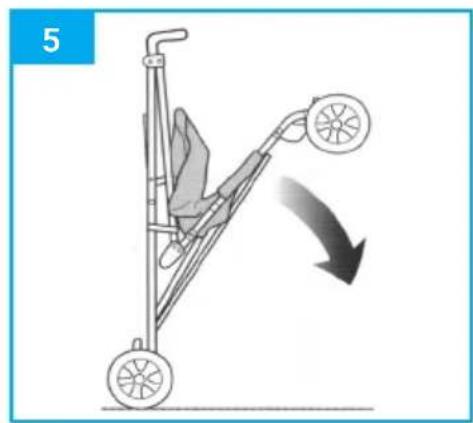

HOW TO OPEN THE PUSHCHAIR (fig. 4, 5, 6)

CAUTION: make sure that the child, and any other children, are at a safe distance away when carrying out this step.

The moving parts of the stroller must not for any reason come into contact with the child's body.

Unhook the locking device.

Push the front part of the stroller forwards.

Press the rear lever "A" downwards with your foot, until it opens completely.

CAUTION: before use check that the stroller is locked in the open position.

PARKING BRAKE

WARNING: The parking device shall be engaged when placing and removing the children.

WARNING: Never leave child unattended.

WARNING: Never leave the stroller on a slope with the child inside, even with the brakes on.

To apply the brake (fig.7): Press the brake lever, push the pushchair forward gently to ensure the brake has been applied correctly.

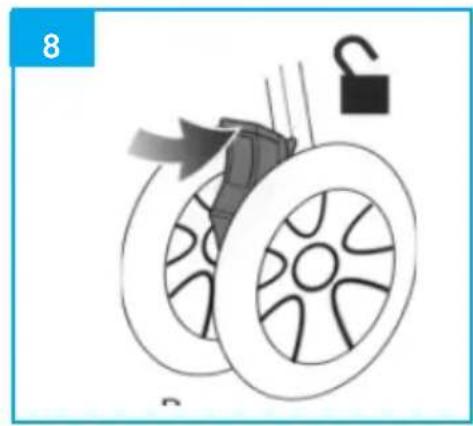

To release the brake (fig.8): lift the lever.

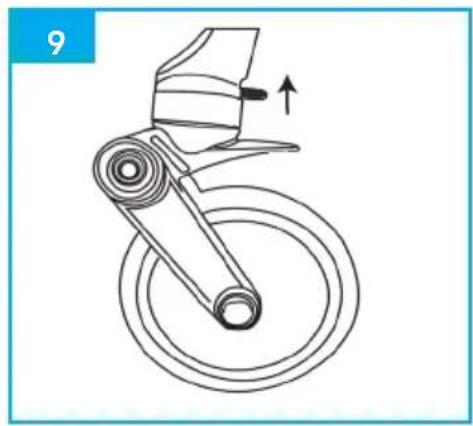

TO DIRECT THE FRONT WHEEL (fig. 9, 10)

Turn the direction of the front wheels: Press down the locking arm to block the swivel wheels.

Fix the direction of the front wheels: Lift the locking arm to release the swivel wheels lock.

TO OPEN AND FASTEN THE SAFETY BELT (fig. 11, 12, 13, 14)

Important: The safety belt has to be used always and only correctly fasten, including all components, as shown in figure. Apply the brake before placing your baby in the pushchair.

Adjust the strap length with the adjustment slides (fig.11)

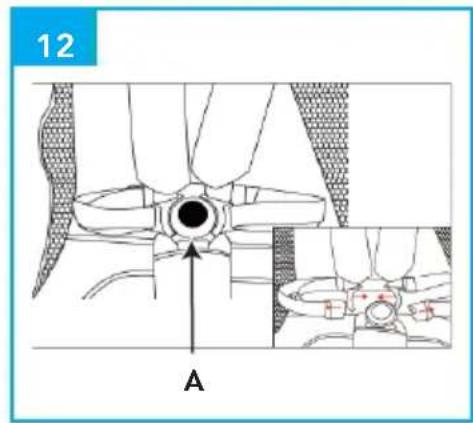

Releasing the buckle: Press button "A" and pull out the parts.

Place your child in the stroller and adjust the harness to fit him/her.

Clip the buckle: insert part "a" into part "b" and then into the buckle "c", you will hear a click when it is fastened correctly. Always use the restraint system attached correctly.

IMPORTANT: If baby is less than 6 months old, the harness belts must be inserted through the lower slots.

WARNING: Never use the crutch strap without the lap belt.

WARNING: The lap belt is provided with 2 side rings to be used for additional belts in compliance with the standard BS 6684.

ADJUSTING THE FOOTREST (fig.15)

Press buttons "A" and adjust the footrest in the required position.

ADJUSTING THE BACKREST (fig.16)

Reclining the backrest : Lift the adjustment lever "A", located on the back of the backrest and recline the backrest to the position required, release the lever and make sure the backrest has been secured correctly in place.

Lifting the backrest: Lift the backrest to the required position, without pressing the lever. Make sure the backrest has been secured correctly in place before use.

WARNING: for babies under 6 months of age, the backrest must be only in the fully reclined, horizontal position at all times, seat reaward facing.

LOWER BASKET (fig.17)

The basket is fixed in the lower part of the frame with press studs, to remove it you need to unhook them. It is recommended that you empty the basket before closing the stroller.

CAUTION: the maximum transportable weight inside the basket is 3 kg.

CANOPY (fig. 18)

The canopy must be attached on both sides of the stroller, making sure it is securely fixed.

To attach the canopy, slide and hook the plastic clips along the guides which can be found on both sides of the frame.

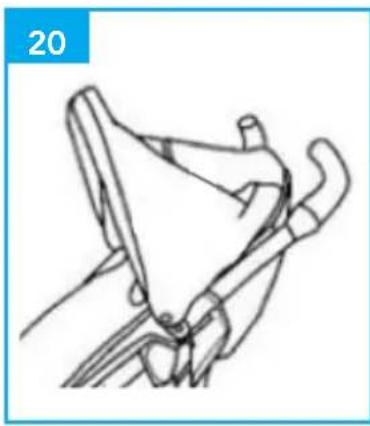

ADJUSTING THE CANOPY (fig.19, fig.20)

Extend the hood according to requirements to protect baby from the sun.

NOTE: babies' skin is very delicate. NEVER leave baby under direct sunlight. Always make sure that the hood has been adjusted correctly.

Fitting the bumper bar (fig.21): line the bumper bar up with the slots and press on both sides. "A" click indicates that it has been fastened correctly.

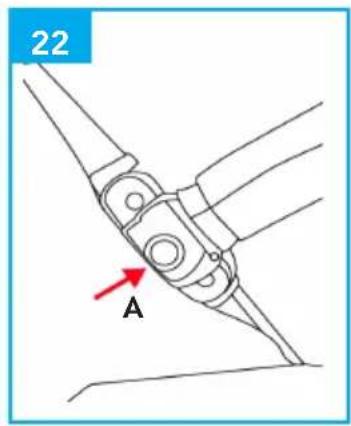

Removing the bumper bar (fig.22): press button A on both sides of the bumper bar and at the same time pull to remove it.

Opening the bumper bar on just one side (fig.22): press button "A" on one side of the bumper bar and pull to open it like a gate.

FOLDING THE PUSHCHAIR (fig. 23, 24, 25)

CAUTION: before closing the stroller, make sure that the child, or any other children, are at a safe distance away. During this step, prevent the child from touching the moving parts of the stroller.

CLEANING AND MAINTENANCE

Before closing the stroller, ensure that the storage basket is completely empty.

• The hood is folded.
- The backrest is adjusted in the upright position.
- Lift the lock lever A
- Press down the unlocked B.
- Push the stroller forwards to fold it.

Lock the stroller in the closed position with the locking device located on the side.

This operation prevents the accidental opening of the stroller (fig. 25).

CLEANING AND MAINTENANCE

The user is required to clean and maintain the product regularly.

The cleaning and maintenance of the stroller must only be carried out by an adult.

Cleaning

The lining cannot be removed.

Clean the fabric parts with a sponge soaked in a mild detergent.

Follow the instructions shown on the washing label of the product.

Clean the plastic parts regularly with a damp cloth.

When the stroller has been in contact with water, dry the metal parts to prevent rusting.

Maintenance

Lubricate the moving parts only when strictly necessary, using a silicone-based lubricant.

Check the condition of the wheels and movable parts regularly.

Prevent dust, dirt and sand from infiltrating the wheels and moving parts.

Stowing the stroller when wet can cause mould.

If the stroller is exposed to moisture or gets wet, dry it with a soft cloth, open the stroller fully and let it dry before storage.

Keep your stroller in a dry, safe place.

Carry out a careful inspection to check the pushchair is in good operating condition after 18 months of use, after a long period of storage and before using it for another baby.

COMPOSANTS

A. G. M. B. C. D. E. H. I. F. L.

M.

A. G. M. B. C. D. E. H. I. F. L.

M.

A. G. M. B. C. D. E. H. I. F. L.

M.

A. G. M. B. C. D. E. H. I. F. L.

Close-up of a fabric or cable being sewn by a hook (no visible text or symbols)

A. G. M. B. C. D. E. H. I. F. L.

M.

A. G. M. B. C. D. E. H. I. F. L.

M.

A. G. M. B. C. D. E. H. I. F. L.

M.

A. G. M. B. C. D. E. H. I. F. L.

Close-up of a garment with black straps and a zipper, no visible text or symbols

Važna napomena: slike i upute u ovom priručniku odnose se na jednu verziju kolica; neke komponente i funkcije opisane ovdje mogu se razlikovati ovisno o verziji kolica koju ste kupili.

- UPOZORENJE: VAŽNO - PROČITAJTE PAŽLJIVO I SAČUVAJTE ZA SLUČAJ POTREBE.

- UPOZORENJE: NIKADA NE OSTAVLJAJTE DIJETE BEZ NADZORA.

- UPOZORENJE: OSIGURAJTE DA SVE SVI DIJELOVI ZAKLJUČAJU PRIJE UPOTREBE.

- UPOZORENJE: KAKO BI STE IZBJEGLI OZLJEDE, PAZITE DA DIJETE DRŽITE PODALJE TOKOM SKLAPANJA I RASKLAPANJA KOLICA.

- UPOZORENJE: NE DOPUSTITE DA SE DIJETE IGRA S OVIM PROIZVODOM.

- UPOZORENJE: UVIJEK KORISTITE SIGURNOSNI SUSTAV.

- UPOZORENJE: PROVJERITE DA SU SJEDALA U KOLICIMA ILI UREĐAJI ZA PRIKLJUČENJE SJEDALA NA AUTOMOBILU PRAVILNO POSTAVLJENI PRIJE UPOTREBE

- UPOZORENJE: OVAJ PROIZVOD NIJE NAMIJENJEN TRČANJU ILI ROLANJU.

- UPOZORENJE: DJETETEOVA SIGURNOS JE VAŠA ODGOVORNOST.

- UPOZORENJE: Nikad ne ostavljate dijete u kolicima samo ili bez nadzora.

- UPOZORENJE: Kako biste izbjegli slučajne ozljede, sklapanje ili rasklapanje kolica nemojte obavljati u blizini djeteta.
