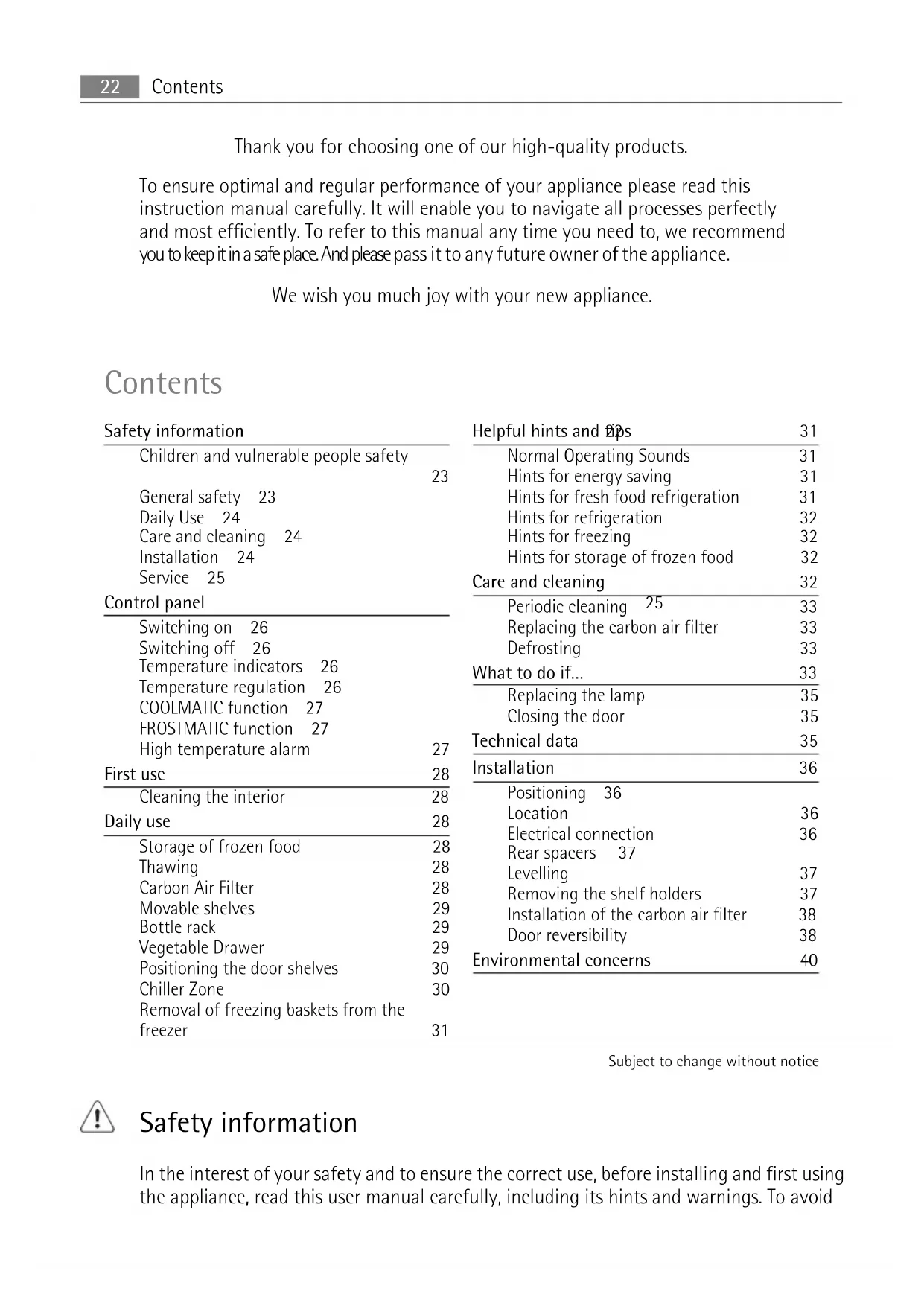

Het milieu 21Thank you for choosing one of our high-quality products. To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. We wish you much joy with your new appliance. Contents Safety information 22 Children and vulnerable people safety

General safety 23 Daily Use 24 Care and cleaning 24 Installation 24 Service 25 Control panel 25 Switching on 26 Switching off 26 Temperature indicators 26 Temperature regulation 26 COOLMATIC function 27 FROSTMATIC function 27 High temperature alarm 27 First use 28 Cleaning the interior 28 Daily use 28 Storage of frozen food 28 Thawing 28 Carbon Air Filter 28 Movable shelves 29 Bottle rack 29 Vegetable Drawer 29 Positioning the door shelves 30 Chiller Zone 30 Removal of freezing baskets from the freezer 31 Helpful hints and tips 31 Normal Operating Sounds 31 Hints for energy saving 31 Hints for fresh food refrigeration 31 Hints for refrigeration 32 Hints for freezing 32 Hints for storage of frozen food 32 Care and cleaning 32 Periodic cleaning 33 Replacing the carbon air filter 33 Defrosting 33 What to do if… 33 Replacing the lamp 35 Closing the door 35 Technical data 35 Installation 36 Positioning 36 Location 36 Electrical connection 36 Rear spacers 37 Levelling 37 Removing the shelf holders 37 Installation of the carbon air filter 38 Door reversibility 38 Environmental concerns 40 Subject to change without notice Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid

Contentsunnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these in- structions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety CAUTION! Keep ventilation openings clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.

• Do not use a mechanical device or any artificial means to speed up the thawing process.

• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the ap- pliance, a natural gas with a high level of environmental compatibility, which is never- theless flammable. During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged. If the refrigerant circuit should become damaged: – avoid open flames and sources of ignition – thoroughly ventilate the room in which the appliance is situated Safety information 23• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock. WARNING! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or damaged by the back of the

appliance. A squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not insert the power plug. There is a risk of

electric shock or fire.

You must not operate the appliance without the lamp cover

of interior lighting.

• This appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer compartment if your hands are damp/ wet, as this could cause skin abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct sunlight. Daily Use

• Do not put hot pot on the plastic parts in the appliance.

• Do not store flammable gas and liquid in the appliance, because they may explode.

Do not place food products directly against the air outlet on the rear wall.

• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's in- structions.

• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

• Ice lollies can cause frost burns if consumed straight from the appliance. Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. If you cannot come to the mains socket, interrupt the power supply.

• Do not clean the appliance with metal objects.

• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. Installation For electrical connection carefully follow the instructions given in specific paragraphs.

4) If the lamp cover is foreseen

Safety information• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

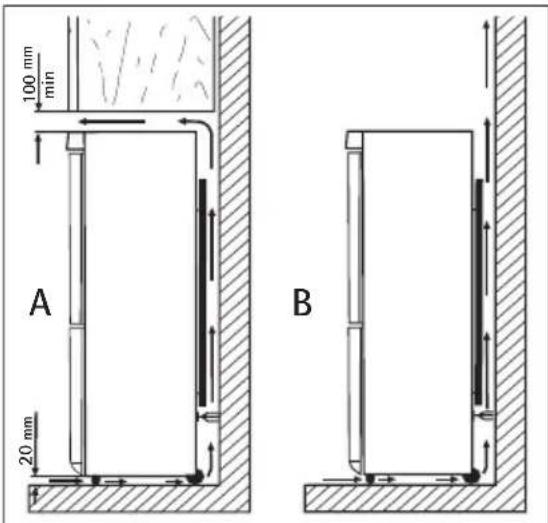

• Adequate air circulation should be around the appliance, lacking this leads to overheat- ing. To achieve sufficient ventilation follow the instructions relevant to installation.

• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

Connect to potable water supply only.

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.

• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used. Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol are recyclable. Control panel

1 ON/OFF switch 2 Fridge temperature regulator, + button 3 Fridge temperature indicator 4 Fridge temperature regulator, - button 5 COOLMATIC button 6 COOLMATIC indicator 7 Fridge compartment indicator

6) If a water connection is foreseen

Control panel 258 Freezer compartment indicator 9 FROSTMATIC indicator 10 FROSTMATIC button 11 Freezer temperature regulator, + button 12 Freezer temperature indicator 13 Freezer temperature regulator, - button 14 Alarm reset button 15 Alarm indicator Switching on

1. Insert the plug into the mains socket.

2. Set ON/OFF switch to ON.

3. The alarm indicator light flashes since the temperature is reached.

The acoustic alarm sounds.

4. Press the alarm reset button to reset the alarm.

If the door remains ajar for some minutes, the internal lighting will turn off electronically; after this, the lighting function will be reset by closing and opening the door itself. Switching off To switch the entire appliance off:

1. Set ON/OFF switch to OFF.

2. Disconnect the mains plug from the mains socket.

Temperature indicators The temperature indicators show several information:

• During normal operation, the temperature currently present in the fridge (ACTUAL tem- perature) is displayed.

• In the freezer the warmest temperature is displayed (ACTUAL temperature). When fully filled, the warmest zone is normally located at the top in the front area of the freezer. Depending upon how the section is filled, the temperatures are lower in other areas of the freezer.

• When the temperature is being adjusted a flashing display indicates the fridge temper- ature currently set (DESIRED temperature). When changing the temperature setting wait about 24 hours until the temperature display has stabilised. If there is a fault in the appliance the temperature indicator shows:

• a square or a letter in the temperature indicator of the fridge for a fault in the fridge

• a square or a letter in the temperature indicator of the freezer for a fault in the freezer. Temperature regulation To operate the appliance, proceed as follows:

1. Set the required temperature by pressing the corresponding temperature regulator. The

temperature indicator will immediately show the changed setting (DESIRED tempera- ture) and the temperature indicator flashes.

Control panel2. Each time the temperature regulator is pressed the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24 hours.

3. Once the required temperature has been set, after a short period (approx. 5 sec.) the

temperature indicator will show again the current ACTUAL temperature inside the cor- responding compartment. The temperature indicator will change from flashing to con- tinuous illumination. For a correct storage of the food the following temperatures should be set:

• -18 °C in the freezer. When the setting is changed, the compressor does not start immediately if automatic defrosting is currently taking place. As the storage temperature within the fridge is reached quickly you can store food immediately after switching on. COOLMATIC function The COOLMATIC function is suited for quick cooling of large quantities of goods in the refrigerator. To activate the function, do these steps:

The COOLMATIC function now provides for intensive cooling. A DESIRED temperature of +2°C is automatically selected. The COOLMATIC function is ended automatically after a period of 6 hours. You can deactivate the function at any time:

1. Press the COOLMATIC button.

2. The COOLMATIC indicator switches off.

FROSTMATIC function The FROSTMATIC function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming. To activate the function, do these steps:

1. Press the FROSTMATIC button.

2. The FROSTMATIC indicator switches on.

The FROSTMATIC function is ended automatically after a period of 52 hours. You can deactivate the function at any time:

1. Press the FROSTMATIC button.

2. The FROSTMATIC indicator switches off.

High temperature alarm In the event of an abnormal temperature rise inside the freezer (e.g. power cut) alarm indicator light will start to flash and a buzzer will sound. Push the alarm reset button to stop the buzzer sound, while the alarm indicator light will continue to flash. The buzzer will stop automatically when the temperature has returned to normal while the alarm indicator light will continue to flash. Press the alarm reset button. The alarm indicator light goes out and at the same time the freezer temperature indicator show for about 5 seconds the warmest temperature reached in the freezer compartment. Control panel 27First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand- new product, then dry thoroughly. Do not use detergents or abrasive powders, as these will damage the finish. Daily use Storage of frozen food When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings. In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re- frozen (after cooling). Thawing Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator com- partment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer. Carbon Air Filter Your appliance is equipped with a carbon filter behind a flap in the rear wall of the air distributing box. The filter purifies the air from unwanted odours in the fridge compartment meaning that the stor- age quality will be further improved. During the operation, always keep the air venti- lation flap closed.

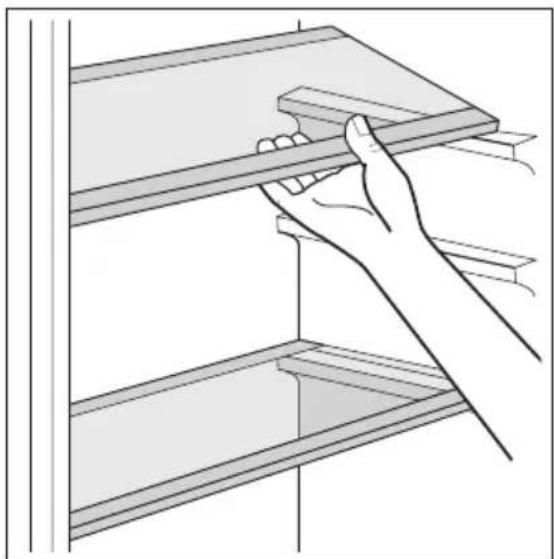

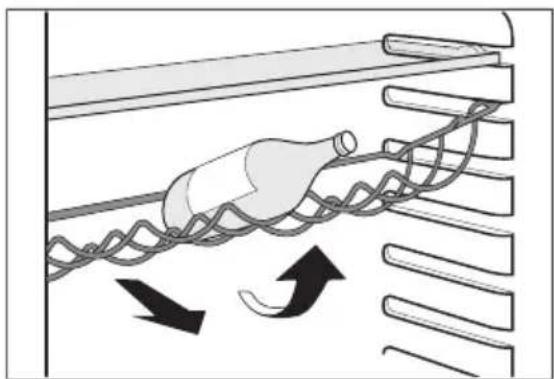

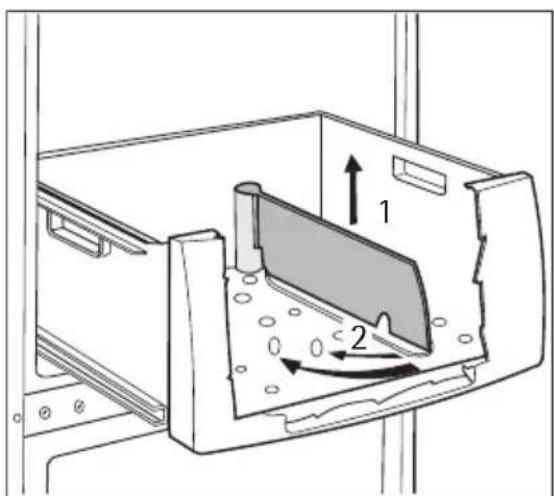

First useMovable shelves The walls of the refrigerator are equipped with a series of runners so that the shelves can be posi- tioned as desired. Bottle rack Place the bottles (with the opening facing front) in the pre-positioned shelf. If the shelf is positioned horizontally, place only closed bottles. This bottle holder shelf can be tilted in order to store previously opened bottles. To obtain this re- sult, pull the shelf up so it can rotate upwards and be placed on the next higher level. Vegetable Drawer The drawer is suitable for storing fruit and vege- tables. There is a separator inside the drawer that can be placed in different positions to allow for the sub- division best suited to personal needs. There is a grille (if foreseen) on the bottom of the drawer to separate the fruit and vegetables from any humidity that may form on the bottom sur- face. All parts inside the drawer can be removed for cleaning purposes

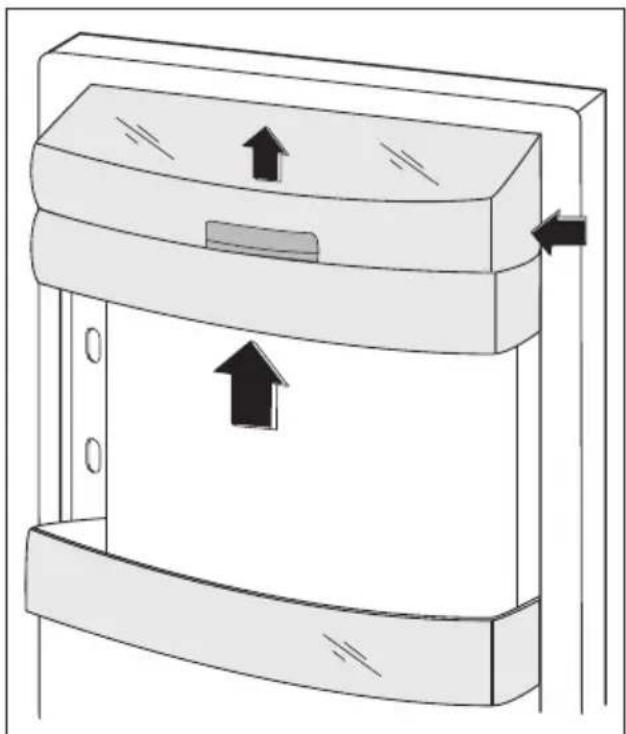

Daily use 29Positioning the door shelves To permit storage of food packages of vari- ous sizes, the door shelves can be placed at different heights. To make these adjustments proceed as fol- lows: gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required. Chiller Zone The Chiller Zone compartment is suitable for storing fresh food like fish, meat, seafood, because the temperature is lower here than in the rest of the fridge. It is placed in the lower part of the refrigerator, directly above of the vegetable drawer. If you wish to remove the Chiller Zone compart- ment, do these steps:

1. Open the door of the refrigerator as wide as

possible. If you cannot open the door at an angle of 180° because of a limit stop or any other objects , remove the bottle shelf from the door.

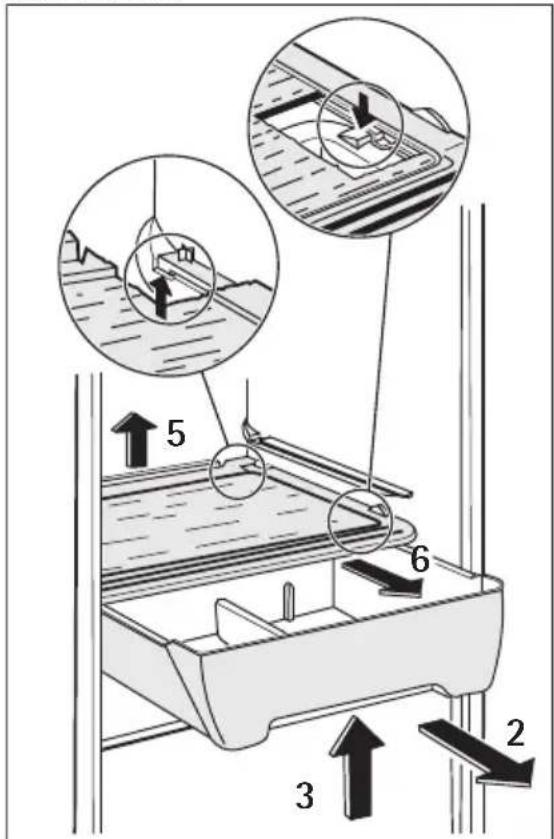

2. Pull the drawer towards yourself to the end

3. Slightly lift the front part of the drawer.

4. Remove the drawer from its support.

5. Lift the back of the support from its nest.

6. Pull the frame towards yourself.

7. Remove the support frame.

To put the Chiller Zone compartment to its initial position, do above steps in opposite sequence.

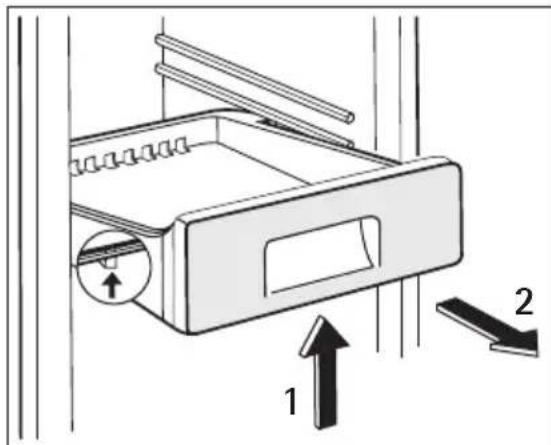

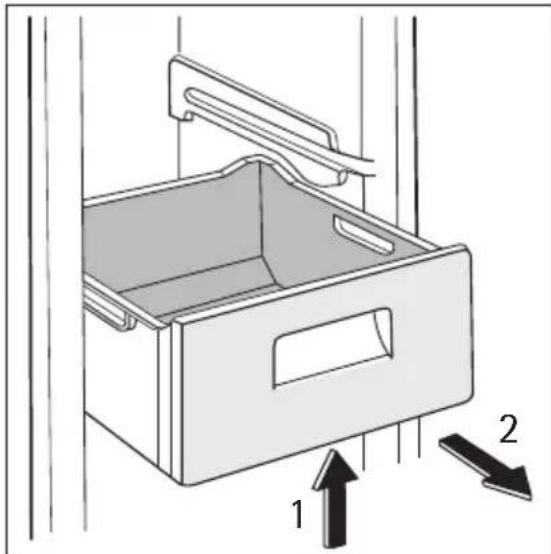

Daily useRemoval of freezing baskets from the freezer

The freezing baskets have a limit stop to prevent their accidental removal or falling out. At the time of its removal from the freezer, pull the basket towards yourself and, upon reaching the end point, remove the basket by tilting its front upwards. At the time of putting it back, slightly lift the front of the basket to insert it into the freezer. Once you are over the end points, push the baskets back in their position. Helpful hints and tips Normal Operating Sounds

• You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped through the coils or tubing. This is correct.

• When the compressor is on, the refrigerant is being pumped around and you will hear a whirring sound and a pulsating noise from the compressor. This is correct.

• The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous physical phenomenon. This is correct. Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.

• If the ambient temperature is high and the Temperature Regulator is set to low tem- perature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption. Hints for fresh food refrigeration To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator

• do cover or wrap the food, particularly if it has a strong flavour

• position food so that air can circulate freely around it Helpful hints and tips 31Hints for refrigeration Useful hints: Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer. For safety, store in this way only one or two days at the most. Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf. Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided. Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible. Milk bottles: these should have a cap and should be stored in the bottle rack on the door. Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator. Hints for freezing To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further food to be frozen should be added during this period;

• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;

• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time. Hints for storage of frozen food To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the re- tailer;

• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;

• not open the door frequently or leave it open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly and cannot be refrozen.

• Do not exceed the storage period indicated by the food manufacturer. Care and cleaning CAUTION! Unplug the appliance before carrying out any maintenance operation.

Care and cleaningThis appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians. Periodic cleaning The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.

• regularly check the door seals and wipe clean to ensure they are clean and free from debris.

• rinse and dry thoroughly. Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour. Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption. Take care of not to damage the cooling system. Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added. After cleaning, reconnect the equipment to the mains supply. Replacing the carbon air filter To get the best performance the carbon air filter should be changed once every year. New active air filters can be purchased from your local dealer. Refer to "Installation of the carbon air filter" for the instructions. Defrosting Your appliance is frost free. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods. The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan. What to do if… CAUTION! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual. There are some sounds during normal use (compressor, refrigerant circulation). What to do if… 33Problem Possible cause Solution The appliance is noisy. The appliance is not supported properly. Check if the appliance stands sta- ble (all the four feet should be on the floor). The compressor operates continually. The Temperature regulator may be set incorrectly. Set a warmer temperature. The door is not closed correctly. Refer to "Closing the door". The door has been opened too frequently. Do not keep the door open longer than necessary. The product temperature is too high. Let the product temperature de- crease to room temperature be- fore storage. The room temperature is too high. Decrease the room temperature. The FROSTMATIC function is switched on. Refer to "FROSTMATIC function". The COOLMATIC function is switched on. Refer to "COOLMATIC function". Water flows on the rear plate of the refrigerator. During the automatic defrosting process, frost defrosts on the rear plate. This is correct. Water flows into the re- frigerator. The water outlet is clogged. Clean the water outlet. Products prevent that water flows into the water collector. Make sure that products do not touch the rear plate. Water flows on the ground. The melting water outlet does not flow in the evaporative tray above the compressor. Attach the melting water outlet to the evaporative tray. There is too much frost and ice. Products are not wrapped prop- erly. Wrap the products better. The door is not closed correctly. Refer to "Closing the door". The Temperature regulator may be set incorrectly. Set a higher temperature. The temperature in the appliance is too high. The door is not closed correctly. Refer to "Closing the door". The product temperature is too high. Let the product temperature de- crease to room temperature be- fore storage. Many products are stored at the same time. Store less products at the same time. The temperature in the refrigeration is too high. There is no cold air circulation in the appliance. Make sure that there is cold air circulation in the appliance.

What to do if…Problem Possible cause Solution The temperature in the freezer is too high. Products are too near to each other. Store products so that there is cold air circulation. The appliance does not operate. The appliance is switched off. Switch on the appliance. The mains plug is not connected to the mains socket correctly. Connect the mains plug to the mains socket correctly. The appliance has no power. There is no voltage in the mains socket. Connect a different electrical ap- pliance to the mains socket. Con- tact a qualified electrician. The lamp does not work. The lamp is defective. Refer to "Replacing the lamp". As much as the advice does not lead to result, call the nearest brand-mark service. Replacing the lamp CAUTION! Disconnect the plug from the mains socket.

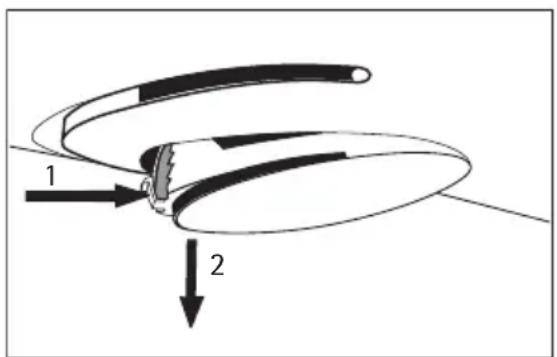

1. Pull outwards the hook of the lamp cover.

2. Remove the lamp cover.

3. Replace the lamp with one of the same power

(the maximum power is shown on the light bulb cover).

4. Install the lamp cover.

5. Connect the plug to the mains socket.

6. Open the door. Make sure that the light comes

on. Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets. Contact the Service Force Center.

Technical data Dimension Height 1850 mm Width 595 mm Depth 632 mm Rising Time 16 h The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

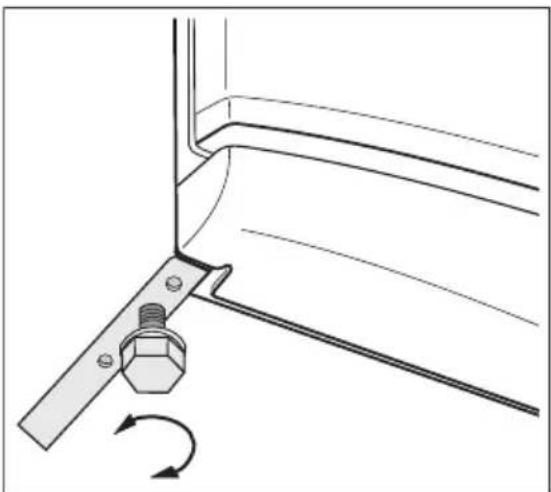

Technical data 35Installation WARNING! Read the "Safety Information" carefully for your safety and correct operation of the ap- pliance before installing the appliance. Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: Climate class Ambient temperature SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C Location The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm . Ideally, however, the appliance should not be positioned below over- hanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet. WARNING! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation. Electrical connection Before plugging in, ensure that the voltage and frequency shown on the rating plate cor- respond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not ob- served. This appliance complies with the E.E.C. Directives.

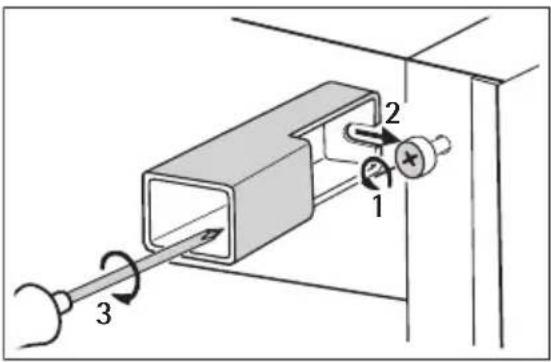

InstallationRear spacers In the bag with the documentation, there are two spacers which must be fitted as shown in the figure. Slacken the screws and insert the spacer under the screw head, then tighten again the screws. Levelling When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front. Removing the shelf holders Your appliance is equipped with shelf retainers that make it possible to secure the shelves during transportation. To remove them proceed as follows:

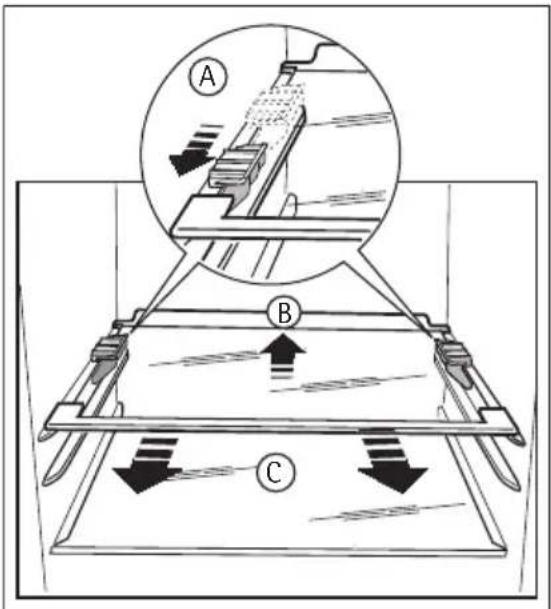

1. Move the shelf holders in the direction of the

2. Raise the shelf from the rear and push it for-

ward until it is freed (B).

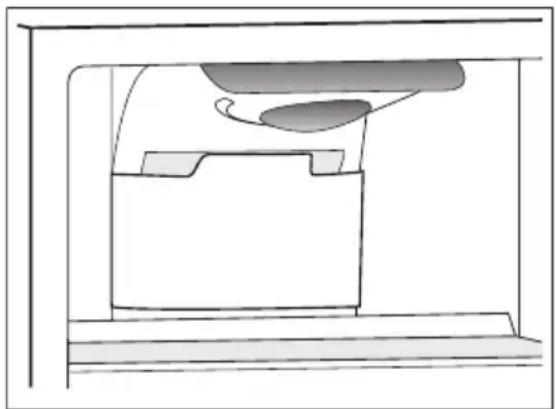

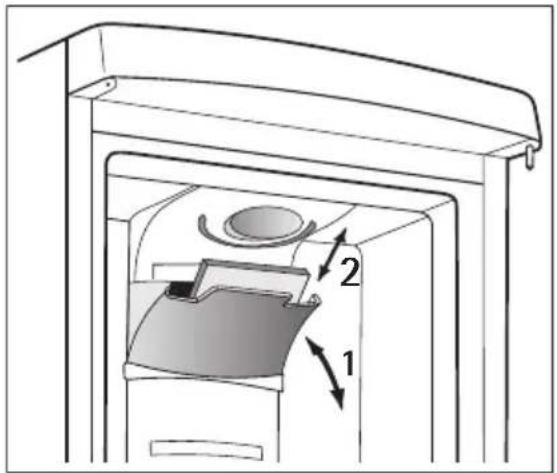

Installation 37Installation of the carbon air filter The carbon air filter is an active carbon filter which absorbs bad odours and permits to maintain the best flavour and aroma for all foodstuffs without risk of odour cross con- tamination. On delivery the carbon filter is in a plastic bag to maintain it’s duration and characteristics. The fil- ter should be placed behind the flap before the appliance is turned on.

1. Open the flap cover (1)

2. Remove the filter from the plastic bag

3. Insert the filter in the slot found in the back

of the flap cover (2)

4. Close the flap cover

During operation, always keep the air ventilation flap closed. The filter should be handled carefully so fragments do not loosen from the surface. Door reversibility WARNING! Before carrying out any operations, remove the plug from the power socket. To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations.

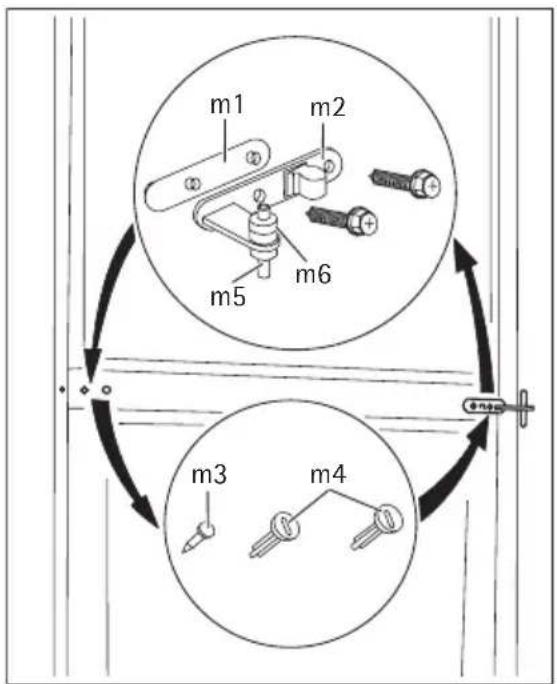

2. Remove the spacer (m6) and move to the

other side of the hinge pivot (m5).

3. Remove the doors.

4. Remove the left-hand cover pin of the

middle hinge (m3,m4) and move to the other side.

5. Fit the pin of the middle hinge (m5) into

the left-hand hole of the lower door.

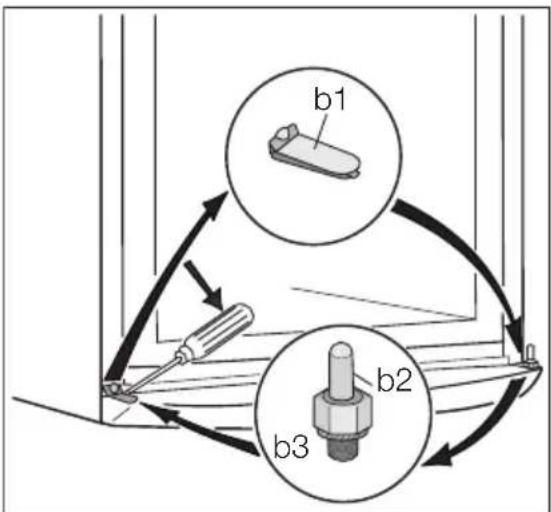

Installation6. Remove using a tool the cover (b1). Un- screw the lower hinge pivot (b2) and the spacer (b3) and place them on the op- posite side.

7. Re-insert the cover (b1) on the opposite

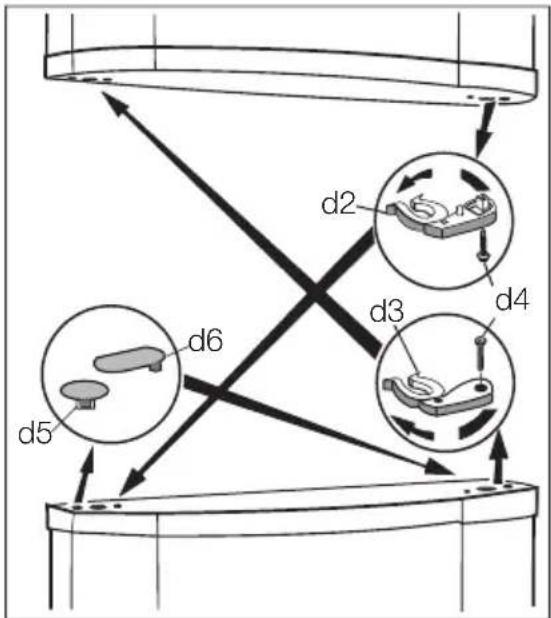

(d2,d3), move to the other side of the other door and fix by screwing in the screw (d4).

9. Re-insert the stoppers (d5,d6) on the

other side of the doors.

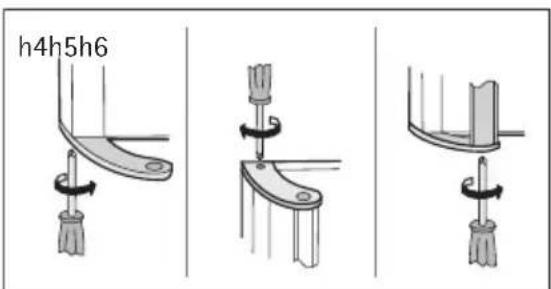

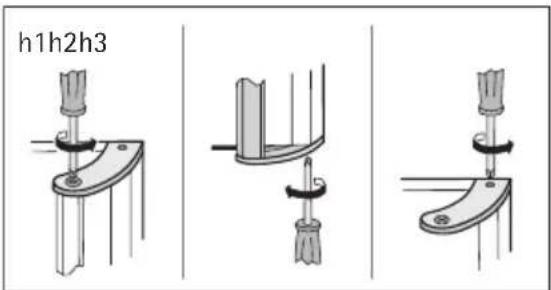

10. Remove the handle. Unscrew the top

handle bracket from the handle rod (h1). Unscrew the bottom handle bracket from the door (h2) Unscrew the top handle bracket from the door (h3).

11. Install the handle in the opposite side.

Re-screw the handle bracket on the door (h4). Turn the handle bracket with the handle and screw them to the door (h5) and the fitted handle bracket (h6).

12. Re-insert the lower door on the lower

drill of the lower door.

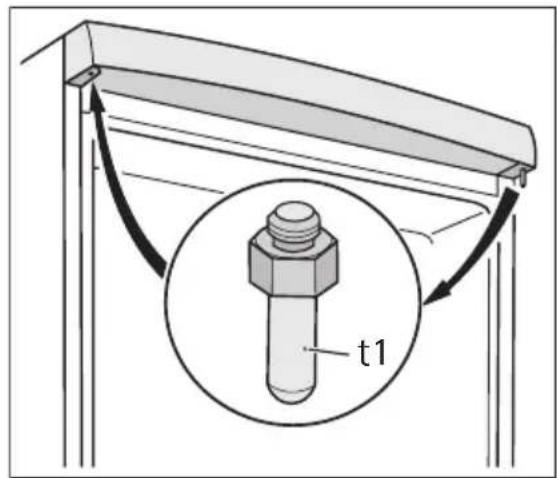

h1 h2 h3 h4 h5 h6 Installation 3914. Unscrew the upper hinge pivot (t1) and place it on the opposite side.

hinge pivot (m5) slightly tilting both doors.

17. Re-screw the middle hinge (m2). Do not

forget the plastic spacer (m1). Do a final check to make sure that:

• All screws are tightened.

• The magnetic seal adheres to the cabinet.

• The door opens and closes correctly. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket. In case you do not want to carry out the above mentioned operations, contact the nearest After Sales Service Force. The After Sales Service specialist will carry out the reversibility of the doors at your cost. Environmental concerns The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.
