Product type	Stereo speaker with DAB+/FM radio and CD player
Brand	Tangent
Model	ALIO Stereo DAB+CD
Dimensions (W x H x D)	210 x 135 x 200 mm (mono) / 370 x 135 x 200 mm (stereo)
Power supply	12V DC / 2A (3A for stereo version)
Output power	10W RMS (2x10W in stereo version)
Speaker	3.5-inch full-range (mono) / 3-inch (stereo)
Radio bands	FM 87.5 - 108 MHz, DAB/DAB+ 174 - 240 MHz
CD player	CD, CD-R, CD-RW, MP3, WMA
AUX input	3.5mm stereo jack
Docking station	For iPhone/iPod (charging and playback)
Remote control	Yes, infrared
Alarm	Yes with snooze function
Sleep timer	Yes
Display	LCD screen
Antenna	Telescopic
Safety	Do not expose to moisture, do not open, unplug before cleaning
Maintenance and cleaning	Use a soft, slightly damp cloth, no abrasive products
Repairability	Repair by qualified technician only
Manual	Available for free download at notice-facile.com

Frequently Asked Questions - ALIO Stereo DAB+CD TANGENT

How to turn on the radio?

Press the POWER button on the front panel or on the remote control to turn on the radio. To put it in standby, press the same button again.

How to set an alarm?

Press the ALARM button on the top of the device. Use the TUNE button to navigate through options and the ENTER button to confirm. Follow the on-screen instructions to set the time and desired source.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button on the top to postpone the alarm by 7 minutes. During this period, the screen displays "Snooze". To cancel snooze, press any other button.

How to connect an iPod/iPhone to the docking station?

Place your compatible iPod or iPhone in the docking station on the top of the device. The radio will automatically detect the device and you can listen to your music using the iPhone/iPod mode. The station also charges your device.

How to use the AUX input?

Connect your audio source (MP3 player, smartphone, etc.) to the AUX jack on the back of the radio using a 3.5mm cable. Then select the AUX mode by pressing the MODE button.

How to search for DAB stations?

Press the MENU button to enter the main menu. Use the TUNE button to navigate to "Search" or "Scan", then press ENTER. You can also use the AUTOTUNE button for a quick scan of DAB/DAB+ stations.

How to program preset stations?

For presets 1 to 4, press and hold the desired preset button (1/5, 2/6, etc.) until "Preset # stored" is displayed. For presets 5 to 8, first press SHIFT, then press and hold the preset button. Use the preset button without holding to recall the station.

How to use the remote control?

The infrared remote control allows you to control the radio from a distance. Use the POWER, MODE, VOL +/-- buttons, the navigation keys ▲►▼◄ and ENTER. Specific functions are described in the manual.

Sound is low or distorted, what to do?

First check the volume setting by turning the VOLUME knob clockwise. Make sure the audio source is not at maximum. If you are using FM or DAB radio, orient the telescopic antenna to improve reception. Avoid placing the device near sources of interference.

How to clean the device?

Unplug the device before cleaning. Use a soft, lint-free cloth slightly damp to wipe the surface. Do not use corrosive or harsh cleaning products. Ensure no moisture enters the interior.

USER MANUAL ALIO Stereo DAB+CD TANGENT

DAB/DAB+, FM Radio, iPhone/iPod docking, CD player and AUX

UK-USERMANUAL 2
FR-MANUEL D'UTILISATION 16
DE-BEDIENUNGSANLEITUNG 30
NL - GEBRUIKSAANWIJZING 44
DK-BRUGERMANUAL 58
SE - BRUKSANVISNING 72
FI-KAYTTOOHJEKIRJA 86
ITA-MANUALE UTENTE 100
ES-MANUAL DEL USUARIO 114
PT-MANUAL DO UTILIZADOR 128

Contents

Contents 2
UK-USERMANUAL 3
Front panel 5
Top panel 7
Rear panel 8
Remote control 9
Menu Description in DAB Mode 11
Menu Description in FM Mode 12
Menu Description in iPhone/AUX Mode 13
Menu Description in CD Mode 14
Specifications 15

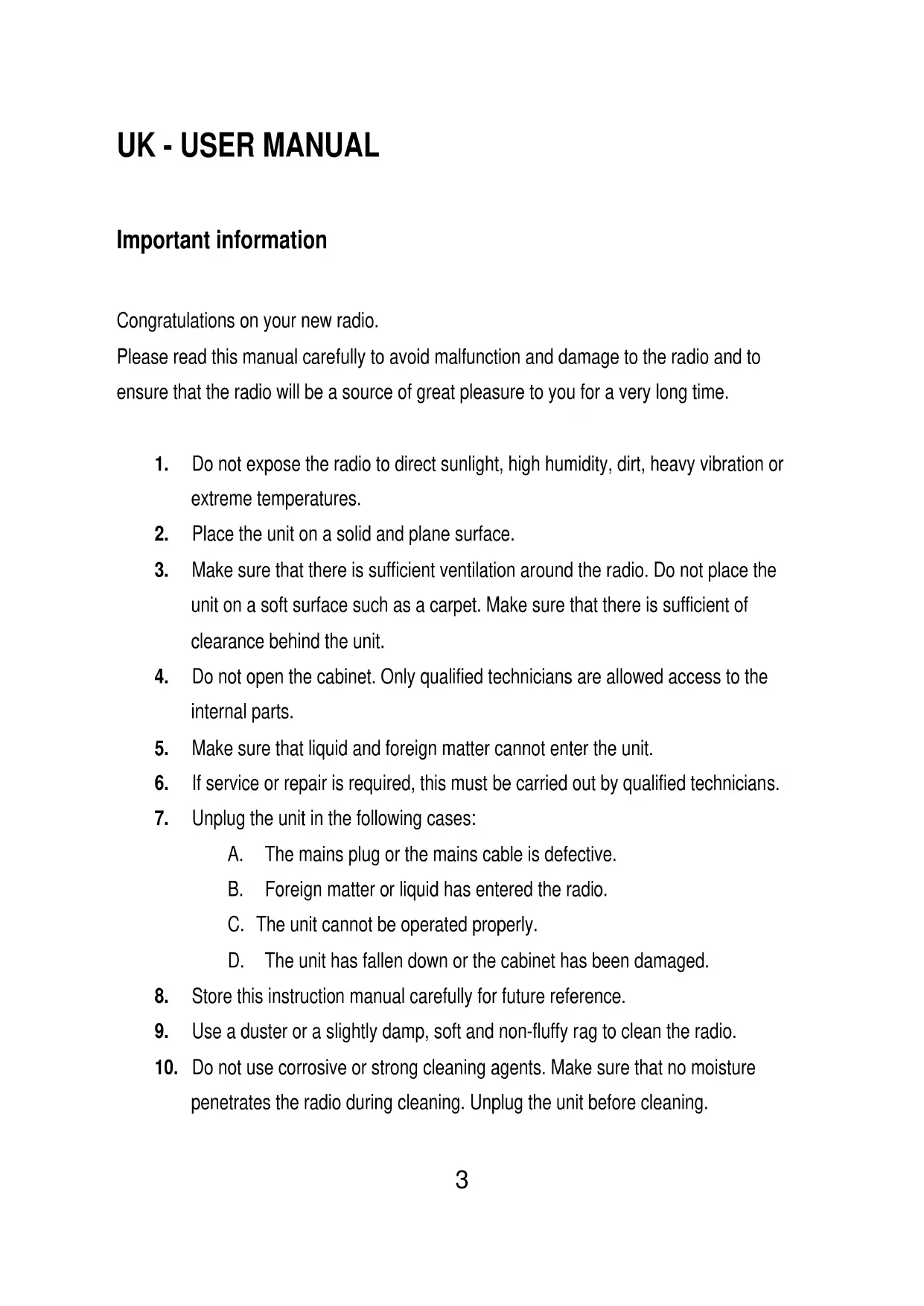

UK - USER MANUAL

Important information

Congratulations on your new radio.

Please read this manual carefully to avoid malfunction and damage to the radio and to ensure that the radio will be a source of great pleasure to you for a very long time.

1. Do not expose the radio to direct sunlight, high humidity, dirt, heavy vibration or extreme temperatures.
2. Place the unit on a solid and plane surface.
3. Make sure that there is sufficient ventilation around the radio. Do not place the unit on a soft surface such as a carpet. Make sure that there is sufficient of clearance behind the unit.
4. Do not open the cabinet. Only qualified technicians are allowed access to the internal parts.
5. Make sure that liquid and foreign matter cannot enter the unit.
6. If service or repair is required, this must be carried out by qualified technicians.
7. Unplug the unit in the following cases:

A. The mains plug or the mains cable is defective.
B. Foreign matter or liquid has entered the radio.
C. The unit cannot be operated properly.
D. The unit has fallen down or the cabinet has been damaged.

1. Store this instruction manual carefully for future reference.
2. Use a duster or a slightly damp, soft and non-fluffy rag to clean the radio.

3. Do not use corrosive or strong cleaning agents. Make sure that no moisture penetrates the radio during cleaning. Unplug the unit before cleaning.

4. Check that the mains voltage indicated on the AC-adaptor corresponds to the mains voltage that the unit is connected to.

5. Unplug the unit if the radio is not to be used for a long time.
6. Tangent has found that in situations where the supplied antenna is not used with the product, strong signals can interfere with normal performance.

Disclaimer

Despite extensive efforts we cannot guarantee that the technical data indicated are correct, complete and updated. We reserve the right to make technical changes without notice.

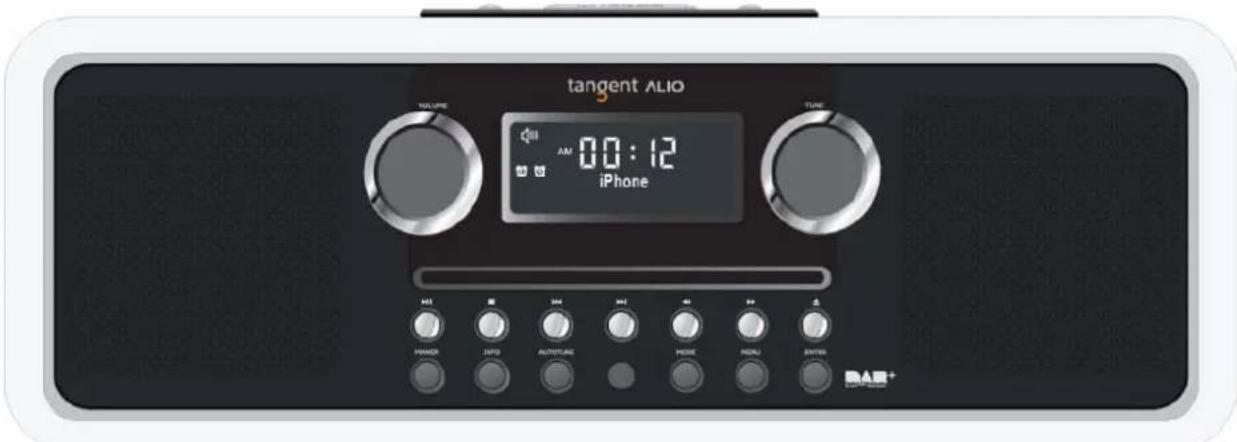

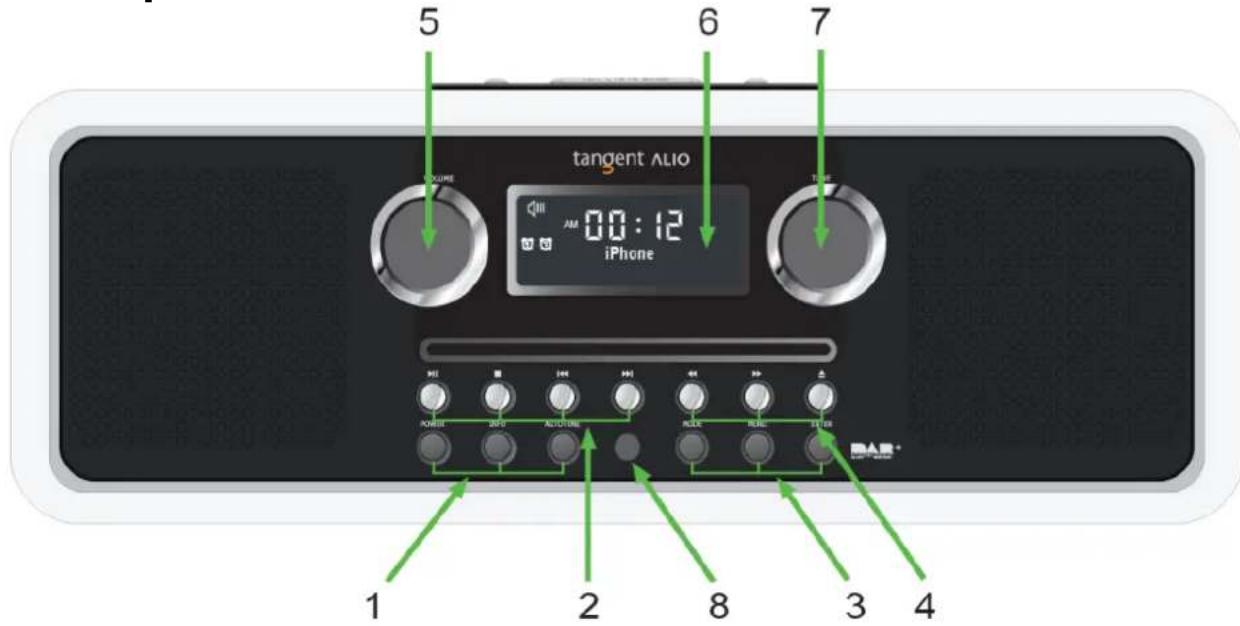

Front panel

1. POWER, INFO and AUTOTUNE:

A. POWER: Press this button to toggle the radio between ON and standby.
B. INFO: In DAB/DAB+, FM mode, while receiving a broadcast signal, press this button to display queue information.
C. AUTOTUNE: In DAB/DAB+ mode press this button to make a quick scan; In FM mode, press this button to autotune.

iPhone/iPod and CD mode only:

A. Press or once to go to the previous or next track respectively.
B. Press to pause, press again to continue enjoying.
C. Press to stop, press to exit stop.

1. MODE, MENU and ENTER:

A. MODE: Press this button to shift between DAB/DAB+, FM, iPhone, CD and AUX. CD and AUX are only featured when a plug or disc is present.
B. MENU: Press this button to access the menu.
C. ENTER: a. Press this button to confirm.

CD mode only:

A. While playing a track, press and hold to fast back- or forward.
B. Press to eject a CD from the CD slot.

1. VOLUME:

Turn this knob CW to increase the volume or CCW to decrease the volume.

1. DISPLAY SCREEN: LCD featuring special icons.
2. TUNE: Turn this knob to browse options.
3. IR Receiver: Infrared receiver eye.

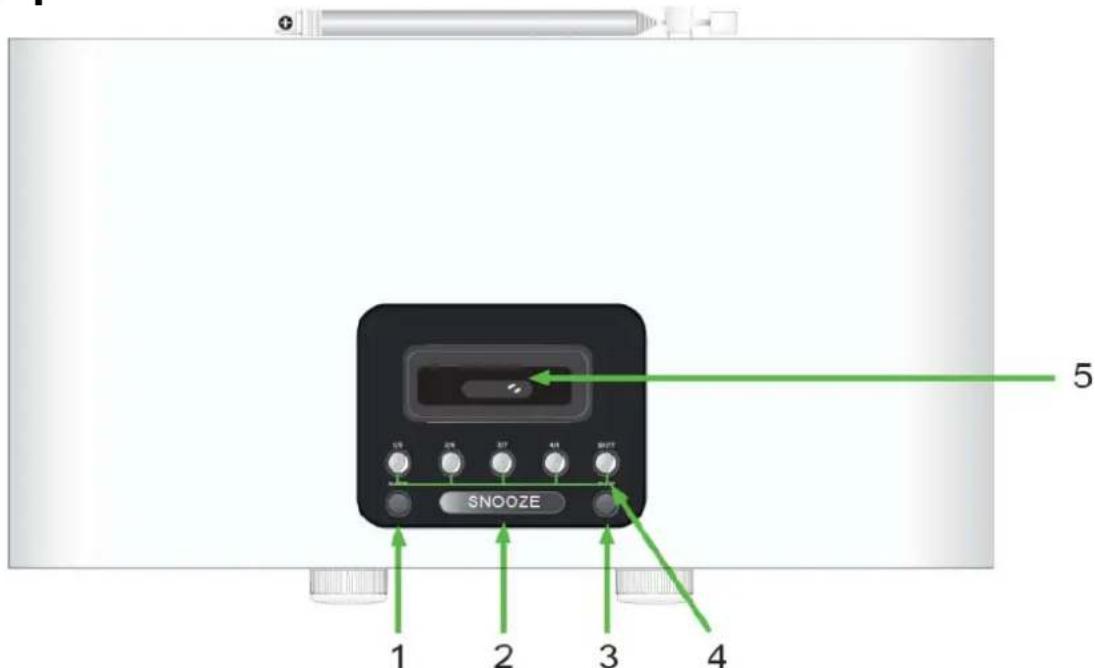

Top panel

1. ALARM: Press this button to set an alarm.
2. SNOOZE: When an alarm is given, press this button to postpone it for 7 minutes (default). While under SNOOZE function, the display of the radio will indicate Snooze, during this time, if you press any another button, snooze will be canceled.
3. SLEEP: Press this button to amend the sleep setting.
4. Preset buttons 1/5 2/6 3/7 4/8 and SHIFT: DAB/DAB+ and FM mode use only:

A. To store a station in preset 1-4: press and hold the preferred preset button, until the display indicates 'Preset # stored'.
B. To store a station in preset 5-8: press the SHIFT button once, press and hold the preferred preset button, until the display indicates 'Preset # stored'.
C. To recall a stored in preset station 1-4: press the preferred preset button once.
D. To recall a stored in preset station 5-8: press the SHIFT button once, press the preferred preset button once.

1. iPhone/iPod Docking: For playback and charging an iPhone/iPod.

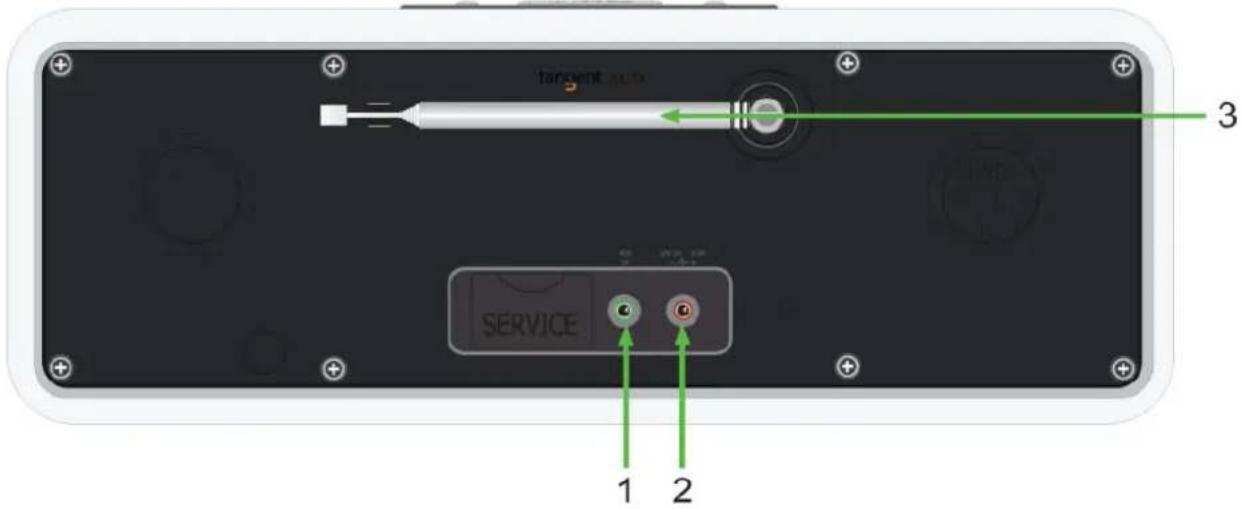

Rear panel

1. AUX: Connect any stereo or mono audio source to this stereo input.
2. POWER SUPPLY: 12VDC = 2.0A (3A stereo version), use this input to connect the radio's DC power supply.
3. EXTERNAL ANTENNA: The radio comes with a telescopic antenna. To improve FM reception, angle the antenna for best the reception.

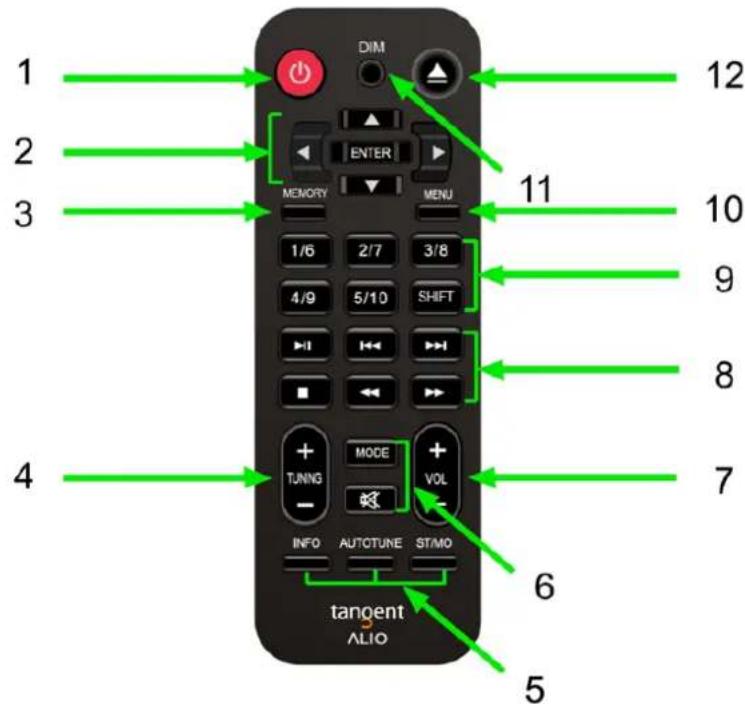

Remote control

1. POWER: Press this button to toggle the radio between ON and standby.
2. A. ▲: For navigation of the menu, iPhone/iPod and CD.
   B. ENTER: Press this button to confirm.
3. MEMORY: No function.
4. • TUNING -:

A. Stations can be tuned manually in 0.05MHz steps.
B. In DAB mode, press this button to toggle the station list.

1. INFO, AUTOTUNE and ST/MO:

A. INFO: In DAB/DAB+, FM mode, while receiving a broadcast signal, press this button to display queue information.
B. AUTOTUNE: In DAB/DAB+ mode press this button to make a quick scan; In FM mode, press this button to autotune.
C. ST/MO: In DAB/DAB+ or FM mode, press this button to shift between stereo or mono.

1. MODE and

A. MODE: Press this button to shift between DAB/DAB+, FM, iPhone, CD and AUX. CD and AUX are only featured when a plug or disc is present.
B. Press this button to mute or unmute.

1. +VOL - · Press this button to adjust the volume level.
2. Same as front panel section.
3. Preset buttons 1/6 2/7 3/8 4/9 5/10 and SHIFT: Same as top panel section.
4. MENU: Press this button to access the menu.
5. DIM: Press this button to adjust dimmer.
6. : Press to eject a CD from the CD slot.

Menu Description in DAB Mode

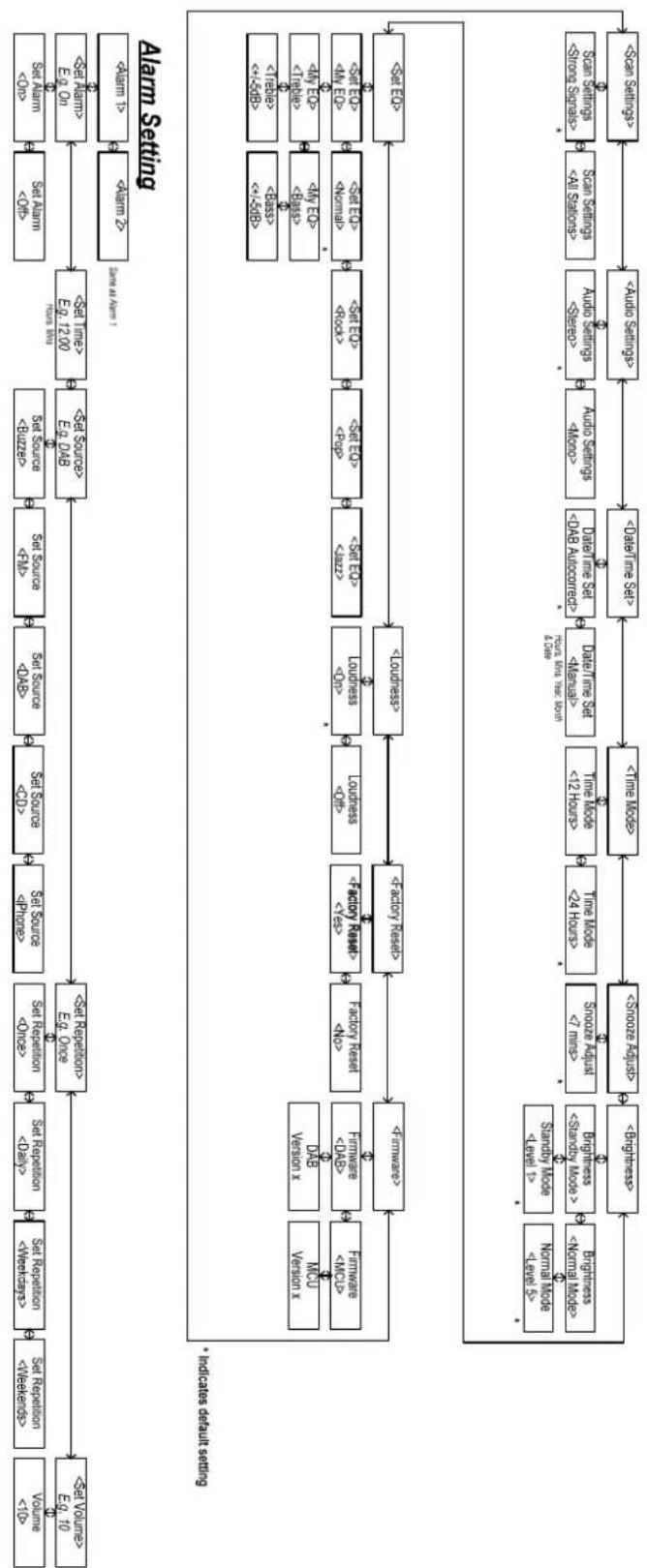

Menu Description in FM Mode

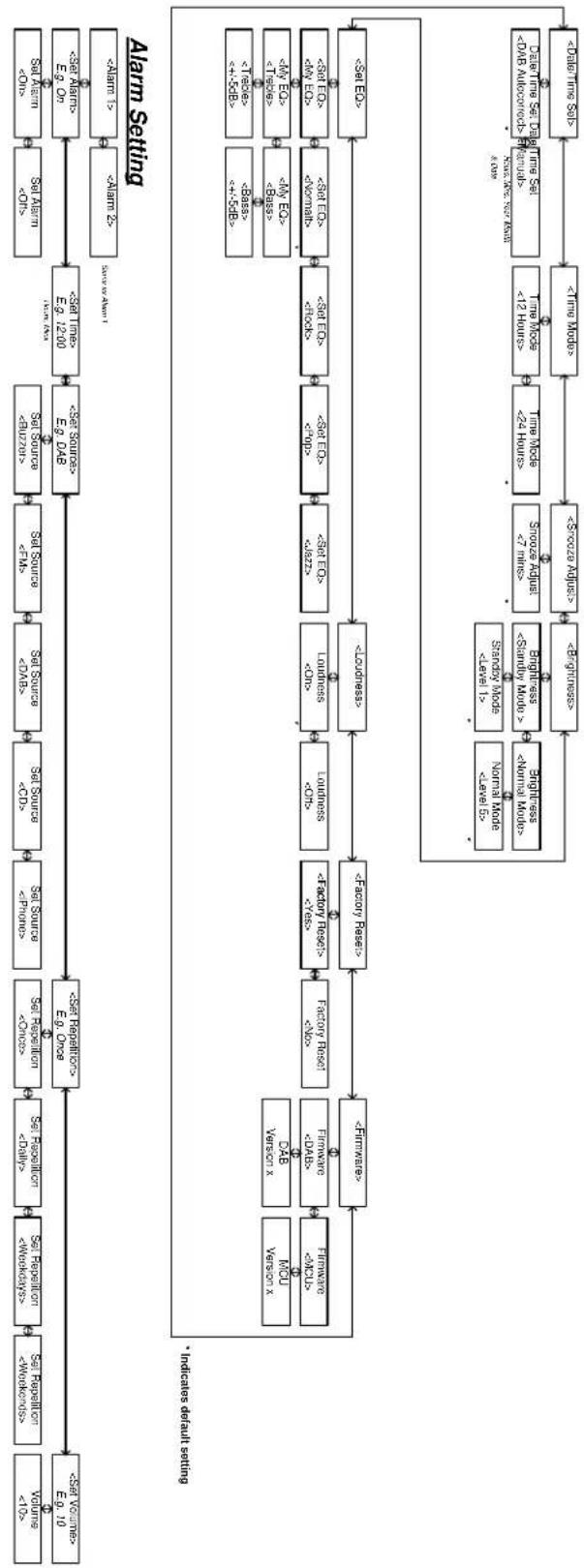

Menu Description in iPhone/AUX Mode

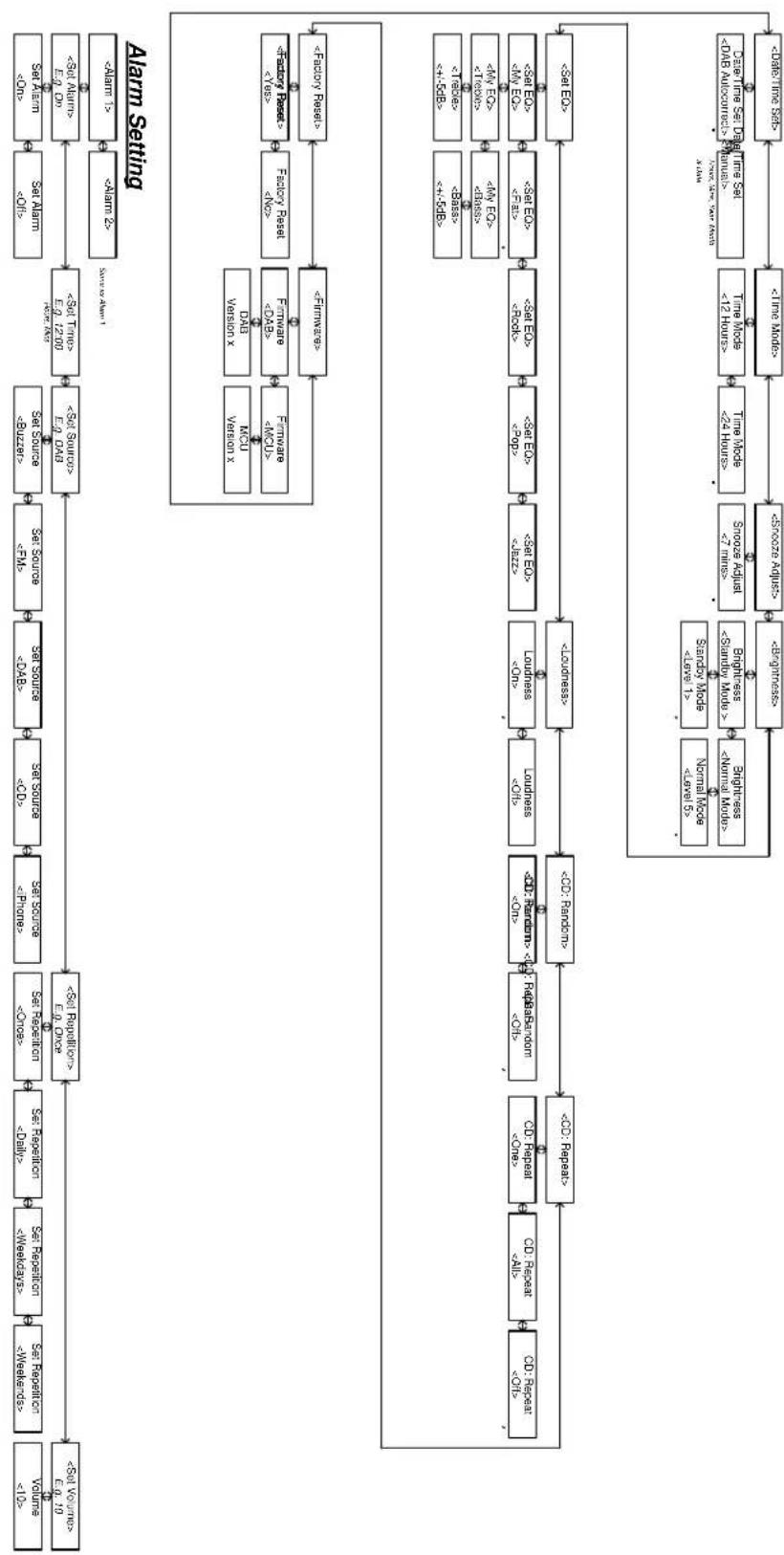

Menu Description in CD Mode

Specifications

Speaker: 3.5" wide range speaker (3" stereo version)

Power Output: 10 Watt RMS@1% THD (2x 10W stereo version)

Connections: 3,5mm jack for stereo analog audio AUX input

12 V DC input

Power: DC 12V/2A (3A stereo version)

Tuner Band: FM (87.5 - 108MHz)

DAB/DAB+ (174 - 240MHz) same as Band I, II and III

CD Decoding: Regular CD, WMA and MP3 (ID3-tag)

Dimensions: 210 × 135 × 200 ~mm (W × H × D)

370 × 135 × 200 ~mm (stereo version)

All specifications are subject to change without notice.

Made for iPhone

Made for iPod

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Sommaire

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Inhaltsverzeichnis

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Inhoudsopgave

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Indhold

Indhold 58
DK-BRUGERMANUAL 59
Frontpanel 61
Toppanel 63
Bagpanel 64
Fjernbetjening 65
Beskrivelse af DAB-menuen 67
Beskrivelse af FM-menuen 68
Beskrivelse af menuerne for iPhone/AUX 69
Beskrivelse af CD-menuen. 70
Specificationer 71

DK - BRUGERMANUAL

Vigtig information

Strømforsyning: DC 12V/2A (3A stereoversion)

Frekvensband: FM (87,5 - 108MHz)

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Innehåll

Innehall 72
SE- BRUKSANVISING. 73
Frampanel. 75
Övre panel. 77
Bakpanel. 78
Fjarrkontroll. 79
Menybeskrivning i DAB mode. 81
Menybeskrivning i FM mode. 82
Menybeskrivning i iPhone/AUX mode. 83
Menybeskrivning i CD mode. 84
Specificationer 85

SE - BRUKSANVISNING

Viktig information

Grattis till dinnya radio.

Ström: DC 12V/2A (3A stereo version)

Frekvensband: FM (87.5 - 108MHz)

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Sisällysluettelo

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Indice

1. Pulsanti pre-impostati 1/6 2/7 3/8 4/9 5/10 e SHIFT:

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Contidente

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Contudos

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

DESIGN-PERFORMANCE-AFFORDABILITY

THE OBJECTIVE OF EVERY TANGENT PRODUCT IS THAT FUNDAMENTALLY CORRECT DESIGN CAN PRODUCE A PRODUCT CAPABLE OF ACHIEVING EXCELLENT PERFORMANCE AND AFFORDABILITY.

www.tangent-audio.com

Item no.: 40633.01
