USER MANUAL Spectrum XATM TANGENT

White rectangular electronic device with a circular grille and mesh pattern, no visible text or symbols.

spectrum XATM

DOLBY ATMOS®

_

| _

一

1

FR

Important safety instructions.... 14

information 15

DOLBY ATMOS ^® certified SPECTRUM XATM....16

Setup 17

Front setup of SPECTRUM XATM and X6 18

Connections for front SPECTRUM XATM and X6.... 19

Rear setup of SPECTRUM XATM and X6 20

Connections for rear SPECTRUM XATM and X6 21

Specifications....22

DOLBY ATMOS® certification 23

Illustration of two white rectangular devices with circular cutouts, one shaded with a mesh pattern (no text or symbols)

SPECTRUM XATM

Line drawing of a tall industrial air conditioner unit with two circular vented seating (no text or symbols)

SPECTRUM XATM

Interior view of a room with TV setup, two speakers emitting sound waves, and a 60-degree angle measurement on the floor (no text or symbols)

Interior layout diagram of a living room with TV, speakers, and ceiling-mounted screens (no text or symbols)

Two rectangular blocks with circular cutouts, one shaded with diagonal stripes (no text or symbols)

CERTIFICATION DOLBY ATMOS®

Thank you for purchasing this product. We designed it to give you complete satisfaction. The objective of every Tangent product is that fundamentally correct design can produce a product capable of achieving excellent performance and affordability. Please take time to read the following safety instructions.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION :

Do not open the unit

1. Read, keep and follow these instructions.
2. Install in accordance with the manufacturer's instructions.
3. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
4. Only use attachments/accessories specified by the manufacturer.
5. Protect the speaker cables from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
6. Unplug this apparatus during thunderstorms or when unused for long periods of time.
7. Do not let objects or liquids enter the product.
8. Opening the unit by unauthorized personnel will void the limited warranty.

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Cleaning: Use a soft, dry cloth to avoid scratching the surface. Do not use cleaning alcohol, or other solvents to clean the surface of the cabinet.

Open flame: keep this sound system a safe distance away from any open flame such as a lit candle.

No open flame sources, such as lighted candles, should be placed on the unit. Operating temperatures: The recommended operating temperature range for the sound system is 5 to 40 degrees Celsius (41 to 104 degrees Fahrenheit).

Label location: The product labels and safety related markings are located on the back

INFORMATION

UNPACKING

This loudspeaker has been carefully tested and inspected during production, and prior to its packing and shipment. After unpacking, check for potential damage. A device is rarely damaged during transport, but if this happens, contact your dealer immediately.

We advise you to keep the box and packaging materials for future shipping.

SPEAKER SETUP

The proper placement of a loudspeaker has a significant impact on sound quality. There are multiple theories, but the environments and tastes are all different, so it is impossible to indicate just one right location. We advise you to test various places to evaluate what suits you best.

In order to obtain the best bass response, we advise you to keep a minimum distance of 25-30 cm between the speakers and the walls (rear and side). For height, place the speakers with the tweeter at ear level while in your most common listening position.

PACKAGING AND BURN-IN PERIOD

Just unpacked, the TANGENT SPECTRUM speakers are not yet capable of reproducing with the same efficiency all the sound frequencies they are supposed to play. The driver units used in the SPECTRUM range are complex mechanical elements that require a period of adaptation to operate at their best and become acclimatised to the temperature and humidity conditions of your environment. This burn-in period may take up to several weeks, but you can speed it up by operating your speakers between 20 and 50 consecutive hours at a moderate level and broadcasting a radio station.

CLEANING INSTRUCTIONS

We do not recommend the use of solvents or cleaning products on the cabinets or drivers. Simply wipe with a dry, soft cloth.

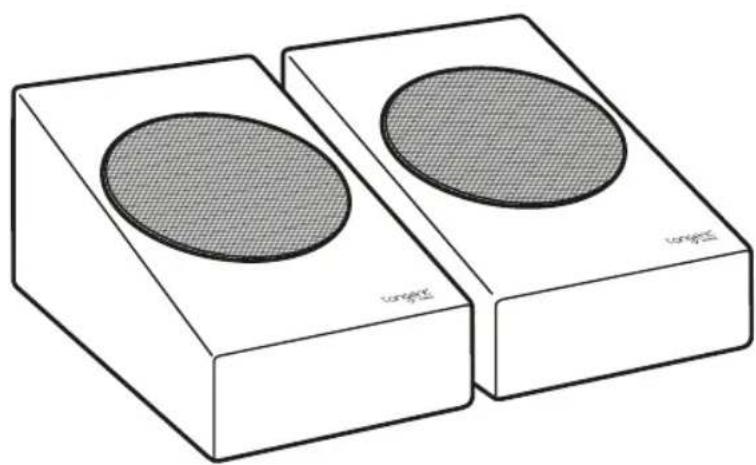

DOLBY ATMOS® CERTIFIED SPECTRUM XATM

Illustration of two white rectangular devices with circular cutouts, one shaded with a mesh pattern (no text or symbols)

SPECTRUM XATM

Compatible with the TANGENT SPECTRUM X6 model

DOLBY ATMOS CERTIFIED LOUDSPEAKERS

This speaker is Dolby ATMOS ^® compliant. This means that, associated with a Dolby ATMOS ^® amplifier, you will be able to add a vertical dimension to your home-cinema sound. More immersive and ultra realistic.

DOLBY ATMOS

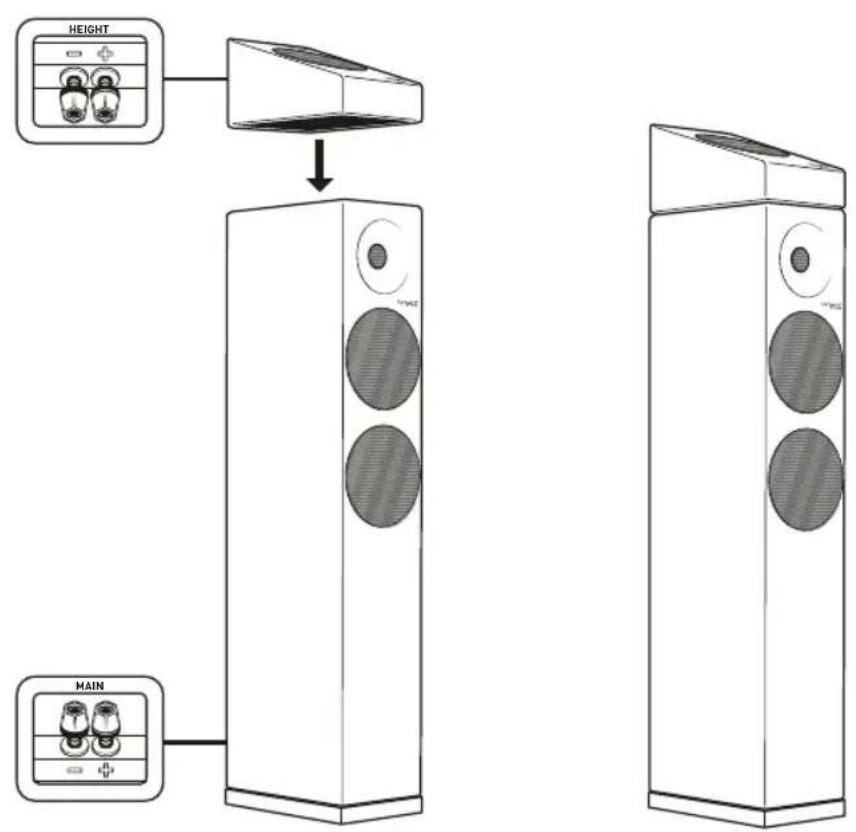

SETUP

HEIGHT MAIN

SPECTRUM XATM

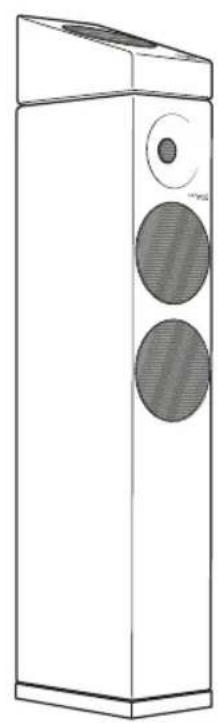

In order to enjoy an optimal experience, it is recommended to acquire the compliant SPECTRUM X6 model with the SPECTRUM XATM.

It is thus sufficient to place the SPECTRUM XATM top speaker on the SPECTRUM X6 floorstanding speaker, once the latter has been positioned. The rubber mat under the top speaker allows it to adhere to the floorstanding speakers, without glue or screws.

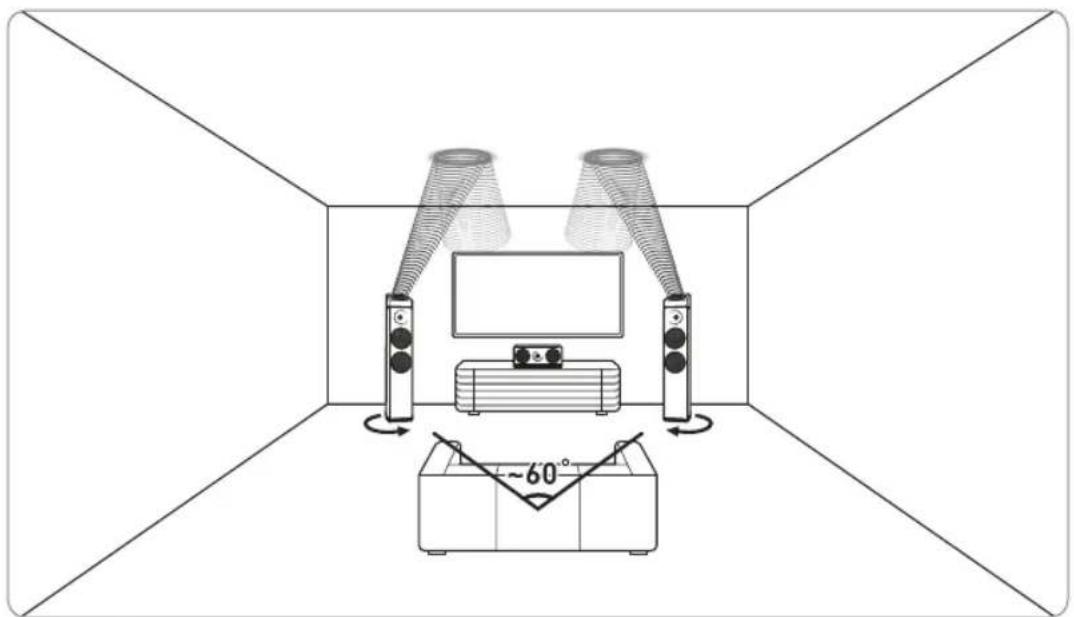

FRONT SETUP OF SPECTRUM XATM AND X6

Interior view of a room with two speakers emitting conical light beams to a TV, and a 60-degree angle measurement on the floor (no text or symbols)

Firstly, position your SPECTRUM X6 speakers in your room. Space the speakers 25-30cm away from the walls, and turn them gradually towards your listening area. Then place the SPECTRUM XATM on the floorstanding speakers.

CONNECTIONS FOR FRONT SPECTRUM XATM AND X6

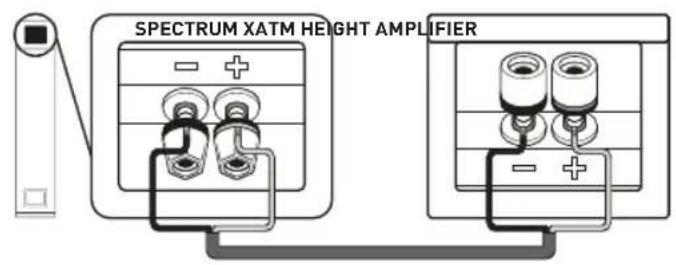

SPECTRUM XATM HEIGHT AMPLIFIER

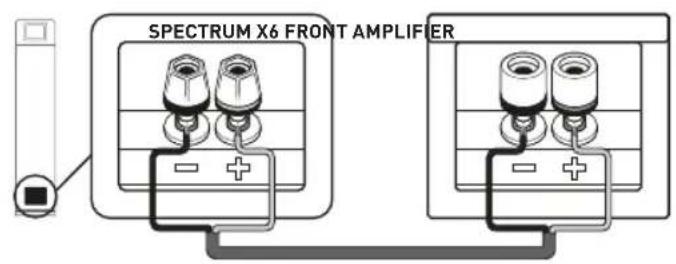

SPECTRUM X6 FRONT AMPLIFIER

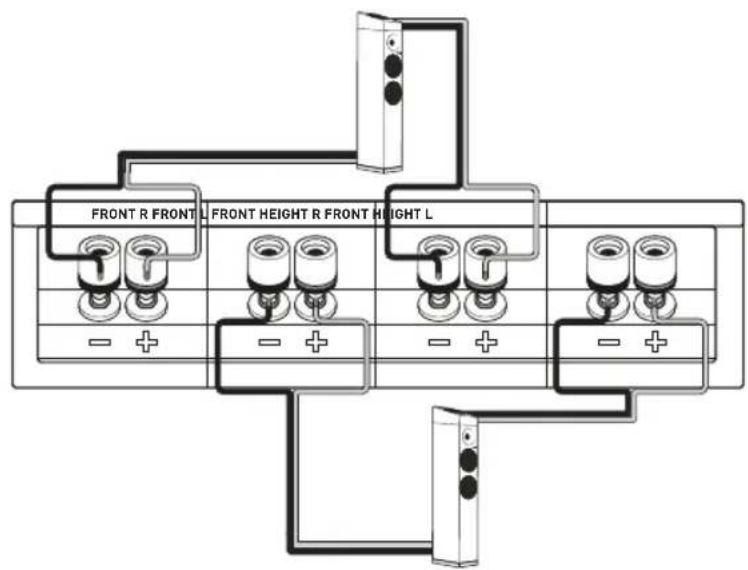

FRONT R FRONT L FRONT HEIGHT R FRONT HEIGHT L

Connect the HEIGHT inputs of your SPECTRUM XATM to the FRONT HEIGHT (or PRESENCE) terminals of your amplifier. Then, connect the MAIN inputs of your SPECTRUM X6 to the FRONT (or MAIN) terminals of your amplifier.

Connect the pole “+” of the speaker (Red) to the pole “+” of the amplifier, then the pole “-” of the speaker (Black) to the pole “-” of the amplifier. Please take care to respect the left and right channels.

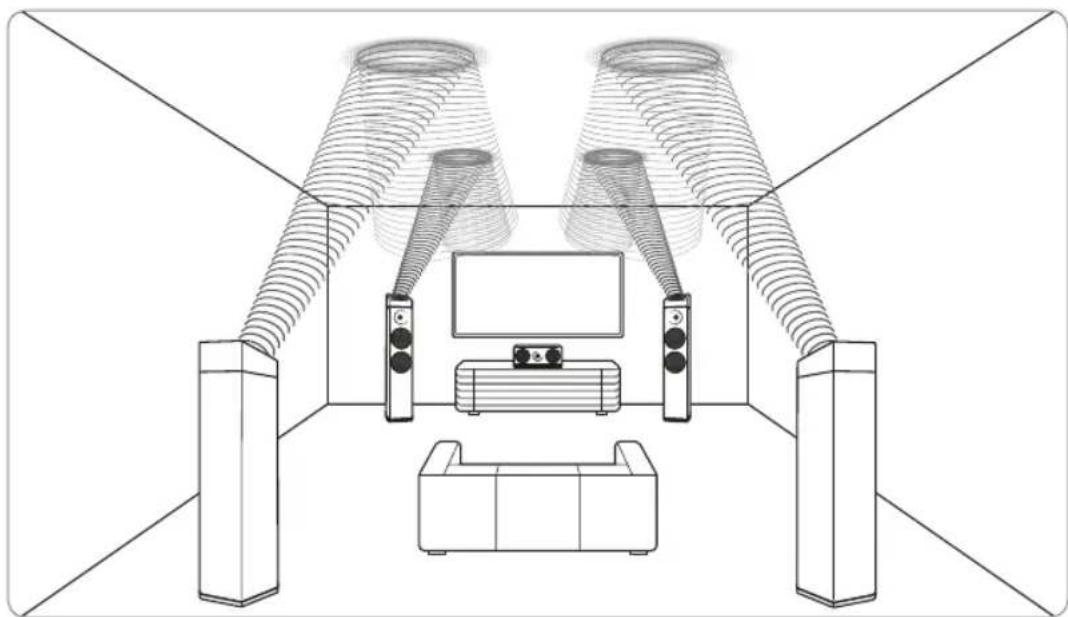

REAR SETUP OF SPECTRUM XATM AND X6

Interior layout diagram of a living room with TV, speakers, and ceiling-mounted screens (no text or symbols)

Firstly, position your SPECTRUM X6 speakers in your room. Space the speakers 25-30cm away from the walls, and turn them gradually towards your listening area. Then place the SPECTRUM XATM on the floorstanding speakers.

CONNECTIONS FOR REAR SPECTRUM XATM AND X6

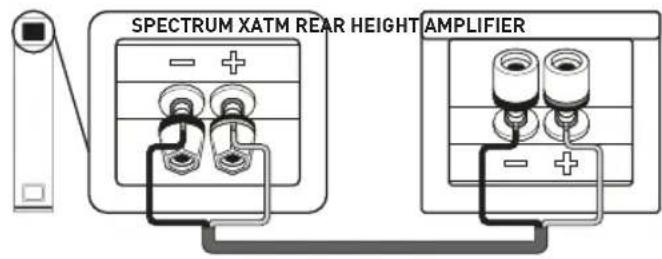

SPECTRUM XATM REAR HEIGHT AMPLIFIER

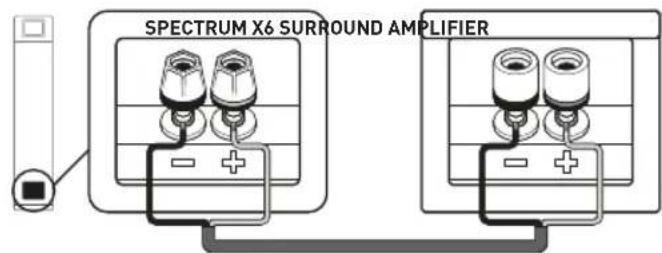

SPECTRUM X6 SURROUND AMPLIFIER

SURROUND R SURROUND L REAR HEIGHT R REAR HEIGHT L

Connect the HEIGHT inputs of your SPECTRUM XATM to the REAR HEIGHT (or PRESENCE) terminals of your amplifier. Then, connect the MAIN inputs of your SPECTRUM X6 to the SURROUND terminals of your amplifier.

Connect the pole “+” of the speaker (Red) to the pole “+” of the amplifier, then the pole “-” of the speaker (Black) to the pole “-” of the amplifier. Please take care to respect the left and right channels.

SPECIFICATIONS

Characteristics SPECTRUM XATM
Drivers	Tweeter20mmMid-woofer120 mm
Power 20 - 80W
Freq response 70 Hz - 20 kHz
Sensitivity 88 dB/W/m
Impedance 6 ohms
Dimensions H140 x W166 x D268 mm
Weight 3.2 kg
Finish Matt White, Matt Black
Certification	DOLBY ATMOS'

DOLBY ATMOS ^® is a new technology meant to reproduce surround sound for cinema and home cinema. This DOLBY ATMOS ^® process creates vertical sound channels in addition to the Dolby 5.1 or 7.1 format (horizontal plane) and thus offers a totally immersive audio experience.

In order to have access to this technology and experience the emotion of DOLBY ATMOS ^® , you have to equip yourself, in addition to your 5.1 or 7.1 system, with dedicated loudspeakers in order to emit sound vertically. There are speakers that are positioned directly in the ceiling, but these require a considerable amount of time and effort to install. There are also specific speakers that direct the sound to the ceiling from the floor. It is this second solution, certified DOLBY ATMOS ^® , that TANGENT has adopted, simplifying the installation process.

These loudspeakers, whose drivers are specifically filtered and tilted, emit a sound field towards the ceiling which must imperatively be reflective. The sound waves are thus reflected off of the ceiling to allow the listener to benefit from this vertical sound dimension. The rendering is ultra realistic, for a completely immersive experience in the heart of your movie.

In order to fully enjoy the DOLBY ATMOS ^® sound, your amplifier must be compatible with this technology, and have enough channels and the associated digital processing technology.

DOLBY ATMOS®
