HTC 1925D - TV XORO - Free user manual and instructions

Product type	Television with built-in DVD player
Brand	Xoro
Model	HTC 1925D
Screen size	19 inches (approx. 48 cm)
Native resolution	1440 x 900 pixels
Power supply	200-240 V AC, 50/60 Hz
Power consumption	Approximately 40 W (estimated)
Weight	Approximately 5 kg (estimated)
Connectivity	HDMI, VGA, SCART, S-Video, CVBS, stereo audio input (RCA), headphone jack, RF antenna
Tuner	DTT (DVB-T) and analog
Optical drive	MPEG-4 compatible slot-in DVD player
Main functions	Automatic channel search, teletext, EPG, parental control, picture and sound modes, zoom, scheduling
Remote control	Included, batteries supplied
Maintenance and cleaning	Soft dry cloth, no solvents
Safety	Minimum distance of 5 cm from walls, do not expose to water, disconnect during extended inactivity
Spare parts and repairability	Repairs by qualified technician only
Included accessories	Remote control, batteries, user manual, warranty card

Frequently Asked Questions - HTC 1925D XORO

How to connect an external device via HDMI ?

Plug the HDMI cable into the TV's HDMI input and the device's output. Press the SOURCE button until "HDMI" appears on the screen.

How to perform an automatic DTT channel search ?

Switch to DTT mode by pressing AV/TV several times. Press DVB MENU, select "Channel settings" then "Channel search" and choose "Automatic search". Confirm to start the search.

How to play a DVD ?

Press AV/TV several times until "DVD" is displayed. Insert the disc into the slot-in loader with the printed side facing up. Playback starts automatically.

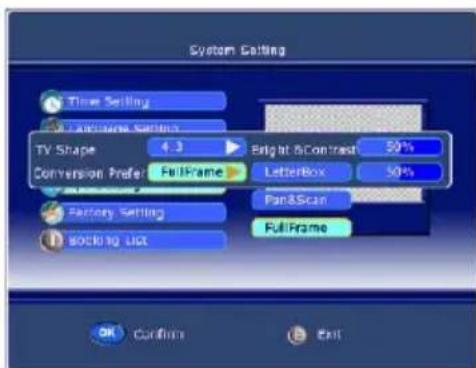

How to adjust brightness and contrast ?

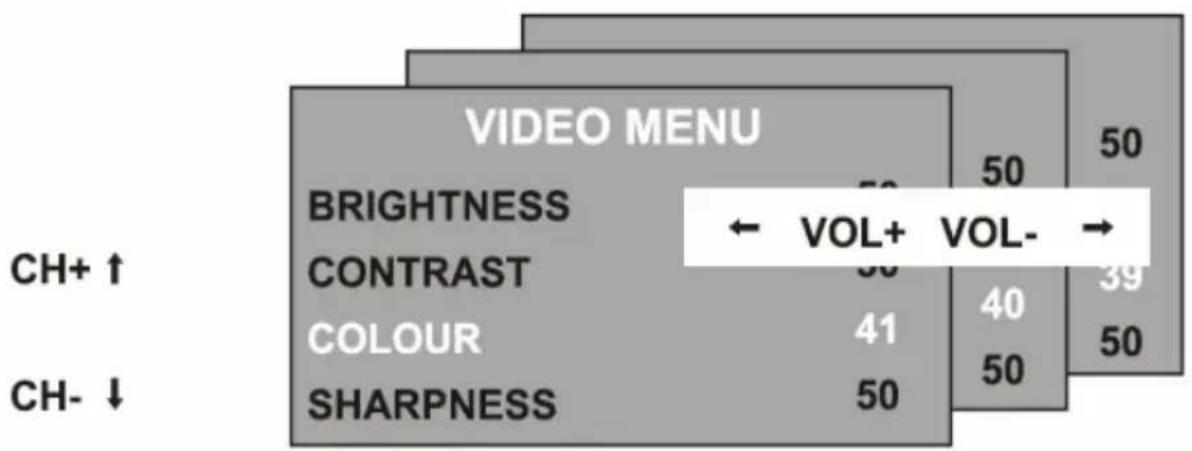

Press LCD MENU to open the video menu. Use the CH+/- buttons to navigate and VOL+/- to adjust brightness, contrast, color, and sharpness.

How to reset to factory settings ?

In the general menu, select "Reset" and confirm. This will restore the default settings of the video, audio, and blue screen menus.

Why is there no sound ?

Check that the volume is not at minimum and that the MUTE button is not activated. Make sure the audio cables are properly connected.

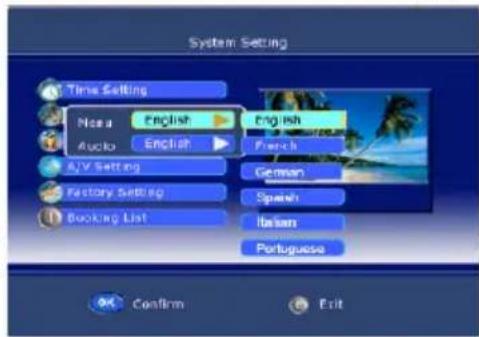

How to change the menu language ?

Press LCD MENU, go to the general menu, select "Language" and choose the desired language with VOL+/-.

How to use teletext ?

In TV (analog) or DTT mode, press the Teletext button on the remote. Enter the page number using the numeric keys. Use the color keys to access predefined pages.

How to set up parental control ?

In the DVB menu, go to "System configuration" then "Parental control". Enter the PIN code (default 888888) to change the password or set an age limit.

What to do if the remote control no longer responds ?

Check the polarity and condition of the batteries. Replace them if necessary. Make sure no obstacle blocks the infrared sensor and that the remote is pointed at the TV within 7 meters and a 30-degree angle.

USER MANUAL HTC 1925D XORO

FREE TO CHOOSE INNOVATIONS

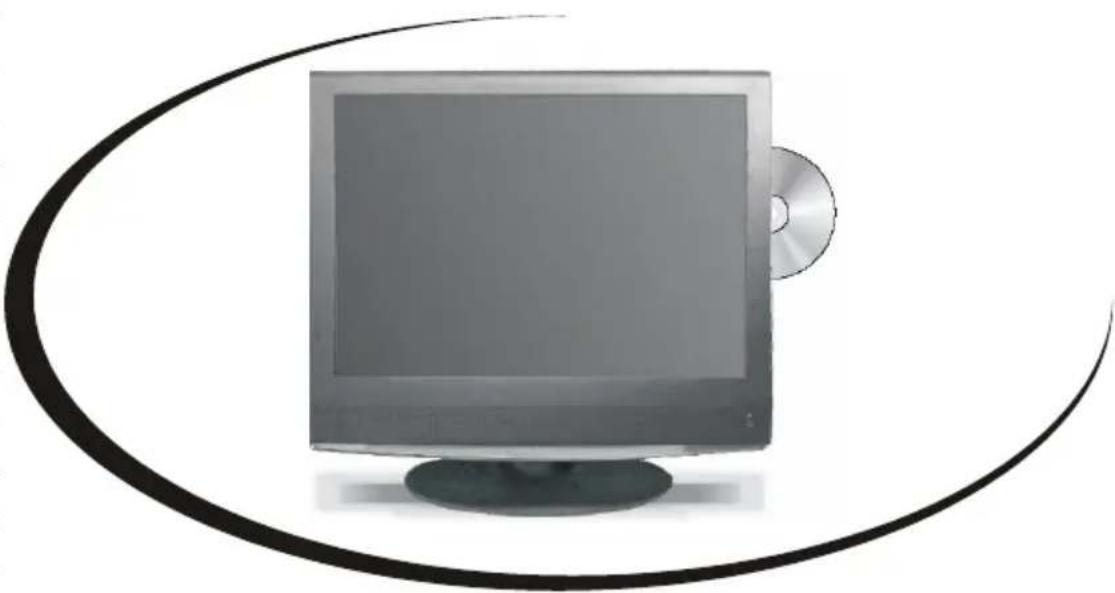

LCD TV with DVD + DVB + HDMI

HTC 1525D (without HDMI)

HTC 1925D

HTC 2225D

OPERATION MANUAL

BEDIENUNGSANLEITUNG

MODE D'EMPLOI

MANUAL DE OPERACION

F

Sicherheitshinweise

TV—SCART—AV—S-Video—PC—HDMI—DVB-T—DVD

Inbetriebnahme

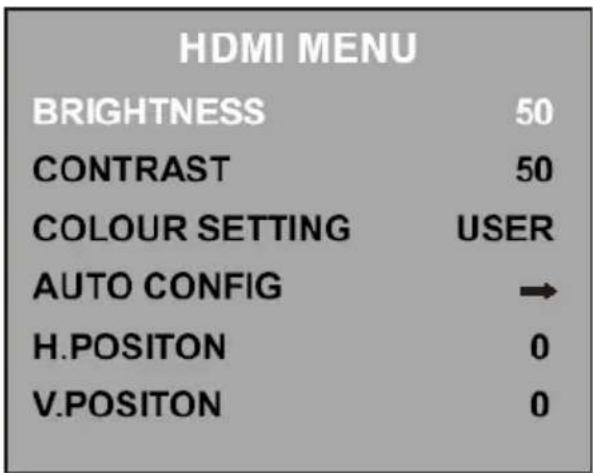

Farbeinstellung (Colour Setting)

Farbeinstellung (Color Setting)

Programmsuche (Channel Search)

Programm (Channel No.)

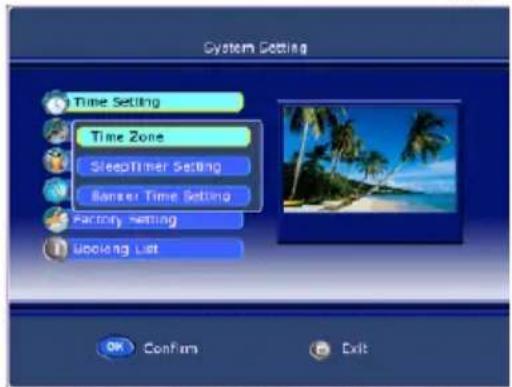

Zeitzone (Time Zone)

TV Format (TV Shape)

Timer Liste (Booking List)

VSS (Virtual Surround Sound)

U.S. Patens Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448 and 6,516,132

"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited."

Spezifikationen

To ensure reliable and safe operation of this equipment, please read carefully all the Instructions in this user guide, especially the safety information below.

Electrical safety

• The TV set should only be connected to a mains supply which matches that stated on the label on the mains adapter.
  To prevent overload, don't share the same mains supply socket with too many other items of equipment.
• Be careful to route the mains power cable away from areas where people can trip over it.
• Be sure to hold the plug-not the set is not to be used for a long time, Disconnect both the aerial and the mains power cable.
• Take care not to expose the set or the remote control to water or moisture.

• Pull the plug out immediately, and seek professional help if:

• the mains plug or cable is damaged

• liquid is spilt onto the set, or if it is accidentally exposed to water or moisture
• anything accidentally penetrates the ventilation slots

• the set doesn't work normally.

• Never remove the cover, there are No user-serviceable parts inside.

Allow only qualified service personnel to repair this equipment.

• To avoid leakage, take out the remote control batteries when:

• the batteries are exhausted

• you are not going to use the remote control for a long time.

• Dispose of the batteries properly-do not put them into a fire.

Physical safety

• Make sure the set is positioned at 5cm (2 inch) from the wall or furniture.
• Never tap or shake the screen for any reason.
  Take care not to drop or sit on the remote control.
  Clean the set using only a soft, clean, dry cloth. Do not use any solvents.

Contents

Safety information

Electrical safety. 1
Physical safety. 1

In the box 3

Features 3

English

Connection

Rear connection panel. 4
Right Side 4
Connecting up. 5

The Remote Control

Insert Battery 8
Operation range. 8
9

LCD Menu

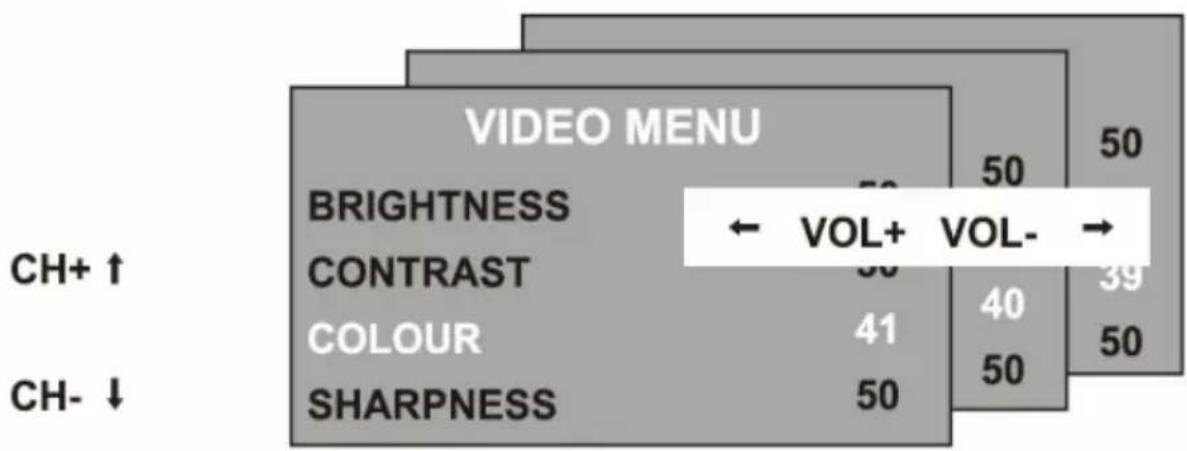

Using the menus. 11
The Video menu 11
The PC menu 12
The HDMI menu 13
The Audio menu 14
The TV menu. 14
The General menu. 15
Troubleshooting for LCD 16

DVB-T Mode

Getting into DVB-T mode 17
First time installation (Channel Setting) 17
Channel List. 18
Favorite List 20
System Settings. 20
EPG 23
Teletext 24
Troubleshooting for DVB-T. 25

DVD Player

Getting into DVD mode. 27
Insert a Disc. 27
Functions 27
MPEG-1, MPEG-2 and MPEG-4 videos 31
System Setup 33
Troubleshooting 38

Specifications 40

In the Box

Following accessories should be in the box:

• HTC 1525D/HTC1925D/HTC 2225D LCD-TV
  Remote Control with Battery
• Manual
• Main adapter
• Wire for the main adapter
  Warranty card

If any of the accessories are missing, then contact your dealer as soon as possible. Keep all the original packaging in case you need to return the set to the dealer.

Features

High quality display
- Many Connections: VGA, RF, Video, S-VIDEO, SCART and HDMI
HDMI Supports up to 1080i input resolutions (only HTC 1925D and HTC 2225D)
- Stereo audio inputs
- Integrated analog TV Tuner
- Integrated digital terrestrial TV Tuner (DVB-T)
Automatic or manual channel search
- Auto-shutdown to save power when no signal input
DVD-Player inside with Slot-in technology

Note:

The HTC 1525D has no HDMI interface.

Connection

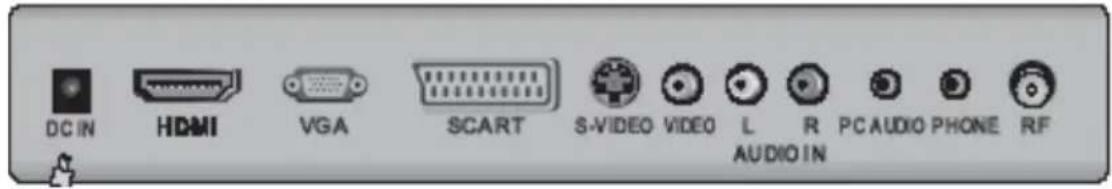

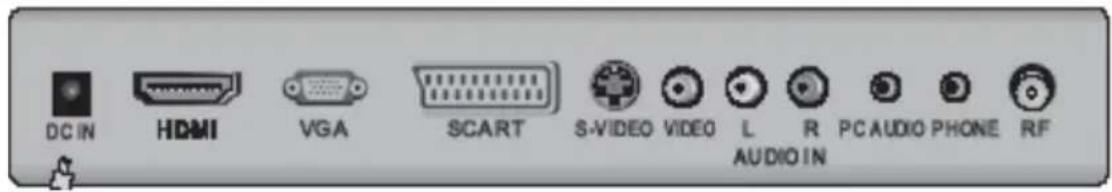

Rear Connection Panel

English

Name	Function
DC In	Connect to Power Adapter
HDMI	HDMI input (only for HTC 1925D and HTC 2225D)
VGA	VGA signal of computer input
SCART	Euro AV (Audio/Video) input
S-video	S-video input
Video	Video signal input
AUDIO IN L / R	Audio signal input for Video and S-Video
PC Audio	Audio signal of computer input
PHONE	Headphone
RF	Connect to cable or air

Note:
The HTC 1525D has no HDMI interface.

Buttons on the right side

On the right bottom side are the following buttons:

Button	Function
Open /	Close the loader
Stop
>Play /	Pause
DVD DVD	Slot-in loader

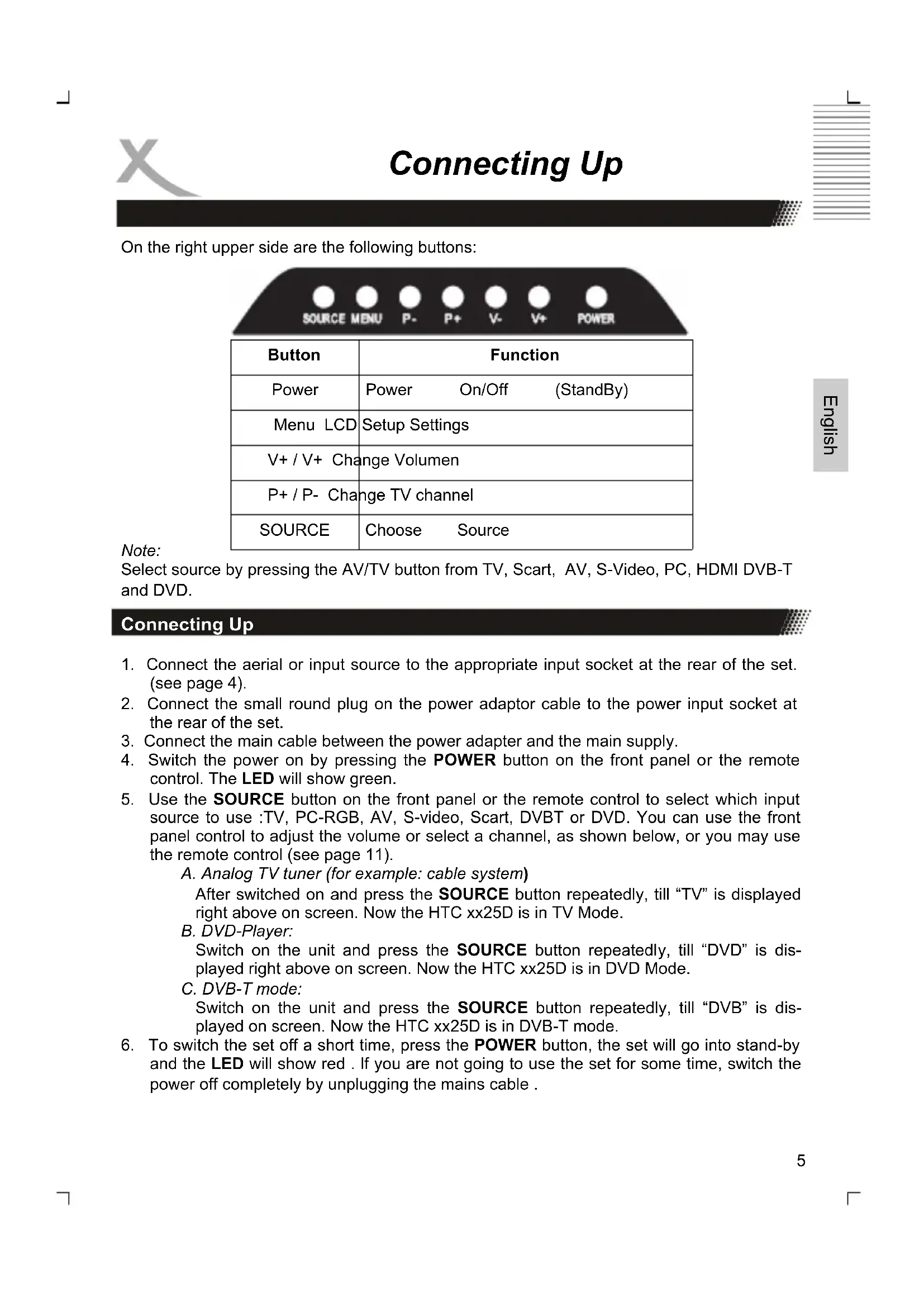

Connecting Up

On the right upper side are the following buttons:

Button	Function
Power	Power On/Off (StandBy)
Menu LCD	Setup Settings
V+ / V+ Change Volumen
P+ / P- Change TV channel
SOURCE	Choose Source

Note:

Select source by pressing the AV/TV button from TV, Scart, AV, S-Video, PC, HDMI DVB-T and DVD.

Connecting Up

1. Connect the aerial or input source to the appropriate input socket at the rear of the set. (see page 4).

2. Connect the small round plug on the power adaptor cable to the power input socket at the rear of the set.

3. Connect the main cable between the power adapter and the main supply.

4. Switch the power on by pressing the POWER button on the front panel or the remote control. The LED will show green.

5. Use the SOURCE button on the front panel or the remote control to select which input source to use :TV, PC-RGB, AV, S-video, Scart, DVBT or DVD. You can use the front panel control to adjust the volume or select a channel, as shown below, or you may use the remote control (see page 11).

A. Analog TV tuner (for example: cable system)

After switched on and press the SOURCE button repeatedly, till "TV" is displayed right above on screen. Now the HTC xx25D is in TV Mode.

B. DVD-Player:

Switch on the unit and press the SOURCE button repeatedly, till "DVD" is displayed right above on screen. Now the HTC xx25D is in DVD Mode.

C.DVB-T mode:

Switch on the unit and press the SOURCE button repeatedly, till "DVB" is displayed on screen. Now the HTC xx25D is in DVB-T mode.

1. To switch the set off a short time, press the POWER button, the set will go into stand-by and the LED will show red. If you are not going to use the set for some time, switch the power off completely by unplugging the mains cable.

Connection

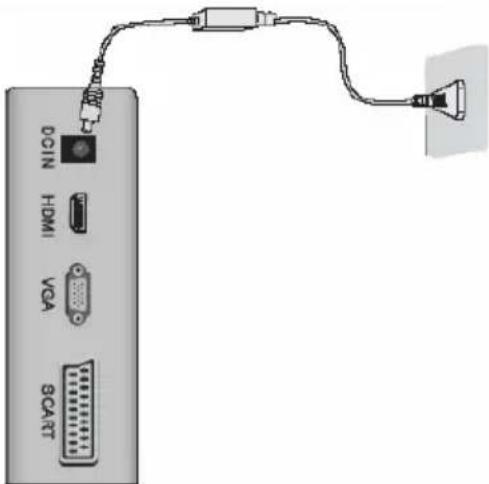

Power connection

Connect the AC/DC power adapter with the DC IN input of the HTC TV set. After than, please connect the power cable with the wall mounted power outlet.

On the front side you can see a red LED light. The HTC TV set is now in Stand-By mode. By pressing the POWER button on the remote control or on the top side of the device the red LED changes to a green light.

Antenna

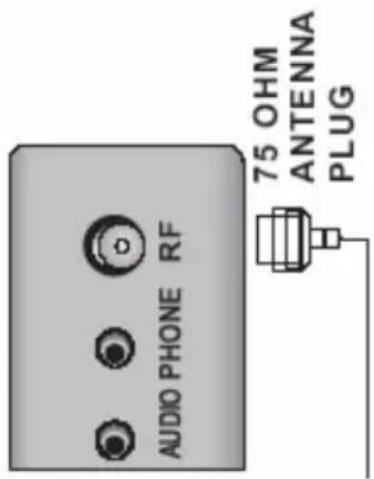

The HTC TV set has an analogue and a digital TV Tuner inside. For receiving analogue TV signals please connect the antenna cable with the RF connector on the HTC TV set and with the VHF/UHF roof antenna or with a CATV antenna plug.

For receiving digital terrestrial TV signals please connect the HTC TV set with the RF plug and also with the roof antenna. If no roof antenna is available, please use indoor aerial.

For activating the analogue TV Tuner, please switch with the Source button to "TV". For viewing DVB-T, please change with the SOURCE button to "DVB".

Note:

For getting the best DVB-T reception please uses the roof antenna. If not possible, than you can connect the HTC TV set with an active indoor aerial.

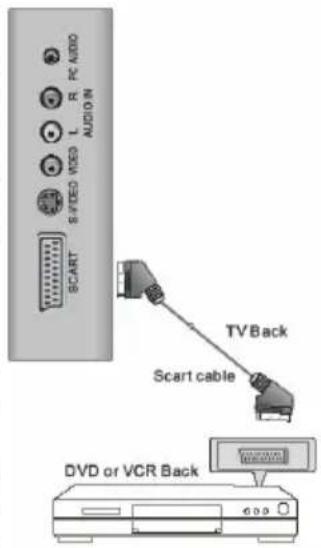

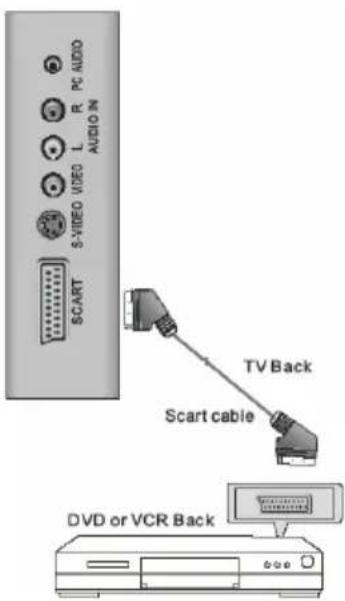

SCART Input

Audio- and Video signals from a VCR or a setup box can be transmitted by SCART. Please connect a SCART cable with the SCART input on the HTC TV set and with the SCART output on the VCR or setup box.

Press the SOURCE button again until „SCART“ appears on the screen and the SCART interface is activated.

CVBS Video- and Stereo Audio input

If you uses more than one multimedia terminals and the SCART, HDMI and S-Video connection are used, than you connect the next device by the audio/video component input. Please connect the yellow wire of an 3-pin component cable with the VIDEO input of the HTC TV set and the multimedia device. With this kind of connection only video signals are transmitted. For listening sound on the TV you should establish also a sound connection.

Please connect the white and red wire of the 3-pin component cable with the AUDIO IN L / R and the correspondent audio out on the multimedia device.

Connection

Please press the SOURCE button until "AV" appears on the screen and the AV input is active.

If you uses more than one multimedia terminals and the SCART, HDMI and AV connection are used, than you connect the next device by the S-Video. Please connect the S-Video cable with the S-VIDEO input of the HTC TV set and with the S-Video output of the multimedia device. With this kind of connection only video signals are transmitted. For listening sound on the TV you should establish also a sound connection.

Please connect the white and red wire of the 2-pin cable with the AUDIO IN L / R and the correspondent audio out on the multimedia device.

Please press the SOURCE button until "S-Video" appears on the screen and the S-Video input is active.

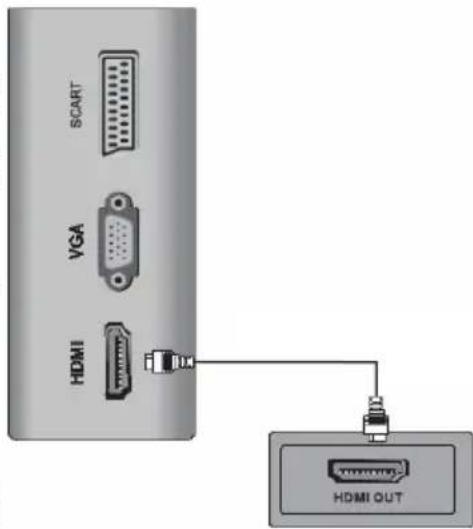

HDMI

If you want connect a multimedia device with HDMI like a game console "PS3" or a setup box with the HTC TV set, you can establish a HDMI connection. Please connect the HDMI cable on the HDMI interface on the HTC TV set and the HDMI output of the multimedia device.

Please press the SOURCE button until "HDMI" appears on the screen and the HDMI input is active.

VGA

You can use the HTC TV set as a PC monitor by using the VGA interface. Please connect a VGA cable with the VGA input of the HTC TV set and with the PC.

Please press the SOURCE button until "PC-VGA" appears on the screen and the PC-VGA input is active.

Notes:

1. Before you connect the HTC TV set with the PC, please change the graphic resolution of the PC to: 640 × 480 , 800 × 600 or 1024 × 768 .

2. Please establish the connection and switch to "PC-VGA" input.

3. For displaying the best results, please uses the native resolution of the TV LCD panel:

4. HTC 1525d 1280 x 800 Pixel

5. HTC 1925d 1440 x 900 Pixel
6. HTC 2225d 1680 x 1050 Pixel

Remote Control

Insert battery into the remote control

Insert the batteries in the remote control:

1. Open the cover.
2. Insert the batteries. Make sure to match - and +.
3. Close the cover

Notes on batteries:

Improper use may cause battery leakage and corrosion.

Please follow the instructions below:

• Do not insert the batteries in the wrong direction
• Do not use different types of batteries together
• If you do not use the remote control for a long time, remove the batteries
• If the remote control operates not correctly, replace the batteries
  If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries
  Make sure that the used batteries are disposed properly according to you local regulations.

Operation range

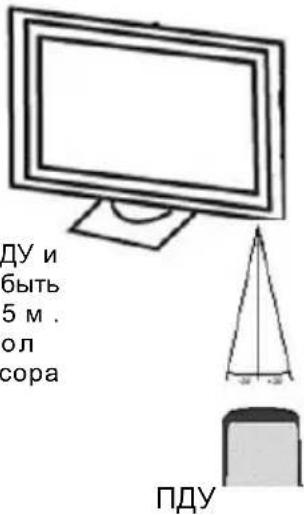

Point the remote control at the IR:

1. Within about 5m with angle about 30 grade in both direction.

Notes:

• Do not expose the IR of the device to a strong light source or direct sunlight.
• Direct the remote control at the infrared receiver (IR) of the player
• Do not drop the remote control.
• Do not spill water or put anything wet on it.
• Do not disassemble the remote control.

Remote Control

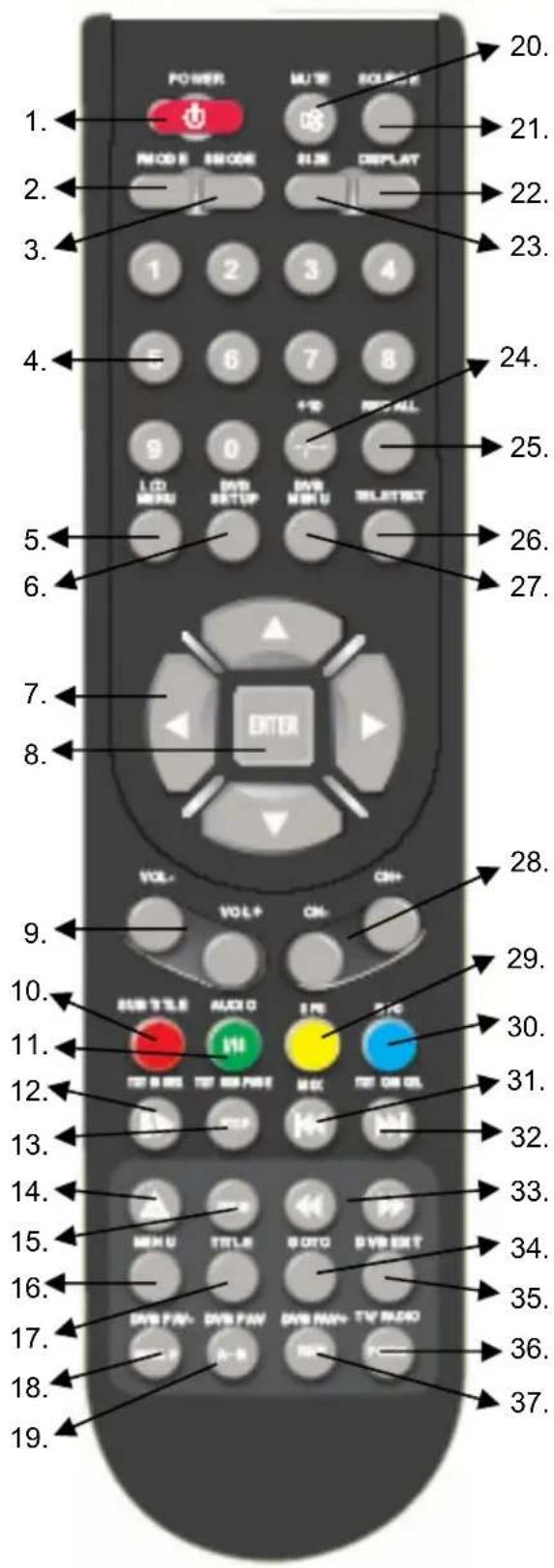

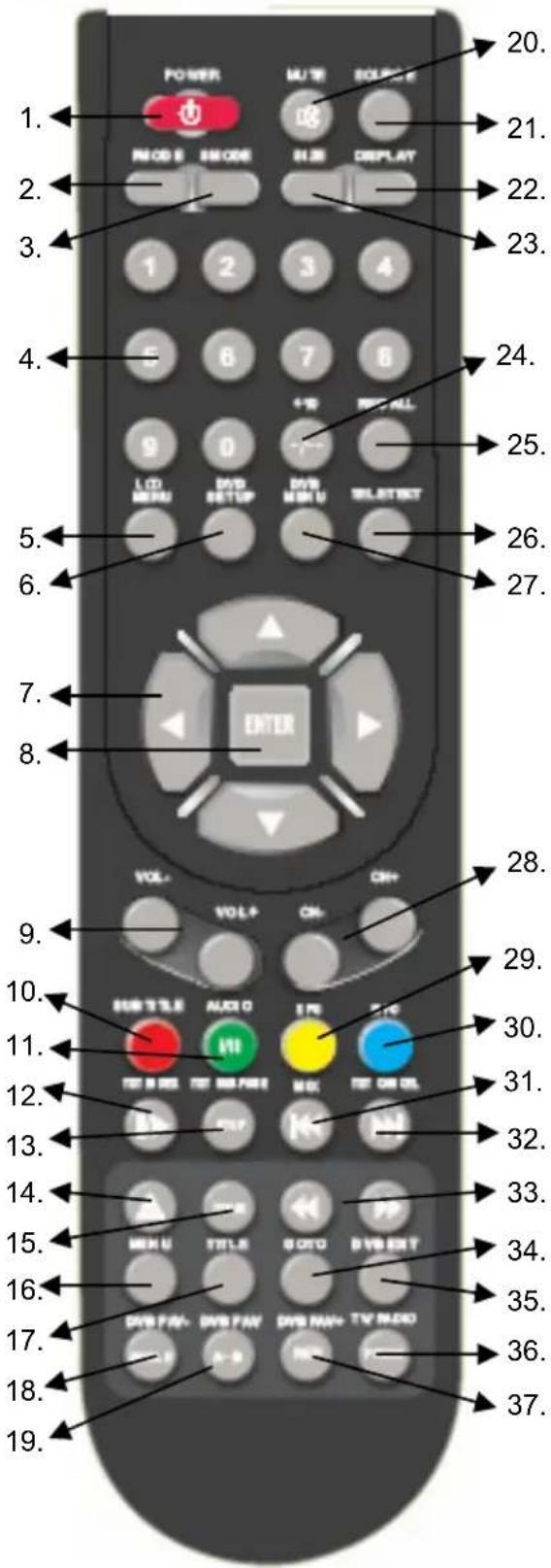

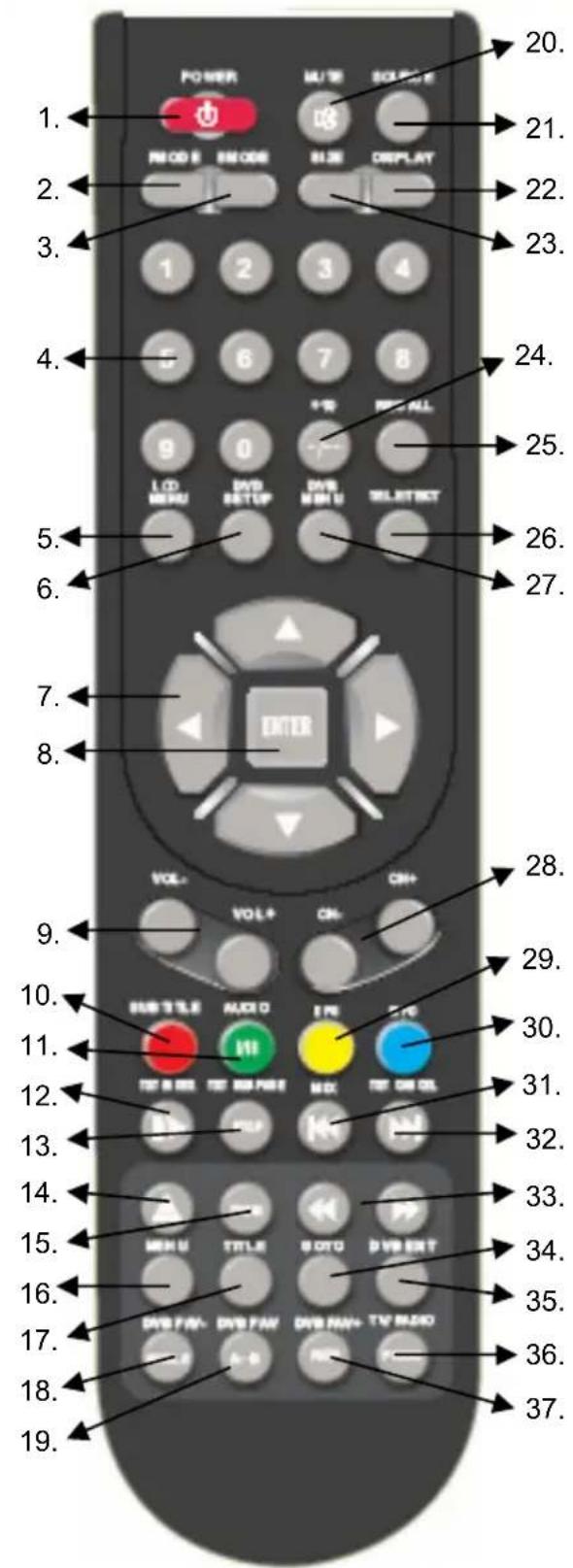

Buttons of the remote control:

ATV: Analogue TV Tuner

DVB-T: Digital TV Tuner

DVD: DVD Player

1. POWER button
2. Picture mode (PMODE)
3. Sound mode (SMODE)
4. Numeric buttons (0-9)
5. LCD settings (LCD MENU)
6. DVD settings (DVD SETUP)
7. Navigation cross
8. ENTER button
9. Volume (Vol- / Vol+)
10. ATV: Red Teletext button; DVB-T: Red Teletext button and subtitle; DVD: subtitle button
11. ATV: Green Teletext button and NICAM; DVB-T: Green Teletext and Audio button; DVD: Audio button
12. ATV: Teletext Index button; DVD: Play / Pause
13. ATV: Teletext sub page button; DVD: Stop
14. DVD: Open / Close
15. DVD: Zoom
    16.DVD:VideoDVDMenu
16. DVD: Video DVD Title menu
17. DVB-T: Favorite -; DVD: Angle
18. DVB-T: Favorites; DVD: A-B Segment Playback
19. MUTE button
20. SOURCE button
21. Aspect Ratio LCD 4:3 / 16:9 (SIZE)
22. Source information (Display)
23. One or two digits of channel numbers (- / - )
24. Last TV channel (RECALL)
25. Teletext in ATV and DVB-T
26. DVB-T settings (DVB MENU)

More button description on the next page.

Remote Control

English

Buttons of the remote control:

ATV: Analogue TV Tuner
DVB-T: Digital TV Tuner
DVD: DVD Player
28. Channel ATV und DVB-T (CH-/ CH+)
29. ATV: Yellow Teletext button; DVB-T: EPG and yellow Teletext button
30. ATV: Blue Teletext button; DVB-T: Information and blue Teletext button; DVD: Information
31. ATV: Teletext Mix displaying; DVD: Previous chapter / track
32. ATV: Teletext exit; DVD: Next chapter / Track
33. DVD: Fast back- or Forward (<< / >>)
34.DVD:GOTO button
35. DVB-T: Exit of DVB-T settings
36. DVB-T: Switch to TV and Radio channels
37. DVB-T: Favorites +; DVD: Program

LCD Menu

For all the buttons mentioned below, you can use those on the front panel, or you can use those on the remote control. To see the menus, press the LCD MENU button. The first will show either:

theVIDEO menu, if the set is switched to TV, AV, S-video, SCART, DVB-T, DVD
the PC menu, if the set is switched to PC
The HDMI menu, if the set is switched to HDMI

Press the MENU button again, to see the other menus:

another press to see the AUDIO menu
another press to see the TV menu (only when switched to TV)
another press to see the GENERAL menu
another press to see the menus off.

To select a menu item, for example COLOUR, press the CH^+ and CH- buttons to

• scroll up and down the list.
• When a menu item is highlighted, use the VOL+ or VOL Buttons to change the setting.

When you have changed the settings, you can exit from the menu:

by waiting fifteen seconds without pressing any buttons,
- by pressing the LCD MENU button few times until the menus turn off.

LCD Menu

Video Menu

The first press of the LCD MENU button will show the VIDEO menu, if the set is switched to TV, AV, S-Video, SCART, DVB-T, DVD. In this menu it is possible to change brightness, contrast, colour and the sharpness.

Brightness

Use the VOL+ or VOL- buttons to adjust the brightness of the picture.

Contrast

Use the VOL+ or VOL- buttons to adjust the contrast of the picture.

Colour

Use the VOL+ or VOL- buttons to adjust the colour of the picture.

Sharpness

Use the VOL+ or VOL- buttons to adjust the sharpness of the picture.

VIDEO MENU
BRIGHTNESS	50
CONTRAST	50
COLOUR	40
SHARPNESS	50

PC Menu

If the LCD is connected by VGA to a personal computer (PC) or to a device with VGA output, so by pressing the LCD MENU button the PC-Menu starts up.

Brightness

Use the VOL+ or VOL- buttons to adjust the brightness of the picture.

Contrast

Use the VOL+ or VOL- buttons to adjust the contrast of the picture.

Color setting

Use the VOL+ or VOL- buttons to select from 6500k, 9300k or USER.

If you select USER, you can use the VOL+ or VOL- buttons to adjust the RED.

Green and blue values individually. Press

MENUButtonwhenyouhave finishedadjusting.

Auto configure

Press the VOL+ button to have the following settings configured automatically.

PC MENU
BRIGHTNESS	50
CONTRAST	50
COLOUR SETTING	USER
AUTO CONFIG	→
H POSITION	0
V POSITION	0
PHASE	0
CLOCK	0

PC Menu

Horizontal and vertical position

Use the VOL+ or VOL- buttons to adjust the position of the picture on the screen.

Phase

Use VOL+ or VOL- buttons to adjust the phase of the ADC sampling clock relative to the Hsync signal, until a stable image is obtained.

Clock

Use the VOL+ or VOL- buttons to adjust the pixel clock frequency, until the image size is maximized for the screen.

HDMI Menu

If the LCD is connected by HDMI to a personal computer (PC) or to a device with HDMI output, so by pressing the LCD MENU button the PC-Menu starts up.

Brightness

Use the VOL+ or VOL- buttons to adjust the brightness of the picture.

Contrast

Use the VOL+ or VOL- buttons to adjust the contrast of the picture.

Color setting

Use the VOL+ or VOL- buttons to select from 6500k, 9300k or USER.

If you select USER, you can use the VOL+ or VOL- buttons to adjust the RED.

Green and blue values individually. Press MENU button when you have finished adjusting.

Auto configure

Press the VOL+ button to have the following settings configured automatically

Horizontal and vertical position

Use the VOL+ or VOL- buttons to adjust the position of the picture on the screen.

Audio Menu

Press the LCD MENU button again to see the AUDIO menu.

Volume

Use the VOL+ or VOL- buttons to adjust the volume of the sound.

Balance

Use the VOL+ or VOL- buttons to adjust the left/right balance of the sound.

Audio preset

Use the VOL+ or VOL- buttons to select from PERSONAL, VOICE, MUSIC or THEATRE.

If you select personal, you can adjust the following settings.

AUDIO MENU
VOLUME	20
BALANCE	50
AUDIO PRESET	PERSONAL
TREBLE	50
BASS	50

Treble and bass

Use the VOL+ or VOL- buttons to adjust the tone of the sound.

TV Menu

Press the LD MENU button again, to see the TV menu (only if switched to TV).

Channel

Use the VOL+ or VOL- buttons to select a channel.

System

Use the VOL+ or VOL- buttons to select from DK, BG I or L TV display systems.

Skip

Use the VOL+ or VOL- buttons to turn the channel ship:

• ON - this channel will be shipped when changing channel using the CH buttons.
• OFF - this channel will be included when changing channel using the CH buttons.

AFC

Automatic frequency control. Use the VOL+ or VOL- buttons to turn AFC On or OFF.

TV MENU
CHANNEL	0
SYSTEM	DK
SKIP	OFF
AFC	ON
FINE TUNE	487.25MHz
SWAP	→
MANUAL SEARCH	→
AUTO SEARCH	→

Fine Tune

Use the VOL+ or VOL- buttons to fine tune the frequency if you are having Press with a week signal on the current channel. The AFC will turn off if you use the fine Tune controls.

LCD Menu

TV Menu

SWAP

Press the VOL+ buttons to enter the SWAP menu, press the VOL+/- button to select the channel that you want the program to be put in "FROM" menu, then press the CH- button to go to the "TO" menu, press the VOL+/-button to select the channel Whose program you want, press the VOL+/-button to confirm if "SWAP" menu.

Manual search

Press the VOL+ button once, then again to select from down or up

Press the MENU button to start the manual station search. When the search is finished, the first station found will be allocated to the current channel.

Auto Search

Press the VOL+ button once. Use the VOL+ or VOL- buttons to select the DK/BG/I or SE-CAM L mode then press CH+ and CH- to select yes or no, press MENU button to confirm, The automatic Station Search will start. When the searching is finished, then for example, if 12 station have been found, they will be allocated to the first 12 channel.

General Menu

Press the MENU button again to see the GENERAL menu.

Language

Use the VOL+ or VOL- buttons to select from a number of European languages.

Blue Screen

Use the VOL+ or VOL- buttons to turn the blue screen:

• ON - The screen will turn blue when the signal strength is very poor.
  OFF - The picture and sound will be noisy when the signal is very poor.

(Use this function if reception cannot be improved, to stop the screen from turning blue screen)

Noise Reduce

Use the VOL+ or VOL- buttons to turn the noise reduction system:

ON: to reduce noise when reception is poor
- OFF: improve picture and sound quality when reception is good.

Input Source

Use the VOL+ or VOL Buttons to select which input source to use:

Press the VOL+ button to return the set to the factory default setting.

All the setting in the VIDEO, PC and AUDIO menus, and blue screen in the GENERAL menu will be returned to be the settings shown in this user guide.

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service. Technical Support of Xoro/MAS:

Problem Solution
TV won't switch on	·Check the mains cable is connected properly to both the mains supply and the mains adapter ·Check the cable from the mains adapter is connected properly to the set. ·The electronic circuit may have reset. Pull the plug out, wait for 60 seconds, then plug back again.
No picture	·Check the aerial or other input is connected properly. ·Check that the correct input is selected, using the SOURCE button or the GENERAL menu. ·Check the brightness and contrast settings in the VIDEO or PC menu.
No sound	·Check that the VOLUME isn't turned down, or the MUTE button pressed. ·Check that the audio cables are connected to the correct inputs.
Picture is wrong colour	·Check that the correct input is selected, using the TV/AV button or the GENERAL menu.
The picture is unstable when used with a PC	·Check that the settings in the PC menu match the video output settings of the PC.
There are a few coloured spots on the screen	·High resolution LCD screens often have a small number of faulty pixels. ·This is normal and within the bounds of our quality control checks.
Picture with wrong scaling	·The LCD has the wrong aspect ratio. Please press the Size button to switch the aspect ratio from 16:9 to 4:3.

DVB-T Mode

Be sure to select the DVB source before operation. Please follow the way to switch into the DVB-T mode:

1. Power on the device
2. Press the AV/TV button often until a "DVB" comes on the right top side.

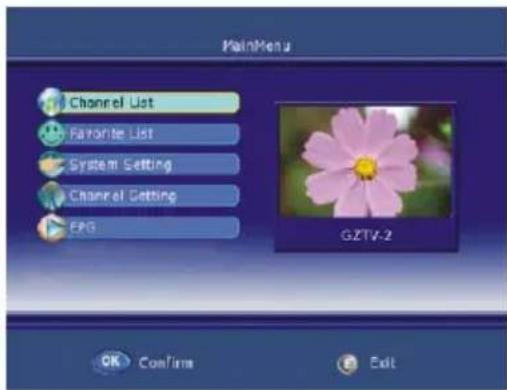

Enter Main Menu

Press the DVB MENU on the remote control to bring up the main menu on the screen and press it again to return to the previous menu or return to TV viewing.

Adjust the OSD on screen

1. Press / button select each menu.
2. Press button and then use / / / button to select and adjust the available menus.
3. Press DVB MENU or button to return to previous menu and press EXIT to return to TV viewing.
4. Press Enter to confirm your settings

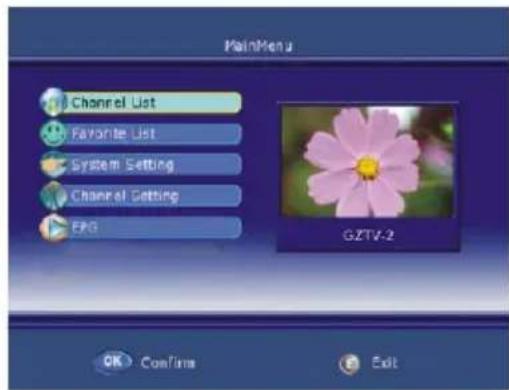

Waiting SIGNAL or NO SERVICE

Here is no signal or no service prompt.

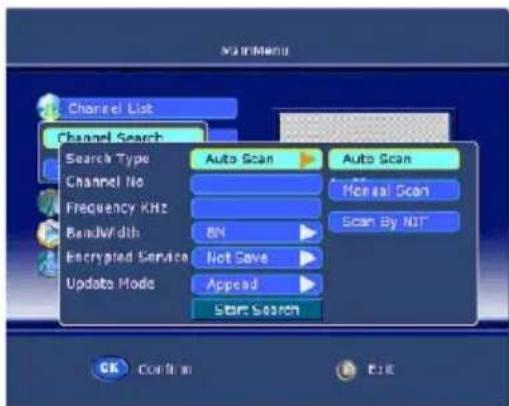

Channel Setting

For the first time installation you should start the searching to the TV Programs. Please navi

gates to Channel Setting and activate the Menu by pressing Enter button. Choose there the option "Channel Scan" and confirm by pressing the Enter button.

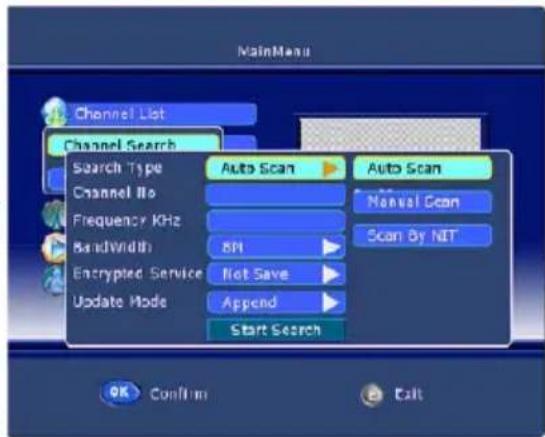

Search Type

Press and then use / to select one of the search type options: Auto Scan/ Manual Scan/ Scan By NIT. Standard setting is "AUTO Scan".

Channel No

Input the number directly to select the channel number, but the range of channel is 0---69. This option is by "Auto Scan" not active.

Frequency

This function let you know the frequency accordance the channel.

DVB-T Mode

Channel Setting

Band Width

Press and then use I to select one of the band width options: 6M/ 7M/ 8M.

Encrypted Service

Press and then use / to select one of the encrypted service options: Save/ Not Save.

Update Mode

Press and then use / to select one of the update mode options: Append/Replace.

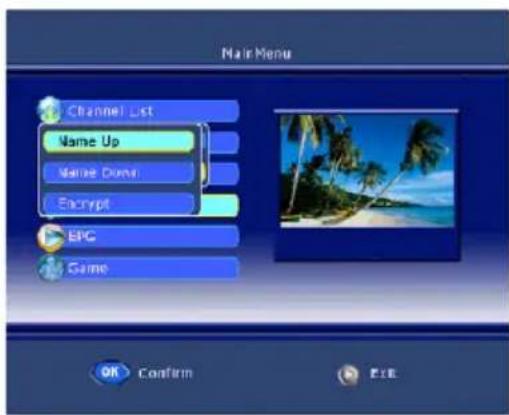

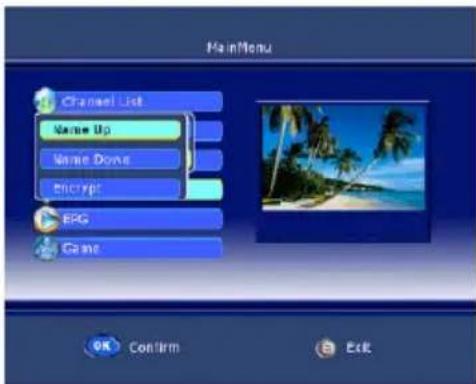

Sort Channel

Use the / to select Sort Channel item and then press Enter to confirm it

Name UP Press Enter to rise to the channel list by name.
Name Down Press Enter to drop the channel list by name.
- Encrypt Press Enter to sort the channel list by encrypting.

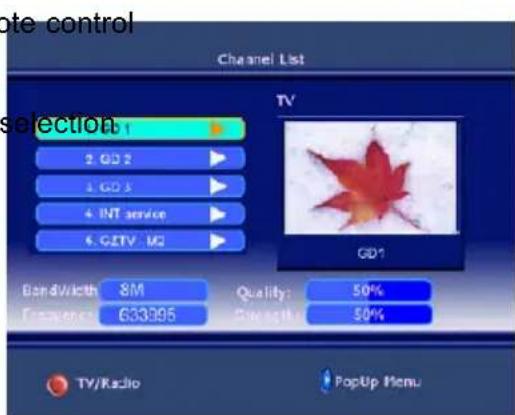

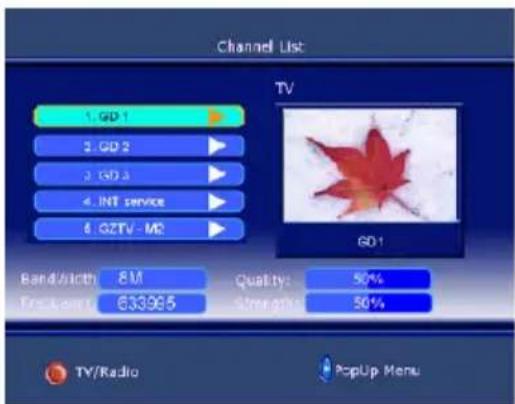

Channel List

1. Press the DVB MENU on the rem to bring up the main menu on the screen and use / to select the Channel List menu.
2. Press the Enter to confirm your and there will be a Channel List menu on the screen
3. There is a channel list of DVB-T services in this menu, also you can see the Band Width/ Quality/ Frequency and Strength of the current service.
4. Using the / to select channel which you like, and press that allow you to delete/ move/ Lock & Unlock it.

DVB-T Mode

Channel List

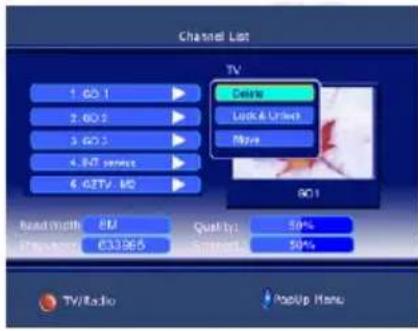

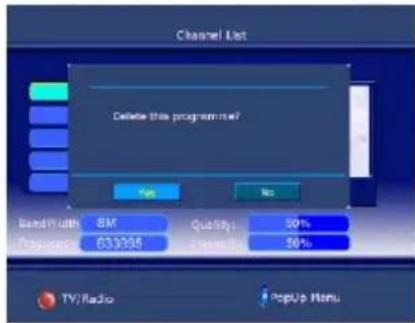

Delete

1. Press I to select the delete item and press OK to confirm it. There is a delete menu on screen as below:
2. Press ENTER to delete the channel and press DTV MENU to return to previous menu.
3. If you want to restore the channel that have been deleted, you should search again.

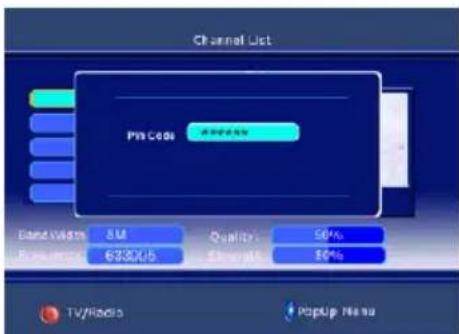

Lock & Unlock

1. Press I to select Lock & Unlock item and press OK to confirm it. There is a pin code menu on screen.
2. Press the number buttons directly to input the pin code that is made up of six numbers and the initial is: 888888. You can change it in System Setting.
3. If Lock is already set, enter the pin code as requested.

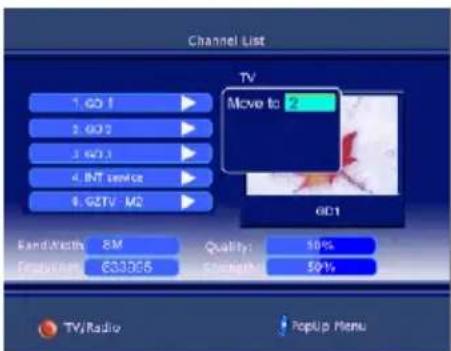

Move

1. This function allows you to change the order of channel in the list.

DVB-T Mode

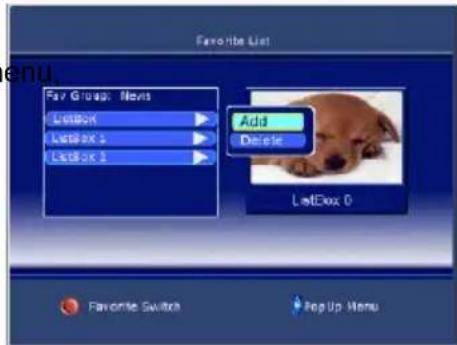

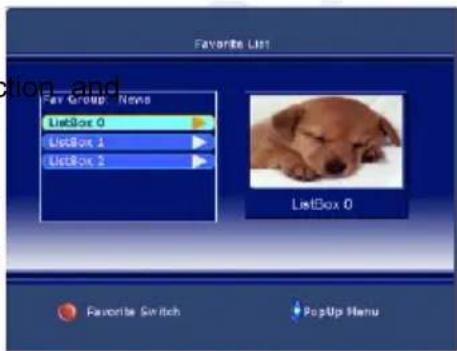

Favorite List

1. Press the DVB MENU on the remote control to bring up the main menu on the screen and use / to select the Favorite List menu.
2. Press the Enter to confirm your selected there have a Favorite List menu on screen as below:
3. Press that you can continue add or delete the favorite channel.
4. Use the / to select add item and then press Enter to confirm it, there have a Channel list menu display on the right, you can use / and Enter to select one of them to your favorite list.
5. Press DVB MENU to return to previous m then press Enter to TV viewing.

System Settings

Press the DVB MENU on the remote control or on the front panel to bring up the main menu on the screen and use / to select the System Setting menu. Press the Enter to confirm your selection and there have a System Setting menu on screen as below:

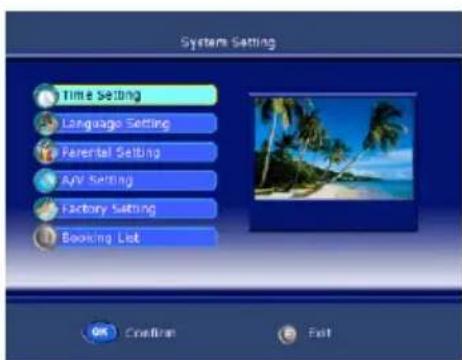

Time Setting

Use the / to select Time Setting item and then press Enter to confirm it

Time zone

Press / to select Time Zone, then press OK to confirm it, you can select the option of GMT+0 --- 8.

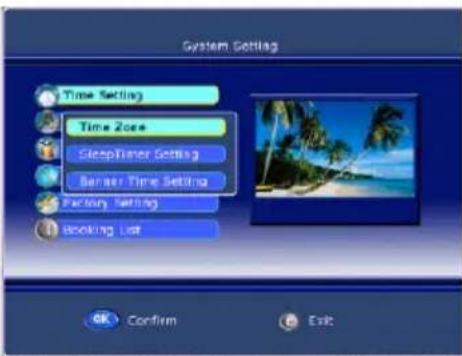

Banner Time Setting

This function allows you to set the time of banner display, you can Press / to select banner time options: 1secs/3secs/5secs/7secs/9secs.

DVB-T Mode

System Settings

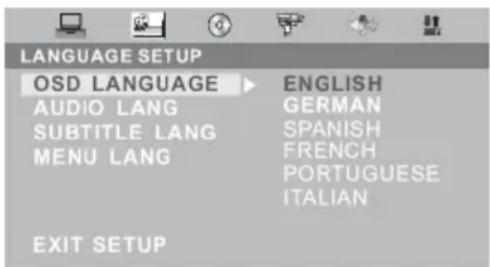

Language Setting

Use the / to select Language Setting item and then press Enter to confirm it.

Menu language

This function allows you to set the language of OSD display, you can Press / to select the options: English / French / German / Spanish / Italian / Portuguese.

Audio language

This function allows you to set the language of audio, you can Press / to select the options: English / French / German / Spanish / Italian / Portuguese.

Parental Setting

Use the / to select Parental Setting item and then press Enter to confirm it. If the lock is already set, enter the pin code as requested.

Chang Pin Code

This function allows you to change the pin code, you should to input a new pin code twice and press OK to confirm it.

Censorship

You can Press / to select an age bracket options: None Block/ 6/10/14/18.

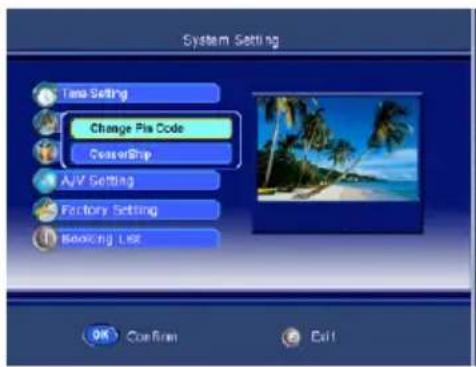

A/V Setting

Use the / to select A/V Setting item and then press Enter to confirm it.

TV Shape

This function allows you to select the proper picture proportion to match the source's image, you can select one of 4:3 and 16:9.

Conversion Prefer

This function allows you to select the screen conversion mode options: Full Frame/ Vertical cut/ Pillar Box or Full Frame/ Pan & Scan/ Letterbox.

Bright & Contrast

Press the / to adjust the value of bright and contrast.

DVB-T Mode

System Settings

Saturation

Press the / to adjust the value of saturation.

Factory Setting

Use the / to select Factory Setting item and then press Enter to confirm it

Restore Default

Press Enter to enter the restore default menu and use Enter to do it else use Menu to return to previous menu.

Clear Channels

Press Enter to enter the clear menu and use Enter to do it else use Menu to return to previous menu.

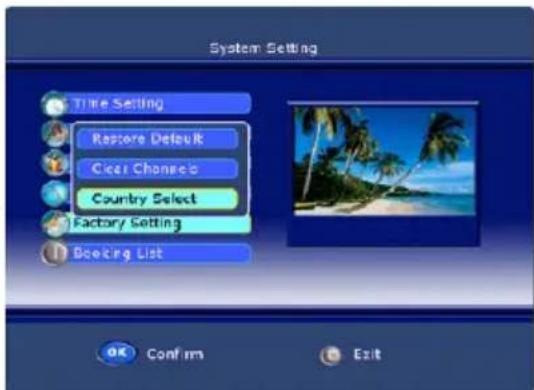

Country Select

Press Enter to enter the country select menu and use / to select country that one of Default.

Timer List

Use the / to select Booking List item and then press Enter to confirm it. This function allows you booking the TV program, press Enter to enter the setting menu

Event ID

Press and then use I to select event id options: 1 / 2 / 3 / 4 / 5

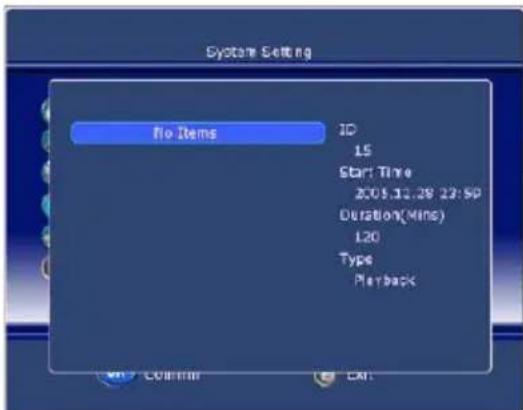

Service

Press Enter and then use / to select channel which you want to book from channel list.

Event type

Press and then use I to select event type options: ONCE/ DAILY/ WEEKLY.

Start Time

Press the / to select the move cursor and input the number directly to set the begin time of channel which you have booked.

Start date

Press the / to select the move cursor and input the number directly to set the begin date of channel which you have booked.

DVB-T Mode

System Settings

Duration

Input the number directly to set the last time of the channel which you have booked.

Status

Press and then use I to select options: ON/ OFF.

System Info

Use the / to select System Info item and then press Enter to confirm it.

Software Version

Use the / to select Software Version item and then press Enter to refer to the version of software.

Hardware Version

Use the / to select Hardware Version item and then press Enter to refer to the version of hardware.

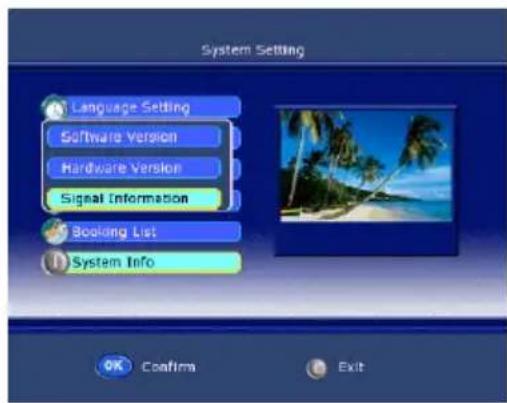

Signal Information

Use the / to select Signal Information item and then press Enter to refer to the signal quality and strength of signal.

EPG

The last submenu in the main menu is EPG.

1. Press the DVB MENU on the remote on the front panel to bring up the main menu on the screen and use I to select the EPG menu.

2. Press the Enter to confirm your selection and there have a EPG menu on screen as below.

3. This function let you know the detailed information of the channel, that can predict the time of the program playing.

4. You can book channel by pressing Enter, and the operation of it is the same as Book setting.

DVB-T Others

Teletext

Press this button to enter Teletext interface. Press it again the background of teletext will become transparent and press it once more to exit teletext mode and return to normal TV viewing.

Press these buttons to access directly to the corresponding color pages displayed at the lower parts of the teletext screen.

PAGE SELECTION

• Press UP and Down buttons to select the preceding or following page.
• You also can enter page number (three digital) directly using the number buttons to select the page, and if you press a wrong number during input, you must complete the three digital number and re-enter the correct page number.
• Press Right and Left buttons to select the sub page of one page.

Other Operations

TV/RADIO

Press TV/Radio to select TV or Radio mode in sequence.

AUDIO

Press audio to select one of audio type as following: Stereo/ Left/ Right/ Mono.

SUBTITLE

Press this button to display the current sub-title, and press it again to hide it.

AUDIO

Press this button to select the Language of the current program.

EPG

Press this button to enter the EPG menu directly.

FAV

Press this button to enter the FAV menu directly.

INFO

Press this button to display some information about current program.

Troubleshooting DVB-T

Our custom service will help you. Did you already read the notes for Troubleshooting? Technical custom service of Xoro/MAS :

Phone: [phone]
Internet: www.xoro.de/support.htm

No DVB-T Signals?

Please check if the HTC xx25D is in DVB-T mode ? If not please switch to this mode.

Bad reception quality?

Please, align your antenna optimally in direction of the mast. Use a antenna with active amplifier or a house antenna and roof antenna. If you have changed the HTC xx25D area, adjust the antenna new or connect an active antenna

No TV programs ?

If there are no more programs shown in the Channel list. Please start automatic searching again.

Remote control works not ?

Please, direct the remote control upon the device. If the problem is not repaired yet, then change the batteries.

NOTE:

In areas with less DVB-T signals the application of amplifier aerials is recommended to the reception of all available TV channels.

DVD-Player

The DVD Player is activated by repeated printings of the AV/TV key.

The DVD Slot-In loader opens and produces now some noise. The Slot-In loader is on the left side of the HTC xx25D. Place the disc with the printed side to the rear into the loader and push very slightly to the right side. You can see the silver side. The loader moves in the disc automatically and reads the disc information.

English

Note:

If the disc is inserts with the wrong side, than the loader tries to read the disc. This procedure needs more time than in a normal way. The loader can not read the disc content and displays the message "No disc" and moves out the disc.

NOTE:

To be able to eject a CD or DVD it is necessary to enable the DVD mode. Otherwise the pressing of the OPEN/CLOSE button () will be without function.

Switch on the unit and press the SOURCE button repeatedly, until "DVD" is displayed right above on the screen. Now the HTC xx25d is in DVD mode.

Function

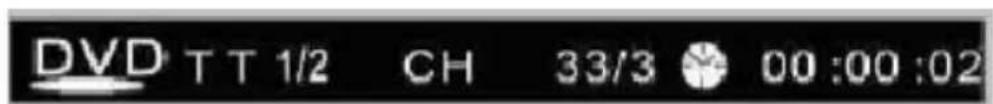

An On Screen Display (OSD) indicator will be displayed at the upper part TV screen when certain functions are executed, or when pressing the OSD button on the remote control.

The OSD indicator is a user friendly interface designed to display the status of playback type. When a different disc is loaded (DVD, CD, Music ready); the OSD indicator bar will be different

The OSD bar will appear automatically if it is activated by pressing the OSD button, Press the OSD button again and a new status bar will appear. Press OSD button a third time and the OSD bar will disappear. When OSD indicator bar appears, press other button, the OSD indicator bar will disappear automatically.

DVD-Player

Function

By pressing the OSD button again the following picture is shown by Video -DVD:

1. Active sound track
2. Format of sound track DD 5.1 CH (channel)
3. Subtitle (not included in this example) (OFF)
4. More aspects (in this example there are no aspects activate at moment)

By MPEG-4 video files the information is a bit different than with a video DVD. Important information for a ISO Data disk with MPEG-4 files are:

1. Disc Format (here CDROM)
2. Number of tracks and which one is just played
3. With or without sound
4. Running time

Open/Close

To open and close the disc tray. Press OPEN button on the front panel or the remote.

Notes:

Player will not skip forward or backward during "WARNING" section of a DVD disc.
- Single chapter DVD or single track CD cannot skip

Play/Pause

Press PLAY button to play the disc. Press PLAY/AAUSE button again to pause (still picture). Press PLAY/PAUSE button to playback the content.

Stop

Press STOP button to stop in two modes:

• Press STOP button once. Stop memorizes the interrupt position and the OSD shows PRESTOP. Resume play by pressing PLAY button.
• Press STOP button twice completely stop disc. The OSD shows "STOP" and the PLAY button will resume disc.

DVD-Player

Function

Press this button skip advance DVD chapter or CD track.

Press this button skip backward DVD chapter or CD track.

Fast Backward/Fast Forward

Press this button to fast backward through the disc. Repeatedly press the button.

Press this button to fast forward through the disc. Repeatedly press the button will increase the search speed.

Notes:

The changes in speed by fast backward or fast forward are from Normal x2 x4 x8 20 Normal
- The player is muted in fast forward or fast backward this mode.
- Player will not fast forward or fast backward during WARNING section of a DVD disc

DVD Menu

While playing a DVD, press the MENU button return to the DVD disc menu.

Numeric Buttons

Numerical key pad (Random Program access)

1. To direct access a DVD chapter or a CD track, input the desired

DVD chapter or CD track number using the numerical key pad.

1. Input data for the DVD disc start menu or the player's setup menu.

Title

While playing a DVD, press the TITLE button return to the DVD disc title menu.

Audio Track

While playback a DVD disc, press LANG button repeatedly to select the desired audio sound track. A DVD disc may contain up to 8 selectable audio sound tracks.

DVD-Player

Function

Repeat section A-B

To repeat playback a specific section of a disc.

• Press the A-B button at the starting point of the desired section, "REPEAT A-" display on screen.
• Press the A-B button again, at the end of the desired section, "REPEAT A-B" display on screen. The desired section A to B until the function is cancelled.
• To cancel the function, Press the A-B button again return to normal play.

Note:

Some DVD discs do not allow A-B function

Repeat Mode

Press PEPEAT button repeatedly to select the repeat mode. In DVD mode In CD mode

REP.CHAPTER Repeat chapter REP.1 Repeat track
REP.TITLE Repeat title REP.ALL Repeat disc
REP.OFF Repeat off REP.OFF Repeat off

Note:

Some DVD discs do not allow repeat function.

Angle

While playback a DVD disc, press ANGLE button repeatedly to select the desired camera angle. A DVD disc may contain up to 9 selectable camera angles.

Subtitle

While play a DVD disc, press SUB-T button repeatedly to select the desired subtitle, A DVD disc may contains up to 32 selectable subtitles.

Note:

DVD disc start menu may contains set up of angle, Subtitle and Audio soundtrack selection. You may do the selection in the disc start menu.

Zoom

Press the ZOOM button repeatedly TV Screen display:
ZOOM x2 -> ZOOM x3 -> ZOOM x4 -> ZOOM x1/2 -> ZOOM x1/3 -> ZOOM x1/4 -> ZOOM OFF

When playback the JPEG. Press the ZOOM button display the zoom x1/2, x1/3, x1/4, press direction button to rotate picture. While display the zoom x2, x3, x4, press direction button to move picture position.

DVD-Player

Function

Program

Press PROG button to quit the program menu.

In DVD mode

When the program menu appears input the Title and Chapter Number

PLAY: Press PLAY button to start program play.

CLEAR: Press CLEAR button if you want to cancel the wrong information you input. Press CLEAR again to cancel all the tracks.

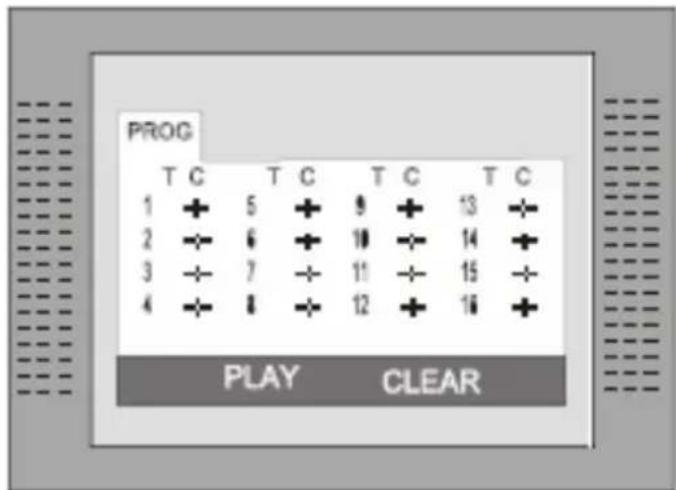

In CD mode

When the program menu appears, input the Track number, press ENTER, when the programming is completed.

Data disc with Music, JPEG or Video files

1. Switch on the unit
2. Pressing SOURCE button repeatedly till "DVD" is displayed above left on screen.
3. Insert a disc with Music, JPEG or MPEG-1, MPEG-2 or MPEG-4 video files

Insert the a disc and the player will auto search the directories saved Music/JPEG files. After searching, it will auto go to the first directory saved Music files (to the disc containing both Music and JPEG files. To the disc containing single type of files, it will go to the first directory) and play the first song in the directory (File name is highlighted). The screen displays as the picture below:

Note:

• With the arrow key to the right you can change between the catalogue window, the Chops and Track window and to the file format. File formats are of the order: music (mark (note)), pictures (camera) and video (arrow).

• The DVD player starts with the playback of Music files.

DVD-Player

Data disc with Music, JPEG or Video files

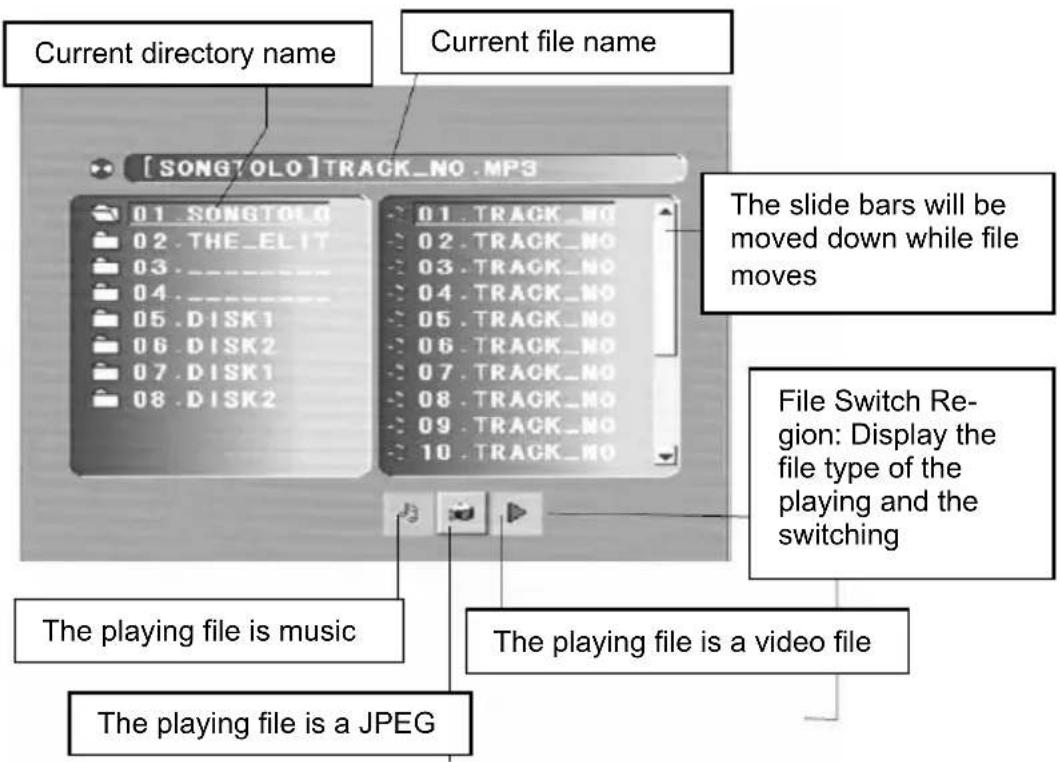

1. Use the Arrow buttons to enter the Directory Region and highlight the desired directory, then the first track under it starts playback. You also can use the arrow buttons to enter the File Region and select the file you want to play.

Notes:

• With pressing the Left and Right arrow buttons, you can activate Directory Region, File Region and File Switch Region separately.
  The highlight in Directory Region and File Region is shown as the picture on left page; While highlighted, a transparent rectangle appears
• In File Switch Region, you can press the Left and Right arrow buttons to switch the highlight, then press Enter; the " " " and " "Button is illustrated in the left side picture. For example, if a disc with Music and JPEG files but without any Video files is loaded, the color of the letter " " and " " will be white and " " black. If a Music file playing, " " turns red.
• When playing a JPEG picture on discs containing WMA, MP3 and JPEG files, press the Return button to return to JPEG list.
• You can press the Numeric buttons to select the file you want to play. For example, if you desire the 15^th track in current list, press the "10+" Button once, then press "5", the 15^th starts playback.

Notes:

• When playing a disc with MP3files, no video can be displayed at the same time.
• You can press the "PREVIEW" buttons to get helpful message.
• When playing JPEG picture, press the Program button to choose the picture transition mode. There are 17 transition modes available. Press Program repeatedly to activate the function and choose the desired switch mode. Following transition modes are available :Spread from Left Up to Down, Spread from Down to Left, spread from Left to Right, Spread from Right to Left, Spread from Left Up to Right Down, spread from Right UP to Left Down, Spread Left Down to Right Up, Spread From Right Down to Left Up, Spread from Center to Up /Down, Fold from Up /Down to Center, old from Left/Right to Center, Horizontal Shutter, Vertical Shutter, Fold from the Corners to the Center, and Play, Off.

DVD Player Setup

Press the DVD SETUP button to enter the player's setup menu. Setup menu is a facility for the owner to adjust the detail setting of the player. For the detail of Setup menu see "SET UP MENU" of this instruction manual. Various features of the player can be adjusted in the SETUP menu.

1. Press DVD SETUP button SETUP menu appears.
2. Press the UP/DOWN button to highlight the desired menu.

In STOP mode, press DVD SETUP button Highlight SYSTEM SETUP. Press UP/DOWN button to select the subtitle. Press ENTER button, the screen displays submenu.

• Press UP/DOWN button to highlight the desired time
• Press ENTER confirm your selected item.

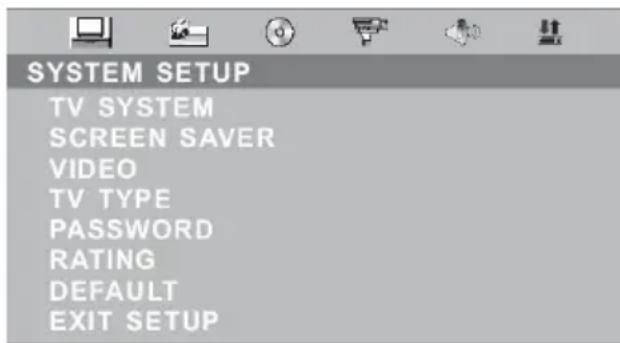

Three different global settings are in the Setup available:

1. System Setup for TV systems, TV Type, Password, Rating and Default settings.
2. Language Setup for OSD, Audio, Subtitle, Menu and MPEG-4 Subtitle settings.
3. Audio Setup for Down mix, Audio Out and Dual Mono settings.

System Setup:

TV System

There are NTSC/PAL/ PAL 60 / AUTO three modes, and choose one mode according your TV mode.

If the TV mode is not suitable as the DVD player screen will blink and become colourless.

The default setting: PAL

SCREENSAVER

This setting activates or deactivates the screen saver. If the screen saver is ON, than appears the screen saver automatically when the playback stops for a longer time or when no disc is inside.

VIDEO

The setting defines the kind of video output. This setting can not changed, because the video output is fixed.

DVD Player Setup

System setup

TV Type

1. 4:3 Pan Scan: It is suit to the common size TV. When playing, the picture will be cut . so that the TV screen is filled with the picture.
2. 4:3 Letter box: when the player connect to the commonly size TV, please select the type. The top and bottom of TV screen will display black frame.
3. 16:9 Wide Screen: When the player connects to the wide screen TV.

16:9

Wide

4:3

LetterBox

4:3

Pan Scan

The default setting: 4 : 3 Pan Scan.

Password

Move the cursor the PASSWORD item and press ENTER button to confirm and then input the secret code "0000" (if it is the first use). After confirmation, you are required to input new secret code and then press ENTER "button" to confirm.

Warning:

Please remember the new secret code, otherwise you will not be able to change the parental control. Please contact the agent or our company if you forget the secret code.

RATING

There are total eight levels of this control. Eight levels as follow:

1. KID-SAFE
2. G
3. PG
4. PG13
5. PG-R
6. R
7. NC-17
8. ADULT

The first level discs are open to people of average and eight level only suitable for the adult. If you want to change the Parental control setting, enter the user's age control item and then enter four digital secret code. The default secret code is 8357(if you are using this player for the first time, just input this code). If the input code has been confirmed, the level setting up menu will appear. Move the cursor to choose the expected level and press ENTER button to confirm and store it.

Default

This is the factory default setting up. When choose "RESTORE", the previous setting up, by the user will be cancelled and the player will come to the factory setting up state.

DVD Player Setup

Language Setup

In STOP mode, press DVD SETUP button and Highlight LANGUAGE.

• Press UP/DOWN button
• Press ENTER button, the screen displays submenu.
• Press UP/DOWN button to highlight the desired item in the LANGUAGE menu.
• Press ENTER to confirm your selected item.
• Press SETUP button SETUP to quit.

LANGUAGE SETUP

OSD LANGUAGE

AUDIO LANG

SUBTITLE LANG

MENULANG

ENGLISH

GERMAN

SPANISH

FRENCH

PORTUGUESE

ITALIAN

EXIT SETUP

MPEG4-Lang

Select the a codepage for the MPEG-4 Subtitle:

Central EU: Swedish etc.

Cyrillic: Russian, Serbian etc.

Western EU: German, French etc...

East EU: Polish., Slovene etc.

Video setup

In STOP mode, press DVD SETUP button, highlight VIDEO SETUP. Press ENTER to enter next sub-menu.

The sub menu are "Brightness", "Contrast", "Hue", "Saturation" and "Sharpness".

Enter into one of the sub menu and change the settings by using the navigation buttons UP or DOWN. To save the new setting, please press the ENTER button.

VIDEO SETUP

BRIGHTNESS

CONTRAST

HUE

SATURATION

SHARPNESS

EXIT SETUP

DVD Player Setup

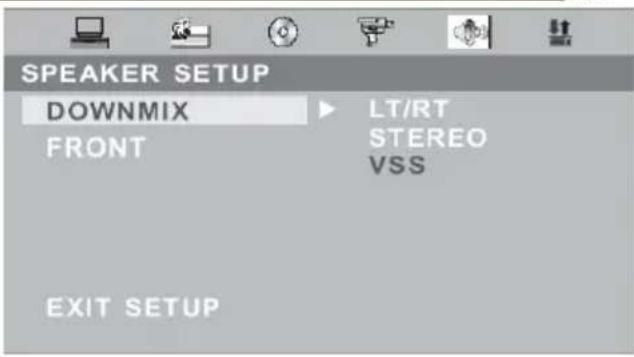

SPEAKER SETUP

In STOP mode, press DVD SETUP button and Highlight SPEAKER SETUP.

• Press UP/DOWN button
• Press ENTER button, the screen displays submenu.
• Press UP/DOWN button to highlight the desired item in the LANGUAGE menu.
• Press ENTER to confirm your selected item.
• Press SETUP button SETUP to quit.

Downmix

This setting is suitable for films. If you only need two channels to enjoy music, it's recommended to select the second option, Stereo.
The option VSS produces a "virtual surround sound".
- LT/RT divided the channels.

FRONT

Adjust the size of the front speaker.

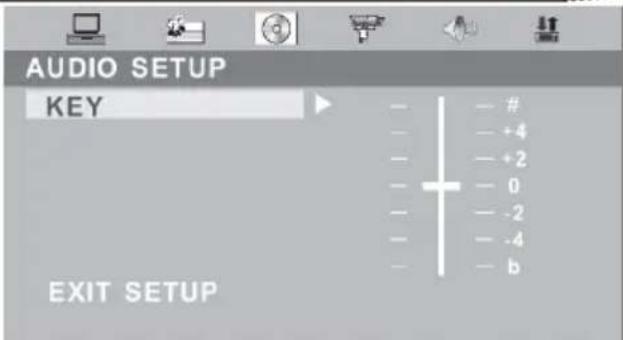

AUDIO setup

The setting "KEY" adjust the bass audio output.

Positive values for decreasing the bass. Negative values for increasing the bass.

DVD Player Setup

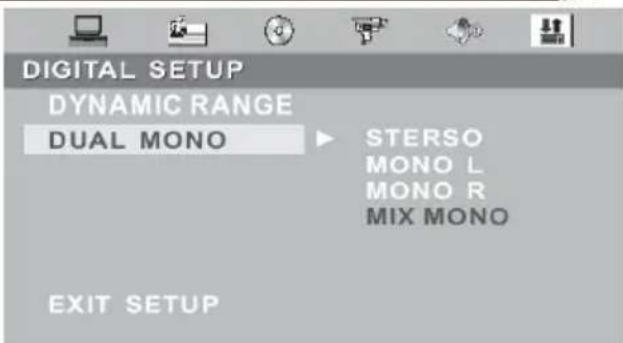

Digital setup

In STOP mode, press DVD SETUP button and Highlight DIGITAL SETUP.

• Press UP/DOWN button
• Press ENTER button, the screen displays submenu.
• Press UP/DOWN button to highlight the desired item in the LANGUAGE menu.
• Press ENTER to confirm your selected item.
• Press SETUP button SETUP to quit.

Dynamic Range

Here you can change the audio compression. If you choose the setting "FULL" than the audio gets the biggest limitation. A kind of "NIGHT MODE". By using the setting "OFF", the audio gets no compression.

Dual Mono

The options here are Stereo, Mono L, Mono R and Miy Mono.

If you have Dolby digital output your amplifier/decoder, you may select stereo, left, right and mixed sound accordingly.

Troubleshooting

Our custom service will help you. Did you already read the Troubleshooting pages?

Technical custom service of Xoro/MAS:

Phone: [phone]
Internet: www.xoro.de/support.htm

English

Symptom Check and Action
Does not play	No disc, load a disc.Disc has been loaded upside down. Place the disc with the label side up.Disc's region code does not match to the player.Disc's rating level is higher than the player's rating level setting.Disc is not correct type for the player.Disc is damaged or power on for one or two hours.Moisture may be condensed inside the player. Remove the disc and leave the unit power on for one or two hours.
No Picture	Check the system connection is proper and secure.Check if the connection cables are damagedCLEAN the disc.
Picture noise/distorted	The disc is dirty or damaged. Clean the disc or try another disc.
Picture not full screen	Select the screen format from the player's SETUP MENU.See “SETUP MENU” of this manual.Select the screen format from DVD disc menu.
Problem message display on screen	Following message will display when there is a problem with the loaded disc" 1. "WRONG REGIONAL DISC": Disc's region code is not match to the player. 2. "WRONG PASSWORD": The player refuse to play a disc with rating level higher than the player's rating level setting. 3. "WRONG DISC": The player is equipped with automatic disc quality detection software. When the player detects a problem disc or a damaged disc, the player may keep playing the disc at lower quality or stop playing, depending on the damage level of the disc.

Troubleshooting

Symptom Check and Action
Cannot SKIP or SEARCH	Some discs are programmed that do not allow users to SKIP or SEARCH a some sections, especially at the beginning WARNING section Single Chapter disc cannot apply SKIP function.
Remote control des not function	Remove the obstacles between the remote control and the player. Point the remote control towards the remote sensor on the player. Check if the batteries of the remote control have been loaded with correct polarities. Replace the batteries of the remote control.

Macrovision

U.S. Patens Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448 and 6,516,132

"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited."

Specification

English

HTC 1525D HTC	1925 HTC 2225D
Screen Size 39 cm	(15,4 inch) 48 cm (19 inch) 56 cm (22 inch)
Display Type TFT LCD
Resolution 1280 x	800 1440 x 900 1680 x	1050
Aspect Ratio 16:10
Brightness 200 cd/m	2	300	2 cd/m 400
Contrast 300:1	1000:1	1000:1
Response Time 25	ms 6,5 ms 5 ms
Viewing Angle	90°	160°	160°
TV System	PAL BG / DK / I SECAM BG / DK / L / L'
Stereo	NICAM / A2
Interface
CVBS Video	1,0 V p-p 75 Ohm unausgeglichen
S-Video	Y: 1,0 V p-p +/- 3 dB C: 0,3 V p-p +/- 3 dB
Scart	CVBS: 1,0 V p-p 75 Ohm RGB: 1,0 V p-p 75 Ohm
PC VGA	640 x 480 bei 60 Hz / 800 x 600 bei 60 Hz / 1024 x 768 bei 60 Hz Empfohlen wird immer die native Auflösung.
Antenna	RF Antennenanschluss, 75 Ohm
Speaker	2 x 3 Watt	2 x 3 Watt	2 x 5 Watt
Video System	PAL / NTSC
AC / DC Adapter	AC: 110—260 V 50 / 60 Hz DC: 12 V bei max. 5 A
Consumption	60 W / Standby 3 W
Dimension (LxTxD)	385 x 175 x 336 mm	465 x 210 x 410 mm	540 x 210 x 460 mm
Weight	5,5 kg	6,5 kg	7,0 kg

cd/m

us6u3

Ipeed hauanom 3Kcnpnyataunn KK TeJeBn3opa co BCTpoEHbIM DVD npOnrpbIBaTeJem (MOHO6Joka), NOXaJyNcTa, BHIMaTeJbH0 npOHTe pyKOBOCTBO nOlb3OBaTeJIa!

3neKtpnuecka 6e3oNaChocTb

• MoHobnok cneDyET noDKIIOuATb K cETn 3NeKtpOniTahnra TOnbKO C TeM HAnpJxHeHem, KOToPoE yKa3aHO Ha aAdanTepe.
• Дя педотьразецни порузк He ИспобуITE odHy I Ty Ze po3eTKy эл ekтponntаня дя Heckолькx риборов.
• BydTe octopoxHbI, He pacnoJaarTe uHyp 3JekTpOnnTaHnB MecTax, rHe Ha Hero MoXHO HAcTyNtB.

• O63aTeNbHO BbIKIIOuaIte MOHO6NOK, KOrda OH He IcNoJIb3yETc. EcNI Bbl He IIaHpyeTe NcNOB3OBaTb MOHO6NOK dInTeJIbHOe BpeM, OTKIIIOHTe erO OT aJIeKTPOCETn.
  He donyckaite nonadHn Jnkoctn nBn BnHa MOHOk nn Ha Iy (nybT dntaHOnHoro ynpabNeHna).
  B cnlyae BO3HNKHOBeHn JIO60n 3 nepeuNCJIeHHbIX HHXe CNTyaCNI, Heo6xOJMo OTKnIOHTb TeJeBN3Op OT 3JIeKTPocETn n O6paTntbcra B cepBnCHbI cHTp:

• NOBpeKdHa BnJIka CeTeBOrO shHypa nn cam shHyp;
  BHyTpB KOpnyca nonana XnDkoCTb nnn npnbop noDBeprc B03deIcTBIO Bna;

• NOCTOPOHHn IpeMTe NOnaB BeHTINJrLIOHHOe OTBepCTne;
  MOHO6JOKΦyHKUOHNpyeTHeCTaBnIbHO.

He otKpbBaIe Kopnyc yctpoiCTBa. BHytpn ycTPOiCTBa Het y3IOB, Tpe6yUoXn 06cnyxNBaHn IOnb3OBaTeIeM. Ppi Heo6xoJIMocTN o6paauTeCb ToIbKO K KBaIIΦNUPOBAHbIM CneuaJIncTaM.
Bo n36ekahne npoTeukydaJnTe 3JeMeHTbI nITaHnNn3 Iy, KOrda:

cpoK cIyK6bl 6aTapeek nCTeK;
- HHe nCnoNb3yETcB TeueHne JInTeJbHoro BpeMeHN.

He 6pocaiTe 6aTapeiKn B oroHb.

Φn3nuecka 6e30naCHOctb

• Y6eIntecb, yTO MOHOblok paCNOLOXKeH Ha pacCTOJHn He MeHee 5cm ot CTehb nn Me6eN.
• Hnkornda He cTyuTe no 3KpaHy n He paCaTaBbAaTe erO.
  He donyckaTe nonadHnna KnkocTn Ha Ndy n Hnkorda He pa3bpaTe Ndy.
• Chnte MOHOBOK, INcNoIb3yra TOnbKO MrgKyIO, NcCTyIO, cyxyIO TkaHB. He donyckaTcra cnoJIb3OBAHne pactBopnteJe.

Pycckn

Tpe6oBaHn8 6e3oNaCHO 3KcNpyatau

3KneKTnuecka 6e3oNaChocTb 1
Φn3nuecka 6e3oNaCHocTb 1

KoMnJIeKtaun 3

OchOBhIe oco6eHHoCTn 3

KhoNk ynpaBneHn npa3bEmbl Ha Kopnyce ycTpoiCTBa

TbInobar naHelb 4
Ppabaa 6okobaa naHeIb. 4
BepxHra naneb. 5
BkIIOueHHe/BbIKIOueHHe MoHO6JOKa N BbI6Op IcToUHka CnHaJa 5

Nyt dntaHnOHoro ynpabneHn

POnrToBka PnU K pa6oTe 8
Ppabnna nncnoB3OBaHnra Pny 8
PacnoJIOxHeNKeKHOJOKHaIy. 9

OchOBhble onepaunpeXnMa TB

PpHcHbI pa6ObI MeHIO HAcTpoEK 11
Hacrpoika n3o6paKeHnra 12
Hactpoika pexima kombtoephoro moHTopa 12
Hacrpoika pexima HDMI 13
HacrpoKa 3Byka. 14
Hacrpoika TelebeuHaHa 14
Obune HacrpoKn 16
HeicnpabHocTn TeleBn3opa n cnocobn ux yctpaHnna 17

OchOBhble onepaun pexmAm DVB-T

PpHcunbI pa6Otb MeHIO HacTpoek 18
Hacrpoika kaHaIOB 18
Onepaunco cncKom KaHaoB 19
Cnncok IIO6mbix KaHaNoB 21
CnCTeMHbIe HacTpoIKu 21
3NeKtpoHna nporpaMa nepea.. 25
TeTetekct 26
DonoHnTeIbHbIe onepaun 26
HeicnpabHocn npneMHka DVB-T n cnocobIx ycTpaHenn 27

OchOBhble onepaunn pexmam DVD

3arpy3ka/n3BneueHne DVD ncka 28
HOpMaOnOHnA cTpKa peXmAm DVD 28
OchOBhIe npabnla ynpaBneHn Bocnpo3BeDeHnEM DnCKOB 29
Bocnpoun3BeHne paJIOB MP3, MPEG-4 n JPEG 33

Hactpoika DVD nponrpbBaTeJia

CnCTeMHbIe HacTpoIKu 35
HactpoKa Ra3bIKOBbIX npaMeTpOB 37
HactpoIka n3obpaxeHn 38
HactpoKa 3Byka 38
Hacrpoika ufofoBoro aynoobbixo.. 39
Hactpoika rpoMkoorOBopnteJe 39
HeicnpabHocTn DVD npouirpbBateJn cnocobInx ycTpa HeHHa 40

TexHHueckne xapaKTepeNCTnKn 42

Pn pacnaKOBKe ycTpoiCtBa, noXaIyIcTa, y6eIITecb, YTO npncytCTByOT cneDyUoune akceccyapbl:

• JKK TeJIeBn3Op co BCTpOeHHbIM DVD npoIrpBaTeJIeM HTC 1525D/HTC1925D/HTC 2225D
• IyIbT dNCTaHcNoHHoro ynpaBneHnra (PdY) c6aTapeKamn
  PykoBoIDCTBO nonb3OBaTeJIa
  AaTep 3JekTpOnnTaHn
  Ka6eB 3neKtpoNTaHnA
• rapaHTnHbTaNOH

PpumeyaHue:

• Ecnu kaque-mo u3 akceccyapoe omcymcmeiom, noxanyucma, cpa3y xe obpamumecb K dunepy.
  Coxpanhme ynapokky, oHa moXem Bam noHadoombc e 6yduem npu mpaHcnopmupoe neepa.
  Bce2a mpaHcnpmupyme unu xpaHume npouzpbIaMeIb e e2o opuzuaHbHOyakoeke.
  He mehme u He moduphiupyume demanu npouapbiamen un ezo akceccyapbl

OCHOBHbIEOCo6eHHoCTN

BbICOKOKaueCTBeHHbI DnCnJIeI
BolbOe KOJIueCTBO INHTeppeincoB: VGA, RF, Video, S-VIDEO, SCART n HDMI
- Iopdepka pa3pehenno 1080 cTpok npn noKnHueHH K nCTOHNKy COOTBeTcTByUoIero CnHaNa no nHTepceIcy HDMI . (OTHOCITc TOnbKO K MoJeIaM HTC 1925D u HTC 2225D.)
- CTepeOBxoI
BcTpoeHHbI TIOHeP aHaIorOBoro TeNeBeUaHnA
BcTpoHHbI TIOHep cHPOBOrHa3eMHOro TeHeBeaHnra (DVB-T)
- ABTomatnueckn n pyuHoi nonck n COxpaHeHne TeJeBn3NOHHbIX KaHaJIOB
ABTOMaTHueckoe OTKIOUeHne npn OTCyTCTBn BXoHOrO CnHaJa
BcTpoeHHbI DVD npoirpbBaTeIb co igeNoB 3arpy3KoI nCKOB

PpumueaHue:

Bmodenu HTC 1525D uHmepfeuc HDMI omcymcmeyem.

TbINOba naHeB

Pycckn

Nodknoyehue aHmeHHbI

MOHO6JOK IMeET BCTPOEHHbIe aHaIIOROBbI N cHpOBOI TIOHEpbI. IODCOeINHTe aHTeHHbI Ka6JIb K aHTeHHOMy RF pa3bemy Ha TBIOBOI NaHeJI MOHO6JIOKA.

Длг пиема aHaIorOBoro TeIecnHana Bbl moKTe NcNoJIb3OBAtB BHeUHIO aHTeHHy 3ФnPHOro BeuaHnry nI IN KOMHaTHyIO aHTeHHy nIaTHORo BeuHnry.Длг пиема zuΦpOBoro TeIecnHana Ha3emHO RO BeuaHnry Bbl moKTe NcNoJIb3OBAtB CneuaJIbHyIO BHeUHIO IIN KOMHaTHyIO aHTeHHy.Длг aKTbN3aUNa aHaIorOBoro TIOhepa BbIbepNTe npN NOMOUn KHONK SOURCE B KaueCTBe NCTOCHNa cInHaJaTV, aДлг aKTNbauN uΦpOBoro TIOhepa BblbepNTe B KaueCTBe NCTOCHNa cInHaJa DVB.

PpumeyaHue:

Для полуеня Мakсмальноу качесma zuфpoe02о eшану ucnolb3yime cneuaanuzupoeahnyo beshnIO aHmeHHy. Ecnu smo He603moxHo, mo ucnolb3yume KOMhamHyO aHmeHHy.

Iodknioyuene npu nomouka6nra SCART

IHTepceic SCART no3B0JAEt nepeDaBaTb BCE aydno-BnideocnHaJIb IIO ODHOMy Ka6eIo. CoedHInTe pa3beMbI SCART Ha TBIOBOI NaHeN MOHObNoKa N TBIOBOI NaHeN DVD IIIN BnDEOMaHRHTofoHa npn nomOuN Ka6eY SCART. Pp nnomOuN KHOKN SOURCE BBi6epnte SCART B KaueCTBe NCTOCHNka BnDEOCnHaJa. Nocne 3tOrO MoHO6NoK bUdET rOTOB pRnHIMaTb ayDNO-BnDEOCnHaJIbI NO Ka6eIo SCART.

IodknoueHue npu nomoucu CVBS (AV) ka6eJra

EcnBbI NOkNoaete K MOHObNoKy 6OJee OndHoro BHeuHero nCToUHaJa, a pa3bEmbl SCART, HDMI n S-Video yke 3aJeNCTBOBaHbI, TO dIy NOkNoUeHnry OuepeHoro yctpoiCTBa Bbl MoKTe NcNOJb3OBaTb CtAnDapThbY AV Ka6eJIb. Pn NiMoOnu ayINO-BnDeOkabEnra RCA coeHNHTe 6bIy n KpachbI pa3bEmbl AU-DIO IN L/R n JeNTbI pa3bem VIDEO, pacnoNoXeHHbIe Ha TbINOBoI naHeII MoHObNoKa, TbINOBoI naHeII DVD nIN BnDeomarHnToΦoHa

Pn NOMOUI KHOJKN SOURCE BbIepeITe AV B KaueCTBe NCTOUYHka BInDeOCINHaJIa.

Iocne 3Toro MOHO6nok 6ydt roTOB npHHMaTb ayDIO-BuDEoCINHaJIb no AV ka6enio.

Iodknouhe npu nomouka6e S-VIDEO

EcnBbI NOdkNIOUaTe K MOHO6NOy 6OJIe OJHoro BHeuHero NCTOUYHka CnHaJa, a pa3bEmbI SCART, HDMI n AV yXe 3aJeINCTBOBaHbI, To dIra IoDKNIOUeHNr OuepeHoro yCTpoiCTBa Bbl MoKeTe INcNoJIb3OBaTb pa3bem S-VIDEO.

CoedHnTe pa3bEmbl S-VIDEO Ha TbIOBOI nAHeIN MOHOLOKa n TbIOBOI nAHeIN DVD nn BnDeomarHnTofoHa npn nOoN KabeN S-VIDEO, a pa3bEmbl AUDIO IN R/L npn nOoN RCA aynokabena. Ppr nOoN KONKIN SOURCE Bb6epnte S-VIDEO B KaueCTBe NCTOHNka BnDeocnHaHa.

Iocne 3Toro MOHOBLOK 6ydet roTOB npINHMaTB BnDEOCnHaJ no Ka6eJIO S-VIDEO, ayDnOscnHaJIbI NO RCA cTepeoayDnOKa6eJIO.

Iodknouehue npu nomoou ka6eJr HDMI

HnTepfeic HDMI, noD6Ho nHTepfeyc SCART, no3BOJAEt nepeDaBaTb BCE aydno-BnDEocnHaJIbI NO Ondomy HDMI Ka6eHIO, HO B uΦpOBom φopMaTe C 6oJee BbICOKIM KauCtBOM. O6bHuO 3TOT nHTepfecN cNoJIb3yOT dJa NODKIIuOHeHn IrPoBBx KOHCOnEi PS3 INn CnTyTHNKOBbIX npneMHIKOB. CoeINHte pa3bEmbl HDMI Ha TBJIOBn NaHeJN MOHOJIOKa N TbIIOBOI NaHeJN DVD, BNDeOMaHNToΦOHa, IrPOBOI KOHCONI INN CnTyTHNKOBOrO npneMHnKa npn NOMOUs KabEnr HDMl. Ppr NOMOUs KNOpKn SOURCE Bbl6epnte HDMIB KauCCTBe NCTOCHNk BADeOCnHaJa. Nocne 3toro MoHO6nok 6yDet rOtOB npHHMaTb aydNOBnDEocnHaJIbI no Ka6eHIO HDMl.

Iodknouhe npu nomou VGA ka6eJra

2 YCTAHOBNTE 3JIEMENTbI NITAHN,co6JIOdaa nonapHOCTb.

3 3akpoTe KpbuKy OTeKa 3IeMeHToB NHTAHN.

Ha npabte NaH a NK-cehcop MoHO6noka (pacnoJoxeH Ha 0 pOHTaBHOI naHeJI) HaxMITE KhoNky, COOTBeTCTByUoYIO Heo6xOIMoKOMaHNe.

PacctoHne MeKdy NMy mOHo6nokOM DoJXHO 6bItb He 6OJIe 5M. 3ΦΦeKTHBHy yrOJ «063opa» IK-cehcopa nIeepa ± 30^

PpumeyaHua no uCnoJb3o8aHuO 6amapeek:

HecobnOeHne nepeuNCHeHHbIX HnKe yka3aHm MoKet npNBecT K yTeUKe 3NeKtpoNtA n KoppO3nn 6aTaapeek:

• Пи установке батаразек соблюдайтпоггость.
• YcTaHaBnBaembIe 6aTapeKn DoJXHbI 6bITb OndHO r TOrO Xe Tnna.
  Bo Bpemr dIHTeBbIX nepepbIBOB B nCIOJIb3OBAHn Iy BbIHMaTe N3 Hero 6aTapeKn.
• Pn HnpaBnIbHoi pa6ote Ndy 3aMeHnte 6aTapeKn.
  B cnyuae yTeuKN 3JeKtpoNt a npotpnte 6aTapeHbI OTcEK u yCTaHOBnTE HOBblE 6aTapeKn.
• Pnp ytnn3aunbatapeek co6nodaTe yctahOBenHbIe npabuna.

PpumeyaHua:

• HanpaBnaume Iny Ha UK-ceHcop, pacnoJoxeHHbI Ha 0 poHmabHOu naHeNu MOHbNoka.
  HeponymeIy.
• Obepeaume Pny om nonadanua kudokocmu.
  He pa36upaume Iy.

PacnoJoxeHue KhoNOK Ha N

ATV: Ahaorobb IB TB TIOHEP

DVB-T: LufpoBoB TB TIOHeP

DVD: DVD nponrpbBaTeNb

1. POWER: BKJIQUHHe NITaHnI INI INepeXoD B peKIM 3HEproc6epExeHnI Standby.
2. PMODE: BbIbOp peKIma OTo6paKeHnA.
3. SMODE: BB6op pejkma 3ByaHnA.
4. 0-9: Bb6op KaHaJa BeaHnIy 0-9.
5. LCD MENU: HactpoikKa TeJIeBn3opa.
6. DVD SETUP: HacTpoNka DVD npOnrpBbTaTeJa.
   7.ДхоьстнржmaTV（/V/OK）：KHOKNynpaBHeHn Kypcopom.
7. ENTER: NOIITBePKeHHe BbI6paHHbIX 3HaueHnB 3KpaHHbIX MEHIO HAcTpoEk.
8. VOL-/VOL+: yBENueHne/YMeHbSeHne o6eI rPOMKoCTN.
9. ATV: Kpacna KHonka pexnma TeJeTeKCT;
   DVB-T: SUBTITLE: BbI6op r3bika cy6TnTPOB n
   Kpacna KHonka pexnma TeJeTeKCT;
   DVD: SUBTITLE: BbI6op r3bika cy6TnTPOB.
10. ATV: NICAM: BKNIOHHepe pexnma NICAM 3eNEHAR KONKa peXnMa TeTeKCT; DVB-T: AUDIO: Bb6op RaBka 3ByKOBOrO COpOBxKeHnI N 3eNEHAR KONKa peXnMa TeTeKCT;
    DVD: AUDIO: Bb6op 3bika 3ByKOBOO COPOBOXDEHNA.
11. ATV: INDEKCHa KHONKa pexkMa TeTeKeCT DVD: PLAY/PAUSE: Bocnpoun3BeDeHne/nay
12. ATV: nepexoK K noDcTpaHnue peXmTa Tene-TEKCT;

DVD: STOP: OCTaHOBka BocnpOn3BeDeHnA.

14.DVD:OPEN/CLOSE:N3BJIeYbIINCK.
15. DVD: ZOOM: macuTa6npoBaHne n3o6paKeHHa.
16.DVD: MENU: 3KpaHHoe MeHIO nCKa.
17. DVD: TITLE: ornaBneHne cnIbMa (MeHO pa3deNoB).
18. DVB-T: DVB FAV: npeBdyuyn JIO6mbl KaHAn;

DVD: ANGLE: Bb6op paKpcnpoCmToPa.

1. DVB-T: DVB FAV: BKNIOUHHepeKIMa IPOCMOTpaIIO6MbIXKaHaJOB;

DVD: A-B: BBb6op n IOBtOpHoe Bocnpo3BeHe Hne fpaarmeHTa 3aIncn OT TOHKN A do TOHKN B.

1. MUTE: otKnioueHne 3Byka.
2. SOURCE: BBb6op nctouHnka cnHana: TV SCART AV S - VIDEO PC-RGB DVD HDMI TV.
3. DISPLAY: BBIOH Ha 3KpaH INΦopMaUH O BOCIPON3BEdEHN.
4. SIZE: yctaHOBka foopMaTa 4:3/16:9.
   24.-: nepeKJIoueHne peKIMOB BBOda OHO3HaHOrO/DbYx3HaUHOrO HOMepa KaHana.
5. RECALL: 6bIcTpoe nepeKJIIOUeHHe MeKJy nocneHNMM dByM TB kaHaIaMn.
6. TELETEXT: BkHoueHne peKIma TeIeTeKCT dna aHaIorOBOrO u cnpoBOrO BeuaHn.

PacnonoXeHue KHONoK Ha N

Pycckn

ATV:AHaIorOBbI TB TIOHep DVB-T:UΦpoBoI TB TIOHep DVD:DVD npOnrpBbTaTeNb

1. DVB-T: DVB MENU: HactpoNka npneMHnKa DVB-T.
   28.ATV: CH-/CH+: cneyuouu/npebdyu nn KaHaJ. DVB-T: CH-/CH+: cneyuouu/npebdyu nn KaHaJ.
2. ATV: kENTa KONka pEXkMa TeTeKCT; DVB-T: EPG: 3NEKTPOHHa nporpamma nepe Dauch kENTa KONka pEXkMa Tene-TEKCT.
   30.ATV: CnHЯ KHOJapeXmMaTeTeKCT; DVB-T: INFO: HΦOpMaunO BOCpON3BOUNMOM KaHaJIe N CnHЯ KHOJapeXmMaTeTeKCT;

DVD: INFO: nHΦopMaζη O Bocnpoun3BedeHHN.

1. ATV: BKNHoueHne pexmna npo3paHoro TeTeKCTa;DVD: nepexoN K npedyuei rnaBe/Tpeky.
2. ATV: BbIXoI n3 peXmTa TeTeKeCT;
   DVD: nepexoK cneyuoue rnaBe/Tpeky.
   33.DVD:<</>>:yckopeHHoe Bocnpn3BedeHne B npMOM/O6paTHOM HapabJeHN.
   34.DVD: GOTO: nepexoK npyromy pa3demy
3. DVB-T: EXIT: BbIXoN ɪn ɪnctpoeK ɪnɪφpɒBOrO TIOHEpa.
4. DVB-T: TV/RADIO: nepeKIOUeHne MeJy TeJIeBn3IOHHbIMN paIIOKaHaJaAMN.
5. DVB-T: DVB FAV+: cIeIyIOUJI NIOBIMBI KaHaI.

DVD: PROGRAM: nporpaMMnpoBaHne nocJe DOBaTeJIbHOCTN BOCpON3BeDeHn.

PpHcunbI pa6oTbIB MeHIO HAcTpOeK

BolbshnHCTBO KHOJOK, KOtOpbIe yNOMHaOTcR HNKe, Bbl MoKeTe HaHTn Ha BepxHei npaBoi 6okOBoi NaHEnIax MOH6JIoka IIN6o Ha Ndy. IInr HAcTpoKn TeJeBu3Opa HaxMnte KhoNky LCD MENU. B 3aBncmocTo n OT Bbl6paHHoro nCTouHnka CnHaja Ha ekpaHe IOBNTcra OndHO n3 CneDyUOuX MeHIO:

VIDEO MENU (MeHIO HAcTPOKn N3o6paXeHna), ecIn BBi6paH OOnH n3 cnEduOxnx NcToUHKOB CunHaJa: TV, AV, S-VIDEO, SCART, DVB-T, DVD.
PC MENU (MeHIO HacTpoiK KOMNbIOTePHoro MOHTopa), ECJIIN ICTOCHIKOM CnHana BbIOpAH KOMNbIOTeP(PC).
HDMI MENU (MeHIO hAcTpoiKpexmHa HDMI),ecnN nCTOuHkOM cnHaIa Bbipah pa3bem HDMI.

Pn KaKdOM cJeDyUoIeM HaKaTIN KHOKN LCD MENU Ha 3KpaHe 6ydyT NOBJIaTBcA CJeDyUOJIe MeHIO HAcTpoEK:

AUDIO MENU (MeHIO HacTpoNk 3Byka)
TV MENU (MeHIO HacrpoKn TeJeBeaHna) (TOJIbKO ecNI nCTOCHNKOM CnHana ABJRAETCA TV).
GENERAL MENU (MeHIO hAcTpoiKn o6xnx hAcTpoek)
CneIyUoIee HaxaTne KHOIpKu LCD MENU npBBeTeK BbIXOdy n3 MeHIO HaCTpoEK TeJIeBu3Opa.

BbXoN 3 MeHIO HAcTpoE KeTeJIeBn3Opa OcUeCTBJIeTcR ODNHM I3 cJeDyUOnx CnOCo6OB:

He HaxmMaTe HN OndHy N3 KHOJOK B TeueHne PAnuAtn CekyHd,
HaxmTe KhoKy LCD MENU HeckoBko pa3, Noka MeHIO He Ncye3He T 3KpaHa.

HactpoJa n3o6paXeHnA

EcnBb6paH OINH N3 CNeDyUOxN HCTOuHKnOB CnHaTa TV, AV, S-VIDEO, SCART, DVB-T, DVD, To npn HaxkTNI KONKl LCD MEnu Bbl nonaTe B 3KpaHHe MeHIO HaCTpoKNn306paXeHn. B 3tOM MeHIO Bbl cMOXeTe OTpeRyJInpOBaTb rpkocTB, KOHTpactHOCTb, HacbIeHHOCtB n pe3KOcTB N3o6paXeHn Ha 3KpaHe TeJIeBn30pa.

BRIGHTNESS - RaPkoctb

IcnoJb3yIte KHONKIN VOL+nnn VOL-ДлЯ peRyIInpOBeKN IApKOCTN.

CONTRAST - KoHTpactHOCTb

IcnoJb3yIe KHONK NOL+NILN VOL-ДлЯpeRyIINPOBKN KOHTpactHOCTN.

COLOUR - HacbiiueHHocTb

IcnoJb3yTe KHONK N VOL+ nnn VOL- JnpeRyJnPOBKn HacbIeHHoCTn.

SHARPNESS—Pe3KocTb

IcnoIb3yIte KhoNKn VOL+ nnn Vol- perynnpOBKn pe3KocTn 306paKeHna.

VIDEO MENU
BRIGHTNESS	50
CONTRAST	50
COLOUR	40
SHARPNESS	50

Hactpoika pexima kOMnblTOpePHoro MOHITOPa

EcnBaw MoHOBnok NOdKJIIOueH K KombIOTepy Hnn dpyromy yCTpoNCTBy npn nOMOuKabEJY VGA, To npn Haxatm KHOKN LCD MENU Bbl nonaTe B 3kpanHoe MeHIO HacTPOIN peXIMa KOMbIOTepHOro MOHITopa.

BRIGHTNESS -Ярковсь

IcnoB3yTe KHOKN VOL+ INN VOL- perynnpOBKn apKoCTn.

CONTRAST - KoHtpactHOctb

IcnoJIb3yIte KHOIIK N VOL+ INN VOL- IpyIINPOBKN KOHTpactHOCHTN.

COLOR SETTING -Pexmbi CBeTHOCTN

IcnoB3yTe KHONKn VOL+ nnn VOL- DnB bIbopa Ondoro n3 Tpex npedycTaHOBneHHbIX peXIMOB UBeTHOCTN: 6500k,9300k nnUser.

COLOR SETTING - PeXIMbI UBeTHOCTN

NcnoJb3yIte KhoIKNVOL+ nIIN VOL-ДЯ Bbl6opa OndHoro n3 TpeX npedYcTaHOBJIeHHbIX peKIMOB LBEtHOCTn: 6500k, 9300k IIN USER.

TREBLE - BbICOKne yactoTbi

IcnoJb3yTe KHOKN VOL+ nnn VOL- dnypeRyHnPOBKn ypoBHr BbICOKnx ChaTOT.

BASS-Hn3Kne YacToTbI

IcnoNb3yTe KhoNKn VOL+ nVOL- npepynnpOBKn ypoBn Hn3Knx qactOT.

HactpoJaTeJeBeUaHnA

Дя BXOda B 3KpaHHOe MeHIO HAcTPOHKn TeNeBeUaHnHaXMMTe KHOJky LD MENU eue pa3 (ToIbKO ecN NCTOCHNKOM CnHaJaЯBnaTeTV).

CHANNEL - Kahan

NcnoIb3yIe KhoNKn VOL+ nnn Vol- dnyBVeJIInueHn nn yMeHbSeHn Homepa TpaHCnpyEmoro kaHa.

SYSTEM - 3BykoBaa cnCTema

NcnoJb3yIe KHOJKN VOL+nnn VOL- nBbIbopa 3ByKOBOI CNCTEmbl. Bo3MOXHbIE 3NaueHnA 3TOI npaMetpa: BG/DK/I/L.

TV MENU
CHANNEL	0
SYSTEM	DK
SKIP	OFF
AFC	ON
FINE TUNE	487.25MHz
SWAP	→
MANUAL SEARCH	→
AUTO SEARCH	→

HactpoJa TeJeBeUaHnA

SKIP -Пponуck kaHaJa

IcnoJIb3yIte KHOIIK NOL+ IJIY VOL- IJIa BbIbopa peKIma npOnycka KaHaJa:

При Вьборе 3наченя ON (Вклочero) 3TORO napametpa Tekyши kaHaj 6удET NCKIQUeH n3 cпнда Каналов. Oh 6удET nponyckatbcsprn NOcJIeDObaTeNbHom nepeборе kaHалов Cnomoью KHONOK CH+/CH-.ДЯ BOCCTaHOBJIeHNY kaHaja B cNtcke KaHALOB BvBepHTe erO,Ha6pAB HOMep prn NOMOu nUΦpoBbIX KHONOK,И yctahOBNTe 3наченie 3TORO napametpa ДЯ KAHа NaPbHbIM OFF (Выклочero).

AFC - ABTomatnuecka NOdctpOJa YaCTOTbI

Пи Вьборе 3наченя ON (Вклочero) 3ТО Р.apaMeТра чаToTe Куцero KaHаЯ БудET NOДСТРаВaTbСАВТOMaTчecКИ И He MÖKeТ 6ыТь ИЗМeHeHa C NOMOцьЮ Функци рунов точно Habстpoй ChactоТы. Дп прIMeHЯ Функци рунов TOUHON HAcTpoй YCTaHOBITE 3наченie 3ТО Р.apaMeТра дя KaHаЯ paBhbIM OFF (BвikloucheHo).

FINE TUNE - Tohna HacTpoiKa

Ecnn n3o6paXeHne nn 3ByKOBoe cOnpoBOXdHne Ha TpaHCJIpyEmom KaHaJe BOCpON3BOJrTcC nOMexAMn, NcNoJIb3yIte KHOKN VOL+ nn VOL- dIra ToCHoN NOCTPOKn YactOTbI TpaHCJIpyEMoro KaHana, oBeCneuBaIOUeM MaKcImaJIbHOe KaueCTBO n3o6paXeHnN 3ByKOBO cOnpoBOXdHnN. Ppr BblOpe ToHOrn HacToPOnKn npamEtpy AFC aBtOMaTNUeCKn 6ydet npncBOeHO 3NaueHne OFF (BbIKIOUeHo).

Haxmte KhoNky VOL+ IJRA BOCCTaHOBHeHNA 3HaueHn NapaMeTpOB, yctahOBneHHbIX Ha a6p k e

3TO OTHOCITcK 3HaueHnAmpaMeTpOB, yCTaHOBneHHbIM B MeHIO HAcTpoKNu3o6paXeHn, 3Byka, peKIma KOMIbIOTepHOrO MOHTopa N npaMeTp a BLUE SCREEN MHeHIO Obuxn HAcTpoEk.

Ecni y Bac Bo3nKnn npo6Iembl c cyHKcnoHnpoBaHne TeJeBn3opa, To neped o6paueHnEM B cepBnCHyO cnJx6y n3yUHTe CneDyOuO Ta6nU.

HeincpaBnOCTb	Bo3moJHbIe npUHbIe n CnoOobI yctpaHennia
OTcYCTByET I3o6paJHne и 3Byk. Иndikatop пitaHnI He CBtITcI.	ПрOBePbTe npaBnIbHOCTb ПОДCoEДINHEnIshHypa пNTaHnI K cETN 3JIeKTPoNITaHnI N K aIaItepy. ПрOBePbTe npaBnIbHOCTb ПОДCoEДINHEnI KaBeJIa OT аIaItePepa K TeJIeBnI3Opy. ВынБTe BILKу 5hUpa 3JIeKTPoNITaHnI I3po3eTkn, пodokdIte 60 cekuHd, 3aTeM cHObA BCTaBbTe BILKу.
OTcYCTByET I3o6paJHne	ПрOBePbTe npaBnIbHOCTb ПОДCoEДINHEnI aHTeHbI ИлдугIX BHeSHnIX NICTOChIKOB CnIHnIa. ПрOBePbTe npaBnIbHOCTb BbIbopa NICTOCHNka сИrHaJa, ИСПОЛьЗУ.KHONKY SOURCE Илс POMOUIbI mEHIO. ПрOBePbTe 3NaUeHnI NapaMeTpOBЯPkOCTN i КоНТРACTHOCTN B MeHIO HAcTpoE K I3o6paJHennia.
OTcYCTByET 3Byk	ПрOBePbTe уPoBeHb rPOMKocTn 3BykA Илп He HaxaTa Ил KIOnKa MUTE. ПрOBePbTe npaBnIbHOCTb NIDKIIuOeHnIa ayDnOKaBeJI K COOTBeTCTBvIouSeMy BXOdu.
HekorpeKTnA цВетоpeFDAч иЗбpaJHnI	ПрOBePbTe npaBnIbHOCTb BbIbopa NICTOchNka сИrHaJa, ИСПОЛьЗУ.KHONKY SOURCE Илс POMOUIbI mEHIO.
HecTaBnIbHOCTb иЗбpaJHnI prn pa6Ote TeJIeBnI3Opa B KaYeCTBe KOMlbIOTepHOrO MOHITOpa	ПрOBePbTe COOTBeTCTBnE napaMeTpOB B MeHIO HacTpoEk pexIMa KOMlbIOTepHOrO MOHITOpa уStaHOBkAM BIVdeOpaMeTpOB B OpeaCQUHNOH СИСТЕМЕ KOMlbIOTepa.
Ha ekPaNe ПОЯВЯETcR HeCKOlbKO ZCBToBbIX ПЯТeH	LCD панели ВicOkoJЧETKOCTN MOrUT mMeTb HeCKOlbKO 6beIbIX ИлпчЕрнБИ рNKceIeN. ЭТо HeЯВЯETcR HeICnPaBHOCTbI O COOTBeTCTBvET МeЖdyHapOДнbIM STaHdApTAm KauEcTbA LCD пaHeIeN.
ИЗбpaJHne 3aHIMaEt TOJIbKOчaTb эКранa	HenpaBnIbHO BbIbpan ФормAT ekpana. ИспьзуITE KONkY SIZE Na ПДУ дЯ ИЗмeHENI ФормATA эКранa c 16:9 Na 4:3.

OCHOBHbIE ONEPAcIN PEXKIMADVB-T

PpHnCnIbI pa6oTbIB MeHIO HAcTpoEK

Y6eHNTecb, yTO nCTOCHNKOM CnHaIa BbIbpaH cNΦpOBo TIOHeP DVB. IyBaBbopa 3TOrO nCTOCHKA CNHaJa CdelaIte CJeDyUoee:

1. BkIIOUHTe 3JIeKTPoNTaHne MoHO6noka.
2. Haxmnte HeckoJIbKO pa3 KhoNky SOURCE, noka B BepxHem npaBOM yrny 3KpaHa He NOBNTc HAdnncb "DVB".
   3.ДЯ BXOda B MeHIO HAcTpoeK HaxMITE KHOKNy DVB MENU Ha Iy. HaxMITE KHOKNy DVB MENU eue pa3 dIra BO3Bpata B npdeIbIyUee MeHIO INI dIra BbIXOda I3 MeHIO HAcTpoeK.
3. NcnoJb3yIe KHOJIKN ▲/▼ДЯ Bbl6opa OdHOn n3 CTpaHnC MeHIO HAcTpoEK.
4. HaxmTe KHONky ДлЯ aKTnBaCnBBbIbpaHHoCTpaHnCbl MeHOr NaCTpoE, a3aTeM NcnoJIb3yIe KHOKN △/▼/△/ ▲ДЛЯ BbIbopa HyxHoro npaMeTpa IN3MeHeHra erO 3HaueHn.
5. Haxmte KhoNky DVB MENU nIe B03BpTa B npdeIyuee MeHIO nIe Haxmte KhoNky EXIT nIe BbIXOda n3 MeHIO H
6. Haxmte KhoNky ENTER nIe noTBepeHnHOBOrO 3HaueHn npaMeTp a. Waiting SIGNAL or NO SERVICE

3TN COO6ueHn INΦopMnpyIOT 06 OTCyTCTBm BXoHOrO CNrHaNa nn 0 3aunΦpOBaHHOM nlaTHOM CNrHaJIe.

Hactpoika KaHaJIOB

При посвом Вкючени моноблка Bam Heo6хODIMO aKTHBnPoBaTb Функцю abTomatнueckoro NOUCKa I COxpaHEnR B nAmrTN TeJIeBN3Opa BCEx DoCTyINhIx KaHaJIOB.

1. ⅡIЯ BXOIDA B MeHIO HAcTpoE KAnMITE KHOKNy DVB MENU Ha IINY.
2. Пиnomоин KHONOK / V BbI6epnte ctpaHcy Channel Setting (HactpoKa KaHaNoB)инхмITE KHONky ENTER Дя поТВерждень BaWoero BbI6opa.
3. Ha əkpaHe oTo6pa3ntcMeHIO HacTpoKn KaHaNoB.

Search Type - Tyn noncka

HaXMMTe KHONKy ▶, a 3aTeM nCNoJb3yIe KHONK I /▼ДЯ BbIbopa TUNa NONKa KaHaIOB: Auto Scan/ Manual Scan/ Scan By NIT (ABTomatNueckn nonck/PyHoi nonck/Nonck no YacToTe BeaTeTn). 3NaYeHNem napaMeTpA, yCTaHOBJIeHHbIM NO yMOJIuHaHIO RaJIaETcR Auto Scan.

Channel No - Homep kaHaJa

BbO Homepa nna haHdEHHoro kaHaana. DOnyuctmbi

Homep KaHana: 0 -- 69. 3Ta onu HnOCTynHa npn ATOMaTneckom NOnCKe KaHaoB,

Hactpoika KaHaJIOB

KOrdaHOMepaIMPnCBAuBaHOToaABTomatUeCKN.

Frequency - Yactota

Bb6op kaHajn npn nomoun npmaoro BBOda COOTBeTCTByUoJe EMy yactotbl.

Band Width - Полosa nponyckaань

HaxMTe KHOKy ▶, a 3aTe M nCNoB3yTe KHOKN ▲ /▼ ДЯ BbI6pa OДHOrO n3 npedYCTaHOBJIeHHbIX 3HaueHn napaMeTpα: 6M/7M/8M.

Encrypted Service -ШифpoВане даньх

Haxmte KONky , a 3aTeM nCnOJb3yIte KONK /▼ДЯ BbIbopa OdHoro N3 npedyCTaHOBJIeHHbIX 3HaueHn napaMeTpA: Save/ Not Save (CoXpaHrB/He coXpaHrTb).

Update Mode - Pexim 06HOBnHn

HaxmTe KhoKy , a 3aTeM nCNoJb3yIte KhoKn ▲/▼ДЯ BbIbopa Ondoro n3 npedycTaHOBneHHbIX 3HaueHn napametpa: : Append/ Replace (DOnonHraTb/3ameuatb).

Sort Channel - CoptnpoBka KaHaJIOB

IcnoJb3yIte KHONK I /▼ДЯ Bbl6opa napametpa Sort Channel (CopTnpOBKa KaHAnOB) n HaxMnTe KHOKNY ENTER IJI NaTBePKeHnI.

BbIepeNte Name UP n HaxMnTe KhoNky ENTER dna nepemueHnaHaJa BBePx no cnCKy KaHaNoB.
BbI6epnte Name Down n HaxMnTe KHOkY

Onepaunco cncKom KaHaIOB

ENTER nIepeMeueHn KaHaNa Bn3 no cnNcky KaHaNoB.

BbI6epnte Encrypt n HaxMMTe KhoNky EN-TER dIa COPTnPOBKn CnNcKa KaHaNoB no aIpaButy.
1. ネ淋巴白 BxOda B MeHIO HAcTpoE KHaXMITE KHONKY DVB MENU HaПДУ.
2. Пиnomоин KHONOK / V BbI6epnte cTpaHnUy Channel List (CncocK kaHAnOB) n HaxMITE KhONky ENTER ДЯ NOДТВержденя Baшero BbI6opa.
3. Ha ekpahe oTo6pa3ntcra cnncok KaHaJIOB, a TaKke Band Width/Quality/Frequency/

Strength (NoIoca nponyckaHnra/KaueCTBO/YacToTa/MoUHocTb cnHaJa), COOTBeTCTByUOUIe BbIbpaHHOMy KaHaJy.

CnCTeMHbI He HAcTpoiKn

Time zone - BpemeHHa 3oHa

3TOT napametp no3BOJnEe Bac yctaHOBtB BpeMeHHyU 3OHy, COOTBETCTByUoIyU BaSei MeCTHOCTN. IcNoJIb3yIe KhoNKe / nra Bbl6opa OHOH N3 BpeMeHHbIX 3OH: GMT+0 -- 8. HaxMITE KhoNky ENTER dIЯ NOdTBePckJeHnBaWero Bbl6opa.

Clear Channels - 06HyJeHne cNcKa KaHaJIOB

Haxmte KhONky ENTER IINBxOda B MeHIO OShyIeHn CnNcKaHaNoB.

HaKMITE KHonky ENTER nIy o6HyneHn cncka KaHaoB nn HaKMITE KHonky MENU dIy OTKa3a OT BbINOnHeHn 3TOrO DeiCTBn.

Country Select - BbI6Op cTpaHbI

HaKmTe KhONky ENTER IJBA BXOa B MeHIO BbIbopa CTpaHbl. Pn nOMoUng KHONoK A / V Bbl6epnte CTPaHy, RaBk KOtOpO 6yDet NcNoJIb3OBaTbcra B KaueCTBe 3HaueHnry, yCTaHOBNeHHORo NO yMOJIuHaHIO B Ra3IKOBbIX HAcTPONkax.

Booking List - YctaHOBka TaMepoB

1. ПиnomоинКHONOK /▼ Вьбepnte onuH Booking List (YcTaHOBka TaMepoB) И НжмITE KHONky ENTER ДЯ NOДТВержденя Baшero Вьбopa.

2. Ha əkpaHe OTo6pa3ntcMaHIO HAcTpoKn TaMepOB.

Event ID - Homeport Taïmepa

Haxmte KhONky , a 3aTeM nCNoB3yIe KhONKn ▲ /▼ Дя Вьбopa Homepa yCTaHaBnBaemoro TaMepa: 1/2/3/4/5.

Service-Homep kaHaJa

HaKMTe KHONky , a 3aTeM nCNoJb3yIe KHONKn ▲ /▼ ДЯ BbI6opa KaHaja, KOtOpBb Bbi JcenaTe BkJIIOuATb NO BbI6paHHOMy TaIMepy.

Event type - Tn TaMepa

HaxMnte KhONky ▶, a 3aTeM nCNoJb3yIte KhONKn ▲ / √ДЯ BbIbopa Tnna TaIMepa: ONCE/ DAILY/ WEEKLY (OdHokpato/HExeDHeBHO/ExeHeJeIbHo).

Start Time - BpemBkIouHne KaHaJa

IcnoJb3yTe KHONKn / DnIe npemeueHm MExdy NOnpOBoBie KHOKN DBA BBOda BpeMeHN BKIOUeHn KaHaJa.

CnCTeMHbIe HacTpoiKn

Start Date - BpemBbIKIOueHnKaHaJa

IcnoJb3yIe KHOJIKn / DJIpeMeIeHm MExDy NIOJAMN UINpOBoBle KHOJIKN DJI BBOJa BPeMeHn OTKJIIOUeHn KaHaJa.

Duration - PpOdoJnxTeJbHocTb

IcnoJb3ynte cnpobBie KHONKn dJa HEnocpeCTBeHHoro BBOda npoJXHTbHOCTN BeaHnry BbOpahHoro KaHana.

Status - AktnBaçın Taimepa

Haxmte KhONky ▲, a 3aTeM nCNoJb3yIte KhONKn ▲/ ▼ДЯ BblOpa OndHO r 3HaueHn : ON/ OFF (BknOHTb/BbIKNIOHTb).

AUDIO-BbI6op3bka 3ByKOBOrO cnpoBxKeHHa

IcnoJb3yIte KhONky AUDIO IJIy BbI6opa Ra3bIka 3ByKOBORo COnpoBQxDeHnA.

EPG-3neKtpoHHa nporpaMa nepea

IcnoJb3yIe KhoNkE PEG IJI npMOrO DoCTyna K 3JeKToPOnHOn IporpaMMe nepeDaU.

DVB FAV - Cnncok JIO6mbix KaHaJIOB

IcnoJb3yIe KhONky DVB FAV nI pyMoro DoCTyna K cnNCKy IIO6MbIX KaHaNoB.

HENCINPABHOCTN INPNEMHnKA DVB-T IN CNOOCbIXX UCTPAHEHnA

Ecn y Bac Bo3nKn npo6nembl c yHKuHnpOBaHne npnemnka DVB-T, to nepeD o6paueHnEM B cepBnCHyO cnjx6y n3yUHTe CNeDuOn pa3dI.

Omcymcmyem cuhaJ DVB-T

IpoBepbTe nepeKnHueh JIn MoHO6Jok HTC xx25D B peXIM DVB-T. Ecnn HeT, To nepeKJIouHTe MOHO6Jok B 3TO T peXIM.

IIloxoe kaueembo npuema.

Ioxayncta, otperynpyte Bauy aHTeHny. Icnoj3yTe aHTeHHy c aKTHBbIM ycInTeJem (KOMHaTHyo aHTeHHy nIN BHeuHIO aHTeHHy). EcIn Bbl nepemeCTnIn HTC xx25D, to Hactpoite aHTeHHy eue pa3 nIN NOkNouHTe aKTNBHyO aHTeHHy.

NymcnucokKaHaNoe.

3anyctnte npoceDpya ABTomatnueckoro noncka KaHaIOB epe pa3.

He pa6omaem Ndy.

HanpaBnIe Ndy HEnocpeDCTBeHHo Ha MOHOJok. Ecn npO6Jema He peuHnacb, To 3aMeHnte 6aTapeKu B Ndy.

PpumueaHue:

B paohax co cna6bIM DVB-T cu2hanom dny npuema ecex docmynhbx meeneu3uoHHbx KaHIO8 hacmormenbHO peKoMeHoyemc npumehue akmuho20 ycunumeJ.

Kauecmgo u3o6paXeHua

KaueCTBO n3o6paXeHnra, noIyuaemoro ot DVB-T npneMHnka cyuaceTBeHHO 3aBnCIT OT MeCTHOCTN pa3nUHbIX ycNOBni npneMa. Han6oJee BaxHbIe dIpa KaueCTBa n3o6paXeHn npametpbI - 3TO CKOpocTb nepeDaun nHΦopMaun (bit rate) n pa3peSeHne, oBeCneuHaembIe nepeDaBaEMbIM DVB-T cnHaIOM.

CkopocTb nepedaun HnΦopmaun (Bit rate)

Ckopoctb nepedaun HnΦopMaunonpeDeJareTcBeaTeJem N MoKet 6bIb pa3nHoh Ira KaKdoRaKaHaJa. Pa3hIMN BeaTeJAMN NOdEepXnBaIoTcpa3hIe cKOpoctn Nepedaun CnHaJa.Ecn npn npneMe DVB-T CnHaJa Bb Ha6nOaTe Ha ekpaHe Mo3aNKy, apTePakTB nn pacnblBvatoe n3o6paxKeHne, To noctapaiTecb yBEnuHTb yPOBeHb CnHaJa NN erO kaueCTBO, OTperynipOBaB NoJoxKeHne BaWei KomHaTHoAHTHe bI. POnpo6yIte 3ameHtB KOMHaTHHy oAHTEHy Ha BHeuHIO. Ecn Bb IOCTurnn ONTMaJIbHO R KeueCTBa CnHaJa, Ho n3o6paxKeHne He uLyUHNIOcb, TO npHHMaEMbI DVB-T CnHaI NMeet HeNoCTaTOUHyO cKOpoctb nepedaun HnΦopMaun.

Yem Bblie CKOpocTb Npepaun HOpmaun, Tem 60Je KaueCTBeHHbIM 6ydet n3o6paKeHne, C MehBWM KOJIueCTBOM apTeqakTOB mO3aUNHbIX BKpapanHeHn.

Pazpeшени

CneyuouumnapaemtpoBnnaHkaeCTBO n3o6paXeHnraBnreTcpa3peuHne. Yem BbIe pa3peuHne,TeMaKaueCTBeHHee uYteUe 6yudT n3o6paXeHne.

OCHOBHbIE ONEPAUIN PEXNMA DVD

3aarpy3ka/ɪn3BνeueHne DVD dɪncka

1. BKJIOHTe 3JIeKTPoNTaHHe MOHO6Ioka.
2. Haxmnte HeckoIbko pa3 KhoNky SOURCE, noka B BepxHem npabom yrny ekpaHa He NOBNTc HADNNCb "DVD".
3. Tenepb MoHO6IOK HTC xx25d roTOB K BOCPON3BeHeHNO DVD DnCKOB.

3arpy3uK dncOB paCNOJoxeH Ha JEBoB 6OKOBn naHeN MoHO6Joka HTC xx25D. Ppn OTKpbITIN 3arpy3uKa CJIbIweH HeKOtOpBn IyM.

BCTaBbTe DnCK B 3arpy3uK MapKnpoBaHNO ot Ce6r CTopoHOI n aKKypaTHo HaxMNTe Ha DnCK B npaByIO CTOpOHy. B 3TO Bpem Bbl DoJXhbl BNDeTb CEpe6pncTyIO CTOpOHy DnCKA. 3arpy3uK BTaHET DnCK BHyTp b ABTomAtuYeCK N pOnIrpbIbATEJIb HauHET qHTaTB NHOpMaUH C DnCKa.

PpumueaHue:

Ecnu duck bcmae HenpabunbHou cmopohou 8eepx, mo 3a2py3uk nonbimaemc npoumamb duck. 3mo 3aumem 2opa3do 6oIbwe 6peMeHu, yem o6bIuHO. Ho uHcpMaucu c ducka 6ocnpunHa He 6ydem u Ha ducnnee noBumc coo6ueHue No disc (Hem ducka), nocne yezo duck 6ydem abmamuuecku bbiobunym u3 3a2py3uka.

PpumeyaHue:

Itnu 38neueHua CD unu DVD ducka u3 3a2py3uKa Heo6xodumo nepeknioumb MOHOIOK e pekum DVD. B npomueHom cnyuae, Haxamue KhoIKNU OPEN/ CLOSE (A) He npueedem K doJXHOMy 0fpekmy.

HfopmaunOHna ctpoka pexnma DVD

Pn BbINOHeHn HeKoTOpBix Oepaun DVD npOnrpbIbATEJem nIn npn HaxaTN KHOKN DISPLAY Ha PdY B BepxHeu acTn 3kpaHa NoBJIeTcN INΦopMaunOHHa CTpoka.

HnΦopMaunOHna Ctpoka npedctabnaret co6o npyxeCTBHeHHbI NOJIb3OBaTeJIIO nHTeppeic, oTo6paxaUoJe Ha 3KpaHe pa3nHyO HnΦopMaunO BocnpOn3BeDeHHN . B 3aBncmocTn OT 3arpyxeHHoro DnCKa (DVD, CD, Music CD) coedePKaHne HnΦopMaunOHNo CtpOKn 6ydt pa3HbIM.

HΦopMaζnoHHa CTpoka NOBJIeTcA BtOMaTnueckn, ecn 6ydet HaxaTa KhoNka DISPLAY Ha Πy. NobTOphoe HaxaTne KHOKN DISPLAY npuBeTeK OTo6paXeHIOB V HΦopMaζnoHHo CTpoke DOnONHHTeNbHO HΦopMaζnn. A npn TpeTbeM HaxaTm N KHOKN DISPLAY HΦopMaζnoHHa CTpoka NOnHOCTbO NcYe3HeT C eKpaHa. HΦopMaζnoHHa CTpoka Ncye3Het C 3KpaHa ABtOMaTnueckn I npn HaxaTm IIO6bIX dpyrnx KHOKN Ha Πy.

HΦopMaζnoHHa CTpoka pexima DVD

CopepkHHe HOpMaunHOHcTpOKn npBocnpOn3BeJeHNn DVD nscKa:

• FopMaT nUcKa: DVD
  HΦopMaunO pa3delaX: Bocnpn3BOUntc1-bi pa3den 2.
  HΦopMaunO rnaBax: Bocnpn3BoDntc 3-a rnaBa n3 33.
  Bpem Bocnpon3BeHn: 2 ckyHdbI.

CoepkaHne INHOpMaUHOHHo CTPOKn nocJe noBTOpHOro HaxaTna KhoNkn DISPLAY npn Bocnpou3BeDeHN DVD dncKa:

• AKTNBHyI 3ByKOBoI TpeK: BOCnpon3BOOnTCs1 TpeK n3 1.
• ΦopMaT 3ByKObO r TpeKa: DD 5.1 CH.
  Cy6TnTpbl: OFF ( OTKJIIOUeHbI).
• Yron o63opa: OFF (oTcyTCTByeT).

CopejkaHne HOpMaunHnOcTpOKn npBocnpOn3BeDeHn Dncka MPEG-4:

CDrom

TRK 1/12

00:00:41

• Opmat ducka: CDROM.
  HOpmaun O Tpekax: BOCnpon3BOOnTcra 1-bi TpeK n3 12.
  HaHnue/OTcyTCTBne 3ByKOBOrO cnpoBoXKeHnA: 3ByK eCTb.
  BpeMa BocnpOn3BeDeHnA: 41 cekyHda.

OchOBhIe npaBnla ynpaBHeHna BocnpOn3BeDeHneM dNcKOB

Omkpbimb u 3akpbimb noddoh 3aepy3uka ducko8

Haxmte KhoNky OPEN Ha npaBoi 6okOBoi nane MoHO6noka nnHa Pny.

PpumueaHua:

• Пουарьевамь He можем осуесменияпегхod велер ул назад по pa3denam DVD ducka EO epemЯEOcnpou3eedeHua pa3deHa WARNING (ПЕДУПЕЖDEHNE).
  He8o3MOxHO uCnOJIb30eamb KOMaHdy SKIP, eCnu duCK cocmoum u3 oDHOu 2naebi (DVD) unu odHOzO mpeKa (CD).

Hauano oocnpou3eedeHu u nay3a.

HaxmTe KhONky PLAY/PAUSE nHaayana BocnpOn3BeDeHnry Dncka. IpaBpeMeHHo npnoCTaHObKn BOCpOn3BeDeHnry HaxmTe KhONky PLAY/PAUSE eue pa3. HaxmTe KhONky PLAY/PAUSE eue pa3, n BocnpOn3BeDeHne npoDOnKHTcra.

OCHOBHbIE ONEPAcNI PEXKIMADVD

OchOBhIe npaBnla ynpaBHeHna BocnpOn3BeDeHneM dNcKOB

OcmaHObKaEOcnpou3eedeHua

HaxaTneM KhoNkSTOP MOXHO BBeCTn Dba peKIMa:

HaxMMTe KONKy STOP Odn H pa3. Pn 3ToJ octaHOBKe B namrN 6ydet coXpaHeHa ToKc oCTaHOBa, a Ha INΦopMaunOHNo CTPOKe NOBtCra COo6eHne PRESTOP (IPNOCTAHOBKA). IЯ BO3ObHNeHn BOCpOn3BeDEHn C TOkN OCTaHOBa HaxMMTe KONKy PLAY/PAUSE .
Haxmte KhoKy STOP DbaXdbI, YTO6bI NOHOCTbIO OCTaHOBtB Bocnpo3BeDeHne. Ha INΦopMauznoHHo CTPOKe NOBtC4 COO6eHne STOP (OCTAHOBKA).ДЯ BO3O6HOBNeHnB BOCpOn3BeDeHnC HauJaA DnCKa Haxmte KhoKy PLAY/PAUSE.

PepexoK cneyoueu Tpae/Tpeky

Haxmte 3ty KhoNky, yTo6bI nepeTn K BocnpOn3BeDeHnO cJeDyUoSe rnaBbl DVD ncka nn TpeKa CD ncka.

IepexoK npedbdyueu Tnae/Tpeky

Haxmte 3Ty KhoNky, cyO6bI nepeiTu K BocnpOn3BeJeHIO npedbyuuei rnaBbl DVD ncka nn Tpeka CD ncka.

YckopeHHoe 8ocnpou3eedeHue 6opamHom HanpaenHuU

HaxMnte 3Ty KONky dIy yCKopeHHoro BocnpOn3BeDeHnB O6paTHOM HapabHeHn. Heckonbko pa3 HaxMnte KONky dIy yBeJIuHnEHN CkOpOCTN BOCpOn3BeDHeHn.

YckopeHHoe Bocnpou3eedeHue e npMOM HanpaenHeuu

Haxmte 3ty KONky dny yckopenhoro Bocnpoun3BeDenn B npMOM HappaBneHn. HeckoIbko pa3 haxmte KONky dny yBeJInuYeHn CkOpOCTu BOCpOun3BeDenn.

PpumeyaHua:

• I3meHeHue ckopocmu yckopeHHo2O BOCnpoU3BedeHua E npMOM unu o6pamHom HnpaBHeHu npoucxodum b cneDyUoE m nopAKe: HopMaIbHa x2 -> x4 -> x8 -> 20 -> HopMaIbHa.
• Pn yckopenhom Bocnpon3BedeHn 6 npmOM unu obpamHom HapaeHeHu 38ykooe copooboxdeHue omKnluyaemc aemomamuuecku.
• IpnouepbIeamJIb He Moxem ocyuecmnaMb yckopeHHoe Bocnpo3BeDeHne 6 npMOM UJU oBpAMHom HapaeJeHu npu eocnpou3eedeHu ceMeHma WAnING (PPEyIPEJKDEHNE) DVD ducka.

MENU

3KpaHHoe MeHIO DVD ducka

При ВOCПОНЗВЕДЕНД DVD ДИСКА НАЖМITE KHOПКУ MENU ДЛЯ BO3ВРАТВ MEHIO DVD ДИСКА.

φpoobie KhoNku

UTo6bI ocuueCTBnTb 6bictpbH nepexoK onpepeHHOJ rnaBe DVD
cka nnn Tpeky CD nscka, nCnoJIb3yIte uΦpOBBie KHNKn dIra BBOda
OTBetCTByIOUeRO HOMepa.

• IcnoIb3yIe cHpOBBie KHOJIKN B MeHIO DVD dNcKa.

OCHOBHbIE ONEPAcIN PEXKIMADVD

OchOBhble npabnla ynpaBneHna Bocnpon3BeDeHnem DnCKOB

MeHpo pa3deIoe DVD ducka

Ipn Bocnpoun3BepeHn DVD nUcKa HaxMnte KhoNky TITLE nI npexoDa B MeHIO pa3deNoB DVD nUcKa.

BbI6Op np3bika 38yko02o conpooxdeHua

При ВOCрпои3ВeДeнИ DVD ДИСКа НАЖМITE KНОЛКу AUDIO HeCKOЛько pa3 ДЯ Выбopa ЛаEMOrO 3БИКа 3ВУKOBOrO COpOBoXДeHЯ. DVD ДИСК мОжТ coDEрЖаТь do8 3ВУKOБьIX TpeKOB (ЯЗБКOB 3ВУKOBOrO COpOBoXДeHЯ).

Ioeomphoe 6ocnpou3ebeheue ppaemha ducka

YTO6bI NOBTOPINb BOCPON3BeDHeNc OO6bIX ppaMentOB DnCKa:

• Haxmnte KhoNky A-B Ha hauaIbHoi ToyKe XeJaemoro fpaarmenta. Ha 3KpaHe NOBNTc coo6ueHne REPEAT A-.
• Haxmnte KhoNky A-B eue pa3 Ha KOHeuHoi ToUke JeHaemoro fpaarmenta. Ha 3kpaHe IoRbntcra coo6ueHne REPEAT A-B. BbIbpaHHbI fpaarmeHT ot A do B 6yDet BocnpOn3BODnTbc, noka peXIM He 6yDet OTMeHeH.
• YTo6bI OTMeHnTB peKIM NOBTOpHOrO BOCnPOn3BeDeHnN i BepHyTbCRA K HopMaJIbHOMy BOCnPOn3BeDeHnIO, HaxMnte KHOJkY A-B eue pa3.

PpumueaHue:

HekomopbIe DVD duCKu He nooepkuaHom pekum A-B.

Ioeopnoe oocnpou36edehe

HaKmTe KhoNky PEPEAT HeckoIbko pa3 IJy Bbl6opa OndHoro n3 DoctynbIX peXIMOB NOBTOpHOrO BocnpOn3BeDeHnA.

PnBocnpon3BeDenu DVD ncka

REP.CHAPTERIOBToprnaBbl

REP. TITLE Nobtop pa3dena

REP. OFF NobTop OTKnIOueH

PnBocnpo3BeHeHn CD ncka

REP.1 NobTop Tpeka

REP. ALL Повтор диска

REP. OFF NOBTOP OTKNIUChE

PpumeyaHue:

HekomopbE DVD duCKu He nooepkuaH om pekum noemopno 8ocnpou3eHnA.

Pn Bocnpon3BedeHn DVD ncka

B KaKdyu no3nuiu Tabnuii Bam npn nmooun cnppoBbIX KhoNOK Heo6xOIMO BBeCTH Homep Pa3dena (T) u Homep TlaBbl (C).Дя nepemeuenno Ta6nue nCnoJb3yTe KhoNk ynpablenenkycpocom.

PLAY: Haxmte 3kpaHHy KhoNky PLAY nna hauana nporpammbi Bocnpo3BeDeHnra.

CLEAR: Haxmnte 3kpaHHyIO KhONky CLEAR, ecn Bbl XOTnTe OTMeHnTB HeBepHyIOHΦopMaunIO, KOtopyIO Bbl BBeIN. Haxmnte 3kpaHHyIO KhONky CLEAR eue pa3 dIpy OTMeHb BCEX TpeKOB.

Pn BocnpOn3BeDeHn CD dNcKa

B KaKnyu No3nHTo Ta6nUb Bam npn NOMOu nCpOBbIX KHOOK Heo6xOIMO BBecTu HOpE TpeKa B HyKHO Bam nocneobateIbHoCTn.

Ppu 8ocnpou3eedeHuMP3 qauNo8 He8o3MOKeH OHO6peMeHHbI npocmnp buoeou3o6paxeHu.
Ipu 0ocnpou3ebeHuu u3o6paXeHua JPEG haxmume KhoNky Program dny ebipopa pexuma zameuHua u3o6paeHu. Docmynbl 17 peKumoe npexoda. Haxmume kHonky Program Heckolko pa3 dny akmuBuzauu yHKuuu u ebipopa jenaemoo pexuma nepeKnOeyHura. Docmynbl cledyioue pexumbl npexoda: Spread from Left Up to Down (cneea ceepy hanpaeo ehu3), Spread from Down to Left (cneea eepx), Spread from Left to Right (cneea hanae), Spread from Right to Left (cnpaea haneo), Spread from Left Up to Right Down (cneea ceepy hanpaeo ehu3), spread from Right UP to Left Down (cnpaea ceepy haneo ehu3), Spread Left Down to Right Up (cneea chu3y hanae o eepx), Spread From Right Down to Left Up (cnpaea chu3y haneo eepx), Spread from Center to Up /Down (u3 uehmpa eepx/ ehu3), Fold from Up /Down to Center (ceepxy/chu3y e eHmp), old from Left/ Right to Center (cneea/cnpaa e uehmp), Horizontal Shutter, Vertical Shutter, Fold from the Corners to the Center (om yanoe K uehmpy), Play (ocnpou3ebeHue), Off (BbiknoyeHo).

MeHko HaCtpoek

MeHIO HacTpoEK DVD npOnrpbIbATEnJaet BO3MOxHOCTb NOJb3OBATeIIO peryInpoBaTb OTdJIbHbIe HAcTPOIKn npOnrpbIbATEnJI.

ДяdoctуаКустановампponгьвateльВржимe STOP（octahobka Bocnpoan3BedeHn）нжмte KHonkyDVDSETUPHaПУ.Nocne nepBOrOнхатЯKHonkVDSETPUBbI nonaDAeTeHaCTpaHnCy SYS-TEM SETUP（CNUCTEMHbie HACTPOJKN).ДяпорexodaКдру罗i

CTpaHnue nCnoJIb3yIe KHOKn ynpaBHeHna Kypcopom A. Ecn Bbl Bb6paHn HuxHyIO CTpaHnU, haxMnte KhoNky ENTER dJra ee aKTNaun.

PpumeyaHue:

Ecnu Bbl haxaun KhoNky DVD SETUP 60 epemBocnpou3beDeHua ducka, mo Hekomopbie onuu byyum heoocmynbl.

MeHn HactpoeK DVD nponpblbATEJIA COCTOIT n3 8eCTN OCHOBhIX CTpaHNU:

1. SYSTEM SETUP (CNCTEMHBIE HACTPOIKN). 3TO MEHIO HAcTPOIKN FOpMaTa 3KpaHa, ypoBn I npOJIa DoCTyNa K npocMOTpy FInbMOB, 3KpaHHoN 3actABKn, BbIbOpa AKTNBHoro BVdeOBbIXOda N BOCCTaHOBJIeHn 3aBOdCKnx HAcTPOeK.
2. LANGUAGE SETUP (HACTPOKKA 3bIKOB). 3TO MeHIO BbI6opa 3bIKOB DnaydnocopboKDeHHa, cy6TnTPOB, MeHIO DNCKa N cy6TnTPOB DNCKa MPEG-4.
3. AUDIO SETUP (HACTPOIKA 3BYKA). ΘTO MEHIO HAcTpoIKN 6acOB CnCTeMbl.
   4.VIDEO SETUP (HACTPONKA N3OBPAKEHNRA).
4. SPEAKER SETUP (HACTPOIKA IROMKOROBOPTEJEI). 3TO MEHIO HAcTPOIKI peKIMUINPOBAHNI IN MOUHOCTNU CEHTpAJIbHORO KaHana.
5. DIGITAL SETUP (HACTPOIKA LINΦPOBORO AYINOBbIXOДA). 3TO MeHIO HactpoIKN DnHaMnueckoro Dnana30Ha N peKIma BbIBOda MOHOΦOHueckoro ayDnOcNHaJa.

CnCTeMHbIe HacTpoiKn

Bpekme STOP haxmte KhoNky DVD SETUP.
- Bы пonaдае на страниу SYSTEM SETUP (СИСТЕМьIE HACTPOДКИ).
- История КНОПК N /ДЯ Вьбopa OДною ИЗ папаметров И нахшто КНОПКУ ENTER Дявхда в подменю Вьбopa язka.
- IcnoIb3yIte KhoIKN ▲/▼ ДЯ Bbl6opa Ra3bika n HaxMnTe KhoNky ENTER nla noTBepeKdEHHa.
- HaxMMTe KHOIIky DVD SETUPДЯ BbIXOДи3 MeHIO HAcTpoeK.

TV SYSTEM - Cnctema LbETHOCTN

PonpmbaTeNb NOdEepKbAeT CneDyUoune CnCTembl CBeTHOCTN: NTSC/PAL/PAL60/ AUTO. BbIbepnte Ty cnCTeMy, KOTopra nCnoJIb3yeTcB Baawem TeJeBn3ope.

Ecnn CnCTema UBeTHOCTN BbIbpaHa HeBepHo, TO 3TO MOxET Bbl3BaTb dpoXaHne n3o6paXeHn IIN HeBepHyU cBETonepeaCy. YcTaHOBka no yMOJuaHIO: PAL.

CnCTeMHbIe HAcTpoiKn

SCREENSAVER-3KpaHHa3acTabka

3KpaHHa 3acTabKa aKTHBnpyeTc, KOrda BaW DVD npOnrpbBaTeIb HaxOHTcB ODHOM n3 coCToHn STOP (ocTaHObKa BocnpOn3BeDeHnA), OPEN (OTkpbl TIOtOK 3arpy3uKa DnCKOB) nNo Disc (Het dNcKa B 3arpy3uKe), a TaKke ecnn BocnpOn3BeDeHne 6blIO BpeMeHHo npnoCTaHO bHe NaXaTneM KHONK PAUSE (nay3a) Ha cPok 60nee, Yem 180 cekynd.

VIDEO - BbI6op BnDeoBbIXOJa

YcTaHOBKa ONpeDeJnEeT TnI aKTHBHO BnDEOBbIXOJa. 3Ta yCtAHOBKa He MOKeT 6bITb N3MeHeHa, TaK KaK BnDEOBbIXoD cHKCuPobAH dJa MOHO6Noka.

HactpoJa3bIKOBbIX npaMeTpOB

Bampahee yctaHOBKn 6ydyT aHHyInpoBaHbI n npOnrpbIbaTeJIb BepHeTcK nepBOHaJbHOMy COCTOHNIO C 3aBOIDCKMm yCTaHOBKaMn.

Bpekme STOP haxmte KhoNky DVD SETUP.
- Пи помоши Кнонok / > ВьберпесТраниу LANGUAGE SETUP (HACTPOИKAЯЗIKOB) И НжмITE Kнонк enter？ - 对 - 对
- IcnoIb3yIte KHONKn / IJRA BbIbopa OJHOrO I3 napametpoB n HaxMITE KHONKy ENTER IJRA BXOda B NOdMeHIO BbIbopa Ra3bika.
- IcnoIb3ayIte KhoNkI △/V DnI Bbl6opa Ra3bika N HaxMnte KhoNky ENTER nI NOITBepKdEHHa.
HaKMTe KHOIIky DVD SETUP IJIy BbIXOJa n3 MeHIO HaCTpoE.K.

MPEG4-Lang - Kodobary cTpaHnca dIy cy6tntpoB MPEG-4

Central EU: Swedish etc.

Cyrillic: Russian, Serbian etc.

Western EU: German, French etc...

LcHTpaIbHaE BpONa: (UBeunr n T.D.)

Pycckn: (Poocna, Cep6n n T.d.)

3anaHna Ebpona: (FepMaHn, FpaHnI nT.d.)

HACTPOIKA DVD IPOINPGbIBATEJIa

HactpoJa n3o6paXeHnA

East EU:Polish.,Slovene etc. Boctohna Ebpona:(Ponbha,CnoBehnruT.D.)

BpeKmE STOP HaxMnTe KhoNky DVD SETUP.
- Пи помоши Кнонок / > Вьберпс страниуVIDEO SETUP (HACTPOДКА N3OBPAЖЕНЯ)И нажмITE Kногку ENTER Для ee akTNBAци.

CtpaHnua coepknt cneDyUoune npaMeTpbl:

BRIGHTNESS, CONTRAST, HUE, SATURATION

SHARPNESS (APKOCTB, KOHTPACTHOCTb, UBETOBON TOH, HACBIUEHHOCTb IN PE3KOCTb).

YTo6bI He 6ecnOKoNTb HocbIO cOcEeB, Bbl MoXeTe nCNoIb3OBaTb 3TOT npaMeTp dIyMeHbSeHn yPoBn 3Byka 6e3 n3MeHeHn opuHaJIbHOrTOHa.

FULL: MaKcMaJIbHbI yPoBeH 3Byka.
NIGHT MODE: YpOBeHb 3Byka, npneMJIeMbI, yTo6bl He 6ecnOKoNTb cOceJe.
OFF:3ByK NOJIHOCTbIO OTKIIOUeH.

DUAL MONO -Двовhoe moho

3TOT napametp onncblaeTp pexmbi BbIBOda MOHOFOHnueckoro aydnocnHaIa yepe3 JeBbI (L) n npabBi (R) kaHbI ayDnOCnCTembl nCnOJIb3yETcI gn pa6oTbI B peKIme kapaoke. IMeetcay Tbe Bo3MOXhIX 3NaueHnE 3TOrO napameTpa:

STEREO:CTepeopexim
MONOL:TOJIbKOJIeBbIKAHAn
MONO R: TOnbKO npaBbI KaHaI
MIXMONO: MOHooHNoHeckoe BocPon3BeJeHne Yepe3 o6a KaHaJa.

Ecn y Bac Bo3nKnn npo6nembic cyHKnOHHpOBaHneM DVD npoirpbBaTeTna,To nepeD o6paueHnEM B cepBnCHyIO cnyk6y n3yUHTe cneDuOyIO Ta6nU.

TV—Peritel—AV—S-Video—PC—HDMI—TNT—DVD

Mise en marche

Support technique Xoro/MAS:

Tel.: [phone]
- Internet: www.xoro.fr/Service.aspx
- Email: [e-mail]

Support technique Xoro/MAS:

Tel.: [phone]
- Internet: www.xoro.fr/Service.aspx
- Email: [e-mail]

Pas de signal TNT?

If you press the title button during playback, the video DVD goes back to the title menu.

Menu DVD

1. Enfants
2. G
3. PG
4. PG13
5. PG-R
6. R
7. NC-17
8. Adultes

Support technique Xoro/MAS:

Tel.: [phone]
- Internet: www.xoro.fr/Service.aspx
- Email: [e-mail]

U.S. Patens Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448 and 6,516,132

"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited."

SPECIFICATIONS

François

HTC 1525D HTC	1925 HTC 2225D
Screen Size 39 cm	(15,4 pouses) 48 cm (19 pouses) 56 cm (22 pouses)
Display Type TFT LCD
Resolution 1280 x 800 1440 x 900 1680 x 1050
Aspect Ratio 16:10
Brightness 200 cd/m	2	300	2 cd/m 400
Contrast 300:1	1000:1	1000:1
Response Time 25	ms 6,5 ms	5 ms
Viewing Angle	90°	160°	160°
TV System	PAL BG / DK / I SECAM BG / DK / L / L'
Stereo	NICAM / A2
Interface
CVBS Video	1,0 V p-p 75 Ohm
S-Video	Y: 1,0 V p-p +/- 3 dB C: 0,3 V p-p +/- 3 dB
Scart	CVBS: 1,0 V p-p 75 Ohm RGB: 1,0 V p-p 75 Ohm
PC VGA	640 x 480 bei 60 Hz / 800 x 600 bei 60 Hz / 1024 x 768 bei 60 Hz
Antenna	RF Antennenanschluss, 75 Ohm
Speaker	2 x 3 Watt	2 x 3 Watt	2 x 5 Watt
Video System	PAL / NTSC
AC / DC Adapter	AC: 110—260 V 50 / 60 Hz DC: 12 V bei max. 5 A
Consumption	60 W / Standby 3 W
Dimension (LxTxH)	385 x 175 x 336 mm	465 x 210 x 410 mm	540 x 210 x 460 mm
Weight	5,5 kg	6,5 kg	7,0 kg

cd/m

François

Treble and bass (agudos y bajos)

Estamericano.
Lareshortening of the code is a good way to improve the performance of your program.

Censorship

1. G; 3.
2. PG
3. PG13
4. PG-R
5. R
6. NC-17
7. ADULT

U.S. Patens Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448 and 6,516,132

"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited."

Specifications

HTC 1525D HTC 1925 HTC 2225D
Tamaño de monitor	39 cm (15,4ulgadas)	48 cm (19ulgadas)	56 cm (22ulgadas)
Tipo de pantalla TFTLCD
Resolution en Pixel	1280 x 800 1440 x 900	1680 x 1050
Relacion de lados	16:10
Brillo 200 cd/m	2	300 2	cd/m 400 2
Contraste 300:1	1000:1	1000:1
Tiempo de reccion	25 ms 6,5 ms	5 ms
Angulo de vista	90°	160°	160°
Sistema de TV	PAL BG / DK / I SECAM BG / DK / L / L'
Estereo	NICAM / A2
Conexiones
Video CVBS	1,0 V p-p 75 Ohm desiguales
S-Video	Y: 1,0 V p-p +/- 3 dB C: 0,3 V p-p +/- 3 dB
Euroconector	CVBS: 1,0 V p-p 75 Ohm RGB: 1,0 V p-p 75 Ohm
PC VGA	640 x 480 bei 60 Hz / 800 x 600 para 60 Hz / 1024 x 768 para 60 Hz Siempre se recomienda la resolution negativa
Antena	Conexion de antenna RF, 75 Ohm
Parlantes	2 x 3 Watt	2 x 3 Watt	2 x 5 Watt
Sistema de Video	PAL / NTSC
Adaptador AC / DC	AC: 110—260 V 50 / 60 Hz DC: 12 V max. 5 A
Consumo	60 W / Standby 3 W
Medidas (LxAxA)	385 x 175 x 336 mm	465 x 210 x 410 mm	540 x 210 x 460 mm
Peso	5,5 kg	6,5 kg	7,0 kg

cd/m

louedes

FREE TO CHOOSE INNOVATIONS

XORO by MAS Elektronic AG

Blohmstrasse 16/20

21079 Hamburg

Germany

Tel: [phone]

Fax: [phone]

[e-mail]

www.xoro.de
