Ares 2 USB - Earphones Speedlink - Free user manual and instructions

Product type	USB Headset
Brand	Speedlink
Model	Ares 2 USB
Connectivity	USB 1.0 (Plug & Play)
Headphone sensitivity	100 dB ±3 dB
Headphone impedance	32 Ω
Microphone type	Condenser, omnidirectional
Microphone diameter	9.7 mm
Microphone sensitivity	-44 dB ±3 dB
Microphone impedance	2200 Ω ±15 %
Frequency response	20 Hz - 20 kHz
Volume control	On cable (wired remote control)
Adjustable headband	Yes
Padded ear cups	Yes
Removable microphone	Yes
Power supply	Via USB port
Warranty	2 years
Cleaning	Soft, dry cloth
Usage	Dry indoor use only

Frequently Asked Questions - Ares 2 USB Speedlink

How to install the driver for the Ares 2 USB headset?

Insert the provided CD into the drive. The driver installation menu starts automatically. Otherwise, open the driver from 'My Computer / Ares² Driver'. Select 'Driver' and follow the instructions. Restart the computer after installation.

What to do if there is no sound?

Check that the headset is set as the default audio device. Go to 'Start / Settings / Control Panel / Sound and Audio Devices' and select 'C-Media Device' as the playback and audio output device.

How to adjust the volume?

Use the wired remote control located on the cable. Turn the wheel to increase or decrease the volume.

The microphone does not work, what to do?

Make sure the microphone is properly plugged in and set as the default recording device in your operating system's audio settings.

Can I use the headset on a USB hub?

No, it is recommended to plug the headset directly into a USB port on the computer. USB hubs may not provide sufficient power or may cause interference.

How to clean the headset?

Use a soft, dry cloth to clean the headset. Never use benzene, thinner, or harsh chemicals.

What is the warranty of the Ares 2 USB headset?

Speedlink offers a two-year warranty from the date of purchase, covering manufacturing defects and all components.

How to connect the removable microphone?

Simply insert the microphone plug into the dedicated input on the headset. Make sure it is fully inserted for optimal contact.

Is the headset compatible with Skype or other communication software?

Yes, the headset is compatible with communication programs like Skype, MSN® Messenger, or Yahoo!® Messenger after installing the driver.

Why is the sound distorted?

Go to 'Start / Settings / Control Panel / Sound and Audio Devices', then lower the device volume in the Properties window to avoid distortion.

USER MANUAL Ares 2 USB Speedlink

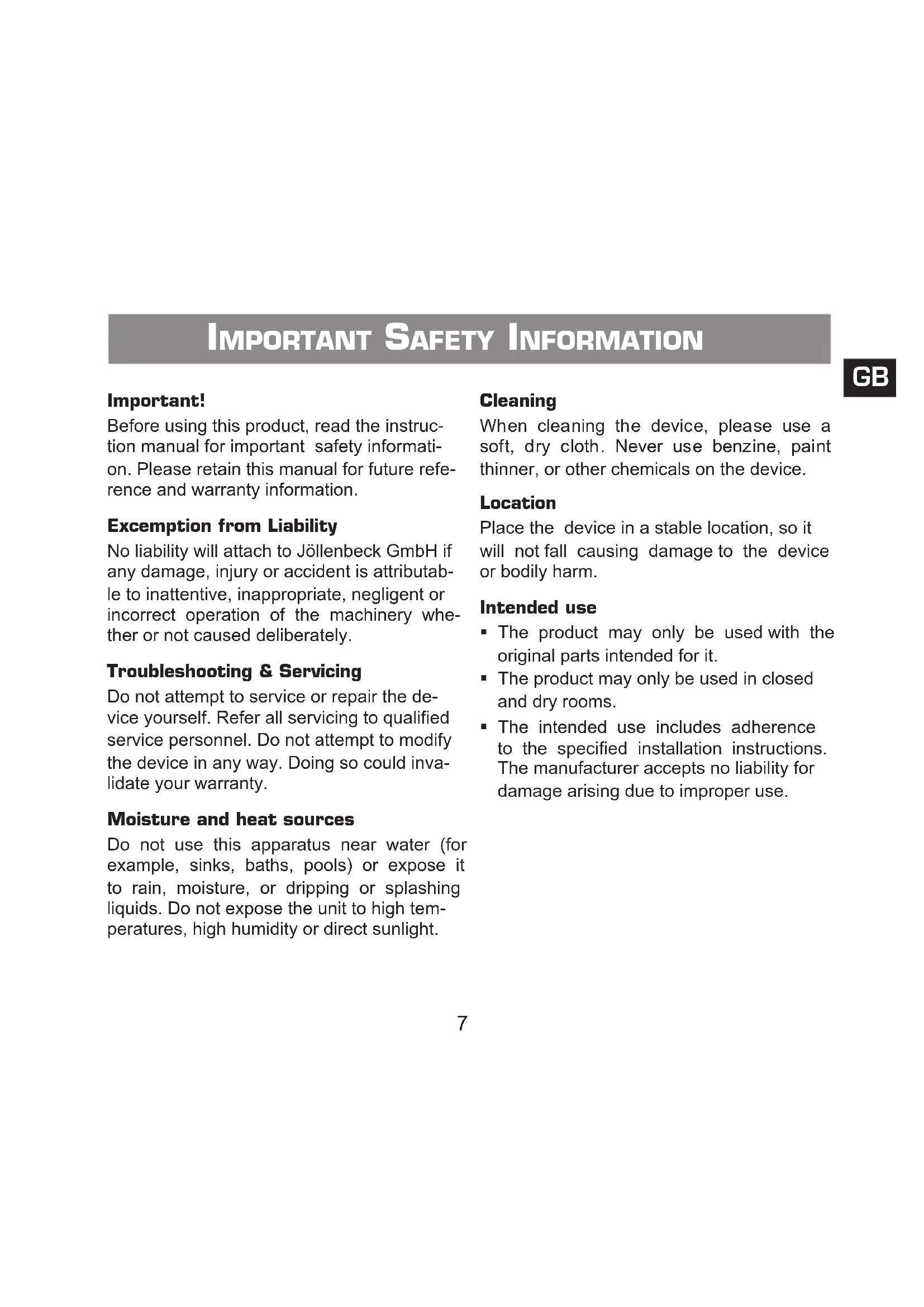

IMPORTANT SAFETY INFORMATION

Important!

Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information.

Exemption from Liability

No liability will attach to Jollenbeck GmbH if any damage, injury or accident is attributable to inattentive, inappropriate, negligent or incorrect operation of the machinery whether or not caused deliberately.

Troubleshooting & Servicing

Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not attempt to modify the device in any way. Doing so could invalidate your warranty.

Moisture and heat sources

Do not use this apparatus near water (for example, sinks, baths, pools) or expose it to rain, moisture, or dripping or splashing liquids. Do not expose the unit to high temperatures, high humidity or direct sunlight.

Cleaning

When cleaning the device, please use a soft, dry cloth. Never use benzine, paint thinner, or other chemicals on the device.

Location

Place the device in a stable location, so it will not fall causing damage to the device or bodily harm.

Intended use

The product may only be used with the original parts intended for it.
The product may only be used in closed and dry rooms.
- The intended use includes adherence to the specified installation instructions. The manufacturer accepts no liability for damage arising due to improper use.

Introduction

Thank you for purchasing the Ares² USB headphone system. Experience audio at the highest level in comfort. The headband and earpads are covered in an ultra-soft material meaning that the headphones remain comfortable even after many hours of wear. With the high-quality, removable microphone you can conduct live video conferences and make calls using the latest Internet communication programs such as Skype™, MSN® Messenger or Yahoo!® Messenger.

Included in the Delivery

• Ares² USB headset with microphone
  Driver CD
• Operating manual

Features

Adjustable headband
- Comfortable to wear, padded earpads
- Handy: In-line volume control
- Highly-sensitive microphone - for precise speech input
USB 1.0 connector for simple Plug&Play operation

Note

Install the driver software before connecting the headphones to your computer. Plug the USB connector into a USB port on your PC. Do not plug the headphones into a USB hub; plug them directly into a USB port on the PC instead.

• Insert the supplied driver CD into your CD-Rom drive. Driver setup should automatically start. If it does not, open the driver by double clicking on My Computer / Ares² driver.
• Select driver in the following menu. The installation will now start.
• Complete the installation. Your computer will restart.

In-line control functions

Volume: for increasing and decreasing the volume level

Problem Solving

No sound playback

Check if your operating system has registered the headset as the default audio device. To do this, go to Start/Settings/Control Panel/Sounds and Audio Devices and select the appropriate device for sound playback and output (usually "C-Media Device").

Override function

Go to Start/Settings/Control Panel/Sounds and Audio Devices and set the device volume lower in the properties window.

Technical Information

Headphones
Sensitivity: 100dB±3dB
Impedance: 32 Ω
Microphone
Condenser microphone: Ø 9.7mm
Directivity: Omni-directional microphone
Impedance: 2200Ω ±15%
Sensitivity: -44dB±3dB
Frequency range: 20Hz -20kHz

Guarantee

We guarantee this product in respect of workmanship and all built-in components for a period of two years from date of purchase.

Should you need help...

Our technical support team will be pleased to help with any technical problems. The hotline number can be found on the back of this manual.
