USER MANUAL KA CM 8000 T KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity. Front cover page (first page)

KA CM 8000 TCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

9Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

3. Swing filter holder

4. Graduated water tank

8. Mode button, set clock button,

10. Segnalatori luminosiCopies of the I/B. Please reproduce them without any changes

except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

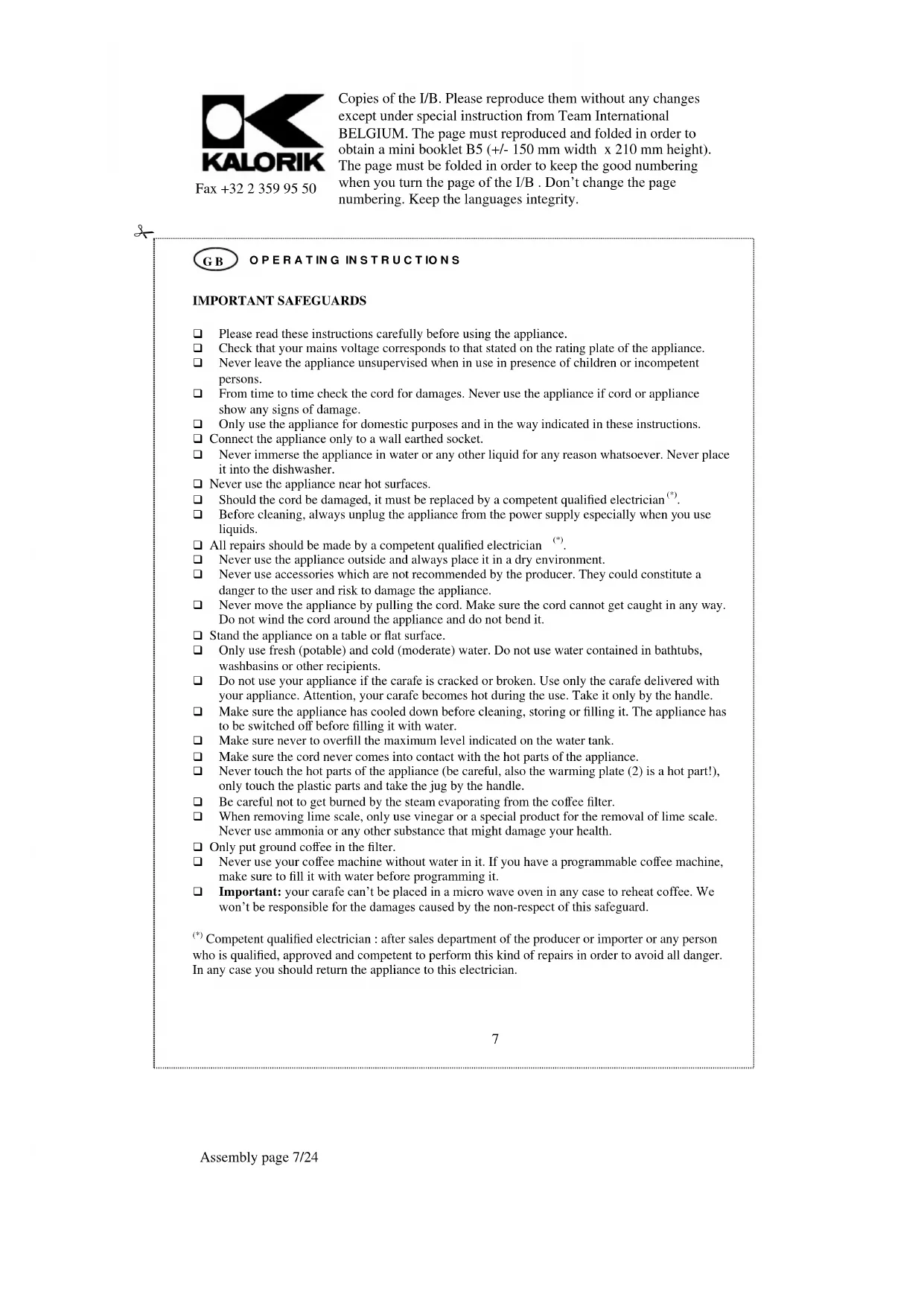

O P E R A T IN G IN S T R U C T IO N S

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Check that your mains voltage corresponds to that stated on the rating plate of the appliance. Never leave the appliance unsupervised when in use in presence of children or incompetent persons. From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage. Only use the appliance for domestic purposes and in the way indicated in these instructions. Connect the appliance only to a wall earthed socket. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Should the cord be damaged, it must be replaced by a competent qualified electrician

Before cleaning, always unplug the appliance from the power supply especially when you use liquids. All repairs should be made by a competent qualified electrician

Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a table or flat surface. Only use fresh (potable) and cold (moderate) water. Do not use water contained in bathtubs, washbasins or other recipients. Do not use your appliance if the carafe is cracked or broken. Use only the carafe delivered with your appliance. Attention, your carafe becomes hot during the use. Take it only by the handle. Make sure the appliance has cooled down before cleaning, storing or filling it. The appliance has to be switched off before filling it with water. Make sure never to overfill the maximum level indicated on the water tank. Make sure the cord never comes into contact with the hot parts of the appliance. Never touch the hot parts of the appliance (be careful, also the warming plate (2) is a hot part!), only touch the plastic parts and take the jug by the handle. Be careful not to get burned by the steam evaporating from the coffee filter. When removing lime scale, only use vinegar or a special product for the removal of lime scale. Never use ammonia or any other substance that might damage your health. Only put ground coffee in the filter. Never use your coffee machine without water in it. If you have a programmable coffee machine, make sure to fill it with water before programming it. Important: your carafe can‟t be placed in a micro wave oven in any case to reheat coffee. We won‟t be responsible for the damages caused by the non-respect of this safeguard.

Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY) This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth. The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red. The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow). INITIAL OPERATION When you use your appliance for the first time, pour fresh water into the water tank (without coffee) and switch on the appliance. Once all the water has passed through, switch the appliance off and let it cool down. When it is cold enough repeat the process with fresh water. Repeat this process 3 times.

Plug in your coffeemaker. The time "12:00" will be displayed on the electronic digital clock. To set the current time, press the MODE button (9) once and „CLOCK‟ will be displayed. Then press the HOUR button to set the hours, and the MIN button to change the minutes. By each impulse on one of those buttons, the hour or minutes will go with 1 unit but if you keep the pressure, the time will roll forward more quickly. When the setting is finished, wait about 10 seconds and CLOCK will be displayed or press twice successively the MODE button. In both cases, only the setted clock will stay displayed. PROGRAMMATION Your coffee maker has a 24 hours timing, but the programmed clock remains in the memory as long as you don‟t modify it. Check the time displayed on the clock. Fill the water tank with cold water by lifting the lid (5). The number of cups can be read on the graduated water tank (4). Close the lid. Swing the filter holder (3) (use the tongue to make it easier), add a coffee filter (size number 4) and add the desired quantity of ground coffee. Then replace the filter holder in its initial position paying attention that it correctly hangs to the tank.. Press the MODE button twice successively. The time "12:00" and „TIMER‟ will be displayed on the electronic digital clock. Set the desired programmation time doing the same as described for the setting of the clock. Once the setting is finished, wait about 10 seconds and “CLOCK” will disappear or press once the MODE button. In both cases the programmation time will disappear and will be replaced by the time of the clock. Make sure the carafe is placed correctly on the hotplate. Then press twice successively the button I/O (10) and the orange small AUTO pilot light will light on. The coffee machine is ready to start at the setted time. To check or to modify the programmation time, press twice the MODE button and it will be displayed. You can now modify it if you want it. When your appliance will start at the programmed time, the orange pilot light will comes off and the red pilot light will light on, which means that the appliance has started.Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.

With the hot plate, you can keep your coffee hot for about 2 hours but after this delay, your appliance will automatically cut out (both pilot lights will be off). You can switch off your appliance at each time simply by pressing once the I/0 switch. MANUAL OPERATION Fill the water tank with cold water by lifting the lid (5). The number of cups can be read on the graduated water tank (4). Close the lid. Swing the filter holder (3) (use the tongue to make it easier), add a coffee filter (size number 4) and add the desired quantity of ground coffee. Then replace the filter holder in its initial position paying attention that it is correctly hanged to the tank.. Make sure the carafe is placed correctly on the hotplate. To switch on your appliance, press once the I/0 button. The red pilot light will come on and the coffee will start flowing after a few seconds. You can switch off your appliance at each time simply by pressing twice successively the I/0 switch (all pilot lights will be off). Your coffee maker will cut out automatically after about 2 hours functioning. USE COMFORT When you remove the carafe from this appliance, a non-drip valve will automatically operate to stop any drops of coffee dripping onto the hotplate. Replacement of the carafe automatically opens the non-drip valve and allows any remaining coffee to filter through into the carafe. When the water tank is empty, wait a few seconds before removing the carafe in order to let the water in the filter flow totally. Once the coffee ready, you can keep it warm by letting it on the hot plate (2). This will start to heat up as soon as the coffee maker is on (red pilot light on). With the automatic or the manual operation, the duration won‟t exceed about 2 hours because your coffee maker will automatically cut out after that. Attention: when you switch your coffee maker out, the hot plate will also cut out, but it will still stay hot for a short while. So pay attention wait until the hot plate has completely cooled down before cleaning or storing the appliance.

DECALCIFICATION AND CLEANING

Decalcifying the coffee maker prolongs its life span. For decalcification only use products especially made for decalcification of electric coffee makers that you will find in shops and read their instruction books. We won‟t be responsible for the repaired due to a bad maintenance of your appliance. Don‟t place any part of your coffee maker in the dishwasher. Clean the plastic parts with a damp cloth. The filter holder of your coffee maker is removable in order to clean it more easily under a water pipe for example but also to avoid the manipulation of a dirty paper filter. Therefore swing it completely and pull it vertically. To clean the hot plate, use a non abrasive sponge in order not to rasp it. Do the same as for the carafe but add a classic cleaning agent to raise the effectiveness.Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don‟t change the page numbering. Keep the languages integrity.
