USER MANUAL KM 27.07 Petra Electric

Petra electric coffee maker with clear glass and black casing (no visible text or symbols on device body)

Close-up of a mechanical component with a circular inset highlighting a small electronic component (no visible text or symbols)

Close-up of a Petra coffee maker with lid and spout, showing mechanical components and a lid cover (no text or symbols visible)

Kaffeezubereitung

Read these instructions carefully. They contain important notes for the use, safety and maintenance of the appliance.

Keep the instructions in a safe place and pass them on to any future user.

Only use the appliance for the purpose mentioned in these instructions.

This appliance is intended for domestic use and similar applications, such as:

in staff kitchens in shops, offices and - other commercial establishments; in agricultural establishments; - by guests in hotels, motels and other - accommodation facilities; in bed-and-breakfast facilities. -

The appliance is not intended for purely commercial use.

Be sure to follow the safety information when using the appliance.

Glass breakage is excluded from the warranty.

Technical data

Rated voltage: 220-240 V 50/60 Hz

Mains consumption: 1000 W

Protection class: I

Safety information

Connect the appliance only to a shock-proof socket that has been installed according to regulations. The power cable and power plug must be dry.

Do not pull the power cable over sharp edges, pinch it or let it hang down. Protect from heat and oil.

Use an extension cable only if it is in good condition.

Do not pull out the plug by the cable or touch it with wet hands.

Do not carry the appliance by the power cable.

Do not place the coffee maker on hot surfaces such as stove tops or near an open gas flame, as this may cause the housing to melt.

Do not place the appliance on water-sensitive surfaces, as they may be damaged by water spray.

Never leave the coffee maker to run un-• attended.

Do not switch on the appliance without water. Do not fill the fresh water tank with more cold water than for the maximum number of cups.

Do not fill water into the coffee maker • while the appliance is switched on or still hot. Switch off the coffee maker first and let it cool down for five minutes.

Caution• . The appliance becomes very hot. Risk of scalding through escaping steam. Never open the cover while the appliance is running.

This appliance is not intended to be used by persons (including children) with limited physical, sensory or intellectual faculties or who lack experience and/or knowledge, unless they are supervised by a person responsible for their safety or have received instructions on how to use the appliance.

Please make sure that children do not have an opportunity to play with the appliance.

- If the following happens, do not use the appliance and unplug it immediately:

- the appliance or power cable is damaged - a defect is suspected after a fall or similar occurrence

In these cases, have the appliance repaired.

- The appliance must be decalcified regularly.

- The glass pot is not suitable for use in microwave ovens.

- Pull out the power plug:

- if faults arise during operation - each time before cleaning and servicing - after use.

- Never immerse the appliance in water.

We will not accept any liability for damages resulting from misuse, non-compliance with the decalcification instructions, or unqualified repairs. Guarantee services are also excluded in such cases.

The appliance is not intended for commercial use.

If the cable of the appliance is damaged, it must be replaced by the manufacturer's authorised service agent or a qualified technician. Incorrect repairs may result in considerable hazards for the user.

Start-up

Prior to initial use or when the coffee maker has not been operated over a long period, fill the appliance with the maximum amount of water but without coffee powder, let the water boil and finally rinse the filter insert and pot with hot water.

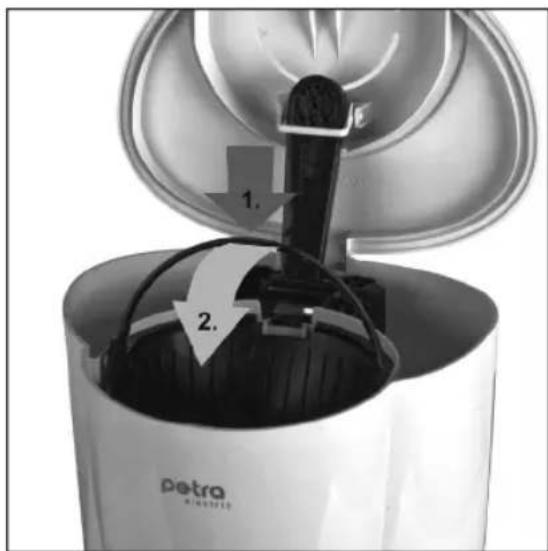

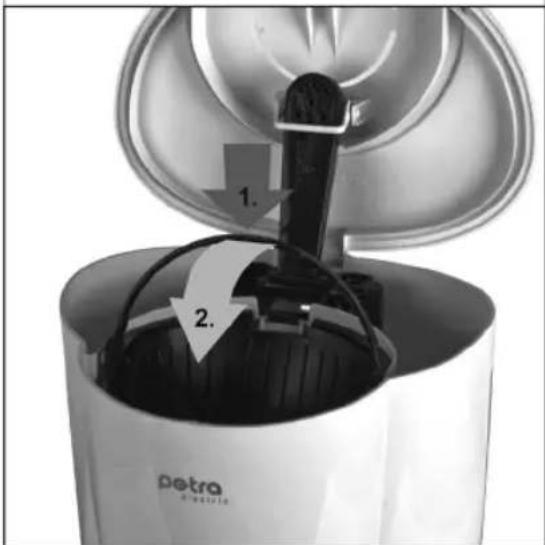

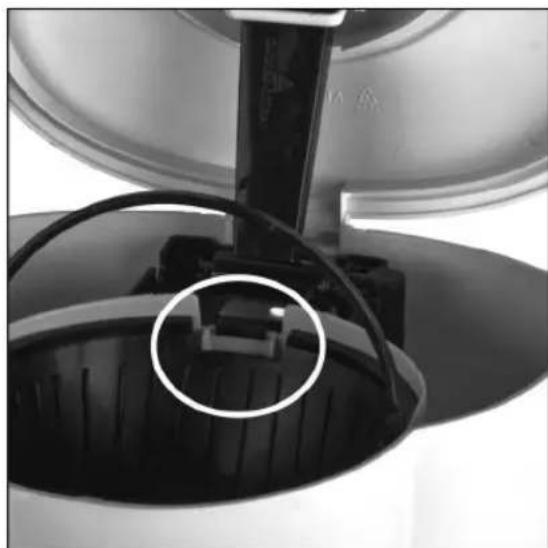

When inserting the filter insert make sure the recess faces towards the water tank. Press the filter insert slightly downwards and swivel the handle towards the front to lock the filter into place.

Close-up of a mechanical device with a circular annotation highlighting a component (no visible text or symbols)

Close-up of a petra coffee maker with open lid and internal components, no visible text or symbols

Brewing coffee

Fill cold water into the water tank. The water level indicator shows the quantity of fresh water required to brew the desired number of cups à 125 ml coffee. The scale on the glass coffee pot also indicates the quantity of fresh water and does not apply to the quantity of brewed coffee.

Before adding the coffee powder, make sure that the filter insert is correctly fitted and that the handle is locked.

⚠️ If the filter insert is not locked, coffee may overflow!

Fold a paper filter size 4 (1 x 4) along the fold lines and insert it into the filter insert. The paper filter is not allowed to stick out beyond the rim of the filter insert and must therefore be pressed slightly into place by hand.

Fill in the required quantity of coffee powder. Depending on your personal taste, use approximately 5 to 7 grams of medium ground coffee per cup. If the coffee powder is ground too finely, the filter may overflow.

Close and press down the cover until it locks into place.

Then connect the power plug to a shock-

proof socket and activate the switch. The indicator light will come on when the brewing process starts.

After the brewing process is completed, the glass pot can be removed. The drip-stop prevents coffee residues from dripping from the filter.

The hot plate automatically keeps the brewed coffee at serving temperature until the coffee maker is switched off.

Keep in mind that the coffee will lose its aroma if it is kept warm too long.

Used paper filters with their coffee powder contents are bio-degradable. To remove, open the cover, hold the filter insert by the handle and pull up and out.

Cleaning

Disconnect the appliance from the mains and allow it to cool down.

Never immerse the appliance in water; simply wipe it over using a damp cloth with a drop of washing-up liquid and then rub dry.

Do not use harsh or abrasive cleaning agents.

Clean the filter insert and glass pot under running water or in the dishwasher.

Decalcifying

Calcium deposits result in energy losses and impair the service life of the appliance. The appliance will switch off prematurely if the calcium deposits are too severe. It is then very difficult to remove the deposits. We therefore recommend you to decalcify the appliance regularly, but at the latest when the brewing time increases significantly or there is more noise during the brewing process.

The following values are offered for guidance and are based on daily use in a household.

Hardness range	Hardness	Decalcification
1 soft 0-7° dH	every 6 months
2 medium >7	14° dH every	3 months
3 hard >14-21°	dH every 6 weeks
4 very hard >21°	dH every	4 weeks

1^ dH corresponds to approximately 0.18 mmol/l Ca and Mg ions

You can obtain details of the water hardness range in your residential area from your water works or community offices.

We recommend using durgol® express. This decalcifier is highly effective, protects the material and does not require any additional exposure time.

You can obtain this decalcifier where you bought the appliance or directly from select dealers. Alternatively you can order it directly from petra-electric.

Insert the paper filter and place the pot into the coffee maker. Fill 1-2 cups of durgol® express into the water tank, fill up the tank with tap water to the max. mark and switch on the appliance. Then let a tank full of tap water run through to rinse the appliance.

Never use vinegar or vinegar essence, as the materials in the appliance could be damaged.

When using decalcifiers based on citric acid precipitates may form during decalcification and seal the calcium deposits or block the pipelines in the appliance. Furthermore, decalcification with citric acid is too slow and therefore complete decalcification cannot be guaranteed.

Important. Damage which results from non-compliance with the decalcification instructions is not covered by the guarantee.

For UK use only

This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.

The replacement of the plug at the • mains lead has to be done according to the following instructions:

Warning - This appliance must be earthed

Important: The wires in this mains lead are coloured in accordance with the following code:

green/yellow Earth

blue Neutral

brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

the wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol 12 or coloured green or green and yellow,

the wire which is coloured blue must be connected to the terminal which is marked the letter N or coloured black,

the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

If a 13 A (BS 1363) plug is used it must be fitted with a 13 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must be protected by a 10 A fuse either in the plug or adapter or at the distribution board. If in doubt - consult a qualified electrician.

Never use the plug without closing the fuse cover.

The appliance complies with the European directives 2006/95/EC, 2004/108/EC and 2005/32/EC.

This product may not be disposed of with the normal household waste at the end of its service life but must be delivered to a collecting point for

recycling electrical and electronic appliances. The materials are reusable in accordance with their identification. You will make an important contribution to the protection of our environment by recycling used appliances.

Please ask about the responsible disposal point at your community offices.

Subject to change

Universal fast decalcifier durgol® express

durgol® express express is fast decalcifier which frees all household items of lime quickly and simply. Its formula guarantees efficient yet gentle, food-safe and environmentally-friendly decalcification.

durgol® express is available at selected specialized retailers and from petra-electric in a bottle of 500ml.

Avant utilisation

Close-up of a mechanical device with a circular annotation highlighting a component (no visible text or symbols)

Close-up of a petro coffee maker with open lid and spout, showing internal components (no text or symbols visible)

Préparation du café
