Thank you for having chosen our induction ceramic hob. In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting.

SUMMARY

SAFETY 13

PRECAUTIONS BEFORE USING 13
USING THE APPLIANCE 13
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 14
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 14
OTHER PROTECTIONS 14

DESCRIPTION OF THE APPLIANCE 15

TECHNICAL DATA 15
CONTROL PANEL 15

USE 16

DISPLAY 16

STARTING UP THE APPLIANCE 16

BEFORE USING YOUR NEW HOB 16
SENSITIVE TOUCHES 16
STARTING-UP 16
RESIDUAL HEAT INDICATION 17
AUTOMATIC COOKING 17
EXTENSION ZONE 17
CONTROL PANEL LOCKING 18

COOKING ADVICES 18

EXAMPLES OF POWER SETTING 18

MAINTENANCE AND CLEANING 19

WHAT TO DO IN CASE OF A PROBLEM 19

ENVIRONMENT PROTECTION 19

INSTALLATION INSTRUCTIONS 20

ELECTRICAL CONNECTION 21

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by installation or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate cannot be used as freestanding or as working surface.
  The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance cannot be used above a dishwasher or a tumble-dryer: as steam may cause damage.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the hob whilst cooking using grease or oils that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Never cover the appliance with a cloth or a protection sheet. This could become very hot and catch fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
  Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• Never place any hot container over the control panel.
• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the underside of the appliance is large enough (2cm). This is essential to guarantee correct ventilation.
• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. All cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

If a defect is noticed, switch off the appliance and turn off at the main electrical supply.
- If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
- Repairing has to be done by specialists. Do not open the appliance by yourself.
- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.

Technical data

Total power Total power Heating zone location Power			Diameter
MKK606	6400	W Front left	1000 / 2200 W	145 / 220 mm
			1200 W	155 mm
			1800 W	190 mm
			1200 W	155 mm
MKK774	7000	W Front left	1000 / 2200 W	145 / 220 mm
			1200 W	155 mm
			1800 W	190 mm
			1800 W	190 mm

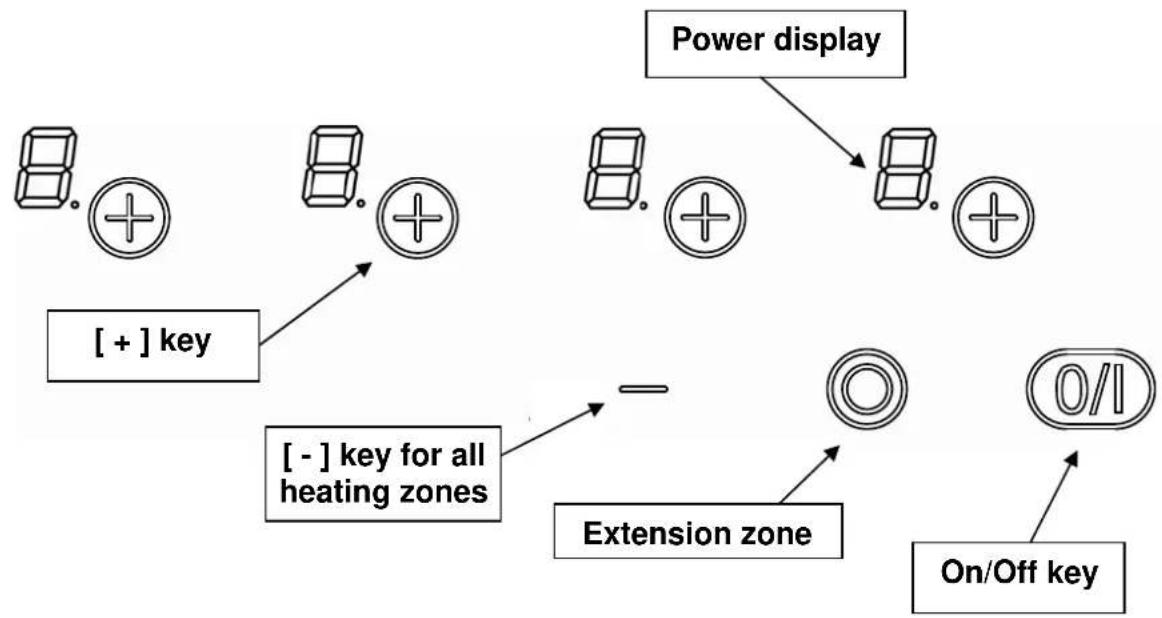

Control panel

Display

Display 0.	Designation		Function
	Zero		The	heating zone	is
1...9	Power	level	Selection of the
E	Error	message	Electronic failure
A	Heat	accelerator	Automatic cooking
H	Residual	heat	The heating zone is hot
L	Locking		The control panel is

STARTING UP THE APPLIANCE

Before using your new hob

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Sensitive touches

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a "beep" sound.

Touch only one key on the same time.

Starting-up

• Start-up/ switch off the hob

Action

Control panel

To

start

To stop

• Start-up/ switch off a heating zone

Action	Control panel		D	i	s
Increase power	Press key [+]	[1] to [9]
Decrease power	Press key [-]	[9] to [1]
Stop	Press simultaneous [+] and [-]		[0] or [H]

If no action is made within 20 second the electronics returns in waiting position.

Residual heat indication

After switching off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.

The symbol [H] disappears when the heating zones may be touched without danger.

As far as the residual heat indicators are on, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.

Automatic cooking

All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the pre-selected level.

- Switching on the automatic cooking :

Action	Control panel
Zone selection	Press key [ ]
Full power setting	Press key [ + ]	Pass from [ 1 ] to [ 9 ]
Automatic cooking	Re-press key [ + ]	[ 9 ] blinking with [ A ]
Power level selection	Press key [ - ]	[ 9 ] pass to [ 8 ] [ 7 ]
(for example « 7 »)	[ 7 ] blinking with [ A ]

- Switching off the automatic cooking :

Action		Control panel
Zone selection	Press key [+]	[7] blinking with [A]
Power level selection	Press key [-]	[0]

Extension zone

- Switch off/on the extension zone

Action		Control panel			D	i	s	p
select zone		Press key [+]	[0] to [9]	[+				[
Increase power
Switch off		Touch@	key	[	Extension	zone
					light is off
Switch on		Touch@	key	[	Extension	zone
					light is on

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [ 0/1 ]).

- Locking

Action	Control panel					D	i	s	p
Start	Press [0/1]								[
Hob locking	Press simultaneously [-] and [+ ] at front left Press key [+ +]					No	modification
								[

- Unlocking

Action Start

Press key [0/I]

Control panel

D

i

s

p

In the 5 seconds after start :

Action	Control panel			D	i	s	p
Unlocking the hob	Press simultaneously [ - ] and [ + ] at left Press key	[0] or [H]

COOKING ADVICES

Examples of power setting

(the values below are indicative)

1 to 2	Melting, Reheating	Sauces, butter, chocolate, gelatine Dishes prepared beforehand
2 to 3	Simmering, Defrosting	Rice, pudding, sugar syrup Dried vegetables, fish, frozen products
3 to 4	Steam Vegetables, fish, meat
4 to 5	Water Steamed potatoes, soups,	pasta, fresh vegetables
6 to 7	Medium cooking, Simmering Meat	liver, eggs, sausages,
7 to 8	Cooking	Potatoes, fritters, waffles
9	Frying, roasting, Boiling water	Steaks, omelettes, fried dishes, water

• Do not clean the hob if the glass is hot: risk of burn.
• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment are likely to cause scratches and must be avoided.
• Ensure that the bottom of pans is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the bottom of the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

WHAT TO DO IN CASE OF A PROBLEM

The hob or the cooking zone doesn't start-up :

• The hob is badly connected to the electrical system.
• The protection fuse has blown.
• The locking function is activated
• The sensitive keys are covered by grease or water.
• An object is covering the control panel.

The symbol [ E ] displays :

• The electronic system is defective.
• Disconnect and replug the hob.

One or all cooking zones cut-off :

• The safety system has engaged
• You forgot to cut-off the cooking zone for a long time.
  One or more sensitive keys are covered.
  The pan is empty and has overheated.
• The hob also has an automatic reduction of power level and breaking Automatic overheating

The control panel displays [L]:

Refer to the chapter control panel locking page

The automatic cooking system doesn't start-up :

• The cooking zone is still hot [H]
  The highest power level is set [9]

ENVIRONMENT PROTECTION

• The packaging material is ecological and can be recycled.

• The worn appliances contain certain noble metals. Apply to the local government about the possibilities of recycling.

• Don't dispose of your appliance with general household waste

• Get in touch with the waste collection centre of your local council that control the recycling of household appliances.

The installation comes under the exclusive responsibility of specialists.

The installer is held to respect the legislation and the standards enforce in his home country.

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.

His installation has to be done carefully, in conformity of the following drawing.

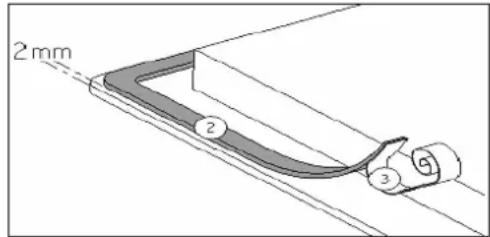

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

Reference	Cut-size
MKK606 560 x 490	mm
MKK776 750 x 490	mm

• Ensure that there is a distance of 50mm between the hob and the wall or sides.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100^ .
• The mural rods of edge must be heat-resisting.
  Not to install the hob to the top of a not ventilated oven or a dishwasher.
• To guarantee under the bottom of the hob casing a space of 20mm to ensure a good air circulation of the electronic device.
• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760~mm .

• The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.

• The installation of this appliance and the connection to the electrical system should be entrusted only to a qualified electrician.
  Protection against the parts under tension must be ensured after installation

• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the mains must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3mm .
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or oven.

Caution!

This appliance has only to be connected to a network 230V 50 / 60Hz

Always connect the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover, use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable	diameter	Cable	Protection
230V~ 50/60Hz 1	Phase + N 3 x	2,5 mm²	H 05 VV - F H 05 RR - F	25 A *
400V~ 50/60Hz 2	Phases + N 5 x	2.5 mm²	H 05 VV - F H 05 RR - F	2x 16 A *

(^*) calculated with the simultaneous factor following standard EN 60 335-2-6/1990

Setting up the configurations

For the various kinds of connection, use the brass bridges which are in the box next the terminal.

Monophase 230V 1P + N

Put a bridge between terminal 1 and 2.

Attach the earth to the terminate "earth", the neutral N to terminal 4, the Phase L to one of the terminals 1 or 2.

Biphas 400V\~2P+N

Attach the earth to the terminate "earth", the neutral N to terminal 4, the Phase L1 to the terminals 1 and the Phase L2 to the terminal 2.

Caution! Be careful that the cables are correctly engaged and tightened.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.
