Product Type	Gas hob
Brand	Constructa
Model	CM17451
Number of burners	4 (triple flame, rapid, semi-rapid, auxiliary depending on model)
Ignition	Integrated electronic with spark plugs
Flame safety	Safety thermocouple – automatic gas shut-off in case of extinction
Overheating safety	Automatic shutdown of all burners in case of overheating
Automatic shutdown	After 6 hours of continuous operation
Automatic re-ignition	Yes, if the flame goes out accidentally (e.g., draft)
Audible signal in case of anomaly	Yes, in case of unattended extinction or general fault
Recommended cookware diameter	Triple flame: 22 cm (min); Rapid: 22-26 cm; Semi-rapid: 12-20 cm; Auxiliary: 10-12 cm
Additional grids available	Grid for triple flame (ref. 363300/484138) and coffee maker grid (ref. 184200)
Energy supply	Gas (butane/propane/natural gas) – adapted according to rating plate
Burner cleaning	Disassembly and soaking in soapy water, brushing with non-metallic brush
Surface cleaning	Sponge and soapy water after cooling; avoid abrasive products, steam, acids
Hob material	Glass or aluminum depending on model (glass/aluminum strip possible)
Maintenance of stainless steel parts	Specific product for stainless steel
Warranty	According to conditions of the country of sale; presentation of the purchase receipt required
After-sales service	Contact Constructa customer service; indicate the E-NR and FD numbers on the rating plate
Repairability	Interventions exclusively reserved for a Constructa approved technician

Frequently Asked Questions - CM17451 CONSTRUCTA

How to light a burner?

Press the knob of the selected burner and turn it to the left to the ignition position. Hold it pressed for a few seconds until the flame ignites, then release and adjust to the desired position.

What to do if the ignition does not work?

Check that the spark plugs and burners are clean and dry. Clean the space between the spark plug and the burner with a small brush. Make sure the burner caps are correctly placed.

Why is the flame of a burner not uniform?

The burner parts may be incorrectly assembled or the gas outlet grooves are dirty. Reassemble the parts correctly and clean the grooves with a non-metallic brush.

What to do if a gas odor spreads in the kitchen?

Check that no gas tap is open. If the odor persists, shut off the gas and electrical supply, ventilate the room and contact the after-sales service immediately. A leak at the cylinder connection is possible.

How to clean the burners and grids?

Let the appliance cool down. Disassemble the burners and grids, soak them in soapy water, then brush them with a non-metallic brush. Rinse and dry completely before putting them back in place.

Why does an audible signal sound and all burners turn off?

This indicates overheating of the hob. Set all controls to the off position (●). The signal will stop. Wait about 30 minutes for the appliance to cool down before using it again. If the signal persists, call technical service.

Can I use a steam cleaner to clean the hob?

No, the use of a steam cleaner is prohibited because it presents a risk of electrocution and may damage the appliance. Use only a sponge and soapy water after cooling.

What to do if a burner goes out during cooking and does not relight?

The safety system has shut off the gas supply. Turn the burner control to the off position (●). The audible signal stops. You can then relight the burner normally. If the extinction is due to a liquid spill, clean the burner before relighting.

What cookware diameters are recommended for each burner?

Triple flame burner: 22 cm minimum; Rapid: 22-26 cm; Semi-rapid: 12-20 cm; Auxiliary: 10-12 cm. Use flat, thick-bottomed cookware and always put a lid on to save energy.

Where to find the reference for additional grids?

The grid for the triple flame burner (diameter >26 cm) has the reference 363300/484138. The coffee maker grid for the auxiliary burner (diameter <10 cm) has the reference 184200. Contact Constructa after-sales service to order them.

USER MANUAL CM17451 CONSTRUCTA

We would like to thank and congratulate you for your choice. This practical modern appliance has been made using materials of the highest quality, which have been put through the strictest of Quality Controls during manufacture and meticulously tested to ensure that they meet all of your cooking demands.

We kindly ask you to read and follow these simple instructions in order to guarantee first-class results from the very start. This booklet contains important information not only concerning use, but also concerning your own personal safety and maintenance of the appliance.

Our products need to be carefully packed to protect them during transportation. All the material used for packing is considered essential for this purpose and is also completely recyclable. You too can contribute towards protecting the environment by disposing of this material at your nearest recyclable refuse collection point. Do not dispose of used cooking oil down the kitchen sink. Oil may seriously damage the environment. Dispose of it in a closed container at your nearest collection point or, failing this, dispose of it in your rubbish bin. Although this last solution is far from perfect, your oil will be taken to a controlled refuse dump where it will not be allowed to pollute water. You and your children will appreciate it.

Render your old appliance useless before disposing of it at your nearest recyclable refuse collection centre.

Your local authority will be pleased to inform you where your nearest centre is.

Packagingandoldappliances

If the sym bol appears on the specifications plate, follow these instructions:

Disposinginan environmentallyresponsiblemanner

Unpacktheapplianceanddisposeofthepackaging inanenvironmentally-responsiblemanner.

This applianceislabelledinaccordancewiththe EuropeanDirective2002/96/ECconcerningused electrical and electronic appliances (waste electrical andelectronicequipment-WEEE).

Theguidedeterminestheframeworkforthereturn andrecyclingofusedappliancesasapplicable.

CONTENTS

SafetyWarnings3

Your new hob 5

Gas burners 6

Overheating protection 7

Recommended receptacle diameters 7

Cooking recommendations 8

Warnings of use 9

Cooking 9

Cleaning and maintenance 10

Troubleshooting 11

Conditions of warranty 12

Safety warnings

Read this manual carefully in order to cook efficiently and safely.
In accordance with current regulations, the installation and adaptation of gas systems may only be performed by an officially authorised technician.
Check all measurements before proceeding to install your new hob.
These instructions are only valid for the countries indicated on the appliance. Refer to the technical instructions to adapt the appliance to the conditions of use for the relevant country.
This appliance must be installed in a position with the proper level of ventilation.
The appliance should not be exposed to strong draughts, as these may blow the burners out.
This appliance leaves the factory set for the gas supply indicated on the characteristics plate. Call the Service Centre this it needs to be altered.
Do not tamper inside the appliance. If necessary, call your local Service Centre.
- Look after these instructions of use and installation so as to be able to produce them should the appliance ever change hands.
If your hob is supplied with a glass cover, do not subject it to excessive force. If the glass should become detached from the hob, call the Service Centre immediately for them to repair or replace it.
Do not use a damaged appliance.
The surfaces on heating and cooking appliances get hot when in use. Be careful. Keep children away from the appliance.
- Only use your appliance for the preparation of food and never for room-heating purposes.

Overheated fat or oil can easily catch fire. Never leave the appliance unattended when cooking food with fat or oil, e.g. chips.
Never pour water on burning fat or oil. DANGER OF BURNS! Cover the receptacle to smother the flames and turn the hob off.
In the event of a fault, cut the gas and electricity supplies to the appliance. Call our Service Centre to repair the fault.
- Do not use unstable or uneven-based receptacles on cooking plates or burners. They may accidentally tip over.
If a gas supply knob/valve jams, do not force it. Call your official Service Centre immediately for them to repair or replace it.
- Do not use steam clearing machines to clean the hotplate, as there is risk of electrocution.
The illustrations used in this booklet are only intended as a guide.

IF THESE INSTRUCTIONS ARE NOT FOLLOWED, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY.

Your new hob:

Gas burners

Fig. 1.

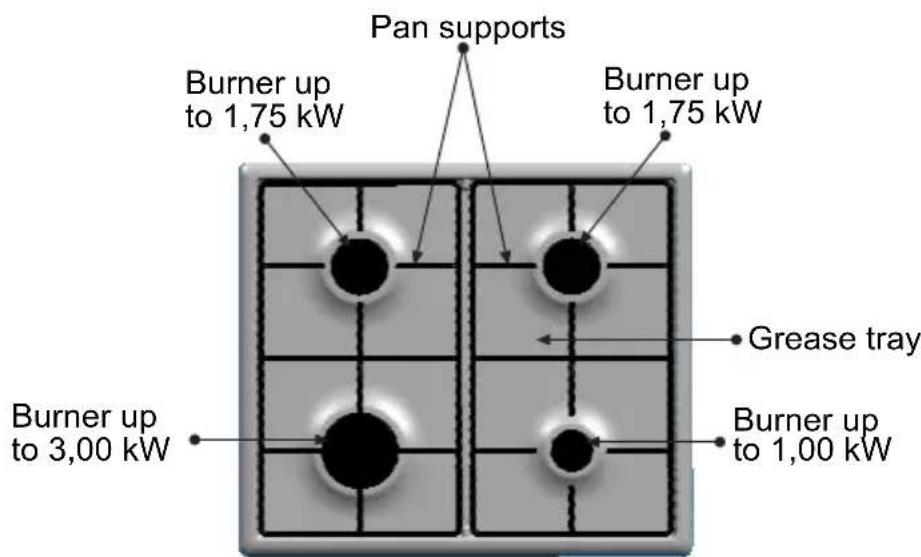

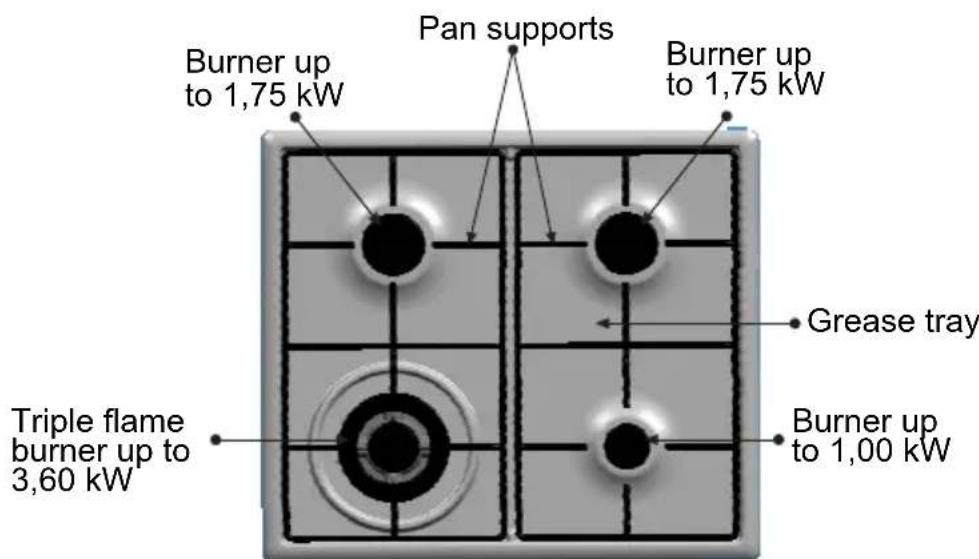

Each control knob indicates which burner it controls. (Fig. 1.)

To light a burner, push in the knob for the burner you wish to use and turn it in an anti-clockwise direction to the lighting position. Hold the knob at the maximum position for a few seconds until the burner ignites and then release and set the knob to the desired setting. If the burner does not light at the first attempt, repeat the operation.

If the spark plugs are dirty, then a fault may occur in the ignition system. Keep them completely clean. Clean the spark plugs using a small brush, remembering that the plugs must not receive any kind of violent impact.

If the burner goes out (e.g. a draught) when in use, the appliance will switch the hotplate on again automatically. If this ignition is unsuccessful (e.g. as a result of boiled-over liquid on the burner), the flow of gas to this burner is interrupted and an acoustic signal is emitted. Turn the control knob to and check whether the cause can be rectified using the table on page 11.

Every hotplate features a safety pilot!

This means that if the flame ever goes out (e.g. is extinguished by boiled-over liquid), the flow of gas is interrupted.

The safety system will indicate any anomalies in its working through acoustic signals (see "Home troubleshooting" section).

The appliance switches off automatically after 6 hours of operation. Turn all the control knobs to the position and then you can turn the appliance on again.

To turn the burners off, turn the control knob in a clockwise direction to the setting.

Your modern functional hob is equipped with progressive valves which permit you to find the perfect flame setting between maximum and minimum.

Depending on the model that you have purchased, your hob may come with a triple-flame burner, the perfect system for cooking paellas, using woks, etc.

Gas appliances create both heat and humidity in the room they are used in. Make sure that your kitchen is properly ventilated: keep natural ventilation outlets open or install a mechanical ventilation system (extractor fan). When using your appliance for a prolonged period of time, it may be necessary to provide additional ventilation e.g. by opening a window (without creating a draught) or turning up the setting on your mechanical ventilation system.

Overheating protection

The hob is equipped with overheating protection to protect the electronics. This switches all the burners off in the event of overheating and the "power on/off" indicators in all the burners and the main switch flash.

Turn all control knobs to the position. Wait until the appliance has cooled down sufficiently. Now you can switch on the appliance as usual.

Recommended receptacle diameters (cm.)

Depending on model:

BURNER MINIMUMORECEPTACLE MAXIMUMORECEPTACLE
Triple flame: 22 cm
Rapid:	22 cm 26 cm
Semi-rapid:	12 cm 20 cm
Auxiliary: 10 cm 12 cm

Additional pan support:

Fig. 2.

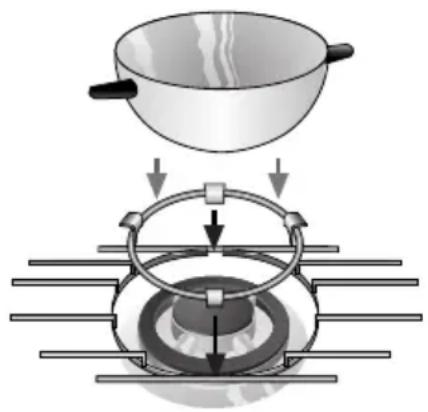

Depending on the model that you have purchased, your hob may come equipped with an additional pan support. This pan support is essential when using the triple-flame burner for receptacles with diameters of more than 26 cm, griddles, terracotta casseroles and all kinds of concave receptacles (woks, etc.) (Fig. 2).

If you do not have a pan support, then these are available from your Service Centre, code 363300/484138.

Coffee pot support: Depending on the model that you have purchased, your hob may come equipped with an additional coffee pot support. This pan support is only for use on the auxiliary burner for receptacles with diameters of less than 10cm . If you do not have a pan support, then these are available from your Service Centre, code 184200.

The manufacturer cannot be held responsible for the non-use or misuse of these additional pan support.

Cooking recommendations

These recommendations are only intended as a guide

Very strong Strong Medium Slow
Triple flame	Boiling, stewing, grilling, Re-heating and keeping food browning off, paellas, oriental warm: prepared food, food (wok).	pre-cooked food.
Rapid	Escalope, steak, omelette, Rice, fried food.	white Steaming: sauce, ragout. fish, vegetables.
Semi-rapid	Steamed potatoes, fresh vegetables, pasta.	Re-heating and keeping food warm: pre-cooked food and delicate stews.
Auxiliary Stews, rice pudding, caramel. Thawing and Making/melting: slow boiling: pulses, fruit, frozen food. butter, chocolate, jelly.

Warnings concerning cooking:

DON'Ts

DOs

Do not use small receptacles on large burners. The flame should not touch the sides of receptacles.

Always use suitably sized receptacles on each burner. This helps avoid excessive gas consumption and prevents receptacles from getting tarnished.

Do not cook without lids or with lids only partially covering receptacles. You are wasting energy.

Always use lids.

Do not use receptacles with uneven bases. They lengthen cooking times and increase energy consumption.

Only use thick-,flat-based saucepans, frying pans and casseroles.

Do not place receptacles on burners off centre. They could tip over.

Do not use wide-based receptacles on the burners nearest to the controls.

When centred on the burner, they could touch the controls or raise the temperature in the area. This may damage the hob.

Always place receptacles in th middle of burne

Do not place receptacles directly on top of burners.

Always place receptacle on the pans support.

Do not use excessive weights or strike the hob with heavy objects.

Handle receptacles on the hob with care.

Cleaning and maintenance:

DON'TS DOs

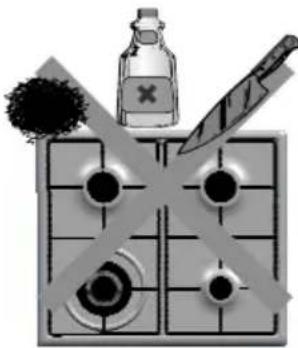

Never use abrasive products, sharp objects, steel scouring pads, knives, etc., to remove stubborn food remains from the hob surface, pans support, burners or electric plates.

If your hob comes with a glass or aluminium panel, do not use knives, scrapers or similar utensils to clean the join with the metal.

Do not use steam appliances to clean the hob with. They could damage it.

Once the appliance is cold, clean it with a sponge and soapy water. Remove all excess liquid immediately. This will help you avoid unnecessary effort later. The burners and pans support must be cleaned regularly to keep them clean. This is done by submerging them in soapy water and scrubbing them with a non-metal brush to keep the holes and slits free from obstruction so they can give a perfect flame.

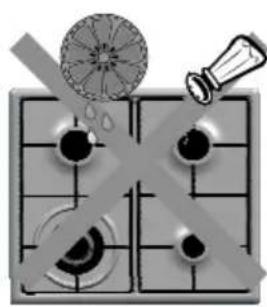

Do not allow acid products (vinegar, lemon juice, etc.) to come into contact with the hob.

Try to prevent salt from coming into contact with the surface of the electric plate.

Dry the burner covers whenever wet or damp. Remove all excess liquid immediately. This will help you avoid unnecessary effort later.

After cleaning and drying the burners, make sure that the covers are properly in position on the flame diffuser.

If the coating on the electric plates has worn off through use, smear them with a few drops of oil or one of the maintenance products available on the market.

The high temperatures suffered by the cover on the triple-flame burner ring and the stainless steel parts on your hob (plate rings, grease trays, area around burners, etc) may become discoloured over time. This is NORMAL. Clean them after use with a product suitable for stainless steel.

After washing the pans support, dry them thoroughly before cooking with them again. The presence of droplets of water or dampness at the beginning of the cooking process may damage the enamel surface.

If the pans support on your hob are supplied with rubber feet, be careful when cleaning as they may come off, leaving the pan support unprotected and scratching the hob surface.

The cleaning product suitable for stainless steel must not be used in the area surrounding the control knobs. The indications (serigraphy) may get deleted.

Troubleshooting

It is not always necessary to call the Service Centre. In some cases, you may be able to solve the problem yourself. This table contains some useful information. Important information:

Only authorised personnel from our Service Centre are qualified to work on the main gas and electric systems.

Problem	Probable cause Solution
...if none of the electrical system works?	-Faulty fuse.-The automatic circuit breaker or mains differential has been triggered.	-Check the fuse in the main fuse box and replace it if it is faulty.-Check to see if the circuit breaker or a differential has been triggered in the mains supply box.
...if the electric ignition system does not work?	-There may be food or cleaning product particles between the spark plugs and the burners.-The burners are wet.-The covers on the burners are not in the right position.	-The gap between the spark plug and the burner needs to be cleaned carefully.-Dry the burner covers and spark plugs carefully.-Check that the covers have been put in the proper position.
...if the flame on the burners is not evenly distributed?	-The burner components have not been assembled properly.-The gas outlets on the burners are dirty.	-Put the components in their correct positions.-Clean the gas outlets on the burners.
...if the gas flow does not seem normal or there is no gas flow at all?	-The gas flow has been cut at an intermediate stopcock.-If the gas is supplied from a gas bottle, it may be empty.	-Open any intermediate stopcocks.-Replace the gas bottle with a full one.
...if the kitchen smells of gas? -C	One of the valves has been left open.-Possible leak on the gas bottle coupling.	-Check to see if a valve has been left open.-Check that the coupling on the gas bottle is in order.
...if a burner switches off and an acoustic signal is emitted? 2s	-The safety system has been activated, cutting off the gas supply.	-Turn the burner control to the off position. The signal will stop. You can now use your cooking hob normally.
...if all the burners switch off and an acoustic signal is emitted? 2s 2s	-Overheating of cooking hob.	-Turn all the controls to the off position. The signal will stop. Wait 30 min before using the cooking hob again.If the signal continues, call the Technical Service.
...if all the burners switch off and an acoustic signal is emitted? 2s 2s	-Detection of a general fault.	-After a minute, a beep will sound. If it does not, call the Technical Service.

Should you need to contact our Service Centre, please quote the following information:

E-NR FD

These indications appear on your appliance's characteristics plate on the bottom of your appliance.

Conditions of warranty

The conditions of warranty are those set out by our company's representatives in the country where you purchased your appliance. The salesperson that sold you the appliance will be only too pleased to inform you as to the details of these conditions. Proof of purchase must be produced when making any kind of claim against the warranty.

The manufacturer reserves the right to modify these conditions.
