USER MANUAL CA162650 CONSTRUCTA

• Μόλις ανάψετε τον καυστήρα, κρατήστε πατημένο το διακόπτη για μερικά ακόμα δευτερόλεπτα. Οι εγκοπές του καυστήρα είναι βρώμικες . Καθαρίστε τις εγκοπές του καυστήρα. Πρόβλημα Πιθανή αιτία Λύση GR 18 182 αστική χρέωση Αυτή η συσκευή χαρακτηρίζεται σύμφωνα με την ευρωπαϊκή οδηγία 2012/19/ΕE περί ηλεκτρικών και ηλεκτρονικών συσκευών (waste electrical and electronic equipment - WEEE). Η οδηγία προκαθορίζει τα πλαίσια για μια απόσυρση και αξιοποίηση των παλιών συσκευών με ισχύ σ’ όλη την ΕΕ.21 Ú Table of contents [en]Instruction manual Safety precautions p. 21
• Your new appliance p. 23
• Gas burners p. 23
• Cooking pans p. 24
• Cleaning and maintenance p. 25
• Trouble shooting p. 25
• Technical Assistance Service p. 26
• Used appliances and packaging Produktinfo Additional information on products, accessories, replacement parts and services can be found at www.constructa.de and in the online shop www.constructa-eshop.com : Safety precautions Read these instructions carefully. You will only be able to use your appliance safely and effectively when you have read them. These operating and installation instructions should be retained, and passed onto the buyer if the appliance is sold. The manufacturer is exempt from all responsibility if the requirements of this manual are not complied with. The images shown in these instructions are for guidance only. Do not remove the appliance from its protective packaging until it is installed in the unit. Do not switch on the appliance if it is damaged in any way. Contact our Technical Assistance Service. This appliance is class 3 type, according to the EN 30-1-1 regulation for gas appliances: built-in appliance. Before installing your new hob, ensure that it is being installed according to the assembly instructions. This appliance cannot be installed on yachts or in caravans. This appliance must only be used in well ventilated places. This appliance is not intended for operation with an external clock timer or a remote control. All operations relating to installation, connection, regulation and conversion to other gas types must be performed by an authorised technician, respecting all applicable regulations, standards and the specifications of the local gas and electricity suppliers. Special attention shall be paid to ventilation regulations. This appliance leaves the factory set to the gas type that is indicated on the specifications plate. If this needs to be changed, please consult the assembly instructions. It is recommended you contact the Technical Assistance Service to change to another gas type. This appliance has been designed for home use only, not for commercial or professional use. This appliance is only intended for cooking purposes, not as a heating system. The warranty will only be valid if the appliance is used for the purpose for which it was designed. Never leave the appliance unattended during operation. Do not use lids or protective barriers for children which are not recommended by the hob manufacturer. They may cause accidents such as those due to the overheating, ignition or detachment of fragments of materials. This appliance may be used by children 8 years old and older and by persons with reduced physical, sensory or mental capacity or a lack of experience or knowledge if they are supervised or they have been instructed about the safe use of the appliance and have understood the associated dangers. Never let children play with the appliance. Cleaning and user maintenance must not be carried out by unsupervised children. Risk of deflagration! Accumulation of unburned gas in an enclosed area carries a risk of deflagration. Do not subject the appliance to draughts. These might blow out the burners. Carefully read the instructions and warnings on the operation of gas burners. Risk of poisoning! The kitchen will become hot and humid and combustion products produced when this gas appliance is used. Make sure the kitchen is well ventilated, particularly when22 the hob is in operation: either keep the natural ventilation apertures open, or install a ventilation system (extractor hood). Intense prolonged use of the appliance may require additional or more effective ventilation: open a window or increase the power of the ventilation system. Risk of burns! The hotplates and their immediate vicinity get very hot. Never touch the hot surfaces. Keep children under 8 years old well away from this appliance. Risk of fire! p. 26

The hotplates get very hot. Do not rest inflammable objects on the hob. Do not store objects on the hob. Risk of fire!

Do not store or use corrosive chemicals, products which produce fumes, inflammable materials or non-food products below or near this domestic appliance. Risk of fire!

Fat or oil which is overheated can catch fire easily. Never leave fat or oil to heat up unattended. If oil or fats do catch fire, never use water to put the fire out. Put the fire out by covering the pan with a lid and switch off the hotplate. Risk of injuries!

Pans which are damaged, are not the right size, hang over the edge of the hob or are not positioned correctly can cause serious injuries. Follow the advice and warnings provided relating to the cooking pans. Risk of injuries!

In the event of a malfunction, turn off the appliance’s gas and electricity supply. For repairs, call our Technical Assistance Service. Risk of injuries!

Do not tamper with the appliance's interior. If necessary, call our Technical Assistance Service. Risk of injuries!

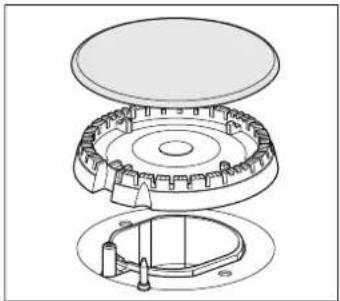

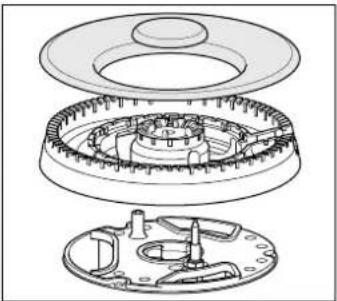

If one of the control knobs will not turn, do not force it. Call the Technical Assistance Service immediately so that they can repair or replace them. Risk of electric shock! Do not clean the appliance using steam cleaners.23 Your new appliance Page 2 shows an overall view of your new appliance as well as the burner power. Accessories Depending on the model, the hob may include the following accessories. These can also be acquired from the Technical Assistance Service. Code The manufacturer accepts no liability if these accessories are not used or are used incorrectly. Gas burners There are indications to show which burner each control knob operates. It is essential to ensure that all the burner parts and pan supports are correctly installed for the appliance to work correctly. Do not swap the burner caps around. Switching on manually

1. Press the chosen burner control knob and turn it

anticlockwise to the required setting.

2. Use any type of lighter or flame (cigarette lighter, matches,

etc.) and bring it close to the burner. Switching on automatically If your hob can be switched on automatically (ignition sparkers):

1. Press the chosen burner control knob and turn it

anticlockwise to the maximum power setting. While the control knob is still pressed down, sparks are produced on all burners. The flame ignites.

2. Release the control knob.

3. Turn the control knob to the required setting.

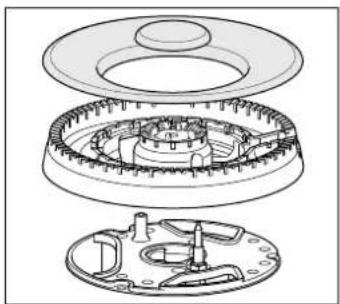

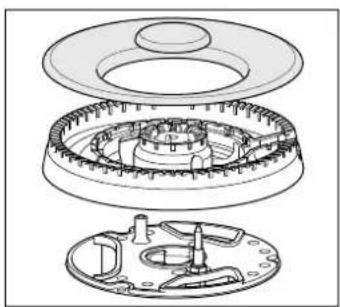

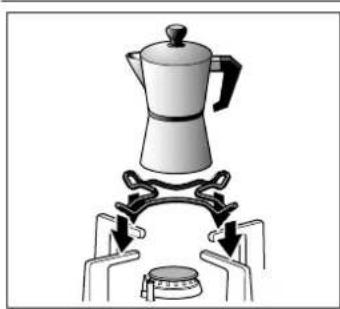

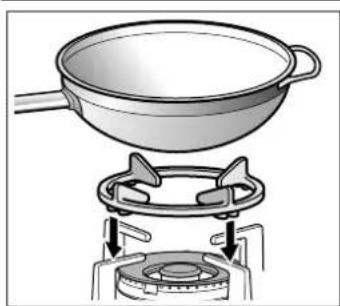

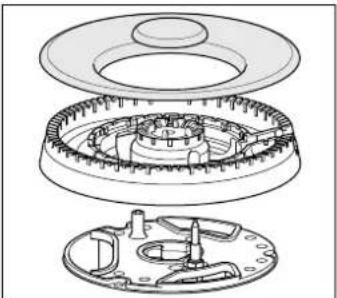

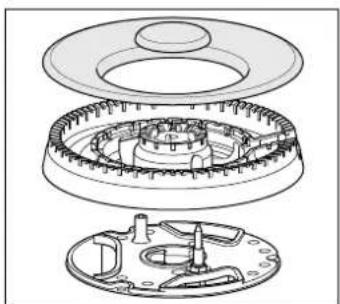

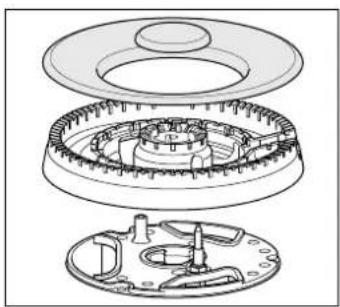

If it does not come on, turn the control knob to the off setting and repeat the steps above. This time, press and hold the control knob for longer (up to 10 seconds). : Risk of deflagration! If after 15 seconds the flame does not ignite, switch off the burner and open a nearby window or door. Wait at least one minute before trying to switch the burner back on. Additional wok pan support Only for use on wok burners with pans with a round base. Using these pans may cause some temporary deformation of the grease drip tray. This is normal and does not affect the operation of the appli- ance. Additional coffee maker support Only for use on the auxiliary burner with pans which are no more than 12 cm in diameter. Simmer Plate This accessory has been designed to reduce the level of heat at the lowest power setting. Place the accessory directly on the pan support with the cones facing upwards, never directly over the burner. Cen- tre the pan over the acces- sory. Simmer Cap Burner specially designed to cook at minimum power. In order to use it, remove the auxiliary burner and replace it with the Simmer Cap burner. 363300 Additional wok pan support 184200 Additional coffee maker support 648786 Simmer Plate 616229 Simmer Cap24 Safety system Depending on the model, your hob may have a safety system (thermocouple) that prevents the flow of gas if the burners accidentally switch off. To ensure that this device is active:

1. Switch on the burner as usual.2. Without releasing the control knob, press and hold it down

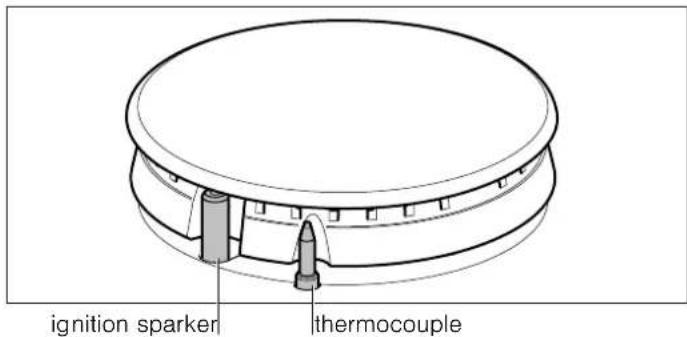

firmly for 4 seconds after lighting the flame. Switching off a burner Turn the corresponding control knob clockwise to the 0 setting. Power levels The progressive control knobs can be used to control the power needed, from minimum to maximum power. Warnings It is normal to hear a soft whistling noise while the burner is operating. When first used, it is normal for the burner to give off odours. This does not pose any risk and does not indicate a malfunction. They will disappear in time. An orange-coloured flame is normal. This is caused by the presence of dust in the atmosphere, spilt liquids, etc. If the burner flames are accidentally blown out, switch off the burner operating control knob and do not try to relight it for at least 1 minute. A few seconds after the burner is switched off, a sound (thud) will be produced. This is not a fault - this means that the safety device is no longer operating. Keep the burner as clean as possible. If the ignition sparkers are dirty they will not light properly. Clean them periodically using a small non-wire brush. Bear in mind that the ignition sparkers must not suffer any serious impacts. Cooking guidelines Cooking pans Suitable pans Precautions for use The following advice is intended to help you save energy and prevent pan damage: Setting

Maximum capacity or aperture and elec- tricity on Low flame
