EKP 3405 - Cooker CLATRONIC - Free user manual and instructions

Product Type	Single Plate Electric Cooker
Brand	Clatronic
Model	EKP 3405
Power Supply	230 V ~ 50 Hz
Power Consumption	1500 W
Protection Class	I
Net Weight	2.00 kg
Temperature Settings	5 levels + MAX position (from warming to quick browning)
Control Type	Rotary thermostat with indicator light
Functions	Warming, simmering, frying, cooking half, browning
Plate Material	Metal (not specified, estimated: enameled steel)
Care and Cleaning	Clean the plate while still warm with a damp cloth; do not immerse; do not use abrasive products
Safety	Overheating protection, auto shut-off (not specified, but thermostat cuts power at MIN position)
Supplied Accessories	No accessories mentioned (only the unit)
Installation Type	Horizontal surface resistant to heat and moisture
Safety Distance	Minimum 30 cm from flammable objects
Usage	Household use only, do not use outdoors
Repairability	Do not repair yourself; contact a qualified technician
Recycling Instructions	Do not dispose of with household waste; take to a collection point

Frequently Asked Questions - EKP 3405 CLATRONIC

How to connect the Clatronic EKP 3405 cooker?

Make sure the thermostat is set to MIN and the appliance voltage matches the mains voltage. Plug into a grounded outlet of 230 V ~ 50 Hz. Do not use a multiple socket.

What to do during first use?

Before first use, heat the appliance empty for 5 minutes at MAX setting to remove the protective coating. Slight smoke and odor are normal; ventilate the room.

What types of pots to use?

Use pots with a flat bottom, at least as large as the plate diameter. Do not use empty containers to avoid overheating.

How to clean the cooking plate?

Unplug the appliance and let it cool. Wipe off food residues on the still warm plate with a damp cloth or paper towel. Do not use abrasive products or metallic sponge. Never immerse the appliance in water.

The indicator light turns on and off, is this normal?

Yes, it's normal. The indicator shows that the thermostat regulates the temperature. It lights up when the plate heats and turns off when the desired temperature is reached.

What safety distance to keep?

Keep at least 30 cm distance between the appliance and any flammable objects (curtains, furniture, etc.). Do not place the appliance under an overhead cabinet.

Can I leave the appliance unattended?

No, never leave the appliance operating unattended. Turn it off and unplug when leaving the room.

How to turn off the cooker after use?

Turn the thermostat to MIN (off). Wait for the plate to cool, then unplug the power cord by pulling the plug.

What to do in case of overheating or malfunction?

Immediately turn off the appliance (thermostat to MIN) and unplug it. Let it cool. Do not attempt to repair it yourself; contact a qualified technician.

How to dispose of the appliance at the end of its life?

Do not throw the appliance with household waste. Take it to a collection point for electrical and electronic waste. Check with your local municipality.

USER MANUAL EKP 3405 CLATRONIC

White electric stove with black top and red indicator light (no visible text or symbols)

CE

Einzelkochplatte

Enkel verwarmingselement • Réchaud individuel • Fogón sencillo • Placa de aquecimento individual

Piastra termica singola • Single Hotplate • Pojedyncza płyta grzewcza • Egyszeres főzőlap

D-47906 Kempen/Germany

Stand 03 2008

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
  Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
• Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

IOTE:

This highlights tips and information.

Special Safety Instructions for this Device

Symbols on the product

You will find symbols with warning or informational character on the product:

WARNING: Danger of burns!

During operation the temperature of the exposed surface may be very hot.

Thus you should touch the unit only on the thermostatic controller.

• Place the unit onto a level surface resistant to moisture and heat.
• In case of sensitive surfaces, place a heat-resistant plate under the unit.
• Because of the rising heat and vapors, do not operate the unit under suspended cupboards.
• Keep a sufficient safety distance (30 cm) from easily flammable objects like furniture, curtains, etc.! Never install the unit in a cupboard.
• Do not heat empty cooking utensils on the hotplate, as this can lead to dangerous over-temperatures.
• Do not move the device when it is in use.
• During use, ensure that the mains lead does not come into contact with hot sections of the device.
• Do not touch the hot parts of the device.
• Please do not operate the device with an external timer or a separate remote control system.

Electrical connection

Connected Wattage

The total power consumption of this device can be up to 1500 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: OVERLIOAD!

• If you use extension leads, these should have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use any multiple sockets, as this device is too powerful.

Connection

• Make sure that the unit is switched off. The thermostatic controller must be set to MIN.
• Make sure that the device voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed 230 V \~ 50 Hz socket with earthing contact.

Initial Operation of the Unit

Before first use, operate the unit for 5 minutes to remove the protective coating of the hotplate. Set the thermostatic controller to MAX.

NOTE:

Occurrence of light smoke and odours is normal with this procedure. Take care of suitable ventilation.

Using the Hotplate

Switching on/off

The unit is switched on with the thermostatic controller. The unit is switched off when the thermostatic controller is set to MIN.

Notes for cooking utensils

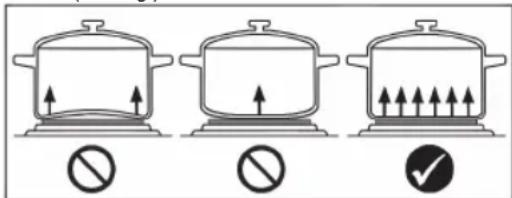

- For optimum use of energy, use only pots/pans with a flat bottom (see Fig.).

- The cooking utensil never should be smaller than the hot-plate. This wastes energy. In extreme cases, the hotplate can become distorted.

Operation

Use the thermostatic controller to select the temperature of the hotplate according to the purpose:

Notch 1: Warming up

Notch 2: Warming up/simmering

Notch 3: Simmering

Notch 4: Frying

Notch 5: Parboiling, browning

Notch MAX: Browning, quick heating

NOTE:

The pilot lamp indicates the heating up of the hotplate. It is switched on and off during operation. This is normal and indicates that the temperature is controlled and maintained by the thermostatic controller.

Switching Off

• Set the thermostatic controller to MIN.
• Remove the mains plug from the socket.
• Let the unit cool down before storing it.

WARNING: DANGER OF BURNS!

After the cooking process, the radiated heat can cause dangerous temperatures at the hotplate.

Cleaning

WARNING:

• Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Hotplate

• Remove food residues with a moist cloth or a paper towel while still warm.
• Clean the hotplate with a soft sponge and a small amount of water, and dry it thoroughly with a soft cloth.

Enclosure

• Clean the enclosure after use with a lightly moistened cloth.
  • Take care that no liquid enters into openings in the enclosure. This could damage the unit or could lead to electric shock.

Technical Data

Model: EKP 3405

Power supply: 230 V, 50 Hz

Power consumption: 1500 W

Protection class: ....

Net weight: 2.00 kg

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
