USER MANUAL MTVF 235A Whiteline

Line drawing of a rectangular cabinet or enclosure with mounting feet (no text or symbols)

● Service-helpline: 0031-(0) 78 65 22 115
E-mail: [e-mail]

Please read the following instruction carefully before using your freezer.

-Do not put hot food inside the freezer.
-Wrap all food items with a plastic protection film to avoid dehydration and lose food flavor.
-If you do not use the freezer for a long period of time, disconnect power, clean the inside parts, put the freezer in a dry area and leave the door slightly open.

I .GENERAL

MT-VF225 A is extensively used in places such as hotels, offices, houses and student dormitories. It is mostly suitable for freezing and conserving foods such as meat etc. It enjoys the advantage of small size, light weight, high efficiency and low energy consumption.

II .UNPACKING, REPACKING AND MOVING

1. Unpacking

Just cut off the packing band, and then pull the carton up.

1. Repacking

Please remember to put the original foamed pads in place.

1. Moving

Be sure freezer stays in upright position during moving it.

Do not tilt it for more than 45 from upright. Never upset it.

Do not apply force on any external part such as pipe, condenser, door and its handle for moving, freezer must be well packed and secured in long distance transportation to avoid damage from impacting and or great rocking.

III. INSTALLATION

The freezer should be placed on a flat and solid-top surface. It should be kept away from sunlight, heat source, humid or mess place. The freezer should be kept away from the wall for a proper space for good air circulation. When the freezer is placed in a cupboard, the rear of the cupboard must be removed out for good circulation.

For good ventilation keep enough space between the side walls and your fridge. Its back needs to be at least 100mm away from the wall, its sides at least 100mm separately and the height from over its top is not less than 200mm. A clear space should be left to open the door to 160°.

NOTE: This freezer can be opened either from the left or right side. The default way of opening the door is from the right side. If you want to open the door from the left side, please follow the instructions below.

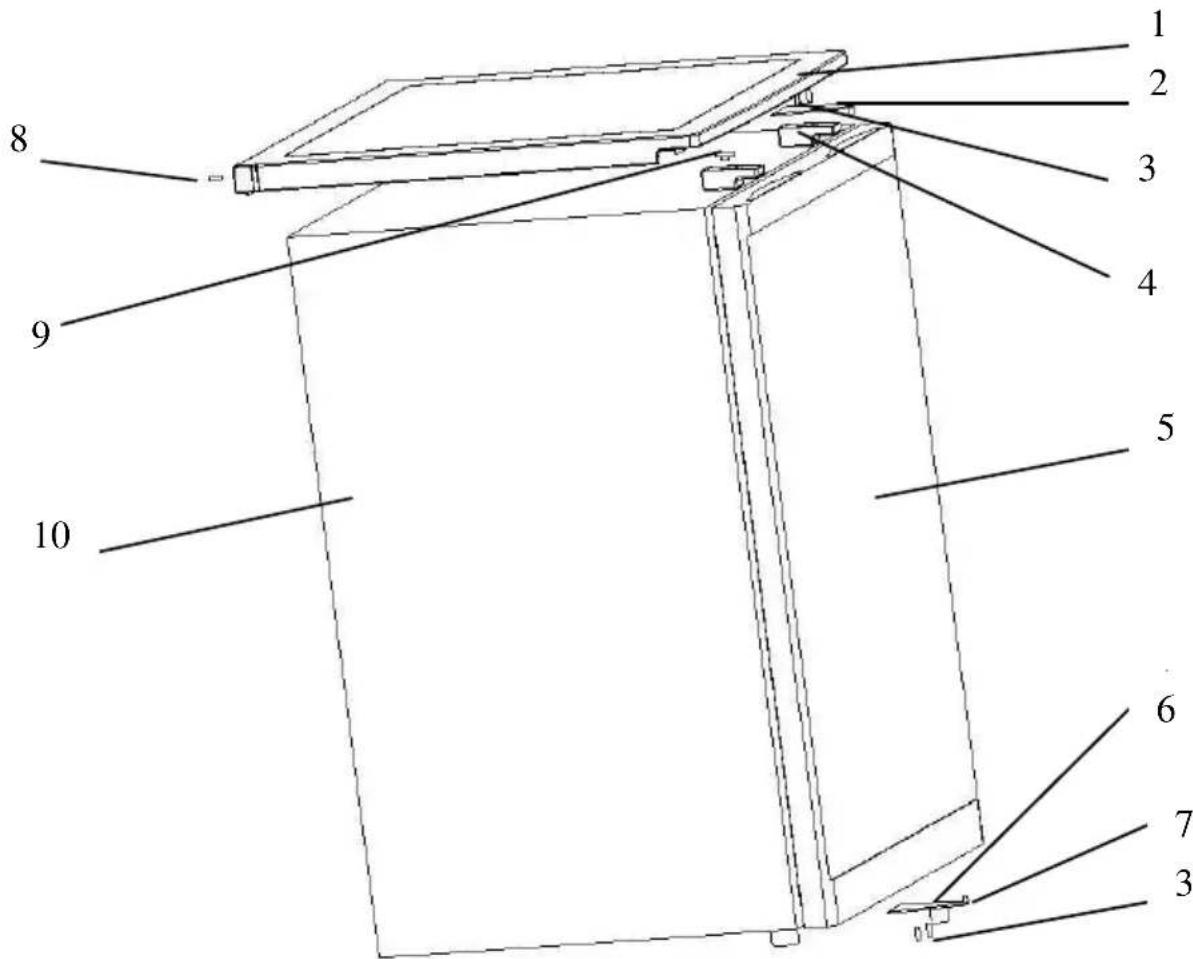

1 2 3 4 5 6 7 3 8 9 10

1. Top cover 2. Upper hinge 3. Screw 4. Restricted block
2. Door 6. Lower door hinge 7. Pin 8. Screw

3. Pin cap 10. Cabinet

4. Remove the screws (8) that hold the top cover (1), then push out the top cover from the restricted block (4)

5. Remove the screws (3) and the upper hinge (2), keep the hinge for later use.

6. Remove the door (5) from the upper hinge (2), and keep the padded surface upwards to prevent the scratching.

7. Remove the screws (3) that hold the lower door hinge (6), then remove the pin (7) from the lower door hinge, keep the hinge for later used.

8. Insert the pin (7) previously moved from the right side and transfer it into the other hole at the left lower side of the door.

9. Insert the lower door hinge (5) in the left lower side, fix the lower hinge on the cabinet (10) by tightening the screws (showing the assembly instruction of the low hinge with the door opening at the right side & left side as below).

Close-up of a metallic mechanical bracket with mounting holes and a cylindrical component (no visible text or symbols)

Hinge on the left side

Close-up of a mechanical component with a white cylindrical part and metal base (no visible text or symbols)

Hinge on the right side

1. Remove the pin cap (9) from the left side of the upper frame of the door, and then transfer it to the same location on the opposite side.
2. Put the door on the lower door hinge(6), keep the door level, then fix door on the cabinet(10) by the upper hinge(2), then fasten the screws(3).
3. Pull the top cover (1) into the restricted block (4), then fasten the screws (8).

IV. OPERATION

1. Before the freezer is plugged in, check the following:

-There must not be any damage on all electrical wire.

-Earthing screw must be well fixed.

-Wall outlet must be properly earthed.

Be sure that everything is in normal condition and the freezer can be plugged in.

1. When operating for the first time

When operating is in normal condition and the freezer without any load until it auto stops at the desired temperature, usually it takes 2 or 3 hours. Then set the thermostat to the required setting and place foods in.

1. Temperature control

Freezer's temperature can be adjusted by turning the knob of the thermostat. The closer to 'MAX' position the knob is set, the lower the temperature becomes. A medium setting is the most suitable for general operation. The position 'MAX' is cooler than the position 'MID'. Freezer's temperature will vary depending on the quantity of foods stored and the frequency of the door opening. In order to maintain good cooling efficiency and save energy, We recommend you not to store too much foods and not to open the door too frequently.

CAUTION: When the thermostat has been turned clockwise to 'MAX' position, do not attempt to turn it more over. Otherwise it will be damaged.

V.DEFROSTING

For the most efficient operation and minimum energy consumption, defrost the freezer when the frost on the evaporator is excessive 3 to 4 mm thick. To start defrosting, turn the temperature control to 'MIN', unplug the freezer, remove the food and drawers. After the frost or ice has melted, discard the melted water and dry up the interior of freezer. Then the freezer can be restarted by a turning its thermostat to the desired setting.

CAUTION: Never use any sharp of metallic instruments (e.g. knives) to remove frost/ice from the evaporator as this will damage the evaporator. A punctured evaporator will cause serious problems.

VI: CLEANING AND MAINTENANCE

1. To clean the freezer, disconnect power supply and remove foods, drawers etc. Use a solution mixed with 2 spoons of baking soda per litre of warm water to clean the interior. Then wipe it clean with fresh water.

Never use acids, chemical thinner, gasoline, benzene or the like for cleaning any part of the freezer.

Never use oiling water and benzene to clean plastic parts because they may deform or damage the plastic parts.

1. Too much foods or a too large container in the freezer will affect cold air circulation, so some free space must be left. It is recommended that about 70% storage volume is loaded. Do not store volatile and or explosive materials such as ethers, gasoline, liquefied petroleum gas, adhesives etc. in the freezer. Otherwise there will be a danger of explosion caused by electric sparks.

VII. SAFETY INSTRUCTIONS

Before plugging your freezer in check that the electric supply in your house must comply with the rating (voltage, frequency) of the freezer, the rating plate is usually on the back of the freezer. The freezer should always be plugged in its own individual electrical outlet to prevent overload, which could cause a possible fire hazard from overheating wires. Do not splash water on the freezer as this will cause electrical leakage or failure. If the power cord becomes damaged, ask on electrician to replace it immediately. The freezer must be properly earthed.

Our corporation is not responsible for any accident caused by improper earthing or improper operation.

Any repairs and work on the appliance should only be carried out by the customer service department, as unauthorized work could prove highly dangerous for the user.

Do not store explosives or sprays using combustible propellants such as butane, propane,

pentane etc. in the appliance. Electrical components might cause leaking gas to ignite. You may identify such sprays by the printed contents or a flame symbol.

Do not allow naked flames or ignition sources to enter the appliance.

Do not use steam cleaners for defrosting and cleaning.

Do not use mechanical devices or the other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliance inside the food storage compartments of appliance, unless they are of type recommended by the manufacturer.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

The appliance must be positioned so that the plug is accessible.

VIII SPECIFICATIONS

MT-VF225 A

1. Input power: 100W
2. Rated voltage: 220\~240V\~
3. Rated frequency: 50Hz
4. Capacity: 180L

Note: Specifications subject to change without notice.

IX. SERVICE

If the freezer is not functioning properly, check that:

1. When the freezer does not operate:
   -the power plug is firmly in the wall outlet.
   -the mains power switch is off.
   -the fuse is not burned out.

2. When the freezer does not cool enough:
   -the thermostat is at the correct setting, there are too frequent and too long door openings.

3. When the foods are not frozen:
   -the thermostat is at the correct setting.

4. When the freezer operates too noisily: -the freezer is not touching furniture that can transmit or amplify a noise or a vibration.

-the freezer is not properly levelled.

-the containers or solid packages stored inside are not touching each other.

-the mains supply is stable.

If your freezer is still not functioning properly after making the above checks, please contact the sale dealer immediately.

Note: During the period of high humidity, moisture may form on the outside of the freezer, it is not unusual. You may just wipe it up yourself.

X.OLD APPLIANCES

The cabinet of appliance is formed by cyclopentane or R141b. old appliances contain harmful materials and should be disposed of with bulk refuse.

1. Remove the spring-action or bolt catch from the appliance or render it unusable so that children cannot become trapped inside and suffocate.
2. Ensure that the refrigerant circuit is not damaged before the appliance that is no longer needed is taken away for disposal. In this way the refrigerant will not escape into the environment.
   Information concerning the refrigerant and insulating materials used can be found on the type plate and disposal instructions on the appliance.
   Information on collection dates or collection points can be obtained from the waste disposal authorities or your local council.
