USER MANUAL AZ9143 PHILIPS

Linea de性和 operation of the line.

800-531-0039

Return your Warranty Registration card today to ensure you receive all the benefits you're entitled to.

• Once your Philips purchase is registered, you're eligible to receive all the privileges of owning a Philips product.

• So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your Philips warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you'll receive all the information and special offers which you qualify for as the owner of your model.

Know these

safety symbols

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No.

Serial No.

This "bolt of lightning"

indicates uninsulated material

within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The "exclamation point" calls attention to features for

which you should read the enclosed literature closely to prevent operating and maintenance problems.

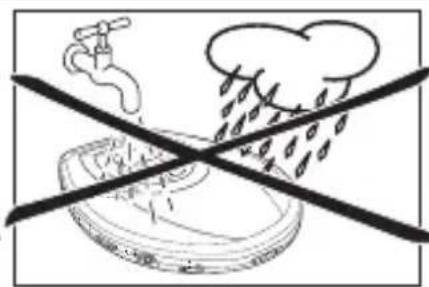

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read these instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Keep these instructions - The safety and operating instructions should be retained for future reference.
3. Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions - All operating and use instructions should be followed.
5. Do not use this apparatus near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Clean only with a damp cloth. The appliance should be cleaned only as recommended by the manufacturer.

7. Install in accordance with the manufacturers instructions. Do not block any of the ventilation openings. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Only use attachments/accessories specified by the manufacturer.

10.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

11.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

EL 4562-E004:99/3

English

Safety instructions. 2&4
Controls 6
Quick start 7
Power supply. 8-10
Headphones 10

CD play. 11-12
Features 13-18

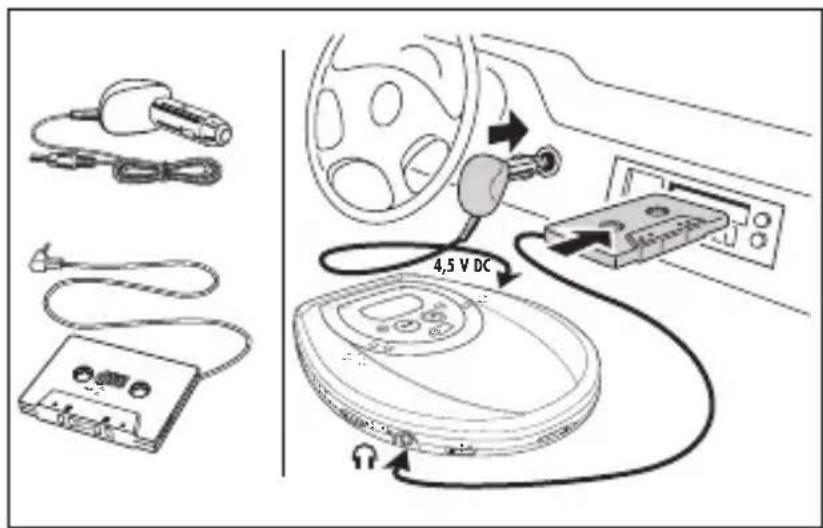

In-car connection. 19
Troubleshooting. 20-21
General information 22
Limited warranty. 24-25

Français

English: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

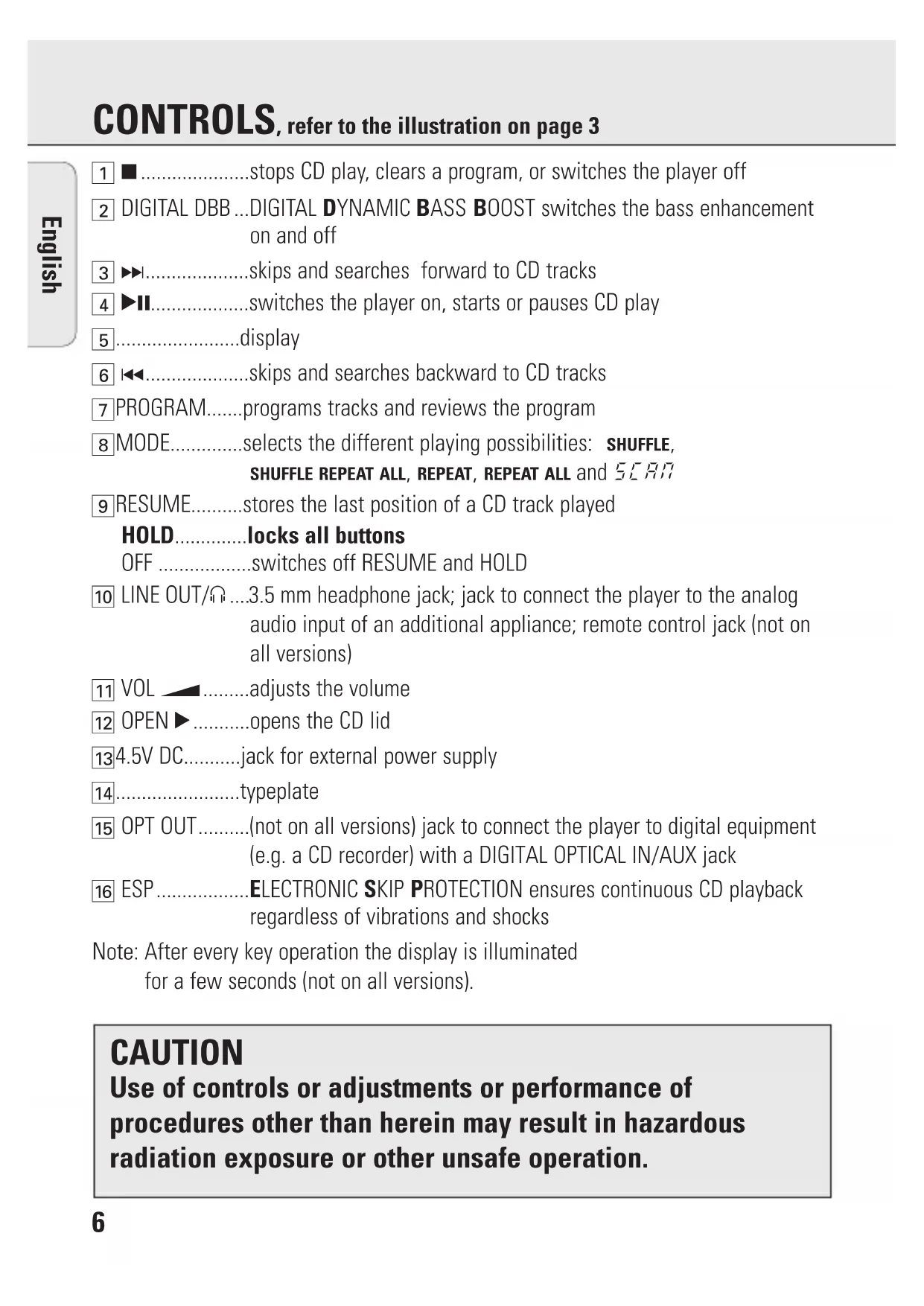

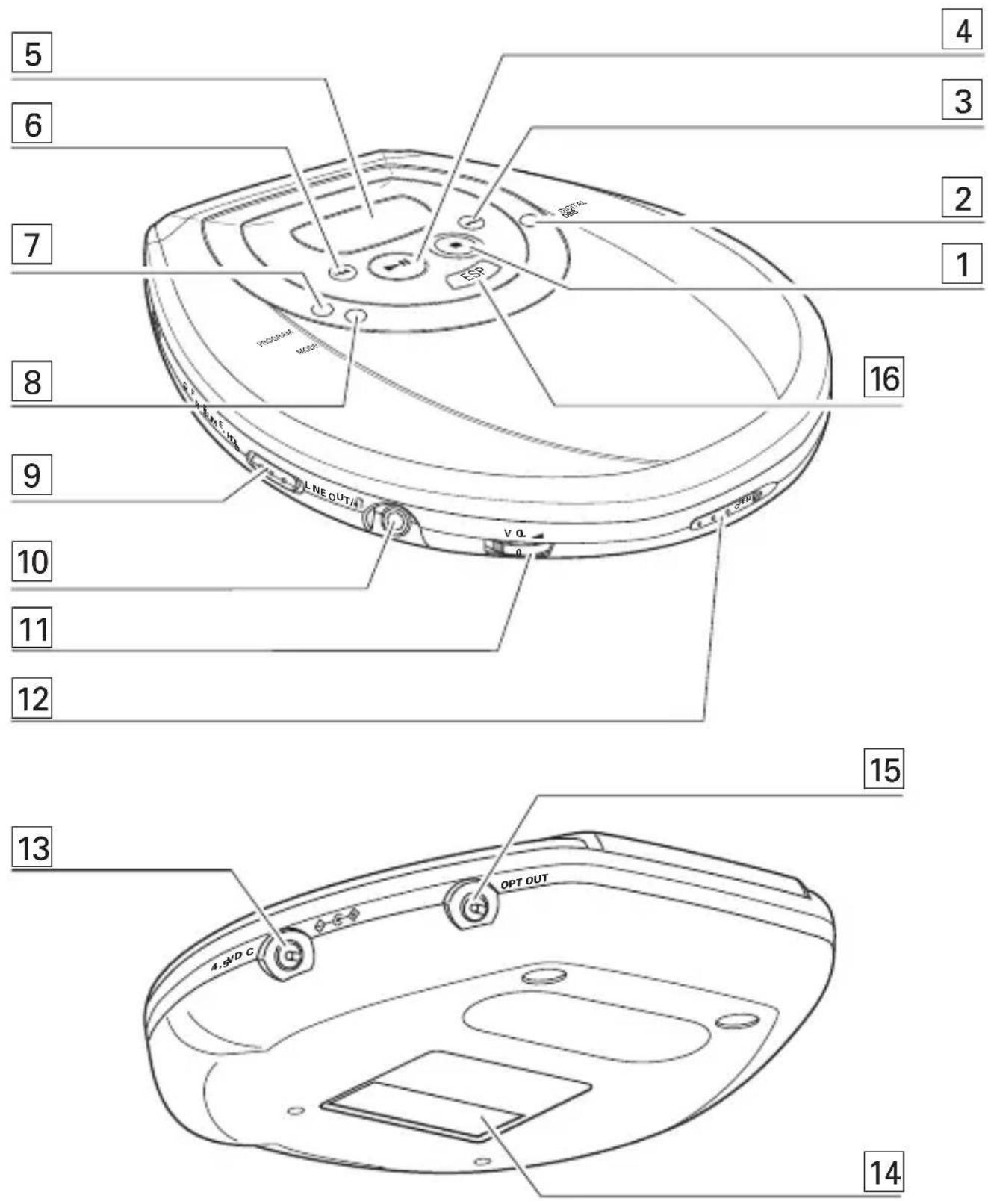

1 stops CD play, clears a program, or switches the player off
2 DIGITAL DBB...DIGITAL DYNAMIC BASS BOOST switches the bass enhancement on and off
3 skips and searches forward to CD tracks
4. switches the player on, starts or pauses CD play
5.......display
6 .skips and searches backward to CD tracks
7PROGRAM.....programs tracks and reviews the program
8MODE.....selects the different playing possibilities: SHUFFLE, SHUFFLE REPEAT ALL, REPEAT, REPEAT ALL and SCAH
RESUME...stores the last position of a CD track played

HOLD... locks all buttons

OFF.........switches off RESUME and HOLD

LINE OUT/...3.5 mm headphone jack; jack to connect the player to the analog audio input of an additional appliance; remote control jack (not on all versions)
11 VOL ....... adjusts the volume
12 OPEN .opens the CD lid
134.5V DC.....jack for external power supply
14.......typeplate
15 OPT OUT............(not on all versions) jack to connect the player to digital equipment (e.g. a CD recorder) with a DIGITAL OPTICAL IN/AUX jack
ESP ELECTRONIC SKIP PROTECTION ensures continuous CD playback regardless of vibrations and shocks

Note: After every key operation the display is illuminated for a few seconds (not on all versions).

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

1 OPEN 2

3CD45

6 PLAY 7 VOLUME

The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Batteries (supplied or optionally available)

With this player you can use either:

• normal batteries type LR6, UM3 or AA (preferably Philips), or
• alkaline batteries type LR6, UM3 or AA (preferably Philips).

Notes: - Old and new or different types of batteries should not be used in combination. Remove batteries if they are empty or if the player is not going to be used for a long time.

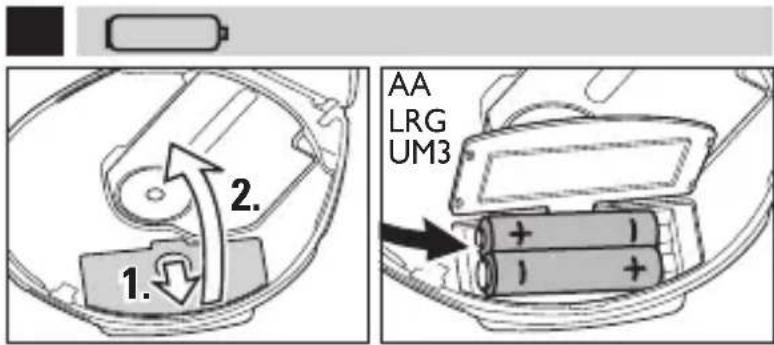

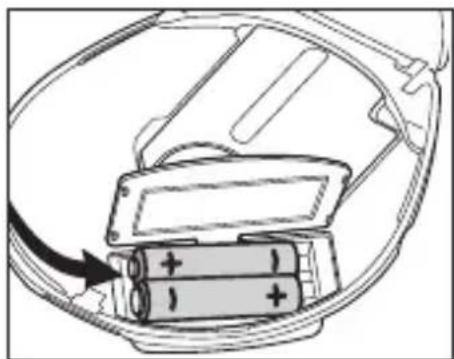

Inserting batteries

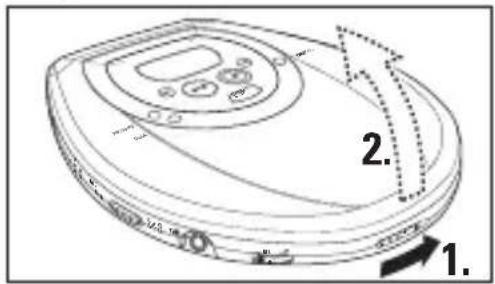

1 Push OPEN to open the CD lid.
2 Open the battery compartment and insert either 2 normal or alkaline batteries.

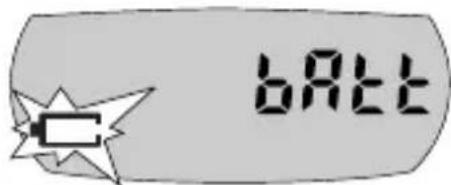

Battery indication

The battery symbol on the display is divided into 3 sections which indicate the approximate power capacity of the batteries.

• If is flashing and is displayed, the batteries are empty.

Average playing time of batteries under normal conditions Battery type ESP on ESP off

Normal 7 hours 6 hours

Alkaline 20 hours 18 hours

ECO-PLUS NiMH batteries (not on all versions) 10 hours 9 hours

Batteries contain chemical substances, so they should be disposed of properly.

ECO-PLUS NiMH battery information (for versions supplied with rechargeable ECO-PLUS NiMH batteries AY 3362 only)

Recharging works only on players with supplied rechargeable ECO-PLUS NiMH batteries AY 3362.

Recharging the ECO-PLUS NiMH batteries on board

1 Make sure you insert the rechargeable ECO-PLUS NiMH batteries AY 3362.

2 Connect the power adapter to the 4.5V DC jack of the player and to the wall power outlet.
filled with 0-3 sections (depending on the level of charge) is shown and A H R - E is displayed.
- Recharging stops when you start playback or when approximately 7 hours have passed.
3 When the batteries are fully recharged, is shown and F_L L is displayed.

Notes: - It is normal for the batteries to become warm during recharging.

• If the batteries become too warm, recharging will be interrupted for approximately 30 minutes and H_tot is displayed.
• To ensure proper recharging on board, take care that contacts are clean, and you are using only the ECO-PLUS NiMH batteries AY 3362.

Rechargeable ECO-PLUS NiMH battery handling

• Recharging already charged or half-charged batteries will shorten their lifetime. Therefore, after using the rechargeable ECO-PLUS NiMH batteries a few times, discharge them completely before recharging.
• To avoid a short circuit, the batteries should not touch any metal objects.
• When the batteries quickly become empty after recharging, the contacts are dirty or the end of their lifetime has been reached.

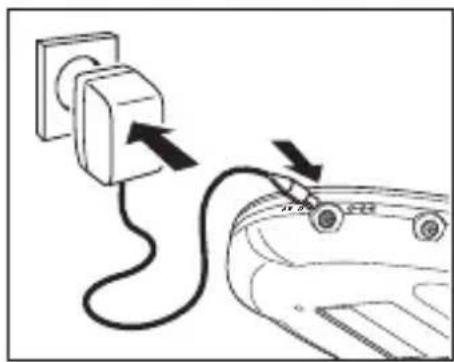

Power adapter (supplied or optionally available)

Use only the AY 3170 adapter (4.5 V/300 mA direct current, positive pole to the center pin). Any other product may damage the player.

1 Make sure that the local voltage corresponds to the power adapter's voltage.
2 Connect the power adapter to the 4.5V DC jack of the player and to the wall power outlet.

Note: Always disconnect the adapter when you are not using it.

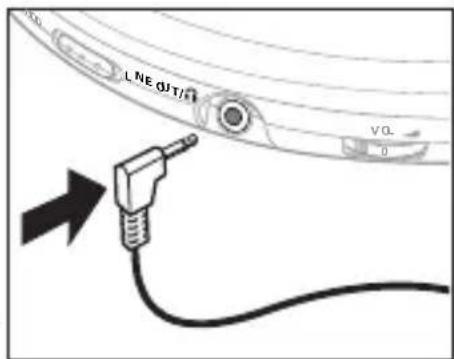

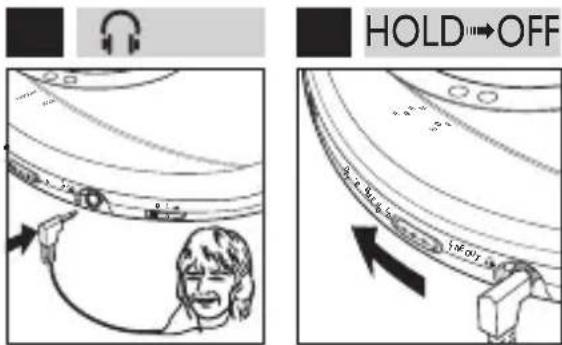

Headphones AY 3682, SBC HP540

• Connect the supplied headphones to the LINE OUT/Ω jack.

Note: LINE OUT/ can also be used for connecting your HiFi system (signal lead) or your car radio (cassette adapter or signal lead). In both cases, the volume of the player must be set to position 8.

Use your head when using headphones

Hearing safety: Do not play your headphones at a high volume. Hearing experts advise that continuous use at high volume can permanently damage your hearing.

Traffic safety: Do not use headphones while driving a vehicle. It may create a hazard and it is illegal in many countries. Even if your headphones are an open-air type designed to let you hear outside sounds, do not turn up the volume so high that you cannot hear what is going on around you.

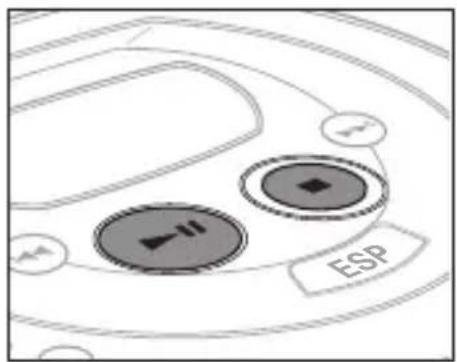

Playing a CD

This CD player can play all kinds of Audio Discs such as CD-Recordables and CD-Rewritables. Do not try to play a CD-ROM, CDi, VCD, DVD or computer CD.

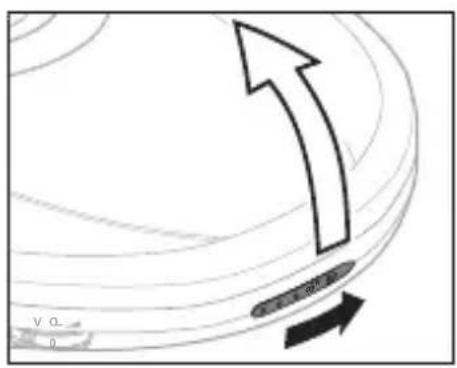

1 Push the OPEN slider. The lid opens.

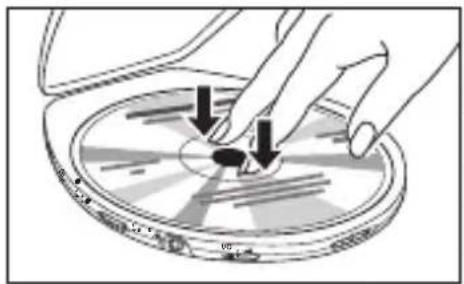

2 Insert an audio CD, printed side up, by pressing gently on the CD center so that it fits onto the hub. Close the lid by pressing it down.

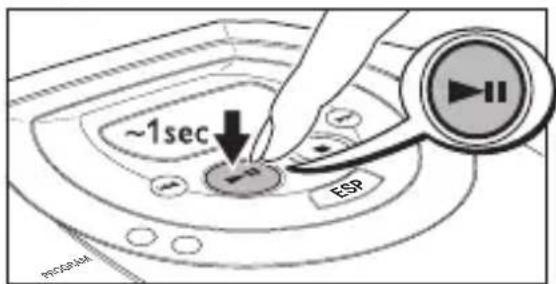

3 Press for approximately 1 second to switch the player on and start CD playback. The current track number and the elapsed playing time are displayed.

• You can pause playback by pressing The time where playback was paused is flashing.
• Continue playback by pressing again.

4 Press to stop playback.
→ The total number of tracks and the total playing time of the CD are displayed.
5 Press again to switch the player off.

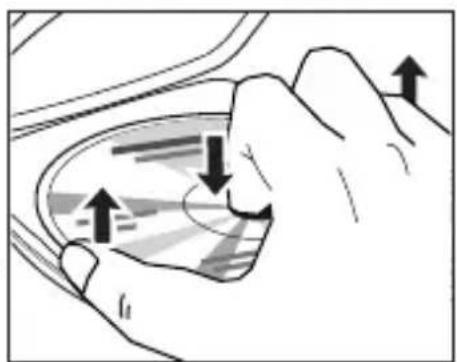

- To remove the CD, hold it by its edge and press the hub gently while lifting the CD.

Note: If there is no activity, the player will automatically switch off after a while to save energy.

Playback information

• If a recordable CD (CD-R) or a rewritable CD (CD-RW) is not recorded properly, n d is displayed. In that case, use FINALIZE on your CD recorder to complete the recording.
• If you want to play a rewritable CD (CD-RW), it takes 3-15 seconds for sound reproduction to start once you have pressed II.
• Playback will stop if you open the CD lid.
  While the CD is being read, - is flashing.

Volume and bass

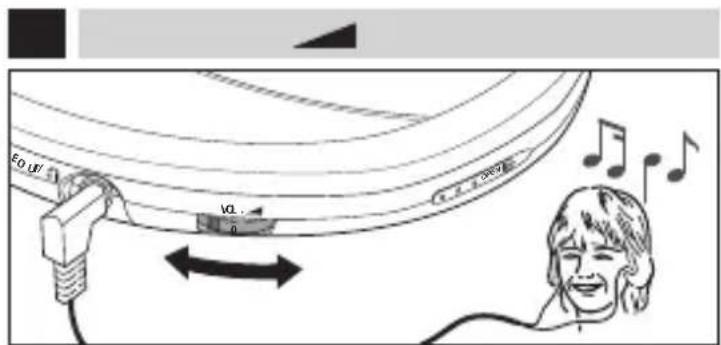

Volume adjustment

• Adjust the volume by using VOL

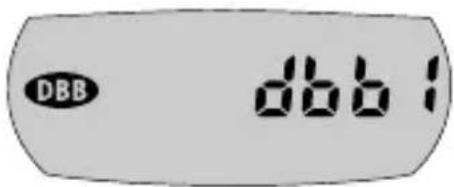

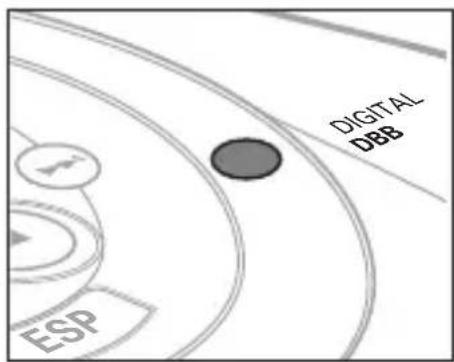

Bass adjustment

You can choose between the bass enhancement levels d_b and d_b .

1 Press DIGITAL DBB as often as necessary to select the desired bass intensity.

or 品 品 is displayed for 2 seconds and DBB is shown.

2 To switch off 品 品 or 品 品 , press DIGITAL DBB repeatedly.

goesff.

Selecting a track and searching

Selecting a track during playback

• Briefly press | | or once or several times to skip to the current, previous or next track.
  Playback continues with the selected track, and its number is displayed.

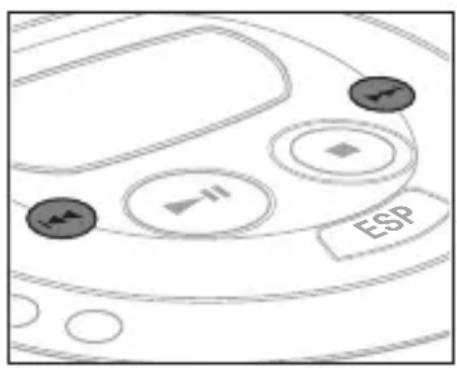

Selecting a track when playback is stopped

1 Briefly press or once or several times.
The selected track number is displayed.
2 Press to start CD play.
→Playback starts with the selected track.

Searching for a passage during playback

1 Keep or pressed to find a particular passage in a backward or forward direction. Searching is started and playback continues at low volume. After 2 seconds the search speeds up.
2 Release the button when you reach the desired passage.

Normal playback continues from this position.

Notes: - During SCAN searching is not possible.

• During SHUFFLE, SHUFFLE REPEAT ALL, REPEAT or while playing a program, searching is only possible within the particular track.

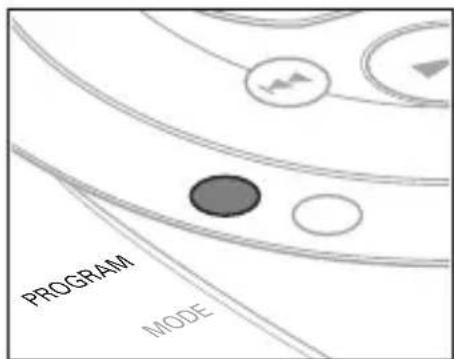

Programming track numbers

You can select up to 99 tracks and store them in memory in a desired sequence. Any track can be stored more than once.

1 While playback is stopped, select a track with or
2 Press PROGRAM to store the track.

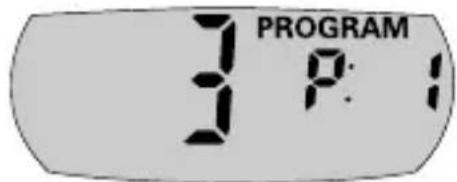

→PROGRAM lights up; the track number programmed and with the total number of stored tracks are displayed.
3 Select and store all desired tracks in this way.

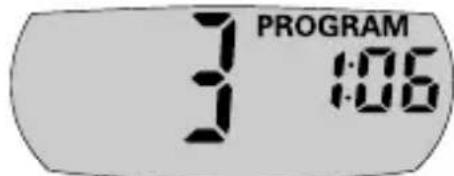

4 Press to start playback of your selected tracks. PROGRAM is shown and playback starts.

• You can review the program by pressing PROGRAM for more than 2 seconds.
  → The display shows all stored tracks in sequence.

Notes: - If you press PROGRAM and there is no track selected,

SELECT is displayed.

• If you try to store more than 99 tracks, F_LL is displayed.

Clearing the program

1 If necessary, press to stop playback.

2 Press to clear the program.

Clear is displayed once, PROGRAM goes off, and the program is cleared.

Note: The program also will be cleared if you

• interrupt the power supply or
  open the CD lid,
• or if the player switches off automatically.

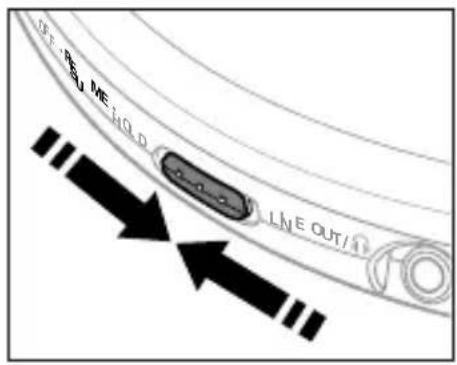

Storing the last position played - RESUME

You can store the last position played. When restarting, playback continues from where you have stopped.

1 Switch the slider to RESUME during playback to activate RESUME.

RESUME is shown.

2 Press whenever you want to stop playback.

3 Press whenever you want to resume playback.

RESUME is shown and playback continues from where you have stopped.

• To deactivate RESUME, switch the slider to OFF.

RESUME goes off.

928

RESUME

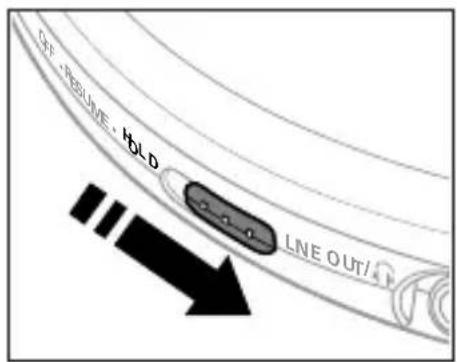

Locking all buttons - HOLD

You can lock the buttons of the unit. When a key is pressed, no action will be executed then.

1 Switch the slider to HOLD to activate HOLD.

All buttons are locked. Hold is displayed if you press any key. If the unit is switched off, Hold is displayed only if you press

2 To deactivate HOLD, switch the slider to OFF.

Note: When you deactivate HOLD by switching the slider to RESUME and restart, playback continues from where you have stopped.

Hold

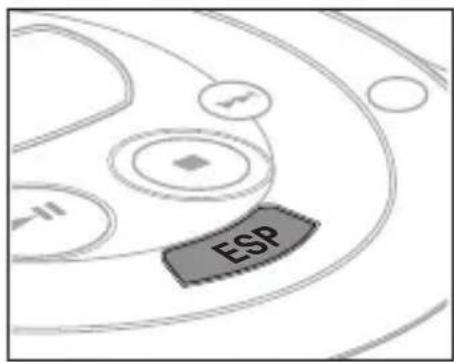

ESP

With a conventional portable CD player you might have experienced that the music stopped e.g. when you were jogging. The ELECTRONIC SKIP PROTECTION prevents loss of sound caused by light vibrations and shocks. Continuous playback is ensured. However, ESP does not prevent playback interruptions during serious running. It also does not protect the unit against any damage caused by dropping!

• Press ESP during playback to activate the skip protection.

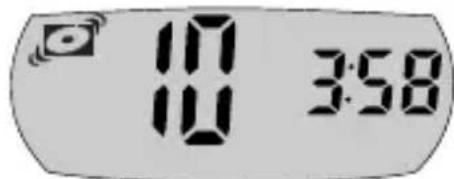

• is shown and the protection is activated.

To deactivate the skip protection, press ESP again. goes off and the protection is deactivated.

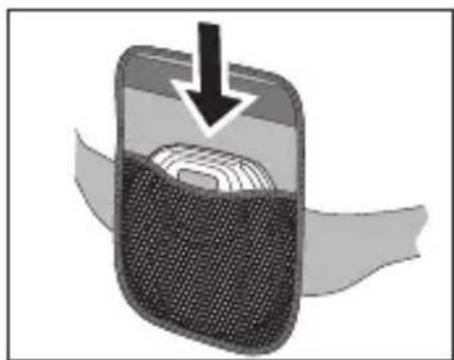

Pouch AY 3266(supplied or optionally available)

The pouch enables you to carry the player so that you can listen to music during exercising (e.g. jogging).

1 Make sure ESP is activated.
2 Fasten the belt securely around your waist.
3 Put the CD player in the pouch with the keys facing away from your body, and close the flap.

Notes: - Make sure the player is not hit by any objects such as tree limbs or branches during jogging. - Do not use the pouch if your skin is irritated. - Do not machine wash the pouch, as it could lose shape or color.

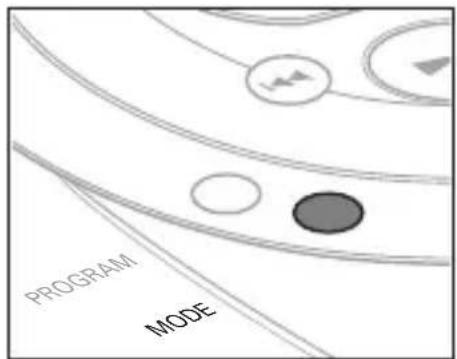

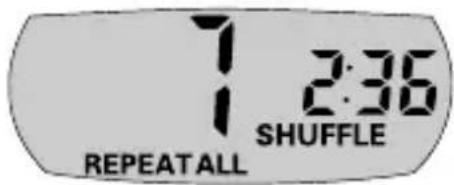

Selecting different playing possibilities - MODE

It is possible to play tracks in random order, to repeat a track or the entire CD and to play the first few seconds of each track.

1 Press MODE during playback as often as necessary until the display shows either:

SHUFFLE: All tracks of the CD are played in random order until all of them have been played once.
SHUFFLE REPEAT ALL: All tracks of the CD are played repeatedly in random order.
REPEAT: The current track is played repeatedly.
REPEAT ALL: The entire CD is played repeatedly.
→SCAN: The first 10 seconds of each of the remaining tracks are played in sequence.

2Playback starts in the chosen mode after 2 seconds.

• To return to normal playback, press MODE repeatedly until the display indicator goes off.

Remote control (not on all versions)

Use the AY 3764 cord remote control. The buttons on the remote control have the same functions as the corresponding buttons on the CD player.

1 If necessary press once or twice until the unit is switched off.
2 Firmly connect the remote control to LINE OUT/ and the headphones to the remote control's jack.
3 Turn the volume down with VOL on the remote control and set VOL on the CD player to position 8.

Optical out (not on all versions)

You can connect your CD player to digital equipment (e.g. a CD recorder) with a DIGITAL OPTICAL IN/AUX jack.

1 Use the power adapter, switch off ESP and turn down the volume of the appliance that should be connected.
2 Connect an optical cable or signal lead to the OPT OUT jack of your CD player and to the DIGITAL OPTICAL IN/AUX jack of the other appliance.
- To adjust volume and sound, use the controls of the connected appliance.

Notes: - For analog connections use the LINE OUT/ jack.

• Playback via OPT OUT does not work if the player is powered by batteries.

In-car use (connections supplied or optionally available)

Only use the AY 3545 car voltage converter (4.5 V, DC, positive pole to the center pin) and the AY 3501 car cassette adapter. Any other product may damage the unit.

1 Put the CD player on a horizontal, vibration-free and stable surface. Make sure it is in a safe place, where the player is neither a danger nor obstacle to the driver and

2 Connect the DC plug of the voltage converter to the 4.5V DC jack of the CD player (only for a 12 V car battery, negative grounding).
3 Insert the voltage converter into the cigarette lighter jack. If necessary, clean the cigarette lighter jack to obtain a good electrical contact.
4 Turn down the volume and connect the cassette adapter plug to the LINE OUT/ jack of the CD player.
5 Carefully insert the cassette adapter into the car radio's cassette compartment.
6 Make sure the cord does not hinder your driving.
7 Start the CD player, set VOL to position 8 and adjust the sound with the car radio controls.
- Always remove the voltage converter from the cigarette lighter jack when the CD player is not in use.

Notes: - Avoid excessive heat from the car heating or from direct sunlight (e.g. in a parked car in the summer).

• If your car radio has a LINE IN jack, it is better to use it for the car radio connection instead of the cassette adapter. Connect the signal lead to this LINE IN jack and to the LINE OUT/ jack of the CD player.

WARNING Under no circumstances should you try to repair the set yourself as this will invalidate the guarantee.
Problem	Possible	cause	Solution
No power, Batteries playback does Batteries inserted incorrectly Insert the batteries not start correctly.
	Batteries are empty. Change the batteries.
	Contact pins are dirty. Clean them with a cloth.
	Power adapter Loose connection Connect the adapter securely.
	In-car use Cigarette lighter is not powered Switch on ignition or insert when ignition is off. batteries.
nF d'15C CD-RW (CD-R) is not recorded Use FINALIZE on the indication properly. CD recorder to complete the recording.
nF d'15C The CD is badly Replace or clean the CD. indication scratched or dirty.
	CD is not or incorrectly inserted.	Insert a CD, label upwards.
	The laser lens is steamed up.	Wait until the lens has cleared.
Hold indication and/or no reaction to controls	HOLD is activated.	Deactivate HOLD.
	Electrostatic discharge	Disconnect the set from the power supply or take out the batteries for a few seconds.

If a fault occurs, first check the points listed, before taking the unit for repair.

If you are unable to solve a problem by following these hints, consult your dealer or service center.

Problem	Possible cause	Solution
The CD skips tracks.	The CD is damaged or dirty.	Replace or clean the CD.
	RESUME, SHUFFLE or PROGRAM is active.	Switch RESUME, SHUFFLE or
No sound or bad sound quality	PAUSE is activated.	Press ▶II.
	Loose, wrong or dirty Check and clean connections	connections.
	Volume is not adjusted. Adjust the volume.
	Malfunctions due to closeness Keep the player away from of active mobile phones active mobile phones.
	Strong magnetic fields near Change the player's position the player or connections.
	In-car use cassette adapter is Insert the cassette adapter inserted incorrectly. correctly.
	Temperature inside the car is too high/low.	Let the player adjust to the temperature.
	Cigarette lighter jack is dirty.	Clean the cigarette lighter jack.
	Wrong playback direction of the car cassette player's autoreverse feature	Change the autoreverse direction.

CD player and CD handling

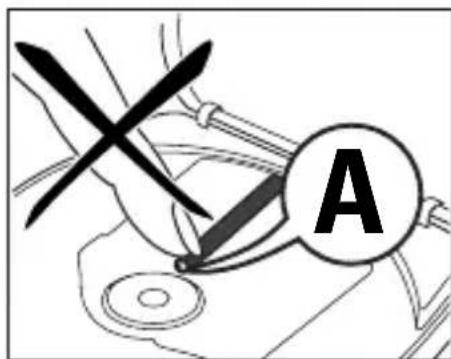

• Do not touch the lens (A) of the CD player.

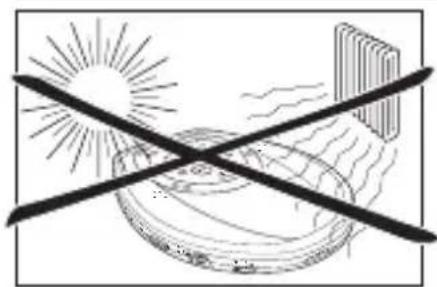

• Do not expose the unit, batteries or CDs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight).
• You can clean the CD player with a soft, slightly dampened, lint-free cloth. Do not use any cleaning agents as they may have a corrosive effect.
• To clean the CD, wipe it in a straight line from the center toward the edge using a soft, lint-free cloth. A cleaning agent may damage the disc! Never write on a CD or attach a sticker to it.
• The lens may cloud over when the unit is moved suddenly from cold to warm surroundings. Playing a CD is not possible then. Leave the CD player in a warm environment until the moisture has evaporated.
  Active mobile phones in the vicinity of the CD player may cause malfunctions

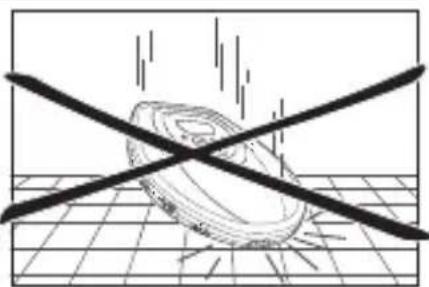

• Avoid dropping the unit as this may cause damage.

Environmental information

• All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into two mono materials: cardboard (box) and polyethylene (bags, protective foam sheet).
• Your unit consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

LIMITED WARRANTY

PORTABLE COMPACT DISC

One Year Free Exchange

This product must be carried in for an exchange.

WHO IS COVERED?

You must have proof of purchase to exchange the product. A sales receipt or other document showing that you purchased the product is considered proof of purchase. Attach it to this owner's manual and keep both nearby.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year thereafter, a defective or inoperative product will be replaced with a new, renewed or comparable product at no charge to you. A replacement product is covered only for the original warranty period. When the warranty on the original product expires, the warranty on the replacement product also expires.

WHAT IS EXCUSED?

Your warranty does not cover:
- labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
- product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.
- reception problems caused by signal conditions or cable or antenna systems outside the unit.
- a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.
- incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)
- a product that is used for commercial or institutional purposes.

WHERE IS EXCHANGE AVAILABLE?

You may exchange the product in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide a replacement product (although there may be a delay if the appropriate product is not readily available).

BEFORE REQUESTING EXCHANGE...

Please check your owner's manual before requesting an exchange. Adjustments of the controls discussed there may save you a trip.

EXCHANGING A PRODUCT IN U.S.A., PUERTO RICO OR U.S.VIRGIN ISLANDS

Contact your dealer to arrange an exchange. Or, ship the product, insured and freight prepaid, and with proof of purchase enclosed, to the address listed below.

Small Product Service Center

Philips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville,TN 37743

(In U.S.A., Puerto Rico and U.S.Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

EXCHANGING A PRODUCT IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking)

1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

TO GET OUT-OF-WARRANTY EXCHANGE...

In U.S.A., Puerto Rico or U.S.Virgin Islands, contact Philips Service Company at [phone] to obtain the cost of out-of-warranty exchange. Then carefully pack the product and ship it to the Small Product Service Center (address listed above). In Canada, call the phone number listed above under "Exchanging a Product in Canada" to obtain the cost of out-of-warranty exchange.

REMEMBER...

Please record the model and serial numbers found on the product below. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL#

SERIAL #

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Small Product Service Center

Philips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville, TN 37743 E.-U.

Small Product Service Center

Philips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville,TN 37743 USA

A Division of Philips Electronics North America Corporation

Knoxville, Tennessee 37914-1810, U.S.A.

CLASS 1 LASER PRODUCT
