USER MANUAL RMD 8551 DOMETIC

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

RMD8501, RMD8505, RMD8551, RMD8555

Absorber refrigerator

Operating manual

Dometic Group is a customer-driven, world-leading provider of leisure products for the RV, automotive, truck and marine markets. We supply the industry and aftermarket with a complete range of air conditioners, refrigerators, awnings, cookers, sanitation systems, lighting, mobile power equipment, comfort and safety solutions, windows, doors and other equipment that make life more comfortable away from home.

Dometic Group supplies a wide range of workshop equipment for service and maintenance of built-in air conditioners. Dometic Group also provides specially designed refrigerators for hotel rooms, offices, wine storage and transport and storage of medical products.

Our products are sold in almost 100 countries and are produced mainly in wholly-owned production facilities around the world.

DEUTSCH

Operating Instructions

Absorption Refrigerator for Recreation Vehicles

RMD 8501 RMD 8505

RMD 8551 RMD 8555

Record for future reference:

Model number ....

Product number ....

Serial number ....

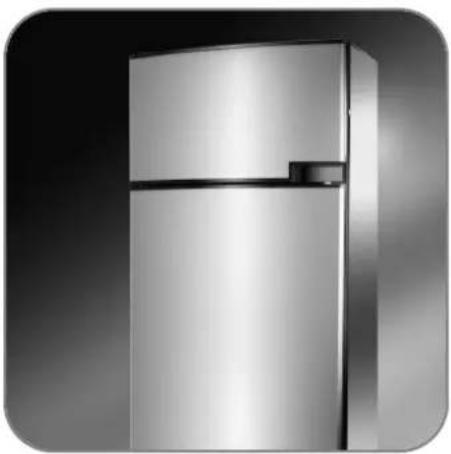

Exterior view of a modern stainless steel refrigerator (no text or symbols visible)

CE

e 1

N2

MBA 11/2013

EN

For your safety

DANGER!

Never use an unshielded flame to check gas bearing parts and pipes for leakage! There is a danger of fire or explosion.

WARNING!

The refrigerator is not suitable for the proper storage of medication. Please observe in addition the instructions in the medication package inserts.

Never open the absorber cooling unit! It is under high pressure.

There is a danger of injury!

Work on gas equipment, exhaust system and electrical facilities must be carried out by authorised personnel only. Substantial damage to property and/or injury to persons can arise through unprofessional procedures.

Operating the appliance with gas is not permitted

■ at petrol stations
■ on ferry boats
■ while transporting the caravan/motor-home by a transporter or breakdown vehicle.

There is the danger of fire!

Switch off the appliance.

Protect children:

When disposing of the refrigerator, detach all refrigerator doors and leave the storage racks in the refrigerator. In this way inadvertent entrappment and suffocation is prevented.

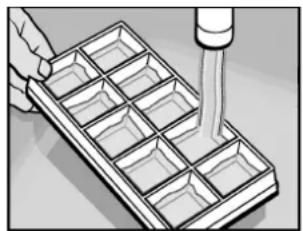

Making ice cubes:

Only use drinking water!

WARNING!

It is imperative that the operating pressure of the pressure reducer on the gas system corresponds to the data specified on the rating plate of the refrigerator.

If the values are different, the appliance can be damaged and a dangerous situation can be produced.

CAUTION!

The refrigerator unit becomes very hot during operation. Protect yourself against contact with high temperature parts when ventilation grilles are removed.

If the connection cable is damaged it must be replaced by the Customer Service at Dometic, or by respectively qualified personnel, in order to prevent any hazards.

As a basic rule, shut and lock the refrigerator before you start your journey!

CAUTION!

Changing the batteries :

■ Remove discharged batteries.
■ Replace the batteries completely.
- Do not mix different types of batteries.
- Observe the correct polarity!
- Do not connect non-rechargeable batteries to a charger.

■ Remove rechargeable batteries from the battery compartment before charging.

- Avoid short circuits on the contacts in the battery compartment!

■ Remove the batteries from the battery compartment if the refrigerator will not be used for a long time.

Operation with 230V\~ :

This option should only be selected where the supply voltage of the connection for power supply corresponds to the value specified on the data plate. Any difference in values may result in damage the appliance.

Defrosting:

The layer of ice must never be removed forcibly, nor may defrosting be accelerated using a heat source!

Table of contents

1.0 General 6

1.1 Introduction 6
1.2 Guide to these operating instructions 6
1.3 Copyright protection 6
1.4 Explanation of symbols used in this manual 6
1.5 Warranty 7
1.6 Limitation of liability 7
1.7 Customer services 7
1.8 Spare parts 7
1.9 Environmental notices 8
1.9.1 Disposal 8
1.9.2 Energy-saving-tips 8
1.10 Declaration of conformity 8

2.0 Safety instructions 9

2.1 Application according to regulations 9
2.2 User's responsibility 9
2.3 Protection of children when disposing of the equipment 9
2.4 Working upon and checking the refrigerator 9
2.5 Information on coolant 10
2.6 Operating the refrigerator with gas 10
2.7 Safety instructions when storing foodstuffs 11

3.0 Description of model 12

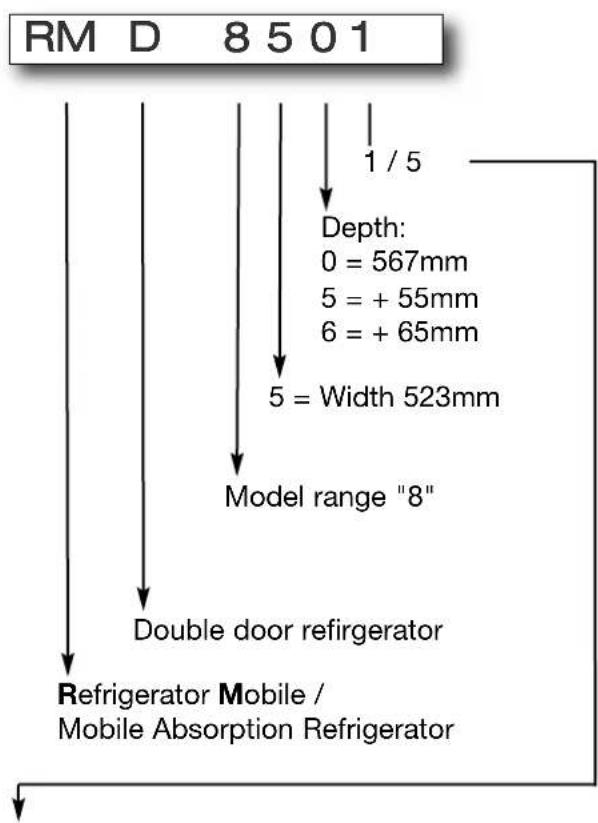

3.1 Model identification 12

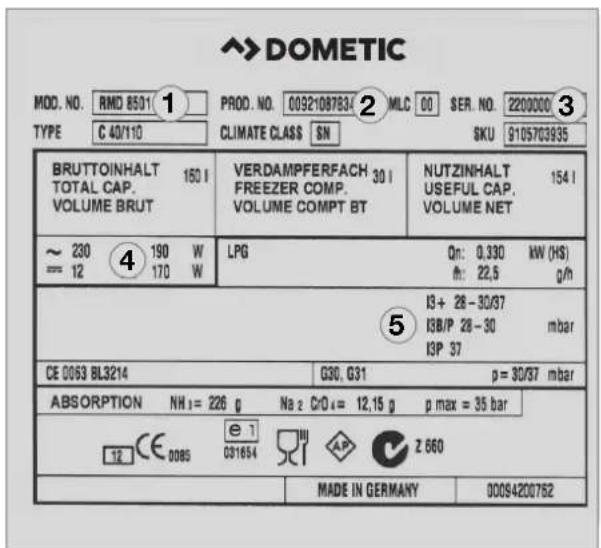

3.2 Refrigerator rating plate 12
3.3 Technical data 13

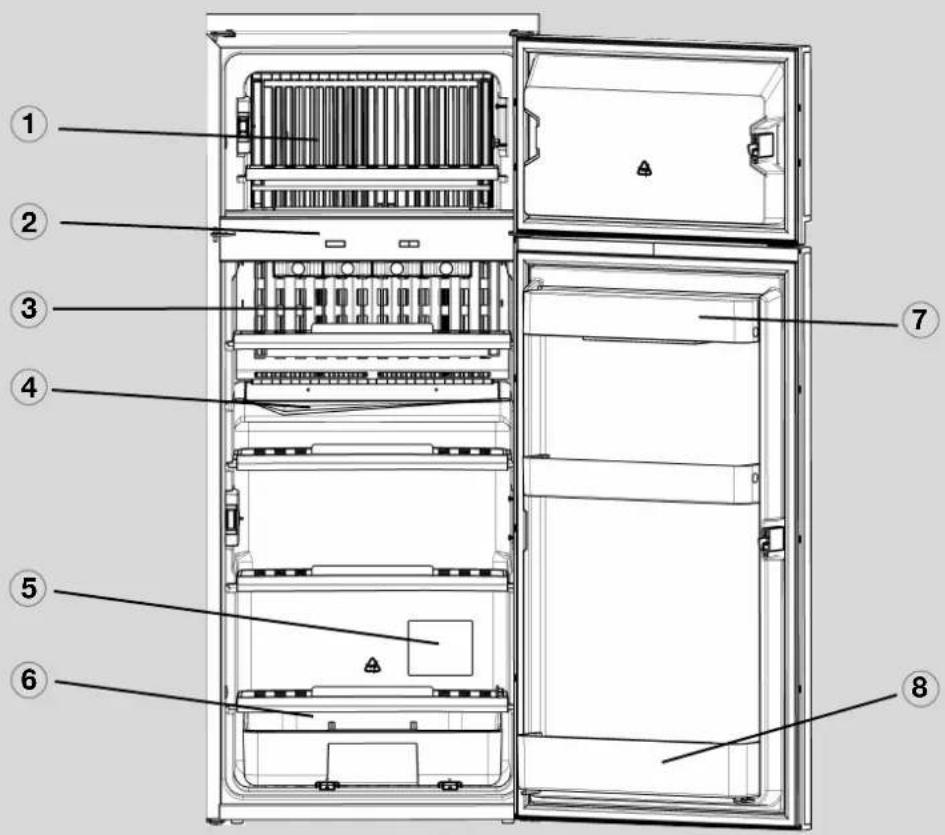

3.4 Description of refrigerator 14

4.0 Refrigerator operation 15

4.1 Cleaning 15
4.2 Maintenance 15
4.3 Electrical operation 15
4.4 Gas operation (Liquid gas) 16
4.5 Explanation of operating controls 16
4.6 RMD 8xx1models 18

4.6.1 Electrical operation 18
4.6.2 Gas operation 18
4.6.3 Setting of cooling compartment temperature 18
4.7 RMD 8xx5 models 18
4.7.1 Manual operation 18
4.7.2 Automatic operation 19
4.7.3 Setting of cooling compartment temperature 19
4.7.4 Refuelling while in automatic mode operation 19
4.7.5 Additional features 19
4.8 Self-contained gas operation and optional battery compartment 20
4.8.1 Inserting / changing the batteries 20
4.9 Frameheating 21
4.10 Door locking 21
4.10.1 Fastening and releasing the door lock hook when parking the vehicle 22

4.11 Lighting 22

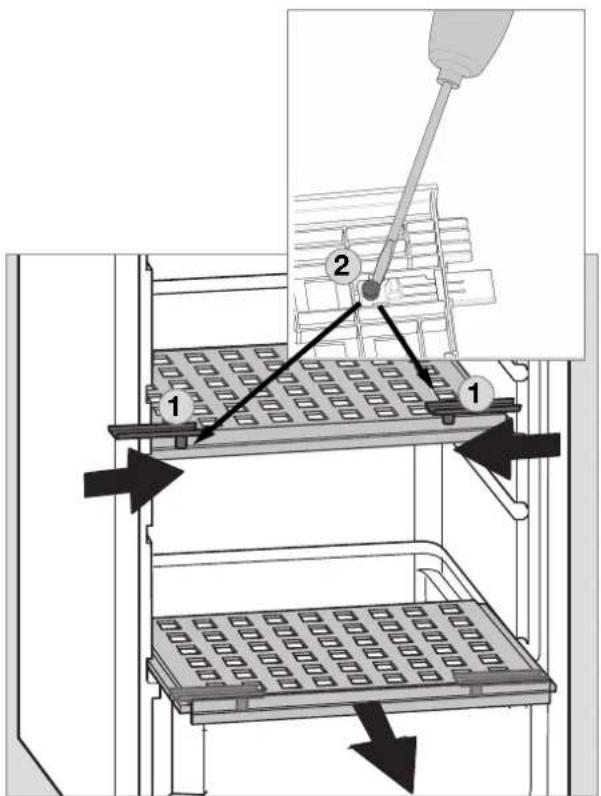

4.12 Positioning the storage racks 22
4.13 Storing food and making ice cubes 23
4.13.1 Storing products in the cooling compartment 23
4.13.2 Storing products in the freezer compartment 23
4.13.3 Making ice cubes 23

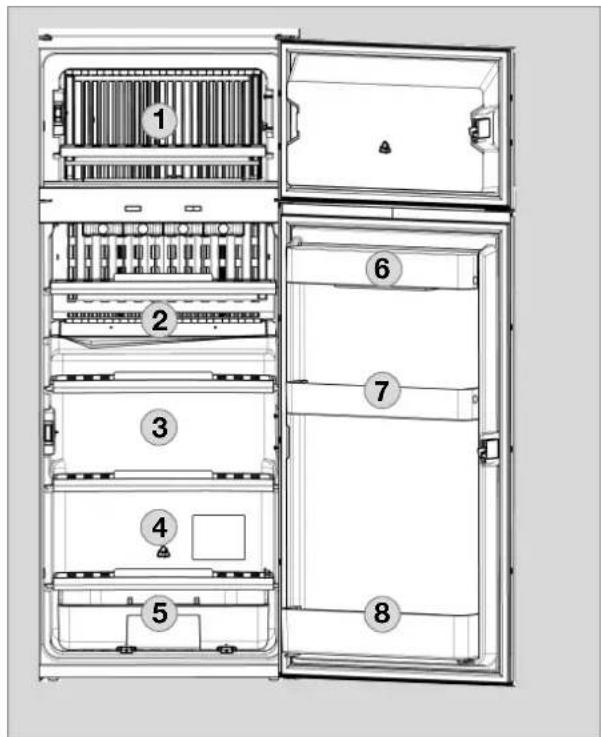

4.13.4 Refrigerator compartments 24
4.14 Shutting off the refrigerator 24
4.15 Defrosting 24

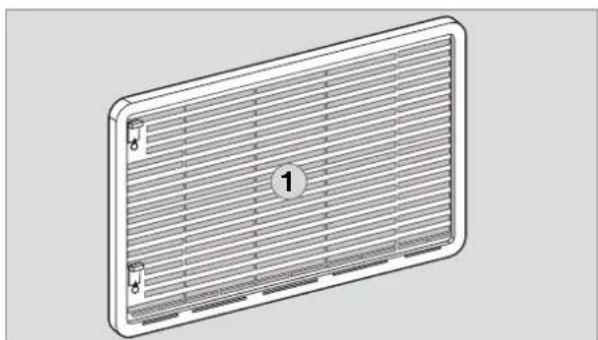

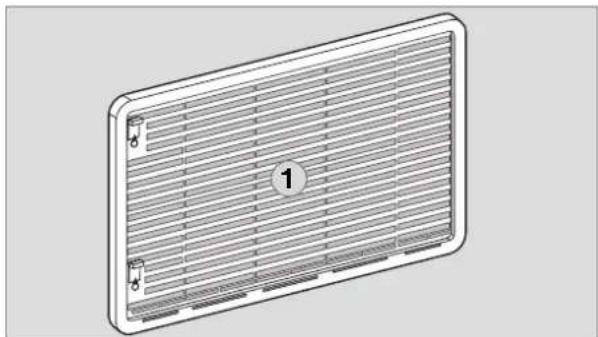

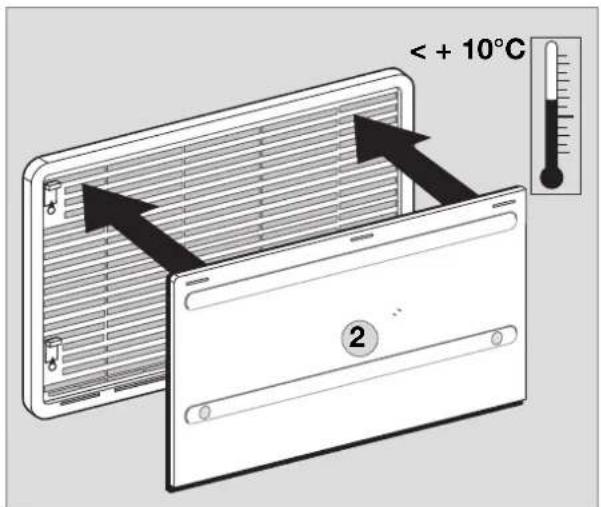

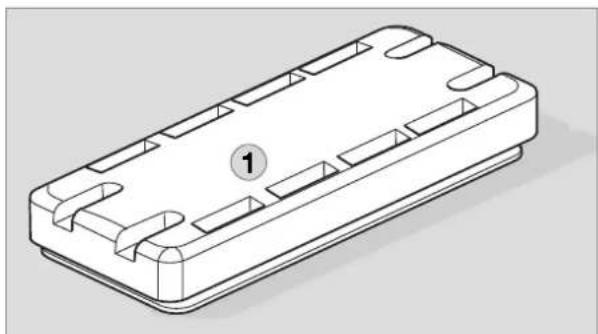

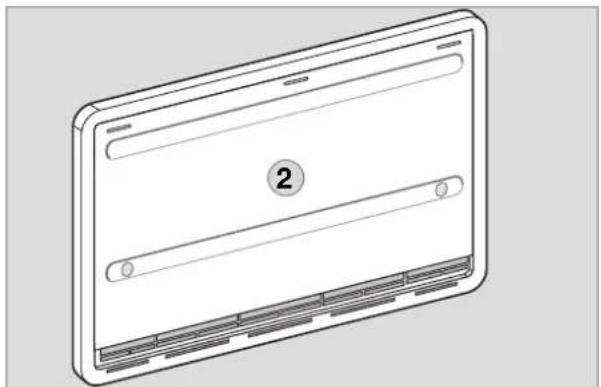

4.16 Operation during low outside temperatures 25

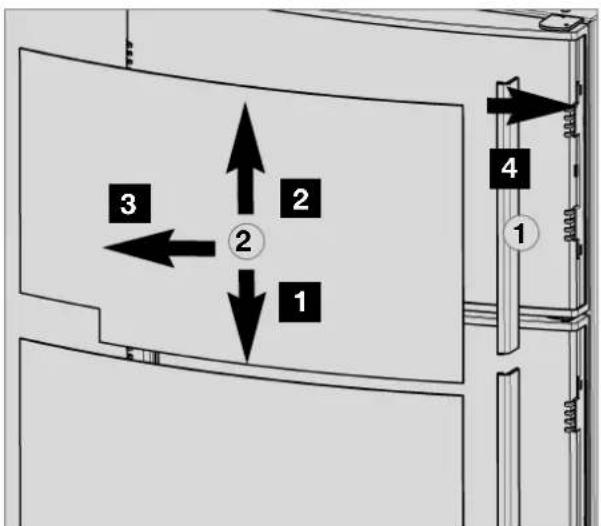

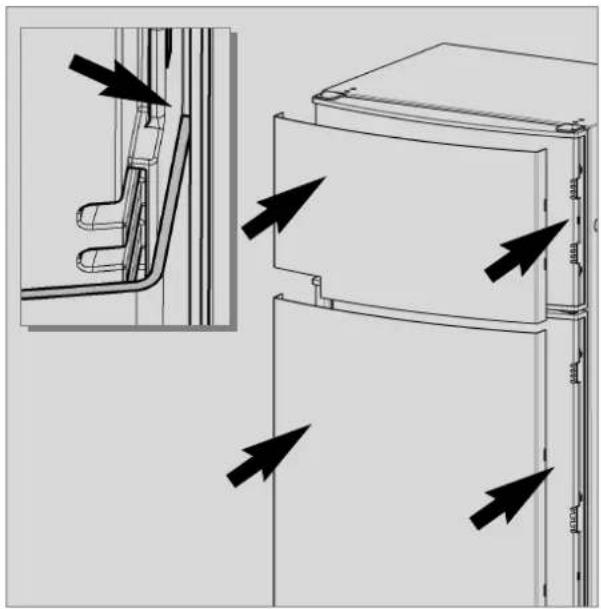

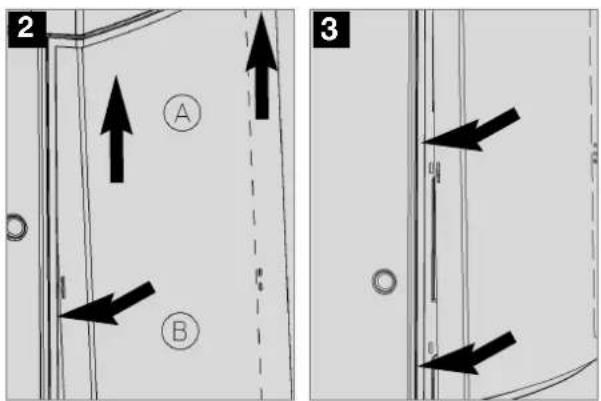

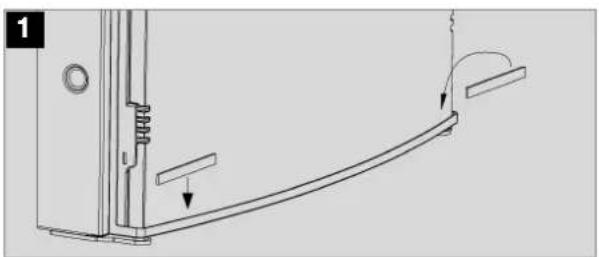

4.17 Changing the decor panel 26
4.18 Troubleshooting 27

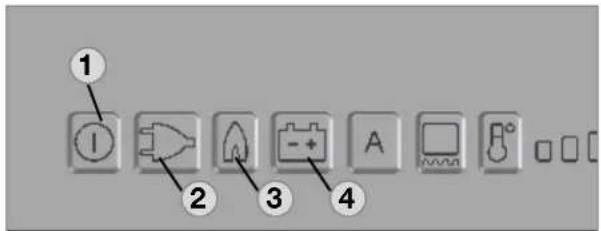

4.19 Information on failure display and trouble-shooting 28

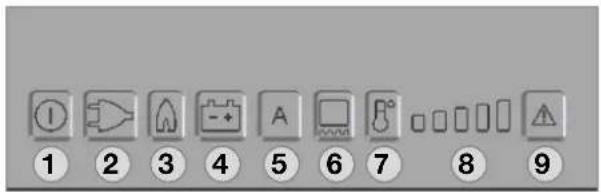

4.19.1 Status indicators 28

1.0 General

1.1 Introduction

You have made an excellent choice in selecting the Dometic Absorption Refrigerator. We are sure that you will be satisfied with your new refrigerator in all respects. The refrigerator, which works silently, meets high quality standards and guarantees the efficient utilisation of resources and energy throughout its entire life cycle, during manufacture, in use and when being disposed of.

1.2 Guide to these operating instructions

Before you start using the refrigerator, please read the operating instructions carefully.

These instructions provide you with the necessary guidance for the proper use of your refrigerator. Observe in particular the safety instructions. Observation of the instructions and handling recommendations is important for dealing with the refrigerator safely and for protecting you from injury and the refrigerator from damage. You must understand what you have read before you carry out a task.

Keep these instructions in a safe place close to the refrigerator so they may be referred to at any time.

1.3 Copyright protection

The information, texts and illustrations in these instructions are copyright protected and are subject to industrial property rights.

No part of these instructions may be reproduced, copied or utilised in any other way without written authorisation by Dometic GmbH, Siegen.

1.4 Explanation of symbols used in this manual

Warning notices

Warning notices are identified by symbols. A supplementary text gives you an explanation of the degree of danger.

Observe these warning notices rigorously. You will thus protect yourself and other people from injury, and the appliance from damage.

DANGER!

DANGER indicates an imminent hazardous situation which, if not avoided, could result in death or serious injury.

WARNING!

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury

CAUTION!

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury

CAUTION!

CAUTION (used without the safety alert symbol) indicates a potentially hazardous situation which, if not avoided, may result in damage to the appliance.

Information

INFORMATION gives you supplementary and useful guidance when dealing with your refrigerator.

Environmental Tips

ENVIRONMENTAL TIPS gives you useful guidance for saving energy and disposal of the appliance.

1.5 Warranty

Warranty arrangements are in accordance with EC Directive 44/1999/CE and the normal conditions applicable for the country concerned. Please contact your dealer in the event of a warranty claim.

Any damage due to improper use is not covered by the warranty. The warranty does not cover any modifications to the appliance or the use of non-original Dometic parts. The warranty does not apply if the installation and operating instructions are not adhered to and no liability shall be entertained. nd zum Ausschluss von Haftungsansprüchen.

1.6 Limitation of liability

All information and guidance in these operating instructions were prepared after taking into consideration the applicable standards and regulations as well as the current state of the art. Dometic reserves the right to make changes at any time which are deemed to be in the interest of improving the product and safety.

Dometic will assume no liability for damage in the case of :

■ non-observation of the operating instructions
■ application not in accordance with the regulations or provisions
■ use of non-original spare parts
■ modifications and interferences to the appliance

1.7 Customer services

Find your authorised customer service centre by calling the phone number indicated in the EuroService Network book, EuroService Network - which accompanies every refrigerator. You can also obtain the address information of the nearest customer service from www.dometic.com. When contacting Dometic Customer Services, please state the model, product number and serial number together with the MLC code, if applicable. You will find this information on the rating plate inside the refrigerator. We recommend that you note this data in the field provided on the front page of this operation manual.

1.8 Spare parts

Parts can be ordered throughout Europe from our customer services.

Always give the model and product number when you contact the customer service! You will find this information on the rating plate inside the refrigerator.

1.9 Environmental notices

Ammonia (a natural compound of hydrogen and nitrogen) is used in the cooling unit as a coolant. Non-ozone-hazardous cyclopentane is used as a propellant for manufacturing PU foam insulation.

1.9.1 Disposal

In order to ensure that the recyclable packaging materials are re-used, they should be sent to the customary local collection system. The appliance should be transferred to a suitable waste disposal company that will ensure re-use of the recyclable components and proper disposal of the rest. For eco-friendly draining of the coolant from all absorber refrigeration units, a suitable disposal plant should be

Do not dispose of batteries in domestic waste. Take your used batteries to your dealer or a collection point.

1.9.2 Energy-saving-tips

At an average ambient temperature of 25^ C, it is sufficient to operate the refrigerator at middle thermostat setting.
■ Where possible, always store precooled products.
- Do not expose the refrigerator to direct sunlight or any other heat source (e.g. heater).
■ Ensure that air circulation of the refrigeration unit is not obstructed.
- Arrange the shelves evenly in the refrigerator (in the cooling compartment) in order to achieve the most efficient use of energy.

• Do not overfill the storage grids and compartments to prevent obstructing the internal air circulation.
• Maintain a clearance of approx. 10 mm between chilled products and post-evaporator ("cooling fins").
  ■ Defrosting at regular intervals saves energy (see section "Defrosting").
• Open the refrigerator door only for a short period of time when removing products.
  ■ Run the refrigerator for about 12 hours before filling it.

1.10 Declaration of conformity

DOMETIC

DECLARATION OF CONFORMITY

according to

LVD 2014/35/EU

EMC Directive 2004/108/EC, 2014/30/EU

Gas Appliance Directive 2009/142/EC

ECE R10, Rev. 4

Type of equipment	Absorption Refrigerator
Brand Name	DOMETIC
Type family	C 40/110
Manufacturer's (Factory)
name	DOMETIC GmbH
address	In der Steinwiese 16, D-57074 Siegen
telephone no	INT+49 - 271 692 0
telefax no	INT+49 - 271 692 304

The following harmonized standards or technical specifications (designations) which comply with good engineering practice in safety matters in force within the EEA have been practiced:

EN 60335-1;12 (IEC 60335-1; 5 ed., Am. 1, Am. 2),

EN 60335-2-24;10 (IEC 60335-2-24; 7 ed., Am. I.)

EN 61000-3-2;06, A1, A2 EN 61000-3-3;08

EN 55014-1:06, A1, A2

EN 732:98 EN 60335-2-102:06

The equipment conforms completely with the above stated harmonized standards or technical specifications.

By signing this document, the undersigned declares as manufacturer, or the manufacturer's authorized representative established within the EEA, that the equipment in question complies with the requirements stated above.

Date

2017.01.09

Signature

Position

General Manager

The current Declaration of Conformity can also be requested directly from Dometic GmbH, Siegen.

2.0 Safety instructions

2.1 Application according to regulations

This refrigerator is designed for installation in recreation vehicles such as caravans or motorhomes. The appliance has been type-approval tested for this application in accordance with the EC Gas Directive.

The refrigerator is to be used solely for storing foodstuffs.

WARNING!

The refrigerator is not suitable for the proper storage of medication. Please observe in addition the instructions in the medication package inserts.

2.2 User's responsibility

Anyone operating the refrigerator must be familiar with the safe handling and understand the advice in these operating instructions.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been given instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children.

[EN 60335-2-24, 7.12]

2.3 Protection of children when disposing of the equipment

WARNING!

When disposing of the refrigerator, detach all refrigerator doors and leave the storage racks in the refrigerator. In this way inadvertent entrapment and suffocation is prevented.

2.4 Working upon and checking the refrigerator

WARNING!

Work on gas equipment, exhaust system and electrical facilities must be carried out by authorised personnel only. Substantial damage to property and/or injury to persons can arise through unprofessional procedures.

DANGER!

Never use an unshielded flame to check gas bearing parts and pipes for leakage!

There is a danger of fire or explosion.

WARNING!

Never open the absorber cooling unit! It is under high pressure.

There is a danger of injury!

2.5 Information on coolant

Ammonia is used as a coolant.

This is a natural compound also used in household cleaning agents (1 litre of Salmiak cleaner contains up to 200g of ammonia - about twice as much as is used in the refrigerator). Sodium chromate is used for corrosion protection (1.8% by weight of the solvent).

In the event of leakage (easily identifiable from the strong odour), proceed as follows:

• Switch off the appliance.
• Air the room thoroughly.
• Inform authorised customer services.

For your safety it was ascertained in an expert's report that no impairment of health exists when the coolant is discharged.

2.6 Operating the refrigerator with gas

It is imperative that the operating pressure of the pressure reducer on the gas system corresponds to the data specified on the rating plate of the refrigerator. Compare the operating pressure of the rating plate with the data specified on the pressure reducing valve of the liquid gas cylinder.

Dometic refrigerators are equipped for a connection pressure of 30 mbar. For connection to a 50 mbar gas system, use Truma VDR 50/30 medium pressure controller.

WARNING!

Operating the appliance with gas is not permitted

■ at petrol stations
■ on ferry boats
■ while transporting the caravan/motor-home by a transporter or breakdown vehicle.

There is the danger of fire!

Switch off the appliance.

If you smell gas:

■ Open all windows and leave the room.
- Do not operate any electrical equipment and prevent the use of naked flames.
- Do not operate any electrical equipment and prevent the use of naked flames.
■ Contact authorised specialist personnel* for advice.

* authorised specialist personnel

Authorised specialist personnel are accredited experts who are able, by virtue of their training and knowledge, to vouch that the inspection and repair work has been carried out properly.

2.7 Safety instructions when storing foodstuffs

No refrigerator of any kind can improve the quality of the food; refrigerators can only maintain the food's quality for a short duration as from the time of storing it.

Please observe the following particular conditions for storing food in a refrigerator that is built into a vehicle:

■ A change in the climatic conditions such as temperature fluctuations
- High temperatures inside the vehicle when it is closed and parked in direct sunlight (temperatures are possible up to 50°C)
A refrigerator built in behind a window and exposed to direct sunlight
■ Storing the products too soon, i.e. shortly after starting up the appliance for use
■ Use of the refrigerator during travel with the power supply of 12V DC
- Fluctuations in the power supply at the parking place when using the energy type 230V\~ (mains voltage).

schematic

Under these particular conditions the refrigerator cannot guarantee reaching the temperature needed for perishables.

Perishables include all products with a stipulated use-by date and a minimum storage temperature of +4°C or less, especially for meat, poultry, fish, sausages, pre-packed foods.

• Pack raw and cooked foods separately (e.g. in containers, aluminium foil, etc.).
• Only remove the outside packaging of single packs if all the necessary information, e.g. the use-by date, can also be read on the single packs.
  Please observe the instructions and information regarding the use-by date on the outside packaging of the food.
• Do not leave cooled goods outside the refrigerator for too long.
• Place the foods with the next use-by date at the front, accordingly.
• Pack away any left-over food and eat at the first opportunity.
  ■ Wash your hands before and after handling any food.
  ■ Regularly clean the inside of the refrigerator.
  Please observe section Cleaning of this instruction.

The cooling unit's performance is influenced by ambient temperatures. Please select the medium setting for ambient temperatures between +15°C and +25°C (refer to Setting of cooling compartment temperature). The unit operates within its optimum performance range.

Dometic refrigerators work according to the absorption principle. For physical reasons, an absorption system responds slowly to changes made by the thermostat controller, by loss of cooling energy through opening the door or during storing food. The devices meet the cooling performance requirements of the Climatic Class SN acc. to EN/ISO 7371 in the temperature range of +10°C to +32°C ambient temperature.

For temperatures below +10°C, winter covers should be installed. For ambient temperatures exceeding +32°C for a longer period of time, it is recommended installing Dometic additional fan (item no. 241 2985 - 01).

3.0 Description of model

3.1 Model identification

Example:

1

manual energy selection, automatic ignition (MES)

5

automatic and manual energy selection, automatic ignition (AES)

3.2 Refrigerator rating plate

The rating plate is to be found on the inside of the refrigerator. It contains all important details of the refrigerator. You can read off from this the model identification, the product number and the serial number. You will need these details whenever you contact the customer service centre or when ordering spare parts.

Example
Fig. 1

1 Model number
② Product number
3 Serial number
4 Electrical rating details
5 Gas pressure

3.3 Technical data

Fig. 2

Model Dimensions	Gross capacityH x W x D (mm)Depth incl. door	with freezer mains/battery elecctricity/gas weight		Rating detailsPiezo Automat	Consumption * Net ignition
		compartment	freezer over 24hrs
RMD 8501	1245x523x567	160 lit.	30 lit.	250 W / 170 W	ca.4,2 KWh / 420 g	40 kg	•
RMD 8505	1245x523x567	160 lit.	30 lit.	250 W / 170 W	ca.4,2 KWh / 420 g	40 kg	•
RMD 8551	1245x523x622	190 lit.	35 lit.	250 W / 170 W	ca.4,2 KWh / 420 g	41.5 kg	•
RMD 8555	1245x523x622	190 lit.	35 lit.	250 W / 170 W	ca.4,2 KWh / 420 g	41.5 kg	•

Subject to technical changes.

*Average consumption measured at an average ambient temperature of 25°C in pursuance of ISO Standard.

3.4 Description of refrigerator

Fig. 3

1 Freezer compartment
② Operating controls
3 Post-evaporator for cooling compartment
4 Condensation water drain channel
5 Data plate
6 Vegetable bin
7 Upper door shelf with flap, egg shelf available as option may be inserted
8 Lower door shelf with bottle holders

4.0 Refrigerator operation

The refrigerator is equipped to operate on three power modes:

■ Mains voltage (230V AC)
■ Direct-current voltage (12V DC)
■ Gas (liquid gas propane/butane)

Select the desired power mode by the energy selector button. Appliances with automatic energy selection (AES) are additionally provided with "automatic mode" function. Then the AES system automatically selects the best energy source for each particular situation.

• When the appliance is first put into operation, there may be a mild odour which will disappear after a few hours.
  ■ Park the vehicle level, particularly when starting up the refrigerator and filling with food before starting a journey.
  ■ The cooling unit is silent in operation.
  The refrigerator will take several hours to reach its operating temperature in the cooling compartment. The freezer compartment should be cold about one hour after switching on the refrigerator.

4.1 Cleaning

Before starting up the refrigerator, it is recommended that you clean it inside and repeat this at regular intervals.

Use a soft cloth and lukewarm water with a mild detergent. Then wipe out the appliance with clean water and dry thoroughly.

Keep the condensation water drain channel free of deposits.

To avoid material alterations, do not use soap or hard, abrasive or soda-based cleaning agents. Do not allow the door seal to come into contact with oil or grease.

4.2 Maintenance

In compliance with the applicable regulations, please note that the gas unit and the connected ventilation ducts must be checked by authorised technical personnel after first use and after every other year for compliance with the European Standard EN 1949. A test certificate has to be issued. It is the user's responsibility to arrange this test.
The gas burner must be inspected and cleaned as necessary at least once a year. When using liquefied petroleum gas (tank or refill cylinders) the maintenance interval is reduced to half-yearly or quarterly.
Keep the evidence of maintenance work carried out on your refrigerator.
■ Work on gas and electrical equipment shall be carried out by qualified personnel only.
It is recommended that this is carried out by an authorised customer services department.
We recommend maintenance following an extended shutdown of the vehicle. Please contact our customer services.

4.3 Electrical operation

12V-voltage (on-board power supply)

CAUTION!

The refrigerator should only be used in 12VDC-operation while the vehicle's engine is running, otherwise the on-board-battery would be discharged within a few hours!

Mains power (230V)

CAUTION!

This option should only be selected where the supply voltage of the connection for power supply corresponds to the value specified on the data plate. Any difference in values may result in damage the appliance.

4.4 Gas operation (Liquid gas

■ The refrigerator must be operated using liquid gas (propane, butane) (no natural gas or town gas).
- When using LPG gas, please consider that the burner needs cleaning at shorter intervals due to the gas combustion method (2 - 3 times per year recommended.
In Europe, gas operation is permitted while travelling only on the condition that the gas system of the vehicle is equipped with a hose rupture protection. The national regulations of the respective country must be observed.
For physical reasons, gas ignition faults could occur starting from an altitude above sea level of approx. 3280 ft. / 1000 m (No malfunction!)
On the initial refrigerator start-up or after a cylinder change, air may be trapped in the gas line. To purge the air from the lines, switch on the refrigerator and any other gas appliances (e.g. stove) for a short time. The gas ignites without delay.
■ Each refrigerator with manual ignition is equipped with an automatic flame safety valve which interrupts the gas supply automatically after approx. 30 seconds when the flame has extinguished.

WARNING!

As a basic rule, gas operation is prohibited in petrol stations!

Prior to starting the refrigerator in gas mode :

■ Open the gas cylinder valve.
■ Open the shut-off valve for gas supply to the refrigerator.

4.5 Explanation of operating controls

NOTE!

Proceed to the description that applies to YOUR model.

The control panel buttons are not accessible when the refrigerator door is closed. Open the bottom door to reach the operating buttons.

Depending on the door opening direction, there are two LEDs on the left or right edge of the control panel. The outer LED (1) indicates that the refrigerator is operational (blue). The other LED (2) lights red in the event of a fault.

Indicator LEDs
Fig. 4

Refrigerators for self-contained (gas) operation contain two battery compartments in the control panel which are located on the left and right next to the button bar.

Pure electrical circuit symbols without any text or labels

Operating controls without battery compartments
Fig. 5

Operating controls with battery compartments (L, R)
Fig. 6

Manual energy selection / automatic ignition MES (RMD 8xx1) :

Fig. 7

1 = Power ON/OFF switch
2 = Energy selector button 230V AC
3 = Energy selector button GAS
4 = Energy selector button 12V DC
6 = Pushbutton ON/OFF frameheating
7 = Temperature level selection
8 = Temperature level display
9 = Indicator LED failure / Reset button GAS FAILURE

Switching ON/OFF

■ Switch ON by pressing button (1), 2s
■ Switch OFF by pressing button (1), > 2s

230V AC operation

■ Select "Mains voltage" by pressing button (2)
■ Set temperature step by pressing button (7)

12V DC operation (vehicle's battery)

• Select "Battery voltage" by pressing button (4)
  ■ Set temperature step by pressing button (7)

Gas operation

■ Select "Gas" by pressing button (3)
■ Set temperature step by pressing button (7)

Automatic energy selection / automatic ignition AES (RMD 8xx5) :

Fig. 8

1 = Power ON/OFF switch
2 = Energy selector button 230V AC
3 = Energy selector button GAS
4 = Energy selector button 12V DC
5 = Selector button "AUTOMATIC"
6 = Pushbutton ON/OFF frameheating
7 = Temperature level selection
8 = Temperature level display
9 = Indicator LED failure / Reset button GAS FAILURE

Switching ON/OFF

■ Switch ON by pressing button (1), 2s
■ Switch OFF by pressing button (1), > 2s

Manual operation

■ Select energy source with buttons (2,3,4)
■ Set temperature step by pressing button (7)

Automatic operation

• Change over to “Automatic” with button (5)
  Automatical energy selection (if available)
  Sequence of priority: 1.) Solar (12V -)
  2.) 230V AC
  3.) 12V DC
  4.) Liquid gas

■ Set temperature step by pressing button (7)

4.6 RMD 85x1 models

MES-appliances (manual energy selection)

4.6.1 Electrical operation

Fig. 9

To start the refrigerator, press button (1) for 2 seconds.

The refrigerator starts with the last selected type of energy.

230V operation :

Press button (2):

12V operation :

Press button (4):

4.6.2 Gas operation

Fig. 10

Gas operation :

Press button (3):

The ignition process is activated automatically by means of an automatic igniter.

The flame extinguishes after reaching the pre-set cooling compartment temperature and ignites again if the cooling compartment temperature increases again. If the flame is not lit after the first ignition attempt, the automatic igniter repeats the ignition twice (duration 30 s) at time intervals of 2 minutes. If the flame is not lit afterwards, a fault is indicated.

4.6.3 Setting of cooling compartment temperature

Fig. 11

Select the desired cooling compartment temperature by pressing button (7).

The LED display (8) of the selected temperature setting is illuminated.

The scale starts with MIN position at the left LED position (small bar = highest temperature) and climbs up to MAX position at the right LED position (large bar = lowest temperature).

Note: The temperature levels do not relate to absolute temperature values.

4.7 RMD 85x5 models

AES appliances

(manual + automatic energy selection)

4.7.1 Manual operation

Fig. 12

To start the refrigerator, press button (1) for 2 seconds.

The refrigerator starts with the last selected type of energy.

230V operation :

Press button (2):

12V operation :

Press button (4):

Gas operation :

Press button (3) :

4.7.2 Automatic operation

Fig. 13

To start the refrigerator, press button (1) for 2 seconds.

The refrigerator starts with the last selected type of energy.

Automatic operation :

Press button(5): A

Upon switching on, the electronics automatically selects one of the three possible energy types: 230V - 12V - liquid gas. The control electronics automatically ensures that the refrigerator is supplied with the optimum source of energy in each respective case.

Sequence of priority: 1.) Solar (12V DC)

2.) 230V AC

3.) 12V DC

4.) Liquid gas

If sufficient mains voltage is available (more than 195 V), this power source is selected as prime option. If a solar system capable of powering the refrigerator is installed, the solar 12V supply takes priority.

The 12V operation is otherwise only effective while the engine is running.

According to the sequence of priority the electronics selects GAS as energy source only, if both of the electrical energy source are not available.

Manual operation is possible at any time.

4.7.3 Setting of cooling compartment temperature

see point "4.6.3"

4.7.4 Refuelling while in AES mode operation

In order to prevent unintended switching to gas operation during refuelling, the electronic system starts gas operation of the refrigerator after the motor has been turned off for 15 minutes. During this period the appliance is ready for operation ("stand-by"). The temperature level LEDs do not light then while all other indicators remain active.

WARNING!

The use of unshielded flames is prohibited in petrol station environments.

Should the refuelling stop last longer than 15 minutes, the refrigerator has to be switched off or switched over to another energy type.

4.7.5 Additional features (MES / AES)

The brightness of the display reduces after a few seconds if no other buttons are pressed. The indicator lights again if a button is pressed. Press the button again to activate the required function.
■ Failures are indicated by flashing of the failure indicator LED.
■ Should the door be kept open for too long (more than 2 minutes), an acoustic signal is initiated (pulsing whistle tone).
- Should the electronic control detect any failure, an acoustic signal will sound (pulsing whistle tone). At the same time the display starts flashing (for trouble-shooting, please refer to section 4.19).

4.8 Gas operation with internal batteries (option

An optional battery compartment in the electronics case for internal (self-contained) power supply of the electronics is available for the model variants RMD 85x1 (appliances with electronics).

Pure electrical circuit lines without any symbols

Left battery compartment
Fig. 14

Batteries are not included!

Load the battery compartment with batteries (8 x AA 1.5 V) before operating the refrigerator.

Self-contained gas operation

All operating modes can be selected while the on-board 12 V DC power supply is active. The battery compartment is disconnected from the power supply.

If the vehicle on-board 12 V DC power supply is not present or there is an interruption of the mains power supply during operation, the electronics automatically switch to the appliance internal battery power supply.

The refrigerator can now only be operated in the gas mode.

All LED indicators except the GAS LED are not lit during operation with the batteries inside the appliance. The GAS LED flashes every 15 seconds.

If a button is pressed, the temperature level LEDs (7, Fig. 7,8) also light.

If the voltage of the battery inside the appliance is too low, an acoustic signal (whistle tone) sounds every 15 seconds.

Then replace the batteries in the battery compartment

4.8.1 Inserting / changing the batteries

Switch off the refrigerator, as described in section 4.14 Shutting of the refrigerator.

Opening left battery compartment
Fig. 15

Opening right battery compartment
Fig. 16

Diagram showing a device with an arrow indicating rotation or movement, no text or symbols present

Fig. 17

CAUTION!

■ Remove discharged batteries.
- Replace the batteries completely.
- Do not mix different types of batteries.
- Observe the correct polarity!
- Do not connect non-rechargeable batteries to a charger.
■ Remove rechargeable batteries from the battery compartment before charging.
- Avoid short circuits on the contacts in the battery compartment!
■ Remove the batteries from the battery compartment if the refrigerator will not be used for a long time

Protect the environment!

Do not dispose of batteries in domestic waste. Take your used batteries to your dealer or a collection point.

4.9 Frame heating

All models are equipped with a frame heating (12VDC/3,5W) around the freezer compartment. During summer months with high temperatures and humidity the metal frame may have water droplets forming. To evaporate these droplets switch on the frame heating with button (6).

Fig. 18

Operation with gas mode or 12V mode :

The operating time of the frame heater can be set to 2 hours, 5 hours or continuous operation. After selecting the operating time using the button (6), the temperature level indicator (8) is extinguished for a short time to show the set operating time for a few seconds. The display then returns to the temperature level indicator.

Operating time : 2 h

Press button (6) once

Display

Operating time : 5 h

Press button (6) twice

Display

Permanent operation

Press button (6) three times

Display

Operation with 230 V mode and 12 V mode AES (automatic operation):

The frame heater is switched on continuously. There is no indication on the control panel.

Gas mode :

CAUTION!

In order to prevent discharge of the on-board battery, change the frame heater from continuous operation to another operating time or switch it off.

4.10 Door locking

CAUTION!

As a basic rule, shut and lock the refrigerator before you start your journey!

Pure mechanical diagram showing a lever and pivot point with directional arrows (no text or symbols)

Fig. 19

3D rendering of a simple room corner with a curved arm and wall-mounted door (no text or symbols)

Fig. 20

Open the door by pressing the locking button and pull open (see Fig. 19).

Shut the door again by pushing it to close. The snapping into the lock can be heard.

While the vehicle is parked, the locking hook may be fixed to facilitate opening of the door (Fig 21-22).

4.10.1 Fastening and releasing the doorlock hook when parking the vehicle

If the vehicle is parked for a longer period of time, the locking hook may be clamped by means of a lockbar. The door may now be opened by just pulling it without need of pressing the locking button.

Mechanical component diagram showing a bracket with a handle and arrow indicating direction (no text or symbols)

Fastening
Fig. 21

Diagram of a mechanical device with internal components, no visible text or symbols

Fig. 22

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Releasing
Fig. 23

Technical illustration of a mechanical component with a handle and mounting bracket (no text or symbols)

Fig. 24

4.11 Lighting

The interior lighting is controlled using a door contact. Should the door be kept open for more than 2 minutes, an acoustic signal is initiated (pulsing whistle tone).

Mechanical assembly diagram showing a component with rotating parts and mounting brackets (no text or symbols)

Fig. 25

i

In the case of a fault, contact an authorised Dometic customer service agent.

4.12 Positioning the storage racks

The storage racks may be pulled out by loosening the two locking devices (1) underneath. For loosening pull the slider to the middle, for fastening pull them sidewards.

Two of the storage racks are secured. In this way inadvertent entrappment and suffocation of children is prevented, if the storage racks are removed. To protect children it must be avoided to create space for children in the cooling compartment.

WARNING!

Do not remove these storage racks. Thus children have no space to be entrapped in the refrigerator.

If it is necessary to remove these storage racks (i.e. for cleaning) loosen the locking pins (2) at first as shown, by means of a suitable screw driver.

Put in place the locking pins after removing the storage racks.

Fig. 26

4.13 Storing food and making ice cubes

4.13.1 Storing products in the cooling compartment

■ Switch the refrigerator on approx. 12 hours before filling it.
■ Always store pre-cooled foods in the refrigerator. Make sure that the food is well cooled when it is bought and also when transporting it. Use insulated cooling bags.
- Open the refrigerator door only for a short period of time when removing products.
■ Products must be packed - best of all in closed containers, wrapped in aluminium foil or similar - and stored separately from each other, in order to prevent drying out or odours.
- Allow foods that have been warmed up to cool down before storing.
- Avoid storing products in the refrigerator that could emit volatile flammable gases.
- Do not overfill the storage grids and compartments to prevent obstructing the internal air circulation.
- Maintain a clearance of approx. 10 mm between chilled products and post-evaporator ("cooling fins").
- Do not expose the refrigerator to direct sunlight. Please bear in mind that the temperature inside a closed vehicle increases sharply if exposed to sunlight and that this can reduce the efficiency of the refrigerator.
- Ensure that air circulation of the cooling unit is not obstructed. Keep the ventilation grilles free from obstructions.

4.13.2 Storing products in the freezer compartment

- Do not keep carbonated drinks in the freezer.

The freezer compartment is suitable for making ice cubes and for short-term storage of frozen food. It is not suitable as a means of freezing foods.

When ambient temperatures are lower than +10°C and the refrigerator is exposed to these temperatures for extended periods of time, an even regulation of freezer temperature cannot be guaranteed for system-related reasons. This can cause the temperature in the freezer to rise and the stored goods to melt.

4.13.3 Making ice cubes

Ice cubes are best frozen overnight. At night, the refrigerator has less work to do and the unit has more reserves.

Illustration of a hand using a pipette to lift a grid of cubes into a tray (no text or symbols visible)

Fig. 27

1. Fill the ice cube tray with drinking water.

3D rendering of a rectangular grid-like object on a light surface, no text or symbols visible

Fig. 28

1. Place the ice cube tray in the freezer compartment.

WARNING!

Only use drinking water!

4.13.4 Refrigerator compartments

Fig. 29

① Freezer compartment : already frozen food (deep-frozen food)
2 Top compartment: convenience food
③ Middle compartment: Dairy products, convenience food
4 Bottom compartment: Meat, fish, food for defrosting
⑤ Vegetable compartment: Salads, vegetables, fruit
⑥ Top door shelf: Eggs, butter
7 Middle door shelf: Cans, dressings, ketchup, jam
⑧ Bottom door shelf (drinks compartment): Drinks in bottles or bags

4.14 Shutting off the refrigerator

■ Switch off the refrigerator by pressing button (1) (s. 4.5). Keep button (1) pressed for 3 seconds. The display disappears and the appliance is fully switched off.
■ Release the locking mechanism (Fig. 30-31) of the door lock by pushing it and shift it to the front. If the door is shut in this position, a small gap is nevertheless kept open to prevent formation of mildew.

Mechanical component diagram showing a highlighted pin or bracket with an arrow pointing to it (no text or symbols present)

Fig. 30

Mechanical component diagram showing a bracket with mounting holes and a black arrow indicating direction (no text or symbols)

Fig. 31

If the refrigerator is to be taken out of service for an extended period of time, close the onboard shut-off valve and the cylinder valve.

4.15 Defrosting

As time goes by, frost builds up on the fins inside the refrigerator. A layer of frost thicker on one side may occur and does not represent a malfunction. When this layer of frost is about 0.118 inches (3 mm) thick, the refrigerator should be defrosted.

■ Switch off the refrigerator, as described in section Shutting of the refrigerator.
■ Remove all food and the ice cube tray.
Leave the refrigerator door open to allow air to enter and to prevent formation of mildew.
■ After defrosting (freezer compartment and fins free of frost), wipe both cooling compartments dry with a cloth.

Note: Water thawing in the main compartment of the refrigerator runs into an appropriate container at the back of the refrigerator. From there, the water evaporates.

CAUTION!

The layer of ice must never be removed forcibly, nor may defrosting be accelerated using a heat source!

4.15 Operation during low outside temperatures

Check in regular intervals that the ventilation openings (1) have not been blocked by snow, leaves, etc. .

Isometric line drawing of a rectangular electronic component with internal slots and a labeled circular feature (no text or symbols beyond the number 1)

Roof exhaust R500
Fig. 32

Diagram of a rectangular panel with horizontal slats and a circular label marked '1' (no text or symbols on the panel itself)

Ventilation grille LS 300
Fig. 33

When the outside temperature falls below +10°C, the winter cover (2) should be fitted. This protects the unit from excessively cold air which could have adverse effects on the performance of the unit.

4.16.1 Installing the winter cover

Fig. 34

Line drawing of a rectangular electronic device with ventilation slots and a numbered label (2), no text or symbols present.

Fig. 35

You should also attach the winter cover if the vehicle is taken out of service for a longer period of time or while it is being cleaned from the outside.

i

For the ventilation grille LS 300, Dometic provides the Winter Set EWS 300 which can be used at very low temperatures from +5 °C to -30 °C.

4.17 Changing the decor panel

Decor panel with frame

■ Remove the lateral ledge (1) the door (ledge is attached, not screwed).
Shift decor panel (2) away from the door and insert the new decor panel. Re-attach ledge (1).

Fig. 34
CAUTION!

Diagram showing a mechanical or architectural component with arrows indicating direction (no text or symbols)

Fig. 35

Diagram of a mechanical assembly with no visible text or symbols

Fig. 36

Decor panel dimensions (with frame):

Upper door

Height Width Thickness

299.5 +/- 0.5 mm 507 +/- 0.5 mm max. 1.7 mm

Lower door

Height Width Thickness

907.5 +/- 1 mm 507 +/- 0.5 mm max. 1.7 mm

Frameless decor panel

Technical line drawing of a refrigerator door panel with arrows indicating movement or assembly (no text or symbols present)

Fig. 37

Technical line drawing of a mechanical component with a curved bracket and directional arrows indicating motion (no text or symbols)

Fig. 38

Fig.. 39 Fig. 40

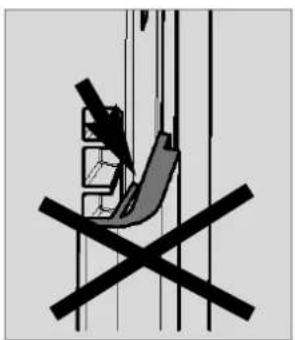

Technical diagram showing a curved pipe or channel with directional arrows indicating flow or movement (no text or symbols present)

Fig. 41

4.18 Trouble-shooting

Failure: The refrigerator does not cool sufficiently.

Possible cause	Action you can take
- Inadequate ventilation to the unit.- Thermostat setting is too low.- The condenser is heavily frosted.- Too much warm food has been stored inside within short period of time.- The appliance has been running for only a short period of time.- Ambient temperatures too high.	- Check that ventilation grilles are not covered.- Set thermostat to a higher level.- Check that the refrigerator door closes properly.- Allow warm food to cool down before storage.- Check whether the cooling compartment works after approx. 4 - 5 hours.- Regularly remove ventilation grilles.

Failure: The refrigerator does not cool in gas operation mode.

Possible cause	Action you can take
- Gas cylinder empty.- Is the upstream shut-off device open? - Air in the gas pipe?	- Change gas cylinder.- Open shut-off device.- Switch off the appliance and start again. Repeat this procedure 3 - 4 times, if necessary

Failure: The refrigerator does not cool in 12V operation.

Possible cause	Action you can take
- On-board fuse defective.- On-board battery discharged.- Engine not running.- Heating element defective (please also refer to failure indication).	- Fit new fuse.- Check battery, charge it.- Start engine.- Please inform the Dometic Customer Service

Failure: The refrigerator does not cool in 230V operation.

Possible cause	Action you can take
- On-board fuse defective.- Vehicle not connected to mains supply voltage.- AES: Gas operation despite connection to the mains supply voltage?- Heating element defective (please also refer to failure indication).	- Fit new fuse.- Make a connection to a mains power supply.- Appliance switches to gas operation due to insufficient mains supply voltage (automatically switches back to 230V operation).- Please inform the Dometic Customer Service.

4.19 Information on failure display and trouble-shooting

■ Refrigerators with an electronics system (MES, AES) indicate the occurrence of a malfunction by the LED or display flashing.
If a malfunction occurs, the indicator LED "Failure" (8) flashes simultaneously. In the case of AES models an acoustic alarm sounds.

4.19.1 Status indicators

MES
Fig. 39

1 = Button ON / OFF
2 = Energy selector switch 230 V AC
3 = Energy selector switch GAS
4 = Energy selector switch 12V DC

Before notifying the authorised Service Center, please check whether:

■ the instructions in section "Operating the refrigerator" have been observed.
■ the refrigerator stands level.
- it is possible to operate the refrigerator with any available power source.

AES
Fig. 40

7 = temperature level display
8 = fault LED / GAS FAULT reset button

Operation with on-board 12 V power supply

Indicator		Fault	Remedy
	flashing + acoustic signal 20 s	230V mode: "230V" not available or voltage too low	Check mains power connection, mains voltage, fuse
	flashing + acoustic signal 20 s	12V mode: ,, "12 V" not available or voltage too low	Check 12 V connection, on-board battery, fuseAES: Check D+ signal
	flashing + acoustic signal 20 s	GAS/Automatic mode: Flame not ignited	Check gas supply (gas bottle, gas valve)Press the button after clearing the fault.
Acoustic signal, 15 s, at 2 minute intervals		Interior lighting is switched on	Close door, check door contact
	flashing + acoustic signal 20 s	230V mode: 230V heating element defective	Arrange replacement of 230V heating element, contact Customer Service
	flashing + acoustic signal 20 s	12V mode: 12V heating element defective	Arrange replacement of 12V heating element, contact Customer Service
7	flashing	without contact or defective	contact Customer ServiceTemperature sensor
	flashing + acoustic signal 20 s	Burner defective or cooling unit defective	Check burner, burner nozzles, if necessary contact Customer Service and arrange replacement

Operation with batteries (internal power supply)

Indicator	Fault	Remedy
3 flashingbrightly8	Flame not ignited	Check gas supply (gas bottle, gas valve)Press the button after clearing the fault.
3 flashingbrightly I	Burner defective or cooling unit defective	Check burner, burner nozzles, if necessary contact Customer Service and arrange replacement
Acoustic signal at 15 second intervals	Undervoltage detection (internal batteries)	Replace batteries
Automatic switching from external to internal power supply does not function(absence of the on-board 12 V power supply for the electronics)	Refrigerator does not function;gas operation not possible although the batteries are inserted.	Switch off the refrigerator and start again.The on-board power supply was interrupted during the starting of the gas operation.Note: No automatic switching is performed during the ignition.

Bedienungsanleitung

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

CE

e 1

N2

MBA 11/2013

DE

Für Ihre Sicherheit

GEFAHR!

Mobile living made easy

DECLARATION OF CONFORMITY

according to

LVD 2014/35/EU

EMC Directive 2004/108/EC, 2014/30/EU

Gas Appliance Directive 2009/142/EC

ECE R10, Rev. 4

Type of equipment	Absorption Refrigerator
Brand Name	DOMETIC
Type family	C 40/110
Manufacturer's (Factory)
name	DOMETIC GmbH
address	In der Steinwiese 16, D-57074 Siegen
telephone no	INT+49 - 271 692 0
telefax no	INT+49 - 271 692 304

The following harmonized standards or technical specifications (designations) which comply with good engineering practice in safety matters in force within the EEA have been practiced:

EN 60335-1;12 (IEC 60335-1; 5 ed., Am. 1, Am. 2),

EN 60335-2-24;10 (IEC 60335-2-24; 7 ed., Am. 1,)

EN 61000-3-2;06, A1, A2 EN 61000-3-3;08

EN 55014-1:06,A1,A2

EN 732:98 EN 60335-2-102:06

EN 30-1-1:10 A1 (Tectower-Models)

EN 30-2-1:98 A1.A2 (Tectower-Models)

EN 50581:2010

The equipment conforms completely with the above stated harmonized standards or technical specifications.

By signing this document, the undersigned declares as manufacturer, or the manufacturer's authorized representative established within the EEA, that the equipment in question complies with the requirements stated above.

Date

2017.01.09

Signature

Position

General Manager

Abb. 3

Anzeige-LED
Abb. 4

Pure electrical circuit symbols without any text or labels

Abb. 9

Abb. 11

Abb. 12

Pure electrical circuit lines without any symbols

Batteriefach links

Abb. 14

Diagram showing a device with an arrow indicating rotation or movement, no text or symbols present

Abb. 17

VORSICHT!

Abb. 18

Pure mechanical diagram showing a lever and pivot point with directional arrows (no text or symbols)

Abb. 19

Interior view of a room with a door, wall-mounted door, and wooden panel (no text or symbols visible)

Abb. 20

Mechanical component diagram showing a bracket with a handle and arrow indicating direction (no text or symbols)

Fixieren
Abb. 21

Diagram of a mechanical device with internal components, no visible text or symbols

Abb. 22

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Lösen
Abb. 23

Technical illustration of a mechanical component with a handle and mounting bracket (no text or symbols)

Abb. 24

4.11 Beleuchtung

Mechanical assembly diagram showing a component with circular motion indicators and a central square component (no text or symbols)

Abb. 25

i

Abb. 26

Illustration of a hand using a pipette to lift a grid of cubes into a tray (no text or symbols visible)

Abb. 27

3D rendering of a rectangular grid-like object on a flat surface (no text or symbols)

Abb. 28

Abb. 29

Mechanical component diagram showing a bracket with mounting holes and a highlighted section (no text or symbols)

Abb. 30

Mechanical component diagram showing a black arrow pointing to a slot or connector (no text or symbols present)

Abb. 31

Isometric line drawing of a rectangular electronic component with internal slots and a labeled slot (no text or symbols)

Dachentlüfter R500
Abb. 32

Diagram of a rectangular panel with horizontal slats and a circular label marked '1' (no text or symbols on the panel itself)

Line drawing of a rectangular electronic device with ventilation slots and a numbered label (2), no text or symbols present.

Abb. 35

Diagram showing a mechanical or architectural component with arrows indicating direction (no text or symbols)

Abb. 37

Diagram of a mechanical assembly with no visible text or symbols

Abb. 38

Technical line drawing of a refrigerator door panel with arrows indicating movement or assembly (no text or symbols present)

Abb. 39

Technical line drawing of a mechanical component with spring and curved base (no text or symbols)

Abb. 40

Abb. 41 Abb. 42

Technical diagram showing a curved pipe or channel with directional arrows indicating flow or movement (no text or symbols present)

Abb. 43

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

CE e 1

N2

MBA 11/2013

FR

Pour votre sécurité

DANGER!

DECLARATION OF CONFORMITY

according to

LVD 2014/35/EU

EMC Directive 2004/108/EC, 2014/30/EU

Gas Appliance Directive 2009/142/EC

ECE R10, Rev. 4

Type of equipment	Absorption Refrigerator
Brand Name	DOMETIC
Type family	C 40/110
Manufacturer's (Factory)
name	DOMETIC GmbH
address	In der Steinwiese 16, D-57074 Siegen
telephone no	INT+49 - 271 692 0
telefax no	INT+49 - 271 692 304

The following harmonized standards or technical specifications (designations) which comply with good engineering practice in safety matters in force within the EEA have been practiced:

EN 60335-1;12 (IEC 60335-1; 5 ed., Am. 1, Am. 2),

EN 60335-2-24;10 (IEC 60335-2-24; 7 ed., Am. 1,)

EN 61000-3-2;06, A1, A2 EN 61000-3-3;08

EN 55014-1;06, A1, A2

EN 732:98 EN 60335-2-102:06

EN 30-1-1:10 A1 (Tectower-Models)

EN 30-2-1:98 A1, A2 (Tectower-Models)

EN 50581:2010

The equipment conforms completely with the above stated harmonized standards or technical specifications.

By signing this document, the undersigned declares as manufacturer, or the manufacturer's authorized representative established within the EEA, that the equipment in question complies with the requirements stated above.

Date

2017.01.09

Signature

Position

General Manager

Fig. 3

Tension continue (12V CC)

ATTENTION!

Row of eight gray icons representing basic electrical or safety symbols (no text or labels)

Fig. 9

Fig. 11

Fig. 12

Pure electrical circuit lines without any symbols

Diagram showing a device with an arrow indicating rotation or movement, no text or symbols present

Fig. 17

ATTENTION!

Fig. 18

Pure mechanical diagram showing a lever and pivot point with directional arrows (no text or symbols)

Fig. 19

3D rendering of a simple room corner with a curved arm and wall-mounted door (no text or symbols)

Fig. 20

Mechanical component diagram showing a bracket with a handle and arrow indicating direction (no text or symbols)

Attacher
Fig. 21

Illustration of a mechanical device with a handle and internal components (no text or symbols)

Fig. 22

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

Détacher
Fig. 23

Technical illustration of a mechanical component with a handle and mounting bracket (no text or symbols)

Fig. 24

4.11 Éclairage

Mechanical assembly diagram showing a component with rotating parts and mounting brackets (no text or symbols)

Fig. 25

i

Fig. 26

Two-step illustration showing a hand using a pipette to process a grid-patterned tray into a container, with no text or symbols present.

Fig. 28

Fig. 30

Mechanical component diagram showing a bracket with a pin inserted, no text or symbols present

Fig. 31

Mechanical assembly diagram showing a component with a black arrow indicating direction (no text or symbols present)

Fig. 32

Isometric line drawing of a rectangular electronic component with a circular badge labeled '1' (no text or symbols on the body)

Illustration of a rectangular electronic device with a circular label marked '1' on its side (no text or symbols on the device itself)

Fig. 34

Line drawing of a rectangular electronic device with two horizontal slots and a circular label marked '2' (no text or symbols on the device itself)

Fig. 36

Diagram showing a mechanical or architectural component with arrows indicating direction (no text or symbols)

Fig. 38

Diagram of a mechanical assembly with no visible text or symbols

Fig. 39

Technical line drawing of a refrigerator door panel with arrows indicating movement or assembly (no text or symbols present)

Fig. 40

Technical line drawing of a mechanical component with a curved bracket and directional arrows indicating motion (no text or symbols)

Fig. 41

Fig. 42 Fig. 43

Technical diagram showing a curved pipe or channel with directional arrows indicating flow or movement (no text or symbols present)

Fig. 44

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

CE

e 1

N2

MBA 11/2013

IT

Fig. 3

Display-LED
Fig. 4

Pure electrical circuit symbols without any text or labels

Pannello comande senza vano batterie
Fig. 5

Pannello comande con vano batterie (L, R)
Fig. 6

Fig. 9

Fig. 11

4.7 Modelli RMD 85x5

Fig. 12

Pure electrical circuit lines without any symbols

Diagram showing a device with an arrow indicating rotation or movement, no text or symbols present

Fig. 17

ATTENZIONE!

Fig. 18

Pure mechanical diagram showing a lever mechanism with arrows indicating direction (no text or symbols)

Fig. 19

3D rendered interior view of a room with a curved door and window (no text or symbols)

Fig. 20

Mechanical component diagram showing a bracket with a handle and arrow indicating direction (no text or symbols)

Bloccare
Fig. 21

Diagram of a mechanical device with internal components, no visible text or symbols

Fig. 22

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Allentare
Fig. 23

Technical illustration of a mechanical component with a handle and mounting bracket (no text or symbols)

Fig. 24

4.11 Illuminazione

Mechanical assembly diagram showing a component with motion indicators (no text or symbols)

Fig. 25

i

Fig. 26

Illustration of a hand using a pipette to lift a grid of small cubes into a tray (no text or symbols visible)

3D rendering of a rectangular grid-like object on a flat surface (no text or symbols)

Fig. 29

Mechanical component diagram showing a bracket with mounting holes and a highlighted section (no text or symbols)

Fig. 30

Mechanical assembly diagram showing a component with a black arrow indicating direction (no text or symbols)

Fig. 31

Isometric line drawing of a rectangular electronic component with internal slots and a labeled circular feature (no text or symbols beyond the number 1)

Ventilatore a tetto R500
Fig. 32

Diagram of a rectangular panel with horizontal slats and a circular label marked '1' (no text or symbols on the panel itself)

Line drawing of a rectangular electronic device with ventilation slots and a numbered label (2), no text or symbols present.

Fig. 35

Diagram showing a mechanical or architectural component with arrows indicating direction (no text or symbols)

Fig. 37

Diagram of a mechanical assembly with no visible text or symbols

Fig. 38

Technical line drawing of a refrigerator door panel with arrows indicating movement or assembly (no text or symbols present)

Fig. 39

Technical line drawing of a mechanical component with a curved base and directional arrows indicating motion (no text or symbols)

Fig. 40

Fig. 41 Fig. 42

Technical diagram showing a curved pipe or channel with directional arrows indicating flow or movement (no text or symbols present)

Fig. 43

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

1800212121

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

Neudorferstraße 108

A-2353 Guntramsdorf

[phone]

[phone]

Mail: [e-mail]

BENELUX

Dometic Branch Office Belgium

Zincstraat 3

B-1500 Halle

[phone]

[phone]

Mail: [e-mail]

BRAZIL

Dometic DO Brasil LTDA

Avenida Paulista 1754, conj. 111

SP 01310-920 Sao Paulo

[phone]

[phone]

Dometic Group Asia Pacific

Suites 2207-11 · 22/F · Tower 1

The Gateway · 25 Canton Road,

Tsim Sha Tsui - Kowloon

[phone]

[phone]

Mail: [e-mail]

HUNGARY

Dometic Zrt. Sales Office

Kerékgyártó u. 5

H-1147 Budapest

[phone]

[phone]

Domettic Italy S.r.l.

Via Virgilio, 3

I-47122 Forlì (FC)

[phone]

E [phone]

Mail: [e-mail]

JAPAN

Dometic KK

Maekawa-Shibaura, Bldg. 2

2-13-9 Shibaura Minato-ku

Tokyo 108-0023

[phone]

[phone]

Mail: [e-mail]

MEXICO

Circuito Médicos No. 6 Local 1

Colonia Ciudad Satélite

CP 53100 Naucalpan de Juárez

Estado de México

[phone]

[phone]

Mail: [e-mail]

NETHERLANDS

Dometic Benelux B.V.

Ecustraat 3

NL-4879 NP Etten-Leur

[phone]

[phone]

Mail: [e-mail]

NEW ZEALAND

Dometic New Zealand Ltd.

PO Box 12011

Penrose

Auckland 1642

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

∅sterøyveien 46

N-3232 Sandefjord

[phone]

[phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

PL-02-801 Warszawa

[phone]

[phone]

Mail: [e-mail]

PORTUGAL

Dometic Spain, S.L.

Komsomolskaya square 6-1

RU-107140 Moscow

[phone]

[phone]

Mail: [e-mail]

SINGAPORE

Dometic Pte Ltd

18 Boon Lay Way 06-140 Trade Hub 21

Singapore 609966

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Dometic Slovakia s.r.o. Sales Office Bratislava

Nádražná 34/A

900 28 Ivánka pri Dunaji

/ [phone]

Mail: [e-mail]

SOUTH AFRICA

Dometic (Pty) Ltd.

Regional Office

South Africa & Sub-Saharan Africa

2 Avalon Road

West Lake View Ext 11

Modderfontein 1645

Johannesburg

[phone]

[phone]

Mail: [e-mail]

SPAIN

Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang

[phone]

E [phone]

Mail: [e-mail]

UNITED ARAB EMIRATES

Dometic Middle East FZCO

P.O.Box17860

S-D 6, Jebel Ali Freezone

Dubai

[phone]

[phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House, The Brewery

Blandford St. Mary

Dorset DT11 9LS

[phone]

[phone]

Mail: [e-mail]

USA

Dometic RV Division

1120 North Main Street

Elkhart, IN 46515

[phone]
