USER MANUAL TCD 93B 6H HOTPOINT

Where to put your dryer

Ventilation

Water drain

Electrical connection

Before you start using your dryer

Dryer description, 5

The features

Control panel

The Display, 6-8

Start and programmes, 8-11

Choosing a programme

Table of programmes

The controls

TCD 93B

First time you turn on your dryer you must select your preferred language see page 6

Laundry, 12-13

Sorting your laundry

Wash care labels

Special clothing items

Drying times

Warnings and Suggestions, 14

General safety

Saving energy and respecting the environment

Maintenance and Care, 15

Switching off the electricity

Cleaning the filter after each cycle

Check the drum after each cycle

Empty the water container after each cycle

Cleaning the condenser unit

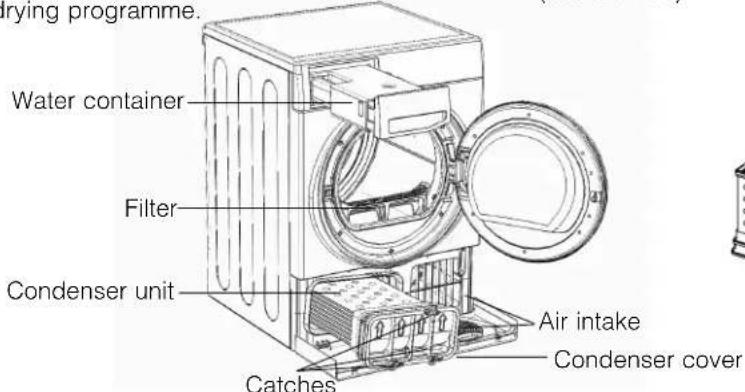

Cleaning the dryer

Troubleshooting, 16

Service, 17

Disposal

! Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the dryer so that the new owner may be informed about warnings and suggestions on how the appliance works.
!Read these instructions carefully; the following pages contain important information on installation and suggestions on how the appliance works.

This symbol reminds you to read this booklet.

Hotpoint

ARISTON

GB

GB

For your Condenser dryer to operate efficiently, you must follow the regular maintenance schedule shown below:

Fluff Filter...

! You MUST clean the fluff filter after EVERY drying cycle.

STEP1.

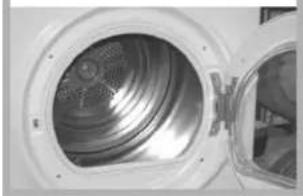

Open the door of your dryer.

STEP2.

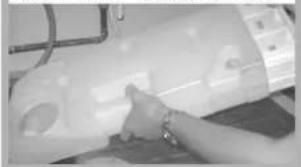

Remove the filter.

STEP3.

Open the filter and clean any fluff deposits from the filter mesh.

STEP 4.

Refit the filter - NEVER run the dryer without the filter in position.

! Failure to clean the filter after EVERY drying cycle will affect the drying performance of your machine. - It will take longer to dry and as a result will use more electricity during drying.

Water Container...

! You MUST empty the water container after EVERY drying cycle.

STEP1.

Pull the water container towards you and remove it fully from the dryer.

STEP 2.

Remove either the small or large cap and empty the water from the container.

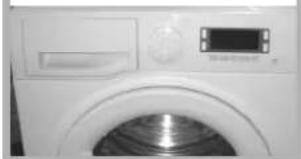

STEP 3.

Refit the water container, ensuring that it is pushed fully back into position.

! The 'Empty Water' message reminds you to empty the water container at the end of each programme.

! Failure to empty the water container will result in:

• The machine will stop heating (so the load may still be wet at the end of the drying cycle).
• The 'Empty Water' message will tell you that the water container is full.

Priming the Water Collection System

When your dryer is new, the water container will not collect water until the system is primed... this will take 1 or 2 drying cycles. Once primed it will collect water during every drying cycle.

Condenser Unit...

! You MUST clean the fluff from the condenser EVERY month.

STEP1.

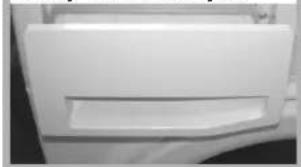

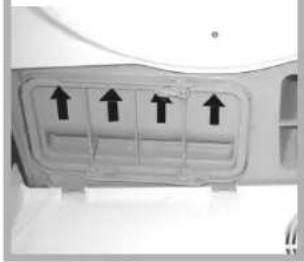

Open the condenser cover - hold the handle and pull towards you.

STEP2.

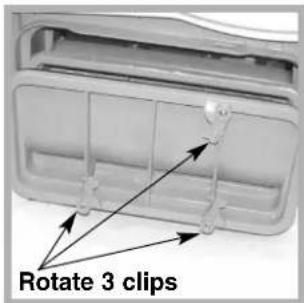

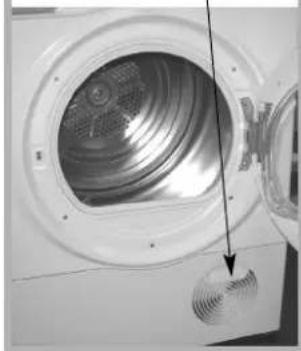

Remove the condenser by rotating the 3 clips then pulling the condenser towards you. (There may be some water in the tubes, this is normal).

STEP 3.

Flush the condenser, from the rear with water, to remove any fluff deposits.

STEP 4.

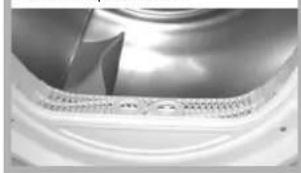

Refit the condenser unit - ensure that the unit is pushed in fully, all 3 clips are re-secured and the position arrows on the front of the condenser are pointing upwards.

Check that:

• The positioning arrows are pointing upwards.
• The 3 clips are re-secured back into their 'lock' position.

! Failure to clean the condenser could cause premature failure of your dryer.

Product Data... (EU Regulation 392/2012)

Rated capacity of Cotton laundry for the standard programme at full load 9 kg	Energy efficiency class B
The weighted Annual Energy Consumption (AEc) 615.8 kWhConsumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and theconsumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
This household tumble dryer is an Automatic Condenser Dryer
Energy consumption: full load Edry 5.20 kWh, partial load Edry1/2 2.82 kWh
Power consumption: off-mode (Po) 0.14 W, left-on mode (Pl) 3.36 W
Duration of the 'left-on mode' for power management systems 30 minutes
The 'standard cotton programme' suitable for drying normal wet cotton laundry that is the most efficient programme in terms of energy consumption for cotton used at full and partial load is Cottons - Cupboard Dry.
Programme time (minutes): weighted (Tt) full & partial load 110, full load (Tdry) 147, partial load (Tdry1/2) 82
Condensation efficiency class B
Average condensation efficiency (%): full load (Cdry) 83, partial load (Cdry1/2) 79, weighted (Ct) full & partial load 81
Airborne acoustical noise emissions 69 dB(A) re 1 pW

This data is also available on the website http://www.hotpoint-ariston.com/ha/

GB

Where to put your dryer

• Place your dryer at a distance from gas ranges, stoves, heaters, or cook tops because flames can damage the appliance.

Minimum gap 10mm

If you are going to install the appliance under a work counter, be sure to leave a 10mm space between the top and any other objects on or above the machine and a 15mm space between the sides and lateral furnishings or walls.

This is to ensure proper air circulation.

Ventilation

When the dryer is in use, there has to be adequate ventilation. Make sure you put your dryer in an environment that is not damp and has proper air circulation throughout. Airflow around the dryer is essential to condense the water produced during the washing, the dryer will not operate efficiently in an enclosed space or cupboard.

If using the dryer in a small or cold room some condensation could be experienced.
! We do not recommend that the dryer is installed in a cupboard but the dryer must never be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the dryer door.

Water drain

If your dryer is installed next to a drain the water can be plumbed into this drain. This does away with the need to empty the water container. If the dryer is stacked onto or installed next to a washing machine it can share the same drain. The height of the drain must be less than 3^ (1m) from the bottom of the dryer.

Remove hose from position shown (see diagram).

Fit a suitable length of hose to the new location shown (see diagram).

! Make sure that the hose is not squashed or kinked when the dryer is in its final location.

Electrical connections

Make sure of the following before you insert the plug into the the electrical socket:

The socket must be grounded.
- The socket must be able to sustain the machines maximum power, which is indicated on the rating label (see Dryer Description).
- Power voltage must be within the values indicated on the rating label (see Dryer Description).
- The socket must be compatible with the dryers plug. Should this not be the case, replace the plug or the socket.

! The dryer must not be installed outdoors, even if the space is sheltered. It can be very dangerous if it is exposed to rain or storms.
! Once installed, the dryers electrical wire and plug must be within easy reach.
! Do not use extension cords.
! The power cord must not be bent or squashed.
! The power supply cord should be checked periodically and replaced by a cord specially prepared for this dryer and fitted only by authorised technicians (see Service).
New or longer power cords are supplied at an extra charge by authorised dealers.
The manufacturer denies any responsibility should any of these rules not be followed.

If in doubt about any of the above consult a qualified electrician.

Before you start using your dryer

Once you have installed your dryer and before you use it, clean the inside of the drum to remove any dust that could have accumulated during transport.

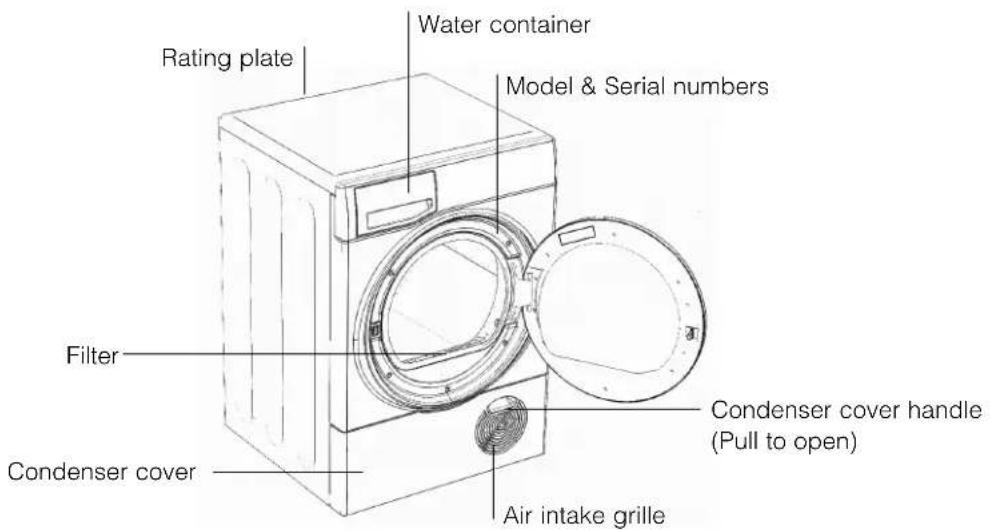

The features

GB

Control panel

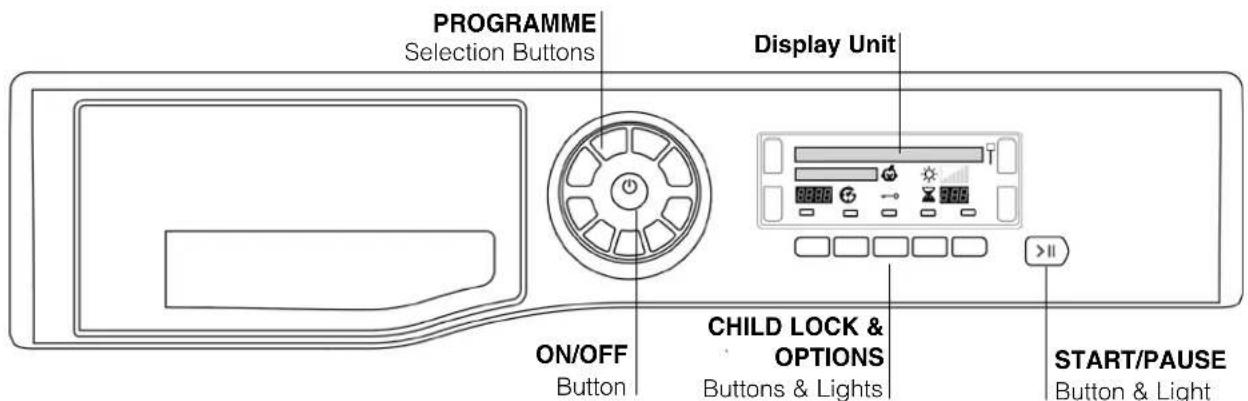

The ON/OFF button - if pressed when the dryer is running: If the display shows TURNING OFF the dryer stops. If the display shows PRESS AND HOLD hold the bottom and the display counts down 3,2,1 and then stops. Press and hold again for more than 3 seconds, the display briefly shows POWER ON

The PROGRAMME selection buttons set the programme: press the button corresponding to the programme you want to select (see Start and Programmes).

The OPTION buttons/indicators: these buttons select available options for your selected programme (see The Controls). The indicators on the display unit next to the bottom buttons light to show that the option has been selected.

The START/PAUSE button/light >II starts a selected programme. When you press this button there will be one beep and the display will show PAUSE. When a programme is running, holding this button in pauses the programme and stops the dryer. The light is green when the programme is running, flashing amber if the programme has been paused or

flashing green if on standby waiting to start a programme (see Start and Programmes). Note: This light also flashes amber during the Post Care phase of a programme.

The Display Unit gives warnings and information about the programme selected and its progress (see next page).

The CHILD LOCK button/icon : Press and hold this button after selecting your programme and any options, this prevents the programme settings from being changed, the display will briefly show [LOCKED]. When the icon is lit, the other buttons are disabled. Hold the button to cancel and the icon will go out, the display will briefly show [UNLOCKED].

Note: This tumble dryer, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press and hold the ON-OFF button until the display briefly shows POWER ON and the dryer then reactivates.

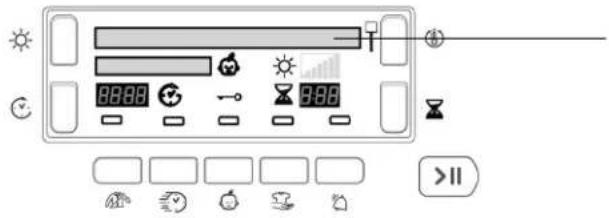

Selecting your language

The first time you turn on your dryer you should select your preferred language from the available list.

To change: the language current selection must flash, on the first line of the display.

• Press the On/Off button to turn off the display then press and hold all 3 buttons: Heat Level, Timed Dry and Dryness Level for 5 seconds.
• Press the Heat Level or the Timed Dry button to scroll up or down through the list.
• When your required language is flashing on the top line of the display, pressing the Dryness Level button will select your choice.

Understanding the display

Programme selection and display

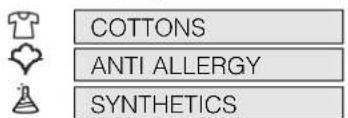

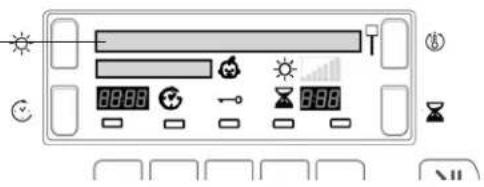

The selected programme is shown on the first line of the display when you select the corresponding button, this message is shown while the programme is running.

M My Cycle (see below)

Heat & Enjoy available by selecting Low Heat after selecting Refresh (see Start and Programmes)

My Cycle When you select the My Cycle button the Display will show your selected programme with 'M' before its name. ie. [M COTTONS] (see Start and Programmes).

Dryness levels

During programme selection for an automatic programme that has different dryness levels available (see Programmes Table).

The second line of the display shows the dryness level you require, for each press of the Dryness Level button the next option from the list below is selected and displayed. The display also shows 1 to 7 bars depending on your selection and these are displayed during the programmes progress.

Some automatic programmes do not allow the dryness level to be changed or do not have all the dryness level options.

DAMP Dries your items ready to be ironed using a machine or rotary ironer.

IRON DRY Dries your items ready to be ironed with a hand iron.

HANGER PLUS Dries your delicate items ready to be hanged for final drying.

HANGER DRY Dries your items ready to be hanged for final drying.

LIGHT DRY Dries your delicate items ready to be put away.

CUPBOARD DRY Dries you items ready to be put away.

EXTRA DRY Dries your clothes ready to be worn.

Programme progress

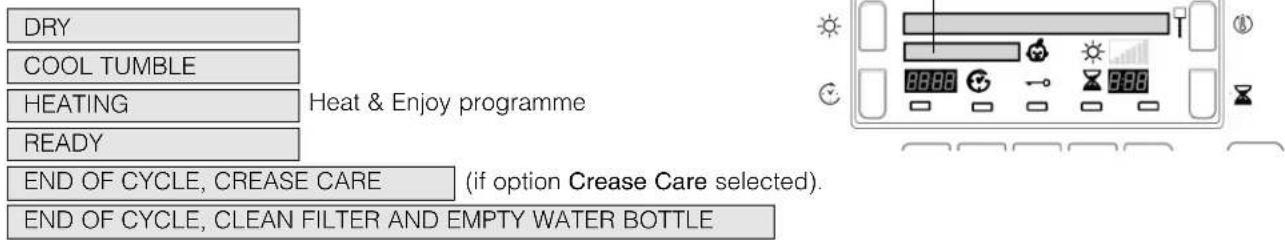

The second line of the display shows the status of the programme as it progresses: (long messages scroll across the line)

GB

Timed drying

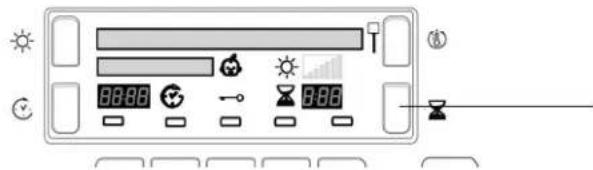

After selecting a programme that has a Timed Dry option, press the Timed button and the display will increment the selected time, each time you press and release the button (see Start and Programmes).

Each press reduces the time duration and number of available time options depending on the programme/material selected.

The Timed Dry icon is displayed next to the time.

The selected time remains displayed after the programme starts, but can be changed anytime you wish.

Delay and Time to End

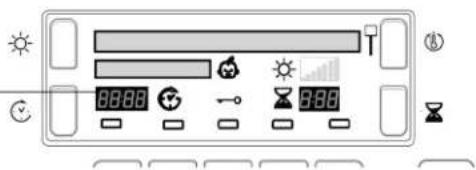

Some programmes can have a delayed start (see Start and Programmes). Press the Delay button and the icon flashes.

Each press of the Delay button advances the delay setting in 1 hour increments, from: IH to , then OFF and then after a couple of seconds cancels the delay.

The delay time is shown on the display next to the Delay button.

The display counts down the minutes of the delay period after the Start/Pause button is pressed.

The second line of the display shows STARTS IN

You can change or cancel the delay time selected anytime if you wish.

After the Start/Pause button is pressed the Delay or Time to End is displayed in hours and minutes and counts down each minute.

Time to End

After the delay period finishes, or for all the programme if delay not selected, this part of the display will show:

• the estimated time to the end of the programme, for automatic programmes

• the actual time remaining during a timed programme

When timed programmes are selected the time displayed throughout the cycle is the actual time remaining.

When Automatic programmes are selected the time displayed is an estimate of the time remaining. When the programme is selected the display shows the time required to dry a full load, after around 10 minutes the controller calculates a better estimate of the cycle time and this is updated during the programme.

The colons between the hours and minutes in the display flash to show the time is counting down.

Warnings

The second line of the display also gives warnings and reminders: (reminders occur at the end of the programme)

END OF CYCLE, CLEAN FILTER AND EMPTY WATER BOTTLE

• Reminder that the water container should be emptied and the filter cleaned every time you use the dryer (see Maintenance).

EMPTY WATER BOTTLE

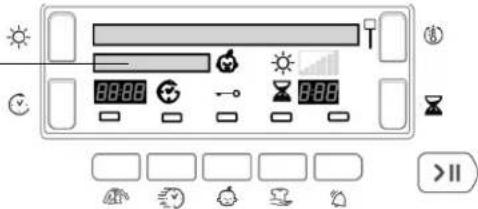

• Indicates that the water container is full. The message will take a few seconds to go out after replacing the empty water container; the dryer must be running for this to happen (see The Controls).

Note: If the water container fills and this message is displayed, the heat is turned off and your clothes will not dry.

CLEAN CONDenser, FILTER AND EMPTY WATER BOTTLE

This message indicates that you must clean the Condenser unit (see Maintenance) and will occur at intervals depending how much you have used the dryer. When you finish the next programme the message is cancelled. You must also clean the filter.

CLEAN FILTER TO ENSURE ANTI ALLERGY ACTION

• Shown during the Anti-Allergy programme and indicates that the filter needs cleaning to complete the full anti-allergy cycle (see Maintenance).

Start and Programmes

Choosing a programme

1. Plug the dryer into the electrical socket.

2. Sort your laundry according to fabric type (see Laundry).

3. Open the door and make sure the filter is clean and in place and the water container is empty and in place (see Maintenance).

4. Load the machine and make sure items are not in the way of the door seal. Close the door.

5. If the Display is not lit: Press the ON/OFF button

6. Press the Programmes Selection button that corresponds with the type of fabric being dried by checking the Programmes Table (see Programmes) as well as the indications for each type of fabric (see Laundry).

7. If the M button is selected; steps 7 and 8 are not required (see below).

8. Choose Timed Drying or Dryness Levels option: - If Timed Drying press and release the Timed button until the required time is displayed. or - To change from default dryness setting, press and release the Dryness Levels button until required level is indicated.

See Programmes Table, for more details: availability of Dryness Levels, Timed Dry and Options.

1. Set a delay time and other options if necessary (see The Display).
2. Press the Start/Pause button to begin. The display will show the estimated time to end. During the drying programme, you can check on your laundry and take out items that are dry while others continue drying. When you close the door again, press the Start/Pause button in order to resume drying.
3. During the last few minutes of Drying Programmes, before the programme is completed, the final COOL TUMBLE phase is entered (fabrics are cooled), this phase should always be allowed to complete.

4. At the end of the drying cycle a message is displayed:

5. If END OF CYCLE, CLEAN FILTER AND EMPTY WATER BOTTLE is shown, the buzzer will beep 3 times (Note: If the SOUND option was selected the buzzer beeps 3 times every 30 seconds for 5 minutes).

6. If END OF CYCLE, CREASE CARE is shown, Crease Care option has been selected and if you do not remove the laundry immediately, the dryer will tumble occasionally for 10 hours or until you open the door, the buzzer will beep 3 times to confirm the programme is completed.
7. Open the door, take the laundry out, clean the filter and replace it. Empty the Water Container and replace it (see Maintenance).
8. Unplug the dryer.

My Cycle button:

First time you press this button the display will show |PRESS AND HOLD TO STORE

After selecting your favorite programme and options you can save these settings by pressing and holding in the My Cycle button for at least 5 seconds, the top line will show a flashing M followed by the selected programme. The buzzer will then beep and the second line of the display shows MEMORY

The next time you need this programme press the M button, then the Start/Pause button and this programme will run. If you wish, you can change your stored favorite, by selecting a new programme and/or options and press and hold in the M button (as above).

ESSENTIAL PROGRAMMES - Programmes Table

! If the Display is not lit; Press the ON/OFF button ① and then select programme.

Programme Option

ns available

Dryness Levels available (default highlighted √)

Delay Timer

*Crease Care or Sound

Extra Care

Quick Dry

Heat Level

Timed Dry

Sensor Dry

Damp

Iron Dry

Hanger Plus

Hanger Dry

Light Dry

Cupboard Dry

Extra Dry

Cottons

✓

✓

✓

✓

- High

X

✓

X

X

X

X

X

✓

X

X

- High

✓

✓

✓

✓

✓

✓

✓

✓

✓

X

- Medium

✓

✓

✓

✓

✓

✓

✓

✓

X

Anti Allergy

✓

✓

X

X

X

·An Automatic programme

Synthetics

✓

✓

X

✓

- Medium

X

✓

X

X

X

X

X

✓

X

X

- Medium

✓

✓

✓

✓

✓

✓

✓

✓

X

*YOU CANNOT SELECT BOTH CREASE CARE AND SOUND OPTIONS

GB

Cottons

This is a programme for cotton items.
The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in your washer (see Laundry).

Anti Allergy Programme

This programme has the 'Seal of Approval' endorsement from Allergy UK, which reflects the effective reduction and elimination of allergens from the clothes with the special Anti Allergy cycle. With this programme, thanks to the achievement of constant temperature for an extended period of time, the effects of the most common allergens (including House Mites and Pollen) are neutralised.

Can be used on a full size wet load to dry and treat, or on a 4kg dry load just to treat your laundry.

If the display shows CLEAN FILTER TO ENSURE ANTI ALLERGY ACTION : Clean the filter and re-start the programme.

Synthetics

This is a programme for items of Synthetic low heat setting or Synthetic/Cotton mixtures medium heat setting.
The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in your washer (see Laundry).

EXCLUSIVE PROGRAMMES - Programmes Table

! If the Display is not lit, Press the ON/OFF button 日 and then select programme.

Programme Option

s available

Dryness Levels available (default highlighted √)

Delay Timer

*Crease Care Sound

Sound

Extra Care

Quick Dry

Heat Level

Timed Dry

Sensor Dry

Damp

Iron Dry

Hanger Plus

Hanger Dry

Light Dry

Cupboard Dry

Extra Dry

My Cycle M

Depends on your chosen programme. See previous details.

Wool X

X

X

✓

X

X

X

X

An Automatic programme

Baby Delicates Y

✓

✓

★

X

X

X

X

✓

✓

✓

✓

✓

✓

X

*YOU CANNOT SELECT BOTH CREASE CARE AND SOUND OPTIONS

Wool Programme

This is a programme for tumble dryer safe garments marked with the symbol
It can be used for load sizes up to 1kg (approximately 3 sweaters).
We recommend that garments are turned inside out before drying
This programme will take about 60 minutes, but may take longer depending on the size and density of the load and the spin speed used in your washer.
- Loads dried using this programme are usually ready to wear, but on some heavier garments the edges may be slightly damp. Allow these to dry naturally as over-drying could damage garments.
! Unlike other materials, the mechanism of wool shrinkage is irreversible; i.e. it will not stretch back to original size and shape.
This programme is not suitable for Acrylic garments.

Start and Programmes

GB

Baby Delicate Programme

This is a programme for drying your baby's small delicate items of clothing and bedding (Cotton and Chenille) and for drying your delicate clothes.
- DO NOT dry items such as bibs and nappy pants with plastic coverings.
It can be used for load sizes up to 2kg
The duration of this programme will depend on the size and density of the load and the spin speed used in your washer.
- Loads dried using this programme are usually ready to wear, but on some heavier garments the edges may be slightly damp. If this is the case, try turning items inside out and running the programme again for a short period.

EXTRA PROGRAMMES - Programmes Table

! If the Display is not lit; Press the ON/OFF button and then select programme.

Programme Options av

available

Dryness Levels available (default highlighted √)

Delay Timer

Crease Care

Extra Care

Sound

Quick Dry

Heat Level

Timed Dry

Sensor Dry

Damp

Iron Dry

Hanger Plus

Hanger Dry

Light Dry

Cupboard Dry

Extra Dry

Cuddly Toys

✓

X

X

✓

X

X

X

An Automatic programme

Easy Iron

X

X

X

✓

X

X

X

An Automatic programme

Refresh

X

X

X

✓

X

*Low

X

An Automatic programme

* Heat & Enjoy

X

X

X

X

X

X

X

An Automatic programme, * available if Refresh and then Low Heat selected.

Cuddly Toy Programme

With this programme you can remove dust easier and wash the cuddly toys more often because the drying time is very much reduced compared to drying in the open air. It is a delicate drying cycle that dries at low temperature and with soft mechanical action to maintain at best the original look and shine of the fur.

Note: For allergy protection, just freeze cuddly toys for 24 hours then wash and dry them. Repeat every 6 weeks. Before drying remove accessories such as clothes, collars or sound boxes and protect plastic eyes with masking tape after drying them with a cloth.

The programme time will vary dependant on the exact make up of the load. The maximum load should not exceed 2.5kg and no individual item should be greater than 600g.

Easy Iron Programme

'Easy Iron' is a short 10 minute programme (8 minutes of heat followed by a 2 minute cool tumble period) which fluffs the fibres of clothing that have been left in the same position/location for an extended period of time. The cycle relaxes the fibres and makes them easier to iron and fold.

! 'Easy Iron' is not a drying programme and should not be used for wet articles of clothing.

For best results: 1. Do not load more than the maximum capacity. These numbers refer to the dry weight:

Fabric Maximum load

Cotton and Cotton mixtures 2.5kg

Synthetics 2kg

Denim 2kg

1. Unload the dryer immediately after the end of the programme, hang, fold or iron the articles and put them away in the closet. Should this not be possible repeat the programme.

The 'Easy Iron' effect varies from one fabric to the next. It works well on traditional fabrics like Cotton or Cotton mix, and less well on acrylic fibres and on materials such as Tencel®.

Heat & Enjoy

This programme helps to heat towels & bathrobes for a warm sensation after a bath or shower. It is also useful for warming clothes before dressing during winter. The cycle heats clothes to 37^ (Body Temperature), the display shows HEATING and runs at this temperature for a maximum of 4 hours or until you stop the cycle by opening the door when the display shows READY Maximum load 3kg.

To select this programme press the Refresh programme button and then select the Heat Level option, the display briefly shows LOW HEAT on the second line and then shows HEAT & ENJOY on the first line.

Refresh

! 'Refresh' is not a drying programme and should not be used for wet articles of clothing.
It can be used on any load size, but is more effective on smaller loads.
- Do not overload your dryer (see Laundry).
This is a 20 minute programme that air your clothes with cool air. Also use to cool warm clothes.

The Controls

! Warning, after pressing the Start/Pause button II, the programme cannot be changed.

To change a selected programme, press the Start/Pause button II, the light flashes Amber to indicate the programme is paused. Select the new programme and any options required, the light will then flash green. Press the Start/Pause button II again and the new programme will start.

Option buttons

These buttons are used to customise the selected programme to your requirements. A programme must have been selected, by pressing a programme selection button, before an option can be selected. Not all options are available for all programmes (see Programmes Table). If an option is not available and you press the button, the buzzer will beep 3 times. If the option is available the indicator, on the display unit above the bottom buttons, lights to show that the option has been selected.

Time Delay (Delay Timer)

The start of some programmes (see The Display and Programmes tables) can be delayed for up to 24 hours. Ensure the water container is emptied before setting a delayed start.

Crease Care

The pre-care option is only available if a delayed start has been selected. It tumbles the clothes occasionally during the delayed period to help prevent creases developing.

The post-care option occasionally tumbles the clothes after end of the drying and cool tumble cycles to prevent creases developing, should you not be available to remove the load immediately the programme is complete. Note: The

Start/Pause light flashes Amber during this phase.

Selecting this option enables both the pre and post care functions if appropriate.

Note: If you have selected the Sound option this option is not available.

Heat Level button, Display and Icons

Not all programmes allow you to change the heat level and some programmes allow all three heat level options: Low, Medium and High.

When the heat level options are available pressing this button changes the heat level and the display briefly shows the selected heat level, along with a display of the selected level icon:

HIGHHEAT NEMIDUM HEAT LOW HEAT

Sound

Available on all programmes and allows the buzzer to give a signal at the end of the drying cycle, to remind you that the clothes are ready to be removed.

Note: If you have selected the Crease Care option this option is not available.

Extra Care

This Anti-Ageing function for Cottons helps to maintain the brightness of your laundry for a long time, thanks to the correct drum rotation (reduced in the last part of the cycle) and the correct temperature.

Note: It cannot be used with the 'Extra Dry', 'Cupboard Dry' and 'Light Dry' dryness levels.

Quick Dry

This option is for small loads up to 1kg.

Note: can only be used with the 'Cupboard Dry' setting. Your drying time is very much reduced with a huge time saving up to 53% on cottons and 50% on synthetics.

TIME DISPLAY 88:88

The display shows either the amount of time delay remaining or an indication of the amount of time left for a drying programme (see The Display).

The display also shows if there is a problem with your dryer, if this occurs the display will show F followed by a fault code number (see Troubleshooting).

Empty Water Container

(If you have plumbed your dryer to a drain this icon can be ignored, as there is no need to empty the water container). Messages are displayed to reminds you to empty the water container (see The Display).

If the water container fills during a programme, the heater turns off and the dryer does a period of Cool Tumble.

After this it stops and a message tells you to EMPTY WATER BOTTLE

You must empty the water container and restart the dryer or the clothes will not dry. After re-starting the dryer the message will take a few seconds to go out.

To avoid this always empty the water container each time you use the dryer (see Maintenance).

Door Opening

Opening the door during a programme will stop the dryer and have the following effects:

Note: The Start/Pause light flashes Amber during the Post Care phase of a programme.

The display shows PAUSE
- During a delay phase the delay will continue to count down. The Start/Pause button must be pressed to resume the delay programme.
The display will change to show current status.
- During the drying part of the programme, the colons on the display stop flashing to show that the time has stopped counting down.

The Start/Pause button must be pressed to resume the programme. The display will change to show the current status, the colons flash and count down continues.

• During the Post Care phase, the programme ends.

Pressing the Start/Pause button will restart a new programme from the beginning.

Note

If you have a power cut, switch off the power or remove the plug. When power is restored, press and hold the On/Off button until the display briefly shows POWER ON and the dryer reactivates. Then press the Start/Pause button and the programme will resume.

GB

Sorting your laundry

• Check symbols on clothing labels to make sure that the articles can be tumble dried.
• Sort laundry by fabric type.
• Empty pockets and check buttons.
• Close zippers and hooks and tie loose belts and strings.
• Wring out each item in order to eliminate as much excess water as possible.

! Do not load dripping wet clothes into the dryer.

Maximum load size

Do not load more than maximum capacity.

These numbers refer to dry weight:

Natural fibres: 9kg max (20lb)

Synthetic fibres: 3kg max (6.6lb)

DO NOT overload the dryer as this could result in reduced drying performance.

Typical weights

Note: 1 kg = 1000 g( 11 b = 16oz)

Clothes
Blouse Cotton 150g (5oz)
Other 100g (3oz)
Dress Cotton 500g (1lb 2oz)
Other 350g (12oz)
Jeans 700g (1lb 6oz)
10 nappies 1000g (2lb 3oz)
Shirt	Cotton 300g (10oz)
	Other 200g (7oz)
T-Shirt	125g (4oz)

Household Items
Duvet cover	Cotton 1500g (3lb 5oz)
(Double)	Other 1000g (2lb 3oz)
Large Tablecloth	700g (1lb 6oz)
Small Tablecloth	250g (9oz)
Tea Towel	100g (3oz)
Bath Towel	700g (1lb 6oz)
Hand Towel	350g (12oz)
Double Sheet	500g (1lb 2oz)
Single Sheet	350g (12oz)

At the end of a drying cycle, cottons could still be damp if you grouped cottons and synthetics together. If this happens simply give them an additional short period of drying.

Wash Care Labels

Look at the labels on your garments, especially when tumble drying for the first time. The following symbols are the most common:

May be tumble dried

Do not tumble dry

Tumble dry at high heat setting

Tumble dry at low heat setting

Items not suitable for tumble drying

• Articles that containing rubber or rubber-like materials or plastic film (pillows, cushions, or PVC rainwear), any other flammable articles or objects that contain flammable substances (towels soiled with hair spray).
  Glass fibres (certain types of draperies)
• Items which have been dry cleaned
• Items with the ITCL Code (see Special clothing items). These can be cleaned with special at-home dry cleaning products. Follow instructions carefully.
  Large bulky items (quilts, sleeping bags, pillows, cushions, large bedspreads etc). These expand when drying and would prevent airflow through the dryer.

Special clothing items

Blankets and Bedspreads: acrylic items (Acilan, Courtelle, Orion, Dralon) must be dried with special care on LOW heat setting. Avoid drying for a long period of time.

Pleated or creased garments: read the manufacturer's drying instructions on the garment.

Starched articles: do not dry these with non-starched items. Make sure that as much of the starch solution is removed from the load as possible before placing it in the dryer. Do not over-dry: the starch will become powdery and leave your clothing limp, which defeats the purpose of starch.

Drying times

Times are approximate and can vary depending upon:

• Amount of water retained in clothes after spin cycle: towels and delicates retain a lot of water.

• Fabrics: items that are the same type of fabric but different textures and thicknesses may not have the same drying time.
  Quantity of laundry: single items or small loads may take longer to dry.

• Dryness: If you are going to iron some of your clothes, they can be taken out while still a bit damp. Others can be left longer if you need them to be completely dry.

• Heat setting.
• Room temperature: if the room where the dryer is located is cold, it will take longer for the dryer to dry your clothes.
• Bulk: some bulky items can be tumble dried with care. We suggest that you remove these items several times, shake them out, and return them to the dryer until finished.

! Do not over-dry your clothes. All fabrics contain a little natural moisture, which keeps them soft and fluffy.

The table (see below) presents APPROXIMATE drying times in Hours : Minutes, as you see them on the display, the times are also shown in Minutes only for reference.

The times given are for Cupboard Dry Automatic programmes.

Timed Dry settings are also shown, to help you choose a suitable time option.

Weights refer to dry garments.

CottonsHigh Heat		1 kg	2 kg	3 kg	4 kg	5 kg	6 kg	7 kg	8 kg	9 kg
	Automatic duration	0:30 - 0:40	0:40 - 0:55	0:55 - 1:10	1:10 - 1:20	1:20 - 1:30	1:35 - 2:00	2:00 - 2:20	2:00 - 2:40	2:30 - 2:50
	Automatic minutes	30 - 40	40 - 55	55 - 70	70 - 80	80 - 90	95 - 120	120 - 140	130 - 160	140 - 170
	Timed Dry setting	0:30	1:00	1:00 or 1:30	1:30	1:30	1:30 or 2:00	2:00 or 2:40	2:00 or 2:40	2:40 or 3:00
	Drying times 800-1000 rpm in washing machine.
SyntheticsHigh Heat		1 kg			2 kg			3 kg
	Automatic duration	0:40 - 0:50			0:50 - 1:10			1:10 - 1:30
	Automatic minutes	40 - 50			50 - 70			70 - 90
	Timed Dry setting	1:00			1:00			1:00 or 1:30
	Drying times on reduced spin in washing machine.
AcrylicsLow Heat		1 kg				2 kg
	Automatic duration	Synthetics : Timed Dry only
	Timed Dry setting	0:30 1:00
	Drying times on reduced spin in washing machine.

GB

The appliance has been designed and built according to international safety standards. These warnings are given for safety reasons and must be followed carefully.

General safety

• This tumble dryer is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This tumble dryer has been designed for home, and not professional use.
• Do not touch the appliance while barefoot or with wet hands or feet.
• Unplug the machine by pulling on the plug, not the cord.
  Children must not be in proximity of the dryer when in use. After using the dryer, turn it off and unplug it. Keep the door closed to make sure that children do not use it as a toy.
  Children should be supervised to ensure that they do not play with the dryer.
• The appliance must be installed correctly and have proper ventilation. The air intake at the front of the dryer should never be obstructed (see Installation).
• Never use the dryer on carpeting where the pile height would prevent air from entering the dryer from the base.
• Check to see if the dryer is empty before loading it.
  The back of the dryer could become very hot. Never touch it while in use.
• Do not use the dryer unless the filter, water container and condenser are securely in place (see Maintenance).
• Do not overload the dryer (see Laundry for maximum loads).
• Do not load items that are dripping wet.
• Carefully check all instructions on clothing labels (see Laundry).
• Do not tumble dry large, very bulky items.
• Do not tumble dry acrylic fibres at high temperatures.
• Complete each programme with its Cool Tumble Phase.
• Do not turn off the dryer when there are still warm items inside.
• Clean the filter after each use (see Maintenance).
• Empty the water container after each use (see Maintenance).
• Clean the condenser unit at regular intervals (see Maintenance).
• Do not allow lint to collect around the dryer.
• Never climb on top of the dryer. It could result in damage.
  Always follow electrical standards and requirements (see Installation).
  Always buy original spare parts and accessories (see Service).

To minimise the risk of fire in your tumble dryer, the following should be observed:

• Tumble dry items only if they have been washed with detergent and water, rinsed and been through the spin cycle. It is a fire hazard to dry items that HAVE NOT been washed with water.
• Do not dry garments that have been treated with chemical products.
• Do not tumble dry items that have been spotted or soaked with vegetable or cooking oils, this constitutes a fire hazard. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as a tumble dryer. The items become warm, causing an oxidisation reaction with the oil. Oxidisation creates heat. If the heat cannot escape, items can become hot enough to catch fire. Piling, stacking or storing oil-effected items can prevent heat from escaping and so create a fire hazard. If it is unavoidable that fabrics containing vegetable or cooking oil or those that have been contaminated with hair care products be placed in a tumble dryer they should first be washed with extra detergent - this will reduce, but not eliminate the hazard. The cool tumble phase should be used to reduce the temperature of the items. They should not be removed from the dryer and piled or stacked while hot.
• Do not tumble dry items that have previously been cleaned in or washed in, soaked in or soiled with petrol/gasoline, dry cleaning solvents or other flammable or explosive substances. Highly flammable substances commonly used in domestic environments including cooking oil, acetone, denatured alcohol, kerosene, spot removers, turpentine, waxes and wax removers. Ensure these items have been washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Do not tumble dry items containing foam rubber (also known as latex foam), or similarly textured rubber like materials. Foam rubber materials can, when heated, produce fire by spontaneous combustion.
• Fabric softener or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless the practice is specifically recommended by the manufacturer of the fabric softener product.
• Do not tumble dry undergarments that contain metal reinforcements eg. bras with metal reinforcing wires. Damage to the tumble dryer can result if the metal reinforcements come loose during drying.
• Do not tumble dry rubber, plastic articles such as shower caps or babies waterproof covers, polythene or paper.
• Do not tumble dry rubber backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber coated tennis shoes.
• Remove all objects from pockets, especially lighters (risk of explosion).

!WARNING: Never stop the dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Saving energy and respecting the environment

• Wring out items to eliminate excess water before tumble drying (if you use a washing machine first, select a high spin cycle). Doing this will save time and energy during drying.
  Always dry full loads - you save energy: single items or small loads take longer to dry.
• Clean the filter after each use to contain energy consumption costs (see Maintenance).

Switching off the electricity

! Unplug your dryer when not using it, when cleaning it and during all maintenance operations.

Clean the filter after each cycle

The filter is an important part of your dryer: it accumulates lint and fluff that is formed while drying. When finished drying, clean the filter by rinsing it under running water or with your vacuum cleaner. Should the filter become clogged up, the airflow inside the dryer will be seriously compromised: drying times lengthen and you will consume more energy. It may also damage your dryer.

The filter is found in front of the dryer trim (see diagram). Removing the filter:

1. Pull the plastic grip of the filter upwards (see diagram).
2. Open the filter and clean the lint from the inside.
3. Replace it correctly. Ensure the filter is fully located flush into the tumble dryer trim.
4. Remove any lint that has built up on the inside of the door and around the door seal.
   ! Do not use the dryer without replacing the filter.

Check the drum after each cycle

Turn the drum manually in order to remove small items (handkerchiefs) that could have been left behind.

Empty the water container after each cycle

Pull the container out of the dryer and remove either the small or large cap and empty it into a sink or other suitable drain. Refit the cap and replace the container securely.

! Always check and empty the container before you start a new drying programme.

Cleaning the drum

! Do not use abrasives, steel wool or stainless steel cleaning agents to clean the drum.

A coloured film may start to appear on the stainless steel drum, this may be caused by a combination of water and, or cleaning agents such as fabric conditioner from the wash. This coloured film will not affect the dryer performance.

Cleaning the condenser unit

Periodically (every month) remove the condenser unit and clean any build up of fluff from between the plates by rinsing it under the tap with cold water.

This should be done with cold water from the rear of the condenser.

Removing the condenser:

1. Unplug the dryer and open the door.
2. Pull open the condenser cover (see diagram). Release the three catches by turning 90^ counterclockwise then pull on the grip and remove from the dryer.
3. Clean the surface of the seals and replace, making sure that the catches have been secured.

Cleaning the dryer

• External parts in metal or plastic and rubber parts can be cleaned with a damp cloth.
  Periodically (every 6 months) vacuum the front air intake grille, to remove any build up of fluff, lint or dust. Also to remove accumulation of fluff from the front of the condenser and filter areas, clean occasionally with a vacuum cleaner.

! Do not use solvents or abrasives.
! Your dryer uses special bearing components which do not need lubrication.
! Have your dryer checked regularly by authorised technicians to ensure electrical and mechanical safety (see Service).

GB

One day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the following troubleshooting suggestions:

Problem:

The tumble dryer won't start.

Possible causes / Solution:

• The plug is not plugged into the socket, or not making contact.
  There has been a power failure.
• The fuse has blown. Try to plug another appliance into the socket.
• You are using an extension cord? Try to plug the dryer's power cord directly into the socket.
  The door is not closed securely?
  The programme has not been set properly (see Start and Programmes)
  The Start/Pause button has not been pressed (see Start and Programmes).

Drying cycle will not begin.

Its taking a long time to dry.

• You have set a delayed time (see Start and Programmes).
  The filter has not been cleaned (see Maintenance).
• The water container needs emptying? The empty water message is displayed? (see Maintenance).
  The condenser needs cleaning? (see Maintenance).
• The temperature setting is not ideal for the type of fabric you are drying (see Start and Programmes, and see Laundry).
  The correct drying time has not been selected for the load (see Laundry).
• The air intake grille is obstructed (see Installation, and see Maintenance).
  The items were too wet (see Laundry).
  The dryer was overloaded (see Laundry).

Empty water message is displayed but the dryer has only been running for a short period.

Empty water message is displayed and the water container is not full.

• The water container was probably not emptied at the start of the programme. Do not wait for the empty water signal, always check and empty the container before starting a new drying programme (see Maintenance).
  This is normal, the: END OF CYCLE, CLEAN FILTER AND EMPTY WATER BOTTLE message is shown as a reminder to empty the container (see The Display and Start and Programmes).

Programme finishes and clothes are damper than expected.

The display shows a fault code F followed by one or two numbers.

! For safety the dryer has a maximum programme time of 4 hours. If an automatic programme has not sensed the required final moisture in this time the dryer will complete the programme and stop. Check the above points and run the programme again, if the results are still damp, contact the Service Centre (see Service).

If the display shows a fault:

• Turn off and remove the plug. Clean the filter and the condenser (see Maintenance). Then replace the plug, turn on and start another programme. If a fault is then displayed note down the code and contact the Service Centre (see Service).

The display briefly shows DEMO ON every 6 seconds.

• The dryer is in 'Demo' mode. Press and hold both the On/Off and Start/Pause buttons for 3 seconds. The display will show DEMO OFF for 3 seconds and then the dryer will resume normal operation.

The lights on the dryer control panel are off although the dryer is switched on.

• The dryer has gone into standby mode to save power. This occurs if you have had a power cut or leave your dryer either without starting a programme or after your drying programme has finished.

• Press and hold the On/Off button and the lights will come on.

Before calling the Service Centre:

• Use the troubleshooting guide to see if you can solve the problem yourself (see Troubleshooting).
  If not, turn off the dryer and call the Service Centre closest to you.

What to tell the Service Centre:

name, address and post code.
- telephone number.
the type of problem.
the date of purchase.
the appliance model (Mod.).
the serial number (S/N).

This information can be found on the data label inside the door of the machine.

Spare Parts

This dryer is a complex machine. Repairing it yourself or having a non-authorised person try to repair it could cause harm to one or more persons, could damage the machine and could invalidate the spare parts warranty.

Call an authorised technician if you experience problems while using the machine.

Recycling and Disposal Information

As part of our continued commitment to helping

the environment, we reserve the right to use

quality recycled components to keep down customer costs and minimise material wastage.

• Disposing of the packaging material: follow local regulations, so the packaging can be recycled.
• To minimise risk of injury to children, remove the door and plug - then cut off mains cable, flush with the appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains socket.

Disposal of old electrical appliances

The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Textile Charge maximum

Ekkivnon kai npoypauata, 76-79

Enioyn npoypaumato

Eioka npoypamuata

Tporonontc mEuloynpoypaatoc

Nivakaç npoypaμatwv

Xeipiotnpia

TCD 93B

Tnv npwtn oopa nou 0a evepyonoioeTe To oteyvwnpio ca npentie va eimieTe Tnv eimuunnyawogaa 6A. 6eia 74

O npoeiobonoiac autc npexovtayiaoyouc aopaleic kai npeneva npouvtai npooxh.

Evikn aopalaia

To oEvwnpio auto Ev npoopictai yia xpno ano atoua (nepiaabavovewv naolwv) eEiwvec oawatkec, aoenmpiaekc n vveuatakec ikavotntec, eAeAeim Eneipiac n VVooewv, Ekoc avxpoonoiouv m ouokeun uno m v enontia kaoobynon atouu unuebuvou ia mv aopaia touc.
To oEvWntpio auto exi oxediaotei ia okiakn kai oxi yia enayyEuaTki xpon.
Mny ayyiEe T ouokun otav biote Eunolntoi n exTe BpEymuva xepia n modia.
O'Tav ByaZeTe m ouakeun ano mv npia, tpaBATE to peuataolnTm (pic) kal oxi To kaawio.
Ta naiia dev npeneva piokovtai kovta oTo OTeyywtnpio otav aeitoupyei.Meta Txpnon, anevepyonoiote to Teyywtnpio Kai Byalte To ano mV npia.Kparate mv npota Kaetn yia va Bebaoweite on ta naiia dev th npnoaonoiouv aaynxvi.
Ta naiia 6ev npenei va mevouv xwiic eniBaeun, wote va diaoqpaiaizetai ot ev naiouv u To steyvwtnpio.
H ouokcun npenei va eYkaioTatao oWtca kai va aepizetai enapkwc. H ioooc aepa ot mnpootivn ououeYvwnpiou dev npenla va paootai notE. (Bλ.Eykaratao).
Noty xnpouonoeite to oTeVwtnpio enawo ce ya onou to uoc tou naoucmuopei va emoizc ta eoo do Tou aepa oTo oTeVwtnpio an to baon.
EeYTe av to oeywmpio eivai aedto npiv to yepieTe.
To niow epoc tou steyvwmpiou npopei va Zeotaei nolu. Noté unv to ayivcTe mV wpa nou laitoupyei.
Mn xnpoioeite to oeyvwnpo ev to piaTpo, o nepiektnc vepou kai o uunukwntc dev exouv oTepeewtheta ka aon th eon touc (B. L. Suvippon).
Mnu uneppoptwveTo steyvwmpio (Bλ. Pauoovv)viaeYiota optia.
MnVBaTe OTo OTeyWmPto PauEvapoua Poua Tou otouv.
EeYETe npoOeKtika oEc TcG odnyec otic EtiketeTow pv pouxov (B. Nuauou pouxw).
MnV OTeYvWvETe MEyAa, nou oyKwOg EIO.
MnyoeyvovteakpuiakaupaogataeuiyIeS 0epuokpaio.
Oλokλnpωvεσεδa ta npoypaμata m Φaon Kpuou Σεγνωμatoc.
MnV anevepyoioite To oEvWntpio Evw nepexakoun zotapouxa.
Kaθapiετε to φιλτρο μετά πό καθε χρηση (βλ. Συντηρηση).
EeewveteTovnepiKtnvepuou ta ano kaThetaon (B. Suvtponon).
KaBapicTe m novadotou ouunukwnt ava taktaxovikdaiaotmuata (3. Suvmpon).
Mny aynve Ta ouykevtpwetai xvooi yupw ano TO oTEYWmio.
Note unv avBaiveE enav oTo oteywntpio, unpa va npokalote Baa
- NaVt a mpeite Ta nAektpiKa npotuna KaI Tnpooiaypapc (βλ. EykaTaoaon).
- NaVt a ayopacTe yvnoia avtaaaktka kal aEooap ( .T_ex k unootnpiE).

Tia va eLaxiToOnoIne i KivduoN uPpayias oTo OTeyywtnpiO aoc, Ta npenei va npoeXETe ta EhC:

aTe OTo OTEyWmIo pOuaMoV av Exouv nueei Me anoppuavIKo Ka vep,Exouv EeIauei Kai OTupei. YnApexi Kivouoc npkayic av OTEyWveTe pouxa nou EN Exouv nuEei Me vepo.
Mny oteyvwvte pouxa nou exouv unoBAnBei oexnuk npoiovta.
Mn oteywve touxouxovxepo1y eunototeiue aiaolao hdoayipikc, yati unapdxei kivouoc npkayiac,Ta laowmuavtkieva utopei va avapkyouu autouata, idaietepa otav ektevtae nyecebpoumtac otwc to tseyywmpio. Ta atukieva zctatiovvat kal pokaoulvma vntbpaonoeidwnoc me to adh, n oioia npokalei tbaevpoumtaaevnpoeia va diaquvyta atvtkeiva evdexetai va eepauhoue neitne do npokannc npkayiac.H otaBgn n n quaen naowevuv avtkeivewv mnoepoi va emiodoe ndiapuyyn Tc bepoumtac kal va odmyoe iE kivuvnpkayiac. Av dev mnoepai va anopoeuxei n tonoetmon oto oteywwtnpoupaqauatowouxov xepo3e μutko n ayevkoia kabi n me npoiovta nepinoinmc paalaw, ta 10n auta thnpentnpiota va nlevovat me ETPa nootmta anoppuvantkou - auto ueiwovr Kov kivuvoa, aldaevtov Eaalepsia. Ta meeionm Tc bepokpaoicawv 6ow, ba npeta va xpnoiomoeita n qan npiotpooec oaxanl npekpaoia. Ta sion dea npetie va byaivouv ao to oteywmpio kai va otoiacovtai ooo ivai niu zeota.
Mn OTeyVwTe Eon nou exou nponyouevwc KaBapoiTei, nAthei, gnuototiE i N eepoetie M TepeiaoBeZiv, diautika KaBapiaou n aAec EukAEKTEc EKPNTkIEC ouiec. Tcig idaiitepa EupAeKTEc ouiec nou xpanouotoiovTu eupoeoc 0To otnti nepaubavovTt oayepiko lao, to aoeTov, n MeTouaiuewv anAkoan, n knpOziv, ta KaBapiotka Aekedow, to TepeivbElaio, Ta Kepla kal ouaic, apaipoeanc keipw. Pn ao To OTeyWwma OTo OTeyWmio, Bbetaweite oni Ta eon auta exounv naueei OE ceto vepo me EToa nooTta anoppunavtkou.
Mn oteyvweE iOJ nou neipexovu appo kaoutouk (ywoTo kai wc appo AATE) n EAAOTKA avtkeiueva 1e npoia uPn. Av eepauvou, ta uka appo KAOUTOUK mTOpov v na pokaeeouv foWla oyoa autavapalenc.
Maaktka Ka npoia npoiovta de V tha npeie va xpoioiouovta oTo steywtnpio yia Tny anopuyn Tov paivoeuv otankou nektpiouou, kToc ki av n xon Touc ouviotatau pnta an tov kataokvaotn Tou maaktkou.
Mn oteywveTe eowpouxa Tou nepiexouv mtalakc evioxueic, x. ouutiev mptalevec Av oI mtaikec vioxuoic anoanaooov kata n diapkeia Tou oteywatoC, to oteyvwtnpio npopei va unootei zmaia.
MnBaTeE OTo OTeyVWtnpio EiOn ano KaouTouK, nAOTika ONwO CKOUpakia mAnviov n aiaBPOxa KAUmuata yia uopa, EiOn ano noLauaBulEvio n xaptiva avtkeuva.
Mn baTe OTo oTeyVwtnpio EiOn nE e TeEvouan ano KAoutouk, pouxa E EvIOxOeIC ano appo Kaoutouk, MaIaApia, yalotaoc kal aalntika TAnoutoi a EteEvouan Kaoutouk.
Apaipote ola ta avtkeiueva ano tic toenec, Idaitepa Touc avanmpes (kivduvoe ekpnEnc).

IPOEIAONOH: Not e n diakontete m aeitouyia tou 0TEYVWNIPOIIV AnTO TEOAC TOU KKAOU OTEYVWJATOC, EKTOC sAV dAa Ta avtkeiueva apaipeBouKAI anwOuv yypova, wote va vivei diaxuan nC thepOITnTac.

EeioKovounon EvpyiaC kai e6aouoc oTo nepi6aAov
